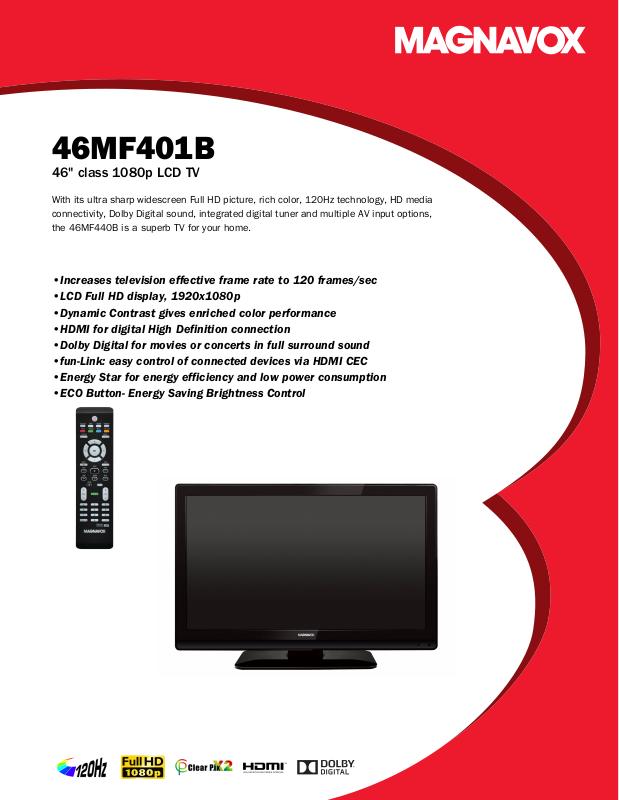

46MF401B
46" class 1080p LCD TV
With its ultra sharp widescreen Full HD picture, rich color, 120Hz technology, HD media
connectivity, Dolby Digital sound, integrated digital tuner and multiple AV input options,
the 46MF440B is a superb TV for your home.
•Increases television effective frame rate to 120 frames/sec
•LCD Full HD display, 1920x1080p
•Dynamic Contrast gives enriched color performance
•HDMI for digital High Definition connection
•Dolby Digital for movies or concerts in full surround sound
•fun-Link: easy control of connected devices via HDMI CEC
•Energy Star for energy efficiency and low power consumption
•ECO Button- Energy Saving Brightness Control
46MF401B/F7
46" class 1080p LCD TV
Product specifications
Picture/Display
• Aspect ratio: Widescreen
• Diagonal screen size: 46 inch / 116.8 cm
• Visible screen diagonal (inch): 46.0 inch
• Panel resolution: 1920x1080p
• Picture enhancement: Progressive scan, 3D
mbfilter, Digital Noise Reduction, Dynamic
Co
contrast enhancement, 3/2 - 2/2 motion pull
down, Clear Pix X2
Sound
• Sound System: Mono, Stereo, SAP, Dolby Digital
(AC-3)
• Output power (RMS): 2 x 10W
• Sound Enhancement: Virtual Surround Sound
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, PLL Digital Tuning
• User convenience: Sleep Timer
• Ease of Use: On Screen Display, Smart Picture,
art Sound, Closed Captioning Full Text, Auto
Sm
Volume Leveling, Side Control
• Screen Format Adjustments: 4:3, 16:9, Normal,
m, Full, Movie Expand, Wide
Zoo
• Child Protection: Child Lock+Parental Control
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• Tuner bands: UHF, VHF
• TV system: ATSC, NTSC
• Video Playback: NTSC
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: JPEG Still pictures, MP3
Connectivity
• AV 1: CVBS in, Audio L/R in, S-Video
• AV 2: CVBS in, Audio L/R in, S-Video
• AV 3: YPbPr, Audio L/R in
• HDMI 1: HDMI, Analog audio L/R in
• HDMI 2: HDMI
• HDMI 3: HDMI
• USB: USB(music,photo)
• AV output: Audio (L/R) x1
• Audio Output - Digital: Coaxial (cinch)
• HDMI-CEC: One touch play, Power status, System
stan
Power
• Mains power: 120V/60Hz
• Standby power consumption: <1W
• Ambient temperature: 5°C to 40°C (41°F to 104°F)
Dimensions
• Set dimensions in inch (W x H x D):
44.3 x 28.4 x 4.4 inch
• Set dimensions with stand in inch (W x H x D):
44.
• Product weight (lb): 48.15
• Product weight (+stand) (lb): 53.58 lb
• Box dimensions in inch (W x H x D):
50.
• Weight incl. Packaging (lb): 63.65
• VESA wall mount compatible: 400 x 400 mm
Accessories
• Included accessories: User Manual, Quick start
guide, Registration card, Remote Control, Batteries
for remote control, Table top stand
dby
3 x 30.4 x 11.7 inch
3 x 34.6 x 10.4 inch
120Hz
120 Hz technology provides a viewing experience with
extreme picture clarity for fast motion and scrolling
text due to the doubled frame refresh rate over
conventional 60 Hz frames per second.
LCD Full HD display 1920x1080p
This display has a resolution that is referred to as Full
HD. With state-of-the-art LCD screen technology it has
the full high-definition widescreen resolution of 1920
x 1080p. This is the highest resolution that HD
broadcast can transmit. It allows the best possible
picture quality from any format of HD input signal. It
produces brilliant flicker-free progressive scan
pictures with optimum brightness and superb colors.
This vibrant and sharp image will provide you with an
enhanced viewing experience.
Dynamic Contrast
Special picture processing technology dynamically
and seamlessly delivers vibrant images in bright
scenes or reproduces a deep blacks and accurate
rendering of darker colors and shades in dark scenes.
You get the ultimate LCD picture: stable and clear
images with enriched color performance and excellent
contrast.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it delivers
an unblemished image. The non-degraded signal
reduces flicker and leads to a clearer picture. HDMI
intelligently communicates the highest output
resolution with the source device. The HDMI input is
fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Dolby Digital
Dolby Digital, the world's leading digital multi-channel
audio standard, makes use of the way the human ear
naturally processes sound. With Dolby Digital you
experience superb quality surround sound audio with
realistic spatial cues.
Date of issue 2013-02-24
Version: 1.1.1
12 NC: 8670 000 72796
UPC: 6 09585 20563 5
fun-Link
fun-Link uses the HDMI CEC industry standard , to
share control between devices connected to the TV.
With fun-Link only one remote control is needed to
operate the main functions on your TV and connected
devices like a Blu-ray player or home theater system.
Energy Star
Energy Star-labeled home electrical products are
designed to use less energy - saving you money while
reducing environmental pollution. In fact, Energy
Star-compliant products consume less than 1 watt of
power while in standby mode. This is achieved by
having low standby power consumption through
innovatively designed standby circuitry and stringent
selection of components made with high efficiency
materials.
