Philips 46HFL4382D/10 leaflet

Download

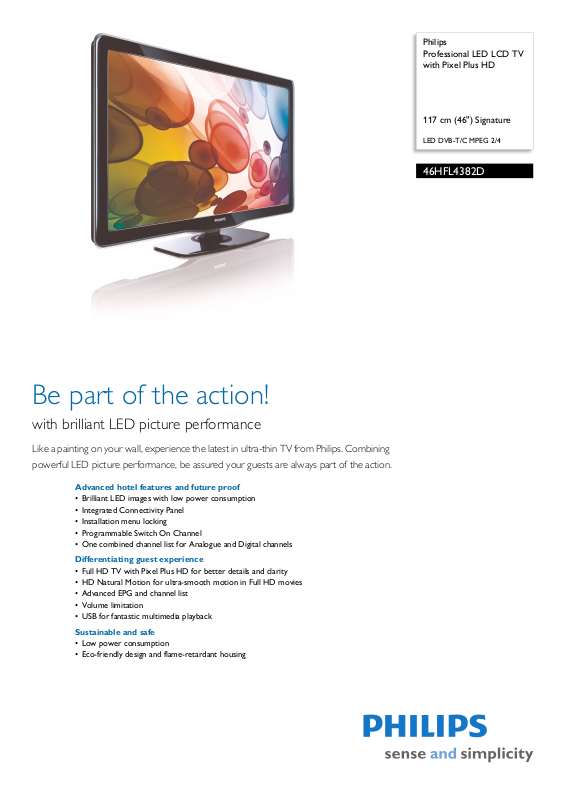

Page 1

Philips Professional LED LCD TV with Pixel Plus HD

117 cm (46") Signature

LED DVB-T/C MPEG 2/4

46HFL4382D

Be part of the action!

with brilliant LED picture performance

Like a painting on your wall, experience the latest in ultra-thin TV from Philips. Combining powerful LED picture performance, be assured your guests are always part of the action.

Advanced hotel features and future proof

• Brilliant LED images with low power consumption

• Integrated Connectivity Panel

• Installation menu locking

• Programmable Switch On Channel

• One combined channel list for Analogue and Digital channels

Differentiating guest experience

• Full HD TV with Pixel Plus HD for better details and clarity

• HD Natural Motion for ultra-smooth motion in Full HD movies

• Advanced EPG and channel list

• Volume limitation

• USB for fantastic multimedia playback

Sustainable and safe

• Low power consumption

• Eco-friendly design and flame-retardant housing

Page 2

Professional LED LCD TV with Pixel Plus HD

117 cm (46") Signature LED DVB-T/C MPEG 2/4

Highlights

46HFL4382D/10

LED

LED lighting technology is the most advanced available. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as having the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colours.

Pixel Plus HD

Pixel Plus HD offers the unique combination of ul

timate sharpness, natural detail, vivid colours and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Artifacts and noise in all sources from multimedia to standard definition TV and also in highly compressed HD are detected and reduced, ensuring that the picture is clear and razor sharp.

HD Natural Motion

Philips invented HD Natural Motion to minimise juddering effects that are visible with movie-based picture content. The award winning algorithm estimates motion in the picture and corrects juddering movements in both broadcast and recorded movie material (such as DVD and Blu-ray Disc). The resulting smooth motion reproduction and excellent sharpness take the viewing experience to a higher level.

Integrated Connectivity Panel

The Integrated Connectivity Panel allows your gue

sts to seamlessly connect their personal devices to your TV without the need for an external Connectivity Panel.

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs

also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

Programmable Switch On Channel

Perfect for in-house advertising or information c

hannels as it allows a predefined channel to be

shown when the TV is turned on.

Advanced EPG and channel list

The attractive EPG and channel list include i

ntuitive buttons with clear guiding graphics to

easily locate your favourite channels.

USB (multimedia)

The USB connector allows access to jpeg photos, MP3 music and video files on most USB sticks (USB memory-class device). Plug the USB into the slot on the side of the TV and access the multimedia content using the easy on-screen content browser. You can now view and share your videos, photos and music.

Hospitality features

All Philips Hospitality TVs are made with the market in mind, especially for the hospitality, detention and healthcare environments. Special features include volume limitation, menu locking, cloning and a special remote control.

LED lighting technology

LED lighting Technology is the most advanced an consumption in its category.

d has the lowest power

Page 3

Professional LED LCD TV with Pixel Plus HD

117 cm (46") Signature LED DVB-T/C MPEG 2/4

Specifications

46HFL4382D/10

Picture/Display

• Peak Luminance ratio: 65 %

• Diagonal screen size: 46 inch / 117 cm

• Aspect ratio: Widescreen

• Panel resolution: 1920 x 1080p

• Brightness: 450 cd/m²

• Response time (typical): 2 ms

• Picture enhancement: Active Control + Light nsor, Colour Enhancement, Digital Noise

s Reduction, Luminance Transient Improver, 2D/3D noise reduction, Dynamic contrast enhancement, Pixel Plus HD, 100 Hz Clear LCD, 1080p 24/25/ 30 Hz processing, 1080p 50/60 Hz processing, HD Natural Motion

• Dynamic screen contrast: 500,000:1

• Screen enhancement: Anti-Reflection coated

• Viewing angle: 176º (H)/176º (V)

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G,

SECAM D/K, SECAM L/L', DVB C

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB Terrestrial*, DVB-C MPEG4,

DVB-T MPEG4

OFDM 2K/8K

Sound

• Output power (RMS): 20 W

• Sound System: Mono, Stereo, Nicam Stereo

• Sound Enhancement: Auto Volume Leveller,

credible Surround, Treble and Bass Control

Connectivity

• Ext 1 Scart: Audio L/R, RGB

• Ext 2: Audio L/R in, YPbPr in

• Front/Side connections: USB, HDMI v1.3

• HDMI 2: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System

dby, Remote control pass-through, System

st audio control

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Headphone out

Convenience

• Ease of Installation: Programme Name, Auto Programme Naming, Sorting

• Ease of Use: Smart Picture, Smart Sound

• Clock: Sleep Timer

• Multimedia: USB autobreak-in

• Child Protection: Child Lock+Parental Control

• Teletext: 1200-page Hypertext

• Electronic Programme Guid Programme Guide, Now + Next EPG

• Screen Format Adjustments: Movie expand 16:9,

• Firmware upgradeable: Firmware auto upgrade

reen, Super Zoom, unscaled (1080p dot by

Widesc dot), Auto Format

, Firmware upgradeable via USB

wizar

: 8-day Electronic

Multimedia Applications

• Multimedia connections: USB memory class device

Power

• Off mode power consumption: < 0.01 W

• Presence of lead: Yes*

• Annual energy consumption: 159.14 kW·h

• Mains power: 220-240 V ~ ;50-60 Hz

• Power consumption (typical): 109 W

• Standby power consumption: < 0.15 W

• Ambient temperature: 5°C to 35°C

Dimensions

• Set dimensions (W x H x D): 1122 x 685 x 87 mm

• Set dimensions with stand (W x H x D):

x 731 x 268 mm

1122

•Box dimensions (W x H x D):

x 773 x 198 mm

1349

• Product weight: 17.9 kg

• Product weight (+stand): 21.3 kg

• Weight incl. Packaging: 26.4

• VESA wall mount compatible: 300 x 300 mm

Accessories

• Included accessories: Remote Control, Tabletop swivel stand, Quick start guide, Warranty Leaflet

• Optional accessories: Set up remote 22AV8573/00

•

Issue date 2011-06-29

Version: 3.0.2

12 NC: 8670 000 66479 EAN: 87 12581 55805 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Typical on-mode power consumption measured according to

IEC62087 Ed 2.

* Annual energy consumption is calculated using the typical power

consumption of 4 hours per day, 365 days per year.

* This television contains lead only in certain parts or components

where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive.
