Contents

Remark : The featuring dealt with in this instruction manual does not necessarily match with your type of TV.

Installation

Your remote control 2 Preparation 3-4 To use the menus and the menu system 4 Select the menu language 5 Select the country 5 Store TV channels

Automatic installation 6 Manual installation 6 Give name 6 Reshuffle the programme list 6 Select Favourite TV channels 6

Select TV setup 7-9

Operation

Use of the remote control 10-12 Keys in front of the TV receiver box 12 TV menu

Picture menu 13-14 Sound menu 14-15

Features menu 16-17 Dual screen/PIP (FTR 9964 only) 18 Multipip (FTR 9964 only) 19 Teletext Guide 20 Teletext 21-23

English

Help? If this instruction manual does not give an answer or if ‘Tips’ do not solve your TV problem, you can call your Local Philips Customer or Service Centre. See the supplied World-wide guarantee booklet. Please, have the Model and Product number which you can find at the back of your television set or on the packaging, ready, before calling the Philips helpline.

Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product No: . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect Peripheral Equipment

Connecting and selecting equipment 24-27 Remote Control functions for peripherals 28-29 Recording 30

Tips 31 Index 31 Glossary 32

M h a

SMART

ACTIVE

CONTROLSMART

213

546

879

‡π

†

æ b

Mqa

SÌb

MOVIE SPORT CHILD NEWS OTHER

VCR DVD SAT

TAPE CD

TUNER CDR

SMARTSMART

PICTURESOUND

¬V P

◊

Uﬁh

pπ

®Q q c

INSTANT

ZOOM

Installation

w Peripherals p. 27

Source selection of EXT1, EXT2,

EXT3, EXT4, EXT5, FRONT,VGA

or TV channels

Mode keys p. 10 TV,VCR, DVD, SAT,TAPE, CD, TUNER or CDR selection

b Dual screen/PIP on/off p. 18

(FTR 9964 only)

S Freeze format on/off p. 10

(FTR 9964 only)

Ì Cinema Link

See separate instruction manual

æ Teletext Guide on/off p. 20

OK Activate your choice p. 10

V Volume Up/Down p. 10 ¬ Sound mute p. 10

P Programme selection p. 10

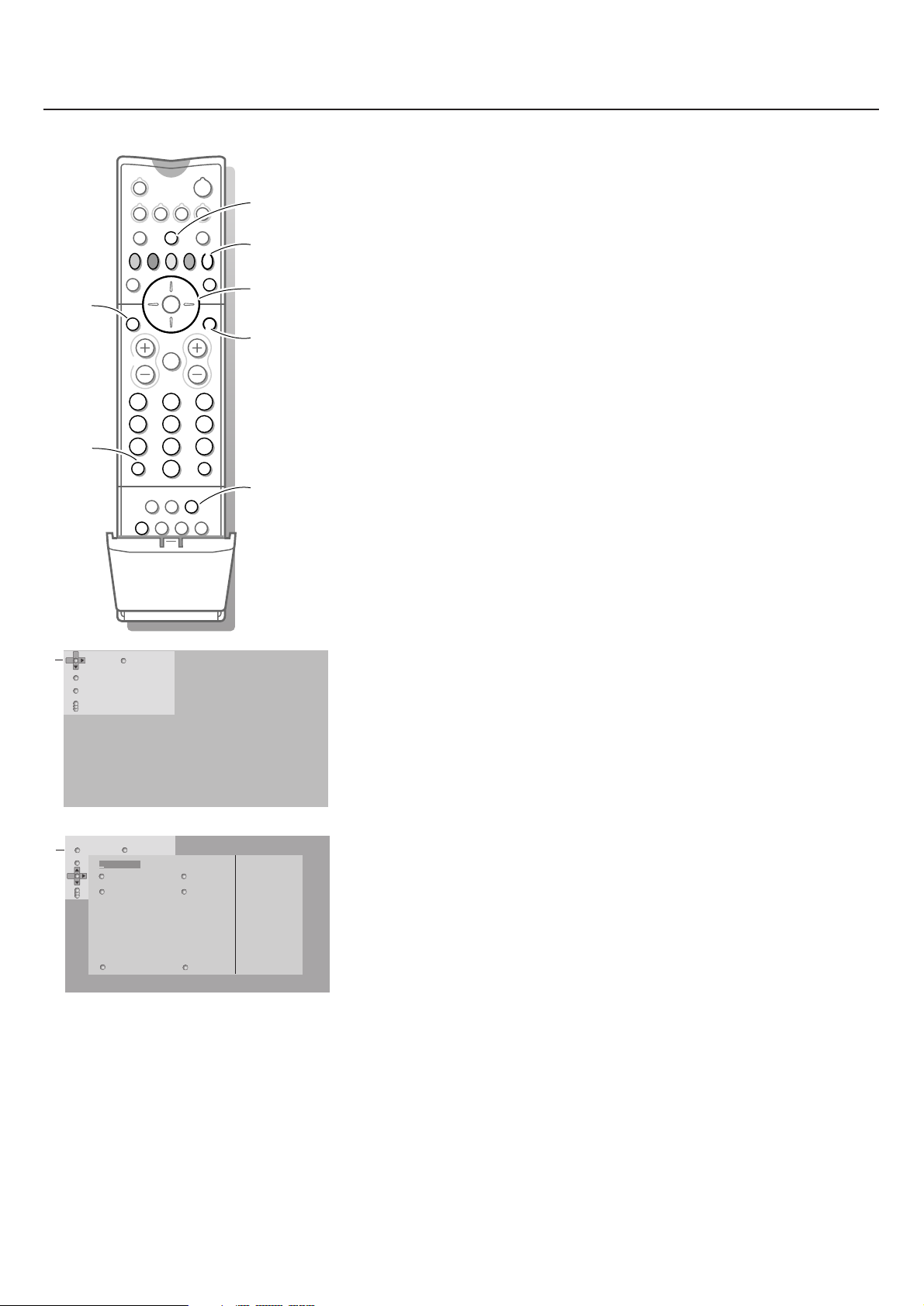

Your remote control

B Switch to standby p.10

b Teletext on/off p. 21 Ï Main menu on/off p. 4

Colour keys

- direct teletext page or subject selection p. 21

- basic functions selection in Teletext Guide p. 20

Audio- and Video equipment

p. 28-29

i Screen information p. 10 0 Smart surf key p. 11

◊ Video recorder function p. 28

Q Surround mode p.11

® EasyLink - instant recording p. 11 q Picture format p. 11

Cursor to select your choice

U Time display p. 11 ﬁ Multipip on/off p. 19 (FTR 9964 only) h Enlarge in TXT p.22

Zoom on/off p. 11

c Swapping screens p. 18 (FTR 9964 only)

Smart Controls

M Smart sound p. 12

h Active control p. 12

a Smart picture p. 12

VCR

TV DVD SAT

CDTAOE TUNER CDR

SbÌ

MOVIE OTHERNEWSCHILDSPORT

æ b

min.

Preparation

& Place the receiver box wherever you want, but make sure that air can

circulate freely through the ventilation slots. Do not install the receiver box in a confined space such as a book case or a similar unit. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on it.

é Connect the supplied aerial cable 1 and the VGA cable with trailing audio

cinch connectors 2 as shown in the inside frontcover of this handbook. Make sure all screws of the cable 2 are tightened well.

TV receiver box with speakerless monitor

In case you connect your TV receiver box with a speakerless monitor, and without having connected an audio receiver, all references made in this instruction book to sound reproduction, volume control, and audio connections, are not applicable (except for a headphone connection). The keys on the remote control referring to sound have no function either.

“ To connect your computer, see the separate supplied instruction manual with

your monitor. To connect other peripherals, see p. 24. If you dispose of a Cinema Link combination (Cinema Link Audio receiver and/or Cinema Link video recorder and/or DVD player), see the separate supplied instruction manual. In order to obtain the best result, please use only the supplied antenna cables between the receiver box and videorecorder, and between videorecorder and antenna connector.

‘ Insert the mains cord supplied 3 into the MAINS at the back of the monitor

and the mains cord 4 at the back of the receiver. Put both in the wall sockets.

R6AA - 1,5V

( Remote control: Remove the cover of the battery compartment.

Insert the 2 batteries supplied (Type R6AA-1.5V). Press the TV key to be sure your remote control is in the TV mode.

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many countries batteries may not be disposed of with your household waste. Please check on how to dispose of batteries according to local regulations.

§ Switch the TV on : Press the power key B at the right side of the

monitor and the one on the front of the receiver box. A green indicator lights up both on the monitor and on the receiver box and the screen comes on. If the indicator is red, press the -P+ key or one of the digit keys on the remote control.

The green indicator blinks every time you press a key on the remote control. When you switch on your set for the first time, the menu automatically appears on the screen.The explanation appears in different languages one at a time. Follow the instructions on screen.

LANGUAGE

3Preparation

213

æ b

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

SbÌ

MOVIE OTHERNEWSCHILDSPORT

(DVD) (VCR)

(Receiver)

Setup

Install

(Exit)

pipes

switch main menu on/off

cursor to select adjustments

OK key to activate

Picture Sound Features

puck

balls

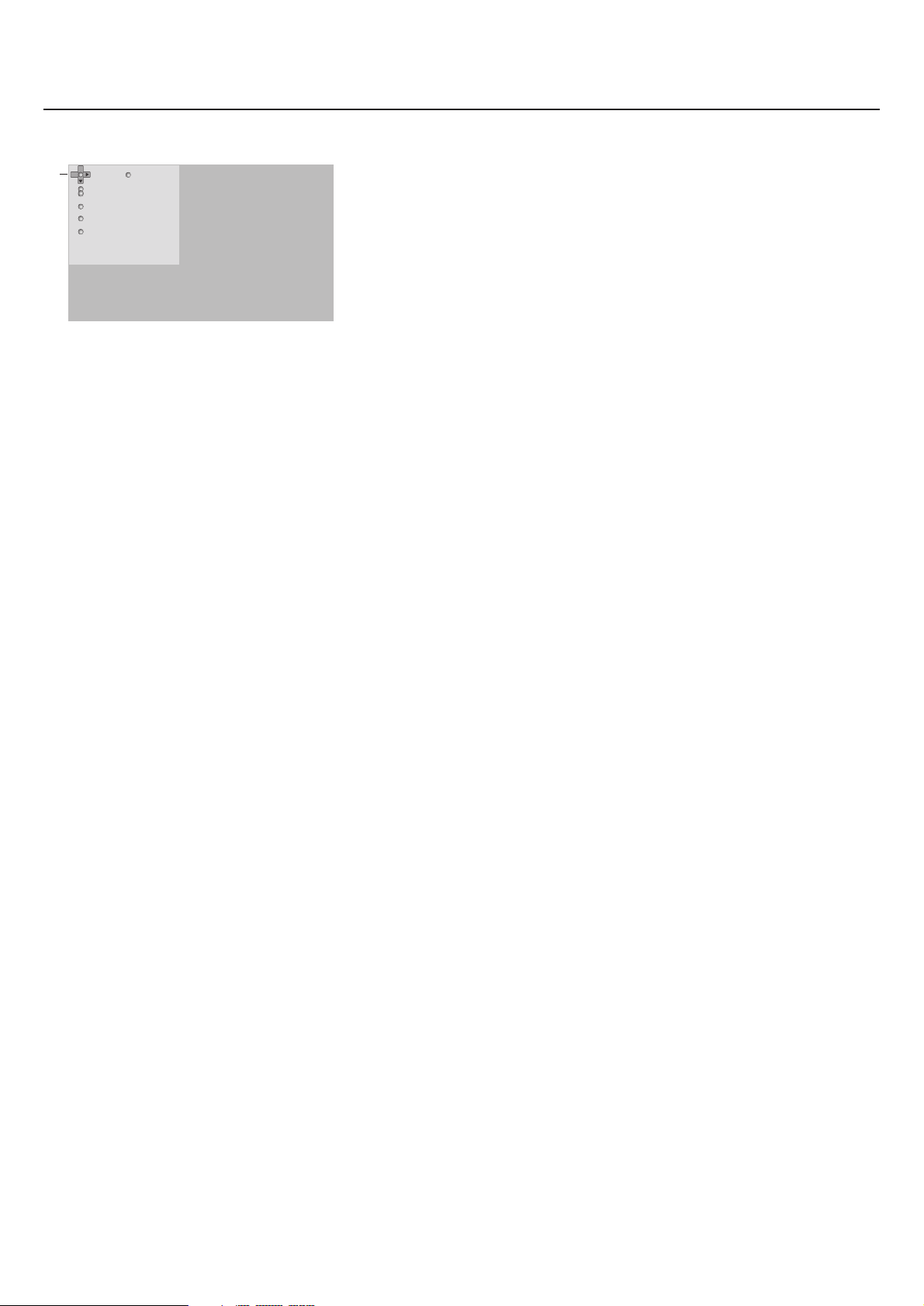

To use the menus and the menu system

Attention: point the remote control to the indicator of the monitor.

& Press the MENU Ï key on the remote control to summon the main menu.

Which items appear in the main menu depends on the peripherals connected. In case of an EasyLink VCR the menu item VCR is present, see p. 24. In case of a Cinema Link audio receiver the menu item

Receiver is present.

See the separate Cinema Link booklet supplied.

Note:The Main menu contains the item

Exit to dismiss the menu, only when you

switch on your TV for the first time, or when the Main menu is summoned with

MENU key in front of the TV receiver.

the

é Use the cursor in the up/down direction to select the TV, (DVD), (VCR),

(Receiver), Setup or Install menu.

Note: Sometimes not all the menu items are visible on the screen. Press the cursor

down to reveal all items.

“ Use the cursor in the left/right direction to select the menu item. ‘ Use the cursor up/down again to select the control you want to select or to

adjust. For instance, see Picture menu.

( Press the MENU Ï key again to turn off the main menu.

The menu system

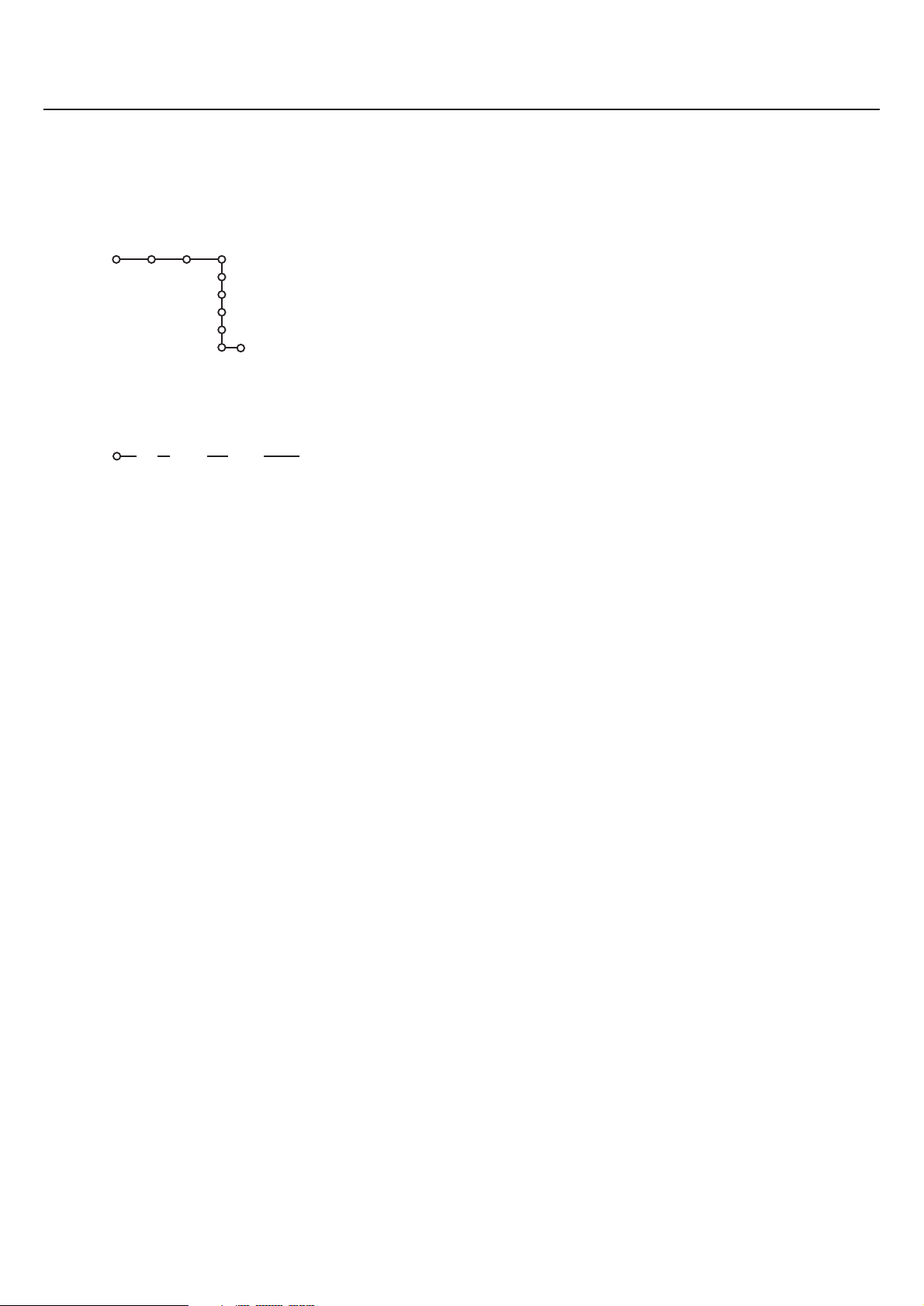

Pipes, balls and a puck

The hierarchy of menus and controls is represented by an animated visual mechanism of pipes, balls and a puck.The animated mechanism constantly shows the current whereabouts and continually expands the view of the immediate neighbourhood.

The puck surrounds the ball indicating the user’s current position in the menu hierarchy. The puck is always present when the menu system is displayed. The puck is divided into 4 parts.They correspond to the directional controls (up/down, left/right) on the remote control.The arrows on the cursor indicate which directions to choose. In this way users can navigate through the menu hierarchy to the control they wish to adjust.

When items are more numerous than can fit comfortably on the TV display, only a portion are shown.Those omitted are indicated by a cluster of balls which indicates that there are ‘more’ items.

Picture format

Preparation

Direct selection and control

Menu items are controlled as soon as they are selected by the puck. Only a few items require confirmation with the OK key.

Picture Sound

List controls

A list control is used to select one or more items from a list of options. For instance, the Picture format option list with 4:3, Movie Expand 14:9, etc. Press the right key to move the puck into the list. At least one item is the

Auto format Super zoom

4:3

Movie Expand 14:9 Movie Expand 16:9 Subtitle zoom Wide screen

current value and is highlighted. Moving the puck up or down with the up/down key causes the list to move down or up.

213

546

æ b

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

SbÌ

MOVIE OTHERNEWSCHILDSPORT

Select the menu language

return or switch main menu on/off

cursor to select adjustments

OK key to activate

Language

Install

English

Deutsch

Français

Select the country

& Press the MENU Ï key on the remote control.

When you switch on your TV for the first time and no channels are stored so far, the menu Language automatically appears on the screen.This menu also has an additional item

Exit with which the menu can be dismissed. The

explanation appears in different languages, one at a time. Choose your preferred language and press the OK key on the remote control. Proceed with the Install menu.

é Use the cursor down to select Install. “ Use the cursor right to select Language.

Follow the instructions on screen.

‘ Use the cursor up/down to select your preferred language and press

the OK key to confirm your selection.

( Proceed with the Install menu.

Install

Country

Austria

Belgium

Croatia

Store TV channels

Install

Automatic installation

Install Start

Automatic installation

Select Automatic installation in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If requested, enter your code to unlock all channels. (See TV, Features menu, Childlock, p. 16.)

é Press the cursor down.

The autoprogramming option label

“ Press the cursor right. ‘ The message Searching appears and the progress of

autoprogramming is displayed. When the Automatic installation is complete, the puck navigates to Install again.

Start appears.

& Use the cursor right to select Country. é Select the country where you are now located and press the OK key.

Other when none of the countries applies.

Select

“ Proceed with the Install menu.

You can now search for and store the TV channels in two different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel). Select your choice with the cursor right.

After the new or extra TV channels have been stored, the TV automatically transfers those TV channels to the video recorder if it is equipped with the EasyLink function. The message screen. The programme list of the video recorder is now the same as the one of the TV.

If a cable system or a TV channel which broadcasts ACI (Automatic Channel Installation) is detected, the search is stopped and the programme list appears. Without ACI broadcast, the channels are numbered according your language and country selection.You can use Reshuffle to renumber them. See p.6.

It is possible that the cable company or the TV channel displays a broadcast selection menu. Layout and items are defined by the cable company or the TV channel. Make your choice with the cursor and press the OK key.

EasyLink: downloading ...... appears on the

5Installation

Manual installation

Install

Manual installation

Selection mode System Programme Search Fine tune Store

& Select Manual installation in the Install menu. é Press the cursor down.

Give name

® Space ® Delete

VCR1 BBC1 BBC2 CNN TVE

π.....

It is possible to change the name stored in the memory or to assign a name to a TV channel for which a name has not yet been entered.A name with up to 5 letters or numbers can be given to the programme numbers 0 to 99. For example SUPER, BBC1,... Before programme number 0 you can also enter a name for the peripherals that are connected to a euroconnector.

Note: it is not possible to rename the VGA source.

pπ

ABCDEFG 1 23 HIJKLMN 4 56 OPQRSTU 7 89 VWXYZ 0

® Shift ® Special

Searching for and storing TV channels is done channel by channel.You must go through every step of the Manual Installation menu.

Follow the instructions on screen.

Note: Search or direct selection of a TV channel If you know the frequency, the C- or S-channel number, enter the 3 digits of the frequency directly with the digit keys 0 to 9 (e.g. 048). Press the cursor down to proceed.

Repeat to search for another TV channel.

& Select Give Name in the Install menu and press the cursor

down.

é Select the programme number.

Note: keep the cursor up/down pressed to scroll through the programme list and to avoid that the TV tunes to each channel passed by.

“ Press the cursor right.

A keyboard appears on the screen. Press the cursor right to enter the keyboard. Press the cursor up/down, left/right to select the first character and press OK. Repeat for every character you want to enter.

Space to enter a space; Delete to erase the

Select highlighted character in the name entered; upper- or undercast characters on the keyboard; display special characters on the keyboard. Press OK to confirm.

Shift to display

Special to

‘ Press the cursor left repeatedly when you have finished the

name giving of the selected channel or peripheral.

( Select another programme number and repeat steps “

to ‘.

Reshuffle the programme list

According to your preference you can change the order of the stored TV channels.

& Select Reshuffle in the INSTALLATION menu. é Follow the instructions on screen.

6 Installation

Select Favourite TV channels

A VGA source always belongs to the list of Favourite programmes.

& Select Favourite programmes in the Install menu. é Select your programme number with the cursor up/down. “ Select Ye s or No with the cursor right. ‘ Repeat é and “ for every TV channel or external you

want to make a favourite or a non-favourite TV channel or external.

Select TV setup

Setup

Menu background

Smart surf

(Dual screen format)

(Multipip format)

(Freeze format) Factory settings

Programme title Teletext level 2.5 Set/Change code

Centre mode

Setup

Smart surf

General

OSD

General

2 programmes 9 programmes

The Setup menu allows you to adjust initial settings, i.e. those which are not related to the installation of the TV channels. The Setup menu contains items that control the settings of the TV’s functions, features, services and peripherals you may have connected.

General

This menu allows you to change various settings that are presumably adjusted less frequently than most other settings.

Menu Background

& Select Menu Background with the cursor down. é Press the cursor right. “ Select On or Off to turn the Menu Background on or off.

Smart surf

& Select Smart surf with the cursor down. é Select 2 programmes or 9 programmes with the cursor right.

2 programmes if you want the 0 key to toggle between the current

Select and the previously selected channel.

9 programmes if you want the 0 key to summon a list of up to 9

Select channels which can be selected. (See Use of the Remote Control, p. 11.)

Setup

Dual screen format

Setup

Multipip format

Setup

Freeze format

General

Dual screen Large PIP Medium PIP Small PIP

PIP 3 PIP 8 PIP 12

Freeze Replay Photo finish

Dual screen format (FTR 9964 only)

This menu allows you to select the preferred format which can then be displayed toggling the b key on and off.

See Dual screen/PIP, p. 18.

Dual screen, Large PIP, Medium PIP or Small PIP with the cursor

Select down. When Dual screen mode is activated with the remote control b key, and when:

• Dual screen is selected, the TV splits the screen into two equally sized

screens.

• PIP is selected, the TV shows a full screen of video with a pip window of

video on top if it.

Multipip format (FTR 9964 only)

This menu allows you to select the preferred format which can then be displayed toggling the ﬁ key on and off. Select

PIP3, PIP8 or PIP12 with the cursor down.

See Multipip, p.19 how to operate.

Freeze format (FTR 9964 only) This function is not possible with a VGA source.

Freeze format allows you to select among three options: Freeze, Replay, Photo finish, to be activated when you press the S key on the remote control. See p. 10.

Note: Continuing to hold the S key down will also cycle the TV through the various

formats. Changing the format this way does not store the selected format.

Installation

Factory settings

This function allows you to reset most of the picture and sound settings to their predefined factory values.

& Select Factory settings with the cursor down. é Press OK to erase settings and reset them to their default values.

Setup

Programme title

Setup

Set/Change code

OSD

General

Normal / Minimum

Yes / No

OSD (On Screen Display)

& Select OSD with the cursor down. é Press the cursor right to select Normal or Minimum.

Normal to activate extended display of TV channel and programme

information on screen.

Minimum to activate the display of reduced channel information.

See Use of the Remote Control, p. 10, i On screen information.

Note:When Subtitles is switched on, see Features, p. 16, display of the programme number is not possible.

Programme title

& Select Programme title with the cursor down. é Press the cursor right to select Programme title Yes or No.

When selected the i key on the remote control, a TV channel which broadcasts teletext may transmit the name of the TV channel or the programme title. When selected i key, and not after the selection of a TV channel.

Set/Change code

The Child lock feature (see TV,Features, p. 16) allows you to lock channels to prevent children from watching certain programmes. To watch locked channels, you need to enter an access code. The Set/Change code menu item allows you to create or change a Personal Identification Number (PIN).

Ye s , after the selection of a TV programme or after pressing

No, the programme title will only appear after pressing the

& Select Set/Change code with the cursor down. é If no code exists yet, the menu item is set to Set code.Follow the

instructions on screen. If a code has previously been entered, the menu item is set to Follow the instructions on screen. All number combinations from 0000 to 9999 are valid numbers.

Change code.

“ The General menu reappears with a message confirming that the code has

been created.

8 Installation

Important:You have forgotten your code !

& Select Set/Change code in the General menu. é Press OK. “ Press the cursor right. ‘ Enter the overriding code 8-8-8-8. ( Press the cursor again and enter a new personal 4-digit code.

The previous code is erased and the new code is stored.

Setup

Teletext level 2.5

General

On / Off

Te l e text level 2.5

Some broadcasters offer the opportunity to see more colours, other background colours and nicer pictures in the teletext pages.

& Select Teletext level 2.5 with the cursor down. é Press the cursor right to select Teletext level 2.5 On to take advantage of

this feature.

“ Press the cursor right again to select Teletext level 2.5 Off if you like the

more neutral teletext layout. The selection made is valid for all channels which broadcast teletext.

Note: It may take a few seconds before teletext broadcast switches over to

Teletext level 2.5.

Setup

Centre mode

EXT1 EXT2 EXT3 EXT4 EXT5 Front

General

Source

On / Off

Centre mode

When you have connected a multi channel audio receiver to the receiver box (see Connect peripheral equipment, p. 26) and you have selected

mode On

a separate centre speaker unnecessary.

, the loudspeakers of the monitor will act as centre speaker, making

Centre

Source

This menu allows you to select the peripheral you connected to one of the external inputs.

& Select Source with the cursor right. é Press the cursor down to select one of the external inputs. “ Press the cursor right to enter the list of types of peripherals attached to the

selected input.

‘ Select the peripheral device with the cursor up/down.

Once you have selected the source, e.g.VCR, this source will automatically be selected when your remote control is in VCR mode, see p. 10, and you press the w key on the remote control.

Decoder

If a decoder or a descrambler is connected, see p. 24, you can define one or more programme numbers as decoder programme numbers.

& Select Decoder with the cursor right. é Select Programme with the cursor down. “ Select the programme number under which you have stored the programme

coming from your decoder.

‘ Select Status.

• Select the input used to connect your decoder:

• Select

None if you do not want the selected programme number being

activated as a decoder programme number.

None, EXT1, EXT2.

9Installation

M h a

SMART

ACTIVE

CONTROL

SMART

PICTURESOUND

213

546

879

‡π

†

æ b

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

◊

SbÌ

MOVIE SPORT CHILD NEWS OTHER

Operation

Use of the remote control

w Select your computer or other peripherals

Press this key repeatedly to select

FRONT, VGA or TV channels, according to where you connected

your peripherals (see p. 27).

Remark: in

VGA mode only some keys are valid. See VGA menu, p. 27.

Menus and on screen information will disappear if you select

TV VCR DVD SAT TAPE CD TUNER CDR

Press one of these keys to use the remote control directly in the TV, video recorder, DVD or satellite mode. A green indicator lights up. Press the same key again within 3 seconds to use the remote control in the mode indicated below the key (tape, CD, tuner or CD-recordable).A red indicator lights up. Press the key again within 3 seconds to return to the function named above the key.

EXT1, EXT2,EXT3, EXT4, EXT5,

VGA.

æ Te letext Guide on/off see p. 20

OK Press this key to activate your choice, when in the menus.

V Volume

Press + or - to adjust the volume.

¬ Sound Mute

Temporarily interrupt the sound or restore it.

P Programme selection

To browse through the TV channels and sources stored. Only those channels which are in the favourite list can be selected with the -P+ keys. See p.6.

0/9 Digit keys

To select a TV channel. For a two digit channel number, enter the second digit within 2 seconds. To s witch immediately to a selected one digit TV channel, keep the digit key pressed a bit longer.

i Screen information

Press to display information about the

selected TV channel and programme.

B Standby

The set is switched off and the red indicator lights up. To s witch the TV on again, press - P + or the digit keys. If your EasyLink video recorder has the system standby function and you press the standby key for 3 seconds, both the TV and video recorder are switched to standby.

b Dual screen/PIP on/off (FTR 9964 only)

See Setup, General menu, p. 7, and Dual screen/PIP, p. 18.

S Freeze

Press the S key to activate/de-activate a frozen picture.

S Freeze format on/off (FTR 9964 only)

This function is not available with a VGA source.

See Setup menu, General, Freeze format, p. 8 where you can select among three modes to be displayed when the freeze key is pressed on the remote control: Freeze, Replay, Photo finish. When the mode is

Freeze:press the S key

to activate/de-activate a frozen picture.The audio continues to play. When the mode is

Replay:press the S key

to redisplay a few seconds of stored video in a PIP window.Press the OK key to display a few seconds of a new stored video picture. Press the S key again to switch off. When the mode is

Photo finish:press the

S key to display 12 PIP windows of stored video pictures. Press the OK key to display a new series of frozen pictures. Press the S key again to switch off.

Note: Continuing to hold the S key down will cycle the TV through the various modes (Freeze, Replay, Photo Finish).

Ì Cinema Go

See separate Cinema Link instruction manual supplied.

b Te letext on/off see p. 21

Ï Main menu on/off see p. 4

10 Use of the remote control

Q Surround mode on/off

MONO sound mode, this feature, when

• In switched on, enables you to hear a special effect of sound.

• In

STEREO sound mode,when Surround

mode is switched on, it seems as though

the loudspeakers are spread further apart from one another.

® Instant record

If your video recorder has the EasyLink function, the be operated in the TV mode.

q Picture format

Press this key to summon a list of available picture formats. Press this key repeatedly or press the cursor up/down to select another picture format: Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie Expand 16:9, Subtitle zoom,Wide screen. Auto format makes the picture fill the screen as much as possible. In case of subtitles in the bottom black bar, Auto format makes the subtitles visible. In case of a broadcaster logo in the corner of the top black bar, the logo disappears from the screen. Super zoom removes the black bars on the sides of 4:3 programs with minimal distortion. When in Movie Expand 14:9, 16:9 or Super zoom picture format, you can make subtitles visible with the cursor up/down.

INSTANT ® key for record can

TV VCR DVD SAT

TAPE CD TUNER CDR

MOVIE SPORT CHILD NEWS OTHER

æ b

SÌ

†

‡π

¬V P

213

546

879

ZOOM

ﬁh

◊

INSTANT

Q ®qc

0 Smart surf

With this feature you can easily switch between different TV channels/sources that currently interest you. In the menu system, you can set Smart surf to 2- or 9-programme. (See General, Smart surf, p. 7.) Press this key to select the previously viewed TV channel or source in case of a 2 programme surf, or to select the surf ring in case of a 9 programme surf. In case of a 9 programme surf, a list appears at the right side of the screen. On top, the most recently added.The puck is on the channel number currently viewed. Press the 0 key to turn to the next channel in the list or press cursor up/down to immediately select the desired TV channel of the list.

To add a new channel or source: tune to the channel or source you wish to add. Press the 0 key. Press the cursor right to add. If there are already nine channels/sources in the list, the one at the bottom of the list will be removed.

To r emove a channel or source: select the channel number you want to remove. Press the 0 key. Press the cursor right to remove. Press the OK key or wait for the time out to dismiss the Smart surf display.

Note: In VGA mode press the q key to switch between a 4:3 or a Wide screen picture format. In Dual screen mode press the q key to switch between a full or a 4:3 letterbox picture format.

c Swapping screens in Dual screen

or PIP (FTR 9964 only)

See Setup, General menu, p. 8 and Dual screen/PIP, p. 18.

U Time display on/off

The time is displayed on the screen.

ﬁ Multipip (FTR 9964 only)

Press ﬁ to turn on/off Multipip. The Multipip format that launches on the key press is determined by the selection you made in the Multipip format list in the General menu, see Setup, General, p. 8 and Multipip format, p. 19.

Note: Continuing to hold the ﬁ key down will cycle the TV through the various formats (PIP3, PIP8, PIP12), launching a new format after each second the key is held down. Changing the format this way does not store the selected format.

Press the ﬁ key again to return to a full main screen picture.

h ZOOM on/off

Press the Press the OK key repeatedly to select one of the zoom magnifications (x1, x4, x9, x16). Use the cursor up/down, left/right to shift the selected zoom window over the screen with the cursor. The zoom window is reset after: selecting another TV channel, another picture format or when another picture format is selected automatically.

Zooming is disabled in Dual screen and VGA mode.

ZOOM h key to activate/ deactivate the zoom function.

11Use of the remote control

213

546

879

SMARTSMART

ACTIVE

CONTROL

h Active Control

VOLUME

CH/PR

Active Control is a pro-active and automatic system.The TV continuously measures and corrects all incoming signals in order to provide the best picture possible. According to the monitor connected (with or without an Ambient Light Sensor which measures the light conditions of the room), the Active Control functionality may differ.

With a monitor without a light sensor:

Press the h key to select the the Active Control values

With a monitor with a light sensor:

Press the h key repeatedly to select the Active Control values

Medium or Maximum (recommended) Minimum/On Sharpness, Dynamic

Contrast and Noise Reduction are controlled automatically

Medium Sharpness, Colour, Dynamic

Contrast and Noise Reduction are controlled automatically

Maximum Sharpness, Colour, Contrast,

Dynamic Contrast and Noise

Reduction are controlled automatically Press the cursor in the right direction to select

INFO.

The Active Control Demo appears. The picture settings are being adapted continuously and automatically. The sliders will be moving, showing how the TV is tweaking the current picture. None of the sliders is user controllable. Press the OK key to switch off the Demo.

Note: Active Control is not available for digital HD signals.

Off or On.

Off, Minimum,

Smart keys

To select predefined picture and sound settings.

Note:The Smart keys are disabled when a VGA source is being displayed.

M Sound

Each time it is pressed, a different sound setting is selected, corresponding with specific factory setting of bass and treble.

a Picture

Each time it is pressed, a different picture setting is selected, corresponding with specific factory settings of Contrast, Colour, Sharpness, Colour Enhancement, DNR and Dynamic Contrast.

Personal refers to the personal preference settings of picture and sound selected in the picture and sound menu.

Remark: the moment you are in a predefined smart sound or picture setting and you modify a setting in the picture or sound menu, all values of the menu will overwrite the previously made

Personal settings.The predefined factory settings

remain unchanged.

Picture Sound Features

(DVD)

(VCR)

(Receiver)

Setup

Install

Use of the remote control

Keys in front of the TV receiver box

Should your remote be lost or broken you can still use the keys in front of the TV receiver box.

•Press the

•Press the stored and to select them.

•Press the Use the Use the

Setup, Install menu or Exit, or to select the submenu items.

Note:

- Sometimes not all the menu items are visible on the screen;

Press the

- The

VOLUME - or + key to adjust the chosen volume. CH/PR - and + key to browse through the TV channels or sources

MENU key to summon the main menu. VOLUME - and + keys to select the menu item. CH/PR - and + keys to select the TV, (DVD),(VCR), (Receiver),

CH/PR + key to reveal all items.

Exit menu lets you dismiss the menu. Select Exit and press the MENU key.

TV VCR DVD SAT

TAPE CD TUNER CDR

SbÌ

MOVIE OTHERNEWSCHILDSPORT

æ b

¬V P

213

Contrast

Brightness

Colour

Sharpness

Tint

Dig. natural motion

Dynamic Contrast

DNR

Colour enhancement

(Hue)

Smart picture

Picture format


switch main menu on/off

cursor to select adjustments

OK key to activate

TV menu

Press the MENU Ï key on the remote control to summon the main menu.

Note:When the main menu is accessed from the keypad in front of the TV receiver

box, it has an additional Exit item, which lets you dismiss the menu.

Warning:The main menu is completely different when a VGA source is displayed.

See p. 27.

Picture menu

Press the cursor right to select Picture. Select the menu items in the Picture menu with the cursor up/down. Adjust the settings with the cursor left/right or enter the list of submenu items with the cursor right. Select a submenu item with the cursor up/down.

Note:To remove the menu background before adjusting the picture settings, see

Select TV setup, General, p. 7.

Contrast

This control allows you to adjust the contrast level of the picture.

Brightness

This control allows you to adjust the brightness level of the picture.

Colour

This control allows you to adjust the colour saturation of the picture.

Sharpness

This control allows you to adjust the edge definition of a picture.

Tint

This control allows you to select the colour temperature of the picture:

Normal, Warm or Cool.

Digital natural motion

Line doubling eliminates line flicker, motion compensation reduces jitter and offers smooth, yet sharp motion reproduction in movie broadcasts.

On or Off to really see the difference in picture quality.

Select

Dynamic Contrast

This feature automatically makes the contrast in the darker and the brighter picture areas more noticeable as the image on screen changes. Normally, select

Medium. It may be preferred to select Minimum, Maximum

or Off.

DNR (Digital Noise Reduction) This feature automatically filters out and reduces the image noise and improves picture quality when receiving weak video signals.

Off, Minimum, Medium or Maximum according to the image noise

Select present.

13Use of the menus

Contrast

Brightness

Colour

Sharpness

Tint

Dig. natural motion

Dynamic Contrast

DNR

Colour enhancement

(Hue)

Smart picture

Picture format


Colour enhancement

When activated, this feature automatically controls green enhancement and blue stretch. It makes the colours more vivid.

On or Off in order to activate/de-activate Colour Enhancement with

Select the cursor right.

Hue (only available when a NTSC peripheral is connected)

This control allows you to adjust the colour mix of the picture.

Smart picture

This menu item performs the same as the Smart a key on the remote control. See Use of the remote control, p. 12. Smart settings will be set to

Personal if the following settings are changed

manually: contrast, brightness, colour, sharpness, dynamic contrast, colour enhancement or DNR.

Picture format

This menu item performs the same as the q key on the Remote Control. See Use of the Remote Control, p. 11.

Volume

Tr eble

Bass

Balance

Headphone volume

(Surround mode)

(Dual I-II)

(Mono/Stereo)

(Nicam/Analogue)

(Night mode)

(Audio only) Smart sound

Sound

Sound menu

Select the menu items in the Sound menu with the cursor up/down and adjust the settings with the cursor left/right. Remember, control settings are at normal mid-range levels when the bar scale is centered.

Note: In case of a Cinema Link configuration and the Cinema Link is activated,

the menu functions Surround mode, Night mode and Audio only of the Sound menu are steered by the audio receiver instead of by the receiver box. See the separate Cinema Link booklet supplied.

Volume

This control allows you to adjust the volume level.

Tr eb le

Tr eble attenuates or amplifies the high-frequency response of the audio output signal.

Bass

Bass attenuates or amplifies the low-frequency response of the audio output signal.

Balance

This control allows you to adjust the balance of the right and left speaker’s sound output.

14 Use of the menus

Headphone volume

This control allows you to adjust the volume level of the headphone.

Volume

Tr eble

Bass

Balance

Headphone volume

(Surround mode)

(Dual I-II)

(Mono/Stereo)

(Nicam/Analogue)

(Night mode)

(Audio only) Smart sound

Sound

Surround mode

Only selectable with a Cinema Link configuration. See separate booklet supplied.

Dependent on the Cinema Link configuration and the sound signal broadcasted, select one of the Surround modes.

Dual I-II (Only available with dual sound transmission)

This control allows you to switch from

Language I or Language II during

dual sound transmission. Your selection is stored per TV channel.

Mono/Stereo (Only selectable in case of analogue stereo transmission)

Mono or Stereo with the cursor left/right.

Select

Stereo has been selected, the television will reproduce any stereo

When broadcast signal it receives. If Stereo is not present on a selected programme and the TV is placed in Stereo mode, the sound coming from the set will remain monaural. Your selection is stored per TV channel.

Nicam/Analogue (Only selectable in case of Nicam transmission)

Nicam or Analogue if the TV channel transmits digital sound.

Select In case of weak digital sound signals, due to the transmission, select Analogue. Your selection is stored per TV channel.

Night mode

Only selectable with a Cinema Link configuration. See separate booklet supplied.

Audio only

Only selectable with a Cinema Link configuration. See separate booklet supplied.

Smart sound

This menu item performs the same as the Smart sound M key on the remote control. See Use of the remote control, p. 12. Smart settings will be set to

Personal if the following settings are changed

manually: treble and bass.

15Use of the menus

Features menu

Select the menu items in the Features menu with the cursor up/down and adjust the settings with the cursor left/right.

Programme

Sleeptimer

Subtitle

Child lock

On timer

Features

Off On On during mute

Programme list

This list will display all the stored TV channels. Select a programme number with the cursor up/down. Press the OK key to switch over to the selected TV channel or external.

Sleeptimer

With the sleeptimer you can set a time period after which the TV should switch itself to standby. The counter runs from

0 min. up to 180 min.

One minute before the TV is set to go to standby, the remaining seconds and a message appears on screen.You can always switch off your set earlier or change the set time.

Note:When a VGA source is selected, the TV will not go to standby when the

sleeptimer expires.

Select subtitles

TV channels with teletext often transmit programmes with subtitling. For each TV channel you can store a subtitle page which will be displayed continuously if the programme being broadcast is transmitted with subtitles.

Switch on teletext and select the proper subtitle page from the index. Switch off teletext. Now the subtitle page is stored for the selected TV channel.

Once subtitles have been stored and

Subtitle On has been selected they will

automatically be displayed on the selected TV channels if subtitles are in the transmission. A symbol will indicate that the mode is on.

On during mute when you want to have the subtitles automatically

Select been displayed when the sound has been temporarily interrupted with the ¬ key on the remote control.

Programme

Sleeptimer

Subtitle

Child lock

On timer

Features

Lock Custom lock Unlock

Lock after Programme lock

Child lock

The Child lock feature allows you to lock TV channels and externals to prevent children from watching certain programmes.A VGA source can not be locked.

& Select Child lock with the cursor down. é Press the cursor right to enter the Child lock menu.

You’re summoned to enter your code. Enter the access code.

Note:You have to re-enter your code each time you’ve left the child lock menu.

Important:You have forgotten your code !

• Select

Cancel with the cursor down. Set/Change code in the Setup menu.

See General menu, Set/Change code, p. 8.

“ Select one of the menu items of the child lock menu.

• Select

Lock if you want to lock all channels and externals. Custom lock and press the cursor right.

- Select

Programme lock if you want to lock the programmes from a

certain TV channel or external.

- Select

Lock after if you want to lock all programmes from a certain time

onwards. Press the cursor right and enter the time with the cursor up/down and right. Press the OK key to validate.

Note:The entered time will remain valid for every day, untill you have selected

Unlock.

Unlock to unlock all locked channels and externals at once.

16 Use of the menus

On timer

Programme

Sleeptimer

Subtitle

Child lock

On timer

VCR1 BBC1 BBC2

Off

CNN

TVE

π.....

Features

Sunday Monday

.......

Daily

Off On

15:45

On timer

With the On timer function you can make your TV automatically switch to a specific programme number from standby or switch over to a different programme number at a specific time.

Note:Your TV receiver box and your monitor should not be powered off with the

B power key.

& Select On timer with the cursor down. é Select On with the cursor right. “ Press the cursor right again to enter the channel list. ‘ Select the TV channel or external you want your TV to switch to on a

selected time and day. Not possible with a VGA source.

( Press the cursor right again to select a day of the week or to select Daily.

§ Press the cursor right once again to enter the time. è Enter the time with the digit keys or with the cursor up/down. ! Press the OK key to activate.

ç Press the MENU Ï key to turn off the menu.

Note:To check your timer settings, press the i key.

17Use of the menus

Dual screen/PIP

213

546

879

TV VCR DVD SAT

TAPE CDR

CD TUNER

æ b

SÌ

OTHERNEWSCHILDSPORTMOVIE

®Ò‡ π†

VOL P

INSTANT

ZOOM

Q ® q c

Uﬁh

(FTR 9964 only)

Press the b key to turn on or off Dual screen or PIP, according to the format selection made in the Dual screen format list in the General menu. See Setup, General, p. 7.

Audio from the main screen (the left screen in Dual screen and the full size screen in PIP) plays to the speakers; Audio from the right screen or from the PIP plays to the headphones.

Note: Continuing to hold the b key down will cycle the TV through the

various formats (Dual screen, Large PIP, Medium PIP, Small PIP), launching a new format after each second the key is held down.

To highlight a screen

Pressing the cursor left/right will toggle the highlight between the left and the right screen or between the main and the PIP screen. The highlighted screen is made visible with a yellow border.

Changing TV channels or external sources in left, right or PIP screen

Press the - P + key, the digit keys or the 0 key in order to change the TV channels or the external sources in the highlighted screen.

Making the PIP screen movable

& Select a PIP format. é Highlight the PIP picture with the cursor left/right. “ Press the OK key to make the PIP screen movable.

The PIP screen can now be moved.This is made visible with a blue border around the PIP screen.

‘ Press the cursor up/down, left/right to move the PIP screen in the direction

of the cursor press.

( Press the OK key again.The PIP screen position is fixed.

Swapping screens

Press the c key to swap the left and the right screen or the PIP screen. See notes below.

On-Screen information

The On-Screen information, which appears when changing channels, always refers to the highlighted screen.

Deactivating Dual screen mode

Press the b key again to return to a full main screen picture. The TV tunes to the picture which was highlighted in Dual screen mode.

Notes: When Dual screen mode is selected, two picture formats are supported: Full screen or 4:3 letterbox picture format.

18 Dual screen/PIP

Multipip

(FTR 9964 only)

In the Setup menu, General, p. 8 you selected which Multipip format you prefer to see.

PIP 3

PIP 8

PIP 12

& Press the ﬁ key on the remote control to toggle the selected Multipip

On or Off.

format The main screen displays the channel or source tuned before Multipip was

activated and the highlight is on the main screen.

é Press the cursor left/right, up/down to highlight a PIP screen.When the

highlight is on one of the PIP screens, it begins playing video and the other PIPs freeze.The main screen always continues playing audio and video.

“ Pressing the - P + or the 0 key or the digit keys changes the channel or

source for the currently highlighted screen.

Note: channels cannot be added or deleted from the Smart surf list when Multipip is

activated.

‘ Press the c key to swap the highlighted screen and the main screen.

( With PIP 3 and PIP 8: press the cursor up/down to display a following series

of PIP screen.

With PIP 12: highlight the PIP picture in the bottom right and press the

cursor down to display a following series of PIP screen.

Note: Only TV channels which are in the favourite list and pictures from the

connected and activated externals are displayed in the PIP screen. PIP3 and PIP8 are not possible when a VGA source is displayed as main screen.

19Multipip

OK key

213

546

æ b

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

MOVIE OTHERNEWSCHILDSPORT

to activate

cursor to select adjustments

Teletext Guide

TV channels which broadcast teletext also transmit a page with the programme guide of the day.

If the displayed teletext programme guide page satisfies the Video Programming via Teletext (VPT) requirements, it will be possible to record, remind, watch or lock programmes.

& Press the æ key. é Select a TV channel with the cursor up/down and press OK.

“ Move the cursor up to the top of the channel list where the name of the

selected TV channel reappears.

‘ Press the cursor right to move the puck over the selection ball.

( In the teletext index page, look for the programme guide page of the day or

the following day.

§ Enter with the digit keys, the programme guide page number.

Press the cursor right twice to move the puck to the right to choose one of the subpages if available.

page ball

selection ball

channel list

Mon 05 Feb 16.35

BBC1

BBC2 ITV

CH4 CH5

Review Record Remind Watch Lock

100 1

BBC CEEFAX

LIONS RECORD ANOTHER WIN 430 Index 100 News 300 BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500

subpages

scroll ball

If the selected programme satisfies the VPT requirements, the TV will remember the last selected teletext page number of that channel that contains programme guide information and indicates which programme starts at what time. Every time you press the æ key, the teletext programme guide page of the selected TV channel will be available.

Note:The broadcaster is responsible for the content of the information.

Basic functions

Press one of the grey, red, green,yellow or blue keys to activate a Teletext Guide function. The keys appear in grey if the function is not available.

Review: this menu provides a list of programmes that are marked as

reminders, those that have to be recorded and those that are locked.This menu can be used to change or remove marked programmes.

Record: to programme the recording of the video recorder (if it has a

NEXTVIEWLink function and is connected to EXT. 2).

Remind: to automatically switch on the TV if it is in standby or to display a

message if the TV is on.

Lock: to lock certain programmes to prevent recording or watching.

For the functions Record, Remind or Lock, a small menu pops up in which you can choose the interval: once, daily or weekly, or clear an earlier made record, remind or lock setting.The default interval is set to Once.To confirm the frequency, press the OK key.

Watch: to watch the selected and currently broadcast programme.

20 Teletext Guide

213

546

879

æ b

Sb Ì

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

◊

Ufh

ZOOM

INSTANT

puck

BBC CEEFAX

LIONS RECORD ANOTHER WIN 430 Index 100 News 300

BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500 Lottery 230 Travel 550 Finance 240 Subtitling 888 Music 280 TV Listings 600

Red Green Yellow Blue

colour keys to select

cursor to select pages

Mon 05 Feb 16.35.22

Teletext

Most TV channels broadcast information via teletext. Depending on the TV channel, teletext is transmitted in different systems. The colours used in the bottom line of the teletext page correspond with the colour keys of your remote control.

Switch Teletext on and off

Press b to switch the teletext on or off. The main index page appears on the screen together with an information line at the top, an option line at the bottom and a puck in the top left corner of the screen.

Select a Teletext page

With the digit keys

Enter the desired page number with the digit keys. The page counter seeks the page or the page appears immediately when the page number has been stored in the memory.

A message appears when you have entered a non existent or incorrect page number. Page numbers beginning with 0 or 9 do not exist. Choose another number.

With the option line

Select with the colour keys, corresponding to the coloured options at the bottom of the screen, the desired subject.

Select Picture/Teletext

Select a TV channel which broadcasts teletext. Press b to switch the teletext on. Press the b key. The screen is divided into two parts: the left side for the normal main picture, the right side for teletext broadcast by the selected TV channel. Press the b key to return to a full screen picture or press the b key to return to a full teletext picture.

Quickly run through the teletext pages

Press the cursor up/down or the - P + key to run through the previous or the following pages.

Select the previously selected teletext page

Press the 0 key.

Note: Only possible when teletext pages are active, not when the Teletext menu is

displayed.

Select the index teletext page

Press the grey colour key † to display the main index (usually p.100).

Only for T.O.P teletext broadcasts :

T. O.P orders the pages in categories and adds other possibilities of enhancing ease of use. Press i.A T. O.P. overview of the teletext subjects available is displayed. Not all TV channels broadcast T.O.P. teletext.When the teletext system is not T.O.P. teletext, a message appears at the bottom of the screen. Select with the cursor up/down, left/right the desired subject and press the OK key.

21Teletext

Select subpages

213

546

879

æ b

†

bÌ

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

◊

h ® q c

ﬁ h

ZOOM

INSTANT

†

When a selected teletext page consists of different subpages, one of the subpages appears on the screen. Press the cursor right to highlight the subpagenumber. Press the cursor up/down to select the next or previous subpage or enter the subpagenumber with the digit keys.

puck

cursor to select subpages

Menu 100 01 Favourite

BBC CEEFAX

LIONS RECORD ANOTHER WIN 430 Index 100 News 300

BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500 Lottery 230 Travel 550 Finance 240 Subtitling 888 Music 280 TV Listings 600

Red Green Yellow Blue

Menu 100 01 Favourite Search

ABCDEFG 1 2 3

11.03 ........................

HIJKLMN 4 5 6 OP QRSTU 7 8 9

14.35 ........................ 226

V W X Y Z 0

17.50 ........................ 231

Red Green Yellow Blue

Cancel Search Space Delete

Shift Special

Mon 05 Feb 16.35.22

Mon 05 Feb 16:35:19

WORD

BBC1

NAME FOOTBALL

TELETEXT

Teletext menu (only available in full screen teletext mode)

& Press the Ï MENU key to activate the menu. é Press the cursor up/down to select the menu items.

Favourite

This list contains up to eight favourite teletext pages. Only the pages of the current channel can be selected.

& Press the cursor right to add the current page or to select one of the

favourite pages to the list.

é Press the OK key or the cursor right again to add. “ Press the cursor left to return to the Teletext menu.

On the virtual keyboard on screen you can type in a word you want to search for in the teletext pages.Whether upper- or lowercase is used has no influence. Searching for numbers is not possible.

& Press the cursor left/right, up/down to select the characters, words or

functions.

é Press the OK key to confirm each character selected. “ Select Cancel to cancel the word or character selected.

Space to enter a space; Delete to delete the last character selected;

Select

Shift to switch between undercast or capital characters; Special to display

special characters on the keyboard.

‘ Press the cursor left repeatedly to return to the Teletext menu again.

Searching a word

& Type in the word on screen or select a word from the history list on the

right.Whether upper- or lowercase is used has no influence. Searching for numbers is not possible.

é Select Search and press OK again.

The message When the word is found, it is highlighted in the teletext page.

Searching appears.

“ To continue the search, press the OK key twice.

When a word is not found, a message appears.

‘ To search for a new word, select Keyboard and press OK. ( Select the new word.

Reveal

Reveals/conceals hidden information on a page, such as solutions to riddles and puzzles. Press the OK key to activate. Press OK again to return to the

Teletext menu.

Cycle subpages Makes the subpages cycle automatically. Press the OK key to activate.

Timed page

To display a specific page at a certain time.

& Press the cursor right to select Ye s or No. é Enter the time and pagenumber with the cursor keys or the digit keys.

Note:Teletext does not have to remain switched on. It is not possible to display a

timed page when in VGA mode or when the TV is switched to standby.

22 Teletext

puck

Menu 100 1

Reveal

BBC CEEFAX

Cycle subpages

LIONS RECORD ANOTHER WIN 430

Timed page

Index 100 News 300

Language

BBC Info 110 Headlines 305 Children 120 Weather 400 Cookery 150 Sports 415 Education 200 Radio 500 Lottery 230 Travel 550 Finance 240 Subtitling 888 Music 280 TV Listings 600

Red Green Yellow Blue

Mon 05 Feb 16.35.22

Language

If the displayed characters on screen do not correspond with the characters used by the teletext broadcaster, you can change the language group here.

Group 1 or Group 2 with the cursor keys left/right.

Select

To leave the Teletext menu

& Press the Ï MENU key. é Press the cursor right. “ Press the cursor left twice to put the puck on the neutral spot again.

Special teletext functions

Hold

Press S to stop the automatically rotating of the subpages or to stop the page counter from seeking when you have entered a wrong page number or when the page is not available. Enter another page number.

Enlarge

Press h repeatedly to display the upper part, the lower part and then to return to the normal page size.When the upper part is displayed, you can scroll the text, line by line using the cursor up/down.

Hypertext

With hypertext you can select and search for any word or number on the current teletext page.

& Make sure you are not in the teletext menu and that the puck is in the upper

left corner of the screen.

é Press the cursor key down to highlight the first word or a number on the

page.

“ Use the cursor up/down, left/right to select the word or number you want to

search for.

‘ Press the OK key to confirm.

A message appears at the bottom of the screen to indicate that the searching is going on or that the word or page is not found.

( Press the cursor right to leave hypertext.

Select Continuous Subtitles

Switch on teletext and select the proper subtitle page from the index. Switch off teletext. Now the subtitle page is stored for the selected TV channel.

Once subtitles have been stored and

Subtitle On has been selected they will

automatically be displayed on the selected TV channel if subtitles are in the transmission.

Subtitle On or Off in the Features menu, see p. 16.

Select The subtitle symbol j appears when

Subtitle On is selected.

Teletext

Connect Peripheral Equipment

VCR 1 DECODER

CABLE

EXTERNAL

There is a wide range of audio and video equipment that can be connected to your receiver.The following connection diagrams show you how to connect them to the back or the front side of the receiver.

Note: in case of the monitor in a stand alone situation without the receiver box

connected, see the instructions with the monitor.

Philips Cinema Combination

If you dispose of a Home Cinema combination (Cinema Link audio receiver and/or Cinema Link video recorder and/or DVD player), see the separate supplied instruction manual.

Video recorder

Note: Do not place your video recorder too close to the screen as some video

recorders may be susceptible for signals out of the display. Keep a minimum distance of 0.5 m to the screen.

Connect the supplied aerial cables 1, 2 and, to obtain a better picture quality, a eurocable 3 as shown opposite.

If your video recorder is provided with the EasyLink function, the eurocable supplied with it, should be connected to

Only if you do not connect the eurocable 3,you have to do the following:

Search for and store the test signal of the video recorder

EXTERNAL 2 to benefit of the EasyLink function.

& Unplug the aerial cable 1 from the aerial socket x of your video

recorder.

é Switch on your TV and put the video recorder on the test signal.

(See the handbook for your video recorder.)

“ Search for the test signal of your video recorder in the same way as you

searched for and stored the TV signals. See Installation, Searching for and storing TV channels, Manual Installation, p. 6.

‘ Store the test signal under programme number 0 or between 90 and 99. ( Replace the aerial cable in the aerial socket x of your video recorder after

you have stored the test signal.

Decoder and video recorder

Connect a eurocable 4 to your decoder and to the special euroconnector of your video recorder. See also the video recorder handbook. See Decoder, p. 9. You can also connect your decoder directly to eurocable.

EXTERNAL 1 or 2 with a

24 Connect Peripheral Equipment

DVD

OUT

EXTERNAL 5

RPr

S•VHS

VIDEO IN

AUDIO

1 2

Video recorder and other peripherals

EXTERNAL

VCR 1

CABLE

≈

& Connect the aerial cables 1, 2 and 3 as shown opposite. Better

picture quality can be obtained if you also connect eurocable 5 to

EXTERNAL 2 and a eurocable 4 to EXTERNAL 1, 3 or 4.

é Look for the test signal of your peripheral in the same way as you do for a

video recorder.

When a video recorder is connected to

EXTERNAL 1 you can only record a

programme from your TV tuner. Only when a video recorder is connected to EXTERNAL 2 it is possible to record a programme from your TV as well as from other connected equipment. See Record with your video recorder, p. 30.

EXTERNAL 1 can handle CVBS and RGB, EXTERNAL 2 CVBS,Y/C and RGB,

Note:

EXTERNAL 3 and 4 only CVBS, EXTERNAL 5 YUV.

Camera & camcorder

& Connect your camera or camcorder to the FRONT input behind the door

at the front side of your receiver. Press the centre of the door to open.

é Connect the equipment to VIDEO IN 2 and AUDIO L 1 for mono

equipment.

“ For stereo equipment also connect AUDIO R 1.

S-VHS quality with an S-VHS, Hi-8 or Digital camcorder is obtained by connecting the S-VHS cables with the S-VHS input 3 (instead of

VIDEO IN 2) and AUDIO inputs 1.

DVD Player

With euroconnector

Connect your DVD player with a eurocable to one of the euroconnectors

EXTERNAL 1 or 2.

With Component Video Output Connectors

(EXTERNAL 5)

& Connect the three separate component video cables to the DVD player’s

Y, U (Pb) and V (Pr) jacks and to the Y, Pb and Pr jacks on the receiver.

é Connect the audio cable to the DVD player’s audio L and R jacks and to the

L and R audio EXTERNAL 5 jacks on the receiver.

25Connect Peripheral Equipment

AUDIO OUT

L R

CENTRE

Headphone

& Insert the plug into the headphone socket L behind the door at the front

side of the receiver. Press the centre of the door to open.

é Press ¬ to switch off the internal loudspeakers of the TV.

The headphone impedance must be between 8 and 2000 Ohm. The headphone socket has a 3.5 mm jack.

SOUND menu select Headphone volume to adjust the headphone

In the volume and balance and to select the audio source for your headphone sound. See p. 15.

Note:When a TV channel or external source is blocked via the Childlock menu

(see p. 16), also the headphone is muted.

When Dual screen PIP is activated (see p. 18) (FTR 9964 only) :

- if the main screen displays a TV channel picture, you hear the sound from the Dual screen/PIP picture through your headphone;

- if the main screen displays a picture from an external source, you hear the sound

from the main screen through your headphone.

Multi channel Surround receiver

& Connect the audio cable to the multi channel Surround receiver and to

AUDIO OUT L and R at the back of your TV receiver box 1.

é If you want the loudspeakers of your monitor to act as centre speaker, also

connect an audiocable to the multi channel Surround receiver and to the

SURROUND SOUND CENTRE IN at the back of your TV receiver box 2.

“ Select Centre mode On in the Setup, General menu. See p. 9.

The loudspeakers of the monitor will now only produce centre sound, the loudspeakers connected to the audio receiver will produce Surround Sound. The volume has to be controlled via the multi channel Surround receiver.

Note: No sound will be heard when a TV channel or external source is blocked via

the Child lock menu (see p. 16).

Connect your computer

See the separate supplied instruction manual with your monitor.

26 Connect Peripheral Equipment

To select connected equipment

Equipment connected with an aerial cable only :

Select the programme number under which you have stored the test signal with the digit keys.

VCRTV DVD SAT

CDTAPE TUNER CDR

SbÌ

MOVIE OTHERNEWSCHILDSPORT

æ b

S j

Equipment connected to a euroconnector, to the

VGA MONITOR IN

connector or to the front side of the receiver box

Press the w key repeatedly to select

FRONT or VGA, according to where you connected your equipment at the

EXT1, EXT2,EXT3, EXT4, EXT5,

back or the front side of your receiver. Press the OK key to confirm.

Remark : Most equipment (decoder, video recorder) carries out the switching itself.

This is however never the case with a computer connected to the VGA input.

If you want to change to TV channels?

Enter the programme number of the TV channel which you want to watch with the digit keys.

VGA menu

Only available when a VGA source has been connected and activated. See also the separate supplied instruction manual with your monitor.

& Select VGA with the w key and press the OK key to confirm. é Press the MENU Ï key to switch on the VGA menu.

VGA

Picture 1 Picture 2 Sound Setup

Picture 1

G Brightness, H Contrast,

è Colour temperature, @ Sharpness,

“ Select one of the menus with the cursor left/right. ‘ Select one of the menu items with the cursor up/down.

See the separate booklet supplied with the monitor.

Picture 2

q Format,

Z Zoom, Â Zoom factor, ~ Shift,

Sound

(V Volume,) (- Bass,) (

+ Tr eble,)

(

J Sound mode)

q Clock frequency, ﬁ Phase, X Auto align

( Press the cursor left/right to alter the selected adjustment.

§ Press the MENU Ï key again to switch off the VG A menu.

Setup

‡ Language, () Power savings,) (( AV3,) (§ VGA2)

27Connect Peripheral Equipment

Video recorder with EasyLink

VCR

213

546

879

æ b

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

◊

®Ò‡π

†

SbÌ

INSTANT

Q q c

ﬁh

ZOOM

INSTANT

‡

†

The video recorder can be operated via the VCR menu on screen.

& Press the MENU Ï key on the remote control. é Select the VCR menu with the cursor up/down.

VCR

Òp ‡π † ®

Rwd Play Stop Play Ffw Rec Eject

“ Press the cursor left/right, up/down to select one of the VCR functions:

Rwd rewind, Play play back: scan at Stop stop, Play play forward: scan at Ffw fast forward, Rec record, Eject select and press the OK key to eject the tape.

Slow, Min, Med, Max speed

Slow, Min, Med, Max speed,

The key

INSTANT ® for recording, under the door of the remote control, can be

operated in the TV mode. If your EasyLink video recorder has the system standby function, when you press the B key for 3 seconds, both TV and the video recorder are switched to standby.

Audio and video equipment keys

Most of the audio and video equipment from our range of products can be operated with the remote control of your TV.

Press the equipment you want to operate with this remote control. See Use of the remote control, p. 10.

Video recorder without EasyLink

Press one of the video recorder keys after you pressed the

® for record, Ò for rewind, ‡ for stop, π for play, † for fast forward, ◊ for selecting 1- or 2-digit programme numbers from the video

- P + for sequential programme selection from the video recorder tuner, 0 to 9 to select a programme number from your video recorder tuner,

B to switch the video recorder to standby U VCR timer

VCR, DVD, SAT,TUNER, CD,TAPE or CDR key according to the

VCR key:

recorder,

28 Remote Control functions for peripherals

DVD keys

DVD SAT

213

546

879

æ b

TV VCR DVD SAT

TAPE CD TUNER CDR

¬V P

◊

®Ò‡π

†

SbÌ

‡

†

Mah

SMARTSMART

ACTIVE

CONTROL

TUNER CD TAPE CDR

213

546

879

æ b

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

◊

®Ò‡π

†

SbÌ

®Ò‡π

†

Q q c

ﬁh

ZOOM

INSTANT

‡

†

Press one of the following keys after you have pressed the Ï to switch the DVD menu on or off

DVD to select a DVD chapter

b to select a DVD title

æ to select your choice of subtitle language

Ò for search backward ‡ for stop π for play † for search forward ® for pause

0-9 to select a programme number from your DVD

Satellite receiver

Press one of the TV keys after you have pressed the

SAT key.

DVD key.

Tuner, CD,Tape and CDR keys

Press one of the following keys after you have pressed the

TA PE or CDR key.

TUNER, CD,

Ï to switch the menu on or off (tuner) 0 to select a frequency (tuner) ® to record Ò to search down (tuner); rewind (CD/tape); speed down (CDR) ‡ stop π play † to search up (tuner); forward (CD/tape); speed up (CDR)

æ RDS news/TA (tuner); select following disc (CD/CDR) S pause (CD/CDR/tape)

b RDS display (tuner); info on screen (CD/CDR)

- P + next/previous (CD)

Q surround modes (CD/CDR/tape)

29Remote Control functions for peripherals

Record with your video recorder without EasyLink

213

546

879

æ b

TV VCR DVD SAT

TUNER CD TAPE CDR

¬V P

◊

®Ò‡ π

†

SbÌ

INSTANT

Q q c

ﬁh

ZOOM

INSTANT

‡

To r ecord S-VHS quality, connect an S-VHS peripheral directly to the video recorder.

Record a TV programme

& Select the programme number on your video recorder. é Set your video recorder to record.

See the handbook for your video recorder.

Switching programme numbers on your TV does not disturb recording !

Record a programme on your video recorder connected to

EXTERNAL 2 from Audio/Video equipment connected to EXTERNAL 1, EXTERNAL 3,EXTERNAL 4, EXTERNAL 5 or to sockets on

the receiver

& Switch on the equipment. é Select the correct external on your video recorder.

“ Set your video recorder to record.

You record what you are watching on the screen.

Do not switch programme numbers or do not switch off your TV when you are recording !

Record with your video recorder with EasyLink

If you have connected an S-VHS video recorder provided with the EasyLink function, you can record S-VHS quality from an S-VHS peripheral connected to the front side of the receiver. (E.g. from an S-VHS camcorder.)

In TV mode, it is possible to start a direct recording of the programme which is being displayed on the TV screen.

& Press the INSTANT ® record key, under the door of the remote control of the TV or

of the video recorder or the record key on the video recorder. The video recorder switches on from standby and a message of what is being recorded appears on the screen. The video recorder starts recording the programme you are watching.

é Press the ‡ key to stop the recording.

Do not switch programme numbers or do not switch off your receiver when you are recording !

When recording a programme from a peripheral connected to EXTERNAL 1, 3, 4, 5 or

FRONT, you can not select another TV programme on the screen.

To watch TV programmes again, press the programme number you want to select twice. Attention: the recording is stopped and your video recorder switches to standby.

If you switch to standby during recording of a programme from a peripheral connected to

EXTERNAL

1, 3, 4, 5 or FRONT, the blinking lamp on the front of your receiver indicates that you are still recording.The blinking stops after the recording is finished.

30 Record

Attention: Recording from

EXTERNAL 5 will only have black and white pictures.

Tips

Poor Picture

•Have you selected the correct TV system?

• Is your monitor or house aerial located too close to loudspeakers, non-earthed audio equipment or neon lights, etc.?

• Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

• Check if you have entered the correct frequency. See Installation, p. 6.

•Are brightness and contrast out of adjustment? Select Factory settings in the Setup, General menu, p. 8 or press the

SMART a key repeatedly.

No picture or no sound

•Are the supplied cables connected properly? (The aerial cable to the TV receiver box, the other aerial to your VCR, the VGA cables to the display, the power cables.)

• Has the childlock (p.16) been switched off?

• Is your PC switched on?

• Has the Centre mode been switched off?

• Do you see a black screen and the indicator in front of the monitor lights up green, this means that the display mode is not supported. Switch your VGA-source to a correct mode.

• In case of weak or bad signal, consult your dealer.

Remote control

• If your monitor no longer responds to the remote control, the batteries may be exhausted.

•You can still use the MENU keys at the front of your receiver.

Have you selected the wrong menu? Press the same key again to exit from the menu.

Control of peripheral equipment

The infrared signals of the screen may influence the reception sensibility of other peripherals. Solution: replace the batteries of the remote control or change position of other equipment. E.g. keep away a wireless headphone from within a radius of 1.5 m.

TV-Guide - Displayed time is wrong

The broadcaster on programme number one does not transmit the correct local date and time. Use Reshuffle in the INSTALLATION menu to place another broadcaster on programme number one.

No stable or not synchronised VGA picture

Check if you have selected the correct VGA mode in your PC. See the separate instruction manual with the monitor.

If your problem is not solved:

Switch both your monitor and your receiver off and then on again.

Never attempt to repair a defective monitor or receiver yourself.

Check with your dealer or call a TV technician.

End of life directives

We are paying a lot of attention to using environmentally-friendly production methods.Your new flat colour television contains materials which can be recycled and reused. At the end of life specialised companies can dismantle the discarded flat colour television to concentrate the reusable materials and to minimise the amount of materials to be disposed of. Please ensure you dispose of your old flat colour television according to local regulations.

How to dispose of exhausted batteries?

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many countries exhausted batteries may not be disposed of with your household waste. Please ensure you dispose of exhausted batteries according to local regulations.

TV receiver box with speakerless monitor

Miscellaneous

. Ambient temperature: + 5~ + 40°C . Mains: 50/60 Hz Auto Voltage ranging from

95 V to 264 V .Power consumption: around 35 W . Standby consumption: 2 W .Weight (excl. packaging): 4 kg . Dimensions (wxhxd):

Receiver: 43.5 x 10.5 x 33 cm

Index

a active control, 12

auto format, 11 automatic installation, 6

c camcorder, 25

centre mode, 9 child lock, 16 code, 16 connect your computer, 26 continuous subtitles, 23 country, 5

d decoder, 9

digital natural motion, 13 DNR, 13 dual screen/PIP, 18 dual screen format, 7 dvd keys, 29 dynamic contrast, 13

e eurocable, 24 f factory settings, 8

favourite tv channels, 6 freeze format, 10

frequency, 6

g give name, 6 h headphone, 26

hypertext, 23

i info on screen, 10

interrupt the sound, 10

l language, 5 m manual installation, 6

menu language, 5 menu-system, 4 multipip, 19

o on timer, 17 p peripheral equipment, 24

picture adjustments, 13 picture format, 11 programme list, 16

r recording, 30

reshuffle, 6

s set/change code, 8

setup, 7 sleeptimer, 16

smart keys, 12 smart surf, 11 sound adjustments, 14 source, 9 stereo, 11 store TV channels, 5 subpages teletext, 22 subtitles, 16 S-VHS, 30 surround mode, 11 switch TV on, 3

t teletext, 21

teletext guide, 20 time display, 11 tint, 13

v VGA menu, 27

video recorder, 24 volume, 10

31Tips & Index

Glossary

Automatic Channel Installation (ACI)

Automatically installs all TV channels in the same order as offered by your cable company, provided of course that the data is transmitted. It also automatically includes programme number and programme name. With ACI, channel installation is fully automatic, simple and fast.

Child Lock

Feature to prevent unauthorised use of your TV.The TV can only be switched on and operated with the remote control.

Cinema Link

Cinema Link is a new Philips feature in which the TV, the audio receiver and other video peripherals like DVD player and video recorder communicate with each other, on condition they are all equipped with the Cinema Link functionality and connected via a eurocable.They automatically offer the highest quality combination of picture and multi channel surround sound to create your own Home Cinema.

Easy Link

Digital ‘intelligent’ ESI bus-system between audio components in HiFi systems and between TV and VCR. (Scart connection required).Turns source selection and control into a one-key operation.

Easy Text

Teletext memory that automatically memorises Teletext pages and gives you instant access to them.

Euroconnector

A 21-pins connector system enabling you to simply connect various types of audio/video and computer equipment.

On-screen display of functions and facilities in a well-organised survey.

NTSC

The broadcasting system used in the USA, Japan and parts of South America and Southeast-Asia.

Smart Picture and Sound Controls

Keys on the remote control to select predefined picture and sound settings.

Sleeptimer

Function with which you can set a time period after which the TV should switch itself to standby.

Teletext

Philips 42PF9955 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
