Colour Television Styling: Top B 2K6
32PF9731/69
32PF9731D/10
37PF9731/69
37PF9731D/10
42PF9541/93
42PF9541/98

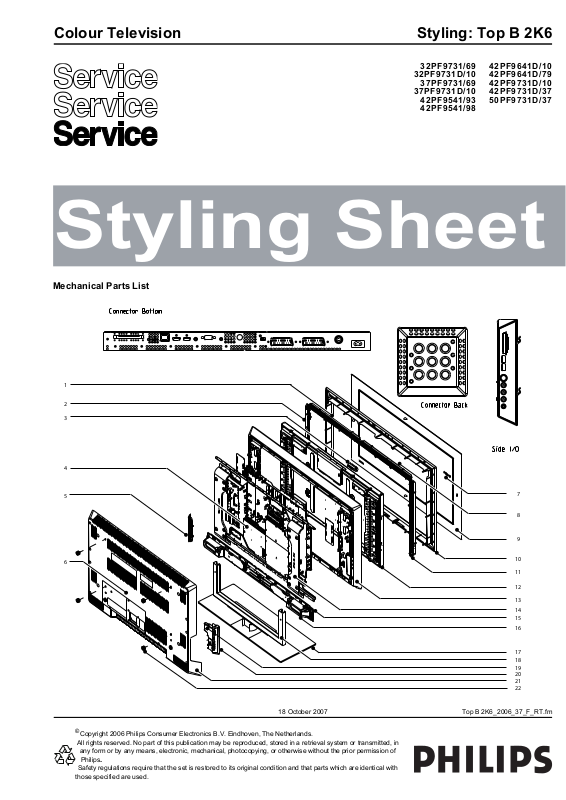

Styling Sheet
Mechanical Parts List
42PF9641D/10
42PF9641D/79
42PF9731D/10
42PF9731D/37
50PF9731D/37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
18 October 2007 Top B 2K6_2006_37_F_RT.fm
©
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in
any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of
.
Philips
Safety regulations require that the set is restored to its original condition and that parts which are identical with
those specified are used.
Page 2
Page 2
n
Mechanical Parts List
Pos. Nr. Item 12NC Material Descriptio
1 1134 272217100396 Ambient light top right x x
1 1134 272217100398 Ambient light top right x x
1 1134 272217100403 Ambient light top right x
2 1132 272217100375 Ambient light side right x
2 1132 272217100377 Ambient light side right x x
2 1132 272217100379 Ambient light side right xxxx
2 1132 272217100401 Ambient light side right x x
2 1132 272217100405 Ambient light side right x
3 0179 310430128041 Lightguide xxxxxxxxx
3 1112 310432845811 Lightguide xxxxxxxxxxx
4 0237 310430813422 SSB bottom shielding x
4 0237 310430815891 SSB bottom shielding x x x x
4 0237 310430815931 SSB bottom shielding x x x
4 0233 310430813411 SSB top shielding x x x
4 0233 310430815881 SSB top shielding x x x x x
4 0233 310430815921 SSB top shielding x
5 0036 310430429592 Control bracket x x x x x
5 0037 310430816251 Control bracket xxxxxxxxxxx
5 1010 310432841771 Side control xxxxxx xxxx
5 1110 310432845122 Side control x xxxxx
5 0036 310430430732 Side control bracket x
6 0177 310430818261 Back plate x
7 0050 310430012381 Wordmark Philips x xxxxxxxxx
7 0050 310430012401 Wordmark Philips x
8 1133 272217100395 Ambient light top left x x
8 1133 272217100397 Ambient light top left x x
8 1133 820400079411 Ambient light top left x
9 0003 310430816921 Outer front 32" x
9 0003 310430816411 Outer front 37" x x x
9 0003 310430818231 Outer front 42" x x x
9 0003 310430819201 Outer front 42" x
9 0003 310430819211 Outer front 50" x
10 0004 310430816152 Inner front 32" x
10 0004 310430818221 Inner front 42" x x x x
11 1131 272217100374 Ambient light side left x
11 1131 272217100376 Ambient light side left x x
11 1131 272217100378 Ambient light side left xxxx
11 1131 272217100399 Ambient light side left x x
11 1131 272217100404 Ambient light side left x
12 1004 932224146682 LCD display 32" LC320WX2-SL01 LPL x
12 1004 932224222682 LCD display 37" LK370D3LZ33 Sharp x x x
12 1004 932224684682 LCD display 42" LC420WU2-SLA1 (LGPH) x
12 1004 932224080682 LCD display 42" LC420WX2-SLA1 LPL x x
12 1004 820400150431 LCD display 42" LC420WX3-SLA1 LG x x x
12 1004 932224025682 PDP display 50" S50HW-YD01 PP50HW SDI x
14 0164 310430816932 Fixation bracket 32" x
14 0164 310430817062 Fixation bracket 37" x x x
14 0167 310430127232 Fixation bracket 42" xxxxxx
14 0168 310430127232 Fixation bracket 42" xxxxxx
14 0164 310430817181 Fixation bracket 50" x
15 0052 310430817201 Grill frame 32" x
15 0052 310430816761 Grill frame 37" x x x
15 0052 310430818151 Grill frame 42" x
15 0052 310430818161 Grill frame 42" x
15 0052 310430819482 Grill frame 42" x x
15 0052 310430818321 Grill frame 50" x
Top B 2K6
32PF9731/69
32PF9731D/10
37PF9731/69
37PF9731D/10
42PF9541/93
42PF9541/98
42PF9641D/10
42PF9641D/79
42PF9731D/10
42PF9731D/37
50PF9731D/37
Top B 2K6_2006_37_F_RT.fm 18 October 2007
Page 3
Page 3
n
2
t
xxx
x
Mechanical Parts List
Top B 2K6
32PF9731/69
32PF9731D/10
37PF9731/69
37PF9731D/10
42PF9541/93
42PF9541/98
Pos. Nr. Item 12NC Material Descriptio
16 5222 244125710006 Loudspeaker 10R 12W x
16 5223 244125710006 Loudspeaker 10R 12W x
16 5222 314113000191 Loudspeaker 4R 15W left x xxxx xx
16 5223 314113000201 Loudspeaker 4R 15W right x xxxx xx
16 5222 244125710007 Loudspeaker 5R 12W x
16 5223 244125710007 Loudspeaker 5R 12W x
16 5222 242226400575 Loudspeaker 8R 8W x
16 5223 242226400576 Loudspeaker 8R 8W x
16 5222 244125730055 Loudspeaker left 4R 15W x
16 5223 244125730054 Loudspeaker right 4R 15W x
17 0261 310430817861 Stand 37" x x x
17 0261 310430817791 Stand 42" x
17 0261 310430817871 Stand 42" x x
17 0261 310430817931 Stand 42" x x x
17 0261 310430817881 Stand 50" xx
18 0264 310430817811 Upright stand x
18 0264 310430817891 Upright stand x x x x x x
18 0264 310430817971 Upright stand x x x
19 0056 310430427791 Card reader base x x x
19 0057 310430427801 Card reader cover x x x
20 1016 310432828893 Side AV x
20 1115 310432842511 Side AV x x x x
20 1115 310432844121 Side AV x x x
20 0023 310430430692 Side AV bracket x
20 0023 310430431401 Side AV bracket x
21 0011 310430816182 Rear cover 32" x
21 0011 310430816452 Rear cover 37" x x x
21 0011 310430818392 Rear cover 42" x
21 0011 310430818522 Rear cover 42" x x
21 0011 310430819291 Rear cover 42" x x x x
21 0011 310430817283 Rear cover 50" x
22 0158 310430812071 Mushroom xxxxxx xxxx
22 0158 310430890981 Mushroom x
9+10 0005 310432844203 Front 32" x
9+10 0005 310432846723 Front 37" x x
9+10 0005 310432846483 Front 42" x x x
9+10 0005 310432846492 Front 42" x
9+10 0006 310432848241 Front 50" x
0503 310430819691 Distance block x x
0014 310430490551 Glassplate 50" x
0160 310430126831 Interface bracket 37" x x
0160 310430128441 Interface bracket 42" x x
0161 310430814251 Interface bracket 50" x
0163 313912010171 Light sensor holder xxxxxxxx xx
0220 310430428851 Locking part LVDS x x x
8150 310431112261 LVDS cable x
8194 242207000016 Mainscord AUS/NZ x x x x
8193 242207098146 Mainscord CH x
8191 242207098259 Mainscord EU x x x x x x
8191 462200150945 Mainscord EU x
8192 242207098258 Mainscord UK x
8192 462200400393 Mainscord UK x x x x x x
8195 242207000054 Mainscord UL x
8195 242207098208 Mainscord UL x
1850 242254900847 Remote control RC4401/EU x x x x
1850 242254901325 Remote control RC4401/EU x x x x
1850 242254900849 Remote control RC4403/LATAM x x
0251 31043081540
Wall bracke
42PF9641D/10
42PF9641D/79
42PF9731D/10
42PF9731D/37
50PF9731D/37
Top B 2K6_2006_37_F_RT.fm 18 October 2007
