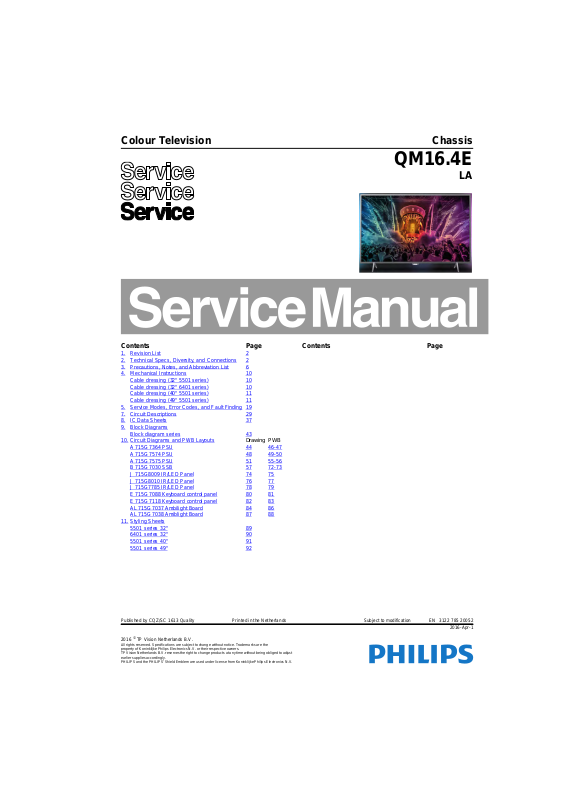

Philips 40PFT5501 Schematic

Colour Television Chassis

QM16.4E

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 6

4. Mechanical Instructions 10 Cable dressing (32" 5501 series) 10 Cable dressing (32" 6401 series) 10 Cable dressing (40" 5501 series) 11 Cable dressing (49" 5501 series) 11

5. Service Modes, Error Codes, and Fault Finding 19

7. Circuit Descriptions 29

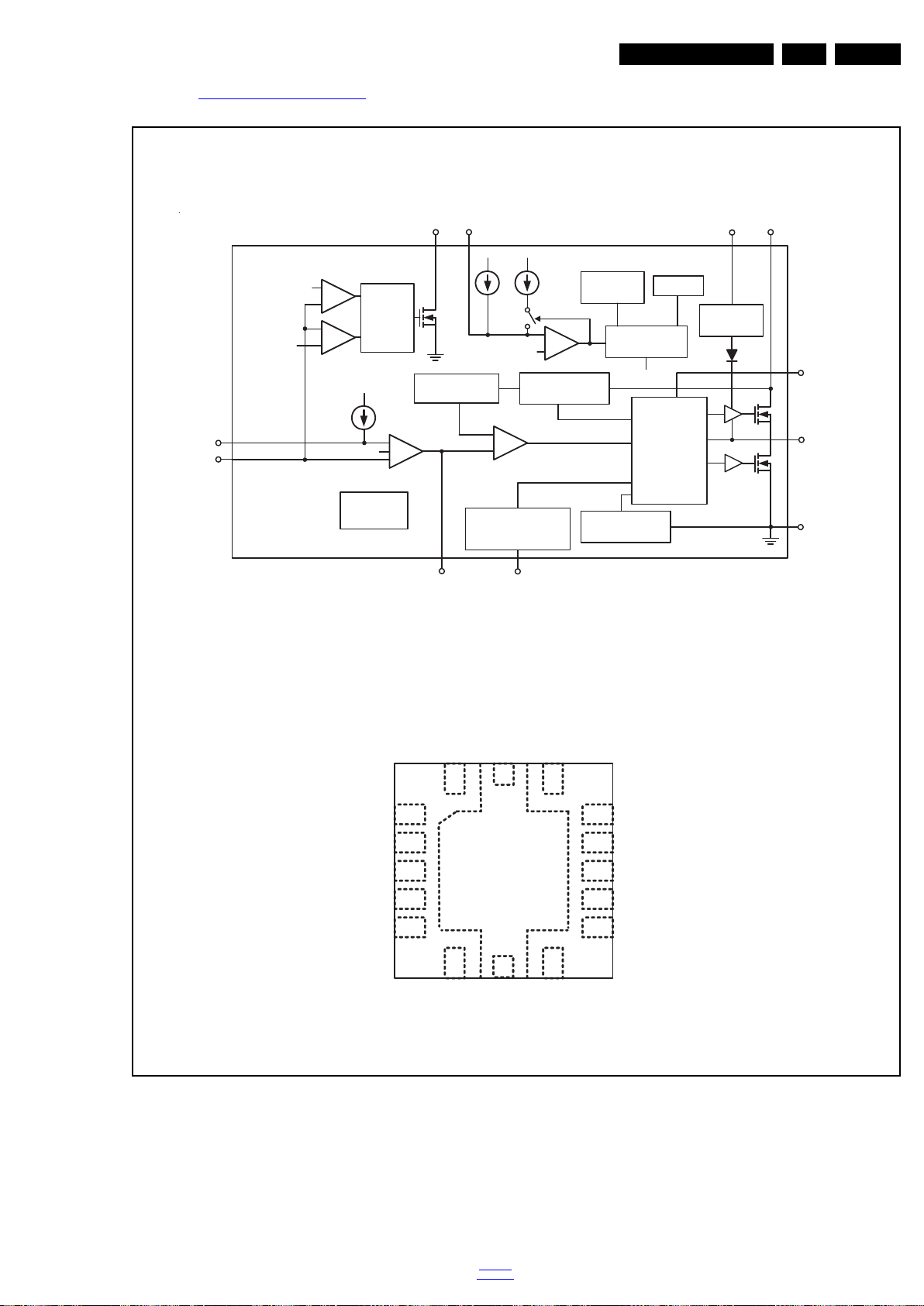

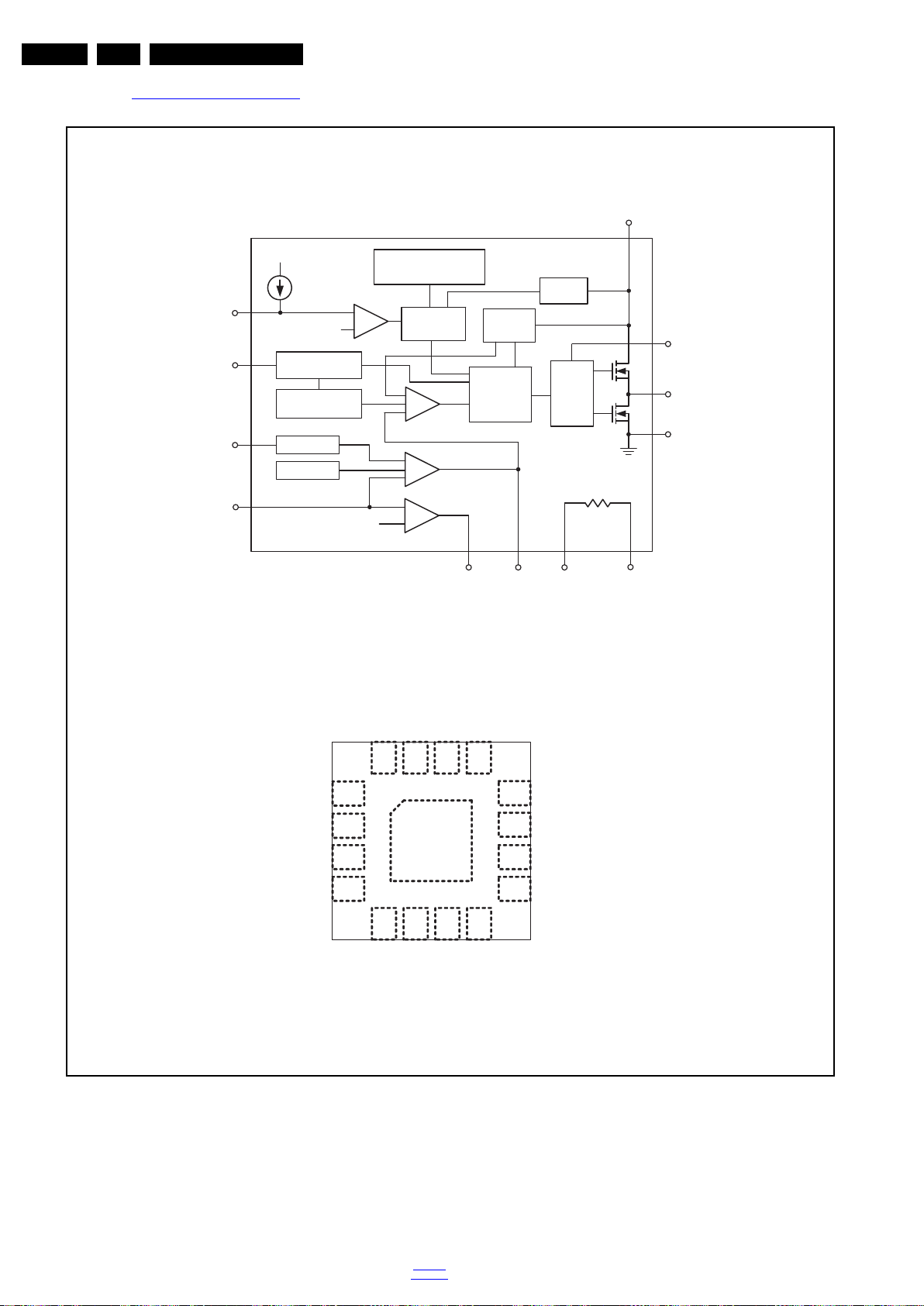

8. IC Data Sheets 37

9. Block Diagrams Block diagram series 43

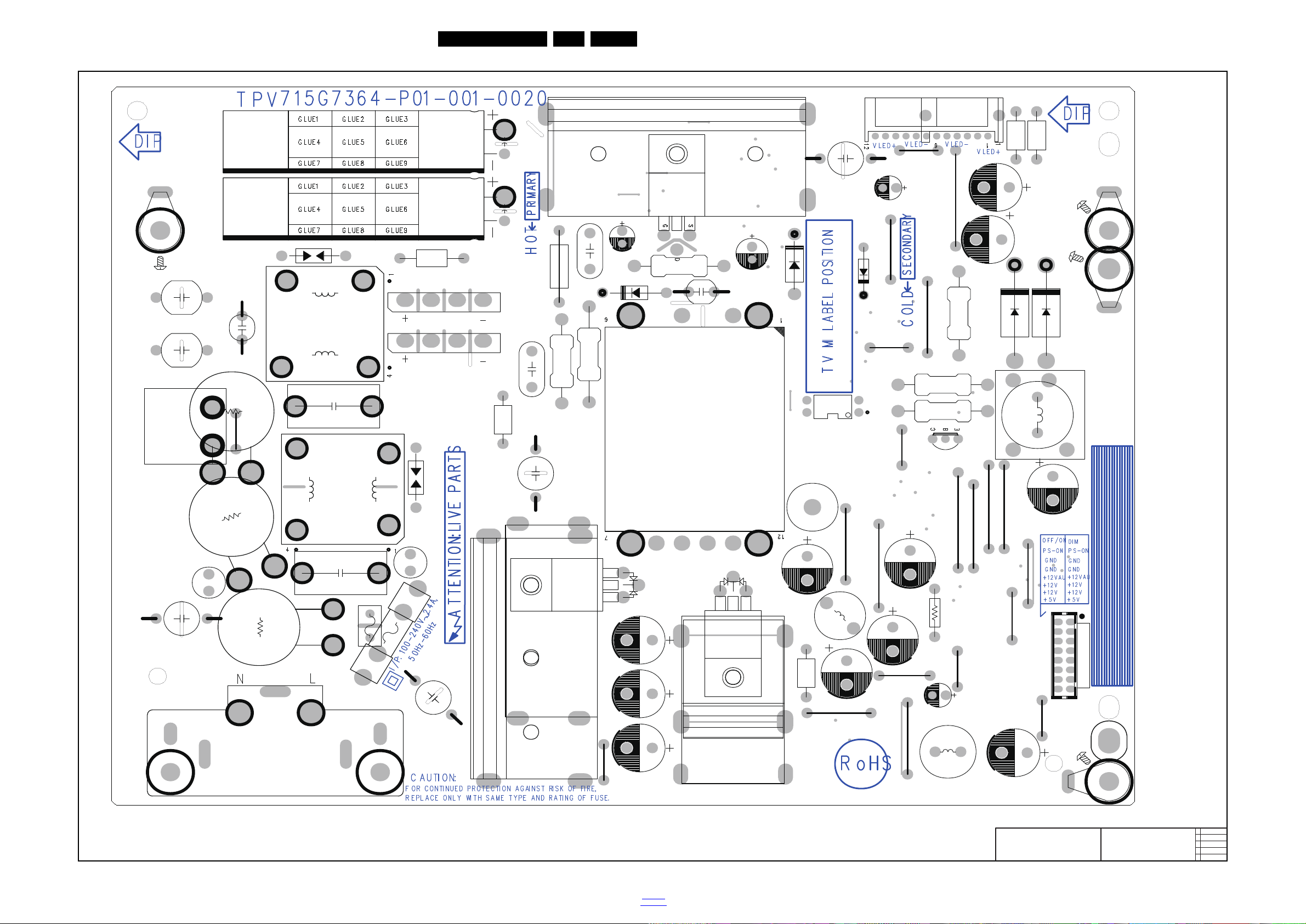

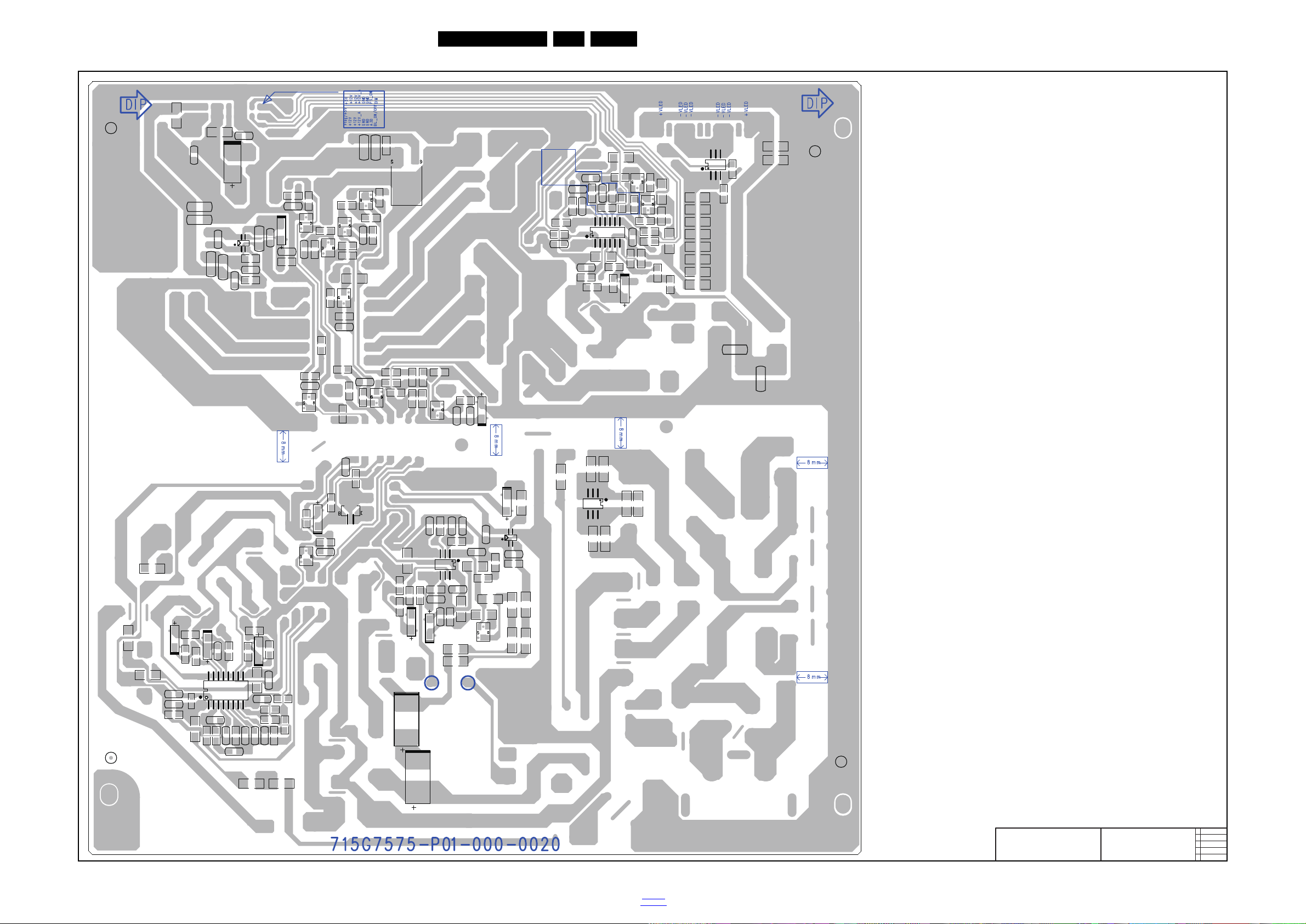

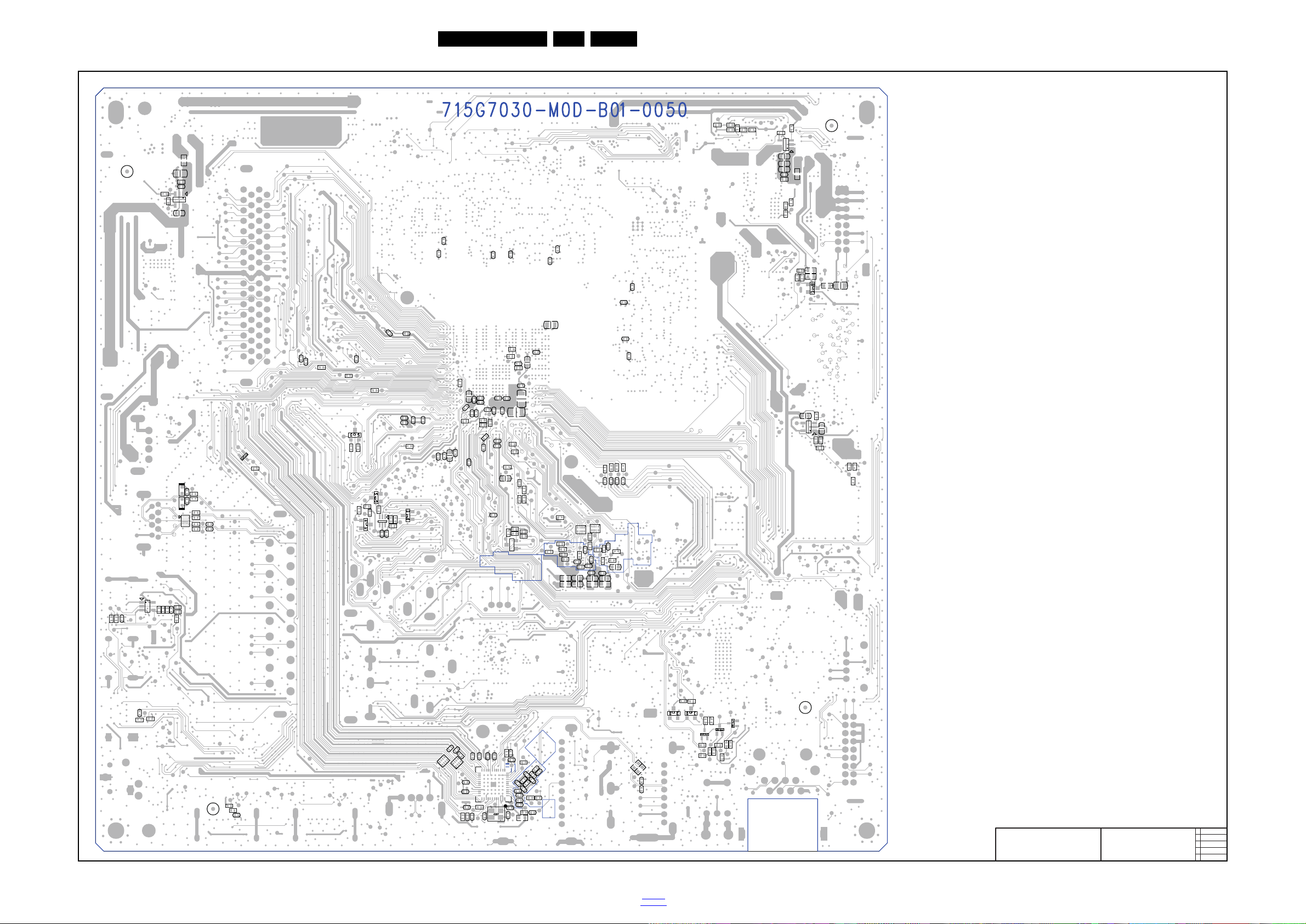

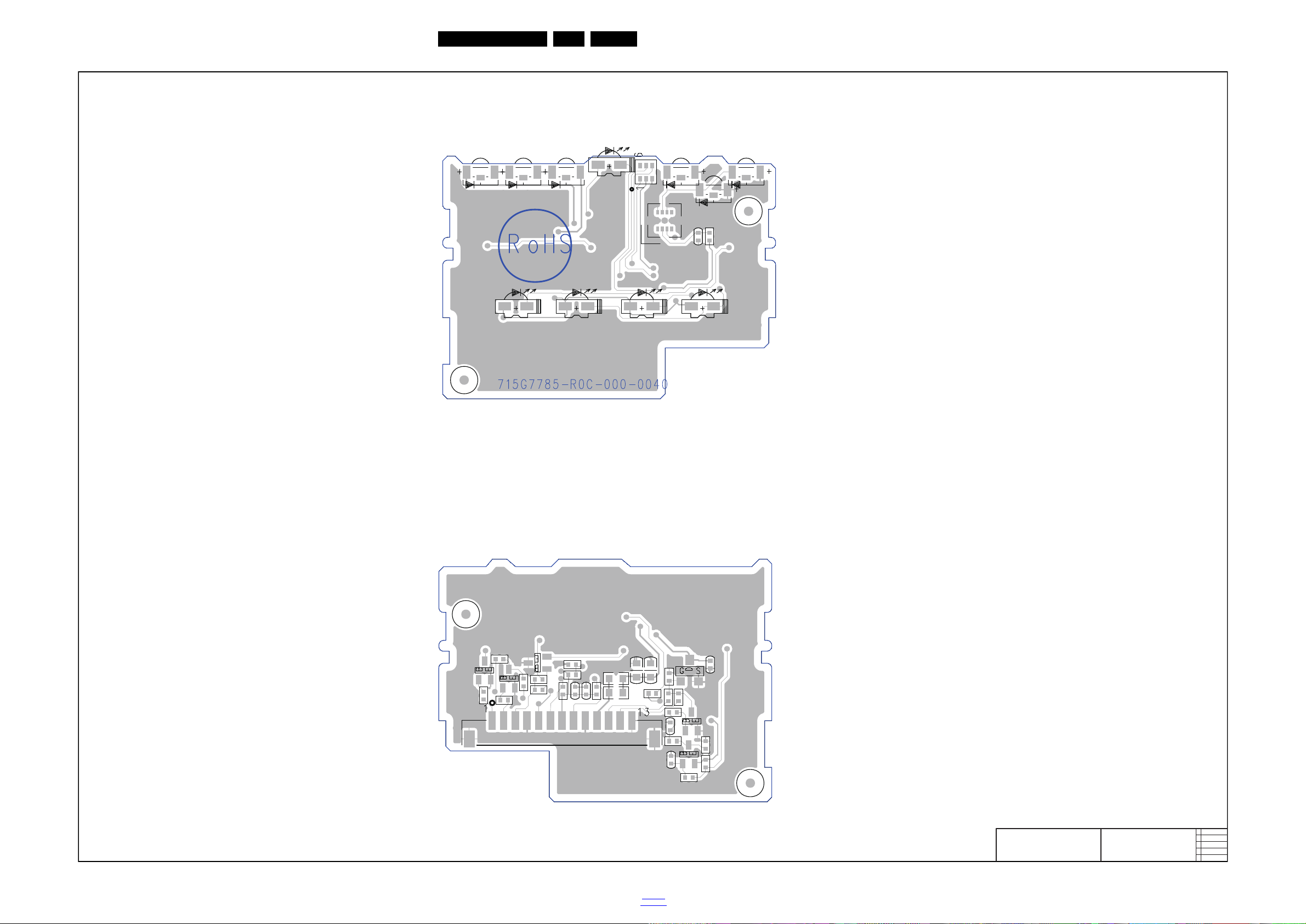

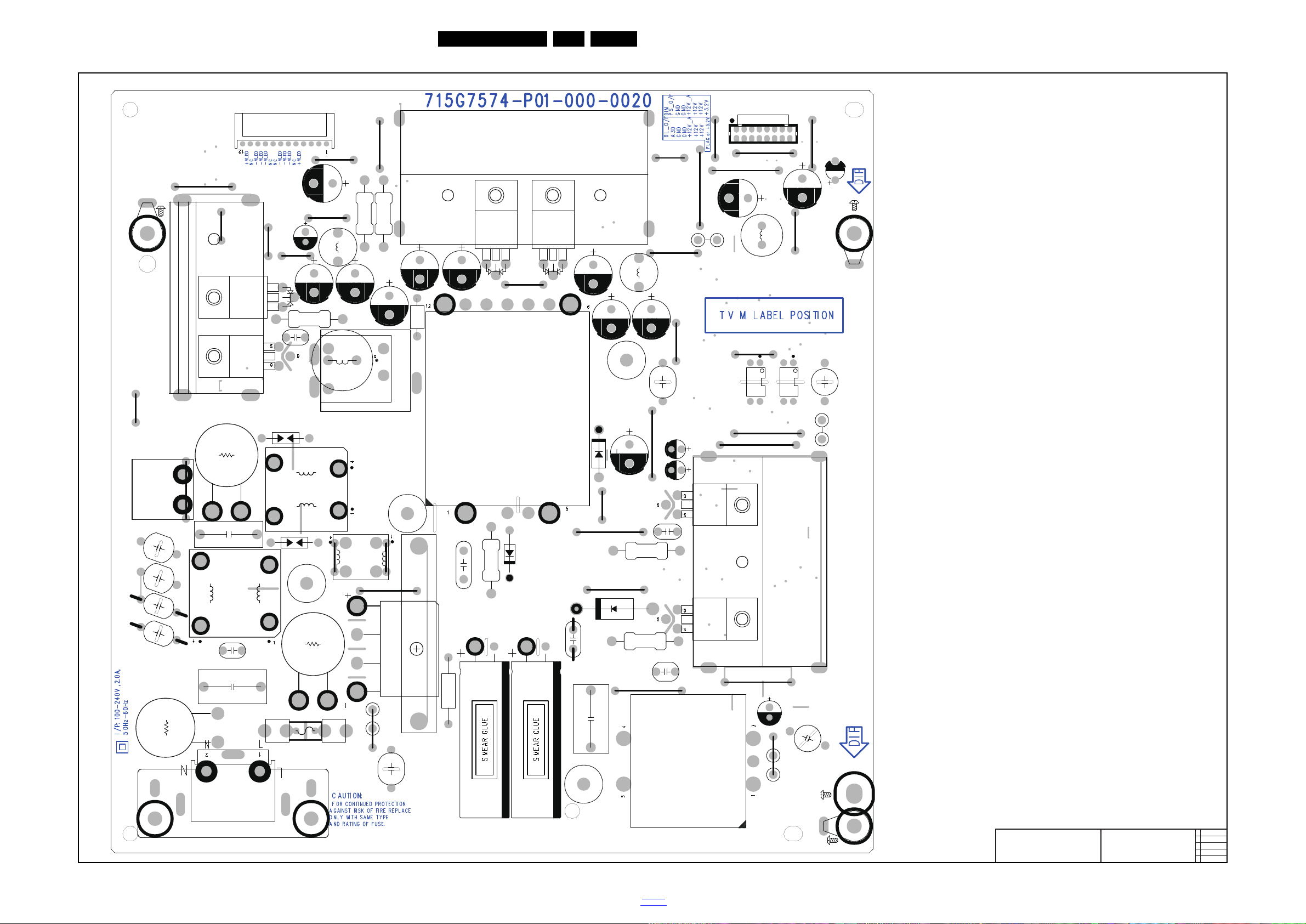

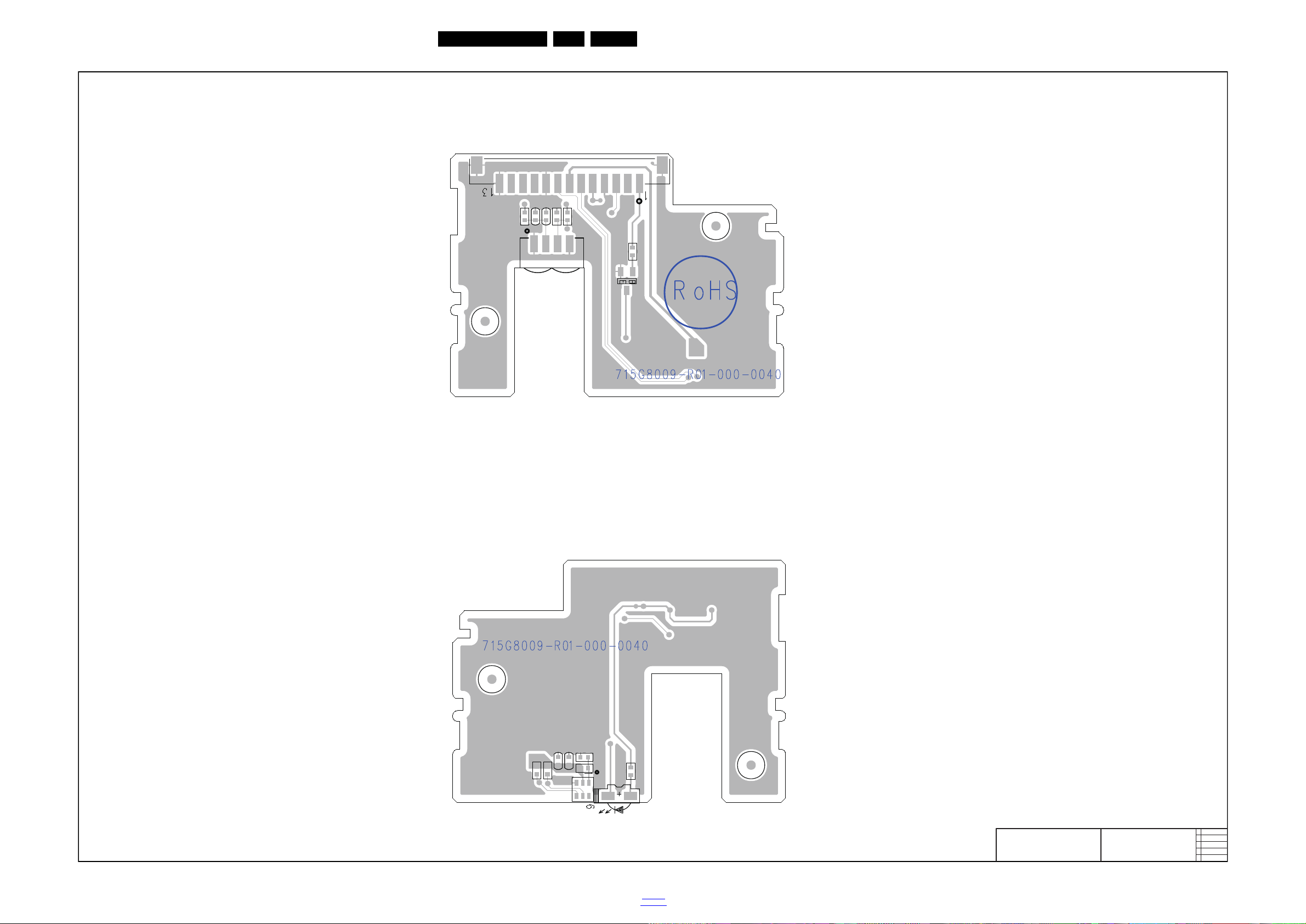

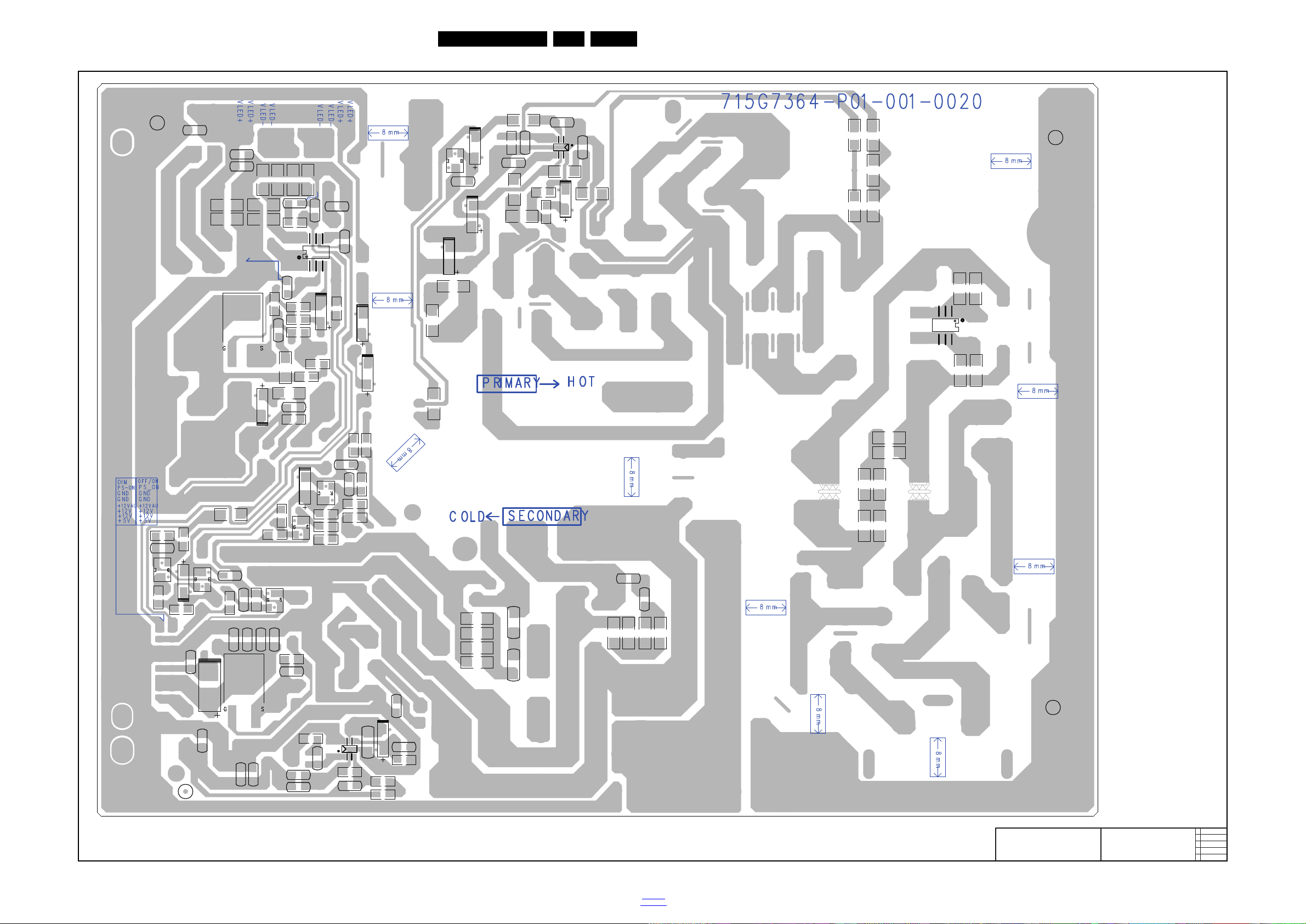

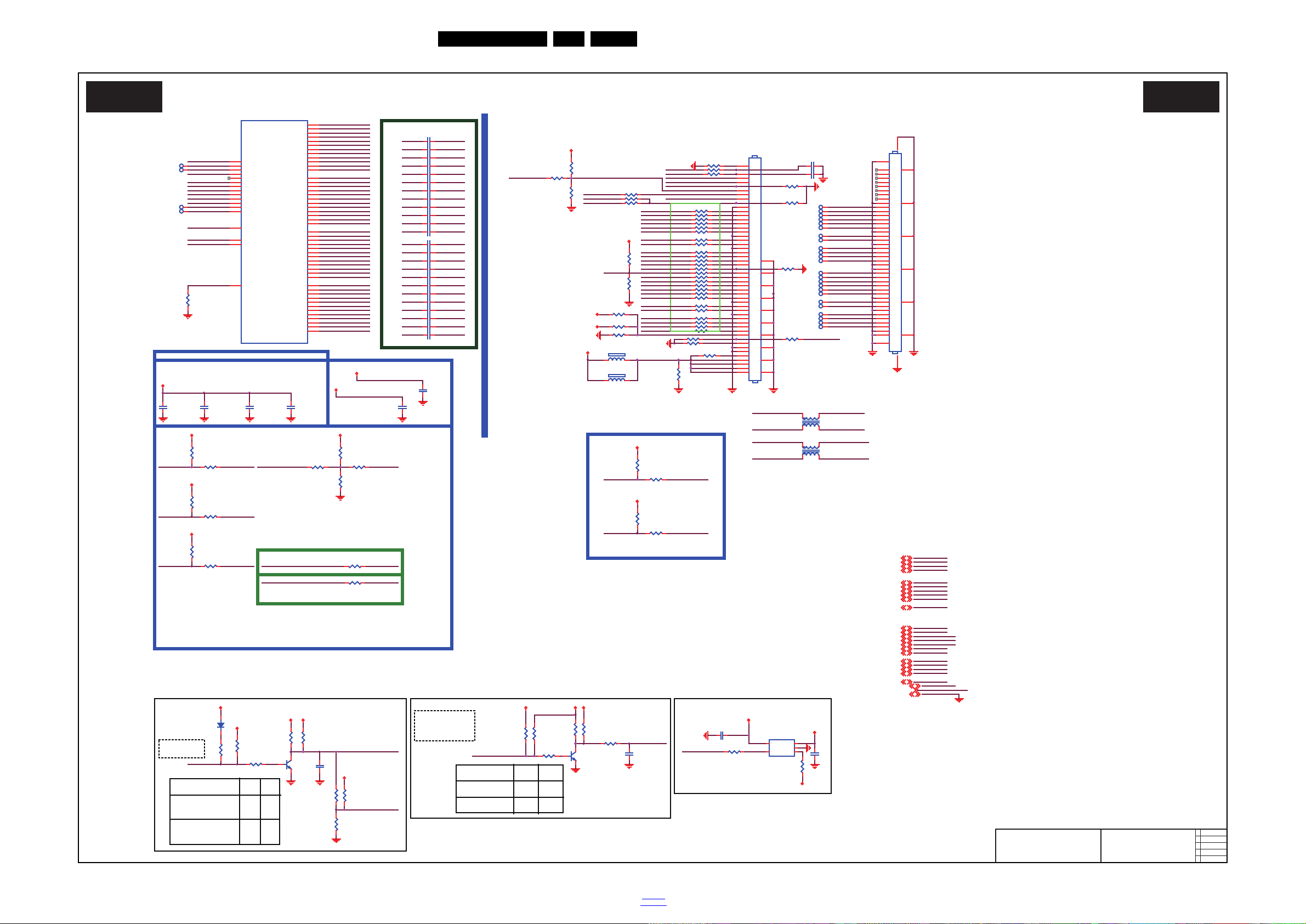

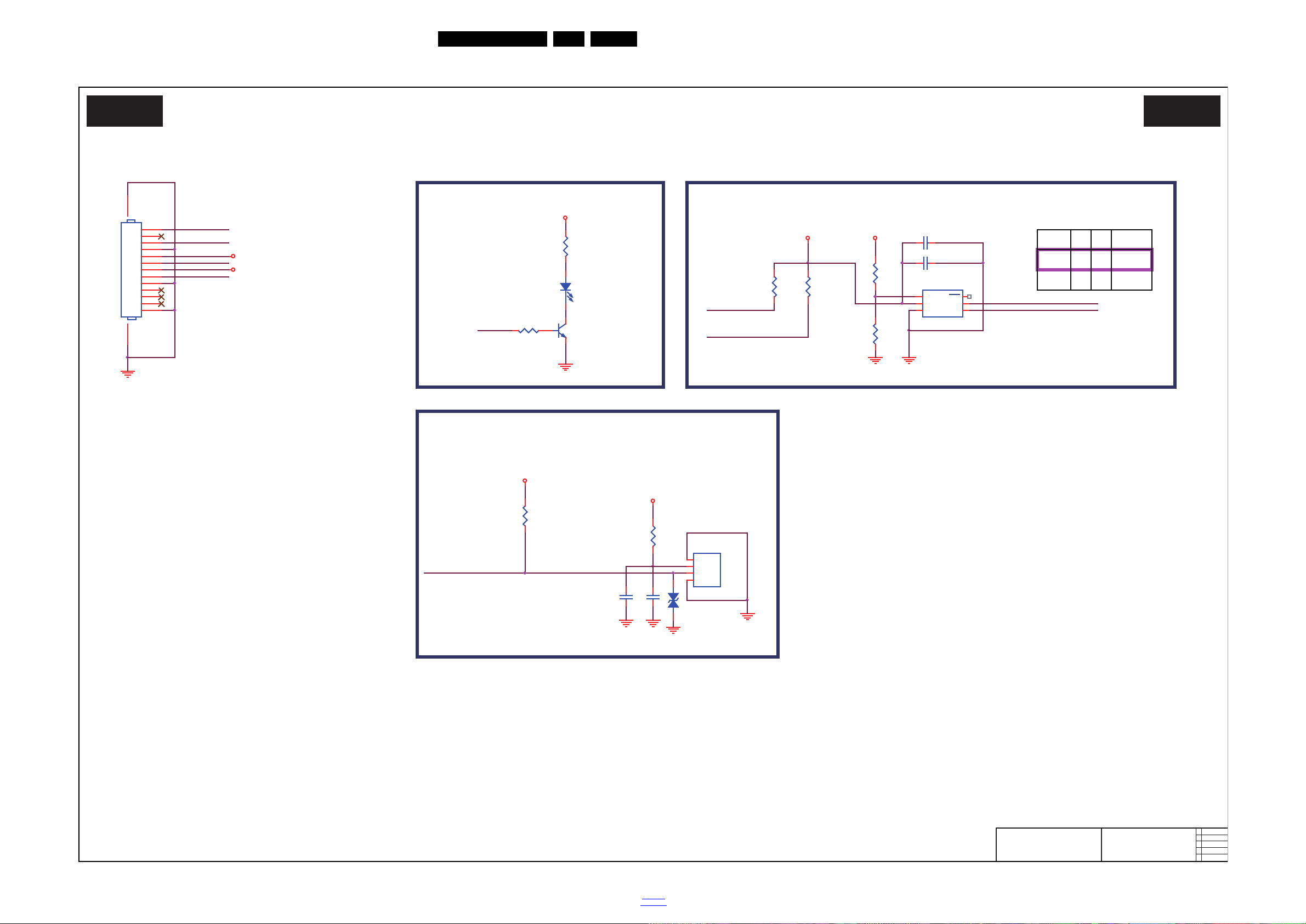

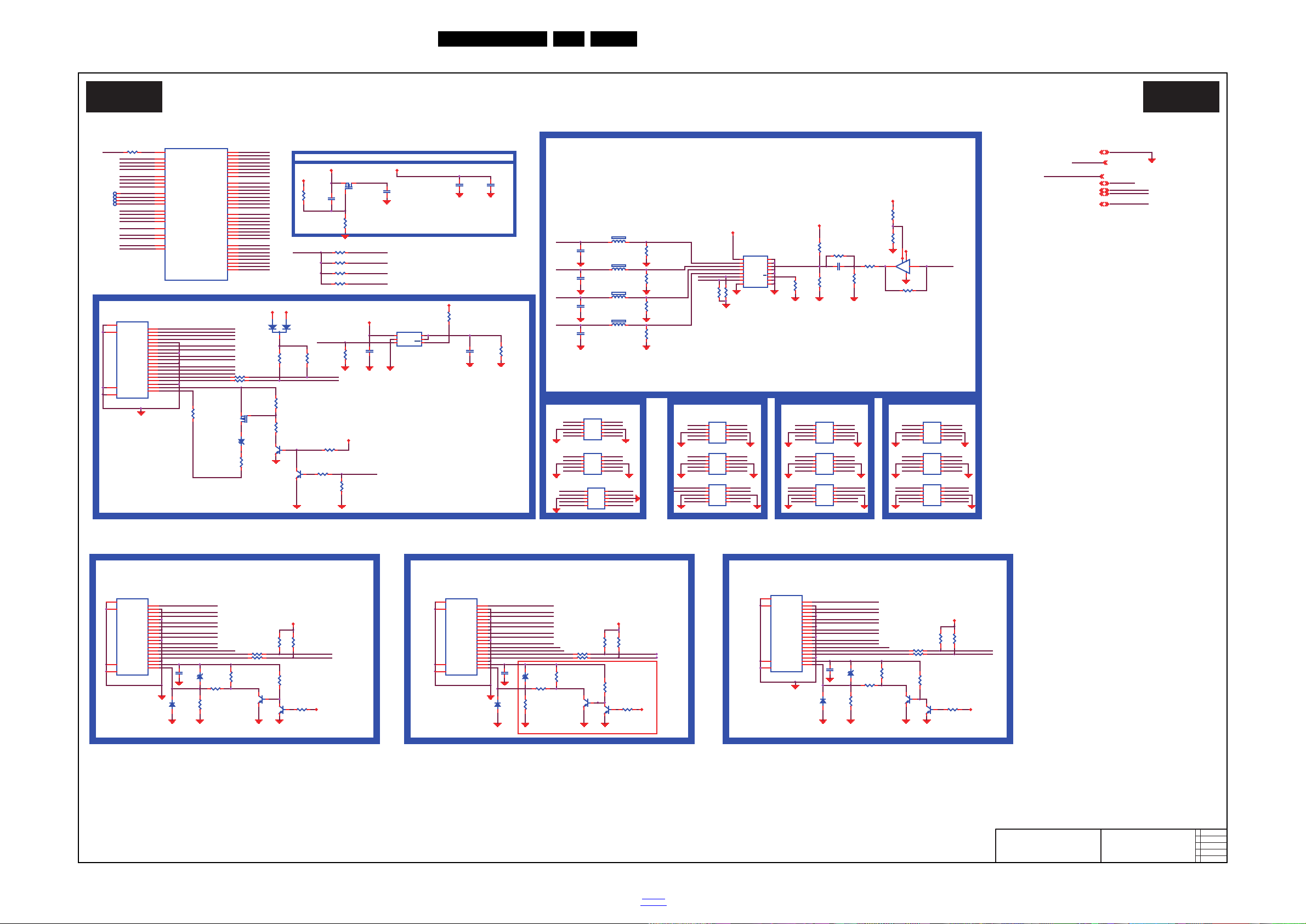

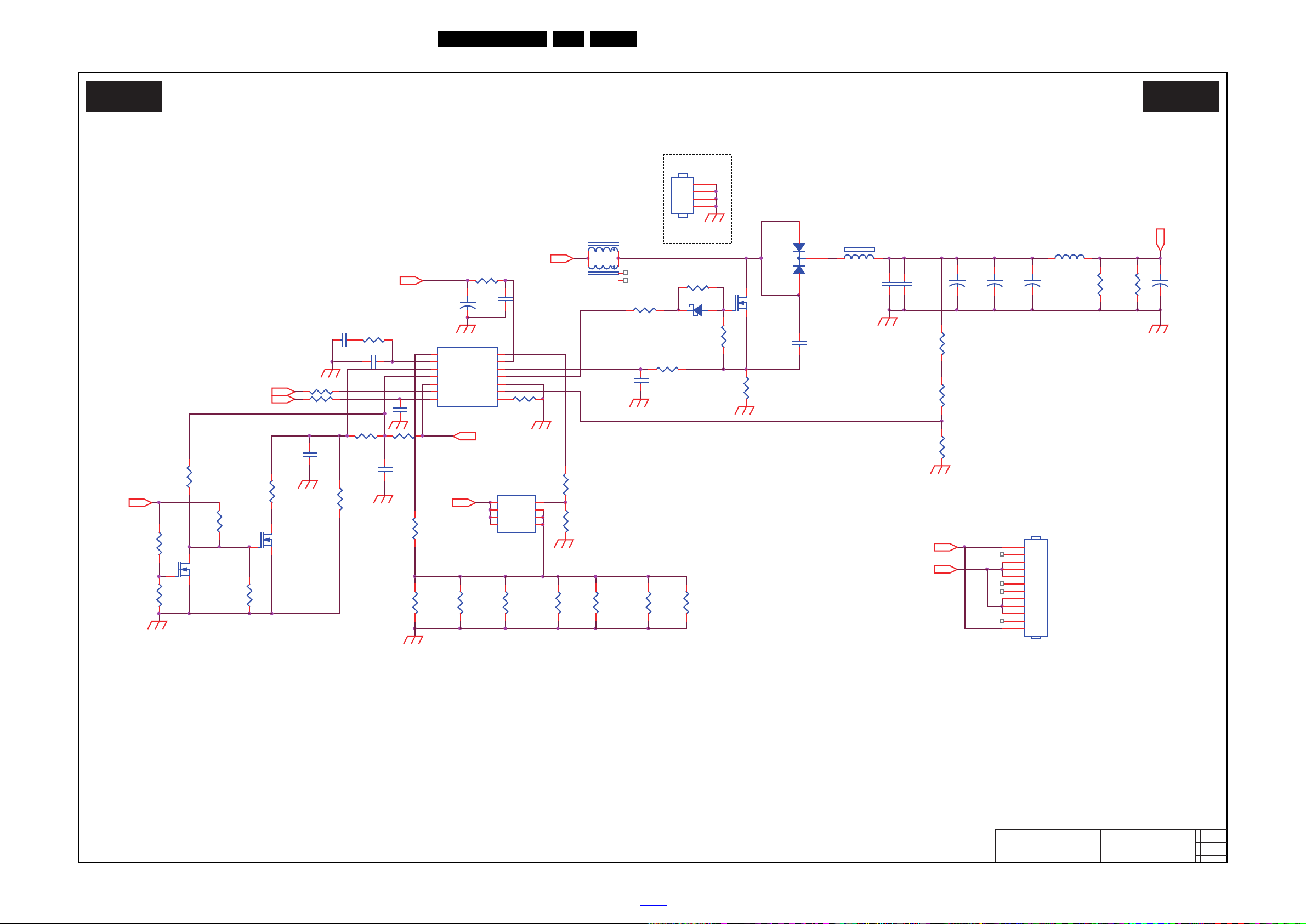

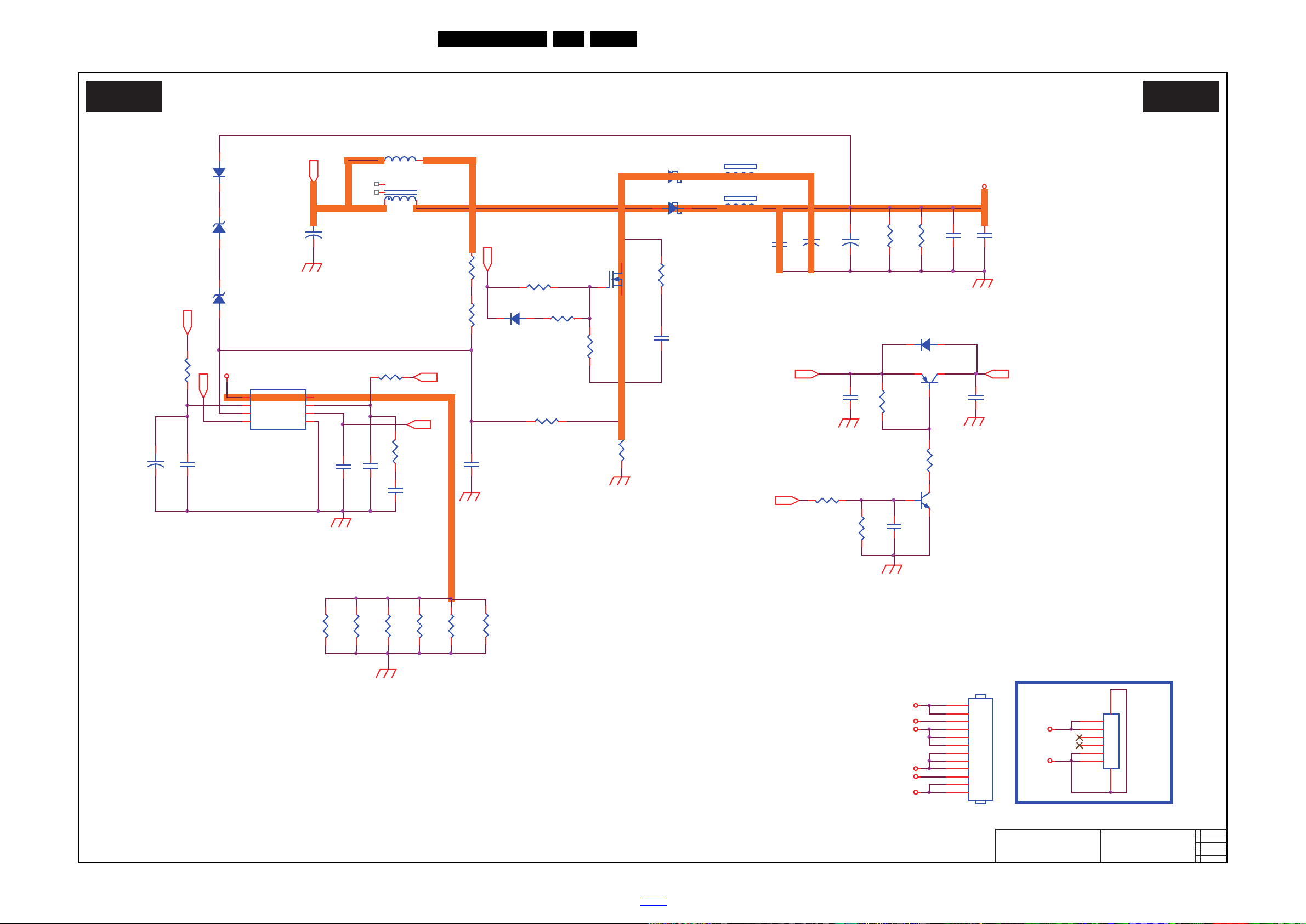

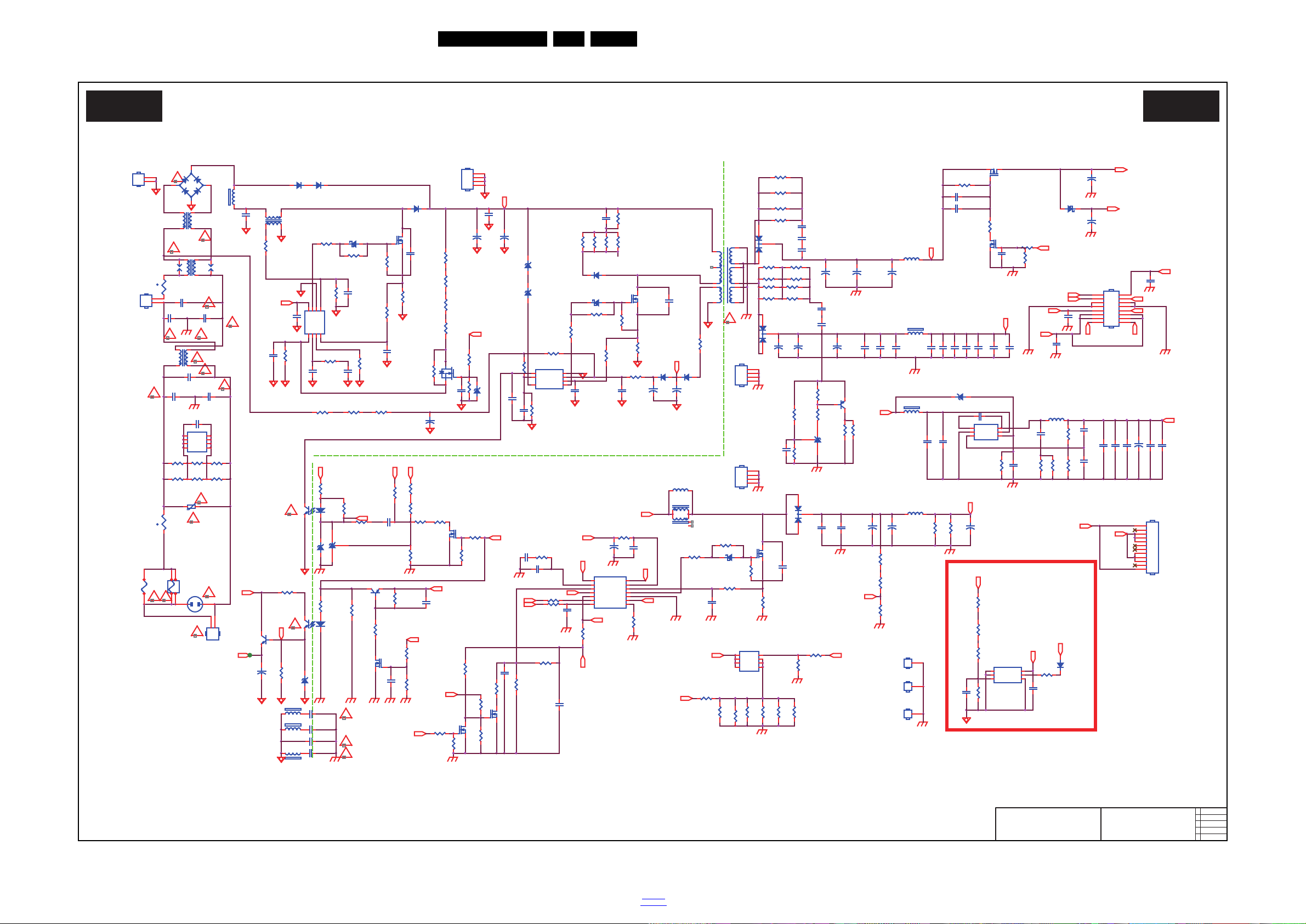

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G7364 PSU A 715G7574 PSU 48 49-50 A 715G7575 PSU 51 55-56 B 715G7030 SSB 57 72-73 J 715G8009 IR/LED Panel 74 75 J 715G8010 IR/LED Panel 76 77 J 715G7785 IR/LED Panel 78 79 E 715G7088 Keyboard control panel 80 81 E 715G7118 Keyboard control panel 82 83 AL 715G7037 Ambilight Board 84 86 AL 715G7038 Amiblight Board 87 88

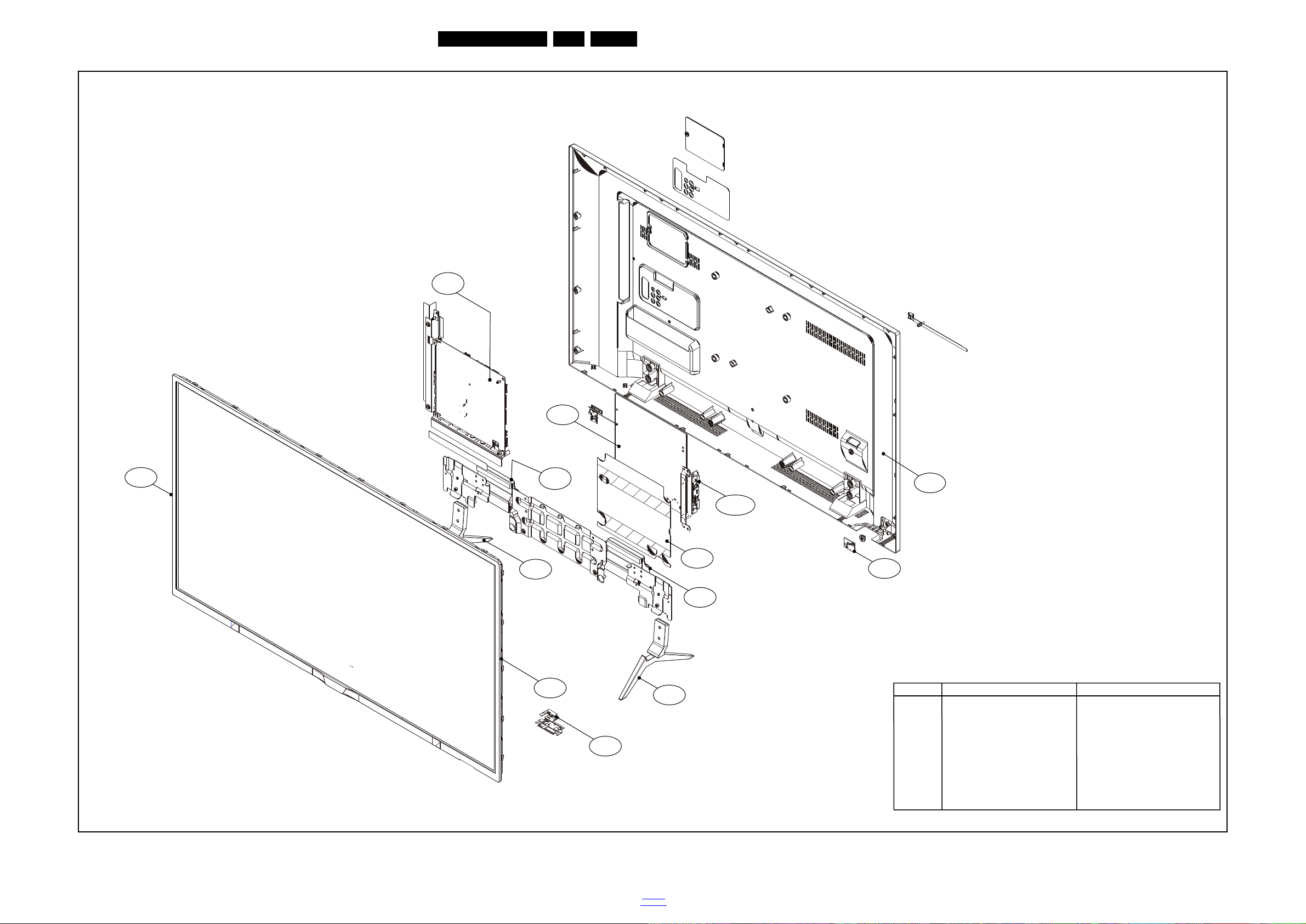

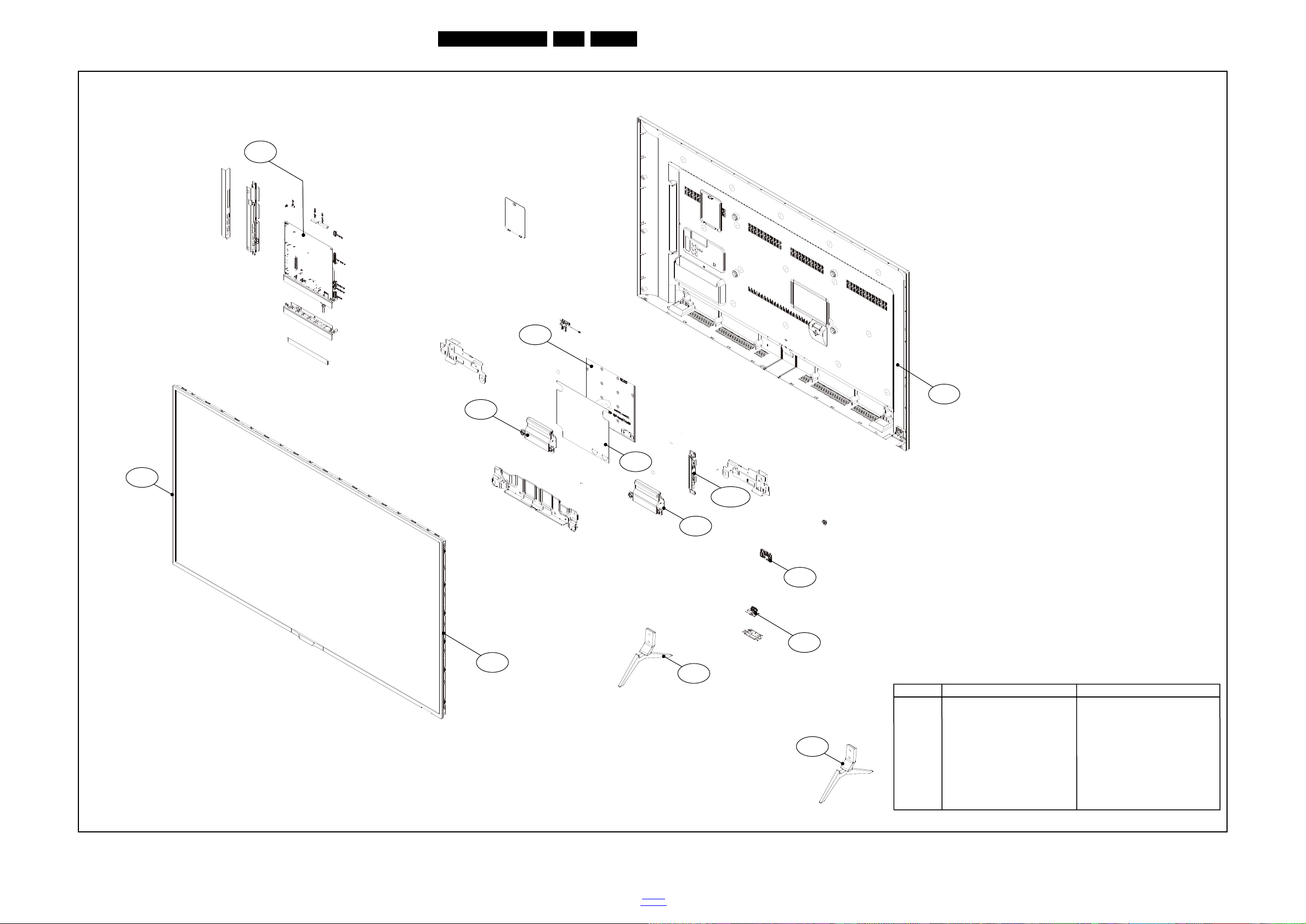

11. Styling Sheets 5501 series 32" 89 6401 series 32" 90 5501 series 40" 91 5501 series 49" 92

44 46-47

Published by CQZ/SC 1613 Quality Printed in the Netherlands Subject to modification EN 3122 785 20052

2016-Apr-1

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 QM16.4E LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

2. Technical Specs, Diversity, and Connections

.

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

32PFH5501/88 2-1 4-1 4-5 & 4-6 4-7 4-8 4-9 9.1 10.1 10.4 10.5 10.8 - 11.1 32PFT5501/12 2-1 4-1 4-5 & 4-6 4-7 4-8 4-9 9.1 10.1 10.4 10.5 10.8 - 11.1 32PFS5501/12 2-1 4-1 4-5 & 4-6 4-7 4-8 4-9 9.1 10.1 10.4 10.5 10.8 - 11.1 32PFT5501/60 2-1 4-1 4-5 & 4-6 4-7 4-8 4-9 9.1 10.1 10.4 10.5 10.8 - 11.1 32PFS6401/12 2-1 4-2 4-10 & 4-11 4-12 4-13 4-14 & 4-15 9.1 10.1 10.4 10.7 10.9 10.10 & 10.11 11.2 32PFS6401/60 2-1 4-2 4-10 & 4-11 4-12 4-13 4-14 & 4-15 9.1 10.1 10.4 10.7 10.9 10.10 & 10.11 11.2 40PFH5501/88 2-1 4-3 4-5 & 4-6 4-7 4-8 4-9 9.1 10.2 10.4 10.5 10.8 - 11.3 40PFT5501/12 2-1 4-3 4-5 & 4-6 4-7 4-8 4-9 9.1 10.2 10.4 10.5 10.8 - 11.3 40PFS5501/12 2-1 4-3 4-5 & 4-6 4-7 4-8 4-9 9.1 10.2 10.4 10.5 10.8 - 11.3 40PFT5501/60 2-1 4-3 4-5 & 4-6 4-7 4-8 4-9 9.1 10.2 10.4 10.5 10.8 - 11.3 49PFH5501/88 2-1 4-4 4-5 & 4-6 4-7 4-8 4-9 9.1 10.3 10.4 10.6 10.8 - 11.4 49PFT5501/12 2-1 4-4 4-5 & 4-6 4-7 4-8 4-9 9.1 10.3 10.4 10.6 10.8 - 11.4 49PFS5501/12 2-1 4-4 4-5 & 4-6 4-7 4-8 4-9 9.1 10.3 10.4 10.6 10.8 - 11.4 49PFT5501/60 2-1 4-4 4-5 & 4-6 4-7 4-8 4-9 9.1 10.3 10.4 10.6 10.8 - 11.4

Connection Overview

Wire Dressing

Rear Cover Removal

Kyboard Control Removal

SSB Removal

IR/LED Board Removal

Schematics

Block Diagram

Power Supply

SSB

J (IR/LED)

EJ (control board + IR/LED panel)

AL(Ambilight Board)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2016-Apr-1

back to

div.table

2.3 Connections

HDMI 3 ARC

USB

3

USB

2

CI

NETWORK

TV ANTENNA

SERV.U

AUDIO IN

DVI

SCART

(RGB/CVBS)

(Optional)

R L

CVBS/Y Pb

Pr

DIGITAL

AUDIO OUT

SAT

HDMI 2

ARC

HDMI

1

ARC

HDMI 4 ARC/MHL

USB1

20050_001.eps

1

2

3

4

5

6

8

9

7

12

11

13

10

14

15

16

Side Connectors

Rear Connectors

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3QM16.4E LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

2 - USB3 2.0

Figure 2-2 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3 - USB2 2.0

Figure 2-3 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4- HDMI ARC/MHL: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

back to

div.table

2016-Apr-1

EN 4 QM16.4E LA2.

10000_017_090121.eps

090428

19

1

18 2

21

20

1

2

10000_001_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

5- HDMI ARC: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

6- Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW

ot

2.3.2 Rear Connections

8 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

9 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

10 - RJ45: Ethernet

10000_025_090121.eps

120320

Figure 2-7 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H 8 -GND Gnd H

11 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

12 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

7 - SCART: Video RGB/YC - In, CVBS - In/Out, Audio In/Out

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H 5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V 8 -Function Select 0 - 2 V: INT

9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V 12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT

17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H

2016-Apr-1

Figure 2-6 SCART connector

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

1 - 3 V: EXT / 75  j

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

/ 10 k j

RMS

/ 75  jk

PP

/ 75  j

PP

/ 75  j

PP

/ 75  k

PP

/ 75  j

PP

back to

div.table

13 - SAT - In

Signal input from an SAT.

14- USB1 2.0

Figure 2-8 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

15 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-9 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j

Technical Specs, Diversity, and Connections

10000_017_090121.eps

090428

19

1

18 2

EN 5QM16.4E LA 2.

13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

16 - HDMI2 : Digital Video - In, Digital Audio - In/Out

Figure 2-10 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

back to

div.table

2016-Apr-1

EN 6 QM16.4E LA3.

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

2016-Apr-1

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

-12

-6

),

).

Precautions, Notes, and Abbreviation List

10000_053_110228.eps

110228

EN 7QM16.4E LA 3.

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's ma nual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

back to

div.table

2016-Apr-1

EN 8 QM16.4E LA3.

Precautions, Notes, and Abbreviation List

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

2016-Apr-1

back to

div.table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.5 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

2016-Apr-1

Figure 4-1 Cable dressing (32" 5501 series)

back to

div.table

Mechanical Instructions

20050_115.eps

CN8601

CN9101

CN4250

CN1404

CN700

CN408

CN401

CN601

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN4250

ECN601

ECN401

ECN601

ECN700

ECN401

ECN601

KEYBOARD CONTROL

(1057)

E

CN01

CN02

IR/LED BOARD (1056)

J

ECN408

AmbiLight

AL

(1062)

AmbiLight

AL

(1061)

CN201

EXA02

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

EXA02

ECN700

ECN02

ECN1404

20050_101.eps

CN408

CN700

CN601

CN401

CN8603

CN9101

CN4250

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN408

ECN4250

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

WIFI Module

(WiFi01)

ECN1404

CN1404

EN 11QM16.4E LA 4.

Figure 4-2 Cable dressing (32" 6401 series)

Figure 4-3 Cable dressing (40" 5501 series)

back to

div.table

2016-Apr-1

EN 12 QM16.4E LA4.

20050_102.eps

CN408

CN700

CN601

CN401

CN8603

CN9101

CN4250

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN700

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN408

ECN4250

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

WIFI Module

(WiFi01)

ECN1404

CN1404

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

2016-Apr-1

Figure 4-4 Cable dressing (49" 5501 series)

back to

div.table

Mechanical Instructions

20050_103.eps

2

4

2

1

3

1

M4 × 14

M3× 6

Q3× 8

2

M3 × 6

3

20050_105.eps

5

EN 13QM16.4E LA 4.

4.3 Assembly/Panel Removal

Instructions below apply to the 32PFS5501/12, but will be similar for other 32"/40"/49"Pxx5501 series models.

4.3.1 Rear Cover

Refer to Figure 4-5 Warning: Disconnect the mains power cord before removing the rear cover.

and Figure 4-6 for details.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set.

2. Remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to Figure 4-5

3. Unplug the connector [5] from SSB. Refer to Figure 4-6 details.

4. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

for

Figure 4-5 Rear cover removal[1]

Figure 4-6 Rear cover removal[2]

back to

div.table

2016-Apr-1

EN 14 QM16.4E LA4.

20050_106.eps

2

1

20050_107.eps

2

1

3

Mechanical Instructions

4.3.2 Keyboard Control unit

1. Unplug the connector [2] from the keyboard control panel.

2. Remove the fixation screws [1] that secure the keyboard

3. Gently take the keyboard out. Refer to Figure 4-7 for details.

When defective, replace the whole unit.

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-8 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-8

for details.

Figure 4-7 Keyboard removal

Figure 4-8 SSB removal

2016-Apr-1

back to

div.table

4.3.4 IR/LED Board

20050_108.eps

2

1

Mechanical Instructions

EN 15QM16.4E LA 4.

Refer to Figure 4-9

1. Carefully pull out the IR cover from the fixation clips[1].

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover.

for details.

Figure 4-9 IR Board removal

4.3.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.6 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.

When defective, replace the both units.

4.3.7 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

back to

div.table

2016-Apr-1

EN 16 QM16.4E LA4.

20050_109.eps

2

22

2

1

3

4

3

1

M4 × 14

M3× 6

2

M3 × 6

Q3 × 8

3

20050_110.eps

5

Mechanical Instructions

4.4 Assembly/Panel Removal (for 6401 series)

Instructions below apply to the 32PFS6401/12, but will be similar for other 32"Pxx6401 models.

4.4.1 Rear Cover

Refer to Figure 4-10 Warning: Disconnect the mains power cord before removing the rear cover.

and Figure 4-11 for details.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Refer to Figure 4-10 details.

2. Remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to Figure 4-10

3. Unplug the connector [5] from SSB. Refer to Figure 4-11 for details.

4. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

for

Figure 4-10 Rear cover removal[1]

Figure 4-11 Rear cover removal[2]

2016-Apr-1

back to

div.table

Mechanical Instructions

20050_111.eps

4

3

2

1

4

5

20050_112.eps

1

3

2

EN 17QM16.4E LA 4.

4.4.2 AmbiLight Panel

Refer to Figure 4-12

for details.

1. Gently release the clamps and unplug the connectors [4] that secure the ambilight panels. Release the clips from the FFC connector that connect with the keyboard [5].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

Figure 4-12 Ambilight and Keyboard removal

4.4.3 Keyboard Control Unit

Refer to Figure 4-12

1. Release the connectors [2] and [3] from the keyboard control panel. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover.

When defective, replace the whole unit.

4.4.4 Small Signal Board (SSB)

Refer to Figure 4-13 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-13

for details.

Figure 4-13 SSB removal

back to

div.table

2016-Apr-1

EN 18 QM16.4E LA4.

20030_129.eps

2

Mechanical Instructions

4.4.5 IR/LED Board

Refer to Figure 4-14

1. Remove the fixation screws [1] from the stand bracket, pull out the assy from the set. Refer to Figure 4-14

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover. Refer to Figure 4-15

and Figure 4-15 for details.

for details.

1

for details.

20050_113.eps

4.4.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.5 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-4

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

Figure 4-14 IR/LED Board removal[1]

Figure 4-15 IR/LED Board removal[2]

4.4.6 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

2016-Apr-1

back to

div.table

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into five parts:

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type. When the value is accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

EN 19QM16.4E LA 5.

Note: For the new model range, a new remote control (RC) is

used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SAM, and CSM. The screen will show: “AAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAA is the chassis name: QM164.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

Hardware info The information of Hardware Operation hours This represents the life timer. The timer counts normal operation hours, but does not

Shop operation hours This represents the life timer. The timer counts normal sho p operation hours, but does

Errors Shows all errors detected since the last time the buffer was erased. Five errors

Reset error buffer Reset error buffer

5.1.2 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the televisio

count Stand-by hours.

not count Stand-by hour s.

possible.

n is in Service Alignment Mode.

back to

div.table

2016-Apr-1

EN 20 QM16.4E LA5.

Main Menu Sub-menu 1 Sub-menu 2 Description

Alignments Warm R Gain To align the White Tone. See

Normal R Gain

Cool R Gain

Ambilight Select module Ambilight select module

Brightness Brightness of Ambilight

Option numbers Group 1 Group 1 Option number

Group 2 Group 2 Option number

Store Store the Option number Store Store Software maintenance Software events Software events

Hardware events Hardware events Test setting Digital info Test setting BT Pairing tables Clear paired remote control Clear paired remote control Wi-Fi Direct settings Reset Wi-Fi Direct group Reset Wi-Fi Direct group Development 1 file versions Development 1 file versions Development 2 file versions Development 2 file versions Upload to USB To upload several settings from the TV to an USB stick Download from USB To download several settings from the USB stick to the TV NVM editor Type number NVM-editor will function as in the past: type number, production code, 18AC SSB,

Production code

18AC SSB

18AC display

18AC supply

Service Modes, Error Codes, and Fault Finding

G Gain B Gain

paragraph 6.3 Software Alignments

18AC display, 18AC supply is a decimal value via digit entry

in the Alignments section for a detailed description

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.1.3 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the softwar e versions of the supplier, Flash PQ, Smart Picture, BLDimming,

1 PANEL_ID See table back to div.table 6-3 Displays and changes the Panel ID with the left and right cursor; be careful changing

2 DEMOD_TYPE 1 3 2 Choose demod type. 3 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct

2016-Apr-1

Default value

Description32" 40" 49"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, MCU and OAD software versions.

this, it can result in not correct displaying the screen!

NVM address

back to

div.table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

4 NVM VALUE 0 Displays the value at the NVM address of item 5 5 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 6 COPY NVM to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory

7 COPY NVM to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save

8 TV Settings Key 1 1 1 TV Settings Key 9 TV Settings VALUE 0 0 0 TV Settings VALUE 10 TV Settings STORE Press OK TV Settings STORE 11 COPY TV Settings to USB Press OK COPY TV Settings to USB 12 COPY TV Settings to TV Press OK COPY TV Settings to TV 13 VIRGIN_MODE Off Off Off Use this to return the set to virgin mode. Depends whether the set has bee n used

14 ORT_MODE On Off On ORT mode 15 DRMWARNING On On On Warning the data rights management 16 AGEING MODE Off Off Off Use this for aging a new LCD panel 17 COLOR TEMP MODE Normal COLOR TEMP MODE 18 CLR_TEMP_R 0 0 0 Red colour temperature setting 19 CLR_TEMP_G 0 0 0 Green colour temperature setting 20 CLR_TEMP_B 0 0 0 Red colour temperature setting 21 ADC_GAIN_R 255 255 255 Red ADC gain 22 ADC_GAIN_G 255 255 255 Green ADC gain 23 ADC_GAIN_B 255 255 255 Blue ADC gain 24 ADC_OFFSET_R 127 127 127 Red ADC offset 25 ADC_OFFSET_G 127 127 127 Green ADC offset 26 ADC_OFFSET_B 127 127 127 Blue ADC offset 27 AUD_GAIN_HDMI 0 HDMI audio gain 28 AUD_GAIN_ATV 12 Analogue TV audio gain 29 AUD_GAIN_DTV 0 Digital TV audio gain 30 AUD_GAIN_USB 0 USB audio gain 31 AUD_GAIN_SPDIF 0 SPDIF audio gain 32 AUD_GAIN_LINE_IN 0 LINE_IN audio gain 33 AQ_INDEX 10 5 5 Audio Quality index 34 Copy PQ to USB Press OK Saves the picture quality data to a file “pq.bin” to the root of a FAT formatted USB

35 Copy PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 36 Copy AQ to USB Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 37 Copy AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 38 COPY DB CHL to USB Press OK Copy the USB channel list to USB 39 COPY DB CHL to TV Press OK Copy the TV channel list to TV 42 LIGHT SENSOR TYPE 0 0 0 Light sensor type 40 TEMP SENSOR TYPE 0 0 0 Tempreture sensor 41 LED TYPE 0 0 0 The type of LED 42 AMBILIGHT TYPE Side Segments The type of Ambient light 43 AMBILIGHT TYPE

VALUE 44 3D 0 0 0 3D on/off 45 BLUETOOTH 1 1 1 BLUETOOTH 46 ARC TEST On ARC test 47 HDMI ARC OUTPUT

ORDER 48 UART ENABLE on UART ENABLE 49 RESET MAC ADDRESS Press OK RESET MAC ADDRESS 50 EXIT_FACTORY Press OK Exits the Factory mode

0 0 0 The type value of Amb i ent light

EU HDMI ARC OUTPUT ORDER

Description32" 40" 49"

stick. The TV will write two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The it ems are “Channel list” , “Personal settings”, “Opt ion codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the set tings are stored onto the USB stick and can be used to download onto anothe r TV or other SSB. Uploading is of course o nly possible if the software is running and if a picture is available. This method is created t o be able to save the customer’s TV settings and to store them into another SSB.

the two files which were created in item 8 to the NVM of the set. Use these options when replacing a SSB. When “USB to TV Success” is displayed remove the power and restart the TV

already.

memory stick

EN 21QM16.4E LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.1.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

back to

div.table

2016-Apr-1

EN 22 QM16.4E LA5.

Service Modes, Error Codes, and Fault Finding

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.4 a Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.4b Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.5 18AC SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.6 18AC Display 18NC NVM read/write.

• 1.7 18AC Supply 18AC NVM read/write.

• 1.8 18AC sensor board 18AC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby Software Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 e-UM version eDFU (help) version.

• 2.4 Strings database version Displays the version of strings database.

• 2.10 Channel package version version of channel package.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

• 3.6 Netflix key Indicates the validity of the netflix key. In case this key are not valid and the customer wants to make use of the functionality, the SSB has to be replaced.

• 3.7 CI module

• 3.8 CI+ p

Indicates the module of CI.

rotected service The IC+ protectd service.

• 3.9 Event counter The counter of event.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

2016-Apr-1

back to

div.table

5.2 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 23QM16.4E LA 5.

Figure 5-1 Stepwise Start-up

back to

div.table

2016-Apr-1

EN 24 QM16.4E LA5.

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Service Modes, Error Codes, and Fault Finding

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-2

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to .

2016-Apr-1

start software updates. See Figure 5-3

Figure 5-3 Update the TV software [2/3]

, it is

.

Figure 5-4 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

.

back to

div.table

Service Modes, Error Codes, and Fault Finding

EN 25QM16.4E LA 5.

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs.

• FUS_clustername_version.zip: Contains the file downloaded which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments CSM 3-page compact CSM pages. There will be CSM dump to

USB SW upgradeable SW- upgrading of flash memories MT5593FPIJ can be

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC s equence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

done via USB. The main SW can be upgraded via the ZIP file downloaded.

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.6 The Blinking LED Procedure

5.5.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V missing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.5.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.6 The Blinking LED Procedure

5.6.1 Introduction

.

5.5 Error Codes

5.5.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.5.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/CSM (if you have a picture).

2

C device.

2

C error.

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SAM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.6.2 How to Activate Blinking LED Procedurer

Use one of the following methods:

• Activate CSM.The blinking front LED will show the layer 1 error(s), this works in “normal operation” mode or

back to

div.table

2016-Apr-1

EN 26 QM16.4E LA5.

Service Modes, Error Codes, and Fault Finding

automatically when the error/protection is monitored by the standby processor. In case no picture is shown and there is no LED blinking, read the logging to detect whether “error devices” are mentioned. (see section “5.7 Fault Finding and Repair

Tips, 5.7.4 Guidelines Uart logging”).

• Activate SAM. The blinking front LED will show the entire content of the LAYER 2 error buffer, this works in “normal operation” mode.

5.7 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.7.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.7.6 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.7.7 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.7.8 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.7.9 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.7.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

5.7.2 CSM

When CSM is activated and there is an USB stick connected to the TV set, then the software will collect the complete CSM content in a file Csm.xml and dump the file in a folder “CSM” on the USB stick. When this mechanism works it can be concluded that a large part of the operating system is already working (SOC, USB ...).

5.7.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also back to div.table 6-3

5.7.4 Guidelines Uart logging

Possible cases:

Uart loggings are displayed:

• We can conclude that the TV-set is starting up and thatcommunication with the flash RAM seems to be supported. The processor is able to read and write in the DRAMs.

• We can not yet conclude that flash RAM and DRAMs are fully operational/reliable.There still can be errors in the data transfers, DRAM errors, read/write speed and timing control.

Uart loggings report fault conditions, error messages, error codes and fatal errors:

• Some failures are indicated by error codes in the logging, check referring to back to div.table 5-4.

2C bus errors.

•I

• Not all failures or error messages should be interpreted as fault. For instance the root cause can be wrong option codes settings.

for

.

5.7.5 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

2016-Apr-1

back to

div.table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

EN 27QM16.4E LA 6.

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in back to div.table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 32PFH5501/88 119 120 117

32PFT5501/12 120 121 117 32PFS5501/12 119 119 118 32PFT5501/60 118 117 116 32PFS6401/12 119 120 118 32PFS6401/60 118 119 117 40PFH5501/88 106 113 101 40PFT5501/12 107 112 102 40PFS5501/12 105 113 101 40PFT5501/60 103 114 102 49PFH5501/88 100 95 120 49PFT5501/12 100 94 120 49PFS5501/12 98 95 119 49PFT5501/60 97 96 118

Cool (11000K) 32PFH5501/88 119 102 125

32PFT5501/12 118 100 126 32PFS5501/12 119 102 125 32PFT5501/60 117 101 124 32PFS6401/12 101 93 127 32PFS6401/60 102 94 126 40PFH5501/88 106 113 101 40PFT5501/12 104 110 97 40PFS5501/12 102 111 100 40PFT5501/60 103 112 101 49PFH5501/88 117 100 92 49PFT5501/12 115 99 100 49PFS5501/12 119 100 100 49PFT5501/60 117 101 102

Colour temperature

Red Green Blue

back to

div.table

2016-Apr-1

EN 28 QM16.4E LA6.

Alignments

Colour temperature

Picture mode Screen size

Warm (6500K) 32PFH5501/88 123 102 105

32PFT5501/12 122 100 104 32PFS5501/12 123 101 105 32PFT5501/60 122 102 103 32PFS6401/12 127 112 101 32PFS6401/60 125 111 102 40PFH5501/88 121 112 101 40PFT5501/12 122 115 104 40PFS5501/12 123 114 105 40PFT5501/60 122 113 103 49PFH5501/88 126 99 108 49PFT5501/12 125 98 108 49PFS5501/12 124 97 107 49PFT5501/60 123 96 108

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources. Note: The information of the RGB value is only for reference, the specific value is based on model adjustment.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5561 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM.

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

2

C

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM.

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in back to div.table 6-3 the Display Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PFH5501/88 TPT315B5-FHBN0.K S49P2H 101 32PFT5501/12 TPT315B5-FHBN0.K S49P2H 101 32PFS5501/12 TPT315B5-FHBN0.K S49P2H 101 32PFT5501/60 TPT315B5-FHBN0.K S49P2H 101 32PFS6401/12 TPT315B5-FHBN0.K S49P2F 109 32PFS6401/60 TPT315B5-FHBN0.K S49P2F 109 40PFH5501/88 TPT400LA-HN02.S S801A 106 40PFT5501/12 TPT400LA-HN02.S S801A 106 40PFS5501/12 TPT400LA-HN02.S S801A 106 40PFT5501/60 TPT400LA-HN02.S S801A 106 49PFH5501/88 TPT490F2-FHBN0.K S8 940B 104 49PFT5501/12 TPT490F2-FHBN0.K S8940B 104 49PFS5501/12 TPT490F2-FHBN0.K S8940B 104 49PFT5501/60 TPT490F2-FHBN0.K S8940B 104

. After resetting

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.6 Cable position numbers

In this chassis, the cable position numbers can be defined via the rule that the number is always starting with an “E” followed by the connector number of the current sourcing board. The order is always seen from where the power initiates from. So from PSU to SSB, from SSB to IR/LED panel, from IR/LED panel to keyboard control panel. For example, a cable from the PSU connector CN902 to the SSB connector CN701, will have the position number ECN902.

2016-Apr-1

back to

div.table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T/T2, DVB-C; DVB S/S2, ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MT5593FPIJ

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The QM16.4E LA is a new chassis launched in Europe in

2016. The whole range is covered by MT5593F. The major deltas versus its predecessor support DVB-C; DVB-T/T2; DVB-S2 with also multi-media,USB 3.0 ,WIFI functionality.

The QM16.4E LA chassis comes with the following stylings:

• series xxPFX5501/xx

• series 32PFX6401/xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MT5593FPIJ HSBGA-900

• TUNER EUROPE TDSY-G480D

• TUNER EUROPE TDQS-A701F

• DEMODULATOR Si2168-C50-GMR QFN-48

• AUDIO Amplifier TAS5760LDDCAR 20W TSSOP-48

7.1.2 QM16.4E LA Architecture Overview

EN 29QM16.4E LA 7.

For details about the chassis block diagrams refer to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

back to

div.table

2016-Apr-1

EN 30 QM16.4E LA7.

20050_200.eps

MT5580

DDR

HDMI

TUNER

DC/DC

SAT

NETWORK

COMMON INTERFACE

USB

Headphone

SCART

SERVICE

CONNECTOR

ANALOG I/O

SPDIF OUT

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2016-Apr-1

back to

div.table

7.2 Power Supply

20050_201.eps

Display power

Platform MT5593F

PFC(except 32”)

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

CN8602(FOR 715G7364) CN8603(FOR 715G7574) CN8603(FOR 715G7575)

DIM

5V

12V

12V_A

PS_On

12V

CN700

AMP

12V

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

EN 31QM16.4E LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the QM16.4E LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +8.5V output (standby mode)

• +12 output (on-mode)

• +12V_audio (audio AMP power)

• 25V(bolt-on voltage) for 32’’

• 32V(bolt-on voltage) for 40’’

• 38V(bolt-on voltage) for 49’’

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-2 Power Architecture

7.2.2 Diversity

back to

div.table

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

2016-Apr-1

EN 32 QM16.4E LA7.

STB_PWR

+12V

5V_SW

+12V_AU

U601 T AS5760LD

DC/DC U4251 AP7362

DC/DC U704 RT7299B

DC/DC U751 MP8124

DC/DC U708

U705

AVDD3V3

DVDD3V3

AVDD1V0

VCCK 1.02V

+5V_SW

LNB POWER Supply

WIFI VCC 3.3V/1.2A

U712 G9091

3V3SB

U102 APL3511CBI

U710 RT8079ZOW

U710 AZ1084CS2

USB2.0 500mA USB3.0 900mA

+3V3_TUNER

DV12

LDO_PWR

CI_VCC

DDRV 1.5V

PGOOD

20050_202.eps

7.2.3 Connector overview

Table 7-1 Connector overview

Circuit Descriptions

Number Description to SSB to panel to SSB to panel to SSB to panel Pin 14 8 16 12 16 12

1 DIM VLED+ DIM VLED+ DIM VLED+ 2 On/off VLED+ BL_ON/OFF n.c. BL_ON/OFF n.c. 3 PS_ON n.c. PS_ON VLED- PS_ON VLED4 PS_ON n.c. 3D_ON VLED- A3D VLED5 GND VLED- GND VLED- GND VLED6 GND VLED- GND n.c. GND n.c. 7 GND VLED+ GND n.c. GND n.c. 8 GND VLED+ GND VLED- GND VLED9 +12V-AUDIO - +12V-AUDIO VLED- +12V-A VLED10 +12V-AUDIO - +12V-AUDIO VLED- +12V-A VLED11 +12V - +12V n.c. +12V n.c. 12 +12V - +12V VLED+ +12V VLED+ 13 +12V - +12V - +12V 14 +12V - +12V - +12V 15--+3.5-+5v16--+3.5-FLAG-

Connector CN9101 CN8602 CN9101 CN8603 CN9101 CN8603

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +STB_PWR, permanent voltage for the Stand-by Power system and WIFI.

• +3V3SB,voltage for scaler,EMMC,IR/LED reciver,Key board

• +12V, input from the power supply for the panel common(active mode)

• +12V, input from the power supply for LNB supply

• LDO_PWR,DVDD3V3, voltage for EMMC when TV on

• DDRV, VCCK, voltage for DDR

• AVD3V3,AVDD1V0, supply voltage for scaler MT5593

• +5V_SW, USB port supply voltage

• +3V3_TUNER, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB Power

• PVDD from the power +12V_AU for the AUDIO AMP

• DV12, +3.3V_T2, +3.3VA_T2 voltage for Demodulator IC channel

• Wi-Fi_VCC,voltage for WIFI

Figures gives a graphical representation of the DC/DC converters with its current consumptions :

2016-Apr-1

Figure 7-3 DC/DC converters

back to

div.table

7.3.1 Power layout SSB

Circuit Descriptions

C752, Panel_VCC(12V)

EN 33QM16.4E LA 7.

C709, 3V3SB

D752, T uner_LNB

U707 Pin7,DV12

U705,+3V3_Tuner

U703, LDO_PWR

C770, PVDD(12V)

L701, VCCK(1V)

U4601, AVDD33_ETH

L705, +5V_SW

U4251 Pin6,WI-FI_VCC(3.5V)

L702, DDRV(1.5V)

U701, DVDD3V3/ AVDD3V3

Figure 7-4 Power SSB Top View

C779, AVDD1V0

20050_207.eps

back to

div.table

2016-Apr-1

EN 34 QM16.4E LA7.

20050_208.eps

U102 Pin1,CI_VCC

Circuit Descriptions

Figure 7-5 Power SSB Bottom View

7.4 Front-End Analogue and DVB-T/T2, DVB-C; DVB S/S2, ISDB-T reception

7.4.1 Front-End Analogue and DVB T/C reception

The Front-End for analogue tuner consist of the following key components:

• TUNER EUROPE TDSY-G480D

• SCALER MT5593FPIJ HSBGA-900 Processor

Below find a block diagram of the front-end application for analogue part.

TDSY-G480D

2

I

IF_AGC

RF_AGC

C

I2C

IF

IF_AGC

MT5593

20050_203.eps

2016-Apr-1

back to

div.table

Figure 7-6 Front-End Analogue block diagram

Circuit Descriptions

20050_206.eps

MT5593

HDMI2

HDMI1

HDMI4

CN504

CN501

CN505

RX

TX

RX

I2C

I

2

C

I

2

C

HDMI3

CN502

RX

I2C

EN 35QM16.4E LA 7.

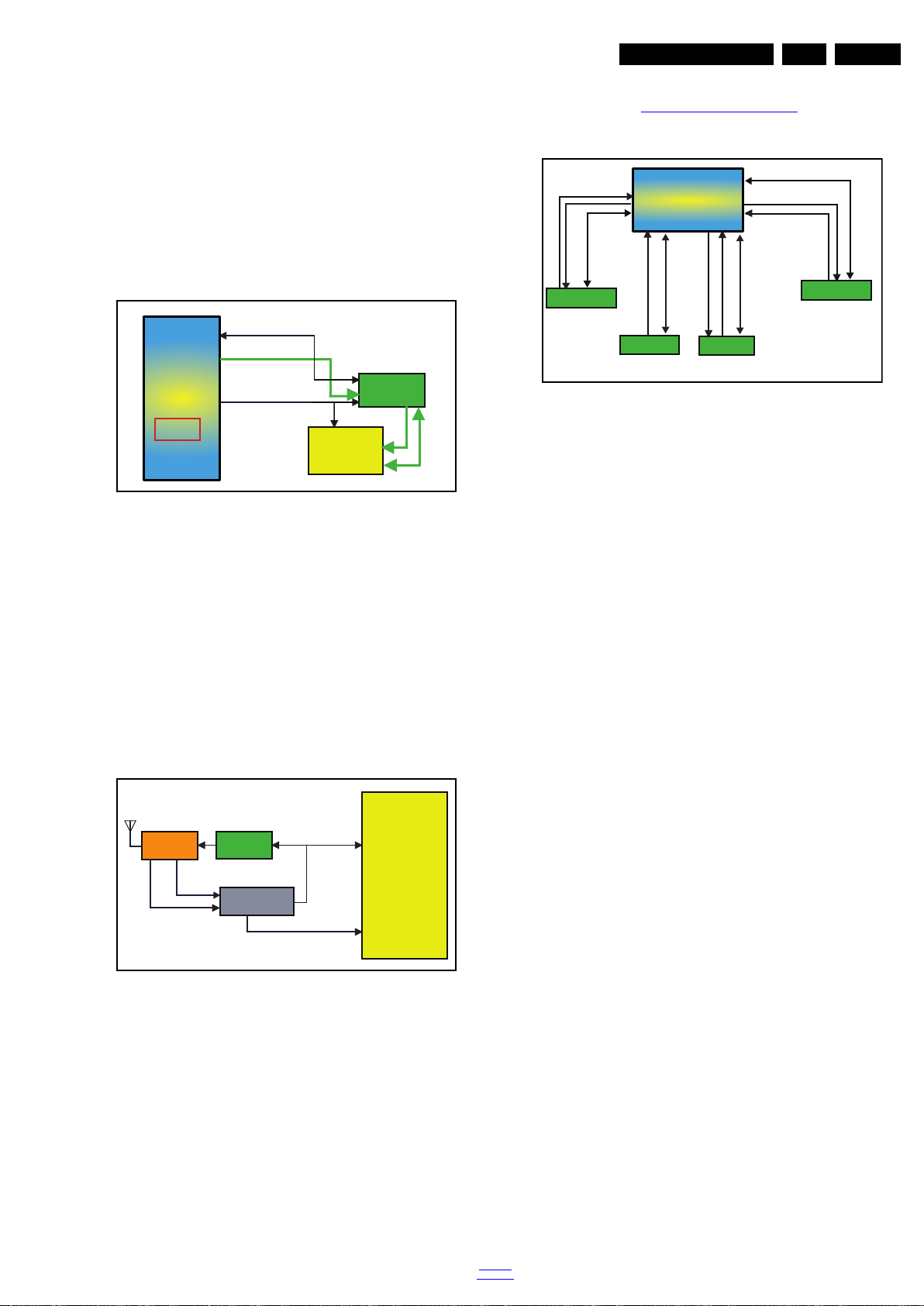

7.4.2 DTV T2 reception

The Front-End for DVT part consist of the following key components:

• TUNER EUROPE TDSY-G480D

• SCALER MT5593FPIJ HSBGA-900 Processor

• DEMODULATOR Si2168-C50-GMR QFN-48

Below find a block diagram of the front-end application for DTV part.

TDSY-G408D

2

I

C

IF_AGC

RF_AGC

Figure 7-7 Front-End DVB-T2 DTV block diagram

7.4.3 Front-End DTV-S2 reception

The Front-End for ISTB part consist of the following key components:

• TUNER EUROPE TDQS-A701F

• SCALER MT5593FPIJ HSBGA-900 Processor

• DEMODULATOR Si2166-C50-GMR QFN48

Below find a block diagram of the front-end application for DTV part.

S2 function

S2 tuner

Tuner I2C

IP/IN/OP/ON

Tuner I2C

Figure 7-8 Front-End DVB-S2 DTV block diagram

IF-AGC

LNB power

S2 Demond

SI2169

I2C

IF

System I2C

TS DATA

MT5593

DECODER

Si2168

TS DATA

20050_204.eps

MT5593

20050_205.eps

7.5 HDMI

Refer to figure 7-9 HDMI input configuration for the application.

2

C

I

7.6 Video and Audio Processing -

back to

div.table

Figure 7-9 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input/ARC

• HDMI 3: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 4: HDMI input ( TV digital interface support HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• +5V detection mechanism

• Stable clock detection mechanism

•HPD control

• CEC control

MT5593FPIJ

The MT5593FPIJ is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• ATSC /DVB-T /DVB-C/DTMB demodulators

• Ture 120HZ Full HD MJC

• Power CPU core

• 3D graphic support OpenGL ES 1.1/2.0

• A muti-standard video decoder

• A transport de-multiplexer

• One HDMI 2.0 receiver with 3D support

• MHL2.0& Standby charging

• 2D/3D converter

• Rich format audio codec

• Local dimming (LED backlight)

• Ethernet MAC+PHY

•TCON

• Panel overdrive control

• Four-link LVDS, mini-LVDS,V-by-one, EPI

The MT5593FPIJ family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a transport de-multiplexer, a high definition video decoder, an audio decoder, a four-link LVDS transmitter, a mini-LVDS transmitter, a V-by-one transmitter, an EPI transmitter, and an NTSC/PAL/SECAM TV decoder with 3D comb filter(NTSC/PAL). The MT5593FPIJ enables consumer electronics manufacturers to build high quality, low cost and feature-rich DTV. The MT5593PFIJ family supports Full-HD MPEG1/2/4/H.264/VC1/RM/AVS/ and H.264/HEVC video decoder standards, and JPEG. The MT5593FPIJ also supports Media Tek MDDi de-interlace solution which can reach very smooth picture quality for motions. A 3D comb filter added to the TV decoder recovers great details for still pictures. The

2016-Apr-1

EN 36 QM16.4E LA7.

Circuit Descriptions

special color processing technology provides a natural, deep colors and true studio quality video. Moreover, the MT5593 family has built-in high resolution and high-quality audio codec. The MT5593FPIJ family provides consumers with and Full-HD 120Hz experience. It integrates high-quality Full-HD ME/MC technology. The MT5593FPIJ family supports ASTC,DVB-T and DVB-C,DTMB demodulation functions. It reserves transport stream inputs for external demodulators for other countries or areas.TV maker can easily port the same UI to worldwide TV models. First-class adjacent and co-channel rejection capability grants excellent reception. Professional error-concealment provides stable, smooth and mosaic-free video quality

For a functional diagram of the MT5593FPIJ, refer to Figure 8-1

.

2016-Apr-1

back to

div.table

IC Data Sheets

19880_300.eps

Block diagram

MT5593

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-4-3 Peripheral, B03, MT5593FPIJ (IC U401)

EN 37QM16.4E LA 8.

Figure 8-1 Internal block diagram

back to

div.table

2016-Apr-1

EN 38 QM16.4E LA8.

19880_301.eps

Pinning Information

MT5593

                                                           

$

ŏń

ńŊŠłĶ ńŊŠłķ ńŊŠłĸ

ńŊŠłĲĳńŊŠŎŅŊĲńŊŠŎŅ

Ŋı ńŊŠŊŏŕ

ŔőŊŠŅ łŕł

ńŊŠŕŔ ŗłō

ŅņŎŐ

ŅŠŕŔńōŌŖŔŃŠŅ

őŠőı

ŖŔŃŠŅ őŠőĲ

ŉŅŎŊ

ıŠœřŠ ĳ

ŉŅŎŊ

ıŠœřŠ Ĳ

ŉŅŎŊ

ıŠœřŠ ı

ŉŅŎŊ

ıŠœřŠ ń

ŉŅŎŊ

ĲŠœřŠ ĳ

ŉŅŎŊ

ĲŠœřŠ ń

ŉŅŎŊ

ĳŠœřŠ ı

ŉŅŎŊ

ĴŠœřŠ Ĳ

łŗŅŅ

ĲıŠŉŅ ŎŊ

łŗŅŅ

ĲıŠŔŔ ŖŔŃ

ŔŔŖŔŃ Šœřŏ

łŗŅŅ

ĴĴŠŔŔ ŖŔŃ

ŔŔŖŔŃ Šŕřŏ

ŔŔŖŔŃ Šŗœŕ

łŊŏŠœĴłŊŏŠœ

Ĳ

ŏń

$

% ńŊŠłĳ ńŊŠłĵ

ňőŊŐĵĸńŊŠŎŅŊĸńŊŠŎŅŊĵńŊŠŎŊ

ŗłō

ńŊŠŎŅŊĳńŊŠŎŊŔ

ŕœŕ

ńŊŠŎŅŐķńŊŠŎŅŐĶŔőŊŠńōŌőŗœŠŕ

ŔńōŌ

ńŊŠŕŔŔ Śŏń

ŊŇŠłňńŖŔŃŠŗ

œŕŠőı

ŖŔŃŠŅ ŎŠőı

ŖŔŃŠŅ ŎŠőĲ

ŉŅŎŊ

ıŠœřŠ ĳŃ

ŉŅŎŊ

ıŠœřŠ ĲŃ

ŉŅŎŊ

ıŠœřŠ ıŃ

ŉŅŎŊ

ıŠœřŠ ńŃ

ŉŅŎŊ

ĲŠœřŠ ĳŃ

ŉŅŎŊ

ĲŠœřŠ ńŃ

ŉŅŎŊ

ĳŠœřŠ ıŃ

ŉŅŎŊ

ĴŠœřŠ ĲŃ

łŗŅŅ

ĲıŠŉŅ ŎŊ ŅŗŔŔ

ŔŔŖŔŃ Šœřő ŅŗŔŔ

ŔŔŖŔŃ Šŕřő

łŊŏŠōĳłŊŏŠœ

ıŅŗŔŔ

łŊŏŠœ ĳ %

&

ńŊŠłı ńŊŠłĲ ńŊŠłĴ

ńŊŠŎŅŐĳńŊŠŎŅŊķňőŊŐķĵńŊŠŎŅŊĴńŊŠłĲĵńŊŠłĲ

ĴńŊŠŅķ

ŔőŊŠńōņŔőŊŠńō

ŌĲ

ńŊŠŕŔ

ŅłŕłıńŊŠŕŔ

ńōŌ

œŇŠłň ń ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ

ŉŅŎŊ

ĲŠœřŠ Ĳ

ŉŅŎŊ

ĲŠœřŠ ı

ŉŅŎŊ

ĳŠœřŠ ĳ

ŉŅŎŊ

ĳŠœřŠ Ĳ

ŉŅŎŊ

ĳŠœřŠ ń

ŉŅŎŊ

ĴŠœřŠ ĳ

ŉŅŎŊ

ĴŠœřŠ ı

ŉŅŎŊ

ĴŠœřŠńŖŔŃŠŅ

őŠőĳ

łōıŠł Ņłń

łœĳŠł Ņłń

łŊŏŠōĴłŊŏŠō

Ĳ

&

' ŔŅŠŅı

ŔŅŠńŎŅňőŊŐĵ

ĳńŊŠŅĳ

ńŊŠŎŅŐĲňőŊŐķĴňőŊŐķķŗńńĴŊ

ŐŠŔŅ

ńŊŠŎŅŊĶńŊŠŎń

ōŌŊ

ńŊŠłĲĲńŊŠłĲıńŊŠŎŅŐĸńŊŠŎŅŐĴňőŊŐĵĵőŗœŠŕ

Ŕŗłō

ŅņŎŐ

ŅŠŕŔŅ łŕłı

ŅņŎŐ

ŅŠŕŔŔ Śŏń

ŉŅŎŊ

ĲŠœřŠ ĲŃ

ŉŅŎŊ

ĲŠœřŠ ıŃ

ŉŅŎŊ

ĳŠœřŠ ĳŃ

ŉŅŎŊ

ĳŠœřŠ ĲŃ

ŉŅŎŊ

ĳŠœřŠ ńŃ

ŉŅŎŊ

ĴŠœřŠ ĳŃ

ŉŅŎŊ

ĴŠœřŠ ıŃ

ŉŅŎŊ

ĴŠœřŠńŃŖŔŃŠŅ

ŎŠőĳ

ŉŅŎŊŠ ĴŠŔŅł

ŉŅŎŊŠ ĴŠŔńō

łœĲŠł Ņłń

łœıŠł Ņłń

łŊŏŠōıŗŎŊŅŠ

łłŅń '

( ŔŅŠŅĳ ŔŅŠŅĲ

ňőŊŐĵ ķńŊŠŅĲ

ńŊŠŎŅŐıňőŊŐķĶňőŊŐķĳňőŊŐķ

Ĳ ńŊŠłĹ ńŊŠłĺ ńŊŠŅĶ ńŊŠŅĸ ńŊŠŅĵ

őŗœŠŕ ŔŔŚŏń ŐŔ ńōĳ

ŅņŎŐ

ŔŔŗŅŔŔŗŅŕŔœŠŅ

ŉŅŎŊ

ĲŠőŘœ Ķŗ

ŉŅŎŊ

ĳŠőŘœĶŗłŅŊŏĴ

ŠŔœŗ

ŉŅŎŊ

ĴŠőŘœĶŗłōĳŠł

Ņłń

łōĲŠł Ņłń řŕłōŊ

řŕłō Ő (

)

ŗńńĴŊ ŐŠł ŔŅŠŅĴ

ŔŅŠńōŌňőŊŐĵĹňőŊŐĵ

Ķ ńŊŠŅı ŅŗŔŔ ŅŗŔŔ

ńŊŠŎŅ Őĵ ńŊŠŅĴ

őŗœŠŕ

ŔŅłŕ łı ŐŔŅłĳ

ŅņŎŐ

ŅŠŕŔŗ łō

ŅņŎŐ

ŅŠŕŔŅ łŕłĲ

ŅņŎŐ

ŅŠŕŔŅ łŕłĸ

ŎŉōŠŔ ņŏŔņ

ŅņŎŐ

ŅŠŕŔŅ łŕłķ

ŉŅŎŊŠ ıŠŔńō

ŉŅŎŊŠ ıŠŔŅł

ŉŅŎŊ

ıŠŉőŅ ŠńŃŖŔ

ŉŅŎŊŠ ĲŠŉőŅ

ŉŅŎŊŠ ĳŠŉőŅ

ŉŅŎŊŠ ĳŠŔŅł

ŉŅŎŊŠ ĴŠŉőŅ

łŅńŊŏ

ŏŠŅņ ŎŐŅ

łŅńŊŏ

őŠŅņŎ ŐŅ

)

*

łŗŅŅ

ĴĴŠŅŅœłŗŔŔŠ

ŅŅœ

ŏń ŏń

ŅŗŔŔ

ňőŊŐĵ Ĵ

őŗœŠŕ

ŔŅłŕ łĲ

ŇŔœńŠ Řœ

ŅņŎŐ

ŅŠŕŔŅ łŕłĳ

ŅņŎŐ

ŅŠŕŔŅ łŕłĶ

ŉŅŎŊŠ ńņń

ŉŅŎŊŠ

ıŠőŘœĶŗłŔőŅŊ

ŇŐĲ

ŉŅŎŊŠ ĲŠŔŅł

ŉŅŎŊŠ ĲŠŔńō

ŉŅŎŊŠ ĳŠŔńō

łŗŅŅ

ĴĴŠřŕ łōŠŔŕ

łŗŅŅ

ĴĴŠŅņ ŎŐŅŠ *

+

ŏń ŏń ŏń ŏń ŏń ŏń ŏń

ŅņŎŐ

ŅŠŕŔŅ łŕłĴ

ŅņŎŐ

ŅŠŕŔŅ łŕłĵ

ŔŊŇŠńŐŎńŗŃŔı

ő +

-

ŏń

ŅŗŔŔ

ŏń ŏń

ŅŗŔŔ ŅŗŔŔ

łŅŊŏķ ŠŔœŗ

ńŗŃŔŠ ńŐŎ őœıő

ńŗŃŔĴ ő

-

.

ŏń ŏń ŏń ŏń

ŅŗŔŔ

ŏń ŏń

ŅŗŔŔ ŅŅœŗ

ŗŅłń

řŠŐŖŕńŗŃŔĲőńŗŃŔĳ

őőŃıőńŐŎı .

/

ŏń ŏń ŏń ŏń ŏń ŏń

ŅŗŔŔ ŅŅœŗ ōŐŖŕő

ōŐŖŕ ŏ

łŗŅŅ

ĴĴŠōŗ ŅŔł ŅŗŔŔ

łŅŊŏĵ ŠŔœŗ

łŅŊŏı ŠŔœŗ

łŅŊŏĳ ŠŔœŗ Śıő ŔŐŚı őœĲő

/

0

ŏń

ŕŏŠłœ

ŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅōōőŎ

łŗŔŔĴ ĴŠńōŏ

łŗŔŔĴ ĴŠœňŃ

łŗŅŅ

ĴĴŠłł Ņń

łŗŅŅ

ĴĴŠłŅ łń

łŗŅŅ

ĴĴŠōŗ ŅŔŃ ŅŗŔŔ

łŅŊŏĶ ŠŔœŗ

ŐœņŔņ ŕŃ

łŗŅŅ

ĴĴŠŗŊ ŅņŐŠŔ őŃĲő ŚĲő ńŐ ŎĲ

0

1

ŏń ŏń ŏń

ŅŗŔŔ ŅŅœŗ

ŕőŠłœ Ŏőōō ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ

łŗŔŔĴ

ĴŠŅņŎ ŐŅ

łŗŔŔĴ

ĴŠřŕł ō

łŗŅŅ

ĴĴŠŖŔ Ń

ŐőńŕœōķłŅŊŏĺ

ŠŔœŗ

łŅŊŏĹ ŠŔœŗ ŔŐŚĲ œő 1

3

ŏń ŏń ŏń ŏń ŏń

ŅŗŔŔ

ŏń ŏń ŏń ŏń

ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ

łŗŅŅ

ĴĴŠŉŅ ŎŊ

łŗŅŅ

ĴĴŠŉŅ ŎŊ

łŗŅŅ

ĴĴŠņŕ ŉ

łŅŊŏĲ ŠŔœŗ ńŐŎ ňő ŔŐň

3

5

ŏń ŏń ŏń ŏń

ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ

ŐőńŕœōĳŐőńŕœōıŐőńŕœōĹŐőńŕœōĲŉŔŚŏ

ńŃő5

7

ŏń

ŅŗŔŔ

ŏń ŏń ŏń

ŅŗŔŔ ŅŗŔŔ ŅŅœŗ Ņŗ ŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ

ŐőńŕœōĶŗŔŚŏńŗňłŠŔ

ńō 7

8

ŏń ŏń

ŅŗŔŔ

ŏń ŏń ŏń ŏń ŏń ŏń

ŅŅœŗ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŗńńŌ ŅŗŔŔ ńőńı

őŐœŠŐőŕŐőńŕœōĸŗňłŠŔŅłłŅŊŏĸ

ŠŔœŗ

łŗŅŅ

ĴĴŠœň ŃŠŔŕŃ

8

9

ŅŅœŗ

œņŇŠł Ĳ

ŏń

ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŗńńŌ ŗńńŌ ŗńńŌ ńőńĲ ńőńĳ

łŗŅŅ

ĲıŠōŅ Ő

łŗŅŅ

ĲıŠņō ŅŐ œņřŕ 9

:

łœŅŒĵłœŅŒ

ńŗŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŏŕœłŔŔŗŅŔŔŗŅŔŔŗŅķ ńŌ ŗńńŌ ŗńńŌ

ŐőńŕœōĴŕřŗőŠıŕřŗŏ

Šı :

<

łœŅŒĳłœŅŒıłœŅŒĲĲłœńōŌıłœńō

ŌıĤ

ŅŅœŗ ŠńŌł ŅŗŔŔ ŅŗŔŔ łœŕő ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŗńńŌ ŗńńŌ ŗńńŌ

ŐőńŕœōĺŐőńŕœ

ōĵ Ő ŊœŊ

łŗŅŅ

ĴĴŠőō ōŠŔŕŃ

œřŗőŠĲœřŗŏ

ŠĲ

<

$$

łœœłŔĤłœńłŔĤłœńŌ

ŌńńŗŌńńŗŌńńŗŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅŔŔŗŅņ

ōņŅŠő ŘŎĲ

ōņŅŠő ŘŎı

őŉŚōņ ŅĲ

łŗŅŅ

ĴĴŠœņ ňŠŔŕŃ

ŖŔŃŠŅ őŠőĴ

ŖŔŃŠŅ ŎŠőĴ $ $

$%

łœŅŒĲĶłœŅŒĲĴłœŅŒĺłœńŔ

ŅĤ łœńŔĤ

łœŐŅŕłœŘņ

Ĥ ŅŅœŗ ŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŅŗŔŔŗńńŌŗńńŌŗńńŌ

łŔőŅŊ ŇŐı

őŉŚōņ Ņı ŅŗŔŔ

Őőńŕœ ōĲĲ

ŐőŘœ ŔŃ

$%

$&

łœŅŒŔıłœŅŒ

ŔıĤ

łœŅŒ ŎĲ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŅœŗ ŅŅœŗ ŅŗŔŔ Ņ ŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ Ņŗ ŔŔ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ

Őőńŕœ ōĲĳ

Őőńŕœ ōĲĸ

Őőńŕœ ōĲı ŅŗŔŔ

ŔŕŃŠŔńōŔŕŃŠŔ

Ņł

$&

$'

łœŅŒŎıłœŅŒ

ŔĲ ŅŗŔŔ

łœŃłıłœŃł

ĳ łœłĲı ŅŗŔŔ ŅŅœŗ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ ŗńńŌ

Őőńŕœ ōĲķ

Őőńŕœ ōĲĶ

Őőńŕœ ōĳı

Őőńŕœ ōĲĹ

Őőńŕœ ōĲĺ $'

$(

łœŅŒ ŔĲĤ

łœŃł Ĳłœłı ŅŗŔŔ

ŎņŎŕ ő

łŗŔŔŠ ŅŅœ

łŗŅŅ

ĲıŠŅŅ œ ŗńńŌŗńńŌŗńńŌŗńńŌŗńńŌŗńńŌŗńńŌŗńńŌ

Őőńŕœ ōĲĵ őłłōņ Ŗıŕř Ŗıœř

$(

$)

łœŅŒĹłœŅŒĲĳłœŅŒ

Ĳĵ łœłĴ ŅŗŔŔ łœłĲĳ łœłĳ ŅŗŔŔ ŅŗŔŔ

ŎņŎŕŏłŗŔŔŠ

ŅŅœ

łŗŅŅ

ĲıŠŅŅ œ őŅŅĳ őŅŅĲ ŅŗŔŔ

őŐńņĲ ŠŠŃ

ōņŅŠő ŘŎĳ

őŐńņı ŠŠŃ $)

$*

łœŅŒĲıłœŅŒĲłœŅŒ

Ĵ ŅŗŔŔ łœłĵ łœłĲ łœłĶ ŅŗŔŔ

Őőńŕœ ōĲĴ

ōņŅŠő ŘŎĴ őłńōņ

őŐŘņ ŠŠŃ $*

$+

łœŅŒĸłœŅŒ

Ķ łœłĺ ŅŗŔŔ ŅŅœŗ ŅŅœŗ őŅŅĴ őŅŅĵ

őłœŃŠŠŃőŐŐņŠ

ŠŃ

$+

$-

łœŅŒ ĳı

ŅŅœŗ

œņŇŠłĳłœŅŒ

ĳĳ łœłĸ łœłķ ŅŗŔŔ

ŅŅœŗ ŠńŌŃ ŅŅœŗ ŅŅœŗ ŅŅœŗ

ŏń

őŅŅĸ őŅŅķ őŅŅĶ ŅŗŔŔ őŅ Ņı

ŗńńĴŊ

ŐŠņŎ Ŏń $-

$.

łœŅŒĲĹłœŅŒĲķłœŅŒĳĸłœœņŔ

ņŕĤ łœłĲĴłœłĲĲŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗŅŅœŗ

ŕŏŠŉő ńőōō

ŕőŠŉő ńőōō Ņŗ ŔŔ

ňőŊŐĵ ĺŅŗŔŔ ŅŗŔŔ

*3,2*3,2(00&B5

67%

ňőŊŐķıŗńńĴŊ

ŐŠŃ

$.

$/

łœŅŒĳĶłœŅŒ

ĳĺ łœłĹ ŅŗŔŔ ŅŅœŗ ŅŅœŗ ŅŅœŗ ŅŅœŗ ŅŗŔŔ ŅŗŔŔ Ńœŕő Ńœŕŏ ŕńŐŏı ŕńŐŏĶ ŕńŐŏķ ŕńŐŏĸ

ŕńŐŏĲĳňőŊŐĶıňőŊŐĶĶŐőŘŎĲłŐŔŅ

łŕłĳ

*3,2 *3,2

ņŎŎń ŠńōŌ

$/

$0

łœŅŒŎĴłœŅŒĴĲłœŅŒ

Ŕĳ łœłĲĵ ŅŅœŗ ŅŅœŗ ŅŅœŗ ŅŅœŗ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŕńŐŏĲ ŕńŐŏĴ ŕńŐŏĵ ŕńŐŏĹ

ŕńŐŏĲıňőŊŐĶĲňőŊŐĶĵłŐŔŅ

łŕłĲ

łŐŃńŌłŐŔŅ

łŕłĴ

*3,2  *3,2 ŖĲœř ŖĲŕř $0

$1

łœŅŒ ŔĳĤ

łœŅŒ Ŏĳ Ņŗ ŔŔ ŅŅœŗ ŅŅœŗ ŅŅœŗ ŅŗŔŔ ŅŗŔŔ

ŃœńŌ ņ ŃœłĲı ŃœŃłĲ Ńœłĳ Ńœłĸ Ńœłķ ŃœłĲĵ ŕńŐŏĳ ŕńŐŏĺ

ŕńŐŏĲĲňőŊŐĶĳňőŊŐĶĴłŐōœńŌłŐŔŅ

łŕłı

łŐŔŅ łŕłĵ

*3,2 *3,2



ŐŔńōĲ ŐŔŅłĲ

$1

$3

łœŅŒŔĴłœŅŒ

ŔĴĤ

łœŅ

Œ

ĳĹ ŅŅœŗ ŅŅœŗ

ŃœńōŌıŃœńłŔĤŃœŐŅŕŃœŘņ

Ĥ ŃœŃłı ŃœŃł ĳ ŃœłĴ ŃœłĶ ŃœłĲ Ńœłĺ ŃœłĲĲ ŃœłĹ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔ ŅŗŔŔŅŗŔŔ ŅŗŔŔ

łŐŎńōŌŐőŘŎĳŐőŘŎ

ı $ 3

$5

łœŅŒĳĵłœŅŒĴıłœŅŒĳĴŃœŅŒĲĲŃœńō

ŌıĤ

ŃœœłŔ Ĥ ŃœńŔĤ

ŃœńŔŅ Ĥ ŅŗŔŔ Ńœłı ŃœłĲĳ

ŃœŅŒ ŎĴ Ńœł ĵ ŅŗŔŔ ŃœłĲĴ

ŃœœņŔ ņŕĤ ŅŗŔŔ Ńņĵŏ ŃņĴŏ Ńņĳŏ ŃņĲŏ ŃŐĵŏ ŃŐĴŏ ŃŐĳŏ ŃŐĲŏ łņĵŏ łņĴŏ łņĳŏ łņĲŏ łŐĵŏ łŐĴŏ łŐĳŏ łŐĲŏ

ňőŊŐĶķłŔőŅŊ

ŇŊ $ 5

$7

łœŅŒĳķłœŅŒĲĸŃœŅŒ

ĵŅŗŔŔ

ŃœŅŒĲĶŃœŅŒ

ŔıĤ ŅŗŔŔ

ŃœŅŒŔĲŃœŅŒĹŃœŅŒĲŃœŅŒĸŃœŅŒĳıŃœŅŒĲķŃœŅŒĳĶŃœŅŒŎĳŃœŅŒ

ŔĴĤ

ŃœŅŒĴıŃœŅŒĲĺŃœŅŒ

ĳĲ Ńņĵő ŃņĴő Ńņĳő ŃņĲő ŃŐĵő ŃŐĴő ŃŐĳő ŃŐĲő łņĵő łņĴő łņĳő łņĲő łŐĵő łŐĴő łŐĳő łŐĲő ŐŔŅłı ŐŔńōı

$7

$8

łœŅŒĲĺłœŅŒĳĲŃœŅ

ŒĳŃœŅŒıŃœŅŒĺŃœŅŒŔıŃœŅŒŎıŃœŅŒ

ŔĲĤ

ŃœŅŒĲıŃœŅŒ

Ĵ

ŃœŅ

ŒĶŃœŅ

ŒĲĹŃœŅŒĳĸŃœŅŒĳĺŃœŅŒ

ŔĳĤ

ŃœŅŒŔĴŃœŅŒĳĹŃœŅŒĲĸŃœŅŒĳĴłŗŔŔŠ

ŅŅœ

łŗŅŅ

ĲıŠōŗŅŔŃņńŌ

ŏŃņıŏ

ŃŐńŌ ŏŃŐıŏ

łņńŌ ŏłņıŏ

łŐńŌ ŏłŐıŏ

ňőŊŐĶ ĸ $ 8

$9

ŏń

ŅŅœŗ

œņŇŠŃĲŃœŅŒķŃœŅŒĲĴŃœŅŒŎĲŃœŅŒĲĳŃœŅŒ

Ĳĵ

ŅŅœŗ

œņŇŠŃĳŃœŅŒĳĳŃœŅŒĴĲŃœŅŒŔĳŃœŅŒĳĵŃœŅŒ

ĳķ

łŗŅŅ

ĲıŠŅŅœœņřŕŠ

ŗőōō ŃņńŌő Ńņıő

ŃŐńŌ ő ŃŐıő łņńŌő łņıő

łŐńŌ őłŐıőŏń$9

                                                         

IC Data Sheets

Š

2016-Apr-1

Figure 8-2 Internal pin configuration

back to

div.table

8.2 Diagram 10-4-1 System Power 1, B01, RT7299BHGQW (IC U704)

19880_302.eps

Block diagram

Pinning information

GND

GND PVIN PVIN

VIN

FB

COMP

BOOT LX

EN SS/TR

LX

PGOOD

RT/SYNC

2

4

3

9

13

10

11

12

6

5

87

141

GND

15

RT7299BHGQW

Power Stage

Control

Logic,

Driver, and

Boot UVLO

Regulator

Voltage

Reference

Slope

Compensation

BOOT

GND

LX

SS/TR

Current Comparator

RT/SYNC

FB

UVLO

Thermal Detector

Shutdown

Logic

Shutdown

High-Side

Current Sense

I

hys

I

P

PVINVINEN

V

EN

= 1.21V

Low-Side

Current Sense

Oscillator with

RT/SYNC

Function

I

SS

+

-

+

V

REF

PGOOD

Logic

UV

Comparator

OV

Comparator

91% V

REF

109% V

REF

PGOOD

COMP

IC Data Sheets

EN 39QM16.4E LA 8.

Figure 8-3 Internal block diagram and pin configuration

back to

div.table

2016-Apr-1

EN 40 QM16.4E LA8.

19880_303.eps

Block diagram

Pinning information

GND

VIN VIN

SW SW

SS/TR

SW

AGND

COMP

FB

RT/SYNC

VIN

EN

BOOT

PGOOD

12 11 10

9

13141516

1 2 3 4

8765

GND

17

RT8079GQW

EN

VIN

SW

FB

Slope

Compensation

Shutdown

Control

Over Temperature

Protection

Current

Sense

Driver

Control

Logic

PWM

Comparator

GND

BOOT

UVLO

Error

Amplifier

Oscillator

Soft-Start

V

REF

EN Threshold

PGOOD Threshold

GND

SS/TR

AGND

COMP

RT/SYNC

PGOOD

PGOOD Comparator

Internal pull up current

Enable Comparator

IC Data Sheets

8.3 Diagram 10-4-1 System Power 1, B01, RT8079GQW (IC U710)

2016-Apr-1

Figure 8-4 Internal block diagram and pin configuration

back to

div.table

IC Data Sheets

19880_304.eps

Block diagram

Pinning information

S

TAS5760LDDCAR

S

-

8.4 Diagram 10-4-8 Speaker/Headphone, B08, TAS5760LDDCAR (IC U601)

DDVAGER_ANADDVRDDDVD GVDD_REGPVDD

EN 41QM16.4E LA 8.

FT_CLIP

MCLK

SCLK

LRCK

SDIN

DR_INA+

DR_INA-

DR_INB+

DR_INB-

Internal Voltage

Supplies

DirectPathTM Ground

Centered Headphone /

DR_OUTA DR_OUTB

Serial Audio

Port

Line Driver

DRVDD

Digital Boost

& Volume Control

Clock Monitoring

SFT_CLIP

ANA_REG

ANA_REF

SPK_FAULT

FREQ/SDA

PBTL/SCL

SPK_GAIN0 SPK_GAIN1

PK_SLEEP/ADR

DR_INA+

DR_OUTA

DR_MUTE

Clipper

DRVSS DR_CP

VCOM

SPK_SD

DVDD

MCLK

SCLK

SDIN

LRCK

DGND

DR_INA-

DRGND

DRVSS DR_CN

Internal Reference

Regulators

Closed Loop Class D Amplifier

Digital to

PWM

Digital

Conversion

Analog

Gain

DRVDD

Charge Pump Internal Control Registers and State Machines

DR_CN

PBTL/

SCL

Soft

Clipper

SPK_GAIN0

SPK_GAIN1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

PowerPAD

20 21 22 23 24

Gate

Drives

Gate

Drives

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

Internal Gate

Drive Regulator

Full Bridge

Power Stage

A

Full Bridge

Power Stage

B

SPK_FAULT

SPK_SD

GVDD_REG GGND AVDD PVDD PVDD BSTRPA+ SPK_OUTA+ PGND SPK_OUTABSTRPABSTRPBSPK_OUTBPGND SPK_OUTB+ BSTRPB+ PVDD PVDD DR_INBDR_INB+ DR_OUTB DR_UVE DRGND DRVDD DR_CP

Over-

Current

Protection

Die

Temp. Monitor

SPK_SLEEP/

ADR

FREQ/

SDA

SPK_OUTA+

SPK_OUTA

SPK_OUTB+

SPK_OUTB

Figure 8-5 Internal block diagram and pin configuration

back to

div.table

2016-Apr-1

EN 42 QM16.4E LA8.

19790_303.eps

Block diagram

Pinning information

Si2166

Si2166B

(GND_PAD)

QFN-48

7x7mm

343536

21

22

23

24

3 4 5

33

20

6327

28293031 27

8 9 10 11 12

15

16

17

18

19

40

39

38

37

41

46

45

44

43

42

MP_A

S_ADC_IP

S_ADC_IN S_ADC_QP S_ADC_QN

SDA_MAST

SCL_MAST

NC

NC NC

DISEQC_OUT

MP_B

SCL_HOST

DISEQC_CMD

GND

SDA_HOST

TS_VAL

DISEQC_IN

TS_DATA[1]

TS_DATA[5]

TS_DATA[4] TS_DATA[3]

GND

VDD_VIO

TS_DATA[2]

TS_DATA[0]/TS_S TS_CLK TS_SYNC

47

14

TS_DATA[7]

RESETB

XTAL_I/CLK_I

XTAL_O

GND

VDD_VCORE

VDD_VANA

ADDR

GND

GPIO_0

48

13

21

26 25

TS_DATA[6]

TS_ERR/GPIO

CLK_IN_OUT

GND

VDD_VCORE

VDD_VIO

VDD_VCORE

MP_D

MP_C

HDTV MPEG S.o.C.

Si2166B

HOST_SCL

HOST_SDA

FRONT

END

OSC

& PLL

QPSK

8PSK

DEMOD

S_ADC_IN

S_ADC_IP

S_ADC_QN

S_ADC_QP

ADC (I)

ADC (Q)

EQUAL-

IZER

I2C

SWITCH

TUN_SDA TUN_SCL

GPIOCTRL

MPEG TS

INTERFACE

I2C I/F

MP_x

GPIO_0

RESETB1.2, 3.3V

DSP &

SYNCHRO

DVB-S/S2

FEC MODULE

DiSEqC

TM

2.0

DISEQC_IN

DISEQC_OUT

AGCs

Ext. Clk or Xtal

QPSK / 8PSK

Satellite

ZIF Tuner

CLK_IN_OUT

LDPC BCH

VITERBI RS

TS_ERR/ GPIO_1

TS_SYNC TS_VAL

8

TS_CLK TS_DATA

IC Data Sheets

8.5 Diagram 10-4-11 Tuner/Demodulator, B11, Si2168-C50-GMR (IC U201)

2016-Apr-1

Figure 8-6 Internal block diagram and pin configuration

back to

div.table

9. Block Diagrams

20050_400.eps

9.1 Block diagram series

Block Diagrams

EN 43QM16.4E LA 9.

2016-Apr-1

back to

div.table

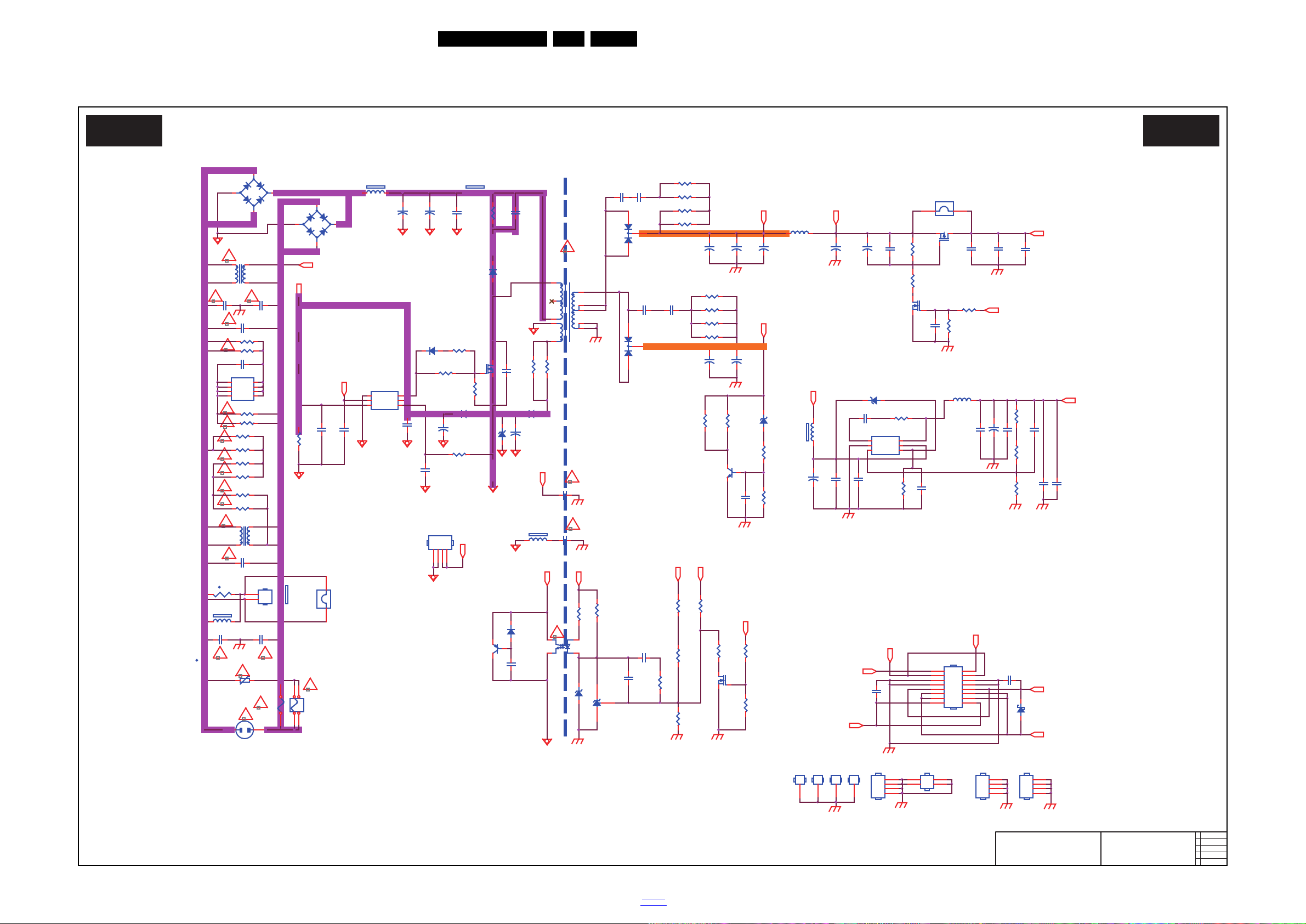

Circuit Diagrams and PWB Layouts

20040_500.eps

POWER

A01 A01

2015-11-30

3

715G7364

POWER

C9172 220N 50V

R9107

10K 1/4W

HS9152

NC/HEAT SINK

341

2

F9902

5A 250V

1 2

3 4

Q9181

AOD4185

R9125 1K OHM

+

C9802 68uF 450V

DIM

ON/OFF

FB_1

PS_ON

D9152 SR34

1 2

J921 NC/JUMPER

12

CN9901 AC 2P

12

R9184 NC/6.8KOHM +-1%

R9108

10 OHM 1/4W

C9104

2.2NF

R9176 20K5 1/8W 1%

+12V2

C9158 1uF

+12V2

!

R9174 5K11 1/8W 1%

ZD9121

BZT52-B18

1 2

C9159

100N 50V

C9902

470nF 275V

R9187

100R 1/8W 5%

R9164 33ohm 1/4W +/ -5%

HS9101 HEAT SINK

123

4

+22V

+12V1

!

R9906

NC/510K 1/ 4W

!

D9104

1N4148W

+12V_AUDIO

C9920

470PF 250V

Q9183 NC/2N 7002K

GND3 GND

1

GND2

NC

1

GND4

NC

1

R9126 1K OHM

PS_ON

R9128

1K OHM +- 5% 1/8W

D9105

NC/1N 4148W

C9106

NC/4N 7 50V

U9103 AS431AN-E1

C9301

1uF

U9101 PF6005AG

GND

1

FB

2

BNO3CS

4

VCC

5

OUT

6

R9186 NC/100KOH M +-5% 1/8W

R9910

750K +-5% 1/4W

R9909

750K +-5% 1/4W

R9101

0.2R

R9185

NC/10K OH M +-5% 1/8W

+

C9154

470uF 25V

FB9901 JUMP

1 2

ZD9101

NC/BZ T52-B30

1 2

CN9101 CONN

2 4 6

8 10 12 14 16

1 3 5 7 9 11 13 15

!

C9103

100PF

+5V

!

FB9903 BEAD

12

R9907

750K +-5% 1/4W

FB9905 BEAD

1 2

-

+

BD9901 GBL08-C2

2

1

3

4

C9907

47PF

HS9151 HEAT SINK

1 2 3 4

U9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

L9901 12mH

124

3

SG9901

500V

R9104 22OHM 1/8W

C9155 220N 50V

L9902 12mH

124

3

+12V

FB9301

BEAD

1 2

C9171

NC/22NF 50V

R9129 NC/20K5 1/ 8W 1%

R9115 JUMPER

C9157 100N 50V

+

C9302

470uF 25V

R9111 510K 1/4W

J907 NC/JUMPER

12

R9102 510K 1/4W

AC-1

!

SG9902

500V

AC-1

C9304

100N 50V

-

+

BD9902 GBL08-C2

2

1

3

4

!

t

NR9901 1R

12

t

NR9902 1R

12

C9110

1NF 50V

R9124

150 OHM 1/4W

R9183

510K 1% 1/8W

+

C9151 470uF 25V

R9106 47OHM 1/8W

C9111

100N 50V

U9102

PC123Y82F Z9F

1

23

4

R9112

3.3M 1/4W

R9113

3.3M 1/4W

R9103

10 OHM 1/4W

COLDHOT

R9114

3.3M 1/4W

R9173

680R 1/8W 1%

D9102 1N4148W

R9109 750 OHM 1/4W

C9108 470PF 50V

R9163 33ohm 1/4W +/ -5%

R9162 33ohm 1/4W +/ -5%

R9161 33ohm 1/4W +/ -5%

!

+

C9801 68uF 450V

R9105 75K

FB_1

!

+12V1

R9171

2K 1/8W 5%

+

C9152 470uF 25V

L9101 3UH

!

R9121 150 OHM 1/4W

+12V1

R9123 150 OHM 1/4W

R9122 150 OHM 1/4W

GND1 GND

1

C9912

100PF 250V

C9911

100PF 250V

D9103 FR107G-A0

Q9101

AOTF18N65

C9105 10NF 1KV

C9921 470PF 250V

+

C9153 470uF 25V

!

C9303

1uF 50V

HS-GND

D9101 FR107G-A0

FB9904 BEAD

1 2

!

ZD9301

BZT52-B5V1_R1_00001

12

C9308

100N 50V

R9301

2R2 +-5% 1/8W

L9301

3.3uH

R9307

5K1 +-5% 1/8W

C9305

100N 50V

RV9901 680V

R9127 470 OHM 1/4W

!

C9125 100N 50V

+

C9107 22uF 50V

Q9121 2N3904

C9182 100N 50V

U9301 SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

C9914 220PF 250V

C9162

1N5 50V

C9913 220PF 250V

+

C9112

4.7UF 50V

C9161

1N5 50V

D9121 FMXA-2202S

1

2

3

+

C9121 220uF 50V

+

C9122 220uF 50V

!

+22V

CN9902

NC

L

1

N

2

R9181

100KOHM +-5% 1/8W

Q9102

NC/LMBT3906LT1G

C9901 470nF 275V

D9151 FMEN-220A

1

2

3

+

C9160

4.7UF 50V

C9309

100N 50V

C9156 100N 50V

ZD9171

BZT52-B18

1 2

HS9121

NC/HEAT SINK

1 2 3 4

R9182

1K 1/4W 5%

+

C9306

470uF 25V

C9307

1uF

R9305

62K 1/8W 1%

!

R9304

22OHM +-5% 1/8W

HS-GND

R9306

12K 1/8W 1%

!

C9310

18pF 50V

C9312

1uF

T9101 POWER X'FMR

1

2

4

5

6

7

8

10

11

9

C9311

100N 50V

Q9182

2N7002K

FB9902 BEAD

1 2

HS9122 HEAT SINK

1 2 3 4

F9901

NC/5A 250V

!

+12V

PS_ON

R9175

0 OHM +-5% 1/8W

C9109

2N2 50V

!

R9905

NC/510K 1/ 4W

R9904

NC/510K 1/ 4W

R9172

1K5 +-1% 1/8W

R9903

NC/510K 1/ 4W

R9902

NC/510K 1/ 4W

R9901

NC/510K 1/ 4W

R9110

100K 1/8W 1%

R9908

750K +-5% 1/4W

C9124

1NF 500V

C9123

1NF 500V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G7364 PSU

10-1-1 Power

EN 44QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-1-2 LED DRIVER

20050_529.eps

LED DRIVER

A02 A02

2015-11-30

715G7364

LED DRIVER

R8601

0R075

+

C8603

220uF 50V

R8623

300K 1/8W 5%

R8605

10ohm +/-1% 1/ 8W

L8602

NC

R8615

1R2 1%

R8612

33K 1/8W 1%

C8605

100N 50V

R8613

1R2 1%

C8612

47N 50V

L8601 33uH

8

1

4

6

R8606

33K 1/8W 1%

R8617

1.5R

C8611

10PF 50V

R8603

100K

C8610

1NF 50V

+

C8604

220uF 50V

D8603 1N4148W

C8609

220P 50V

R8619

10 OHM

C8607 1uF

C8608 220N 50V

R8616

1.5R

R8608

10K 1/8W

R8607

5.1R 1/ 8W

+

C8601 220uF 50V

FB8601 BEAD

1 2

R8614

1R2 1%

C8606 1uF

R8609

10R 1/ 8W 5%

+22V

ON/OFF

OUT

DIM

OUT

VLED+

VLED-

R8618

1.5R

ZD8602

NC/BZT52-B22

1 2

R8622

10K 1/8W 1%

C8615

100N 50V

Q8602

LMBT3906LT1G

R8620

2K2 1/8W

C8617

100N 50V

+

C8614

10UF50V

D8602 SR506

1 2

FB8602 BEAD

1 2

VLED-

CN8602

CONN

1

2

3

4

5

6

7 8

VLED+

VLED-VLED-

VLED+

CN8601 NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

VLED-

VLED+

D8605

NC/1N4148

R8621

5K1 1/8W 1%

+12V

R8602

NC / 0R 05 1/ 4W

ON/OFF

VCC

C8613 100pF 50V

VCC

C8616

2.2U F 25V

Q8603 LMBT3904LT1G

D8604 1N4148W

D8601 SR506

1 2

R8604

100K

R8610

4K3 1/8W 1%

R8611

33K 1/8W 1%

Q8601

AOD2916

U8601

PF7708BS

LED

1

VCC

2

CS/OVP

3

OUT4GND

5

DIM

6

GM

7

FB

8

ZD8601

NC/BZT52-B22

1 2

Circuit Diagrams and PWB Layouts

EN 45QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-1-3 Power layout top

20040_502.eps

2015-11-04

715G7364

LAYOUT TOP

F9901

J906

D8605

R9125

C9107

D9103

R9105

BD9902 BD9901

D8602

C9104

C9112

C9121

C9122

C8614

C9302

D8601

U9102

R9101

R9115

R9126

R8601

T9101

J910

J905

J908

J909

J903

J904

J923

J915

SU1

J902

J919

J920

C9801

J913

J912

C8603

C8604

J918

J907

C9306

J914

J922

J921

J916

J901

J911

TP905TP907

TP910

TP908

TP902

TP904

DR901

NH902NH901

NH903

TP909

TP906

TP901

TP1

NH1

NH2

NH3

TP4

MH902

MH901

MH905

MH904

MH903

C9105

C9151

C9152

C9153

C9154

C9160

C9913

C9914

CN9902

D9151

D9121

FB9301

L8601

L9101

SG9901

SG9902

FB9904

HS9122

GND1

HS9152

RV9901

CN8601

CN9101

FB9903

FB9905

FB9901

F9902

C9901

C9902

HS9101

HS9151

HS9121

C8601

GND4

R9182

L8602

GND2

GND3

FB8601

FB8602

CN9901

D9101

L9301

C9920

C9912

C9911

C9921

Q9121

FB9902

CN8602

Q9101

L9901

L9902

NR9901

C9802

NR9902

C9103

C9907

Circuit Diagrams and PWB Layouts

EN 46QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-1-4 Power layout bottom

20040_503.eps

2015-11-04

715G7364

LAYOUT BOTTOM

SM901

C8612

C8606

C9110

C9155

C9161

C9162

C9172

C9171

C9182

C9123

C9308

R9102

R9103

R9161

R9902 R9901

U8601

JR903

SM904

SM903

SM902

C9301

C9156

C9157

C8616

C8617

C8605

C9158

C9159

Q9182

Q9183

R9909

R9910

R9172

R9174

R9173

R9171

R9175

R9176

R9181

R9183

R9186

R9306

R9185

R9184

R9187

C9108

C9109

C9111

JR902

C9106

R9106

JR904

JR901

R9307

C9312

C9124

C8609

C8610

C8611

C8613

C8615

C9304

U9103

R9108

R9109

R9110

R9111

R9112 R9114

R9121

R9122

R9124

R9129

R9164

R8602

R8603 R8604

R8605

R8606

R8613

R8614

R8615

R8616

R8617

R8618

R8619

R8608

R8609

R8610

R8611

R8612

R9903R9905

R9907

R9107

C9310

R9128

R9123

C9125

R9904R9906

R9908

U9901

R9113

R9127

C8607

C8608

R8607

R8621

R8620

R8622

R8623

C9307

C9309

R9301

C9303

C9305

R9304

R9162

R9163

U9101

R9104

C9311

R9305

SG903

SG904

Q8601

Q9181

Q8602

Q8603

D9152

D8603

ZD9171

ZD9301

D8604

ZD9121

ZD8601

ZD8602

D9104

D9102

ZD9101

D9105

Q9102

U9301

Circuit Diagrams and PWB Layouts

EN 47QM16.4E LA 10.

2016-Apr-1

back to

div.table

10.2 A 715G7574 PSU

20050_500.eps

AC input

A01 A01

2015-11-26

715G7574

AC input

HS9901

HEAT SINK

1 2

C9157 1uF

C9151 1uF

!

C9903

47PF

FB9908

127R

1 2

+

C9102

1UF 50V

LED_OVP

C9914

220PF 250V

R8611

100KOHM +-5% 1/8W-NC

C9913

220PF 250V

C9305

1N 50V

R9302

3K 1/8W +/-1%

FB9301

127R

1 2

R9304

20R 1%

C9303

100N 50V

L9301

4.7uH

R9305

10K 1/8W 1%

C9154 1uF-NC

R9306

1.96KOHM +-1% 1/8W

+

C9310 22UF 50V

C9306 2N2 50V

C9301

4.7UF 25V

+5.2V

R9303

20R 1%

HV

DIM

PS_ON/OFF

BL_ON/OFF

+12V

VREF

R8629

10K 1/8W 1%-NC

PS_ON/OFF

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R9138 100R 1/8W 5%

+

C9125

47UF 50V

R8632

100KOHM +-5% 1/8W-NC

F9901

FUSE

1 2

3 4

!

GND1 GND-NC

1

C8613

3.3NF 500V-N C

C8604

100N 50V

R8613

100R 1/8W 5%

R8614 0 OHM +-5% 1/8W

C9120 1N 50V

C9922 1NF 250V

R9910

4.7M 5% 1/8W

C9811 100N 50V

R8625 30K 1/8W 1%

LA5200 43"

R8604=1. 3R R8605=1. 3R R8606=1. 3R

D9102

SCS160P

12

!

+

C9101

22uF50V

!

FB9803 JUMPER

1 2

!

D9804

SCS160P

12

!

+

C9121 330uF 35V

R9119

2.2M 1/4W

L9902

12mH

124

3

FB9907

127R-NC

12

C9923 100PF 250V

L9901

8mH

124

3

T9102

POWER X'FMR

1

2

3

4

5

7

8

9

6

11

12

U9105

TL431G-AE2-R

!

L8604

33uH-NC

C9103

10N 50V

R9109 130K 1%

C9130

3.3NF 50V

DIMOUT

HV

VCC_ON

EU5500 43"&40"

R9116=2M2 R R9117=2M2 R R9119=2M2 R C9102=1UF/ 50V R9109=130K R

FB9102 BEAD

1 2

R8603

1.2R 1%

D9104

1N4148W

R9169

2Kohm 1/4W +/-5%

R8630 100R 1/8W 5%

R8631

100KOHM +-5% 1/8W-NC

C9304 100N 50V

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

U9103 EL817M(X)

12

43

DIMOUT

R9904

330K 1/4W-NC

R9903

330K 1/4W-NC

R9902

750K +-5% 1/4W

R9901

750K +-5% 1/4W

R9906

750K +-5% 1/4W

R9905

750K +-5% 1/4W

L8602 3UH

GND3 GND-NC

1

C8614

3.3NF 500V-N C

EU5500 43" & LA5101 49"

R8604=1. 0R R8605=1. 0R R8606=1. 2R

DV12

R8604

1oHM 1% 1/4W

FLAG

R8612

1K OHM +-5% 1/8W-NC

LED_FB

R8609 0 OHM +-5% 1/8W

C9308

100P 50V

C9921 1NF 250V-NC

LED_FB

+

C9801

47UF 450V

ZD9102 BZT52-B5V1_R1_00001

12

A3D

R9127

10K 1/8W 1%

HOT

COLD

L9100 3UH

R9117

2.2M 1/4W

+12V_A

C8606

470P 50V

+12V_A

R9909

0R05 1/4W

+

C9802

47UF 450V

R8605

1oHM 1% 1/4W

R8610

0 OHM +-5% 1/8W

C9313

4N7 50V/NC

R8628 10K OHM +-5% 1/8W

!

C9126 1uF

C9804 47P 50V

R9814

5K1 1/8W 1%

C9124

100N 50V

R9806

10K OHM +-5% 1/8W

R8606

1.2R 1%

C9806

100N 50V

D9801 MUR460-28

CN9903

CONN-NC

1

2

R9818

18.7K 1/8W 1%

U9802

LD8105GL/NC

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

C9808 100P 50V

U9801 LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

VCC

C9807

220P 50V

R9815 130K 1%

Q9801

TK12A60W

VCC_ON

C9901

470nF 275V

12V

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813

10K OHM +-5% 1/8W

R9810

470OHM +-5% 1/8W

R9805

47K +-1% 1/4W

R9812 30K 1/8W 1%

C9810

0.47UF 50V

HS8601

HEAT SINK

1 2

3

4

SG9901

DSPL-501N-A21F

C8607 47PF-NC

C9809 47N 50V

Q8601 AOTF4126

!

R8608

10K OHM +-5% 1/8W

A3D

C8605

10N 50V-NC

R9807

1MOHM +-1% 1/4W

R9809 750K 1%

R9804

1MOHM +-1% 1/4W

R8601

0R05

+

C8609

220uF 50V

R8620

1K OHM +-5% 1/8W

R8623

10K OHM +-5% 1/8W

R9811

10K OHM +-5% 1/8W

+

C8608

220uF 50V

R8617

0 OHM +-5% 1/8W

R8607

1.2R 1%

PS_ON/OFF

+12V

!

+24VS

C9128

100N 50V

+

C8610

220uF 50V

C9141

2N2 50V

+VLED

-VLED

+VLED

-VLED

CN8603

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C9135

100N 50V-NC

!

C9139 330P 50V

!

R9155

47 OHM 1/4W

R9134

6.2K OHM +-1% 1/8W

EU5500 40"

R8604=1. 0R R8605=1. 0R R8606=1. 0R

FB9906

127R-NC

1 2

R9153 10K OHM +-5% 1/8W

Q9103 2N7002K

+

C9112 470uF 25V-NC

!

R9149 100K 1/8W 1%

R9105 10R 1/8W 5%

DIM

R9106

33R 1/8W 5%

t

NR9900

1.5R

12

C8612

1NF 50V

L9903

0.25mH

124

3

12V

R9148

10K OHM +-5% 1/8W

R9816

100KOHM +-5% 1/8W

C8611

100N 50V-NC

D8601 TSF20U100C

1

2

3

C9902

220NF 305V

L9801

300uH

1

3

5

4

C9152 1uF-NC

C9133

100N 50V

ZD9106

BZT52-B13G

1 2

Q9109 2N7002K

R9154 10K OHM +-5% 1/8W

Q9107 MMBT3906

FLAG

R9152 1K5 +-1% 1/8W

!

VCC

+

C9113

470uF 25V

!

R9103

470 OHM 1/4W

+

C9123 330uF 35V-NC

R9102

470 OHM 1/4W

R9157

47 OHM 1/4W

R9163

47 OHM 1/4W

C9104

2.2NF

D9103

PG1010R

!

R9160

1K 2W

R9159

9K1 1/8W 1%

R9144

470 OHM 1/4W

R9162

100K 1/8W 1%

R9104 82K 2W

R9164

1K 2W

R9129

4.3K OHM 1%

D9101

SARS01-V1

R9124

2K 1/8W 1%

R9146

100 OHM 1/4W

R9808

0R05 1/4W-NC

U9104

EL817M(X)

12

43

D9111

TSF20U100C

1

2

3

R9165

2K 1/8W 5%

R9113

470 OHM 1/4W

D9121

FMXA-2202S

1

2

3

R9114

470 OHM 1/4W

C9131

470pF 1KV

C9153 1uF-NC

R9118

47 OHM 1/4W

R8621

47K 1/4W / NC

-

+

BD9901

TS10K80-01

2

1

3

4

R8622

47K 1/4W / NC

ZD9107

BZT52-B39

1 2

C9119

100PF-NC

+

C9111

470uF 25V

R9145

100 OHM 1/4W

R9135

1R 1/8W 5%

R9130

91KOHM +- 1% 1/8W-NC

C 91 1 8

0. 47UF 50V

R91 66

20K +-5% 1/8W

R9112

3R9 1%

C91 4 3

2N2 50V

R91 07

10K OHM +-5% 1/8W

R9125

2K 1/8W 5%

+

C9122 330uF 35V

R9126 1K 1/8W 1%

C9134

470pF 1KV

R9150

2Kohm 1/4W +/-5%

R9147

220R 1/8W 5%

R9101

0.2R 2W

Q9104

BTB1424AM3

R9167

470 OHM 1/4W

+

C9137

10UF 50V

R9170

20K +-5% 1/8W

R8624

150K 1/8W +/-1%

C9146

2N2 50V

+24VS

12V

+24VS

12V

VCC_ON

OVP

VCC

BL_ON/OFF

D9803

QG806C

R9801

0.15R

L8603

33uH

8

1

4 6

R9151

10K OHM +-5% 1/8W

Q9106

BTC4672M3

C9307

10uF 16V

ZD9101

BZT52-B16G

1 2

C9312

100N 50V

C9311

1UF 16V-NC

C9302

10uF 16V

Q9101

AOTF12N65

C9150

1N 50V

R8633

1K OHM +-5% 1/8W-NC

+5.2V

R9168

330K 1/8W 5%

C9924

470PF 250V

+

C8601

10UF 50V

+

C9115 470UF 25V

R9136 100KOHM +-5% 1/8W

+12V_A

D9107

SR34H-NC

1 2

Q9105 2N7002K

C9117

1UF

C9116

4.7UF 25V-NC

Q9108

AOD4185

R9142

100KOHM +-5% 1/8W

HS9801

HEAT SINK

1 2

3

4

C9144

100N 50V

+

C9114

470UF 25V

R9133 1K OHM +-5% 1/8W

+12V

R9143 330K 1/8W 5%

C9821 1UF 450V

12V

Q9802 BSS127

3

1

2

C9309 10uF 16V

U9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

Q8604

2N7002K-NC

HS9111

HEAT SINK

1 2

3

4

R9173

0 OHM +-5% 1/8W

R9116

2.2M 1/4W

C8603

1UF 16V

D9802

QG806C

D8603

SCS160P-NC

12

C9912

47pF 250V

!

PFC_OVP

R9111

100 OHM 1/4W

C8602

1N 50V-NC

Q8605

2N7002K-NC

GND2 GND-NC

1

SG9902

DSPL-501N-A21F

R8616

33R 1/8W 5%

CN9902 CONN-N C

1

2

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

R8627 10K 1/8W 1%

C9148

1uF

!

R9128

100 OHM 1/4W

ZD9103

BZT52-B18

1 2

R8626

150K 1/8W +/-1%

CN9901

AC 2P

1 2

A3D

C9132 1NF

C9911

47pF 250V

R9132

470 OHM 1/4W

C9155 1uF

R9131

470 OHM 1/4W

C9156 1uF

Q8603

AO4482L

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

C9149 1uF

!

U9102

TL431G-AE2-R

!

t

NR9901

1.5R

1 2

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

F9902 NC

C9145

100N 50V

RV9901

680V

C9819

470PF-NC

R8615 10K OHM +-5% 1/8W

R8602

1.2R 1%

R8618

270K 1%

R8619 270K 1%

R9821 2Mohm 1/4W +/-1%/NC

R9824 15K 1/8W 1%/NC

R9823 2Mohm 1/4W +/-1%/NC

C9812 470PF 50V/NC

ZD9108

BZT52-B39

1 2

R9822 2Mohm 1/4W +/-1%/NC

C9813 100N 50V/NC

R9825

510OHM +-5% 1/4W/NC

D9810

1N4148W/NC

PFC_OVP

L8601

33uH

2

1

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 48QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-2-2 Power layout top

20030_501.eps

2015-11-12

715G7574

LAYOUT TOP

C8607

U9104

U9103

R8601

R9104

R9101

C9137

C9119

C9123

R9160

R9164

J919

F9902

J926

J901

J928

SU2

SU3

SU4

C8601

C9903

J932

J913

J907

J912

J904

J903

J906

J909

D9801

J908

J910

J914

J921

J915

J905

J916

J911

J918

J902

R9801

D9103

J920

J923

J917

C9115

C9122

C9801

C9802

J930

J929

J933

J931

C9819

C9132

SU1

J925

C9310

T9102

J927

J922

J924

MH27

MH3

MH22

MH23

MH20

MH17 MH18

MH5MH6MH7MH8

MH19

MH9

MH16

MH21

MH1

MH30

MH31

MH32

MH24

C8608

C9113

C9125

C9112

CN9902

CN9903

L9100

C9821

C9111

D9121

MH28

MH29

MH26

RV9901

L9902

D9111

C8609

HS9801

FB9907

CN8603

C8610

CN9101

FB9803

L9801

GND2

FB9301

D8601

C9901

MH25

L9903

Q9101

Q9801

GND1

F9901

GND3

C9913

C9914

C9104

L9901

HS9901

BD9901

C9924

C9922

C9923

FB9908

NR9901

NR9900

HS9111

C9902

FB9906

C9921

HS8601

L8601

FB9102

SG9901

SG9902

L8602

CN9901

Q8601

C9101C9102

C9114

C9121

L9301

L8603

L8604

C9911

C9912

D9101

Circuit Diagrams and PWB Layouts

EN 49QM16.4E LA 10.

2016-Apr-1

back to

div.table

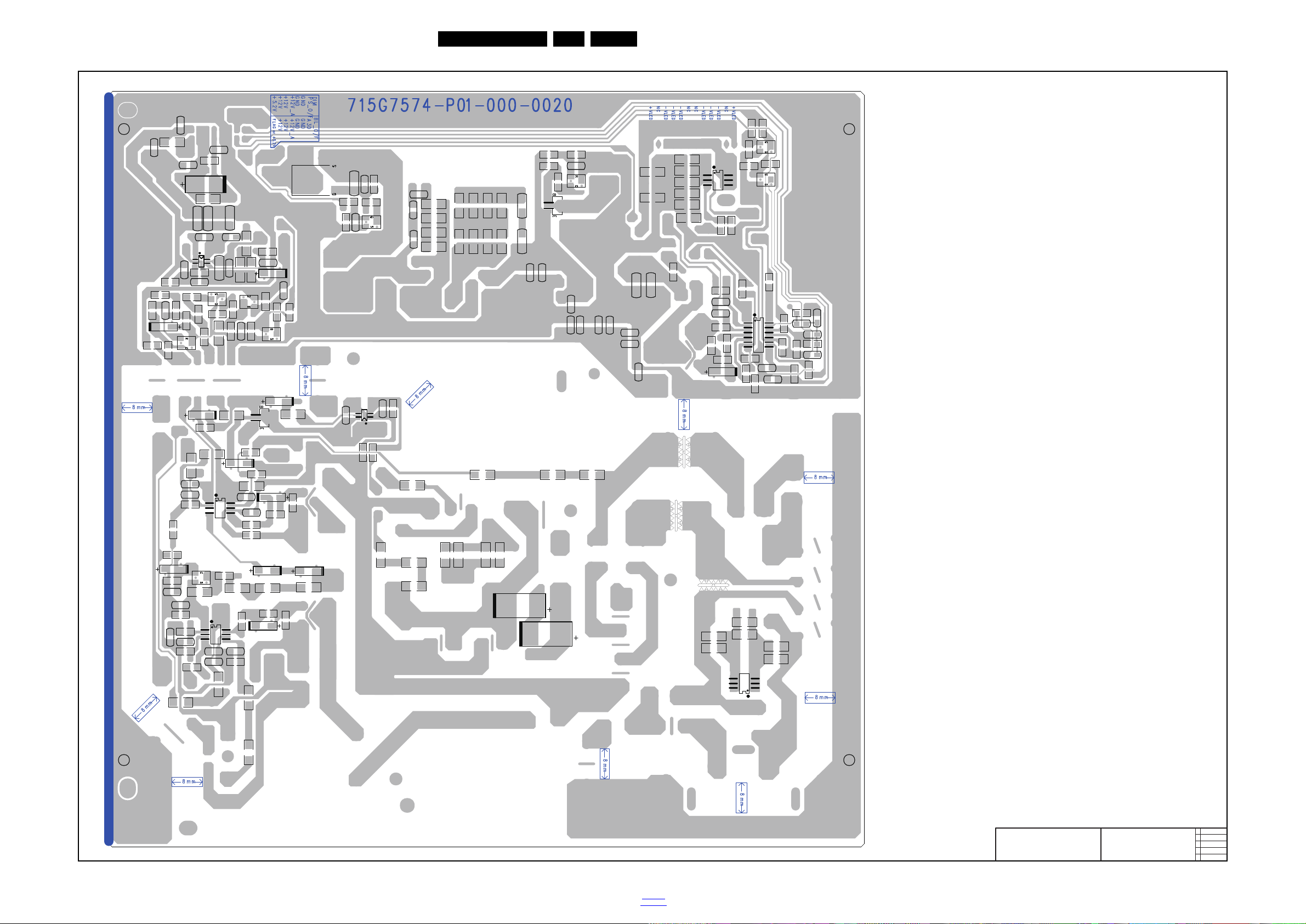

10-2-3 Power layout bottom

20050_502.eps

2015-11-12

715G7574

LAYOUT BOTTOM

C8612

C8603

C9103

C9118

C9303

C9305

C9306

C9139

C9806

C9809

C9810

C9808

R8617

R8616

R9169

R9170

R8618

R9112

R9107

R9142

R9125

R9168

R9302

R9306

R9305

R9303

R9304

R9802

R9803

R9804

R9806

R9807R9809

R9812

R9813

R9814

R9815

R9818

R9144

R9145

R9103

R9149

R9146

R9136

C9117

R9124

R9903

R9906

C9128

C9141

R9130

SEN1

SEN3

R9113

R9114

R9157

R9163

U9801

C9804

R8604

R8605

R8621

R8622

R9162 R9165

C9304

Q8603

C9134

U9901

C8605

C8606

C9130

C9143

C9146

C9150

C9133

C9807

C9116

C9131

R8619

R8620

R8612

R8623

R9109

R9126

R9129

R9133

R9143

R9159

R9152

R9134

R9148

R8606

R9111

R9102

R9118

R9155

R9167

R9150

R9135

R9166

R9151

R9810

R9805

R9105

R9106

R9147

RJ903

RJ902

RJ901

RJ904

R8607

R8602

R9173

R9138

R8615

R8603

R9132 R9131

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811

R9816

R9808

R8630

C9311

R9116

R9904

D9802

R9153

C8611

RJ907

RJ909

RJ911

R8631

R8632

R8633

U9102

U9105

Q8604

Q8605

Q9103

Q9105

Q9109

Q9802

C9144

C9145

R9154

C8602

R9128

R9910

RJ906

R9127

C9148

C9149

C9151

C9152

C9153

C9154

C8613

C8614

C9155

C9156

C9157

C9308

C9309

C9302

C9307

U9101

R9117R9119

SEN4SEN5

RJ913

C9126

C9312

C9120

C9301

C9124

C9812

C9813

R9824

R9821

R9822

R9823

R9825

R9901

R9902

R9905

D9803

RJ905

RJ908

RJ910

RJ912

R9909

C9135

C9313

MH11MH10

MH12MH13

MH15MH14

Q9106

Q9108

D9107

Q9104

U8601

Q9107

U9301

D8603

D9102

D9804

ZD9101

ZD9102

ZD9106

ZD9107

ZD9108

D9104

D9810

U9802

ZD9103

Circuit Diagrams and PWB Layouts

EN 50QM16.4E LA 10.

2016-Apr-1

back to

div.table

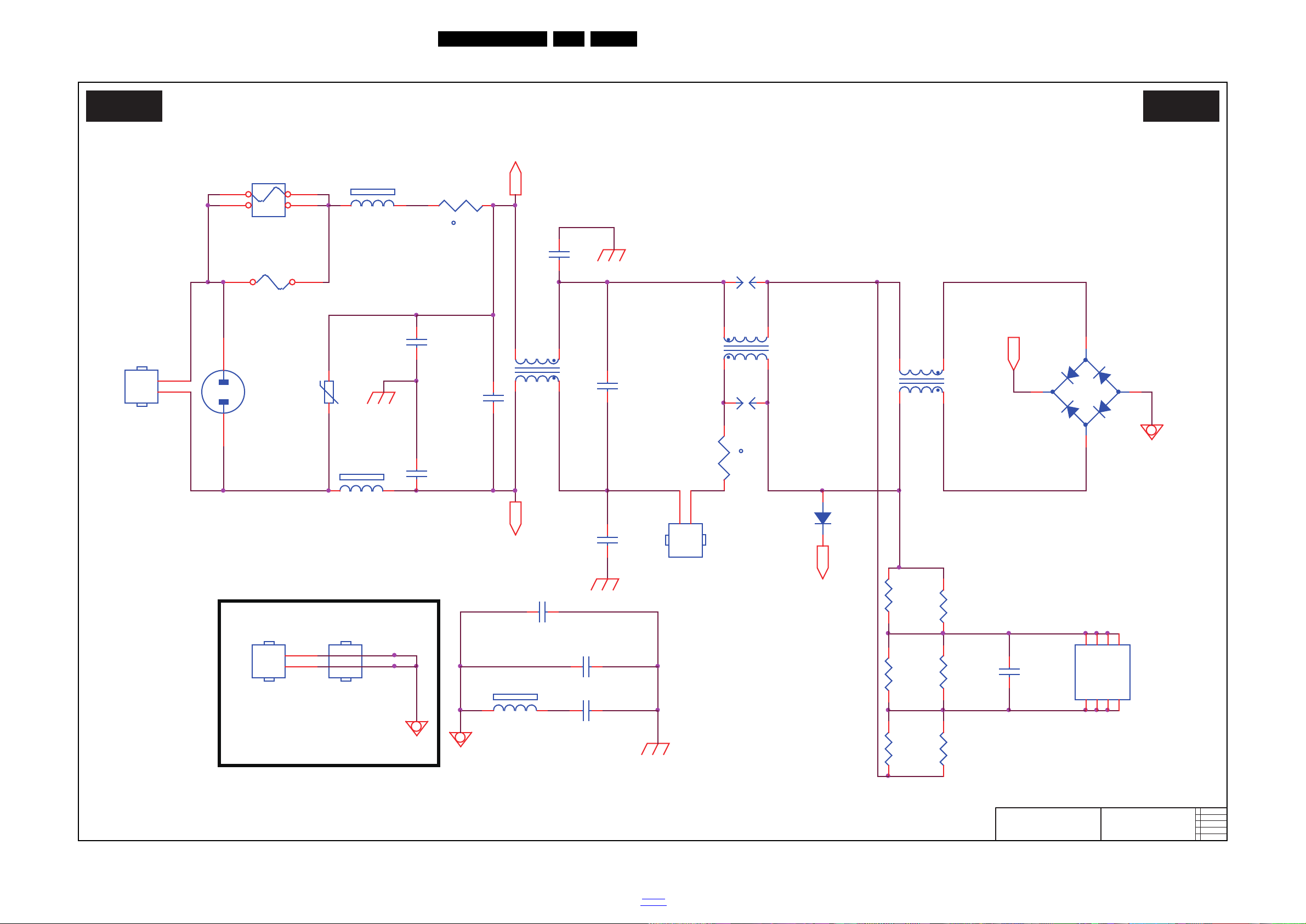

10.3 A 715G7575 PSU

20050_503.eps

AC input

A01 A01

2015-11-12

715G7575

AC input

F9902 FUSE

12 34

t

NR9902

2.5R

1 2

FB9903

NC

1 2

SG9901 DSPL-501N-A21F

t

NR9901

2.5R

12

D9901 PG4007

BR

R9906

910K 1/4W

HS9901 NC

1 2

U9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

SG9902

DSPL-501N-A21F

L9902 12mH

1

2

4

3

CN9901

NC

1 2

C9912 22PF 250V

R9902

910K 1/4W

C9900

47pF

FB9901

BEAD

1 2

C9911 22PF 250V

FB9902

BEAD

12

F9901

NC

R9905

910K 1/4W

CN9902 AC 2P

12

C9914

470PF 250V

C9901

470NF 275V

L9901 12mH

1

2

4

3

RV9901 680V

R9904

NC

R9901

910K 1/4W

C9902

470NF 275V

C9913 470PF 250V

R9903

NC

L

VSIN

T5AH/250V

HS9902 HEAT SINK

1 2

N

L9903

0.25mH

1

2

4

3

C9916 NC

C9917 NC

C9915

220PF 250V

CN9903 NC

L

1

N

2

-

+

BD9901

GBJ1008-FUN

2

1

3

4

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 51QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-3-2 PFC with LD7591T

20050_504.eps

PFC

A02 A02

2015-11-12

715G7575

PFC

R9821 NC

R9824 NC

R9823 NC

C9812 NC

R9822 NC

C9813 NC

R9825 NC

D9810 NC

PFC_OVP

R9811

330 OHM +-1% 1/8W

ZD9801

SMF12A

1 2

C9811

47P 50V

FB9801 BEAD

1 2

+

C9801

56UF 450V

C9820

1UF 450V

C9805 47N 50V

R9806 7K5 1/8W +/-1%

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

R9808

33R 1%

D9804 SCS160P

12

R9815 10K

C9810 100P 50V

Q9801 IPA60R230P6

2

1

3

R9802

1M 1/4W 1%

Q9802

BSS127

3

1

2

C9809

330P 50V

R9816 20K 1/8W 1%

R9803 1M 1/4W 1%

R9812 24K9 1%

R9813

10K 1/8W 1%

C9808 47PF

R9804

19K1 +-1% 1/8W

R9817 1M 1/4W 1%

R9809

10K 1/8W 1%

+

C9802

56UF 450V

R9805

47K 1/8W 1%

D9801

FMNS-1106S

R9814

NC

R9807

10R 1/ 8W 5%

R9810

1K

HS9801

HEAT SINK

1 2

3

4

C9803

100N 50V

+

C9804

10UF 50V

FB9802 BEAD

1 2

C9807 220P 50V

C9806

0.47U F 50V

R9801

0.1R 2W

VCC_ON

VSIN

HV

L9801

220uH

5

4

1

3

FB9803 BEAD

12

!

D9802 QG806C

U9802

NC

ISEN

1

GND

2

VSEN3IREF

4

OUT

5

VCC

6

D9803 QG806C

VCC_LLC

Circuit Diagrams and PWB Layouts

EN 52QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-3-3 Flyback with SSC3S121

20050_505.eps

LLC

A03 A03

2015-11-12

715G7575

LLC

C9103

2.2NF

BR

FB_LLC

+12V

C9118 100N 50V

FLAG

T9101 POWER X'FMR

1

2

3

4

5

6

7

8

9

10

11 12

L9121 3UH

L9132 3UH

+24V

+

C9121

330UF 35V

+

C9122

330UF 35V

+

C9124

330UF 35V

+24VS

D9122 MBRF10100CT-Y

1

2

3

D9121 MBRF10100CT-Y

1

2

3

C9189

100N 50V

R9181

100 OHM 1%

DV5

+12V_A

R9185

47K 1/8W 1%

R9182

510K 1% 1/8W

Q9182 MMBT3906

R9183

5.1KR 1%

DV5

Q9181 2N7002K

R9184 47K 1/8W 1%

C9119

NC

U9301

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

R9108

100R

C9108 100N 50V

U9101

SSC3S910

VSEN

1

VCC

2

FB

3

ADJ

4

CSS

5

CL

6

RC

7

PL

8

SB9GND

10

VGL

11

REG

12

NC

13

VB

14

VS

15

VGH

16

NC

17

ST

18

3.53.5V DC TO DCDC TO DC USED TO USED TO improvimprove PowePower savingsaving

C9109

10N 50V

R9303

1K96 1/8W 1%

+

C9127

470UF 25V

+

C9126

470UF 25V

ZD9153 BZT52-B13G

1 2

+

C9123

330UF 35V

U9103 EL817M(X)

12

43

R9126 47K 1/8W 1%

PFC_OVP

U9102 EL817M(X)

12

43

Q9132 P1004BD

+

C9128

470UF 25V

Q9103 2N7002K

R9109 510K

R9110

5.1K

PS_ON

+12VS

R9118

10R 1/8W 5%

U9104 EL817M(X)

12

43

HOT

COLD

R9180 100K 1/8W 1%

C9120 NC

C9130

2.2UF 50V

STB

Q9141 2N7002K

PS_ON

Q9143 BTC4672M3

R9144 1K5

C9141

100N 50V

ZD9141 BZT52-B15

1 2

R9143 10KOHM

R9141 100R

Q9142 MMBT3906

R9145

10KOHM

+12VS

R9147

3K

R9148

20K

VCC_ON

VCC_LLC

DV5

R9142

510K

R9146 2K OHM

C9304

1N 50V

+12VS

R9154 10K 1/8W 1%

Q9131 2N7002K

R9114 100R

HS9122

HEAT SINK

1 2

3

4

R9125 47K 1/8W 1%

R9301

3K 1/8W +/-1%

C9148

NC

C9129

100N 50V

R9124

510K 1% 1/8W

C9172 100N 50V

R9123 100 OHM 1%

C9305

NC

C9307

NC

C9312

4N7 50V

FB9301

BEAD

1 2

C9302

100N 50V

C9303

100N 50V

L9301

4.7uH

C9306

NC

R9302

10K 1/8W 1%

C9173 100N 50V

+12VB

VCC_LLC

+12V

+5V

+12VS

C9174 10N 50V

+12V_A

D9123 TSF20U60C

1

2

3

A3D

PS_ON

+

C9117 NC

+

C9116 100UF 50V

+5V

D9105 UF1010G

BL_ON/OFF DIM

R9156

0R051/8W

R9163

0R051/8W

C9156

220N 50V

FB_LLC

C9155

1N 50V

+

C9308 100UF 50V

R9157

56K 1/8W +/-1%

R9164

1K2 1/8W +/-1%

C9153

100N 50V

R9161

4.7K

R9158 2K49 1/8W 1%

C9152 NC

C9100

1NF

R9160

22KOHM 1/8W +-1%

+24V

R9162

2K OHM

Q9151 2N7002K

D9102

SR34H

1 2

+12VS

R9152

510K

R9151 100R

C9151

100N 50V

R9153

6.2K 1%

DV5

+12VS

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

U9150

AS431AN-E1

C9104

10N 50V

R9116

1K

D9101 UF1010G

D9104 SCS160P

12

Q9102

TK10A 50D

C9107

220P 50V

R9119

1K

ZD9101 BZT52-B15G

12

R9101 2M 1%

R9105

100 OHM 1%

R9103 180K +-1% 1/8W

R9106

120OHM +-5% 1/8W

+

C9131

470UF 25V

R9159 100 OHM 1%

R9102 3M3 1%

+

C9133

470UF 25V

R9107 NC

C9105

220NF 50V

C9115

2.2UF 25V

C9102 220N 50V

C9106

0.47UF 50V

R9104

51K 1/8W 1%

R9100

4.7R 1%

C9112 15nF

C9114 47N 50V

C9101 1NF

R9120 2R2 +-5% 1/8W

C9113 100PF

C9111 100PF

D9103 SCS160P

12

Q9101

TK10A 50D

R9117 100R

HV

C9301

4.7UF 25V

R9121

2.2M 1/4W

COLD

HOT

R9190 20M OHM

+12V

+12V_A

C9311

10UF 16V

C9310

10UF 16V

R9115

10R 1/8W 5%

Q9104

MMBT3906 R9113

150K 1/8W 5%

ZD9301

BZT52-B5V1_R1_00001

1 2

C9110

3.3NF 50V

R9111 10KOHM

R9112

47K

HS9101 HEAT SINK

341

2

Circuit Diagrams and PWB Layouts

EN 53QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-3-4 LED Boost

20050_506.eps

LED Boost

A04 A04

2015-11-12

715G7575

LED Boost

+

C8615

47uF 100V

R8611

NC

R8632 NC

R8629 NC

C8604

100N 50V

C8613 NC

R8614 0R051/8W

R8613

100R

R8625 22KOHM 1/8W +-1%

R8603

1.2R 1%

R8630 100R

R8631 NC

U8601

PF7909S

DIMOUT

1

VCC

2

CS

3

OUT

4

GND

5

OVP

6

RT

7

DIM

8

EN

9

FLAG

10

VREF

11

ADIM

12

GM

13

FB

14

L8602 3UH

C8614 NC

R8604

1.2R 1%

R8612

NC

FLAG

R8609 10KOHM

C8606

470P 50V

R8605

1.2R 1%

R8628 10KOHM

R8610

10KOHM

R8606

1.2R 1%

HS8601 HEAT SINK

1 2

3

4

Q8601 AOTF4126

C8607 47PF

R8608

10KOHM

A3D

C8605

NC

R8601

0R05

+

C8609

47uF 100V

R8620

1K

R8623

10KOHM

+

C8608

47uF 100V

R8617

0R051/8W

R8607

1.3R 1%

+24V

+

C8610 47uF 100V

-VLED

+VLED

C8612

1N 50V

DIM

D8601 MBRF20100CT

1

2

3

C8611

NC

R8622 47K 1/4W

R8621

47K 1/4W

R8624

180K +-1% 1/8W

BL_ON/OFF

R8633 NC

+

C8601 10UF 50V

Q8604

NC

C8603

1UF 16V

C8602 1N 50V

Q8605

NC

R8616

33OHM

R8627

10K 1/8W 1%

R8626

150K 1/8W +/-1%

Q8603

SM1A30NSK

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R8615 10KOHM

R8618

270K 1%

R8602

1.2R 1%

R8619

270K 1%

L8601

33uH

2

1

-VLED

+VLED

CN8603

CONN

1

2

3

4

5

6

7

8

9

10

11

12

D8101

NC

12

L8603

NC

8

1

4 6

FB8603

NC

1 2

JUNPER

R8634

1.3R 1%

+12VS

Circuit Diagrams and PWB Layouts

EN 54QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-3-5 Power layout top

20050_507.eps

2015-10-21

715G7575

LAYOUT TOP

D9101

D9105

F9901

T9101

J941

J940

J934

J937

J935

J938

J936

J939

J944

J945

J946

J947

J948

J943

C9101

US1

J942

C8607

C9103

C9808

U9104

U9103

R8601

C9117

C9128

C9804

C9119

C9123

C9133

C9116

C9131

J919

F9902

J926

J901

J928

SU2

C8601

J932

J913

J907

J912

J904

J903

U9102

J906

J909

D9801

J908

J910

J914

J921

J915

J905

J916

J911

J918

C9308

J902

R9801

J920

J923

J917

C9122

C9126

C9124

C9801

C9802

J930

J929

J933

J931

J925

J927

J922

J924

H1

MH8

H10

SG3SG4SG5

SG6

SG9

SG10

SG1

SG2

MH1

H2

H3

H5

H8

H11

H12

H13

MH2

SG7

H7 H4

H6

H9

C8610

C9100

C9112

C9113

C9121

C9127

C9820

C9900

C9901

C9902

C9911

C9912

C9913

C9914

C9915

CN8603

CN9101

CN9901

D9121

D9122

FB9901

FB9902

HS8601

L8601

L8602

L9121

L9132

L9801

L9901

L9902

L9903

NR9902

Q8601

Q9101Q9102

Q9801

SG9901

CN9902

HS9122

HS9901

HS9801

C8608

C8609

NR9901

D8601

HS9101

CN9903

BD9901

D9123

C8615

D9901

SG9902

FB9802

L9301

L8603

C9916

C9917

FB9801

FB8603

FB9903

C9111

HS9902

FB9301

FB9803

RV9901

Circuit Diagrams and PWB Layouts

EN 55QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-3-6 Power layout bottom

20050_508.eps

2015-10-21

715G7575

LAYOUT BOTTOM

SM1

TEST2

SM5

C9102

C9104

C9105

C9106

C9107

C9108

C9109

C9129

C9174

C9189

C9803

C9805

U9150

Q9131

Q9141

Q9151

Q9181

R9100

R9115

R9123

R9158

R9180

R9181

R9182

R9183

R9184

R9185

R9301

R9817

C9110

C9114

R9120

R9156

R9108

R9141

R9110

R9161

C9172

C9173

JR906

JR907

JR902

JR908

JR909

JR905

JR904

JR910

JR903

JR901

SM7

JR912

JR911

R8634

R9190

R9121

JR913

C8612

C8603

C9118

C9303

C9305

C9306

C9806

C9809

C9810

R8617

R8616

R8618

R9112

R9104

R9107

R9142

R9125

R9302

R9303

R9802 R9803

R9804

R9806

R9807

R9809

R9812

R9813

R9814

R9815

R9144

R9145

R9103

R9101

R9146

R9124

R9903

R9906

C9141

R9113

R9114

R9157

R9163

U9801

R8604 R8605

R8621 R8622

R9162

C9304

Q8603

U9901

C8605

C8606

C9130

C9807

R8619

R8620

R8612

R8623

R9109

R9126

R9143

R9159

R9152

R9148

R8606

R9111

R9102

R9118

R9160

R9164

R9151

R9810

R9805

R9105

R9106

R9147

R8607

R8602

R8615

R8603

C8604

R8609

C9811

R8608

R8610

R8611

R8613

R8614

R8624

R8625

R8626

R8627

R8628

R8629

R9811

R9816

R9808

R8630

C9311

R9116

R9904

D9802

R9153

C8611

R8631

R8632

R8633

Q8604

Q8605

Q9103

Q9802

R9154

C8602

C9148

C9151

C9152

C9153

C8613

C8614

C9155

C9156

C9302

C9307

U9101

R9117

R9119

D9103

C9115

C9312

C9120

C9301

C9812

C9813

R9824

R9821

R9822

R9823

R9825

R9901

R9902

R9905

D9803

C9310

D8101

D9104

D9804

Q9104

Q9132

Q9142

Q9143

Q9182

ZD9101

ZD9141

ZD9153

ZD9301

U8601

U9301

D9102

D9810

U9802

ZD9801

Circuit Diagrams and PWB Layouts

EN 56QM16.4E LA 10.

2016-Apr-1

back to

div.table

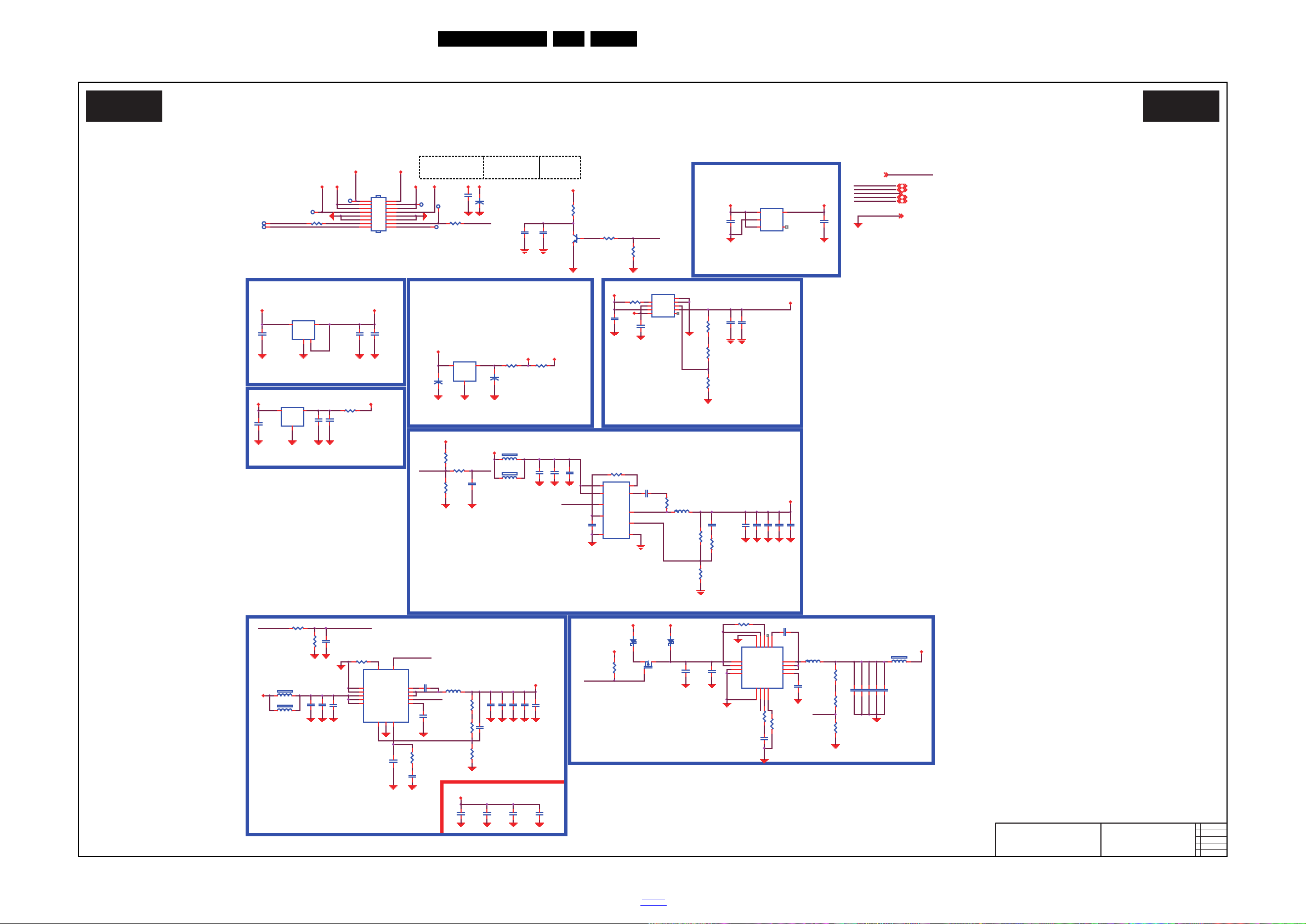

10.4 B 715G7030 SSB

20050_509.eps

System Power 1

B01 B01

2015-12-11

C

715G7030

System Power 1

TUNER VCC From +5V_SW

C700

10UF 6.3V 20%

C707

NC/10uF 6.3V

C716 4.7UF 6.3V

R706

5.1K 1%

INVERTER_ON_OFF

CN700

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R703

100R 1/16W 5%

R735

100K 1/16W 5%

2D/3D_EN

STB_PW R

U712

G9091-330T11U

VIN

1

GND

2

EN3NC

4

VOUT

5

PWR_EN

+5V_EN

C73210UF 6.3V 20%

C727

10UF 10V

C733 10UF 6. 3V 20%

L702

1.5uH

D703 FB340M

12

FB705 120R 3A

1 2

Q707 AO3401A

R740 10K 1/10W 5%

D704 FB340M

12

C726

100NF 16V

BRIGHT_ADJ

TP701

+5V_SWSTB_PW R

3V3SB

TP702

C786

10uF 10V

DDRV

+12V

DDR_PWR_EN

C735 NC/10U F 16V

3V3SB From STB_PWR

DRAM Power

C787

10uF 10V

AVDD1V0

R701

4K7 1/16W 5%

Q700

MMBT3904

R715

20K 1/16W 5%

STB_PW R

R705

47K 1/16W 5%

OPWRSB

C713 10NF 50V

R732 10K +-1% 1/16W

C73610UF 6.3V 20%

FB711

120R 3A

12

INVERTER_ON_OFF: Normal: High Stand_By: Low

C743

0.1uF 25V

C720

10UF 25V

FB710

120R 3A

12

C731

10UF 25V

+12V

C708

NC/10UF 6.3V 20%

BRIGHT_ADJ: Normal:Max:+3V3, Min: 0V Stand_By:0V

DC POWER INPUT

FB713

120R 3A

1 2

LDO_PWR

OPWRSB: Normal: Low Stand_by: High

eMMC I/O Power

C717

3.3NF 50V

R729

7K5 1/10W 5%

C729 1UF 10V

R711

68KOHM 1/16W +/-5%

C722 22UF 10V

C725 100NF 16V

C773

10UF 10V

VCCK

C724 100NF 16V

C779

10UF 10V

C742

10UF 10V

TP700

R4277

0R05

C744 22NF 25V

STB_PW R

C709

10UF 6.3V 20%

+

C775

100UF 16V

C702 10UF 6.3V

TP704

C749

10uF 10V

C710

NC/10U F 6. 3V 20%

C781

10uF 10V

C728 10uF 10V

U705

uP0113CHA3-33

VOUT2VIN

3

GND

1

L701 1.5U H

R726 0R 05 1/ 16W

C703 100NF 16V

R713

750R 1%

C737

10UF 10V

+12V_AU

3V3SB

R712

16K 1%

C763 100N 16V

C739 100NF 16V

R710

100K 1/16W 5%

TP710

C738 10UF 6. 3V 20%

R718

0R051/8W

L705

2.2UH

C718

0.1uF 25V

+

C774

100UF 16V

R738

105K 1%

C723

100NF 16V

R716

24K 1%

C767

10UF 25V

C712

10UF 25V

R737

14K OHM 1/16W 1%

R702 NC/100R 1/ 16W 5%

C769

10UF 10V

U703

uP0126BJT3-18

VI3VO

2

GND14

4

C780

10uF 10V

C701 10UF 6.3V

U701 AZ1084CS2-3.3TR G1

VIN3VOUT

2

GND

1

FB712

120R 3A

1 2

C768

10UF 10V

U710

RT8079ZQW

VIN

1

VIN

2

GND

3

GND

4

AGND5FB6COMP7RT/SYNC

8

SS/TR

9

SW

10

SW

11

SW

12

BOOT

13

PGOOD

14

EN

15

VIN

16

GND

17

R4289

0R051/8W

R719

100R 1/16W 1%

+5V_SW

VCCK

+12V

DVDD3V3

+3V3_TUNER+5V_SW

+5V_SW

OPWRSB5,7,16

AVDD3V3

OPWRSB

OPWRSB_PWR

C721

100NF 16V

AVDD3V3

+12V

BRIGHT_ADJ 13

GND 6,7,8,9, 10,11,12,13, 14,15,16,17, 18,19

OPWRSB_PWR7,16

INVERTER_ON_OFF 13

+5V_EN

2D/3D_EN 17

R730

8.2K 1%

R731

240 OHM +-1% 1/16W

2D/3D_EN

R720

NC/100K 1/ 16W 5%

R722

2.2R 1%

C704 10UF 6.3V

8079_FB

OPWRSB_PWR

R721

1K 1/16W 5%

C705 10UF 6.3V

DDR_PWR_EN 17

DDR_PWR_EN

C788

100NF 16V

C782

100NF 16V

STB_PW R

AVDD1V0 From AVDD3V3

U708SY 8368QNC

FB

4

GND

9

BS

6

IN

8

LX

10

EN

1

IN

7

PG

2

ILMT

3

LDO

5

C746 NC/470PF 50V

+12V

TP705

C765 100N F 16V

+

C706

220UF 16V

R707

1K5 1%

STB_PW R

TP706

R717

100K 1/16W 5%

R708

10K 1/16W 5%

C711

2.2UF 10V

U711

G9661

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

PWR_EN

C730 10NF 50V

+12V to +5V_SW by PGOOD(U702)

R733

100K 1/16W 5%

+12V

U704

RT7299BHGQW

RT/SYNC

1

GND

2

GND

3

PVIN

4

PVIN

5

VIN

6

FB7COMP

8

SS/TR

9

EN

10

LX

11

LX

12

BOOT

13

PGOOD

14

E-Pad

15

C714 180PF 50V

DVDD3V3

LDO_PWR From DVDD3V3

PGOOD

DVDD3V3 From +5V_SW

+5V_SW

PGOOD

+12V

C715

8.2NF 50V

+12V_AU

OPWRSB_PWR BRIGHT_ADJ INVERTER_ON _OFF

8079_FB

R728180K

R714

680R 1/16W 5%

R734

22K 1/16W 5%

10-4-1 System Power 1

Circuit Diagrams and PWB Layouts

EN 57QM16.4E LA 10.

2016-Apr-1

back to

div.table

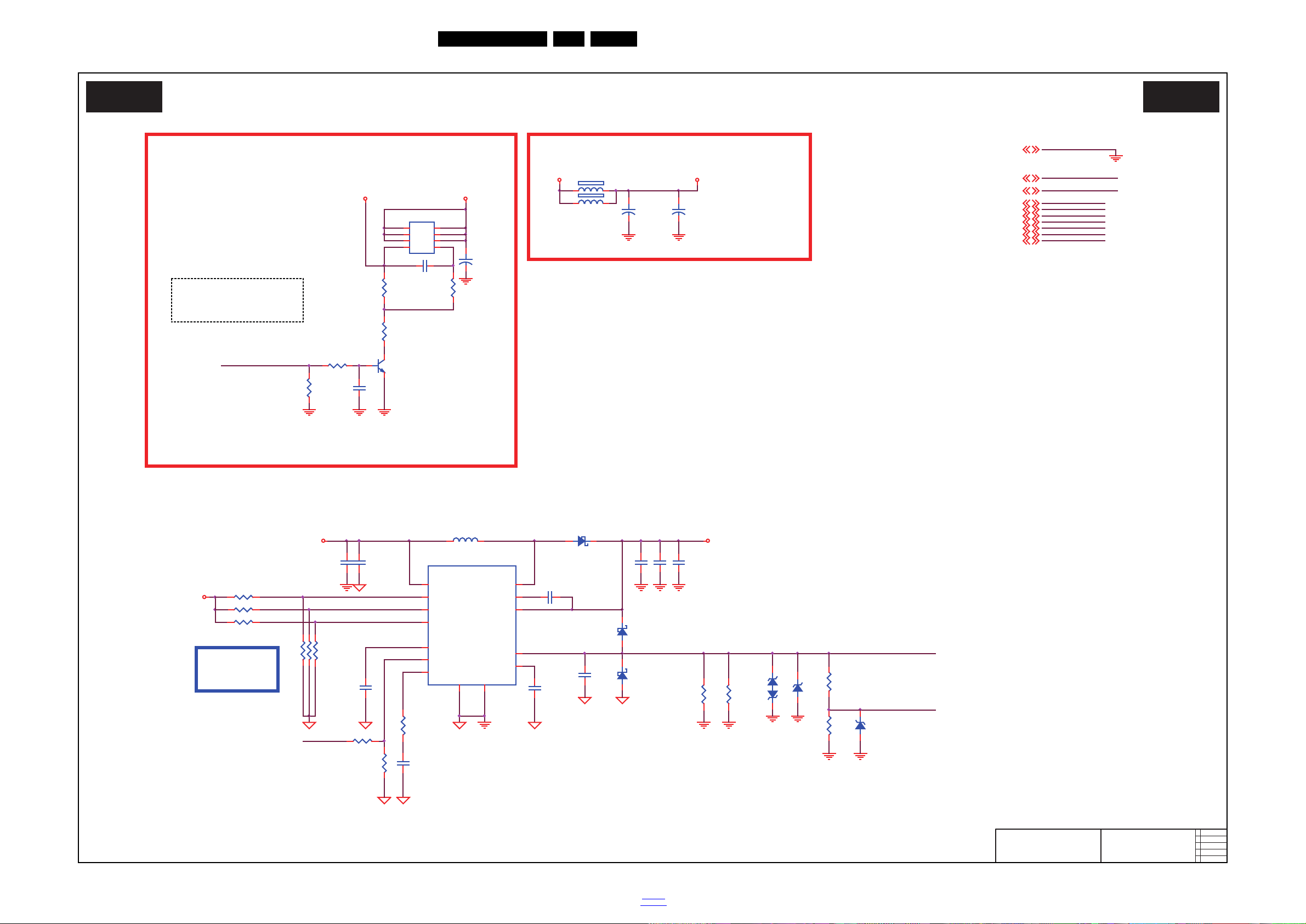

10-4-2 System Power 2

20050_510.eps

System Power 2

B02 B02

2015-12-11

C

715G7030

System Power 2

LNB_EN

C759 220NF 16V

LNB_LINEDROP

LNB_LINEDROP17

13/18V_SW

13V/18V_SW15

13/18V_SW

DISEQC_OUT

LINEDROP LO : 13V/18V HI : 14V/ 19V

C771

10uF 25V

D751 FB340M

1 2

R751

5.1KOHM +-5% 1/10W

FB755

120R 3A

1 2

C776

10UF 16V

R752

10K 1/10W 5%

D750 FB340M

1 2

+

C752

220UF 16V

C754

0.1uF 25V

C750

1UF 10% 16V

R750

5K1 1/16W 5%

+

C762

NC/ 220U F 16V

Q751 BC847N3

R768

100K 1/16W 5%

VBOOST

R775 NC/100K 1/ 16W 5%

C751

NC/4.7UF 10V

ZD750

PJSD24CW

1 2

Q750

AON4421

D

1

D

2

D

3

G4S

5

D

6

D

7

D

8

C755

10uF 25V

ZD4103 MM3Z3V6B

1 2

L750 10uH

FB754

120R 3A

12

R753

6K8 1/10W 5%

C760

10uF 25V

R4293

4.99K 1/16W 1%

C772

100N 16V

R769 10K 1/16W 5%

R759

10K 1/16W 5%

D752 FB340M

1 2

C761 22NF 25V

C777

100N 50V

R760

33R 1/16W 5%

R4292

34.8K 1/16W

ZD751

NC/PJSD24CW

1 2

PANEL_VCC+12V

+12V_AU

PVDD

+12V

TUNER_LNB15

PANEL_VCC_ON/OFF13

GND5,7,8,9,10,11,12,13,14,15,16,17,18,19

TUNER_LNB

PVDD12

DISEQC_OUT15

LNB_LINEDROP17

LNB_EN15

TUN _LNB17

R772 2.2K 1/4W

LNB_LINEDROP

R774 100K 1/16W 5%

R763 N C / 10K 1/ 16W 5%

+

C770

NC/220UF 16V

TUN_LNB

R773 2.2K 1/4W

LNB_EN

R776 100K 1/16W 5%

U751

MP8124

SW

3

VOUT

7

BST

5

13/18V

14

LINEDROP

1

AGND

8

EXTM

13

VBOOST

6

TCAP

9

BYPASS

11

PGND

4

EN

2

VDD

12

COMP

10

DVDD3V3

R777 NC / 10K 1/ 16W 5%

Panel VCC=12V

PANE L_VCC ON/OFF :(OPCTRL9) Normal:High Stand_By:Low

TUNER_LNB

PANEL_VCC_ON/OFF

GND

PANEL_VCC_ON/OFF

Audio VCC= +12V

C758

3.3NF 50V

PVDD

DISEQC_OUT

LNB POWER SUPPLY

R766

60.4K 1%

LNB_LINEDROP

Circuit Diagrams and PWB Layouts

EN 58QM16.4E LA 10.

2016-Apr-1

back to

div.table

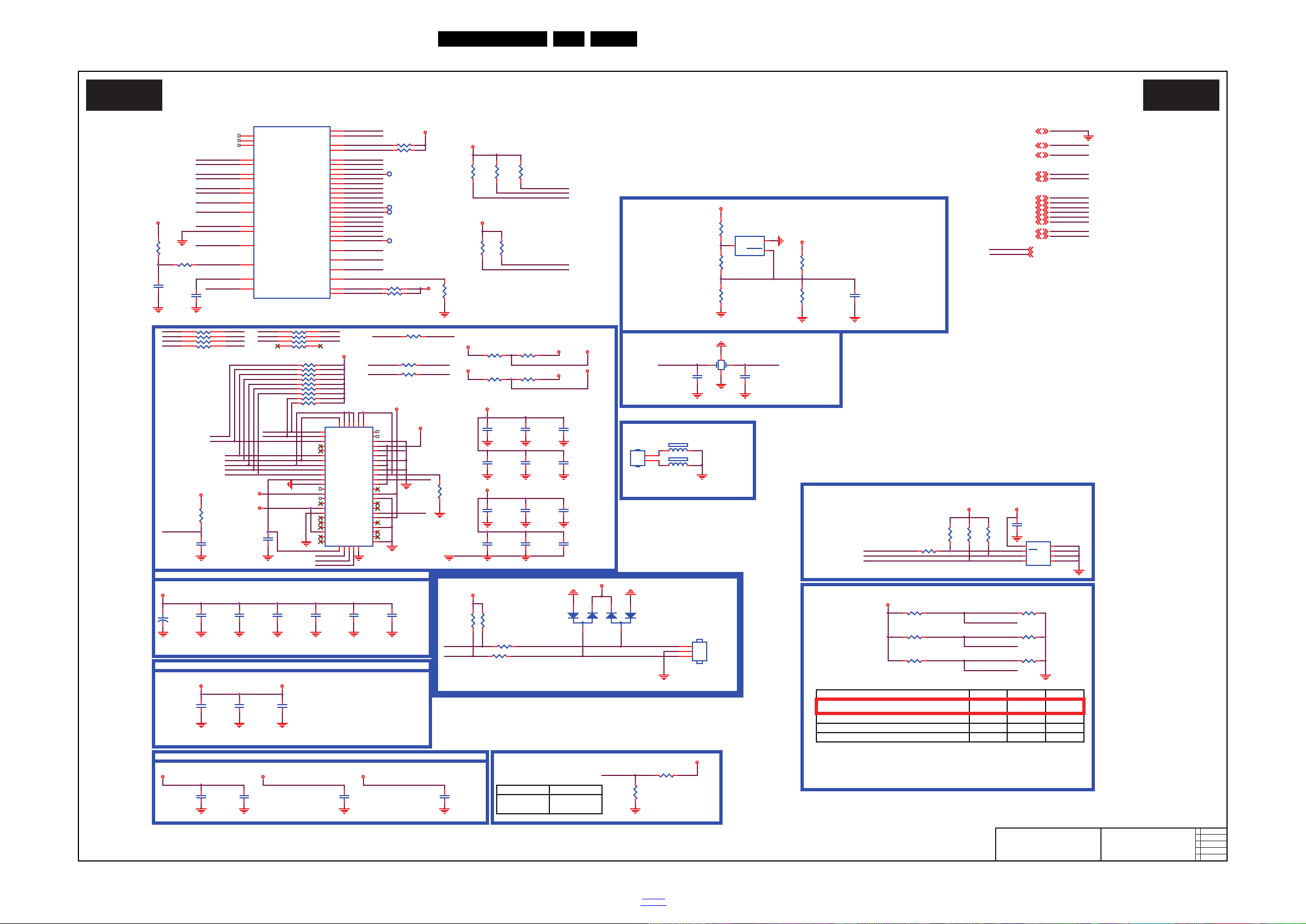

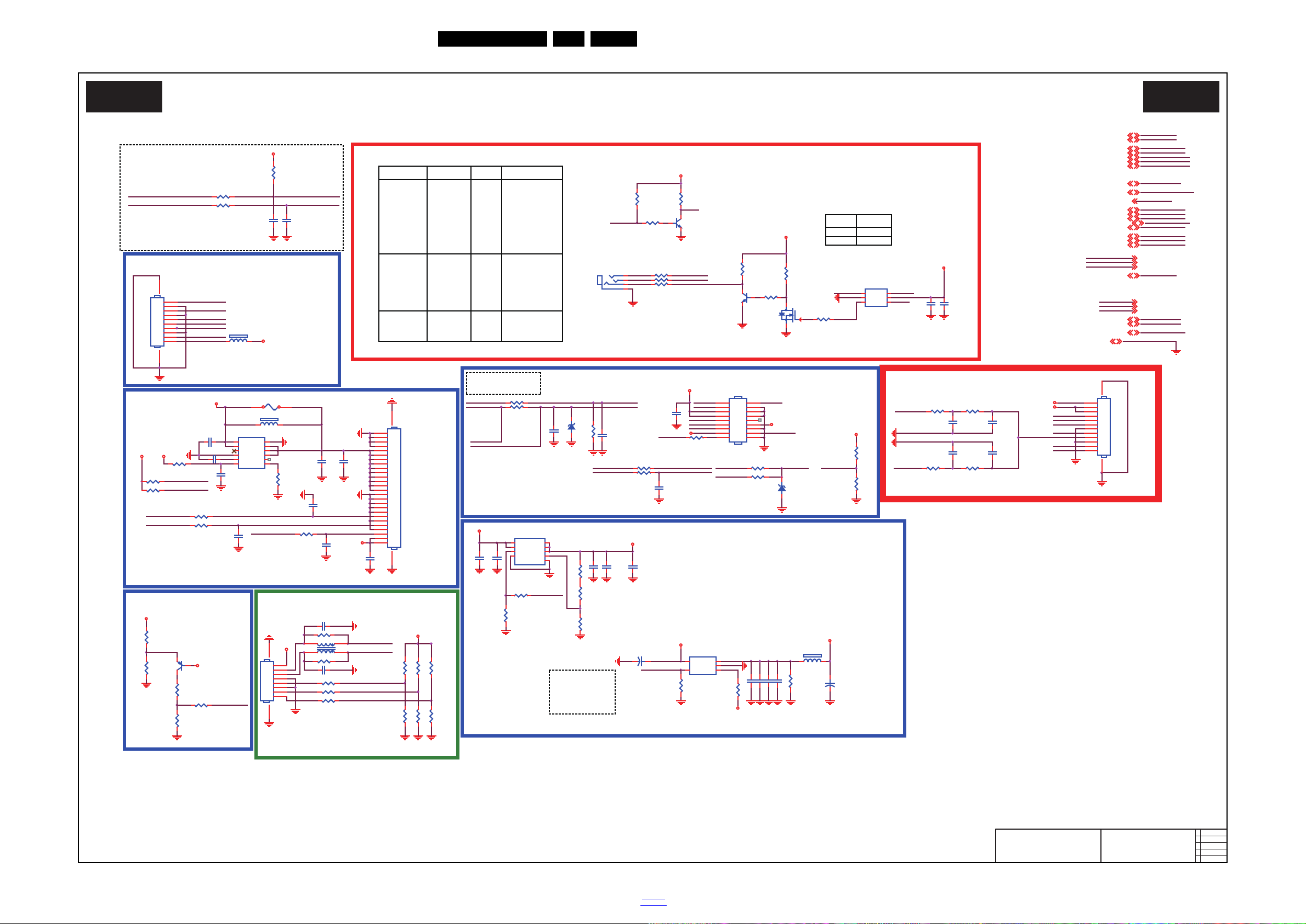

10-4-3 Peripheral

20050_511.eps

Peripheral

B03 B03

2015-12-11

C

715G7030

Peripheral

C4035

1UF 6.3V

RP4002 47R

1

2

3

4

8

7

6

5

C4021 100NF 16V

R4022 NC/4K7 1/ 16W 5%

+

C4012 100UF 16V

C4006

18PF 50V

C4005

18PF 50V

X4000

24MHZ

1

2 4

3

R4033 NC / 10K 1/ 16W 5%

24MHz CR YSTAL

XTAL OXTAL I

R4017

4K7 1/16W 5%

C4032 100NF 16V

C4007

22UF 20% 6.3V

C4024 100NF 16V

R4001 0R05 1/16W

C4008

10UF 6.3V 20%

C4031 100NF 16V

MT5593 Heat Sink

DVDD3V3

HS401

HEAT SINK

1 2

C4015

4.7UF 10% 10V

OSDA1

MT5593FPIJ

U401-7

OSDA0

AT37

OSCL0

AT38

OSDA1

AN38

OSCL1

AN37

XTAL O

E38

XTAL I

E37

AVDD33_REG_STB

AA36

AVDD33_RGB_STB

U38

AVSS33_RGB

M25

AVDD33_PLL_STB

Y36

AVDD10_LDO

V36

U0TX

AE36

U0RX

AE37

U1RX

AM37

U1TX

AM38

POWE__B

AG38

POOE__B

AH37

POCE1__B

AF36

POCE0__B

AF38

PDD7

AJ33

PDD6

AJ34

PDD5

AJ35

PDD4

AH34

PDD3

AH32

PDD2

AF32

PDD1

AF33

PDD0

AJ37

PARB__B

AH36

PACLE

AG37

PAALE

AE34

OPWRSB

AB38

ORESETB

M34

OIRI

Y35

FSRC_WR

G20

STB_SCL

AC37

STB_SDA

AC38

EMMC_ CLK

AL37

AVDD10_ELDO

V37

POR_OPT

U34

VCC3IO_EMMC

AJ38

CPC0

U33

CPC1

V33

CPC2

V34

EMMC_RSTB

AK36

DS

AJ32

TP4009

PDD7#

PAALE

R4024 NC/0R 05 1/ 16W

C4009 100NF 16V

C4025 100NF 16V

R4034 NC / 10K 1/ 16W 5%

C4010 100NF 16V

U4052

THGBMBG6D1KBAIL

DAT0

A3

DAT1

A4

DAT2

A5

NC

A6

NC

A7

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C5

Vcc

E6

Vss

E7

NC

E8

NC

E9

Vcc

F5

NC

F10

Vss

G5

NC

G10

NC

G3

NC

H5

Vss

H10

NC

J5

Vcc

J10

RSTN

K5

NC

K6

NC

K7

Vss

K8

Vcc

K9

NC

K10

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P7

NC

P10

A1 index

D4

NC

E5

NC

E10

NCC5NCC1NC

M1

NCA2NCC3NCD2NCE1NCN7NC

P8

NCD1NC

C7

AVDD33_REG_STB

R4018

4K7 1/16W 5%

PDD5#

R4005 4K7 1/16W 5%

C4022 10UF 6.3V 20%

R4035 NC / 10K 1/ 16W 5%

C4026 100NF 16V

R4019

4K7 1/16W 5%

R4015 NC/4K7 1/ 16W 5%

C4013 NC/100N F 16V

C4011 100NF 16V

R4036 NC / 10K 1/ 16W 5%

R4037 NC / 10K 1/ 16W 5%

R4016 0R05 1/16W

C4036 100NF 16V

C4028 10UF 6.3V 20%

R4038 NC / 10K 1/ 16W 5%

R4020 NC/4K7 1/ 16W 5%

C4033 NC/10UF 6.3V 20%

C4029 10UF 6.3V 20%

C4016 10UF 6.3V 20%

R4021 NC/4K7 1/ 16W 5%

U409

NC/M24128-BRMN6TP

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

R4023

NC/4K7 1/ 16W 5%

R4039 NC / 10K 1/ 16W 5%

C4030 1UF 6.3V

3V3SB

C4027 10UF 6.3V 20%

R4025

2K7 1/16W 5%

R4030 4K7 1/16W 5%

U0TX16

U0RX16

U0TX

U0RX

Core Power

OSCL1

TP4010

C4023 10UF 6.3V 20%

OSCL112,13,15,16

R4040 NC/ 10K 1/ 16W 5%

OSDA112,13,15,16

OSCL1 OSDA1

R4026

2K7 1/16W 5%

C4001

4.7UF 10% 10V

C4014 100NF 16V

R4045

47R 1/16W 5%

POWEPOWE#

C4002

4.7UF 10% 10V

R4041 NC/ 10K 1/ 16W 5%

DVDD3V3

VCC_EMMC

VCC3I O_EMMC

VCC_EMMC

R4003

4K7 1/16W 5%

VCC3IO_EMMC

3V3 IO Power

3V3SB

DVDD3V3 VCC3IO_AB

3V3SB 3V3SB

3V3SB

VCCK

3V3SB

SYS_EEPROM_WP17

OPWRSB5,16

GND5,6,8,9,10,11,12,13,14,15,16,17,18,19

LED_PWM016,17

LED_PWM116,17

POWE

R4031

NC/10K 1/16W 5%

POR

R4015: NA R4016: Mount

R4015: Mount R4016: NA

External ResetInternal POR

LED_PWM217

SYSTEM EEPRO M

POR_OPT

AVDD33_PLL_STB

FB4001

120R/500mA

12

SYS_EEPROM_WP

Analog Power

OSCL0 OSDA0

AVDD33_RGB_STBAVDD33_REG_STB

R4004

4K7 1/16W 5%

PDD4#

DVDD3V3

PDD2

PAALE#

E-Fuse

RC6

OPWRSB

FSRC_WR

ORESETB

0

1 0

STRAPPING

STB_SCL

00

110

STB_SDA

1

STRAPPING LED_PWM2LED_PWM1LED_PWM0

0

00

ICE moce + 24M + ROM to 60bit ECC Nand boot ICE mode + 24M + serial boot(with GPIO)

ICE moce + 24M + ROM to eMMC boot from eMMC pins (share pins w/s NAND)

ICE mode + 24M + serial boot

LED_PWM2

R4046

47R 1/16W 5%

PACLE#PACLE

LED_PWM0

LED_PWM1

LED_PWM2

DS

PDD3#

RC616

RC6

OSDA0 OSCL0

OSCL0 7,13,15,16

OSDA0 7,13,15,16

PACLE#

R4052 0R05 1/10W

R4027 NC/0R 05 1/ 10W

LDO_PWR

VCC3I O_EMMC

VCC_EMMCDVDD3V3

VCC3I O_EMMC

R4028 0R05 1/10W

DVDD3V3

R4051 NC/0R 05 1/ 10W

LDO_PWR

VCC_EMMC

C4034

10NF 50V

D4001 BAV99

3

1

2

For code download,debugging,factory alignment and compair mode.

CN412

CONN

1 2

3

R4055

100R 1/16W 5%

D4000

BAV99

3

1

2

HI = > Disable write LO = > Enable Write

Pin7 WP

R4053

4K7 1/16W 5%

R4054

4K7 1/16W 5%

R4056

100R 1/16W 5%

U0TX

3V3SB

PDD2#

U0RX

OSDA0

TP4011

R4009 4K7 1/16W 5%

R4008

4K7 1/16W 5%

R4007

4K7 1/16W 5%

3V3SB

DVDD3V3

POOE#

POR_OPT

POCE1#

PARB#

PDD4# PDD2#

PAALE#

R4029

2K2 1/16W 5%

R4032

2K2 1/16W 5%

DVDD3V3

R4006 2K2 1/16W 5%

EMMC_RST#

Reset IC

ORESETB

R4014

20K OHM 1/16W 1%

U410

NC/AZ809ANSTR-E 1

GND

1

RESET

2

Vcc

3

R4011

NC/100K 1/ 16W 5%

R4013

27K 1/16W 1%

R4010

NC/0R 05 1/ 16W

3V3SB

R4012

NC/0R 05 1/ 16W

3V3SB

FB4002 NC/120R/500mA

12

PDD3

PDD6#

PDD5#

PDD7

PDD6

PDD5

PDD7#

RP4001 47R

1

2

3

4

8

7

6

5

PDD3#

PDD7#

EMMC_ CLK#EMMC_CLK

R4042

47R 1/16W 5%

VCC_EMMC

EMMC_ RST#

STB_SCL5,17

STB_SDA5,17

STB_SCL

STB_SDA

VCC3I O_EMMC

C4020 NC/220N F 16V

R4043 2K2 1/16W 5%

XTAL O

OSCL1

OSDA1

PDD6#

EMMC

EMMC_ RST#

PDD6#

EMMC_ CLK#

C4019 100NF 16V

U0TX U0RX

U1RX

U1TX

AVDD33_RGB_STB

XTAL I

VCC3IO_EMMC

PDD2 PDD0

POWE# POOE#

PARB#

POCE1#

PAALE

PACLE

PDD5

PDD1

PDD7 PDD6

PDD4 PDD3

R4002 2K7 1/16W 5%

EMMC VCC/VCCQ Power

PDD4

TP400 3

SYS_EEPROM_WP

OPWRSB

AVSS33_RGB

C4018 100NF 16V

AVDD10_LDO

EMMC_CLK

LED_PWM1 LED_PWM0

AVDD33_PLL_STB

AVDD10_ELDO

C4017 100NF 16V

POWE

OSCL0

Circuit Diagrams and PWB Layouts

EN 59QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-4 DDR3x2

20050_512.eps

DDR3x2

B04 B04

2015-12-11

C

715G7030

DDR3x2

ARTN

MTP66

C4202

100NF 16V

DDRVREF_A2

A_VREFCA2

ARDQS2

ARDQM2

ARDQS3B

ARDQS3

ARDQM3

ARDQS2B

MTP67

AVSS_DDR AVSS_DDR

AVSS33_DDR

AVSS_DDR

AVDD10_DD R

ARDQS3

ARDQS2

ARDQ26

ARDQS2B

ARDQS3B

ARDQM2

ARDQM3

ARDQ31

ARDQ30

ARDQ29

ARDQ24

ARDQ28

ARDQ25

ARDQM1 ARDQS1 ARDQS1B

ARDQ23

ARDQ27

MTP226

ARDQ22

ARDQ17

ARDQ21

ARDQ16

ARDQ20

C4201

100NF 16V

DDRVREF_A1

A_VREFCA1

ARDQ10 ARDQ11

ARDQ8 ARDQ9

ARDQ19

ARDQ18

ARDQ14 ARDQ15

ARDQ12 ARDQ13

DE-CAP.

ARCKE

GND

AVDD10_DD R

ARBA2

ARBA1

ARBA0

ARCAS ARRAS

MTP12

MTP16

MTP11 MTP13

MTP1

MTP14

MTP2

MTP15

ARRESET#

MTP4

MTP3 MTP5

MTP6 MTP8

MTP9

MTP7

MTP10

ARDQ4 ARDQ5 ARDQ6 ARDQ7

ARDQ9

ARDQ2

ARDQ1

ARDQ0

ARDQ3

ARDQ15

ARDQ12 ARDQ13

ARDQ10 ARDQ11

ARDQ8

ARDQ14

MEMTN

MEMTP

MTP68

U402

K4B4G1646D-BCMA

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U403

K4B4G1646D-BCMA

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

MTP69

ARODT

ARTN

ARTP

DDRVREF_A2

MTP70

DDRV

MTP199 MTP200

MTP207

MTP197

MTP225

MTP208

MTP201

MTP224

MTP209

MTP198

MTP210

MTP202

MTP203

MTP204

MTP211

MTP206

MTP205

AVDD33_DD R

MTP227

ARRESET#

MTP89

ARDQ29

ARDQ24

ARDQ28

ARDQ25 ARDQ26

ARDQ21

ARDQ16

ARDQ20

ARDQ23

ARDQ27

ARDQ30

ARDQ19

ARDQ18

ARDQ22

ARDQ17

MTP63

MTP51

MTP56

MTP17 MTP19

MTP52

MTP18

MTP57

MTP53

MTP21

MTP54

MTP20 MTP22

MTP60

MTP65

ARWE

ARDQS0B

ARDQS1B

ARDQS1

MTP55

MTP64

MTP58

ARODT

ARDQM1 ARDQM0

ARDQS0

MTP61

MTP59

MTP50

MTP62

ARDQ31

MTP71

AVSS_DDR

ARA1

ARA5

ARA4

ARA0

ARA3

ARA2

ARA9

ARA13

ARA8

ARA7

ARA6

ARA14

ARA12

ARA11

ARA10

ARA1

ARA12

ARA9

ARA7

ARA2

ARA14

ARA13

AVDD10_DDR

ARA3

ARA8

ARA11

ARA0

ARA5

ARA10

ARA4 ARA6

DRAM#2 Bypass Cap

Reseved on bottom side.

DRAM#1 Bypass Cap

TP_HPCPLL

AVDD10_DD R

A_VREFCA1 A_VREFCA2

ARCLK0

ARCLK0B

DDR3#2 Ref Volt.

Differential Clock

DDR3#1 Ref Volt.

ARCKE

R4212 0R05 1/16W

TN_HPCPLL

R4204 47R 1/16W 5%

C4207 100NF 16V

C4232

4.7UF 10% 10V

R4218

1Kohm 1/16W +/-1%

R4203 47R 1/16W 5%

C4215 100NF 16V

R4205 NC/49.9 OHM 1/16W 1%

C4203 1uF 10V

R4206 47R 1/16W 5%

C4214 10UF 6.3V

C4229 NC/100NF 16V

R4207 NC/49.9 OHM 1/16W 1%

C4216 100NF 16V

ARRESET#

R4208 47R 1/16W 5%

C4209 100NF 16V

C4239 100NF 16V

C4217 NC/100NF 16V

R4213 0R05 1/16W

C4231 100NF 16V

C4218 100NF 16V

R4215 100R 1/16W 5%

C4210 100NF 16V

R4209 NC/0R05 1/16W

R4217

1Kohm 1/16W +/-1%

R4201

240 OHM +-1% 1/16W

C4211 100NF 16V

C4227 100NF 16V

A_ZQ1

C4219 100NF 16V

C4205 NC/1uF 10V

C4234 100NF 16V

R4214 NC/0R05 1/16W

+

C4224 100UF 16V

C4237 100NF 16V

C4230 NC/100NF 16V

C4220 NC/100NF 16V

C4233

4.7UF 10% 10V

C4228 100NF 16V

C4212 100NF 16V

C4208 100NF 16V

C4235 100NF 16V

R4210 NC/0R05 1/16W

MEMTP MEMTN

C4225

4.7UF 10% 10V

C4213 100NF 16V

R4216

1Kohm 1/16W +/-1%

R4219

1Kohm 1/16W +/-1%

C4221 100NF 16V

C4236 100NF 16V

R4211 NC/47K 1/16W 5%

ARCAS

ARRAS

ARODT

ARBA1

ARBA0 ARBA2 ARCS

ARCSD

ARWE

ARCLK0B

ARCLK0

ARTP

C4240 100NF 16V

C4238 100NF 16V

C4206 100NF 16V

C4204 1uF 10V

C4226 1UF 10% 16V

C4222 100NF 16V

C4223 NC/10UF 6.3V

MT5593FPIJ

U401-1

DDRV

AB8

DDRV

AC10

DDRV

AC9

DDRV

AD10

DDRV

AH10

DDRV

AH9

DDRV

AJ10

DDRV

AJ11

DDRV

AJ8

DDRV

AJ9

MEMTP

AE10

MEMTN

AF10

DDRVREF_A1

V1

ARCKE

AA7

ARCLK0

Y4

ARCLK0#

Y5

ARODT

AB6

ARRAS#

AA5

ARCAS#

AA6

ARCS#

AB5

ARWE#

AB7

ARRESET#

AK4

ARBA0

AD5

ARBA1

AE3

ARBA2

AD6

ARCSD#

AB4

ARA14

AM4

ARA13

AK5

ARA12

AF6

ARA11

AK6

ARA10

AD7

ARA9

AH4

ARA8

AL4

ARA7

AJ5

ARA6

AJ6

ARA5

AG7

ARA4

AG5

ARA3

AF4

ARA2

AF7

ARA1

AG6

ARA0

AE4

ARDQM0

AD1

ARDQS0

AC1

ARDQS0#

AC2

ARDQ0

Y2

ARDQ1

AG2

ARDQ2

Y1

ARDQ3

AG3

ARDQ4

W1

ARDQ5

AH3

ARDQ6

W2

ARDQ7

AH2

ARDQM1

AC3

ARDQS1

AD2

ARDQS1#

AE2

ARDQ8

AF1

ARDQ9

AB3

ARDQ10

AG1

ARDQ11

Y3

ARDQ12

AF2

ARDQ13

AB2

ARDQ14

AF3

ARDQ15

AB1

ARDQM2

AN2

ARDQS2

AM3

ARDQS2#

AN1

ARDQ16

AK2

ARDQ17

AT2

ARDQ18

AK1

ARDQ19

AU1

ARDQ20

AJ1

ARDQ21

AU2

ARDQ22

AJ3

ARDQ23

AR4

ARDQM3

AM1

ARDQS3

AP1

ARDQS3#

AP2

ARDQ24

AR2

ARDQ25

AL2

ARDQ26

AT1

ARDQ27

AK3

ARDQ28

AP3

ARDQ29

AL3

ARDQ30

AR3

ARDQ31

AM2

AVDD33_DD R

G1

AVDD10_DD R

AV20

ARTN

W10

ARTP

Y10

DDRVREF_A2

AJ2

TN_H PC PLL

AK18

TP_H PCPLL

AK19

DDRV

AK10

DDRV_CKA

Y6

AVSS_DDR

G2

AVSS_DDR

AU20

DDRV

AK11

AVDD10_DD R

AF13

AVSS_DDR

AF12

AVDD10_DD R

AE19

AVSS_DDR

AE17

ARCLK0B

ARCLK0

ARCS

VCCK

DDRV DDRV

DVDD3V3

DDRV

DDRVDDRV

AVDD33_DD R

DDRV

AVDD10_DDRVCCKAVDD10_DDR

GND5,6,7,9, 10,11,12,13,14,15,16,17,18,19

R4202 240 OHM +-1% 1/16W

ARRESET#

A_ZQ2

ARA1 ARA2 ARA3

ARA5 ARA6 ARA7 ARA8

ARA0

ARA9 ARA10 ARA11 ARA12

ARA13

ARA4

ARCLK0

ARCLK0B

ARA14

AVSS33_DDR

DDR3#2

DDRV

ARBA0

ARCLK0B

ARCLK0

ARBA1 ARBA2

ARCKE

ARCS

ARCAS ARRAS

ARWE

AVDD33_DD R AVDD10_DD R

C4299 100NF 16V

A_VREFCA1DDRVREF_A1

ARDQ6 ARDQ7

ARDQS0

ARDQM0 ARDQS0B

DDRVREF_A2

ARDQ1

ARDQ0

ARDQ3 ARDQ5

ARDQ4

ARCS

A_VREFCA2

ARDQ2

DDR3#1

ARCSD

DDRVREF_A1

AVSS_DDR

Circuit Diagrams and PWB Layouts

EN 60QM16.4E LA 10.

2016-Apr-1

back to

div.table

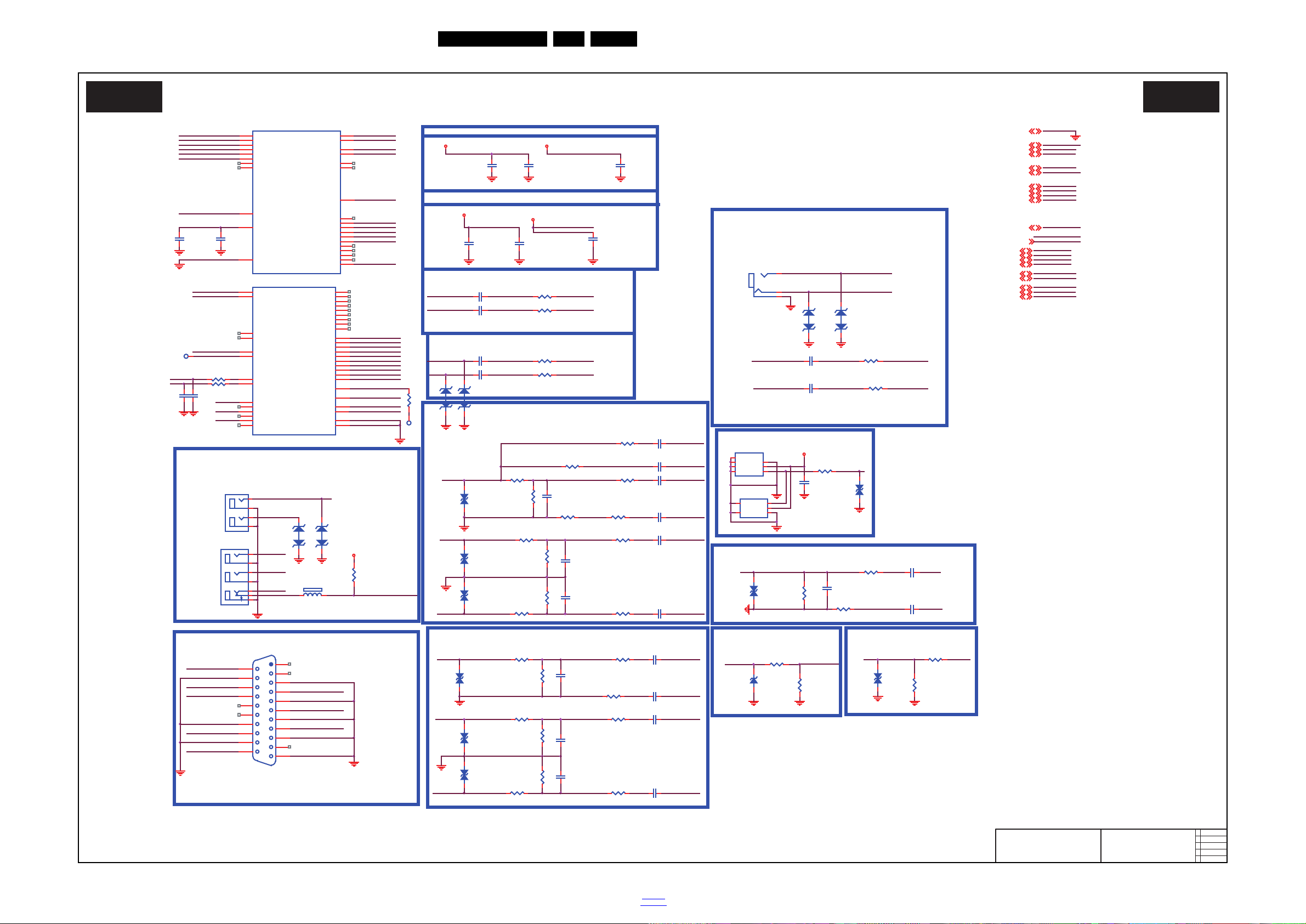

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD 33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

20050_513.eps

DDR3x2

B05 B05

2015-12-11

C

715G7030

DDR3x2

BRRESET#

DDRVREF_B2

DDRVREF_B1

BRCKE

BRTP BRTN

BRCS# BRCSD#

B_VREFCA1DDRVREF_B1 B_VREFCA2DDRVREF_B2

BRCLK0

BRCLK0#BRCLK0#

BRCLK0

B_VREFCA1

BRTP BRTN

GND

BRRAS#

B_VREFCA2

BRA8

BRA7

BRA6

BRA13

BRA12

BRA11

BRA10

BRA9

BRA2

BRA1

BRA0

BRA14

BRA5

BRA4

BRA3

U404

K4B4G1646D-BCMA

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

BRODT

BRDQS0#

BRDQS0

BRDQM0

BRDQM1

BRDQ14

BRDQ9

BRDQ13

BRDQ8

BRDQ12

BRDQ15

BRDQS1#

BRDQS1

BRDQ4

BRDQ1 BRDQ2

BRDQ7

BRDQ6

BRDQ5

BRDQ11

BRDQ10

BRDQS3

BRDQS2#

BRDQS2

BRDQM2

BRDQM3

B_VREFCA2

BRDQ3

BRDQ0

BRDQ25

BRDQ24

BRDQ23

BRDQ22

DDRVREF_B2

BRODT

BRDQS3#

BRDQ17

BRDQ16

BRDQ31

BRDQ30

BRDQ29

BRDQ28

BRDQ27

BRDQ26

B_ZQ1 BRRESET#

BRDQ21

BRDQ20

BRDQ19

BRDQ18

BRA9

BRA11

BRA10

BRA7

BRA3

BRA2

BRA5

BRA1

BRA13 BRA14

BRA8

BRA12

BRA0

BRA6

BRA4

BRCKE

BRCS#

BRCAS#

BRBA0 BRBA1

BRRAS#

BRBA2

BRCLK0#

BRWE#

BRCLK0

DDRVREF_B1

B_VREFCA1

BRBA1

BRA13 BRA14

BRA5 BRA7

BRA6

BRA4

BRA1 BRA3

BRBA0 BRBA2

BRCLK0

BRA0

BRA9

BRA11

BRA10

BRA8

BRA12

BRA2

BRRESET#

B_ZQ2

BRCS#

BRCAS# BRRAS#

BRWE# BRCKE

BRCLK0#

R4260

47R 1/16W 5%

MTP217

R4254 NC/47K 1/16W 5%

MTP161

MTP102

C4276 100NF 16V

C4266 100NF 16V

MTP218

C4300 NC/ 100N F 16V

MTP153

MTP110

C4292 100NF 16V

C4296 100NF 16V

C4274 100NF 16V

C4282 100NF 16V

MTP212

MT5593FPIJ

U401-2

DDRVREF_B1

AV2

BRCLK0

AP6

BRCLK0#

AR6

BRCKE

AN9

BRODT

AP9

BRRAS#

AR7

BRCAS#

AP7

BRCS#

AR9

BRBA0

AP11

BRBA1

AN13

BRBA2

AP12

BRWE#

AP10

BRA14

AN18

BRA13

AR17

BRA12

AR13

BRA11

AP17

BRA10

AN10

BRA9

AP16

BRA8

AP18

BRA7

AN16

BRA6

AN17

BRA5

AP14

BRA4

AR15

BRA3

AP13

BRA2

AN14

BRA1

AP15

BRA0

AR12

DDRV

AK12

DDRV

AK13

DDRV

AK14

DDRV

AK15

DDRV

AK16

DDRV

AK17

DDRV

AK7

DDRV

AK8

BRDQM0

AU7

BRDQS0

AU6

BRDQS0#

AT6

BRDQ0

AU4

BRDQ1

AT10

BRDQ2

AU3

BRDQ3

AU10

BRDQ4

AT3

BRDQ5

AU11

BRDQ6

AV3

BRDQ7

AT11

BRDQM1

AV6

BRDQS1

AT8

BRDQS1#

AU8

BRDQ8

AT9

BRDQ9

AU5

BRDQ10

AU9

BRDQ11

AR5

BRDQ12

AV8

BRDQ13

AV5

BRDQ14

AV9

BRDQ15

AT5

BRRESET#

AR18

BRDQM2

AT15

BRDQS2

AV15

BRDQS2#

AU15

BRDQ16

AT13

BRDQ17

AU18

BRDQ18

AU12

BRDQ19

AT18

BRDQ20

AT12

BRDQ21

AT19

BRDQ22

AV12

BRDQ23

AU19

BRDQM3

AR14

BRDQS3

AU16

BRDQS3#

AT16

BRDQ24

AV17

BRDQ25

AT14

BRDQ26

AV18

BRDQ27

AU13

BRDQ28

AU17

BRDQ29

AU14

BRDQ30

AT17

BRDQ31

AV14

BRTP

AL18

BRTN

AL19

DDRVREF_B2

AV11

BRCSD#

AR10

DDRV

AK9

DDRV

AL6

DDRV

AL7

DDRV

AL8

DDRV_CKB

AM8

DDRV

AL9

C4258 10UF 10V

C4272 100NF 16V

MTP156

MTP152MTP103

MTP117

C4289 100NF 16V

C4271 100NF 16V

C4259 10UF 10V

C4254 1UF 10% 16V

R4261

47R 1/16W 5%

MTP219

MTP162

C4295 100NF 16V

MTP148

MTP111

C4286 100NF 16V

MTP213

C4264 100NF 16V

MTP149

C4269 100NF 16V

MTP104

C4261 100NF 16V

R4263

1Kohm 1/16W +/-1%

C4293 100NF 16V

MTP105

C4263 100NF 16V

MTP169

MTP220

MTP164

MTP158

C4267 100NF 16V

C4277 10UF 10V

MTP112

MTP120

C4265 100NF 16V

MTP113

R4251

NC/0R05 1/ 16W

MTP165

C4285 100NF 16V

C4260 100NF 16V

R4262

240 OHM +-1% 1/16W

MTP116

MTP221

C4294 100NF 16V

C4290 100NF 16V

MTP166

MTP106

C4291 100NF 16V

C4262 100NF 16V

C4256 100NF 16V

MTP222

BRBA0

C4288 100NF 16V

C4273 100NF 16V

MTP114

BRBA1 BRBA2

BRCAS#

MTP214

MTP151

MTP167

C4268 100NF 16V

C4279 100NF 16V

C4252 100NF 16V

MTP168

C4281 100NF 16V

C4255 100NF 16V

MTP154

R4252

1Kohm 1/16W +/-1%

MTP99

MTP119

C4278 100NF 16V

MTP163

MTP215

C4283 100NF 16V

R4253

1Kohm 1/16W +/-1%

MTP228

MTP107

R4258

240 OHM +-1% 1/16W

MTP223

MTP229

MTP157

MTP155

C4275 100NF 16V

MTP160

MTP100

C4251

100NF 16V

R4255

47R 1/16W 5%

C4280 100NF 16V

C4287 100NF 16V

MTP115

R4257 47R 1/16W 5%

MTP159

C4257 100NF 16V

MTP150

MTP108

C4284 100NF 16V

C4270 100NF 16V

R4259

1Kohm 1/16W +/-1%

MTP101

R4256

NC/0R05 1/ 16W

MTP118

R4264 100R 1/16W 5%

C4253 100NF 16V

MTP109

MTP216

DDRV

DDRVDDRV

DDRV

GND5,6,7,8,10,11,12,13,14,15,16,17,18,19

DDRVDDRV

DDRV

DRAM#3 Bypass Cap

DRAM#4 Bypass Cap

DE-CAP.

CAPs for DRAM IO Power ( Close to DDR#3 )

CAPs for DRAM IO Power ( Close to DDR#4 )

Damping and Termination for CLK

DDR3#4DDR3#3

DDR3#4 Ref Volt.DDR3#3 Ref Volt.

U405

K4B4G1646D-BCMA

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

BRDQS2#

BRDQS2

BRDQM2

BRDQ5

BRDQ0

BRDQ4

BRDQ1 BRDQ2

BRDQ8

BRDQ12

BRDQ15

BRDQ3

BRDQ7

BRDQ6

BRDQ11

BRDQ10

BRDQ14

BRDQ9

BRDQ13

BRDQS0#

BRDQM1

BRDQM0 BRDQS0

BRDQS1

BRDQ18

BRDQ17

BRDQ16

BRDQ23

BRDQ22

BRDQS1#

BRDQ25

BRDQ24

BRDQ21

BRDQ20

BRDQ19

BRDQ30

BRDQ29

BRDQ28

BRDQ27

BRDQ26

BRDQM3 BRDQS3#

BRDQS3

BRDQ31

BRCSD#

BRCS#

BRWE#

BRCLK0 BRCLK0#

BRRESET#

EN 61QM16.4E LA 10.

10-4-5 DDR3x2

2016-Apr-1

back to

div.table

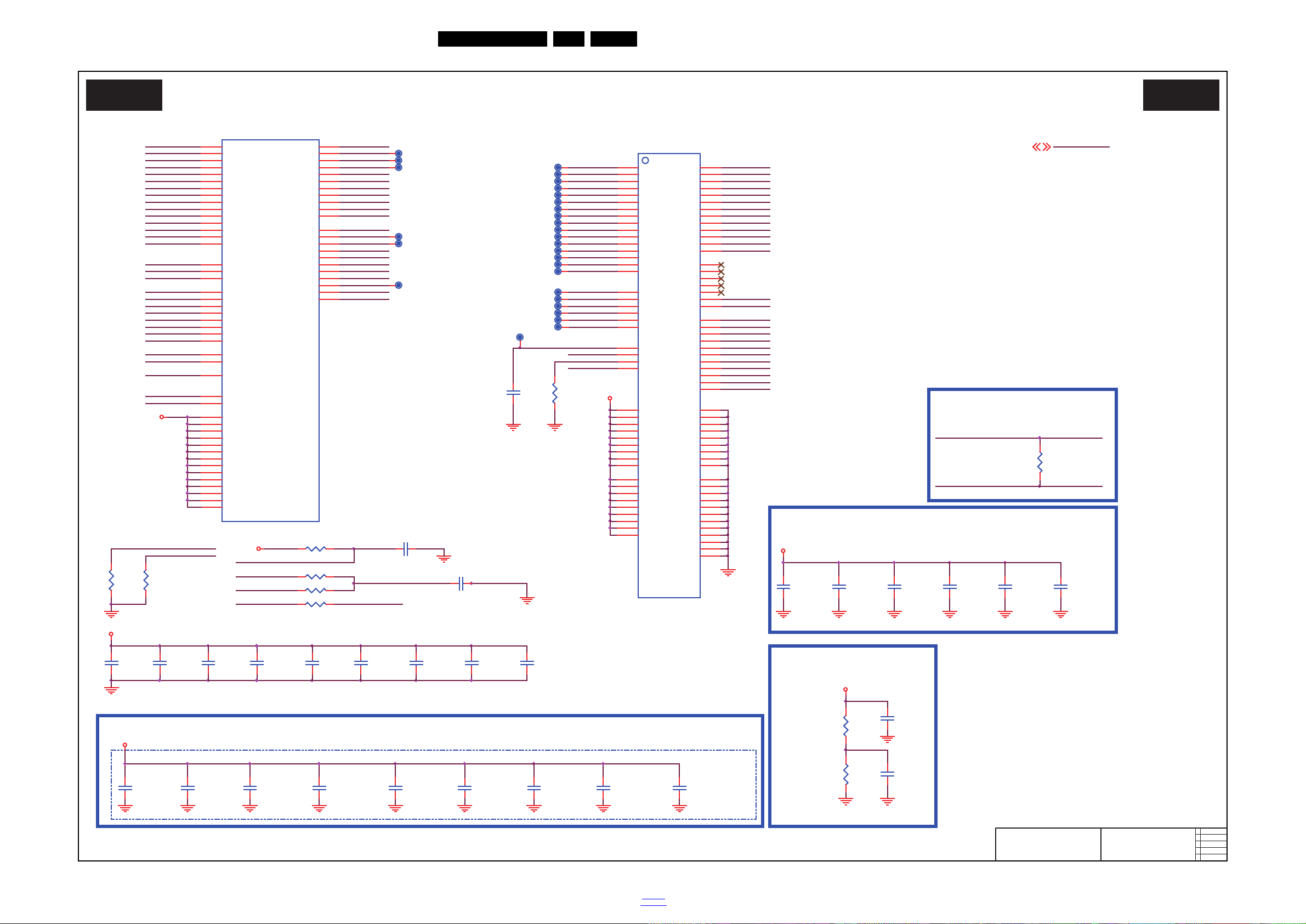

10-4-6 DDR3x1

20050_514.eps

DDR3x1

B06 B06

2015-12-11

C

715G7030

DDR3x1

DDRV

C_VREFCA1

CRA5

CRA4

CRA3

CRA2

CRA1

CRA0

CRA14

CRA13

CRA12

CRA11

CRA10

CRA9

CRA8

CRA7

CRA6

CRRAS#

CRTP CRTN

DDRVREF_C1

CRCLK0 CRCLK0#

CRRESET#

CRODT CRCKE

CRWE#

CRCSD#

CRCS#

CRBA1 CRBA2

CRBA0

CRCAS#

CRRESET#

C_VREFCA1DDRVREF_C1

CRCSD#

CRCS#

MTP279

DDRVREF_C1

C4301

NC/100NF 16V

CRODT

C_VREFCA1

CRA2

CRA5

CRA1

CRA9

CRA11

CRA10

CRA7

CRA3

CRA8

CRA12

CRA0

CRA6

CRA4

CRA14

CRA13

R4303

NC/ 47R 1/ 16W 5%

C4319 100NF 16V

C4318 100NF 16V

Damping and Termination for CLK

CAPs for DRAM IO Power ( Close to DDR#5 )

CRCLK0#

CRCLK0

CRCLK0#

CRCLK0

U406

NC/H5TQ2G63FFR-RDC

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQ14

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQ15

A3

VDDQ_1

A8

DQ9

C3

VDDQ_2

C1

VDDQ_3

C9

DQ8

D7

VDDQ_4

D2

DQ12

A7

VSSQ_3

D8

DQ11

C2

DQ10

C8

VSSQ_4

E2

DQ13

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQ6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQ7

H7

VDDQ_6

F1

DQ1

F7

VDDQ_7

H2

DQ0

E3

VDDQ_8

H9

DQ4

H3

VSSQ_8

G9

DQ3

F8

DQ2

F2

BA2

M3

DQ5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

R4302 NC/ 47R 1/ 16W 5%

C4320 100NF 16V

C4315

NC/ 100N F 16V

DE-CAP.

Main Chip B o tto m Side

C4303 10UF 10V

R4304 NC/47K 1/16W 5%

C4321 NC/ 100N F 16V

R4310 NC/100R 1/16W 5%

C4322 100NF 16V

C4316 100NF 16V

C4317 100NF 16V

C4312

NC/100N F 16V

DDR3#5 Ref Volt.

DRAM#5 Bypass Cap

C4304

NC/ 100N F 16V

C4305

NC/100NF 16V

C4311

NC/100N F 16V

C4306

NC/ 100N F 16V

C4313 100NF 16V

C4307

NC/ 100N F 16V

R4308

NC/1K 1/ 16W

C4328

NC/ 100N F 16V

C4314

NC/ 100N F 16V

C4323 100NF 16V

C4302 NC/ 100N F 16V

R4309

NC/1K 1/ 16W

C4308

100NF 16V

MT5593FPIJ

U401-13

DDRVREF_C1

H1

CRCLK0

P4

CRCLK0#

P5

CRCKE

T7

CRODT

L7

CRRAS#

L8

CRCAS#

P9

CRCS#

L5

CRBA0

K5

CRBA1

T4

CRBA2

P7

CRWE#

P8

CRA14

U7

CRA13

H5

CRA12

R4

CRA11

U6

CRA10

T6

CRA9

H8

CRA8

U8

CRA7

H7

CRA6

U9

CRA5

K8

CRA4

U4

CRA3

J4

CRA2

K7

CRA1

U5

CRA0

J5

DDRV

AM5

DDRV

AM6

DDRV

AM7

DDRV

AN4

DDRV

AN5

DDRV

AN6

DDRV

AP4

DDRV

AP5

CRDQM0

N1

CRDQS0

N3

CRDQS0#

N2

CRDQ0

K2

CRDQ1

T2

CRDQ2

J2

CRDQ3

U2

CRDQ4

H2

CRDQ5

V2

CRDQ6

H3

CRDQ7

U1

CRDQM1

M3

CRDQS1

P2

CRDQS1#

P1

CRDQ8

R3

CRDQ9

K3

CRDQ10

R2

CRDQ11

K1

CRDQ12

P3

CRDQ13

L1

CRDQ14

R1

CRDQ15

L2

CRRESET#

H6

CRTP

G3

CRTN

G4

CRCSD#

L6

DDRV

K10

DDRV

L10

DDRV

N10

DDRV

T10

DDRV_CKC

P10

DDRV

U10

C4324 100NF 16V

R4305

NC/47R 1/16W 5%

R4306

NC/47R 1/16W 5%

C4309

100NF 16V

C4325 10UF 10V

R4307

NC/0R05 1/16W

C4326 NC/ 100N F 16V

C4310

NC/100NF 16V

C4327

NC/1UF 10% 16V

DDRV

GND5,6,7,8,9,11,12,13,14,15,16,17,18,19

DDR3#5

MTP278

MTP273 MTP274

MTP276

MTP275

MTP277

C4329

NC/100NF 16V

MTP236

MTP242

CRDQM0

MTP230

MTP243

MTP237

MTP245

MTP238

MTP244

MTP231

MTP239

MTP232

R4301

NC/240 OHM +-1% 1/16W

C_ZQ1

MTP233

MTP240

MTP235

MTP241

MTP234

MTP280

CRDQM1

MTP284

MTP281

MTP246

MTP283

MTP282

CRDQ12

CRDQ15

CRDQS0#

CRDQS0

CRDQS1#

CRDQS1

CRDQ10

CRDQ14

CRDQ9

CRDQ13

CRDQ8

CRRAS#

CRDQ2

CRDQ7

CRDQ6

CRDQ5

CRDQ11

CRDQ3

CRDQ0

CRDQ4

CRDQ1

CRWE#

CRCAS#

CRRESET#

CRCKE

CRCLK0

CRBA0 CRBA1 CRBA2

CRCS#

CRCLK0#

GND

CRTP

CRDQ6

CRDQ5

CRDQ0

CRDQ4

CRDQ1 CRDQ2

CRTN

CRDQS1#

CRDQS0#

CRDQM1

CRDQM0 CRDQS0

CRDQS1

CRDQ11

CRDQ10

CRDQ14

CRDQ9

CRDQ13

CRDQ8

CRDQ12

CRDQ15

CRDQ3

CRDQ7

Circuit Diagrams and PWB Layouts

EN 62QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-7 SCART/YPbPr

20050_515.eps

SCART/YPbPr

B07 B07

2015-12-11

C

715G7030

SCART/YPbPr

AL0O12 AR1O16

RF_AGC6

RF_AGC

R1015

0R05 1/16W

AL1O16

SCART_FS17

SCART_FS

YPBPR_D ETECT17

VMID_AADC

SCT1_FS_IN

R10180R 05 1/ 16W

ADCIN N_DEMOD

ADCINN_DEMOD15

ADCINP_DEMOD15

ADCIN P_DEMOD

C1006

100NF 16V

AVDD33_XTAL_STB

AVDD33_DEMOD_STB

C1007 100NF 16V

3V3SB

Analog Power 3V3

PR_IN_0

C

B

A

CN1001

RCA JACK

1

2

3

4

5

6

7

ZD1009

TVM1G5R5M100R

12

FB1001

120R/500mA

1 2

Y_IN_0

R

BL

G

PB_IN_0

YPBPR_DETECT

R1001

10K 1/16W 5%

AVDD3V3

SCT1_G_IN

DVI_AudioLIN

DVI_AudioRIN

DVI_AudioLIN AIN_L2

AIN_R2

DVI 1/ 2/3/4 Audio Input

DVI_AudioRIN

R1036

30Kohm 1/16W +/ -5%

C1028 1uF 10V

CN1005

PHONE JAC K

1

2

3

R1037

30Kohm 1/16W +/ -5%

TP1002 TP

C1027 1uF 10V

ZD1010

TVM1G5R5M 100R

12

ZD1011 TVM1G5R5M100R

1 2

OSDA215

OSCL215

OSDA2

OSCL2

C1034 N C / 10PF 50V

C1003 100NF 16V

C1001 100NF 16V

C1005 100NF 16V

TUNER_BY PASS_OUT

C1035 NC/10PF 50V

AVDD33_AADC

AVSS33_CLN

ZD1007 NC/AZ 5125-01H.R7G

1 2

AVDD33_ADAC

MT 55 9 3FPIJ

U401-4

AVDD33_AADC

M26

VMID_AADC

D38

AL2_ADAC

E35

AL0_ADAC

C35

AR0_ADAC

D36

AL1_ADAC

E36

AR1_ADAC

D35

AR2_ADAC

C36

ASPDIFI

AR38

ASPDIFO0

AB34

ASPDIFO1

G27

AOBCK

AM31

AOLRCK

AN30

AOMCLK

AP36

AOSDATA4

AN33

AOSDATA3

AM33

AOSDATA2

AL31

AOSDATA1

AM30

AOSDATA0

AN31

AVDD33_ADAC

M27

AIN_R0

B36

AIN_L0

D37

AIN_R1

A37

AIN_L1

C38

AIN_R2

B38

AIN_L2

B35

AIN_R3

A36

AIN_L3

C37

AVSS33_CLN

M24

R1034

0R05 1/16W

AOBCK AOLRCK AOMCLK

SPDIF_OU T

C1002 1UF 6.3V

AOSDATA0

C1004 10UF 6.3V 20%

AR1O

AVDD3V3 AVDD3V3

AR0O AL0O

AR0O12 AL0O12

SPDIF_OU T

GND5,6,7,8,9,10,12,13,14,15,16,17,18,19

AOSDATA012

AOLRCK12

AOBCK12

AOMCLK12

ARC

CN1006

NC/3P

GND

1

VCC

2

VIN

3

GND

4

GND

5

AVDD33_ADAC

Spdif Out

+5V_SW

CN1004

JACK

VIN

1

VCC

2

GND

3

TH1

4

TH2

5

TH3

6

TH4

7

C1026 100NF 16V

R1138

33R 1/16W 5%

SPDIF_OU T

AVSS33_DEMOD

SCT1_AUL_IN

ZD1001

TVM1G5R5M100R

12

AL1O

AIN_R1

Audio Input

AIN_L1

C1032 1UF 10% 16V

R1141 30Kohm 1/16W +/ -5%

C1033 1UF 10% 16V

R1142 30Kohm 1/16W +/ -5%

IF_AGC_559315

IF_AGC_5593

ZD1005

TVM1G5R5M100R

12

SCT1_FB_IN

PR_IN_0

OSDA2

FAST BLANKING/SOY

SCART_FS

SOY0

Function Select

R1030

51K 1/16W 5%

R1033

75R 1/16W 1%

R1031

10K 1/16W 5%

R1032

10R 1/16W 5%

SCART (Half SCART) -- CVB S+R GB

SCT1_AV_IN

SCT1_AUL_IN

SCT1_R_IN

SCT1_FB_IN

SCT1_G_IN

SCT1_AUR_IN

SCT1_AVO_GND

SCT1_FS_IN

SCT1_B_IN

SCT1_AV1_GND

CN1003

SCART 21P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

CVBS2P

CVBS IN

ZD4005 NC/AZ 5125-01H.R7G

1 2

R1010

0R05 1/16W



C1021

10PF 50V

R1029 100R 1/16W 5%

R1017

100R 1/16W 5%

C1020 10N F 50V

C1019 10N F 50V

C1036

10UF 6.3V 20%

R1026

75 OHM +-5% 1/16W

C1018 10NF 50V

R1027 100R 1/16W 5%

R1025

0R05 1/16W

C1017

10PF 50V

R1024100R 1/ 16W 5%

R1022

75 OHM +-5% 1/16W

C1024

47PF 50V

C1025

47NF 16V

C1023 10NF 50V

R1016

75 OHM +-5% 1/16W

C1022

10PF 50V

R1021

0R05 1/16W

ZD1008

NC/AZ5125-01H.R7G

1 2

R1023 100R 1/16W 5%

R1028

75 OHM +-5% 1/16W

SCART IN

-------><-------

COM0

PR0P

Y0P

PB0P

-------><--------------><-------

ZD4004 NC/AZ 5125-01H.R7G

1 2

AVDD33_VID EO_STB

ZD1002

TVM1G5R5M100R

12

ZD1012

NC/AZ 5125-01H.R7G

1 2

YPbPrR_IN

ZD1003 TVM1G5R5M100R

1 2

ZD1006

TVM1G5R5M100R

12

SCT1_AV_IN

AVDD33_AADC

ZD1014

NC/TVM1G5R5M100R

12

OSCL2

Y_IN_0

YPBPR_D ETECT

SCT1_R_IN

Audio Input

AIN_L0

AIN_R0

YPbPrL_IN

YPbPrR_IN

A

B

CN1002

CONN

2 1 4

3

G

W

R

YPbPr & Audio IN

R

BL

R1006 100R 1/16W 5%

R1005

75 OHM +-5% 1/16W

R1014 100R 1/16W 5%

R1009

0R05 1/16W

C101010NF 50V

C101310N F 50V

R1011

75 OHM +-5% 1/16W

C1014

10PF 50V

C101210NF 50V

C1016

10PF 50V

C100847N F 16V

C101110NF 50V

C1009 1. 5N F 50V

R1020 100R 1/16W 5%

R1002 100R 1/16W 5%

AR1O

R1003 10R 1/16W 5%

R1013

0R05 1/16W

SCT1_AUR_IN

AL1O

AR0O AL0O

R1008 100R 1/16W 5%

C1015

10PF 50V

R1019

0R05 1/16W

R1012

75 OHM +-5% 1/16W

-------><-------

PR0

Y0

COM1

PR1P

AOMCLK

SOY1

Y1P

PB1P

AOSDATA0

AOBCK AOLRCK

-------><------- -------><-------

CVBS0P

PB0

C1029 1UF 10% 16V

C1030 1UF 10% 16V

R1139 30Kohm 1/16W +/- 5%

R1140 30Kohm 1/16W +/- 5%

CVBS2P

SPDIF_OU T

ARC14

ARC

ZD1013

NC/AZ 5125-01H.R7G

1 2

PB_IN_0

AL0O

PB0P

COM1 PR1P

PB1P

SOY1

Y1P

PR0P Y0P

COM0

TUNER_BYPASS_OUT

SOY0

AVDD33_VID EO_STB AVDD33_XTAL_STB

ADCINP_DEMOD

C1031

1UF 10% 16V

SCT1_B_IN

ADCINN_DEMOD

CVBS_COM

AVSS33_XTAL

MT5593FPIJ

U401-5

ADCINP_DEMOD

F38

ADCINN_DEMOD

F37

IF_AGC

B14

RF_AGC

C15

OSCL2

E18

OSDA2

F18

CVBS3P

J38

CVBS2P

K35

CVBS1P

K34

CVBS0P

H38

CVBS_COM

J36

HSYNC

R37

VSYNC

T36

RP

N37

GP

P37

BP

R38

COM

P36

SOG

P38

VGA_SDA

U36

VGA_SCL

T37

COM1

M38

PB1P

M36

PR1P

L38

Y1P

M37

SOY1

N36

COM0

K37

PB0P

K36

PR0P

J37

Y0P

L36

SOY0

L37

VDACX_OUT

K33

AVDD33_VID EO_STB

M35

AVDD33_DEMOD_STB

G38

AVSS33_XTAL

N25

AVSS33_DEMOD

N24

LOUTP

L26

LOUTN

L27

AVDD33_XTAL_STB

G37

SIF_COM

H37

CVBS_COM

RF_AGC

IF_AGC_5593

CVBS0P

AVDD33_DEMOD_STB

AIN_R1

AIN_L0

AIN_R0

AIN_L1 AIN_R2 AIN_L2

AR0O

YPbPrL_IN

R1007

0R05 1/16W

ZD1004 RLZ13B

1 2

AR0O12

R1004

10R 1/16W 5%

Analog Power

TP1001

TP

Circuit Diagrams and PWB Layouts

EN 63QM16.4E LA 10.

2016-Apr-1

back to

div.table

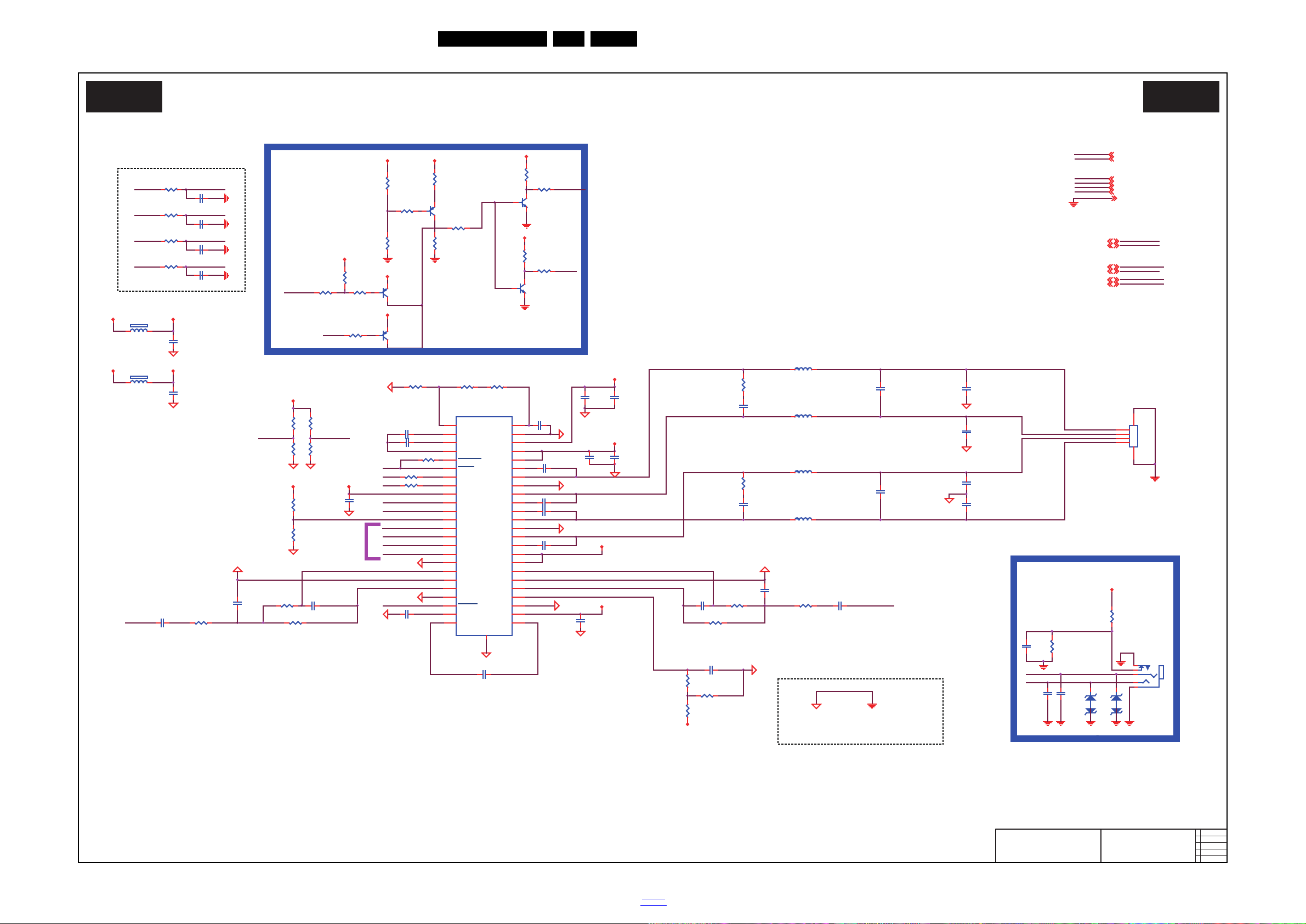

10-4-8 Speaker/Headphone

20050_516.eps

Speaker/Headphone

B08 B08

2015-12-11

C

715G7030

Speaker/Headphone

Q636

BTA1576S3

1

23

LRCLKI

ZD601

NC/AZ 5125-01H.R7G

1 2

ZD600

NC/AZ 5125-01H.R7G

1 2

DVDD3V3

R675

4K7 1/16W 5%

LSPK-

HPOUTR

R647

1K2 OHM

HP_DET16,17

HP_DET

RSPK+

SDI

HPOUTL

BICKI

AOSDATA0

BICKI

DVDD3V3

R660

0R05 1/16W

AL0O

AOBCK

LRCLKI

HPOUTR

AL0O11

AR0O AL0O

AR0O11

PWRDN-HP

MCLK

PWRDN

AR0O

SPK_SD16,17

SPK_SD

PWRDN-HP

OUT2A

OUT1B

PVDD

SPK_SD

OSDA0 OSCL0

OUT2B

Mute CKT

Anti-Pop CKT

Main Speak CKT

AOSDATA0

OSDA0 OSCL0

OUT1A

R672

NC/100R 1/ 16W 5%

AOMCLK AOBCK

MCLK

LSPK+

R673

NC/0R 05 1/ 16W

RSPK-

GAIN1

GAIN0

C666 100NF 16V

R674

NC/1K 1/16W 5%

AOLRCK

 

Ground in bottom side need connector it togother, heat sink is also.

HP_DET

R658 100K 1/ 16W 5%

R640

NC/22 OH M 1/4W

R642

0R05 1/16W

Q633 BC847N3

C674 1uF 10V

C659 33nF 50V

C647 1UF 10% 16V

C633 220NF 16V

R650 100R 1/16W 5% L632

10uH

R644

6K8 1/16W 5%

U601

TAS5760LD

SFT_CLIP

1

AVDD_REG

2

VCOM

3

AVSS

4

SPK_FAULT

5

SPK_SD

6

SDA/FREQ

7

SCL/PBTL

8

DVDD

9

SPK_GAIN0

10

SPK_GAIN1

11

SPK_MU TE12SPK_OUTB-

37

BSTRPB -

38

BSTRPA -

39

SPK_OUTA-

40

PGND

41

SPK_OUTA+

42

BSTRPB A+

43

PVDD

44

PVDD

45

AVDD

46

GGND

47

GVDD_REG

48

PGND

36

SPK_OUTB+

35

PVDD

33

BSTRPB +

34

PVDD

32

DR_INB-

31

DR_INB+

30

DR_OUTB

29

DR_UVP

28

DRGND

27

DRVDD

26

DR_CP

25

MCLK

13

SCLK

14

SDIN

15

LRCLK

16

DGND

17

DR_INA-

18

DR_INA+

19

DR_OUTA

20

DRGND

21

DR_MUTE

22

DRVSS

23

DR_CN

24

E-PAD

49

C656 1UF 10% 16V

L631 10uH

C643 220N F 25V

R661

43K 1/16W

R651 100R 1/16W 5%

R664

NC/10K 1/ 16W 5%

C664 1uF 10V

C654 220NF 25V

C646 330PF 50V

C640

NC/10PF 50V

R654

NC/4K7 1/16W 5%

R641

0R05 1/16W

C663 33nF 50V

R63718Kohm 1/ 16W +/ -1%

R657

1K 1/16W 5%

R648

0R05 1/16W

R667

NC/4K7 1/ 16W 5%

C645

4.7UF 10% 10V

R663

43K 1/16W

C668 33nF 50V

R639

0R05 1/16W

CN604

PHONE JACK 5P

1

2

3

5

4

R655 NC/22R 1/ 16W 5%

C636

NC/10PF 50V

C657 1uF 10V

R645

22K 1/16W 5%

C641

NC/10PF 50V

R669

10K 1/16W 5%

R676

47K 1/16W 5%

C651 100NF 16V

FB633

120R 3A

1 2

L633 10uH

FB631

120R 3A

1 2

C665

33nF 50V

R636

16K 1%

C652 330PF 50V

R665

NC/10K 1/ 16W 5%

C661 220NF 25V

C670

1uF 10V

C662 NC/220PF 50V

C649

330NF 50V

R670

0R05 1/16W

C671 68P 50V

R653

4K7 1/16W 5%

R659 4K7 1/16W 5%

R643

NC/2.4K 1% 1/16W

C673 10UF 16V

R666

NC/4K7 1/ 16W 5%

R634 NC/22 OH M 1/4W

C648

NC/220PF 50V

Q632 BC847N3

C655

330NF 50V

C642 100NF 16V

C644 1uF 10V

R635

16K 1%

C637 220NF 25V

C632

220NF 16V

C639

NC/10PF 50V

R656

NC/100R 1/ 16W 5%

Q631

NC/BTA1576S3

1

23

C675 68P 50V

R649

0R05 1/16W

L630 10uH

C638

100NF 16V

C650

4.7UF 10% 10V

R646

10K 1/16W 5%

C660 10UF 16V

I2S Input

R668

4K7 1/16W 5%

R638

2K2 1/16W 5%

C658 1uF 10V

R652

10K 1/16W 5%

R662 18Kohm 1/16W +/-1%

C653

4.7UF 10% 10V

DVDD3V3

PVDD

AUD_V33

DVDD3V3 AUD_V33HP

DVDD3V3

AUD_V33

GAIN1

PVDD

AUD_V33HP

PVDD

AUD_V33

PVDD

AOBCK 11

AOMCLK 11

AUD_V33

OSDA0 7,13,15,16

AOSDATA0 11

AOLRCK 11

CN601

CONN

1

2

3

4

5 6

GND 5,6,7,8,9,10,11,13,14,15,16,17,18,19

OSCL0 7,13,15,16

PVDD6

Q635

NC/BTA1576S3

1

23

SDI

12V_DET16,17

12V_DET

R671

5K1 1/16W 5%

GAIN0

DVDD3V3

AOMCLK

AOLRCK

DVDD3V3

PWRDN

Circuit Diagrams and PWB Layouts

EN 64QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-9 LVDS

20050_517.eps

LVDS

B09 B09

2015-12-11

C

715G7030

LVDS

R465 0R05 1/16W

LVDSTX_AO2P V18

3D_L/R_I N5,17

3D_L/R_IN

MT5593FPIJ

U401-3

TCON0

AL21

TCON1

AM21

TCON2

AN22

TCON 3

AM22

TCON4

AM23

TCON5

AL22

TCON6

AL23

TCON7

AL24

TCON 8

AM24

TCON9

AN24

TCON 10

AM25

TCON 11

AN25

TCON 12

AL25

AVDD10_LVDS

AU21

AVDD33_LVDSA

L28

REXT_VPLL

AV21

BE0P

AV25

BE0N

AU25

BE1P

AT24

BE1N

AR24

BE2P

AT23

BE2N

AR23

BECKP

AV23

BECKN

AU23

BE3P

AT22

BE3N

AR22

BE4P

AT21

BE4N

AR21

BO0P

AV29

BO0N

AU29

BO1P

AT28

BO1N

AR28

BO2P

AT27

BO2N

AR27

BOCKP

AV27

BOCKN

AU27

BO3P

AT26

BO3N

AR26

BO4P

AT25

BO4N

AR25

AE0P

AV33

AE0N

AU33

AE1P

AT32

AE1N

AR32

AE2P

AT31

AE2N

AR31

AECKP

AV31

AECKN

AU31

AE3P

AT30

AE3N

AR30

AE4P

AT29

AE4N

AR29

AO0P

AV37

AO0N

AU37

AO1P

AT36

AO1N

AR36

AO2P

AT35

AO2N

AR35

AOCKP

AV35

AOCKN

AU35

AO3P

AT34

AO3N

AR34

AO4P

AT33

AO4N

AR33

AVDD33_LVDSB

M28

R446

4K7 1/16W 5%

R421

NC/0R 05 1/ 16W

C439

NC/10UF 6.3V 20%

U407

NC/APL3511C BI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

C440 NC/10UF 6.3V 20%

R422 NC / 47K 1/ 16W 5%

PANEL_3V3

CN408

CONN 51P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

TP437TP

LVDS_SEL

R435

0R05 1/16W

TP438 TP TP439TP

LVDSTX_BO2P

LVDSTX_BO0P

LVDSTX_BO0N

LVDSTX_BO3P

LVDSTX_BO3N

LVDSTX_BOCKP

LVDSTX_BOCKN

LVDSTX_BE0 P

LVDSTX_BE0 N

LVDSTX_BO2N

LVDSTX_BO1P

LVDSTX_BO1N

LVDSTX_BE2 N

LVDSTX_BECKP

LVDSTX_BECKN

LVDSTX_BE2 P

LVDSTX_BE1 P

R442

NC/100R 1/ 16W 5%

R4315

NC/3K3 1/16W 5%

PANEL_3V3

LVDSTX_BO4N LVDSTX_BO4P

LVDSTX_BE4 N LVDSTX_BE4 P

LVDSTX_BE3N LVDSTX_BE3P

3D_FORMAT_1

TP441 TP

TP440 TP

TP442 TP TP443 TP

L/R_OUT

TP444 TP TP445 TP

LVDSTX_BE1 N

TP446 TP TP447 TP

C417 NC/10UF 6.3V 20%

L401

NC/0.09R

1

4

2

3

C419 100NF 16V

B13

R411

NC/2.4K OHM

PANEL_3V3

R415

NC/0R 05 1/ 16W

R414

NC/47K 1/ 16W 5%

R451 NC / 47K 1/ 16W 5%

BIT_SEL

3D L/R Output from SOC(GPIO54)

Panel_12V

FB401

120R 3A

1 2

FB400

120R 3A

1 2

B17 B18

B19

B24

B23

B02

B01

B22

B21

B20

2D/3D_EN ABLE#

B10

B06

B05

B04

B03

B08

B07

B09

B12

B11

AVDD3V3

AVDD1V0

B16

B15

B14

LVDS/V-BY-1 OUTPUT

GND5,6,7,8, 9,10,11,12, 14,15,16,17, 18,19

PANEL_VCC

AVDD3V3

3D_FORMAT1

PANEL_VCC_ON /OFF6

PANEL_3V3

R416

NC/0R05 1/16W

R410

NC/47K 1/ 16W 5%

GPIO 43

R454 0R05 1/16W

LVDSTX_AE4P V12

TP424 TP TP425 TP TP426 TP TP427 TP

2D/3D_EN ABLE

TP428 TP

R466 0R05 1/16W

LVDSTX_AE4N V11

R455 0R05 1/16W

TP429 TP TP430TP

TP431TP TP432TP

TP433 TP TP434TP

3D_FORMAT_1

TP435TP

TP436TP

DVDD3V3

PANEL_VCC_ON/OFF

HTPDN

LOCKN5,17

HTPDN5,17

LOCKN

R467 0R05 1/16W

R426 NC / 0R 05 1/ 16W

3D L/R Input to SOC(GPIO44)

R445 0R05 1/16W

CN409

NC/C ON N 41P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48 49

50

51

REXT_VPLL

LVDSTX_BOCKN#

AMBIL_SPI_DO5,17

AMBIL_SPI_DO

AMBIL_SPI_CLK5, 17

L/R_OUT

AMBIL_SPI_CLK

L/R_OUT5,17

C409 NC/ 100N F 16V

V-by-1: 100N LVDS: 0R

B01V01

B03V03

B02V02

C410 NC/ 100N F 16V

V05

B04V04

C411 NC/ 100N F 16V

B06V06

B05

C412 NC/ 100N F 16V

TP465 TP

STB_SCL5,17

STB_SDA5,17

STB_SCL

STB_SDA

B07V07

C416 NC/ 100N F 16V

C413 NC/100NF 16V

V08

C414 NC/ 100N F 16V

BL_DIMMING17

B08

C415 NC/ 100N F 16V

B10V10

B09V09

BL_DIMMING

C423 NC/100NF 16V

B11V11

3D_FORMAT0

C425 NC/ 100N F 16V

B12V12

PANEL_VCC_ON/OFF

C424 NC/ 100N F 16V

V14

B13V13

C426 NC/ 100N F 16V

B15V15

B14

C427 NC/ 100N F 16V

C428 NC/100NF 16V

V16

C430 N C / 100N F 16V

B16

C429 NC/ 100N F 16V

R468 0R05 1/16W

LVDSTX_AO3NV21

OPC

L/R_OUT

PANEL_3V3

R436

NC/100R 1/ 16W 5%

V19

B18V18

B17V17

OPC_EN

C431 N C / 100N F 16V

V20

B19

3D_L/R_I N

C432 N C / 100N F 16V

C433 NC/100NF 16V

B20

C434 N C / 100N F 16V

R433

NC/100R 1/ 16W 5%

PANEL_3V3

R452 N C / 0R 05 1/ 16W

R4312

NC/3K3 1/16W 5%

2D/3D_EN ABLE 2D/ 3D_ENABLE#

R447

NC/0R 05 1/ 16W

R430 0R05 1/ 16W R431 0R05 1/ 16W R432 0R05 1/ 16W

TP466 TP

R429 0R05 1/16W

R4313

NC/4K7 1/16W 5%

R434

NC/0R05 1/16W

R437

NC/4K7 1/ 16W 5%

TCON7

R473 0R05 1/16W

LVDSTX_AO3PV22

R425 0R05 1/ 16W

TP467 TP

R438 0R05 1/ 16W

Wi-Fi_RESET5,17

Wi-Fi_RESET

LOCKN

R4321

NC/10K 1/ 16W 5%

PANEL_3V3

LOCKN_OUT

R492

NC/100R 1/ 16W 5%

HTPDN

PANEL_3V3

HTPDN_OUT

R493

NC/100R 1/ 16W 5%

R4322

NC/10K 1/ 16W 5%

TP464 TP

Wi-Fi_RESET

AVDD33_LVDSA

LVDSTX_BE0N LVDSTX_BE1P

FRC_RESET#

LVDS_SEL

LVDSTX_BO3P

LVDSTX_BO4N

LVDSTX_BO4P

LVDSTX_BE0P

LVDSTX_BE1N

LVDSTX_BO1P

LVDSTX_BO2N

LVDSTX_BO2P LVDSTX_BOCKP#

LVDSTX_BOCKN# LVDSTX_BO3N

LVDSTX_BE4N

LVDSTX_BE4P

LVDSTX_BO0N

LVDSTX_BO0P

LVDSTX_BO1N

LVDSTX_BE2P

LVDSTX_BECKN#

LVDSTX_BECKP#

LVDSTX_BE3N

LVDSTX_BE3P

AVDD33_LVDSB

LVDSTX_BE2N

AVDD33_LVDSA

AVDD10_LVDS

WIFI_OCP

AVDD33_LVDSB

R491

NC/0R 05 1/ 16W

R470 0R05 1/16W

LOCKN_OUT

LVDSTX_AE3P

LVDSTX_AE4N

LVDSTX_AE4P

LVDSTX_AE0P

LVDSTX_AE1N

LVDSTX_AE1P LVDSTX_AE2P

LVDSTX_AE0N

LVDSTX_AECKN

LVDSTX_AECKP

LVDSTX_AE3N

LVDSTX_AO3N

LVDSTX_AO3P

LVDSTX_AO4N

LVDSTX_AO4P

LVDSTX_AE2N

LVDSTX_AO1N

LVDSTX_AO1P

LVDSTX_AO2N

LVDSTX_AO2P LVDSTX_AOCKP

LVDSTX_AOCKN

LVDSTX_AO0N

LVDSTX_AO0P

R460 0R05 1/16W

LVDSTX_AO0N V13

R439 0R05 1/ 16W

LOCKN_OSD

AVDD10_LVDS

DVDD3V3

R461 0R05 1/16W

LVDSTX_AO0P V14

3D_FORMAT1

LVDSTX_AE2P V06

LVDSTX_AE2N V05

LVDSTX_AE0P V02

LVDSTX_AOCKP V20

LVDSTX_AO4P V24

LVDSTX_AO4N V23 2D/3D_EN ABLE# LVDSTX_AE0N V01

LVDSTX_AOCKN V19

LVDSTX_BEC KN

LVDSTX_BEC KP

LVDSTX_BOCKP#

LVDSTX_AE1P V04

LVDSTX_AE1N V03

R469 0R05 1/16W

STB_SDA

R409

4K7 1/16W 5%

R405

NC/2KOH M 1/10W

DVDD3V3

1K 1/16W 5%

+5V_SW

3V3SB

D633

NC/BAS316

A

1

K

2

DVDD3V3

D633 to avoid BL_ON/OFF into

3V3SB via DVDD3V3 at standby mode

DVDD3V3

POWER_OK

1K

RB

2K

N/C

3V3

RA

INVERTER _ O N_OFF

INVERTER_ON _OFF

5V

BL_ON/OFF

RBRA

BL_ON/OFF: Inv er ter on: Low Inverter off: High

R4294

220K 1/16W 5%

GPIO 204

R4296

NC/220K 1/ 16W 5%

R4295

220K 1/16W 5%

C401

NC/10UF 10V

Q400 MMBT3904

R471 0R05 1/16W

R408

4.7K1/16W

R407

NC/4K7 1/ 16W 5%

FRC_PW R_EN#

R450

NC/0R05 1/16W

3D_L/R

V22

B21V21

C435 N C / 100N F 16V

V24

B23V23

B22

C437 N C / 100N F 16V

C436 N C / 100N F 16V

B24

C438 NC/100NF 16V

WIFI_OCP5,17

WIFI_OCP

R444 0R05 1/16W

LVDSTX_AECKN V07

L/R_IN13,17

L/R_IN

BRIGHT ADJUST

LVDSTX_BOC KP

PANEL_3V3 SW

PANEL_VCC_ON /OFF

R780

NC/10K 1/ 16W 5%

R462 0R05 1/16W

LVDSTX_AO1N V15

PANEL_3V3

DVDD3V3

LVDSTX_AECKP V08

OPC_EN

HTPDN_OUT

BL_ON/OFF16,17

BL_ON/OFF

R418

NC/0R 05 1/ 16W

R456

NC/10K 1/ 16W 5%

OPC

R423 NC/0R05 1/ 16W R427 N C / 0R 05 1/ 16W

R472 0R05 1/16W

STB_SCL

R440 NC/ 0R 05 1/ 16W

2D/3D_EN ABLE#

L402

NC/0.09R

1

4

2

3

POWER_OK17

POWER_OK

L/R_IN

C441 NC/10PF 50V

R463 0R05 1/16W

LVDSTX_AO1P V16

R448 0R05 1/16W

LVDSTX_AE3NV09

2D/3D_EN5,17

2D/3D_EN

LVDSTX_BOC KN

C442 NC/10PF 50V

Analog Power

LVDSTX_BECKP#

LVDSTX_BECKN#

R449 0R05 1/16W

LVDSTX_AE3PV10

R490 NC/ 0R 05 1/ 16W

OPWRSB5,7,16

INVERTER_ON _OFF5

BRIGHT_ADJ5

OPWRSB

BRIGHT_ADJ

INVERTER_ON _OFF

R464 0R05 1/16W

LVDSTX_AO2N V17

OSCL17,12,15,16 OSDA17,12,15,16

OSCL1 OSDA1

KEY_PAD0

Gaming5, 17

KEY_PAD05, 17

Gaming

R441

NC/100R 1/ 16W 5%

PANEL_3V3

R4314

NC/3K3 1/16W 5%

3D_FORMAT_0

R424 N C / 0R 05 1/ 16W

L/R_IN

R453 NC/10K 1/16W 5%

R402

1K 1/10W 5%

R403

100R 1/10W 5%

C400

NC/10UF 10V

R401

NC/4.7K1/16W

PANEL_3V3

BL_DIMMING

GPIO 87

3D_L/R16,17

DVDD3V3DVDD3V3

3D_L/R

R443

1K 1/10W 5%

DC

BRIGHT_ADJ

BL_DIMMING(PWM for BRIGHT_ADJ): Max: 0V Min : +3V3

10K

100R

PWM

R428

NC/0R 05 1/ 16W

10U

N/C

CR

R

BRIGHT_ADJ

C

R404

4K7 1/16W 5%

Q401

MMBT3904

R400

NC/4.7K1/16W

C421 100NF 16V

3D_FORMAT0

C418 NC/1UF 10V

R459 6K8 1/16W 5%

C422

NC/100N F 16V

C420 1UF 10V

3D_FORMAT_0

BL_ON/OFF

Circuit Diagrams and PWB Layouts

EN 65QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-10 MHL/HDMI Input

20050_518.eps

MHL/HDMI Input

B10 B10

2015-12-11

C

715G7030

MHL/HDMI Input

TP502

OPWR3_5V

3V3SB

TP503

R584

75 OHM +-5% 1/16W

+5V_SW

R505 0R05 1/16W

U508

NC/AZ1045-04F.R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R502 0R05 1/16W

OPWR0_5V

HDMI_CEC_0HDMI_CEC_0

SCL0 SDA0

SCL0

OPWR0_5V

SDA0

TP504

MHL_SEN SE

FB502

120R

1 2

HDMI3_ARC

R503 0R05 1/16W

R533

100R 1/16W 5%

FB503

120R

1 2

R504 0R05 1/16W

HDMI_CEC_0

HDMI4_ARC

HDMI2_ARC

R534

100R 1/16W 5%

Q506

MMBT3904

FB504

120R

1 2

R535

100R 1/16W 5%

U501

G529A1TB1U

EN

1

GND

2

IN3OUT

4

OUT

5

OC

6

AVDD33_HDMI

D504

BAS316WS

C515

100NF 16V

OPWR0_5V

ZD502

NC/PDZ24B

1 2

C514

100NF 16V

HDMI_1_SDA

RX_1_0

RX_1_0B

RX_1_C

SDA1

SCL1

HDMI_CEC_1

RX_1_2B

RX_1_1

RX_1_1B

HDMI_1_SCL

RX_1_2

HDMI port 3 ( Embedded EDID )

HDMI_CEC_1

RX_1_CB

D503

BAS316WS

SDA2

HDMI_CEC_2

SCL2

HDMI_2_SDA

HDMI_2_SCL

HDMI port 2 ( Embedded EDID )

RX_2_2B

RX_2_CB

HDMI_2_HPD

RX_2_1

RX_2_1B

RX_2_0

RX_2_0B

RX_2_C

RX_2_2

ZD501

NC/PDZ24B

1 2

R557

100R 1/16W 5%

R555

47K 1/16W 5%

R558

100R 1/16W 5%

R563

910R

R567

100R 1/16W 5%

R571 47K 1/16W 5%

R572

470K 1/16W 5%

R566

100R 1/16W 5%

Q505

MMBT3904

R565 47K 1/16W 5%

R570 47K 1/16W 5%

R556

47K 1/16W 5%

R564

47K 1/16W 5%

R562

47K 1/16W 5%

Q504

MMBT3904

R560

470K 1/16W 5%

R569 910R

R561

47K 1/16W 5%

OPWR2_5VOPWR1_5V

CN504

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R536

100R 1/16W 5%

CN502

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMI4_ARC

HDMI1_ARC

RX_2_0B

RX_2_C RX_2_CB

RX_2_2 RX_2_2B

RX_2_1 RX_2_1B

RX_2_0

RX_3_1B

RX_3_0 RX_3_0B

RX_3_C RX_3_CB

RX_0_2 RX_0_2B

RX_0_0 RX_0_0B

RX_0_CB

RX_0_C

RX_3_2B

RX_3_1

RX_1_CB

RX_0_1 RX_0_1B

RX_1_0B

RX_1_C

RX_1_2 RX_1_2B

RX_3_2

RX_1_1 RX_1_1B

RX_1_0

AVDD10_HDMI

3V3SB

HDMI_1_SDA

HDMI_1_SCL

HDMI_3_SDA

HDMI_3_SCL

HDMI_2_SDA

HDMI_2_SCL

HDMI_0_SDA

HDMI_0_SCL

AVDD33_HDMI

HDMI3_ARC

HDMI_1_PWR5V

HDMI_3_HPD

HDMI_1_HPD HDMI_2_HPD

HDMI_0_HPD_C BUS

HDMI_3_PWR5V

HDMI_2_PWR5V

HDMI_0_PWR5V

Q502 AO3401A

ARC_SEL_0

ARC_SEL_117

ARC_SEL_017

ARC_SEL_1

MHL_PWR_EN

MHL_P WR _EN17

HDMI_3_HPD

ZD504 BAT54

13

R523 820R

Analog Power

HDMI_CEC_2

C506

10PF 50V

HDMI_CEC

R586

75 OHM +-5% 1/16W

ZD503

NC/PDZ24B

1 2

C516

100NF 16V

CN505

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

SCL3

HDMI_CEC_3

OPWR3_5V

SDA3

OPWR1_5V

HDMI_CEC_1

U511

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

SDA1

SCL1

OPWR1_5V

SDA1

HDMI_CEC_1 SCL1

U509

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_1_1B

RX_1_1

RX_1_2B

AVDD10_HDMI

RX_1_C

U510 NC /AZ1045-04F. R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_1_0

RX_1_2B

RX_1_2

RX_1_CB

GND

RX_1_0B

RX_1_1

RX_1_0

RX_1_0B

RX_1_2

RX_1_CB

RX_1_C

RX_1_1B

SDA2

OPWR2_5V

HDMI_CEC_2

U514

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HDMI_CEC_2

SCL2

SDA2

SCL2

OPWR2_5V

RX_2_2B

U512

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_2_CB

RX_2_C

RX_2_1B

RX_2_1

U513 NC/AZ1045-04F.R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

RX_2_2

RX_2_0

RX_2_0B

RX_2_0

RX_2_2B

RX_2_1B

GND

RX_2_0B

RX_2_1

RX_2_2

RX_2_CB

RX_2_C

D505

BAS316WS

U517

NC/AZ1045-04F.R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

SDA3 OPWR3_5V

RX_3_C

RX_3_1B

RX_3_1

HDMI_CEC_3 SCL3

U515

NC/AZ1045-04F.R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U516 NC/AZ1045-04F.R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

3V3SB

RX_3_0B

RX_3_0

RX_3_2B

RX_3_2

RX_3_CB

HDMI_1_HPD

GND

SDA3

RX_3_CB

RX_3_2B

RX_3_1

RX_3_1B

RX_3_0

RX_3_0B

RX_3_C

HDMI_CEC_3

HDMI_3_SCL

RX_3_2

HDMI_3_SDA

Q503

MMBT3904

SCL3

R573

47K 1/16W 5%

HDMI port 1 ( Embedded EDID )

R575100R 1/16W 5%

R581

470K 1/16W 5%

R579 47K 1/16W 5%

R574 47K 1/16W 5%

R576100R 1/16W 5%

R578 47K 1/16W 5%

R580 910R

OPWR3_5V

RX_3_0

RX_3_CB

RX_3_0B RX_3_C

RX_3_2B

RX_3_2

RX_3_1B

RX_3_1

HDMI_CEC_3

D506

LBAT54CLT1G

1

2

3

R588 4K7 1/16W 5%

R525

NC/4K7 1/16W 5%

R531

NC/0R05 1/ 16W

Audio Return Channel (ARC)

ARC

R530

56R 1/16W 5%

R526

0R05 1/16W

C505

NC/1uF 10V

U502

74LVC1G125GV

24

5

1

3

R528

NC/47K 1/16W 5%

AVDD3V3

R529

180ohm 1/16W +/-5%

AVDD3V3

R559

4K7 1/16W 5%

ARC1_HDMI

ARC_SEL_0

TP501

R587

4K7 1/16W 5%

ARC4_HDMI

ARC_SEL_1

R577

NC/47K 1/16W 5%

+5V_SW

ARC3_HDMI ARC2_HDMI

U518

74HC4051PW

Y4

1

Y6

2

Z

3

Y7

4

Y5

5

E

6

VEE

7

GND8S2

9

S1

10

S0

11

Y3

12

Y0

13

Y1

14

Y2

15

VCC

16

OPWR0_5V

SDA0

OPWR1_5V

Q509

MMBT3904

HDMI_CEC CEC

C507

10PF 50V

Q510

MMBT3904

C502 100NF 16V

AVDD10_HDMI

U506

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

Q501

MMBT3904

U507

NC/AZ1045-04F .R7G

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R532

0R05 1/16W

R518 10K 1/16W 5%

R521 47K 1/16W 5%

R510 10K 1/16W 5%

OPWR0_5V

C510 10UF 10V

R520 20K 1/16W 5%

CN501

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R522 300K

C509 10UF 10V

R524 33R 1/16W 5%

MHL_P WR _EN

Q507

MMBT3904

R512 300K

R501 100R 1/16W 5%

C501 NC/10NF 50V

C508

10PF 50V

R519 100R 1/16W 5%

RX_0_2B

RX_0_2

RX_0_CB

RX_0_C

RX_0_1B

RX_0_1

MT5593FPIJ

U401-6

HDMI_CEC

G24

HDMI_0_SCL

F26

HDMI_1_SCL

G30

HDMI_2_SCL

G31

HDMI_3_SCL

D34

HDMI_0_SDA

F27

HDMI_1_SDA

G28

HDMI_2_SDA

F33

HDMI_3_SDA

D33

HDMI_0_PWR5V

G26

HDMI_1_PWR5V

E30

HDMI_2_PWR5V

E31

HDMI_3_PWR5V

E34

HDMI_3_HPD

F34

HDMI_1_HPD

F30

HDMI_2_HPD

F31

HDMI_0_HPD_C BUS

F28

AVDD10_HDMI

A30

HDMI_0_RX_0

A20

HDMI_0_RX_0B

B20

HDMI_0_RX_1

A19

HDMI_0_RX_1B

B19

HDMI_0_RX_2

A18

HDMI_0_RX_2B

B18

HDMI_0_RX_C

A21

HDMI_0_RX_CB

B21

HDMI_1_RX_0

C23

HDMI_1_RX_0B

D23

HDMI_1_RX_1

C22

HDMI_1_RX_1B

D22

HDMI_1_RX_2

A22

HDMI_1_RX_2B

B22

HDMI_1_RX_C

A24

HDMI_1_RX_CB

B24

HDMI_2_RX_0

A26

HDMI_2_RX_0B

B26

HDMI_2_RX_1

C25

HDMI_2_RX_1B

D25

HDMI_2_RX_2

C24

HDMI_2_RX_2B

D24

HDMI_2_RX_C

C26

HDMI_2_RX_CB

D26

HDMI_3_RX_0

C28

HDMI_3_RX_0B

D28

HDMI_3_RX_1

A28

HDMI_3_RX_1B

B28

HDMI_3_RX_2

C27

HDMI_3_RX_2B

D27

HDMI_3_RX_C

C29

HDMI_3_RX_CB

D29

AVDD33_HDMI

P27

MHL_SEN SE

F24

AVDD10_HDMI

B30

AVDD33_HDMI

P28

RX_0_1

RX_0_0

RX_0_0B

RX_0_0

RX_0_2B

RX_0_1B

GND

RX_0_0B

RX_0_2

RX_0_CB

RX_0_C

R553 1K 1/16W 5%

R511 10K 1/16W 5%

C503 100NF 16V

MHL_SEN SE

MHL_PWR_EN

Q508 AO3414

C504 NC/1UF 6.3V

RX_0_2

RX_0_1

R506 100K 1/16W 5%

RX_0_2B

AVDD1V0

FB501

120R

1 2

3V3SB

HDMI_0_HPD_C BUS

+5V_SW

HDMI Port4 (MHL)

+5V_SW

DVDD3V3

HDMI_CEC_0

AVDD3V3

SCL0

HDMI1_ARC

MHL_SEN SE

C511

10PF 50V

RX_0_CB

RX_0_C

RX_0_0B

RX_0_0

RX_0_1B

MHL_P WR _EN 17

SPDIF_OUT11

SPDIF_OUT

HDMI_0_SCL

R585

75 OHM +-5% 1/16W

OPWR2_5V

R514 47K 1/16W 5%

R513 47K 1/16W 5%

R516 100R 1/ 16W 5%

R515 100R 1/ 16W 5%

AVDD33_HDMI

ARC 11

ARC

HDMI_0_SDA

GND5,6,7,8,9,10,11,12,13,15,16,17,18,19

GND

HDMI2_ARC

Circuit Diagrams and PWB Layouts

EN 66QM16.4E LA 10.

2016-Apr-1

back to

div.table

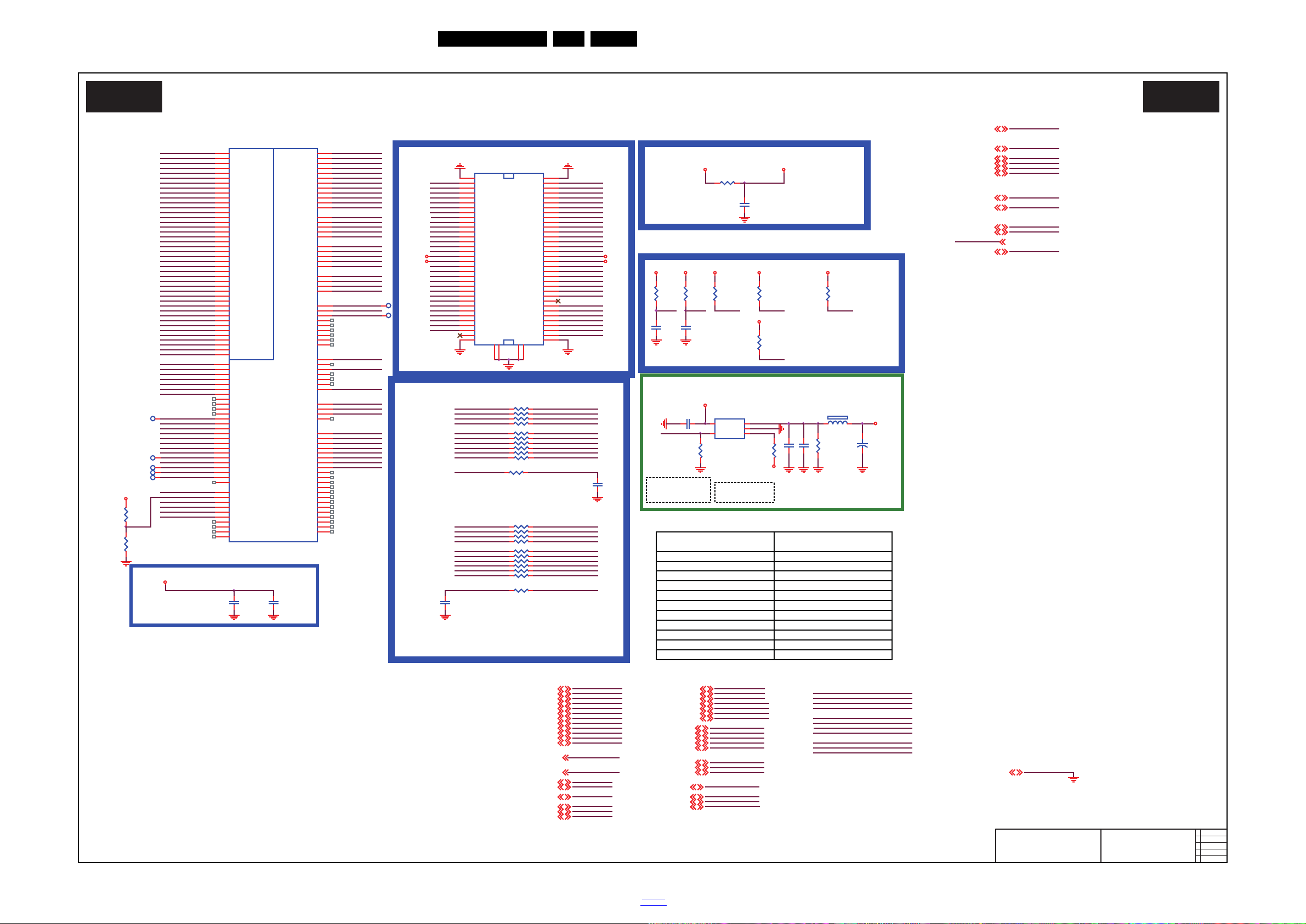

10-4-11 Tuner/Demodulator

20050_519.eps

Tuner/Demodulator

B11 B11

2015-12-11

C

715G7030

Tuner/Demodulator

DEMOD_TSDATA0

CLK_IN_OUT

DEMOD_TSDATA6

GND_Tuner

IN

T2_IF_N

DVDD3V3

GND_Tuner

QP

GND_Tuner

R245

NC/0R 05 1/ 16W

R218

2K2 1/16W 5%

TUNER_LNB

C212

0.1uF 50V

R219 2K2 1/16W 5%

+3V3_TUNER

RF_AGC_S2_TUNER

ADCIN N_DEMOD

ADCIN P_DEMOD

C220

22UF 20% 6.3V

C221 1nF 50V

C222 1nF 50V

FB203

120R/600mA

1 2

IF_AGC_5593

R230

5.6K 1%

DEMOD_TSDATA7

R232 10K +-1% 1/16W

DEMOD POWER

C789

10uF 10V

C766 1UF 10% 16V

U707

G9661

POK

1

VEN

2

VIN

3

VPP4NC

5

VO

6

ADJ

7

GND

8

E-Pad

9

+5V_SW

OSDA2

OSCL2

DV12

IP

C764 10uF 10V

R252 NC

C228

NC

GND_Tuner

TU202

TH1

12

TH2

13

TH3

14

TH4

15

LNB A

1

NC

2

TU3.3V

3

NC

4

QP Output

5

IP Output

6

NC

7

AGC

8

X-OUT

9

SDA

10

SCL

11

FB214 120R 3A

1 2

R226 0R05 1/10W

R214 0R05 1/10W

ADCIN P_DEMOD11

+3V3_TUNER

DEMOD_RST

TS_T2_DQ5

TS_T2_DQ6

TS_T2_DQ7

S2_TUN_SCL

C254 100NF 16V

R237 22R 1/ 16W 5%

C244 NC/6.8PF 50V

C243 NC/6.8PF 50V

X20 1

16MHZ

1

2 4

3

S2_TUN_SDA

GND_Tuner

U201

SI2169-C50-GM

MP_A

1

MP_B

2

GPIO_0

3

DISEQC_CMD

4

DISEQC_IN

5

DISEQC_OUT

6

VDD_Vcore

7

GND

8

VDD_VIO

9

SCL_Host

10

SDA_Host

11

TS_VLD

12

XTAL _O

32

RESETB

31

MP_D

30

MP_C

29

VDD_Vcore

28

GND

27

TS_ERR/GPIO_1

26

TSD7

25

TS_SYNC13TS_CLK14TS_D0/SER15TS_D116TS_D217TS_D318TS_D419VDD_Vcore20GND21VDD_VIO22TSD523TSD6

24

XTAL_I/CLK_IN

33

ADDR

34

GND

35

VDD_Vana

36

S_ADC_IP

37

S_ADC_IN

38

S_ADC_QP

39

S_ADC_QN

40

TC_ADC_P

41

TC_ADC_N

42

NC

43

CLK_IN_OUT

44

SDA_T

45

SCL_T

46

GND

47

VDD_Vcore

48

EPad

49

+1.2V_T2

T2_IF_P

T2_IF_N

R231

4K7 1/16W 5%

+1.2V_T2

C236

100NF 16V

+3.3V_T2

C237 100NF 16V

+3.3VA_T2

C242 100NF 16V

C231

100NF 16V

R238 4K7 1/16W 5%

DVDD3V3

+1.2V_T2

C233100NF 16V

C258 100NF 16V

T2_IF_AGC_TUNER

C248NC/ 10PF 50V

DEMOD_TSCLK

DEMOD_TSSYNC

TS_T2_SYNC

DEMOD_TSVAL

TS_T2_SYNC

QN

TS_T2_CLK

TS_T2_VAL

R235 22R 1/ 16W 5%

R233 22R 1/ 16W 5%

C238

NC/22PF 50V

R234 22R 1/ 16W 5%

S2_SCL

TS_T2_CLK

TS_T2_DQ1

TS_T2_DQ0

C246NC/10PF 50V

C247NC/10PF 50V

OSCL2

C232100NF 16V

OSDA2

IP

DISEQC_OUT

R228 NC/0R05 1/16W

GND_Tuner

LNB_EN

13/18V_SW

R24251OHM 1/16W +/-5%

DVB-T/ T2 De modulator

TS_T2_VAL

C255 100NF 16VR244 51OHM 1/16W +/-5%

C234

NC/10PF 50V

NC

TU_FAT_IN2+ TU_FAT_IN2-

ADCIN P_DEMOD

C250NC/10PF 50V

C214

NC/47PF 50V

C235

NC/10PF 50V

R215 0R05 1/16W R216 0R05 1/16W

QP

C213

NC/47PF 50V

C239100NF 16V

TS_T2_DQ2

TS_T2_DQ3

TS_T2_DQ4

ADCIN N_DEMOD

C245 100NF 16V

IF_AGC_S2_TUNER

CLK_IN_OUT

DEMOD_TSDATA2

S2_SDA S2_SCL

GND_Tuner

R223

0R05 1/16W

Yes

QP

Yes

TC IF

DEMOD_RST17

C227

NC

TUNER

T2 IF

DEMOD_TSCLK17

GND_Tuner

R224 0R05 1/16W

IF_P_TU

IF_N_TU

+3V3_S2_TUNER

TUNER_SCL

TUNER_SDA

TUNER_3V3

IF_AGC_T

RF_AGC_S2_TUN ER IF_AGC_S2_TUNER

S2_SDA

TUNER

IF_N_TU

EXT IF AGC

IF_AGC_5593

R229

10K 1/16W 5%

C207 47NF 16V

C219

2.2nF 50V

R209

10K 1/16W 5%

R239

NC/100K 1/ 16W 5%

DEMOD_TSDATA017

C218 10NF 50V

R227

10K 1/16W 5%

C259 10UF 6.3V 20%

FB211 120R 3A

1 2

C217 47NF 16V

DVDD3V3

+1.2V_T2

+3.3VA_T2

T2_IF_AGC_TUNER

R225

10K 1/16W 5%

DV12

DVDD3V3

+3.3V_T2

IF_AGC_T

C260 10UF 6.3V 20%

R246 0R05 1/10W

FB210 120R 3A

1 2

R222 NC/0R05 1/16W

GND_Tuner

QN

ADCINN_DEMOD11

RP201

22R

1 2

3

4

8

7 6 5

RP202

22R

1 2

3

4

8

7 6 5

TS_T2_DQ6 TS_T2_DQ5

OSDA2

TUNER I2C PULL UP

TS_T2_DQ1 TS_T2_DQ0

TS_T2_DQ7

TUNER

TS_T2_DQ2

TS_T2_DQ3

TS_T2_DQ4

DEMOD_TSDATA1

TU_FAT_IN2+

TUNER_SDA

TUNER_SCL

IF PATH

DEMOD_TSDATA117

OSCL2

TU_FAT_IN2-

TUNER

S2_TUN_SCL

S2_SDA

S2_SCL

IF_P_TU

R217 100R 1/16W 5%

S2_TUN_SDA

R220 100R 1/16W 5%

C215 NC/33PF 50V

C216 NC/33PF 50V

DEMOD_TSDATA217

Q201

NC/BTA1576S3

1

23

DEMOD_TSDATA317

R221 NC/0R05 1/16W

C240

NC/22PF 50V

TUNER_LNB6

TUNER_LNB

DEMOD_TSDATA417

X-O UT

IF_AGC_559311

TU20 3

Ant.PWR

1

+B1(+3.3V)

2

SDA

3

SCL

4

DIF(N)

5

DIF(P)

6

IF AGC

7

NC

8

TH1

9

TH2

10

TH3

11

TH4

12

TH5

13

TH6

14

R236

0R05 1/16W

DEMOD_TSDATA517

+3V3_S2_TUNER

DEMOD_TSDATA3 DEMOD_TSDATA4

DEMOD_TSVAL

DEMOD_TSSYNC

DEMOD_TSDATA0

DEMOD_TSCLK

DEMOD_TSDATA2

DEMOD_RST

DEMOD_TSDATA1

DEMOD_TSDATA7

DEMOD_TSDATA6

DEMOD_TSDATA5

DEMOD_TSDATA617

DEMOD_TSDATA3

GND_Tuner

DEMOD_TSDATA717

TUNER

TUNER_3V3

T/C/T2_TUNER_3V3

R211 100R 1/16W 5%

C205

NC

C201

NC/10PF 50V

C203 1uF 10V

C204 1uF 10V

DISEQC_OUT6

DISEQC_OUT

R206 NC

R203 NC/1.8K 1/16W

TU201

Ant. PWR

1

+B1(+3.3V)

2

SDA

3

SCL

4

DIF(N)

5

DIF(P)

6

IF AGC

7

TH1

8

TH2

9

TH3

10

TH4

11

TH5

12

TH6

13

C208 NC/33PF 50V

R207

0R05 1/16W

R201

0R05 1/16W

C210 100NF 16V

R208 0R05 1/16W

R202

0R05 1/16W

C202 NC/10PF 50V

R210 100R 1/16W 5%

R205 0R05 1/16W

C211 1UF 10V

C209 NC/33PF 50V

R204 0R05 1/16W

C206 NC

+3V3_TUNER

TUNER_SCL

TUNER_SDA

IF_P_TU

IF_N_TU

IF_AGC_T

TUNER_3V3

TU204

TH1

12

TH2

13

TH3

14

TH4

15

LNB A

1

NC

2

TU3.3V

3

NC

4

QP Output

5

IP Output

6

NC

7

AGC

8

X-OUT

9

SDA

10

SCL

11

RF_AGC_S2_TUN ER

GND_Tuner

RF_AGC6

RF_AGC

TUNER_LNB

DEMOD_TSSYNC17

R255

10K 1/16W 5%

C225 1uF 10V

C224 1uF 10V

R240 0R05 1/16W

R248 0R05 1/16W

OSCL211

TUN _LN B6, 17

LNB_LINED ROP TUN _LN B

LNB_LINED ROP6,17

DEMOD_TSDATA4

DEMOD_TSVAL17

RF_AGC

OSDA211

GND_Tuner

Yes

NC

Yes

NC

R223/R224

NC

Yes

T

H

GND_Tuner

Yes

NC

R221/R222

Yes Yes

NC

Model

R225/C217

T2/S2 Si2169

S2 Si2166

Yes

NC

Yes

NC

R229/C219Demod

K

T2 Si2168

R220/R217

NC

S

LNB_EN

13V/18V_SW6 LNB_EN6

13/18V_SW

OSDA17,12,13,16

OSCL17,12,13,16

OSDA1

OSCL1

X-OUT

GND5, 6,7,8,9,10,11,12,13,14,16,17,18,19

GND

IN

IP

C249/C251

GND_Tuner

R212

2K2 1/16W 5%

C249 100NF 16V

R213 2K2 1/16W 5%

+3V3_TUNER

DEMOD_TSDATA5

GND_Tuner

C251 100NF 16V

T2_IF_P

Circuit Diagrams and PWB Layouts

EN 67QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-12 Connector

20050_520.eps

Connector

B12 B12

2015-12-11

C

715G7030

Connector

AMBIL_SPI_CLK

C4247

NC/2.7pF

WoBLE-IRQ17

WoBLE-IRQ

RC6 RC6#

R4290

10K 1/16W 5%

R4268 NC/2R2 1/16W 5%

DVDD3V3

R4118100OHM

Gaming

C4242 10UF 6. 3V 20%

C4241 10UF 6. 3V 20%

USB_DP_P0

IR_RC

Wi-Fi_RESET5,17

Wi-Fi_RESET

AMBIL_SPI_DO

+

C4332 NC/100U F 16V

C4331

NC/10UF 6.3V 20%

DVDD3V3

AMBIL_SPI_DO#

C4113

NC/100N 50V

HP_DET12,17

3V3SB

LED_PWM07,17 LED_PWM17,17

C1408

10UF 16V

C1402 NC / 47N F 16V

+12V_AMBI

C4246 NC/2.7pF

3D-IR-OUT

3V3SB

R4282

4K7 1/16W 5%

LED_R

R4284

10K 1/16W 5%

C4244 100NF 16V

C4117

NC/100N 50V

R4115 NC/1K 1/16W 5%

12V_DET

SPK_SD

Key1

DVDD3V3

U4251

AP7362-SP-13

GND

1

EN

2

IN

3

IN4OUT

5

OUT

6

OUT

7

ADJ/N C

8

E-PAD

9

STB_PW R

+5V_SW

ZD4101 NC/MM3Z5V6B

DVDD3V3

LED_PWM1

LED_PWM0

HP_DET

SPK_SD12,17

+5V_SW

GND5,6,7, 8,9,10,11,12,13,14, 15,17,18,19

SPK_SD

GND

12V_DET12,17

R4285

NC/10K 1/ 16W 5%

Key1

USB_DM_P0

AMBIL_SPI_CLK#

LS_SCL

C4116 NC/10N 50V

AMBIL_SPI_DO 17

AMBI_TEMP

AMBIL_SPI_CLK AMBIL_SPI_DO

AMBI_TEMP 17

AMBIL_SPI_CLK 17

Wi-Fi_VCC

C1407

NC/100NF 16V

CN402

CONN

1 2

3

4 5 6 7

8

9 10

1112

R4288

0R05 1/16W

L/R_IN13,17

L/R_IN

WoWLAN_I RQ

3D-IR-OUT

AL+KEY

Ambient Light

R4287

NC/10K 1/ 16W 5%

Gaming17

Gaming

CN403

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13 14

Wi-Fi_VCC

WoBLE-IRQ

WoL_PWR_EN17,18

R4281

0R05 1/16W

WoL_PWR_EN

R4291

NC/10K 1/ 16W 5%

STB_PW R

C4243

10UF 6.3V 20%

KEY_PAD017

KEY_PAD0

C4245

10UF 6.3V 20%

R1406

NC/47K 1/ 16W 5%

+12V_AMBI

ZD4102

NC/MM3Z3V6B

1 2

USB_DP_P018

USB_DM_P0

R4119 100OHM

USB_DM_P018

L/R_IN

USB_DP_P0

OSDA17,12,13,15

OSCL17,12,13,15

OSCL1 OSDA1

R4286

10K 1/16W 5%

RC67

RC6

R1404

4K7 1/16W 5%

R1405

4K7 1/16W 5%

Wi-Fi_RESET

L/R_OUT13,17

IR_SSB

L/R_OUT

AR1O11 AL1O11

AR1O AL1O

LOGO

U1401

NC/AOZ1360DIL

IN

1

IN

2

NC

3

GND

4

SS

5

EN6SET

7

NC

8

OUT

9

OUT

10

OUT

11

GND

12

C1406

100P 50V

L4201

90OHM

1 4

2

3

R4280

20.5K 1%

R1407 NC/10K 1/16W 5%

IR_RC

LS_SDA

AR1O

AL1O

R4272

22K 1/16W 1%

AMBI_TEMP#

R4274

100K 1%

U0RX

IR_SSB

R4275

0R05 1/16W

OPWRSB_PWR

Q634

BTA1576S3

1

23

C635

NC/10NF 50V

+12V_AU

12V_DET

R630

NC/510R 1/ 16W 5%

R4276

22K 1/16W 1%

R632

NC/200R 1/ 16W 5%

C631

NC/1nF 50V

R4269

4K3 1/16W 1%

R4329

15K 1%

C634

NC/10N F 50V

12V drop detect

3V3SB

U0TX

R631

NC/200R 1/ 16W 5%

C630

NC/1nF 50V

R633

NC/510R 1/ 16W 5%

2W Mono Speaker output for BUH

WIFI_PWR_EN WIFI_OCP

+

C4297

NC/100U F 16V

Wi-Fi_OCP : Disable : Low

R4265

NC/4K7 1/ 16W 5%

U4250

NC/APL3511ABI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

FB4250

NC/120R 3A

1 2

R4271

100R 1/16W 5%

R4266

4K7 1/16W 5%

C4250

NC/10UF 6.3V 20%

C4298

NC/100NF 16V

R4250

NC/10K 1/ 16W 5%

Wi-Fi_VCC

3V3SB

U0RX

OPWRSB_PWR U0TX

U0TX 7 U0RX 7

OPWRSB_PWR5,7

WoWLAN_I RQ17

WoWLAN_I RQ

WIFI_PWR_EN17

WIFI _PWR_EN

R4283

0R05 1/16W

+12V_AMBI

Wi-Fi_VCC

WIFI _PWR_EN

NOYes

IR IN/ OUT

Function

Non-BUHBUHItem

C4124 / C4125 CN4100 / Q4100 Q4101 / Q4102 R4130 / R4131 R4132 / R4148 R4149 / R4151 R4153 / R4154 R4157 / R4169 U4101

R4130 NC/ 0R 05 1/ 16W R4131 NC/ 0R 05 1/ 16W

C4124

NC/10U F 6. 3V Q4100 NC/2N7002

R4169

NC/100R 1/ 16W 5%

R4132 NC/ 0R 05 1/ 16W

AMBIL_SPI_CLK#

R4148

NC/10K 1/ 16W 5%

AMBIL_SPI_DO#

C4125 NC/100NF 16V

R4149

NC/22K 1/ 16W 5%

Wi-F i Power C o n trol

AMBI_TEMP AMBI_TEMP#

Q4102

NC/PMBT3904

R4157

NC/1K 1/ 16W 5%

AMBIL_SPI_CLK

R4153

NC/10K 1/ 16W 5%

R4151

NC/10K 1/ 16W 5%

FB715

NC/120R 3A

1 2

CN4100

NC/PHONE JACK

1

2

3

4

AMBIL_SPI_DO

Q4101

NC/PMBT3904

F1401 T 2A 63V

U4101

NC/TS5A3157DCKR

NO

1

GND

2

NC3COM

4

V+

5

IN

6

C1400 10UF 16V

R1402

47R 1/16W 5%

R4154

NC/33K 1/16W 5%

C1404

100P 50V

Wi-Fi_PWR_EN : Enable : High Disable : Low

3V3SB

R1403

47R 1/16W 5%

R1401

100R 1/16W 5%

3V3SB

C4330

NC/10UF 6.3V 20%

C1405

100P 50V

C1401 100NF 16V

NOYes

C630 / C631 C634 / C635 CN602 / R630 R631 / R632 R633

IR_IN

IR_SW_IN

IR_SW

RC6

R42730R 05 1/ 16W

CN1404 NC/C ONN

1 2

3

4 5 6 7

8

9 10 11 12

14 15 16 17 18 19 20 21 22 23 24 25 26

2728

13

+12V

AMBI_3V3

IR_OUT

C1403

NC/1UF 10% 16V

IR_IN

Yes

IR_SW

IR_SW_IN

L

IR_SW_IN

Yes

No

IR-Bypass

H

IR_RC

AMBI_3V3

NO

2W Mono Speaker output for Bolt-on Board

HTV IR IN/OUT

R4114

R4120 NC/100OHM

FB714

NC/120R 3A

1 2

R4267

NC/2R2 1/16W 5%

Key1KEY_PAD0

TO KEY PAD BOARD

LED_PWM1

LS_SDA

CN401

CONN

2 4 6

8

10 12 14 16 18

1

3

5 7

9 11 13 15 17

LOGO

R4121 100OHM

OSDA1

R4299

NC/10K

R4300

NC/10K

R4122 100OHM

LS_SCL

LED_R: Enable(Stand_By) : High Disable: Low

L/R_OUT

LED_PWM0

TO IR/KEY BOARD

LED_R

OSCL1

CN4250

CONN

1 2

3

4 5 6 7

8

910

R4117 100OHM

Gaming

RC6#

R4114 100OHM

C4106

0.1uF 50V

R4102

100R 1/10W 1%

R4106

100R 1/10W 1%

WIFI_OCP

WIFI_OCP17

DVDD3V3

C4115 NC/10uF 6.3V

C4107

NC/0.1uF 50V

R4100

6K8 1%

3V3SB

Circuit Diagrams and PWB Layouts

EN 68QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-13 Internal CI

20050_521.eps

Internal CI

B13 B13

2015-12-11

C

715G7030

Internal CI

SPK_SD12,16

SPK_SD

LED_PWM0

TP1508

DEMOD_TSDATA515

AMBIL_SPI_CLK16

AMBIL_SPI_CLK

DEMOD_TSSYNC

DEMOD_TSDATA0

DEMOD_TSCLK

DEMOD_TSDATA3

DEMOD_TSDATA1

DEMOD_TSDATA7

DEMOD_TSDATA6

DEMOD_TSDATA5

DEMOD_TSDATA4

DEMOD_TSVAL

DEMOD_TSDATA2

DEMOD_RST

R1518

47R 1/16W 5%

CI_MDI0

CI_VCC

CI_VCCCI_VCC

CI_VCC

CI_CE2#

CI Slot

CI_MIVAL_R

CI_MDO5_RCI_D6

CI_D7

CI_MDI2_R

CI_D5

CI_A10

CI_CE1#

CI_A13

CI_A2

CI_A8

CI_A9

CI_A11

CI_A6

CI_A7

CI_D1

CI_D0

CI_A12

CI_IREQ#

CI_A1

CI_D2

CI_A14

CI_A3

CI_A4

CI_A5

CI_MOSTRT_ R

CI_MOVAL_R

CI_D4

CI_D3

CI_A0

DEMOD_TSDATA615

CI_MISTR T_R

CI_IOWR#

CI_MDO6_R

CI_MDO3_R

CI_VS1# CI_IORD#

CI_CD1#

CI_MDI4_R

CI_MDO4_R

CI_MDO7_R

CI_MDI5_R

CI_MDI3_R

CI_MDI1_R

CI_MDI0_R

CI_REG#

CI_MDO1_R

CI_MDO0_R

CI_WAIT#

CI_RESET

CI_MDI7_R

CI_MDI6_R CI_MCLKO_R

CI_MCLKI_R

CI_CD2#

CI_MDO2_R

CI_WE#

CI_OE#

DEMOD_RST15

LOCKN

DEMOD_TSDATA715 DEMOD_TSSYNC15

C1501 100NF 16V

C1502 NC/100NF 16V

DVDD3V3

VCC3IO_SD

Gaming16

Gaming

DEMOD_TSVAL15

KEY_PAD016

KEY_PAD0

R1523

47R 1/16W 5%

3D_L/R13,16

3D_LR

R1519

47R 1/16W 5%

CI_MDI1

BL_D IMMIN G13

PANEL_VCC_ON /OFF6,13

SYS_EEPROM_WP7

DEMOD_TSCLK15

BL_ON/OFF13

HP_DET12

SCART_FS11

MHL_PWR_EN14

DDR_PWR_EN5

PANEL_VCC_ON/OFF

HP_DET

BL_ON/OFF

BL_DIMMING

DDR_PWR_EN

SCART_FS

SYS_EEPROM_WP

MHL_PWR_EN

CI_MISTRT

Parrel TS Output to Main Chip damping used to close PCMCIA

Parrel TS Output to PCMCIA damping used to close Main Chip

CI_MDI5

CI_MDI4

CI_MDI3

CI_MDI2

CI_MDI1

CI_MDI0

WoWLAN_IRQ16

WoWLAN_IRQ

CI_MOVAL

CI_MCLKI

CI_MIVAL

CI_MDI7

CI_MDI6

CI_MDO4

CI_MDO2

CI_MDO1

CI_MDO0

CI_MOSTRT

YPBPR_DETECT11

YPBPR_D ETECT

CI_MDO3

CI_MCLKO

CI_MDO7

CI_MDO6

CI_MDO5

AMBIL_SPI_DO

WoL_PWR_EN18

WoL_PWR_EN

C1508

NC/10PF 50V

C1504 NC/10PF 50V

R1532 47R 1/16W 5%

R1526 47R 1/16W 5% R1527 47R 1/16W 5%

R1534 47R 1/16W 5%

WoBLE-IRQ

R1535 47R 1/16W 5%

R1524 47R 1/16W 5%

R1528 47R 1/16W 5% R1529 47R 1/16W 5% R1530 47R 1/16W 5% R1531 47R 1/16W 5%

R1525 47R 1/16W 5%

WoBLE-IRQ16

WoBLE-IRQ

GND5,6,7,8,9,10,11,12,13,14,15,16,18,19

DEMOD_TSDATA015

LED_PWM2

LED_PWM0 LED_PWM1

DEMOD_TSDATA3

ARC_SEL_1

ARC_SEL_0

MHL_PWR_EN

DDR_PW R_EN

WoL_PWR_EN

WIFI_PWR_EN

WoWLAN_IRQ

TUN_LNB6

TUN_LNB

ANA LOG_DIMMI NG BL_DIMMING

WIFI_PWR_EN16

WIFI_PWR_EN

2D/3D_EN

2D/3D_EN5

GPIO64

GPIO61 2D/3D_EN

GPIO65

WIFI_OCP16

WIFI_OCP

SYS_EEPROM_WP SPK_SD

HP_DET

PVR_TSVALCI_VS1#

SPI_CLK1CI_CD2#

CI_WAI T# PVR_TSDATA1

CI_IORD# SPI_DATA

YPBPR_DETECT LNB_LINED ROP

CI_CD1# SPI_CLK

CI_TSCLKCI_CE1#

CI_REG# CI_INT

CI_TSSYNCCI_WE#

CI_TSVALCI_OE#

SPI_CLECI_IOWR#

PVR_TSDATA0CI_IREQ#

AMBI_TEMP16

AMBI_TEMP

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26 GPIO27 GPIO28 GPIO29 GPIO30 GPIO31 GPIO32 GPIO33 GPIO34 GPIO35 GPIO36

GPIO39 GPIO40

GPIO38

GPIO37

GPIO41

MT5593FPIJ

U401-8

CI_A0

C1

CI_A1

C2

CI_A2

B1

CI_A3

C3

CI_A4

B2

CI_A5

A2

CI_A6

A3

CI_A7

A4

CI_A8

E11

CI_A9

E12

CI_A10

D13

CI_A11

D12

CI_A12

A5

CI_A13

C9

CI_A14

C8

CI_MCLKI

D11

CI_MIVAL

B6

CI_MISTRT

B8

CI_MDI0

A8

CI_MDI1

A7

CI_MDI2

B7

CI_MDI3

C7

CI_MDI4

B5

CI_MDI5

D10

CI_MDI6

C5

CI_MDI7

B4

CI_D0

F8

CI_D1

E5

CI_D2

D4

CI_D3

F16

CI_D4

E15

CI_D5

E13

CI_D6

C10

CI_D7

E14

CI_MDO0

E6

CI_MDO1

D5

CI_MDO2

C4

CI_MDO3

D15

CI_MDO4

F14

CI_MDO5

B10

OPCTRL0

R34

OPCTRL1

R36

OPCTRL2

R33

OPCTRL3

W35

OPCTRL4

Y34

OPCTRL5

T35

OPCTRL6

N33

OPCTRL7

U35

DEMOD_RST

E20

DEMOD_TSCLK

A14

DEMOD_TSDATA0

D19

DEMOD_TSDATA1

F22

DEMOD_TSDATA2

G22

DEMOD_TSDATA3

H22

DEMOD_TSDATA4

H23

DEMOD_TSDATA5

G23

DEMOD_TSDATA6

F25

DEMOD_TSDATA7

F23

DEMOD_TSSYNC

D20

DEMOD_TSVAL

F20

CI_INT

A10

CI_TSCLK

C14

CI_TSDATA0

C13

CI_TSSYNC

B13

CI_TSVAL

A13

PVR_TSCLK

B12

PVR_TSVAL

D18

PVR_TSSYNC

E17

PVR_TSDATA0

F17

PVR_TSDATA1

G17

SPI_CLK1

C12

SPI_CLK

B11

SPI_DATA

A11

SPI_CLE

C11

OPWM2

AP37

OPWM1

AL30

OPWM0

AP38

SD_D0

D1

SD_D1

E2

SD_D2

E1

SD_D3

F2

SD_CMD

D2

SD_CLK

F3

LED_PWM1

AA32

LED_PWM0

AA33

CI_MDO6

B9

CI_MDO7

D14

GPIO42

D3

GPIO43

G16

GPIO44

D17

GPIO45

F5

GPIO46

E4

GPIO47

B3

GPIO48

F4

GPIO49

AK25

GPIO50

AL27

GPIO51

AM27

GPIO52

AN27

GPIO53

AN28

GPIO54

AM28

GPIO55

AL28

OPCTRL8

R35

OPCTRL9

Y33

OPCTRL10

AC35

OPCTRL11

AB37

ADIN0_SRV

L34

ADIN1_SRV

P35

ADIN2_SRV

L35

ADIN3_SRV

E33

ADIN4_SRV

L33

ADIN5_SRV

M33

ADIN6_SRV

J35

ADIN7_SRV

U37

GPIO56

AR37

GPIO57

AU38

GPIO58

AN36

GPIO59

AM36

GPIO60

AK37

GPIO61

E10

GPIO62

E9

GPIO63

D6

GPIO64

C6

GPIO65

E8

GPIO66

D8

VCC3IO_SD

D9

ADIN8_SRV

N35

ADIN9_SRV

N34

OPCTRL12

AC32

OPCTRL13

AG33

OPCTRL14

AE33

OPCTRL15

AD33

OPCTRL16

AD32

OPCTRL17

AC33

OPCTRL18

AD37

OPCTRL19

AD38

OPWM3

AN35

OPWM4

AL36

OPWM5

AM35

OPWM6

AL34

OPWM7

AK35

OPWM8

AK34

LED_PWM2

AF37

LED_PWM3

AG36

OPCTRL20

AD36

DEMOD_TSDATA0

DEMOD_TSCLK

KEY_PAD0 AMBI_TEMP

DEMOD_TSDATA4

DEMOD_TSVAL

DEMOD_TSSYNC

TUN_LNB

SCART_FS

POWER_OK

3D_L/R

CI_PWR_EN

Gaming

DEMOD_TSDATA6

DEMOD_TSDATA5

HTPDN

CI_OCP

12V_DET

CI_A0 CI_A1 CI_A2 CI_A3

DEMOD_TSDATA7

CI_A11

CI_A4 CI_A5 CI_A6 CI_A7

CI_A13 CI_A14 CI_MCLKI

CI_A8 CI_A9 CI_A10

CI_MIVAL CI_MISTRT CI_MDI0 CI_MDI1

CI_A12

CI_D1

CI_MDI2 CI_MDI3 CI_MDI4 CI_MDI5

CI_D3 CI_D4 CI_D5

CI_MDI6 CI_MDI7 CI_D0

CI_D6 CI_D7 CI_MDO0 CI_MDO1

CI_D2

CI_MDO7

CI_MDO2 CI_MDO3 CI_MDO4 CI_MDO5

CI_TSCLK

CI_TSVAL

PVR_TSDATA1

DEMOD_RST

DEMOD_TSDATA1

CI_MDO6

PVR_TSCLK PVR_TSVAL PVR_TSSYNC PVR_TSDATA0

SPI_CLK1 SPI_CLK

SPI_CLE

CI_INT

CI_TSSYNC

CI_TSDATA0

DEMOD_TSDATA2

SPI_DATA

TP1512

R1513

47R 1/16W 5%

BL_DIMMING13

DEMOD_TSDATA115

BL_DIMMING

R1514

47R 1/16W 5%

CI_RESET

TP1509

HP_DET16,17

HP_DET

LED_PWM07,16

LED_PWM0

AMBIL_SPI_CLK

DEMOD_TSDATA215

LED_PWM27

LED_PWM2

TP1505

R1515

47R 1/16W 5%

AMBIL_SPI_DO16

AMBIL_SPI_DO

HTPDN_OSD

OPWM2

R1520

47R 1/16W 5%

POWER_OK13

POWER_OK

3D_L/R_IN

3D_L/R_IN5,17

CI_MCLKI_RCI_MCLKI

DEMOD_TSDATA315

CI_MDO4 CI_MDO6

PVR_TSCLK

CI_MDO5

CI_MDO2_R

CI_MDO0_R CI_MDO1_R

CI_MOSTRT_R

CI_MDO2

CI_MDO7

CI_MDO5_R

CI_MDO4_R

CI_MDO3_R

CI_MOVAL_R

CI_TSDATA0

CI_MDO7_R

CI_MDO6_R

PVR_TSSYNC CI_MCLKO_R

CI_MDO1

CI_MDO0

CI_MDO3

R1509

10K 1/16W 5%

FB1550 120R 3A

1 2

+5V_SW

CI_VCC

DVDD3V3

ARC_SEL_114

ARC_SEL_014

CI_DVD D3V3

CI_VCC

CI_DVD D3V3

ARC_SEL_1

ARC_SEL_0

CI_DVDD3V3DVDD3V3

CI_VCC CI_VCCCI_DVD D3V3

CI_CD2#

R1533

NC/10K 1/ 16W 5%

CI 3V3 PWR Cap.

CI_VS1#

CI_IREQ#

CI_WAIT#CI_CD1# CI_CE2#

CI_PWR_EN : Enable : High Disable : Low

R1521

47R 1/16W 5%

R1516

47R 1/16W 5%

12V_DET

CI_OCP : Disable : Low

CI Bus Powe r C o ntrol

CI_OCPCI_PWR_EN

C155310UF 10V

R1554

4K7 1/16W 5%

R1536

NC/10K 1/ 16W 5%

R1512

10K 1/16W 5%

U102

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

R1506

0R05 1/16W

C1551

1UF 10% 16V

R1553

4K7 1/16W 5%

R1510

10K 1/16W 5%

C1505 100NF 16V

R1508

10K 1/16W 5%

R1507

10K 1/16W 5%

R1511

10K 1/16W 5%

R1555

10K 1/16W 5%

C1506

100NF 16V

C1507

100NF 16V

C1582100NF 16V

+

C1554

NC/100U F 16V

PCMCIA

CN159 PCMCIA CARD

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY#:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

3V3SB

VCC3IO_SD

DEMOD_TSDATA415

TP1511

LED_PWM17,16

LED_PWM1

DDR_PWR_EN5

DDR_PW R_EN

CI_MDI6 CI_MDI7

CI_MDI3_R

CI_MDI4_R

CI_MIVAL

CI_MDI5

CI_MDI3

CI_MDI4

CI_MISTR T

CI_MDI2

CI_MDI0_R

CI_MISTRT_R CI_MDI1_R

CI_MDI2_R CI_MDI6_R CI_MDI7_R

CI_MIVAL_R

CI_MDI5_R

R1522

47R 1/16W 5%

3D_L/R_I N

TP1506

LNB_LINED ROP6

LNB_LINED ROP

HTPDN

LOCKN5,17

HTPDN5,17

LOCKN

R1517

47R 1/16W 5%

12V_DET 12,16

MHL_ PW R_EN14

MHL_ PW R_EN

TP1507

LED_PWM07,16

Circuit Diagrams and PWB Layouts

EN 69QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-14 USB/ETHERNET PHY

20050_522.eps

USB/ETHERNET PHY

B14 B14

2015-12-11

C

715G7030

USB/ETHERNET PHY

C4607 100NF 16V

t

TH4103 PTCR

1 2

3V3SB

TXVN_0

SSUSB_TXN_R

U1101

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

AVDD33_USB

R1103

10K 1/16W 5%

AVDD33_USB

CN4601

RJ45 8P

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

TH2

10

TH1

9

RXVN_1

RXVP_1

TXVN_0

TXVP_0

C4603

0.1uF 25V

C4604 10NF 50V

C4601

0.1uF 25V

C4606

10NF 50V

C4602 10NF 50V

C4605

100NF 16V

R4270 0R05 1/16W

RJ45

R4278

0R05 1/16W

L4202

NC/90OHM

1 4

2

3

CN4602

NC/RJ45 CONN

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7 NC

7

P8

8

TH2

10

TH1

9

AVDD10_SSUSB

SSUSB_RXP_R

SSUSB_TXP_R

R4605

4K7 1/16W 5%

USB_DM_P0

AVDD33_SSUSB

USB_DP_P1 USB_DM_P1

RXVP_1

D4601BAS316WS

C4608

10UF 6.3V 20%

DOWN USB

SSUSB_TXN_R

USB_DP_P016

SSUSB_RXP_R

USB_DM_P016

TP1101

TP1102

TP1104

TP110 3

RXVN_1

+5V_SW

R1101

5K1 1/16W 5%

ZD1107

NC/VPORT0603100KV05

12

SSUSB_RXN_R

C1102 NC/100N F 16V

C1103

100NF 16V

C1105 1UF 6.3V

SSUSB_RXP_R

R1111 2R2 1/16W 5%

USB_DP_P2_R

MT5593FPIJ

U401-9

USB_DP_P0

A16

USB_DM_P0

B16

USB_DP_P1

A17

USB_DM_P1

B17

USB_DP_P2

C31

USB_DM_P2

D31

USB_DP_P3

AA37

USB_DM_P3

AA38

AVDD33_USB

N28

AVDD33_SSUSB

A33

SSUSB_TXP

B34

SSUSB_TXN

A34

SSUSB_RXP

B32

SSUSB_RXN

A32

AVDD10_SSUSB

A31

SSUSB_VRT

A35

USB_VRT_P0

B15

C1101 1UF 6.3V

C1106 100NF 16V

ZD1108

NC/VPORT0603100KV05

12

R1112 2R2 1/16W 5%

USB2.0

USB3.0

CN1102

USB CONN 9P

HAND1

10

HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN

5

RXP

6

GND

7

TXN

8

TXP

9

C1121 1UF 6.3V

C1115

NC/10PF 50V

R1102

5K1 1/16W 5%

C1114

NC/10PF 50V

U519

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

AVDD3V3

TXVP_0

+5V_SW

AVDD1V0

SSUSB_RXP_R

GND5,6,7,8,9,10,11,12,13,14,15,16, 17,19

SSUSB_TXP

USB_DM_P3

USB_DP_P2

USB_DM_P2

SSUSB_RXN

SSUSB_RXP

SSUSB_TXN

USB_DP_P1

USB_DM_P1

USB_DP_P3

Q1101 AO3414

R1119

NC/10K 1/ 10W 5%

WoL_PWR_EN

SSUSB_VRT

USB_DP_P0

1234

CN1101 R/A 6P 1*1

1

2

3

4

65

TXVN_0

R4603

4K7 1/16W 5%

3V3SB

SSUSB_RXN_R

500mA

SSUSB_TXN_R

R1104

NC/0R05 1/16W

U4601

G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

DVDD3V3

RXVP_1

SSUSB_TXN

USB_DP_P3_RUSB_DP_P3

USB_DM_P3

C1111 100NF 16V

R1113 2R2 1/16W 5%

ZD1109

NC/VPORT0603100KV05

12

SSUSB_TXP

R1116

0R05 1/16W

R1114 2R2 1/16W 5%

R1117 0R05 1/16W

ZD1110

NC/VPORT0603100KV05

12

C1117

NC/10PF 50V

C1112 100NF 16V

C1118

NC/10PF 50V

SSUSB_TXP_R SSUSB_TXN_R

1234

CN1103

R/A 6P 1*1

1

2

3

4

65

USB PORT 3

USB_DM_P3_R

+

C1116

NC/100U F 16V

AVDD33_ETH USB_DP_P0

USB_DM_P0

USB PORT 1

USB_DP_P1_R USB_DM_P1_R

RXVN_1

REXT

R4601 24K 1/16W 5%

+

C1113

NC/100UF 16V

MT5593FPIJ

U401-10

TXVP_0

W37

TXVN_0

W38

RXVN_1

Y38

RXVP_1

Y37

PHYLED 1

AA34

PHYLED 0

AB35

REXT

V38

AVDD33_ETH

P29

TXVN_0

RXVN_1TXVP_0

3V3SB

AVDD33_ETH

ETHERNET PHY

RXVP_1

R1115

0R05 1/16W

R1118

0R05 1/16W

SSUSB_RXP

R4602 NC/ 4K7 1/ 16W 5%

WoL_PWR_EN17

WoL_PWR_EN

+5V_SW

t

TH41 02 PTCR

1 2

SSUSB_TXP_R

USB_DM_P2_R

TXVP_0

AVDD33_SSUSB AVDD10_SSUSB

USB_DM_P2

USB_DP_P2

SSUSB_RXN_R

C1109 NC/ 10U F 6. 3V 20%

R11052R2 1/16W 5%

+

C1108

100UF 16V

R11062R2 1/16W 5%

C1110 NC/10UF 6.3V 20%

ZD1102 NC/VPORT0603100KV05

12

C1119 NC/ 10PF 50V

ZD1101 NC/VPORT0603100KV05

12

USB_VRT_P0

C1120

NC/10PF 50V

USB PORT 2

SSUSB_RXN

SSUSB_TXP_R

VBUS2

R4604 100K 1/16W 5%

t

TH41 01 PTCR

1 2

+5V_SW

SSUSB_RXN_R

Circuit Diagrams and PWB Layouts

EN 70QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-15 VCCK & DVSS

20050_523.eps

VCCK & DVSS

B15 B15

2015-12-11

C

715G7030

VCCK & DVSS

MT5593FPIJ

U401-12

VCCK

AA25

VCCK

AA26

VCCK

AA27

VCCK

AB25

VCCK

AB26

VCCK

AB27

VCCK

AC20

VCCK

AC21

VCCK

AC22

VCCK

AC23

VCCK

AC24

VCCK

AC25

VCCK

AC26

VCCK

AC27

VCCK

AD20

VCCK

AD21

VCCK

AD22

VCCK

AD23

VCCK

AD24

VCC3IO_A

F1

VCC3IO_B

AK38

VCCK

AD25

VCCK

AD26

VCCK

AD27

VCCK

AE20

VCCK

AE21

VCCK

AE22

VCCK

AE23

VCCK

AE24

VCCK

AE25

VCCK

AE26

VCCK

AE27

VCCK

V25

VCCK

V26

VCCK

V27

VCCK

W25

VCCK

W26

VCCK

W27

VCCK

Y25

VCCK

Y26

VCCK

Y27

TN_ARMPLL

M14

TP_ARMPLL

N14

NC

A1

NC

A38

NC

AV1

NC

AV38

VCCK

U26

MT5593FPIJ

U401-11

DVSS

AA15

DVSS

AA16

DVSS

AA17

DVSS

AA18

DVSS

AA19

DVSS

AA20

DVSS

AA21

DVSS

AA22

DVSS

AA23

DVSS

AA24

DVSS

AA8

DVSS

AB14

DVSS

AB15

DVSS

AB16

DVSS

AB17

DVSS

AB18

DVSS

AB19

DVSS

AB20

DVSS

AB21

DVSS

AB22

DVSS

AB23

DVSS

AB24

DVSS

AB36

DVSS

AC14

DVSS

AC15

DVSS

AC16

DVSS

AC17

DVSS

AC18

DVSS

AC19

DVSS

AC36

DVSS

AC4

DVSS

AC7

DVSS

AC8

DVSS

AD15

DVSS

AD16

DVSS

AD17

DVSS

AD18

DVSS

AD19

DVSS

AD4

DVSS

AD9

DVSS

AE9

DVSS

AF35

DVSS

AF5

DVSS

AF8

DVSS

AF9

DVSS

AG4

DVSS

AG8

DVSS

AH5

DVSS

AJ36

DVSS

AJ7

DVSS

AK21

DVSS

AK26

DVSS

AK28

DVSS

AL12

DVSS

AL15

DVSS

P19

DVSS

P18

DVSS

P17

DVSS

P16

DVSS

P15

DVSS

N9

DVSS

N23

DVSS

L9

DVSS

M20

DVSS

M21

DVSS

M22

DVSS

M23

DVSS

M31

DVSS

N18

DVSS

N19

DVSS

N20

DVSS

N21

DVSS

P20

DVSS

P21

DVSS

P22

DVSS

P23

DVSS

P24

DVSS

P6

DVSS

R15

DVSS

R16

DVSS

R17

DVSS

R18

DVSS

R19

DVSS

R20

DVSS

R21

DVSS

R22

DVSS

R23

DVSS

R24

DVSS

T15

DVSS

T16

DVSS

T17

DVSS

T18

DVSS

T19

DVSS

T20

DVSS

T21

DVSS

T22

DVSS

T23

DVSS

T24

DVSS

T3

DVSS

T8

DVSS

T9

DVSS

U15

DVSS

U16

DVSS

U17

DVSS

U18

DVSS

U19

DVSS

U20

DVSS

U21

DVSS

U22

DVSS

U23

DVSS

U24

DVSS

U3

DVSS

U32

DVSS

V15

DVSS

V16

DVSS

V17

DVSS

V18

DVSS

V19

DVSS

V20

DVSS

V21

DVSS

V22

DVSS

V23

DVSS

V24

DVSS

W14

DVSS

W15

DVSS

AL5

DVSS

AM10

DVSS

AM11

DVSS

AM12

DVSS

AM13

DVSS

AM15

DVSS

AM16

DVSS

AM17

DVSS

AM9

DVSS

AN3

DVSS

AN7

DVSS

AN8

DVSS

AP21

DVSS

AP23

DVSS

AP24

DVSS

AP26

DVSS

AP27

DVSS

AP28

DVSS

AP29

DVSS

AP31

DVSS

L31

DVSS

W16

DVSS

W17

DVSS

W18

DVSS

AP34

DVSS

AR11

DVSS

AR16

DVSS

AR19

DVSS

AT4

DVSS

AT7

DVSS

B31

DVSS

B33

DVSS

W19

DVSS

W20

DVSS

W21

DVSS

W22

DVSS

W23

DVSS

W24

DVSS

W3

DVSS

W6

DVSS

W8

DVSS

Y14

DVSS

Y15

DVSS

Y16

DVSS

Y17

DVSS

Y18

DVSS

Y19

DVSS

Y20

DVSS

Y21

DVSS

B37

DVSS

C17

DVSS

C19

DVSS

C20

DVSS

E22

DVSS

E26

DVSS

F9

DVSS

G5

DVSS

J3

DVSS

J31

DVSS

Y23

DVSS

Y24

DVSS

Y7

DVSS

Y8

DVSS

J6

DVSS

K6

DVSS

K9

DVSS

F12

DVSS

Y22

VCCKVCCK

VCC3IO_AB

VCC3IO_A VCC3IO_B

GND5,6,7,8,9,10,11,12,13,14,15,16,17,18

GND

Circuit Diagrams and PWB Layouts

EN 71QM16.4E LA 10.

2016-Apr-1

back to

div.table

20050_524.eps

2015-10-13

C

LAYOUT TOP

715G7030

U401

L4201

C4224

CN409

C649

C655

C755

C760

C1108

C1113

C1116

C1554

C4012

C706

C752

C770

C774C775

FB1001

FB714

FB203

FB210

FB214

FB400

FB401

FB631

FB633

FB705

FB710

FB712

FB754

FB755

L701

R405

R4102

R4106

R729

R740

R751

R752

R753

D503

D504

D505

D633

ZD4101

ZD4102

ZD4103

ZD501

ZD502

ZD503

ZD750

ZD751

FB711

C762

FB713

C712

C720

C731

C767

L705

D4601

C4234

C4236

C4206

C4207

C4208

C4209

C4211

C4212

C4237

C4222

C4215

C4295

C4282

C4290

C4309

C419

C4239

C4227

C4228

C4230

C4284

C1030

C4232

C4015

C4002

C4225

C4327

C1029

C1031

C1032

C1033

C1109

C1110

C1403

C212

C259

C260

C4001

C4008

C4027

C4106

C4107C4113

C4115

C4117

C417

C4233

C645

C647

C650

C653

C656

C659

C663

C665

C668

C700

C710

C715

C750

C751

C766

C777

C637

C643

C654

C661

C4226

C4608

C707

C716

X4000

R634

R640

R772

R773

F1401

C4243

C4241 C4242

C4245

C708

C709

C4297

C4332

FB715

R1119

CN4602

CN1003

CN1005

CN4100

C509

C4223

C4214

C4007

C4258

C4259

C4303

C1400

C4325

C220

C401

C510

C660

C673

C727

C737

C749

C768 C769

C776

C742

C1408

CN408

R411

R766

C732

C733

C736

C738

TH4101

TH4102

TH4103

CN501

CN502

CN504CN505

C771

C788

C701

C702

C704

C705

C728

C764

C773

C779

C780

C781

C786

C787

C789

FB706

M1

M2

M3

M4

C5

C6

C11

SG4

SG5

SG6

SG7

SG8SG9

SG10

SG11

SG12

SG13

SG14

SG15

SG16

SG17

SG18

SG19

SG20

SG21

SG22

SG2

TP1512

SCREW1

SCREW2

MTP1

MTP10

MTP100

MTP101

MTP102

MTP103

MTP104

MTP105

MTP106

MTP107

MTP108

MTP109

MTP11

MTP110

MTP111

MTP112

MTP113

MTP114

MTP115

MTP116

MTP117

MTP118

MTP119

MTP12

MTP120

MTP13

MTP14

MTP148

MTP149

MTP15

MTP150

MTP151

MTP152

MTP153

MTP154

MTP155

MTP156

MTP157

MTP158

MTP159

MTP16

MTP160

MTP161

MTP162

MTP163

MTP164

MTP165

MTP166 MTP167

MTP168 MTP169

MTP17

MTP18

MTP19

MTP2

MTP20

MTP21

MTP22

MTP3

MTP4

MTP50

MTP51

MTP53

MTP54

MTP56

MTP57

MTP58

MTP59

MTP6

MTP60

MTP63

MTP64

MTP65

MTP70

MTP71

MTP8

MTP9

MTP197

MTP198

MTP199

MTP200

MTP201MTP202

MTP203

MTP204

MTP205

MTP206

MTP207

MTP208

MTP209

MTP210

MTP211

MTP212

MTP213

MTP214

MTP215

MTP216

MTP217

MTP218

MTP219

MTP220

MTP221

MTP222

MTP223

MTP228

MTP229

MTP231

MTP232

MTP233

MTP234

MTP235

MTP236

MTP237

MTP238

MTP239

MTP240

MTP241

MTP242

MTP244

MTP245

MTP246

MTP230

MTP279

MTP284

MTP226

MTP227

MTP243

MTP273

MTP274

MTP275

MTP276

MTP277

MTP278

MTP280

MTP281

MTP282

MTP283

MTP5

MTP52

MTP55

MTP61

MTP62

MTP66

MTP67

MTP68

MTP69

MTP7

MTP89

MTP99

TP5

TP3

TP4

TP1

TP2

TP7

TP6

TP12

TP11

TP10

TP8

TP9

TP13

TP14

TP15

TP19

TP18

TP17

TP16

TP20

TP21

TP22

TP23

TP25

TP24

TP26

U519

C4246

R4267

R4268

C4247

U507

CN1404

D703

D704

D750

D751

D752

Q750

U4052

L702

CN402

U506U508

U509U510

U511

U512U513U514

U515U516

U517

U409

U703

U501

Q502

Q707

D4000

D4001

Q751

Q400

Q501

Q503

Q504

Q505

Q507

Q700

Q508

Q634

U705

U701

U518

SEN1

SEN2

SEN3

SEN4

Q506

Q509

Q510

ZD504

U4601

C1

C2

C4C3

L630

L632 L633

L631

CN4250

D506

U406

U708

U601

U710

U711

U707

U1401

U704

R1016

R4202

R4201

R4215

R4216

R4218

R4217

R4219

R4252

R4263

R4259

R4253

R4262

R4258

R4264

R4209

R4210

R4251

R4256

R4301

R4307

R4308

R4309

R4310

R459

R4211

R4254

R4257

R4255

R4204 R4206

R4260

R4261

R4203

R4208

R4212

R4304

R4305

R4306

R4302

R4303

R1001

R1002

R1003

R1005

R1006

R1008

R1011

R1012

R1014

R1017

R1020

R1022

R1023

R1024

R1026

R1027

R1028

R1029

R1030R1031

R1032

R1033

R1036

R1037

R1101

R1111

R1112

R1113

R1114

R1138

R1139

R1140

R1141

R1142

R1401 R1402 R1403

R1506

R1507

R1508

R1509

R1510

R1511

R1512

R1513

R1514

R1515

R1516

R1517

R1518

R1519

R1520

R1521

R1522

R1523

R1524

R1525

R1526

R1527

R1528

R1529

R1530

R1531

R1532

R1534

R1535

R201

R202

R203

R204

R205

R206

R207

R208

R209

R210 R211

R212

R213

R215

R216

R217

R218

R219

R220

R221

R222

R223

R224

R227

R228

R229

R4003

R4004

R4007

R4008 R4009

R4017R4020

R4023

R4024

R4025

R4026

R4053

R4054

R4055

R4056

R407

R408

R409

R410

R4100

R4114

R4115R4117

R4118

R4119

R4121

R4122

R414

R415

R416

R4272 R4274

R4275

R4276

R4292

R4293

R4294

R4295

R4296

R4299 R4300

R4312

R4313

R4314

R4315

R4329

R434

R435

R437

R440

R447

R559

R454 R455

R502

R503

R504

R505

R506

R510

R511

R512

R513 R514

R515 R516

R518R519

R520

R521

R522

R523 R524

R553

R555

R556

R557 R558

R560

R584

R562

R563

R564

R565

R566

R567

R569

R570

R585

R572

R578

R586

R580

R581

R630

R631

R632

R633

R635

R636

R637

R638

R643

R644

R645

R646

R647

R650

R651

R653

R654

R659

R661

R662

R663

R666

R667

R668

R701

R702

R705

R706

R707

R708

R710

R712

R713

R714

R715

R716

R717

R719

R728

R730

R731 R732

R733

R734

R735

R737

R738

R750

R759

R760

R763

R768

R769

R774

R775

R776

R777

R4032

R423

R1404

R1405

R429

R430

R470

R471

R466

R467

R438

R439

R472

R431

R432

R4321

R4322

R444

R445

R448

R449

R460

R4602

R461

R462

R463

R464

R465

R468

R469

R473

R490

R491

R561

R571

R579

R780

R427

R4130

R4131

R4132

R4282

R230

R232

R255

R450

R587R588

R4271

R575

R576

R573

R574

R4603

R239

R720

R721

R676

R703

R711

R428

R4213

R722

R406

R433

R436

R441

R442

R1406

R1407

R4604

R4605

R418

R492

R493

C1024

C4210

C4213

C4235

C4219

C4217

C4220

C4218

C4216

C4221

C4280

C4292

C4288

C4289

C4293

C4287

C4296

C4285

C4294

C4291

C4286

C4201

C4202

C4252

C4251

C4301

C4260

C4262

C4265

C4271

C4268

C4278

C4274

C4283

C4281

C4255

C4257

C4264

C4261

C4270

C4267

C4276

C4306

C4310

C4305

C4308

C4304

C4328

C4312

C4313

C4314

C4315

C4316

C4317

C4318

C4014

C4013

C420

C4240

C4229

C4231

C4204

C4203

C418

C4253

C4238

C4302

C4311

C4322

C4324

C4319

C4321

C1008

C1009

C1010

C1011

C1012

C1013

C1014

C1015

C1016

C1017

C1018

C1019

C1020

C1021

C1022

C1023

C1025

C1026

C1027

C1028

C1103

C1114

C1115

C1117 C1118

C1121

C1401

C1404

C1405

C1505

C1506

C1507

C1508

C203

C204

C205

C206

C207

C208 C209C210C211

C213

C214

C215

C216

C218

C219

C221

C222

C239

C4005

C4006

C4020

C4030

C4036

C4116

C4244

C4272

C4601

C4602 C4603

C4604

C4605

C4606

C501

C502

C514

C515

C516

C630

C631

C632

C633

C634

C635

C638

C642 C644

C646

C648

C651

C652

C657

C658

C662

C664

C670

C671

C674

C675

C703

C713

C714

C717

C718

C721

C726

C729

C730

C743

C744

C754

C758

C759

C761

C763

C765

C772

C433

C431

C437

C435

C409

C410

C413

C414

C411

C412

C415

C416

C423

C424

C425

C426

C427

C428

C429

C430

C432

C434

C436

C438

C739

C782

C441

C442

C746

C4299

C4300

C4329

C723

C1402

C1406

C1407

ZD1006

ZD1107ZD1108

ZD1109

ZD1110

ZD1001

ZD1002

ZD1003

ZD1005

CN403

ZD1004

U4251

R452

R453

R456

L401

L402

ZD1009

ZD1010

ZD1011

R4002

ZD1014

R4120

CN159

CN1006

CN4601

CN401

CN601

CN700

CN1002

CN412

TU203 TU201

TU202

TU204

C666

R675

U712

CN604

CN1001

C511

FB504

R536

L750

U751

CN1102

CN1101

CN1103

ZD1007

ZD1008

ZD1012

ZD1013

ZD4004

ZD4005

ZD600

ZD601

C4249 C4248

C711

R1034

R726

CN1004

U402U403

U404

U405

HS401

10-4-16 SSB layout top

Circuit Diagrams and PWB Layouts

EN 72QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-4-17 SSB layout bottom

20050_525.eps

2015-10-13

C

LAYOUT BTM

715G7030

C722

C735

FB1550

FB211

FB4250

R402

R4027 R4028

R403

R4051 R4052

R443

R214

R226

C1004

C4254

C1551

C4016

C4022 C4023

C4028 C4029

C4033

C439

C440

C4250

C4330

C4331

C1036

X201

C1553

C400

C4277

TP1001

TP1505

TP1506

TP1507

TP1508

TP4009

TP4010

TP700

TP701

TP702

TP704

TP705

TP706

TP710

TP501

TP502

TP503

TP504

TP4011

TP464

TP1509

TP465

TP466

TP467

TP424

TP425

TP426

TP427

TP428

TP429

TP432

TP433

TP434

TP435

TP436

TP437

TP438

TP439

TP440

TP441

TP444

TP445

TP446

TP447

TP4003

TP1511

TP1101

TP1102

TP1103

TP1104

MTP224

MTP225

TP1002

TP430

TP431

TP442

TP443

U201

U102

U4250

U502

Q401

U410

C7

C8

C9

C10

U4101

Q4101

Q4102

Q4100

U407

RP201

RP202

RP4001

RP4002

U1101

Q1101

Q201

Q631

Q635

Q636

Q632Q633

R4214

R4205

R1004

R1102

R1105

R1106

R1115

R1116

R1117

R1118

R1553

R1554

R1555

R225

R231

R233

R234

R235

R237

R238

R240

R242

R244

R245

R248

R252

R400

R4005

R401

R4010

R4011

R4012

R4013

R4014

R4015

R4016

R4018

R4019R4021

R4022

R4030

R4031

R4033

R4034

R4035

R4036

R4037

R4038

R4039

R404

R4040

R4041

R4042

R4250

R4265

R4266

R4269

R4280

R4601

R501

R1103

R528

R529

R530

R531

R639

R641

R642

R649

R652

R655

R656

R657

R658

R664

R665

R669

R671

R672

R673

R674

R4029

R421

R422

R425

R4287R4284

R4285

R4286

R577

R4148

R4149

R4151

R4153

R4154

R4157

R4169

R446

R426

R4006

R4043

R4045

R4046

R1104

R236

R4290R4291

R424

R1533 R1536

R4207

C4307

C1001

C1002

C1003

C4009

C4205

C422

C4263

C4269

C4273

C4275

C4279

C4256

C4326

C4320

C4323

C1005

C1006

C1007

C1101

C1102

C1105

C1106

C1111

C1112

C1119C1120

C1501

C1502

C1504

C1582

C201C202

C217

C224

C225

C227C228

C231

C232

C233

C234

C235

C236

C237

C238

C242

C243

C244

C245

C246

C247

C248

C240

C250

C254

C255

C258

C4010

C4011

C4017

C4018

C4019

C4021

C4024

C4025

C4026

C4031

C4032

C4035

C421

C4298

C4607

C503

C504

C505

C636

C639

C640

C641

C724

C725

C4124

C4125

C1034

C1035

C4266

C249

C251

ZD1101

ZD1102

R451

C4034

R4281

C506

C507

C508

FB501

FB502

FB503

R532

R533

R534

R535

Circuit Diagrams and PWB Layouts

EN 73QM16.4E LA 10.

2016-Apr-1

back to

div.table

10.5 J 715G8009 IR/LED Panel

20050_526.eps

IR & LED & Light Sensor

J J

2015-08-26

715G8009

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/16W 5%

R203

NC/ 2K7 1/ 16W 5%

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221 NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC/ 0R 05 1/ 16W

Light Sensor

R222

NC/ 10K 1/ 16W 5%

C222 NC/ 1uF 10V

R221

NC/ 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC/ 0R 05 1/ 16W

JSA-1130

R223R224

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 NC/ 100N 16V

LS_SDA LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201 BC847BW

LED_R

R201 100R 1/16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

CN201

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

3V3SB

10-5-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 74QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-5-2 IR/LED board layout

20050_527.eps

2015-08-27

715G8009

IR/LED panel

layout top/bottom

U201

CN201

R204

R202

R203

Q201

Q1

Q3

C201

C202

ZD201

U221

LED201

C221

C222

R201

R221

R222

R223

R224

Q2

Q4

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 75QM16.4E LA 10.

2016-Apr-1

back to

div.table

10.6 J 715G8010 IR/LED Panel

20030_547.eps

IR & LED & Light Sensor

J J

2015-08-26

715G8010

IR & LED & Light Sensor

C201

1uF 10V

St andby LED

3V3SB

R204

100R 1/16W 5%

R203

NC/ 2K7 1/16W 5%

RC-IR

3V3SB

LS_SDA

LS_SCL

DVD3V3

LED201

GPSS008RC4

12

Red

DVD3V3

U221 NC/ JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R224

NC/ 0R 05 1/ 16W

Light Sensor

R222

NC/ 10K 1/ 16W 5%

C222 N C / 1uF 10V

R221

NC/ 10K 1/ 16W 5%

LS_SCL

LS_SDA

R223

NC/ 0R 05 1/ 16W

JSA-1130

R224 R223

JSA-1130NCNC 0R

0R

I2C addr

0x45

0x44

C221 N C / 100N 16V

LS_SDA LS_SCL

DVD3V3

C202

1uF 10V

IR Receiver

3V3SB

R202

1K 1/16W 5%

LED_R

Q201 BC847BW

LED_R

CN201

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

R201 100R 1/16W 5%

ZD201

MLVG0402

12

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

3V3SB

10-6-1 IR & LED & Light Sensor

Circuit Diagrams and PWB Layouts

EN 76QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-6-2 IR/LED board layout

20030_548.eps

2015-08-27

715G8010

IR/LED panel

layout top/bottom

R204

R202

CN201

R203

Q201

H7

H9

U201

C201 C202

ZD201

R221

R222

C221

C222

U221

R224 R223

R201

LED201

H8

H10

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 77QM16.4E LA 10.

2016-Apr-1

back to

div.table

10.7 J 715G7785 IR/LED Panel

20040_530.eps

LED&IR&3D&Light sensor

J J

2015-08-24

715G7785

LED&IR&3D&Light sensor

LED_R

3D_L/R

RC-IR

LS_SCL LS_SDA

Gaming

LED_R

LOGO

LS_SDA

LS_SCL

LS_SDA

3D-GOGGLESGaming

N17393062

3D_L/R

N17310747

RC-IR

IR power

RC-IR

3D-GOGGLES

IR power

RC-IR

IR power

RC-IR

3V3SB DVD3V3

3V3SB

+12V

3V3SB

DVD3V3DVD3V3

+12V

3V3SB3V3SB

Red

Lighting LOGO

Active 3D

Light Sensor

Digital Light Sensor

JSA-1130

R224 R223

I2C addr

0R

0RNC

NC 0x44

0x45

S

t

a

n

d

b

y

L E

D

IR Receiver

NT-3D-IR(for Marvell)

3D/IR de-interference

C241

NC/1uF 6.3V

C241

NC/1uF 6.3V

R255

NC/56KOHM 1/16W

R255

NC/56KOHM 1/16W

R245

NC/2K7 1/16W 5%

R245

NC/2K7 1/16W 5%

R232

2R2 1/16W 5%

R232

2R2 1/16W 5%

LED214

GPTS12048PB1

LED214

GPTS12048PB1

1 2

3

LED211

GPTS12048PB1

LED211

GPTS12048PB1

1 2

3

R244

NC/5K6 1/16W 5%

R244

NC/5K6 1/16W 5%

U221 JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

LED232

CHIP LED WHITE 99-113UNC/2223010/TR8

LED232

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

Q241

NC/BC847BW

Q241

NC/BC847BW

1

3

2

C252

NC/22uF 6.3V

C252

NC/22uF 6.3V

R241

NC/100K 1/16W

R241

NC/100K 1/16W

U212

TSOP75436TR

U212

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

C251

NC/22uF 6.3V

C251

NC/22uF 6.3V

C242

NC/1uF 6.3V

C242

NC/1uF 6.3V

R200

0R05 OHM

R200

0R05 OHM

LED253

NC GPTS12048IRC8-R

LED253

NC GPTS12048IRC8-R

12

3

U211

VSOP58436

U211

VSOP58436

NC

1

VS

2

OUT

3

NC4NC

5

GND

6

IN

7

GND

8

E-PAD

9

R243

NC/10K 1/16W 5%

R243

NC/10K 1/16W 5%

R201 100R 1/16W 5%

R221

10K 1/16W 5%

R221

10K 1/16W 5%

ZD1

AZ5125-01H.R7G

ZD1

AZ5125-01H.R7G

12

R212

10R 1/16W 5%

R212

10R 1/16W 5%

C211

1UF 6.3V

C211

1UF 6.3V

R253

NC/1K 1/16W 5%

R253

NC/1K 1/16W 5%

LED213

GPTS12048PB1

LED213

GPTS12048PB1

1 2

3

R254

NC/1K 1/16W 5%

R254

NC/1K 1/16W 5%

R202

1K 1/16W 5%

R202

1K 1/16W 5%

Q201 BC847BW

R242

NC/100R 1/16W 1%

R242

NC/100R 1/16W 1%

R223

NC/0R05 1/16W

R223

NC/0R05 1/16W

R231

1K 1/16W 5%

R231

1K 1/16W 5%

R211

100R 1/16W 5%

R211

100R 1/16W 5%

U213

TSOP75436TR

U213

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

LED231

CHIP LED WHITE 99-113UNC/2223010/TR8

LED231

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

Q231 BC847BW

R251

NC/13ohm 1%

R251

NC/13ohm 1%

Q243

NC/BC857BW

Q243

NC/BC857BW

1

23

R252

NC/13ohm 1%

R252

NC/13ohm 1%

C210

NC/ 1UF 6.3V

C210

NC/ 1UF 6.3V

CN201CN201

1 2

3

4 5 6 7

8

9 10 11 12 13

1415

C221 100N 16VC221 100N 16V

Q242

NC/BC857BW

Q242

NC/BC857BW

1

23

LED212

GPTS12048PB1

LED212

GPTS12048PB1

1 2

3

Q251

NC/AO3414

Q251

NC/AO3414

C222 1uF 10VC222 1uF 10V

LED215

GPTS12048PB1

LED215

GPTS12048PB1

1 2

3

R233

2R2 1/16W 5%

R233

2R2 1/16W 5%

LED201

GPSS008RC4

LED201

GPSS008RC4

12

R246

NC/1K 1/16W 5%

R246

NC/1K 1/16W 5%

R224

0R05 1/16W

R224

0R05 1/16W

R222

10K 1/16W 5%

R222

10K 1/16W 5%

LED233

CHIP LED WHITE 99-113UNC/2223010/TR8

LED233

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

LED234

CHIP LED WHITE 99-113UNC/2223010/TR8

LED234

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

LED252

NC GPTS12048IRC8-R

LED252

NC GPTS12048IRC8-R

1 2

3

C253

NC/0.01uF 25V

C253

NC/0.01uF 25V

LED251

NC GPTS12048IRC8-R

LED251

NC GPTS12048IRC8-R

1 2

3

10-7-1 LED&IR&3D&Light sensor

Circuit Diagrams and PWB Layouts

EN 78QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-7-2 IR/LED board layout

20040_531.eps

2015-07-28

715G7785

IR/LED panel

layout top/bottom

U221

LED201

LED231LED232 LED233 LED234

C211

U211

R211

Q1

Q3

LED211

LED212 LED213LED251 LED252 LED253

C221

C222

C241

C242

C253

C251

C252

CN201

R201

R202

R212

R221

R222

R223

R224

R231

R232

R233

R241

R242

R243

R244

R245

R246

R253

R254

R255

R251 R252

Q251

Q201

Q231

Q241

Q242

Q243

Q2

Q4

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 79QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19791_502.eps

Key

E E

2014-05-28

1

715G7088

Keyboard control panel

KEY1

Left

Right

----><----|

Down

Up

Center

CN01

CONN

CN01

CONN

1 2

34

C04

NC/100N 50V

C04

NC/100N 50V

R03

6K8 1/10W 1%

R03

6K8 1/10W 1%

C01

NC/100N 50V

C01

NC/100N 50V

R05

15K 1/10W 1%

R05

15K 1/10W 1%

R01

1K2 1/10W 1%

R01

1K2 1/10W 1%

C06

0.1uF 50V

C06

0.1uF 50V

C03

NC/100N 50V

C03

NC/100N 50V

F5

F3

F1

F4

F2

SW01

TACT SW 6P

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3

4

2

1

6 5

7

8

C02

NC/100N 50V

C02

NC/100N 50V

R04

2K2 1/10W 1%

R04

2K2 1/10W 1%

R02

0R05 1/10W

R02

0R05 1/10W

C05

NC/100N 50V

C05

NC/100N 50V

10.8 E 715G7088 Keyboard control panel

10-8-1 Key

EN 80QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19791_503.eps

2014-06-06

1

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05 C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-8-2 Key board layout

EN 81QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19792_510.eps

Key

E E

2014-08-26

1

715G7118

KEY

C07

1UF 10% 16V

+12V_AMBI

C08

1UF 10% 16V

AMBI_SPI_MOSI

KEY1

+3V3_AMBI

Menu Right Left Down Up

GND_AL

C09

NC/ 100PF 50V

CONN TO SSB

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

R01

1K2 1/10W 1%

3-5 short

C10

NC/ 100PF 50V

1-5 short 4-5 short

F2

F5

F3

F1

F4

F2

SW01

TAC T S W 6 P

3 4

2

1 6

5

7

8

F3 F4 F5

C11 N C / 100PF 50V

R05

15K 1/10W 1%

R03

6K8 1/10W 1%

Direction switch

----><----|

C06

0.1uF 50V

Joystick circuit diagram

pin1

0V

0.5V

AMBI_SPI_CLK

0.81V

1.65V

2.27V

CN02

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

AMBI_SPI_MOSI

pin2

No functi on

pin3

3.3V

C04

NC/ 100N 50V

pin4

C05

NC/ 100N 50V

pin5 pin6

AMBI_TEMP +3V3_AMBI

----><----|

C01

NC/ 100N 50V

C02

NC/ 100N 50V

C03

NC/ 100N 50V

----><----|

Center

Up

Down

+12V_AMBI

----><----|

GND_AL

R02

0R05 1/10W

GND_AL

0R

2K2

ResistanceKey function

Center

CH-

CH+ 1K2

VOL+

VOL-

AMBI_TEMP

GND_AL

AMBI_SPI_CLK

Left

6K8 15K

Right

TO AMBI LIGHT (AL2/AL3)

CN01

CONN

1 2 3 4 5 6 7 8 9 10

1112

Voltage

JOYSTICK

10.9 E 715G7118 Keyboard control panel

10-9-1 Key

EN 82QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19792_511.eps

2014-11-06

1

715G7118

Keyboard control panel

layout top/bottom

SW1

SW26

C07

C08

C09

C10

C11

SW3

SW4

CN02

SW7

SW8

SW9

SW10

SW11

SW12

C01

C02

C03

C04

C05

C06

CN01

R01 R02

R03

R04

R05

SW01

SW5

SW6

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-9-2 Key board layout

EN 83QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19884_500.eps

TCL5971

AL01 AL01

2014-05-08

715G7037

TCL5971

SDI-BUF SCKI-BUF

SCKI-BUF

SDI-BUFSDI

SCKI

PWM2-R1

PWM2-G1

PWM2-B1

PWM2-R2

PWM2-G2

PWM2-B2

AMBI-TEMP

SCKI

T+

SDI +12V

PWM2-R3

AMBI-TEMP +3V3AL

+3V3 GND

SCKI-BUF

T+

PWM2-R4

PWM2-G4

PWM2-B4

PWM2-R3

PWM2-G3

PWM2-B3

PWM2-G3 PWM2-B3 PWM2-R4

PWM2-G4

PWM2-B4

AMBI-TEMP

SCKI SDI

PWM2-R3

PWM2-G3

PWM2-B3

PWM2-R4

PWM2-G4

PWM2-B4

+12V

+3V3

+3V3AL

+3V3 +3V3AL

+3V3

+12V

+3V3

+12V

PWM2-R1 3 PWM2-G1 3 PWM2-B1 3

PWM2-R2 3 PWM2-G2 3 PWM2-B2 3

Test Pad

C004

1uF 10V

C004

1uF 10V

F012F012

C002

100N16V

C002

100N16V

S007

NC/0R05 1/16W

S007

NC/0R05 1/16W

R011

10K 1%

R011

10K 1%

F001F001

S001

NC/0R05 1/16W

S001

NC/0R05 1/16W

C001

100N16V

C001

100N16V

F005F005

R007

3K3 1%

R007

3K3 1%

R012

27K 1/16W 5%

R012

27K 1/16W 5%

R003

10K 1/16W 5%

R003

10K 1/16W 5%

t

R009

NC/10K

t

R009

NC/10K

12

XA05

CONN

XA05

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

C007

10PF 50V

C007

10PF 50V

X000X000

1

2 4

3

C006

10PF 50V

C006

10PF 50V

F008F008

S002 NC/0R05 1/16WS002 NC/0R05 1/16W

C003 100N16VC003 100N16V

S008

0R05 1/16W

S008

0R05 1/16W

F004F004

R010

18Kohm 1/16W +/-1%

R010

18Kohm 1/16W +/-1%

F116F116

F007F007

XA02

CONN

XA02

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

2728

F015F015

S006

0R05 1/16W

S006

0R05 1/16W

F009F009

F014F014

F006F006

F010F010

F011F011

U002

TLC5971RGER

U002

TLC5971RGER

SDTI

1

SCKI

2

NC(1)

3

NC

4

SCKO

5

SDTO

6

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

VCC

13

NC

14

VREG

15

IREF

16

NC

17

GND

18

OUTR0

19

OUTG0

20

OUTB0

21

OUTR1

22

OUTG1

23

OUTB1

24

E-Pad

25

R006

100OHM1/16W

R006

100OHM1/16W

F013F013

F002F002

R005

100OHM1/16W

R005

100OHM1/16W

R001 1.2K OHM 1/16W 1%R001 1.2K OHM 1/16W 1%

D100

LBAT54HT1G

D100

LBAT54HT1G

1 2

F003F003

U001

LMV321IDCKR

U001

LMV321IDCKR

1IN+

1

GND

2

1IN-

3

OUT

4

VCC+

5

R004

10K 1/16W 5%

R004

10K 1/16W 5%

t

R008

10K 1%

t

R008

10K 1%

12

10.10 AL 715G7037 Ambilight Board

10-10-1 TCL5971

EN 84QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19884_501.eps

Ambilight 5-LED Master Clockwise

AL02 AL02

2014-05-08

715G7037

Ambilight 5-LED Master Clockwise

PWM2-R1

PWM2-B1

PWM2-G1

PWM2-R2

PWM2-B2

PWM2-G2

+12V

PWM2-B1 2

PWM2-G1 2

PWM2-R1 2

PWM2-B2 2

PWM2-G2 2

PWM2-R2 2

R015 560RR015 560R

1 2

3

4

8

7 6 5

Red BlueGreen

D003

P5018/RSSGBB7-2K14

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D001

P5018/RSSGBB7-2K14

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R014

22R

R014

22R

1 2

3

4

8

7 6 5

C010

100N16V

C010

100N16V

C011

NC/100NF 50V

C011

NC/100NF 50V

Red BlueGreen

D005

P5018/RSSGBB7-2K14

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

C009

NC/100NF 50V

C009

NC/100NF 50V

Red BlueGreen

D002

P5018/RSSGBB7-2K14

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D004

P5018/RSSGBB7-2K14

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R013

180R

R013

180R

1 2

3

4

8

7 6 5

R016 560RR016 560R

1 2

3

4

8

7 6 5

C008

100N16V

C008

100N16V

10-10-2 Ambilight 5-LED Master Clockwise

EN 85QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-10-3 Ambilight Board layout

19884_502.eps

1

2014-10-21

715G7037

Ambilight Board

layout top/bottom

XA2

D001 D002 D003 D004 D005

XA1

XA5

XA6

D100

X000

C009

C011

F001

F002

F003

F004

F005

F006F007

F008

F009

F010

F011 F012 F013 F014 F015

F116

R013

R015R014

R016

U001

U002

XA02

XA3

XA4

XA05

C001

C002

C003

C004

C006

C007

C008

C010

R001

R003

R004

R005

R006

R007

R008

R009

R011

R012

S001

S002

S006

S007

S008

R010

Layout

Amblilight Board

(top side)

Layout

Amblilight Board

(bottom side)

Circuit Diagrams and PWB Layouts

EN 86QM16.4E LA 10.

2016-Apr-1

back to

div.table

Circuit Diagrams and PWB Layouts

19884_503.eps

Ambilight 5-LED Slave Clockwise

AL AL

2014-05-08

715G7038

Ambilight 5-LED Slave Clockwise

PWM2-R4

PWM2-B4

PWM2-G4

PWM2-G3

PWM2-B3

PWM2-R4

PWM2-G4

+12V

PWM2-B4

PWM2-R3

GND

PWM2-R3

PWM2-B3

PWM2-G3

PWM2-R3 PWM2-G3 PWM2-B3 PWM2-R4 PWM2-G4 PWM2-B4

+12V

Test Pad

C010

100N16V

C010

100N16V

F012F012

Red BlueGreen

D001

P5018/RSSGBB7-2K14

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

F014F014

XA03

CONN

XA03

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

C009

NC/100NF 50V

C009

NC/100NF 50V

C011

NC/100NF 50V

C011

NC/100NF 50V

R013

22R

R013

22R

1 2

3

4

8

7 6 5

Red BlueGreen

D005

P5018/RSSGBB7-2K14

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

F008F008

F010F010

Red BlueGreen

D003

P5018/RSSGBB7-2K14

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

F003F003 F116F116

F004F004

F011F011

R015 560RR015 560R

1 2

3

4

8

7 6 5

R014

180R

R014

180R

1 2

3

4

8

7 6 5

Red BlueGreen

D002

P5018/RSSGBB7-2K14

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

F007F007

Red BlueGreen

D004

P5018/RSSGBB7-2K14

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

F006F006

F013F013

F005F005

F002F002F009F009

R016 560RR016 560R

1 2

3

4

8

7 6 5

F015F015

F001F001

C008

100N16V

C008

100N16V

X000X000

1

2 4

3

10.11 AL 715G7038 Amiblight Board

10-11-1 Ambilight 5-LED Slave Clockwise

EN 87QM16.4E LA 10.

2016-Apr-1

back to

div.table

10-11-2 Ambilight Board layout

19884_504.eps

1

2014-10-21

715G7038

Ambilight Board

layout top/bottom

X000

C009

C011

F001

F002

F003

F004

F005

F006F007

F008

F009

F010

F011 F012 F013 F014 F015

F116

R013

R015

R014 R016

XA3

XA4

XA03

C008

C010

XA2

D001 D002 D003 D004 D005

XA1

XA5

XA6

Layout

Amblilight Board

(top side)

Layout

Amblilight Board

(bottom side)

Circuit Diagrams and PWB Layouts

EN 88QM16.4E LA 10.

2016-Apr-1

back to

div.table

11. Styling Sheets

20050_800.eps

5501 series 32"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel 0040 Rear cover 0050 Stands 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

Pos No. Description Remarks

0040

1184

0030

1054

1050

1184

1057

0095

WIFI01

0050

1053

1056

11.1 5501 series 32"

Styling Sheets

EN 89QM16.4E LA 11.

2016-Apr-1

back to

div.table

11.2 6401 series 32"

20050_803.eps

6401 series 32"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel 0040 Rear cover 0050 Stand 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1061 LED Modules 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

Pos No. Description Remarks

0040

1062

1061

1184

0030

1054

1050

0050

1184

1057

0095

WIFI01

0050

1053

1056

Styling Sheets

EN 90QM16.4E LA 11.

2016-Apr-1

back to

div.table

11.3 5501 series 40"

20050_801.eps

5501 series 40"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel 0040 Rear cover 0050 Stand 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

Pos No. Description Remarks

0040

0030

1054

1050

1056

1184

1057

0095

0050

WIFI01

1053

Styling Sheets

EN 91QM16.4E LA 11.

2016-Apr-1

back to

div.table

11.4 5501 series 49"

20050_802.eps

5501 series 49"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel 0040 Rear cover 0050 Stand 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers WiFi01 WiFi_USB

Pos No. Description Remarks

0040

0030

0050

1184

1054

1050

1056

1184

1057

0095

0050

WIFI01

1053

Styling Sheets

EN 92QM16.4E LA 11.

2016-Apr-1

back to

div.table

Philips 40PFT5501 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Page Contents Page

1. Revision List

2. Technical Specs, Diversity, and Connections

2.1 Technical Specifications

2.2 Directions for Use

Table 2-1 Described Model Numbers and Diversity

2.3 Connections

2.3.1 Side Connections

Figure 2-1 Connection overview

1 - Cinch: Digital Audio - Out

2 - USB3 2.0

Figure 2-2 USB (type A)

3 - USB2 2.0

Figure 2-3 USB (type A)

4- HDMI ARC/MHL: Digital Video - In, Digital Audio with ARC - In/Out

Figure 2-4 HDMI (type A) connector

Figure 2-5 HDMI (type A) connector

6- Head phone (Output)

2.3.2 Rear Connections

8 - Cinch: Video YPbPr - In, Audio - In

9 - Service / UART

10 - RJ45: Ethernet

Figure 2-7 Ethernet connector

11 - Cinch: Digital Audio - Out

12 - TV ANTENNA - In

Figure 2-6 SCART connector

13 - SAT - In

14- USB1 2.0

Figure 2-8 USB (type A)

15 - HDMI1 : Digital Video - In, Digital Audio - In/Out

Figure 2-9 HDMI (type A) connector

16 - HDMI2 : Digital Video - In, Digital Audio - In/Out

Figure 2-10 HDMI (type A) connector

2.4 Chassis Overview

3. Precautions, Notes, and Abbreviation List

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.3.1 General

3.3.2 Schematic Notes

3.3.3 Spare Parts

3.3.4 BGA (Ball Grid Array) ICs

Introduction

BGA Temperature Profiles

3.3.5 Lead-free Soldering

3.3.6 Alternative BOM identification

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

3.3.8 Practical Service Precautions

3.4 Abbreviation List

4. Mechanical Instructions

4.1 Cable Dressing

Figure 4-1 Cable dressing (32" 5501 series)

Figure 4-2 Cable dressing (32" 6401 series)

Figure 4-3 Cable dressing (40" 5501 series)

4.2 Se rvice Positions

Figure 4-4 Cable dressing (49" 5501 series)

4.3 Assembly/Panel Removal

4.3.1 Rear Cover

Figure 4-5 Rear cover removal[1]

Figure 4-6 Rear cover removal[2]

4.3.2 Keyboard Control unit

4.3.3 Small Signal Board (SSB)

Figure 4-7 Keyboard removal

Figure 4-8 SSB removal

4.3.4 IR/LED Board

Figure 4-9 IR Board removal

4.3.5 Power Supply Unit (PSU)

4.3.6 Speakers

4.3.7 LCD Panel

4.4 Assembly/Panel Removal (for 6401 series)

4.4.1 Rear Cover

Figure 4-10 Rear cover removal[1]

Figure 4-11 Rear cover removal[2]

4.4.2 AmbiLight Panel

Figure 4-12 Ambilight and Keyboard removal
