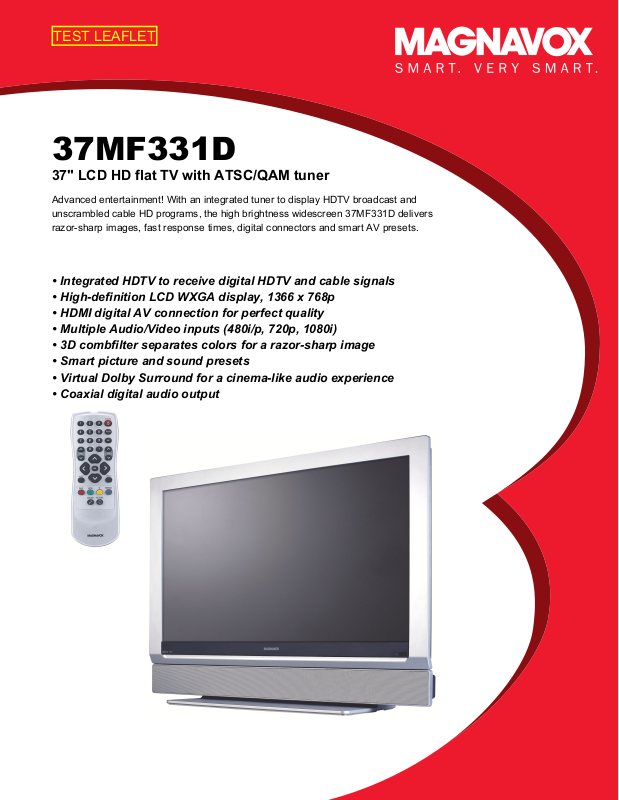

TEST LEAFLET
37MF331D
37" LCD HD flat TV with ATSC/QAM tuner
Advanced entertainment! With an integrated tuner to display HDTV broadcast and
unscrambled cable HD programs, the high brightness widescreen 37MF331D delivers
razor-sharp images, fast response times, digital connectors and smart AV presets.
• Integrated HDTV to receive digital HDTV and cable signals
• High-definition LCD WXGA display, 1366 x 768p
• HDMI digital AV connection for perfect quality
• Multiple Audio/Video inputs (480i/p, 720p, 1080i)
• 3D combfilter separates colors for a razor-sharp image
• Smart picture and sound presets
• Virtual Dolby Surround for a cinema-like audio experience
• Coaxial digital audio output
TEST LEAFLET
37MF331D/37
37" LCD HD flat TV with ATSC/QAM tuner
Technical specifications
Picture/Display
Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio (typical): 800:1
Display screen type: LCD WXGA Active Matrix TFT
Picture enhancement: 3/2 - 2/2 motion pull down, 3D
Combfilter, 3D MA deinterlacing, Automatic skin tone
correction, Black stretch, Blue stretch, Green
enhancement, Progressive Scan, White stretch
Screen enhancement: Anti-Reflection coated screen
Response time (typical): 8 (grey to grey) ms
Viewing angle (H / V): 170 / 170 degree
Panel resolution: 1366 x 768p
Supported Display Resolution
Resolution Refresh rate
Video formats
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
Sound
Output power (RMS): 2 x 10W
Sound System: Mono, SAP, Virtual Dolby Surround
Loudspeakers
Built-in speakers: 1
Convenience
Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning
Ease of Use: Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control, Closed
Captioning Full Text
Remote control type: RC1113125/01B
Remote Control: TV
Screen Format Adjustments: 4:3, 16:9 subtitle,
Automatic, Movie expand 14:9, Movie expand 16:9,
Super Zoom, Superwide, Widescreen
Convenience Enhancements: Sleep Timer
VESA Mount: 400 x 200 mm (in rear center)
Child Protection: Child Lock+Parental Control
Tuner/Reception/Transmission
Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: ATSC, NTSC
Video Playback: Multi-system
Aerial Input: 75 ohm F-type
Number of channels (cable): 125
Number of channels (off-air): 69
Connectivity
AV 1: Audio L/R in, CVBS in, YPbPr
AV 2: Audio L/R in, CVBS in, YPbPr
AV 3: Audio L/R in, CVBS in, S-Video in
Front / Side connections: S-video in, CVBS in, Audio
L/R in
Rear Connections: Antenna F-type, Headphone out
3.5 mm jack
Other connections: HDMI, S/PDIF out (coaxial)
Power
Power consumption: < 150 W
Standby power consumption: < 1 W
Ambient temperature: 5 °C to 40 °C
Mains power: 90-240 VAC, 50/60 Hz
Dimensions
Product weight (incl. stand): 25.03 kg
Product weight (+stand) (lb): 55.1 lb
Set dimensions with stand (W x H x D):
924 x 696 x 280.4 mm
Set dimensions with stand in inch (W x H x D):
36.38 x 27.4 x 11.04 inch
Accessories
Included Accessories: Batteries for remote control,
Power cord, Quick Use Guide, Remote Control, Right
angle antenna adaptor, User Manual, Warranty
certificate
Integrated HDTV tuner
The built-in HDTV tuner that receives and displays
terrestrial ATSC and unscrambled cable (64/256
QAM) signals.
LCD WXGA display, 1366x768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of
1366 x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness
and superb colors. This vibrant and sharp image will
provide you with an enhanced viewing experience.
HDMI
HDMI stands for High Definition Multimedia Interface.
It is a direct digital connection that can carry digital
HD video as well as digital multichannel audio. By
eliminating the conversion to analog signals it
delivers perfect picture and sound quality, completely
free from noise.
Multiple AV inputs
Multiple AV inputs accommodate a variety of format
choices in connecting video and audio devices (480i/
p, 720p, 1080i).
3D combfilter
A 3D combfilter is a device that performs field-by-field
comparisons of the television image to accurately
separate the color from the black-and-white
information. It separates brightness and color signals
better in the 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure.
Smart picture & Smart sound
Smart picture and Smart sound presets are optimized
settings for all your favorite types of programs,
various display and audio modes that are directly
accessed through a single key on the remote control.
Virtual Dolby surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally
immersed in your television experience.
Date of issue 2006 08 09
Product Owner: David Wu
Version: 0.2
12 NC: 8639 000 16925
UPC: 6 09585 11288 9
Test leaflet, for internal use only!
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics
N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
