Philips 32HFL4461F/F7 Leaflet

Download

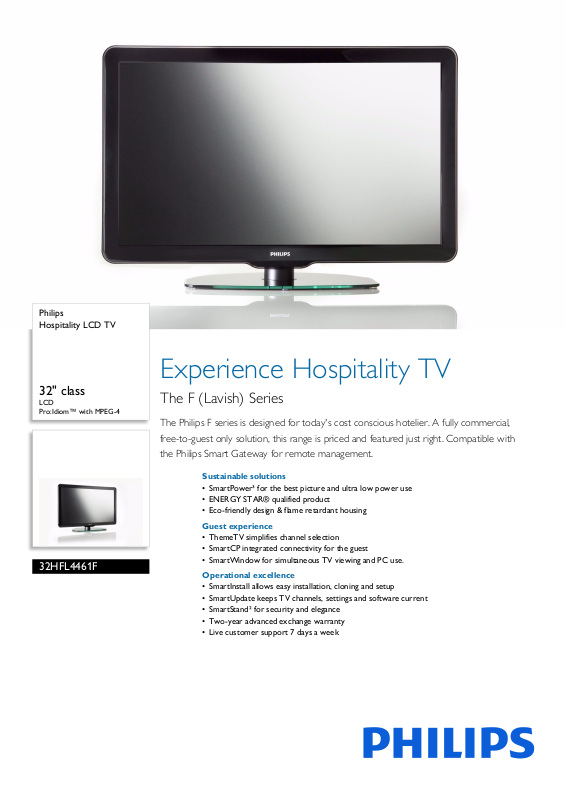

Page 1

Philips Hospitality LCD TV

Experience Hospitality TV

32" class

LCD Pro:Idiom™ with MPEG-4

32HFL4461F

The F (Lavish) Series

The Philips F series is designed for today's cost conscious hotelier. A fully commercial, free-to-guest only solution, this range is priced and featured just right. Compatible with the Philips Smart Gateway for remote management.

Sustainable solutions

• SmartPower³ for the best picture and ultra low power use

• ENERGY STAR® qualified product

• Eco-friendly design & flame retardant housing

Guest experience

• ThemeTV simplifies channel selection

• SmartCP integrated connectivity for the guest

• SmartWindow for simultaneous TV viewing and PC use.

Operational excellence

• SmartInstall allows easy installation, cloning and setup

• SmartUpdate keeps TV channels, settings and software current

• SmartStand² for security and elegance

• Two-year advanced exchange warranty

• Live customer support 7 days a week

Page 2

Hospitality LCD TV

32" class LCD, Pro:Idiom™ with MPEG-4

Highlights

32HFL4461F/F7

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimizing overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame retardant material. Independent tests carried out by emergency fire services have shown that whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to the fire.

ENERGY STAR®

This product has earned the ENERGY STAR®. ENERGY STAR qualified products meet or exceed the guidelines estabished by the U.S. govenment for in-use and standby power consumption, at the time of manufacture. Learn more at ENERGYSTAR.gov.

Everyday support (USA-based)

Your hotel never closes, and neither do we. Phili

ps offers you real help from a live person 7

days a week, excluding major holidays.

SmartCP autosensing inputs

Allowing your guests to access their content has never bee Guests can simply plug devices into our easily

n easier or more affordable.

accessible side connectivity panel and the television will automatically detect and switch to the correct input. Guests can even plug their USB memory sticks right into the set and play back music or photos (.mp3 or .jpg files).

SmartInstall

Philips introduces SmartInstall, the most c

omplete and easy to use installation process we have ever offered. SmartInstall consists of an easy to use PC program that allows all features to be configured and all channels to be mapped in a fraction of the time it takes to do so on an actual television with a remote. And with the addition of the Philips Smart Gateway, the televisions can even automatically clone all settings when plugged in.

SmartPower³ with AutoSense

SmartPower³ allows the backlight intensity to be

varied based on real time picture measures and actual room lighting conditions to deliver the best possible picture at the lowest possible energy consumption.

SmartStand²

Philips unique SmartStand² is a complete commerci swivel that can be limited in either or both directions to 30, 60, or 90 degrees. The stand includes a securable mounting plate that can be affixed either using security screws or non-drill adhesive. In addition, all security hardware for drill and non-drill mounting is included on select models (check with your Philips representative for specific models).

SmartUpdate

Philips televisions are the first to automatically k

eep themselves updated. All SmartUpdate featured Philips commercial televisions on the property can automatically check for and

al solution, offering 180 degree

download updated channel maps, settings, and/ or software. Philips televisions update in the background when new files are found, and as a result, the guest experience has minimal disruption. SmartUpdate requires a Philips Smart Gateway to operate.

SmartWindow

SmartWindow allows your guests the added convenience o on one half of the screen while enjoying the TV content of their choice on the other half. This feature offers the perfect balance of work and leisure.

ThemeTV

Hotel guests often have difficulty locating des

irable programs since they are unfamiliar with the channel lineup. Traditional Electronic Program Guides (EPGs) are little help as the guest has to scroll through multiple pages to find channels. In addition, traditional EPGs require hotels to pay fees for channel information on a per room basis. Philips is proud to introduce a better program-location tool with ThemeTV. Guests simply filter by type of channel, for example "Sports" and instantly see and tune to any Sports channel available. Guests are seconds away from desirable content.

Advanced exchange warranty

Philips offers unmatched commitment to k

eeping your guest rooms in working order. We have such confidence in the reliability of our televisions that we offer a two-year advanced exchange warranty with same day ship. In the unlikely event that something does go wrong we ship a replacement directly to you. (Same day ship applies to calls received MF prior to 2 PM ET.)

f working on their laptop PC's

MPEG 4 HD

decoder integrated

Page 3

Hospitality LCD TV

32" class LCD, Pro:Idiom™ with MPEG-4

Specifications

32HFL4461F/F7

Picture/Display

• Aspect ratio: 16:9, Widescreen

•Color cabinet: Black

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1100:1

• Dynamic screen contrast: 8800:1

• Diagonal screen size: 32 inch / 80 cm

• Picture enhancement: Pixel Plus 3 HD, Progressive an, 3/2 - 2/2 motion pull down, 3D Combfilter,

s Dynamic contrast enhancement, Contrast Plus, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Color Transient Improvement, Automatic skin tone correction, Color Enhancement, Motion adaptive deinterlacing, Active Control + Light sensor

• Screen enhancement: Anti-Reflection coated

• Display screen type: LCD WXGA Active Matrix

TFT Panel resolution: 1366 x 768p

•

• Response time (typical): 8 ms

• Viewing angle: 178º (H) / 178º (V)

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1366 x 768 60Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 24, 25, 30, 50, 60Hz

Sound

• Sound System: Stereo, Dolby Digital (AC-3)

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller, credible Surround, Treble and Bass Control

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Fine Tuning, PLL Digital Tuning,

Program Name, Advanced Hotel Mode, Cloning of TV settings via USB, Keyboard lock-out, Security menu access

• Ease of Use: Auto Volume Leveller (AVL

Picture, Smart Sound

• Screen Format Adjustments:

Modes

• Comfort: Hotel Guest features, Sleep timer,

Switch on channel, V message

• User convenience: Closed captioning (digital),

hip a

nd parental lock

• Interactive hotel features: Connectivity panel

mpatible, Remote diagnostics, SmartClone,

co SmartGuide, SmartSecure, SmartUpdate, SmartCP,

4:3, 7 Widescreen

olume limitation, Welcome

), Smar

Smoovie Pay TV

• Other convenience: Kensington lock

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Number of Preset Channels: 250

• Cable: Unscrambled Digital Cable -QAM

• Terrestrial: ATSC (8VSB)

• Aerial Input: 75 ohm F-type

Connectivity

• AV 1: Audio L/R in, CVBS in

• AV 2: Audio L/R in, YPbPr

• AV 3: VGA PC-in

• AV 4: HDMI (v1.3 with CEC)

• AV 5: HDMI (v1.3 with CEC)

• AV 6: HDMI (v1.3 with CEC)

•Front / Side connections: Audio Headphone out, S-video in, USB

• Other connections: Antenna F-type, RS232 Serial,

out (coaxial)

S/PDIF

• Connectivity Enhancements: External Loudspeaker

ector

conn

in, CVBS in,

L/R

Power

• Mains power: 110 - 240V, 50/60Hz

• Maximum Power Consumption: 150 W

• SmartPower High + AutoSense: 63.4 W

• SmartPower high mode: 65.6 W

• SmartPower Medium + AutoSense: 65.8 W

• SmartPower medium mode: 85.3 W

• SmartPower Low + AutoSense: 77.2 W

• SmartPower low mode: 107.5 W

• SmartPower Off + AutoSense: 82.8 W

• SmartPower Off mode: 115.2 W

• Standby power consumption: < 1 W

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Set dimensions in inch (W x H x D):

31.9 x 20.4 x 3.9 inch

•Set dimensions with stand in inch (W

31.9 x 22.4 x 14.2 inch

• Product weight (lb): 25.4

• Product weight (+stand) (lb): 35.3 lb

• Weight incl. Packaging (lb): 38.6

• VESA wall mount compatible: 200 x 200 mm

• Box dimensions in inch (W x

44.2 x 23.4 x 8.3 inch

H x

x H x D):

D):

Accessories

• Included accessories: Warranty Leaflet, Power Cord (3m), Quick start guide, Swivel stand with anti-theft, Batteries for remote control, Remote Control

• Optional accessories: Set up Remote RC2573GR,

ting brackets/ stands

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: JPEG Still pictures, MP3,

eshow files (.alb)

Slid

Green Specifications

• Safety: Flame retardant housing

•Eco Designed

• Low Power Standby

•ENERGY STAR

• SmartPower Ultra

•

Issue date 2014-03-14

Version: 1.3.3

12 NC: 8670 000 70647 UPC: 6 09585 20187 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* Five Star Advanced Exchange warranty is valid in the United States

only. Local warranties govern sales in other countries.

* Advanced Exchange warranty is valid in the United States only. Local

warranties govern sales in other countries. * Dolby Digital is a registered trademark of Dolby Labs * Pro:Idiom is a registered trademark of the Zenith corporation.
