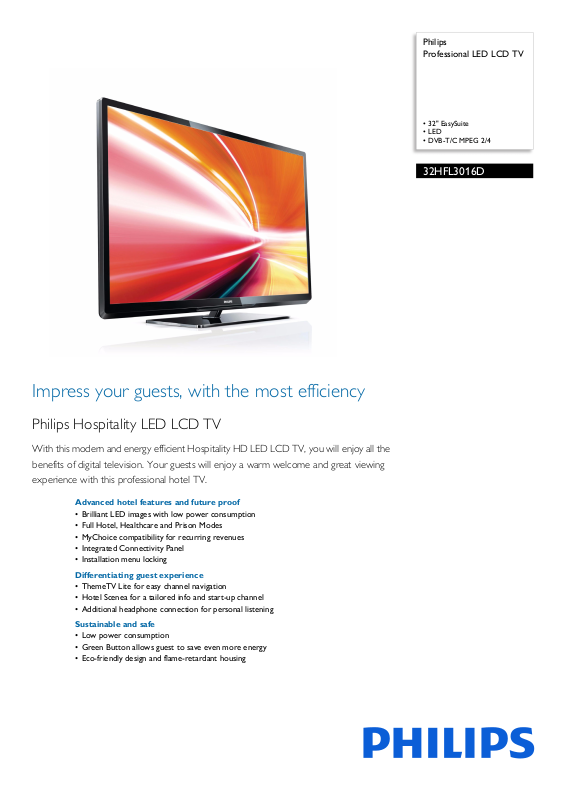

Page 1

Philips Professional LED LCD TV

• 32" EasySuite

•LED

•DVB-T/C MPEG 2/4

32HFL3016D

Impress your guests, with the most efficiency

Philips Hospitality LED LCD TV

With this modern and energy efficient Hospitality HD LED LCD TV, you will enjoy all the benefits of digital television. Your guests will enjoy a warm welcome and great viewing experience with this professional hotel TV.

Advanced hotel features and future proof

• Brilliant LED images with low power consumption

• Full Hotel, Healthcare and Prison Modes

• MyChoice compatibility for recurring revenues

• Integrated Connectivity Panel

• Installation menu locking

Differentiating guest experience

• ThemeTV Lite for easy channel navigation

• Hotel Scenea for a tailored info and start-up channel

• Additional headphone connection for personal listening

Sustainable and safe

• Low power consumption

• Green Button allows guest to save even more energy

• Eco-friendly design and flame-retardant housing

Page 2

Professional LED LCD TV

32" EasySuite LED, DVB-T/C MPEG 2/4

Highlights

32HFL3016D/10

MyChoice compatible

MyChoice offers a simple and low-cost way to o

ffer your guests premium TV channels. At the same time it delivers an additional revenue stream which allows you to recover your initial TV investment.

ThemeTV Lite

ThemeTV Lite offers an easy user interface th

at gives your guests the opportunity to navigate the guest menu to find channels from their home country, news and hotel information easily without the need for an interactive entertainment system.

Hotel Scenea

Hotel Scenea allows you to select and store images on start-up or info channel.

Integrated Connectivity Panel

The Integrated Connectivity Panel allows your gue

the TV that can be displayed as a

sts to seamlessly connect their personal

devices to your TV without the need for an external Connectivity Panel.

Green Button

With the Green Button guests have the option t

o save even more energy on the TV by opting for a higher backlight dimming or by switching off the screen when listening to radio. Another way to reduce a hotel's operating costs while involving guests directly.

Eco-friendly design

Sustainability is integral to the way Philips does bu

siness. Philips TVs are designed and produced according to our EcoDesign principles aimed at minimising overall environmental impact, through lower power consumption, removal of hazardous substances, lower weight, more efficient packaging and better recyclability. Philips TVs also have a special housing of flame-retardant material. Independent tests carried out by emergency fire services have shown that

whereas TVs can sometimes intensify fires caused by external sources, Philips TVs will not contribute to a fire.

LED

The most advanced LED lighting technology in this TV combines an eye-catching minimalistic design with stunning image quality as well as the lowest power consumption in its category. On top of that, LED lighting technology does not contain any hazardous materials. Thus, with LED backlight you can enjoy low power consumption, high brightness, incredible contrast, sharpness and vibrant colours.

Green Energy Label

Energy Class A For many years Philips has pro-actively been workin on-mode and standby power consumption of its televisions and as a result most Philips televisions have achieved green EU energy labels in 2010. The greener the label, the lower the onmode power consumption and the lower your energy bill and friendlier to the environment.

g on the reduction of both

Page 3

Professional LED LCD TV

32" EasySuite LED, DVB-T/C MPEG 2/4

Specifications

32HFL3016D/10

Picture/Display

• Display: LED HD TV

• Diagonal screen size: 32 inch / 81 cm

• Panel resolution: 1366 x 768p

• Aspect ratio: 16:9

• Brightness: 400 cd/m²

• Dynamic screen contrast: 100,000:1

• Picture enhancement: Digital Cryst Perfect Motion Rate

•Colour cabinet: Black

l Clear, 100 Hz

Sound

• Output power (RMS): 20 W (2 x 10 W)

• Sound Enhancement: Auto Vo Sound, Incredible Surround

lume Leveller, Clear

Connectivity

• Number of HDMI connections: 3

• Number of components in (YPbPr): 1

•Number of scarts (RGB/CVBS): 1

• Number of AV connections: 1

• Other connections: Antenna IEC75, Common

terface Plus (CI+), PC-in VGA + Audio L/R in

•HDMI features: Audio Re

• EasyLink (HDMI-CEC): Remote control pass-

gh, System audio control, System standby,

throu One touch play

• Number of USBs: 1

turn Channel

Multimedia Applications

• Video Playback Formats: H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4

• Music Playback Formats: MP3

• Picture Playback Formats: JPEG

• Multimedia connections: USB

Supported Display Resolution

• Computer inputs: up to 1920 x 1080 @ 60 Hz

• Video inputs: 24, 25, 30, 50, 60 Hz, up to 1920 x 1080p

Convenience

• Ease of Installation: Advanced Hotel Mode, Auto Programme Naming, Automatic Channel Install (ACI), Automatic Tuning System (ATS), Autostore, Cloning of TV settings via RF, Cloning of TV settings via USB

• Ease of Use: 1 channel list analogue/digital, On-

reen

Display, Programme List, Side Control

• Screen Format Adjustments: 4:3, Movie expand 14:9

, Movie expand 16:9, Subtitle Zoom, Super

Zoom, Widescreen

• Teletext: 1000-page Smart Text

• Firmware upgradeable: Firmware upgradeable via

, Firmware upgradeable via RF

• Comfort: Hotel Guest features, Sleep timer, Switch on channel, V message

• Electronic Programme Guid Programme Guide, Now + Next EPG

• Interactive hotel features: Block automa update, Block over-the-air SW download, MyChoice, ThemeTV Lite

• Other convenience: Kensington lock

• Prison mode: Txt, MHEG, USB, EPG, Sub block

• Remote Control: battery anti-theft protection, low

ttery detection

• Remote control type: 22AV1104D (RC6)

olume limitation, Welcome

: 8-day Electronic

tic channel

Tuner/Reception/Transmission

• Digital TV: DVB-C MPEG2*, DVB-T MPEG2*, DVB-T MPEG4*, DVB-C MPEG4*

• Video Playback: NTSC, PAL, SECAM

Power

• Mains power: 220-240 V; 50 Hz

• Ambient temperature: 5°C to 35°C

• Energy Label Class: A

• Standby power consumption: < 0.3 W

• Power Saving Features: Eco mode, Picture mute (for radio)

• Off mode power consumption: < 0.3 W

• Annual energy consumption: 55 kW·h

• Power consumption (typical): 38 W

Dimensions

•Box dimensions (W x H x D): 970 x 555 x 160 mm

•Set dimensions (W x H x D):

x 461.6 x 46.4 mm

752.2

• Set dimensions with stand (W x H x D):

x 501.3 x 185

752.2

• Product weight: 8.7 kg

• Product weight (+stand): 10.2 kg

• Weight incl. Packaging: 12.7 kg

• Compatible wall mount: adjustable 200 x 100 mm

Accessories

• Included accessories: Power cord, Remote Control, Tabletop stand, Warranty Leaflet, Batteries for remote control

• Optional accessories: Set up remote 22AV8573/

, W

all mount (tilt) 22AV3100/10

Green Specifications

• Low Power Standby

Healthcare

• Control: Multi remote control

• Convenience: Headphone out, Independent main speaker mute Safety: Double isolation Class II

•

Loudspeakers

• Built-in speakers: 2

•

Issue date 2013-06-14

Version: 4.1.3

12 NC: 8670 000 92976 EAN: 87 12581 65375 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
