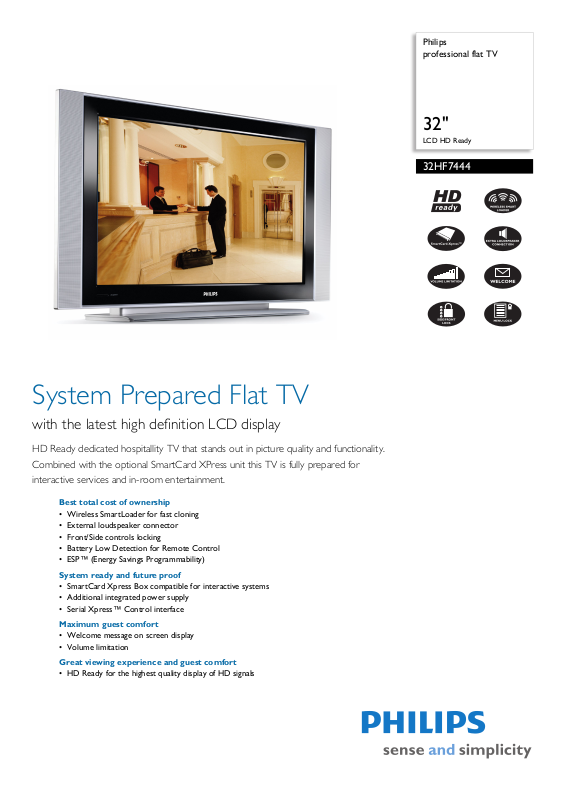

Philips
professional flat TV

32"

LCD HD Ready

32HF7444

System Prepared Flat TV

with the latest high definition LCD display

HD Ready dedicated hospitallity TV that stands out in picture quality and functionality.
Combined with the optional SmartCard XPress unit this TV is fully prepared for
interactive services and in-room entertainment.

Best total cost of ownership

• Wireless SmartLoader for fast cloning

• External loudspeaker connector

• Front/Side controls locking

• Battery Low Detection for Remote Control

• ESP™ (Energy Savings Programmability)

System ready and future proof

• SmartCard Xpress Box compatible for interactive systems

• Additional integrated power supply

• Serial Xpress™ Control interface

Maximum guest comfort

• Welcome message on screen display

• Volume limitation

Great viewing experience and guest comfort

• HD Ready for the highest quality display of HD signals

Professional flat TV

32" LCD HD Ready

32HF7444/10

Specifications Product highlights

Picture/Display

• Diagonal screen size: 32 inch / 80 cm

• Aspect ratio: 16:9, Widescreen

• Display screen type: LCD WXGA Active Matrix
TFT

• Panel resolution: 1366 x 768p

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1600:1 (dynamic)

• Response time (typical): 8 ms

• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control, Contrast Plus,
Digital Crystal Clear, Digital Noise Reduction,
Jagged Line Suppression, Progressive Scan,
Sharpness Adjustment

• Screen enhancement: Anti-Reflection coated
screen

• Viewing angle (H / V): 178 / 178 degree

Supported Display Resolution

• Video Formats
Resolution Refresh rate
640 x 480p 2Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh

• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Number of Preset Channels: 125

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• Tuner Display: PLL

• TV system: PAL, PAL I, PAL B/G, PAL D/K,
SECAM, SECAM B/G, SECAM D/K, SECAM L/L'

• Video Playback: NTSC, PAL, SECAM

Sound

• Output power (RMS): 2 x 15W

• Sound System: Nicam Stereo, Virtual Dolby
Surround

• Sound Enhancement: Auto Volume Leveller,
Dynamic Bass Enhancement

Loudspeakers

• Built-in speakers: 2

Connectivity

• Connectivity Enhancements: RJ12 connector,

Issue date 2009-01-22

Version: 5.0.6

12 NC: 8670 000 23511
EAN: 87 10895 92607 2

RJ45 connector, External Loudspeaker connector,
HM-Link, Extra Power supply 12V/1W,
SmartCard Xpress box ready

• Number of Scarts: 2

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, S-video in

• AV 3: YPbPr

• AV 4: HDMI

• AV 5: HDMI

• Front / Side connections: Audio in, S-video in

• Other connections: Antenna IEC75

Convenience

• Comfort: Hotel Guest features, Sleep timer

• Ease of Installation: Advanced Hotel Mode, Fine
Tuning, PLL Digital Tuning, Program Name,
Wireless Smart Loading

• Ease of Use: Auto Volume Leveller (AVL), Side
Control, Smart Picture, Smart Sound

• Picture in Picture: Picture in graphics

• Remote Control: TV

• Remote control type: RC2886

• Screen Format Adjustments: 7 Widescreen
Modes, Auto Format

• Teletext: 10 page Smart Text

• Teletext enhancements: Fast text

• OSD Languages: English, French, German

• VESA Mount: 200 x 100 mm

• Other convenience: Kensington lock

Power

• Mains power: 110 - 240V, 50/60Hz

• Power consumption: 120W Normal operation W

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Color cabinet: Bicolour Black & Silver Frost

• Set dimensions (W x H x D):
924

x 507 x 119 mm

• Product weight: 18.9 kg

• Dimensions (with base) (W x H x D):
924

x 550 x 222 mm

• Box dimensions (W x H x D):
1000

x 690 x 240 mm

• Weight incl. Packaging: 22 kg

Accessories

• Included Accessories: Batteries for remote
control, Power cord, Remote Control, Table top
stand, User Manual

• Optional accessories: Set up Remote RC2573GR,
Wireless SmartLoader 22AV1120

•

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Wireless SmartLoader

Provides the ability to copy easy and wireless all
programmming settings from one TV set into other TV
sets in less then a minute. The feature ensures uniformity
between TV sets and significantly reduces installation
time and costs.

External loudspeaker connector

Amplified audio connector for ea sy inst al lation of e xt ernal
speakers (like for bathrooms), eliminating the need for
investments in external equipment

Front/Side controls locking

By selecting in the set up menu the option to lock or
unlock access to the front and side controls of the TV,
unauthorized acces to the TV menu is prevented saving
the hotelier time and effort of re-installing.

Battery Low Detection

This feature informs of the need to replace the remote
control batteries preventing nuisance calls and
unneccessary replacement of batteries.

ESP™

Feature can be selected in the set-up menu. The TV can
be switched off automatically after a specified period of
use saving energy and provide extended product life time.
The selectable range is from 0 to 99 hours.

SmartCard Xpress Box

The optional SmartCard Xpress Box can be mounted at
th e r ear side o f t he TV set an d a llows thi rd party deco de rs
and application cards to interface with the TV adding new
functionality to the TV. The TV can also be connected to
external decoders and set-top boxes of all major
interactive system providers, through the Serial Xpress
Control Interface (supporting UART and RS232
protocols) and the SmartPlug Control interface.

Add. integrated power supply

The additional integrated power supply avoids the need
for a separate power supply for an interactive system. In
case of stand-alone use, the additional power supply can
be switched off to save energy.

Serial Xpress™ Control

The Serial Xpress™ Control interface is compatible with
all major premium entertainment services. The protocols
enables the TV connection with external decoders, set-top
boxes and PC based solutions. Support UART and RS232
protocols.

Welcome message

A welcome greeting is displayed each time the TV set is
switched on.

Volume limitation

This feature predefines the volume range with which the
TV set is allowed to operate, preventing excessive volume
adjustments and avoiding disturbance of next door
guests.

HD Ready

Enjoy the exceptional picture quality of High Definition
pictu res and be ful ly pre pared for HD sourc es lik e HDTV
settop box or Blu-ray disc. HD Ready is a protected label
that offers picture quality beyond that of progressive
scan. It conforms to strict standards laid out by EICTA to
offer a HD screen that displays the benefits of resolution
and picture quality of a High Definition signal. It has a
universal connection for both analog YPbPr and
uncompressed Digital connection of DVI or HDMI,
supporting HDCP. It can display 720p, and 1080i signals
at 50 and 60Hz.
