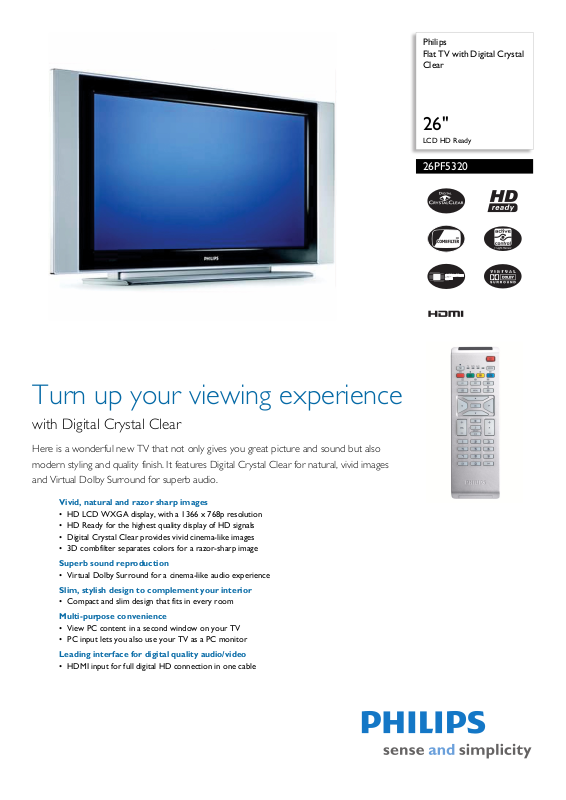

Philips 26PF5320-98 User Manual

Philips Flat T V wit h Digi t al Cr ysta l Clear

26"

LCD HD Ready

26PF5320

Turn up your viewing experience

with Digital Crystal Clear

Here is a wonderful new TV that not only gives you great picture and sound but also modern styling and quality finish. It features Digital Crystal Clear for natural, vivid images and Virtual Dolby Surround for superb audio.

Vivid, natural and razor sharp images

• HD LCD WXGA display, with a 1366 x 768p resolution

• HD Ready for the highest quality display of HD signals

• Digital Crystal Clear provides vivid cinema-like images

• 3D combfilter separates colors for a razor-sharp image

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Multi-purpose convenience

• View PC content in a second window on your TV

• PC input lets you also use your TV as a PC monitor

Leading interface for digital quality audio/video

• HDMI input for full digital HD connection in one cable

Flat TV with Digital Crystal Clear

26" LCD HD Ready

26PF5320/98

Specifications Product highlights

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Contrast ratio (typical): 600:1

• Diagonal screen size: 26 inch / 66 cm

• Display screen type: LCD WXGA Active Matrix TFT

• Picture enhancement: Digital Crystal Clear, Progressive Scan, 3D Combfilter, Active Control + Light sensor, 3/2 - 2/2 motion pull down, Digital Noise Reduction, Jagged Line Suppression, Contrast Plus

• Screen enhancement: Anti-Reflection coated screen

• Viewing angle (H / V): 178 / 178 degree

• Panel resolution: 1366 x 768p

• Response time (typical): 8 ms

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 1024 x 768 60, 70, 75Hz 800 x 600 56, 60, 72, 75Hz

• Video Formats Resolution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement, Auto Volume Leveller

• Sound System: Virtual Dolby Surround, Stereo

• Output power (RMS): 2 x 5 W RMS

• Equalizer: 5-bands

Convenience

• Ease of Installation: Auto Program Naming, Autostore, Fine Tuning

• Ease of Use: Graphical User Interface, Program List, Smart Picture, Smart Sound, Side Control

• Remote control type: RCFA05SPS00

• Teletext: 10 page Smart Text

• Teletext enhancements: Program information Line

• Picture in Picture: Picture in graphics, Twin page text

• Remote Control: Amp, DVD, TV, Multi-functional

• Screen Format Adjustments: 4:3, Movie expand 14:9, Movie expand 16:9, Subtitle Zoom, Super Zoom, Widescreen

• Clock: Sleep Timer, Wake up Clock

• VESA Mount: 200 x 100 mm

• Child Protection: Child Lock

• On-Screen Display languages: English, Chinese

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL, SECAM

• Video Playback: NTSC, PAL, SECAM, PAL B/G

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner Display: PLL

• Number of Preset Channels: 100

Connectivity

• Number of AV connections: 5

• Other connections: Antenna IEC75, Monitor out L/R (Cinch)

• AV 1: YPbPr (2fh), Audio L/R in

• AV 2: CVBS, S-Video, Audio L/R in

• AV 3: VGA PC-in, YPbPr (2Fh), Audio L/R in

• Front / Side connections: CVBS in, Headphone out, S-video in, Audio L/R in

• AV 4: HDMI

Power

• Power consumption: 110 W Normal Operation

• Standby power consumption: 1 W <

• Ambient temperature: 5 °C to 40 °C

• Mains power: 110 - 240V, 50/60Hz

Dimensions

• Product weight: 16 kg

• Weight incl. Packaging: 18.8 kg

• Dimensions (with base) (W x H x D):

804.5

x 477 x 222 mm

• Color cabinet: Silver Frost & Black Deco Front

• Set dimensions (W x H x D):

804.5

x 436 x 114 mm

• Box dimensions (W x H x D): 876

x 209 x 601 mm

Accessories

• Included Accessories: Power cord, Quick start guide, Registration card, Remote Control, User Manual, Batteries for remote control, Table top stand, VGA to YPbPr-Cinch cable

Loudspeakers

• Built-in speakers: 2

•

LCD WXGA display, 1366 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you widescreen HD resolution of 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HD Ready

Enjoy the exceptional picture quality of High Definition pictu res a nd b e full y prepa red for HD source s li ke HDT V settop box or Blu-ray disc. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60Hz.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema-like images.

3D Combfilter

The 3D comb filter separates brightness and color signals better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital comb filter performs field-by-field comparisons of the television image to accurately separate the color from the blackand-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

Compact and slim design

This design style emphasizes a slim, compact look that saves space and fits in anywhere.

Picture in Graphics

Picture-in-Graphics is a small window in the main picture, allowing to watch data/graphics in your main TV screen. It provides the ability to simultaneously watch data/ graphics and the TV.

PC input

With PC input you can connect your TV to a computer and use the TV as a PC monitor.

HDMI input

HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest ou tp ut resolution with the sour ce device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Issue date 2009-01-22

Version: 5.0.6

12 NC: 8670 000 22689 EAN: 87 10895 89547 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
