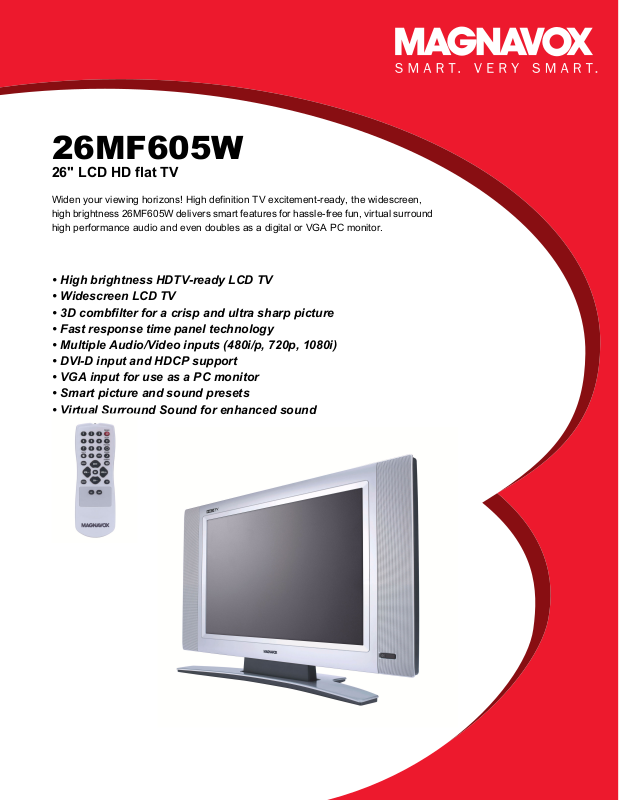

Philips 26MF605W User Manual

26MF605W

26" LCD HD flat TV

Widen your viewing horizons! High definition TV excitement-ready, the widescreen, high brightness 26MF605W delivers smart features for hassle-free fun, virtual surround high performance audio and even doubles as a digital or VGA PC monitor.

• High brightness HDTV-ready LCD TV

• Widescreen LCD TV

• 3D combfilter for a crisp and ultra sharp picture

• Fast response time panel technology

• Multiple Audio/Video inputs (480i/p, 720p, 1080i)

• DVI-D input and HDCP support

• VGA input for use as a PC monitor

• Smart picture and sound presets

• Virtual Surround Sound for enhanced sound

26MF605W/17

26" LCD HD flat TV

Product specifications

Picture/Display

• Aspect ratio: 16:9

• Brightness: 500 cd/m²

• Contrast ratio (typical): 800:1

• Display screen type: LCD WXGA Active Matrix TFT

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Automatic skin tone correction, Black stretch, Blue stretch, Green enhancement, Progressive Scan, White stretch

• Screen enhancement: Anti-Reflection coated screen

• Viewing angle (H / V): 176 / 176 degree

• Response time (typical): 8 (grey to grey) ms

• Panel resolution: 1366 x 768p

Supported Display Resolution

Resolution Refresh rate Computer formats 640 x 480 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 60Hz 1280 x 768 60Hz Video formats 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz

Sound

• Output power (RMS): 2 x 5W

• Sound Enhancement: Virtual Surround Sound

• Sound System: Mono, SAP

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autostore, Fine Tuning, PLL Digital Tuning

• Ease of Use: Auto Volume Leveller (AVL), Smart Picture Control, Smart Sound Control, Closed Captioning Full Text

• Remote control type: RC1112713/17B

• Remote Control: TV

• Screen Format Adjustments: 4:3, Superwide, Widescreen, Zoom 16:9

• Convenience Enhancements: Sleep Timer

• VESA Mount: 100 x 100 mm

• Child Protection: Child Lock+Parental Control

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: NTSC

• Video Playback: Multi-system

• Aerial Input: 75 ohm F-type

• Number of channels (cable): 125

• Number of channels (off-air): 69

Connectivity

• AV 1: Audio L/R in, CVBS in, S-Video

• AV 2: Audio L/R in, CVBS in, S-Video

• AV 3: Audio L/R in, YPbPr, 480i, 576i

• AV 4: Audio L/R, YPbPr, 480i, 480p, 576i, 576p, 720p, 1080i

• AV 5: Audio L/R in, DVI-D with HDCP, 480i, 480p, 576i, 576p, 720p, 1080i

• AV output: Audio (L/R) x1, Composite (CVBS) x1

• PC: 3.5 mm PC audio input x1, VGA-in D-Sub 15HD

• Rear Connections: Antenna F-type, D-Sub in (PC), PC audio in 3.5 mm jack, Headphone out 3.5 mm jack

Power

• Power consumption: < 100 W

• Standby power consumption: < 1 W

• Ambient temperature: 5 °C to 40 °C

• Power supply: 90-264 VAC, 50/60 Hz

Dimensions

• Product weight (+stand): 14 kg

• Product weight (+stand) (lb): 30.9 lb

HDTV-ready LCD TV

HDTV delivers exceptional picture quality and real movie-viewing experience that makes television more dynamic, truer than anything you've seen before. It is the latest and best television signal available. It features picture quality more than twice that of traditional analog broadcasts. In order to effectively maximize the HDTV signal, a television must incorporate advanced signal input connectivity and circuitry design. To use HDTV the TV must be connected through its component video or DVI inputs to a DTV set-top box and set to operate in the DTV mode.

Widescreen LCD TV

The screen's wider width to height aspect ratio enhances the viewer's entertainment experience.

3D combfilter

A 3D combfilter is a device that performs field-by-field comparisons of the television image to accurately separate the color from the black-and-white information. It separates brightness and color signals better in the 3D domain to eliminate cross-color, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure.

Fast response time

Faster response time delivers improved display of video action with faster transitions that dramatically reduce visible image artifacts in the display of fast-moving images.

Multiple AV inputs

Multiple AV inputs accommodate a variety of format choices in connecting video and audio devices (480i/ p, 720p, 1080i).

DVI-D input and HDCP support

A DVI-D input makes an uncompressed digital RGB connection from source to screen. By eliminating the conversion of the digital signal to analog, it delivers an unblemished image. Thanks to the non-degraded signal, you get less flicker and a clearer picture. The DVI input is fully backward compatible with HDMI sources and also uses HDCP copy protection.

VGA input

VGA input provides a connector to accommodate input of an analog signal for use as a PC monitor.

Date of issue 2008-04-04

Version: 2.0.5

12 NC: 8639 000 16053 UPC: 0 37849 95943 5

Smart picture & Smart sound

Smart picture and Smart sound presets are optimized settings for all your favorite types of programs, various display and audio modes that are directly accessed through a single key on the remote control.

Virtual surround sound

Virtual surround sound creates additional audio channels for a theater-like audio experience.

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their

respective owners.

www.magnavox.com
