Philips 26MF231D, 32MF231D USER Manual

User Guide

S M A R T. V E R Y S M A R T.

26MF/32MF231D LCD TV

Thank you for choosing Magnavox.

Need help fast?

Read your user Manual and/or Quick-Use Guide first for quick tips that make using your Magnavox product more enjoyable.

If you have read your instructions and still need assistance,

you may access our online help at: www.usasupport.magnavox.com or call

1-800-705-2000 while with your product (and Model / Serial number)

Model No:	Serial No:

3138 155 24271

RETURNYOUR PRODUCT REGISTRATION CARDTODAY

TO GETTHEVERY MOST FROMYOUR PURCHASE.

Registering your model with MAGNAVOX makes you eligible for all of the valuable beneﬁts listed below, so don’t miss out. Complete and return your Product Registration Card at once to ensure:

*Proof of Purchase

Returning the enclosed card guarantees that your date of purchase will be on ﬁle, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety Notiﬁcation

By registering your product, you’ll receive notiﬁcation directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional Beneﬁts of

Product Ownership

Registering your product guarantees that you’ll receive all of the privileges to which you’re entitled, including special money-saving offers.

Congratulations on your purchase, and welcome to the“family!”

Dear MAGNAVOX product owner:

Thank you for your conﬁdence in MAGNAVOX.You’ve selected one of the best-built,best-backed products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the MAGNAVOX“family,” you’re entitled to protection by one of the most comprehensive warranties and

outstanding service networks in the industry. What’s more,your purchase guarantees you’ll receive all the information and special offers for which you qualify,plus easy access to accessories from our convenient home shopping network.

Most importantly,you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a MAGNAVOX product.

P.S.To getthemostfromyourMAGNAVOX purchase,be sure to complete and return your Warranty Registration Card at once.

Know these safety symbols

This “bolt of lightning” indicates uninsulated material within your unit may

cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the

enclosed literature closely to

prevent operating and maintenance problems.

WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la ﬁche dans la borne correspondante de la prise et pousser jusqu’au fond.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No._______________________

Serial No. _______________________

Visit our World Wide Web Site at http://www.usasupport.magnavox.com

IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with a dry cloth.

7.Do not block any of the ventilation openings.

Install in accordance with the manufacturers instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories speciﬁed by the manufacturer.

12 Use only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org

16.Damage Requiring Service - The appliance should be serviced by qualiﬁed service personnel when:

A.The power supply cord or the plug has been damaged;

B.Objects have fallen, or liquid has been spilled into the appliance;

C.The appliance has been exposed to rain

D.The appliance does not appear to operate normally or

exhibits a marked change in performance;

E. The appliance has been dropped, or the enclosure damaged.

17.Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

•Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

•Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18.Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19.Power Lines - An outdoor antenna should be located away from power lines.

20.Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.

21.Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

22.Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:

•Install all batteries correctly, with + and - aligned as marked on the unit.

•Do not mix batteries (old and new or carbon and

alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ExampleofAntennaGroundingas perNEC-NationalElectricCode

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

Precaution

ADDITIONAL SAFETY PRECAUTIONS

•ENSURE that LCD TV stand is tightened properly to the set (See Quick Guide) on the right way of tightening of the screw of the stand to the set. Improper tightening of screw may render the set unsafe.

•If LCD TV is installed on the wall, installation should be carried out by qualiﬁed servicemen. Improper or incorrect installation may render the set unsafe.

•Disconnect main plug when :

—cleaning the TV screen, never use abrasive cleaning agents.

—there is a lightning storm.

—the set is left unattended for a prolonged period of time.

•Do not shift or move the LCD TV around when it is powered on.

•Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.

•When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or

other soft material like chamois. DO NOT USE acetone, toluene or alcohol to clean the surface of the screen. These chemicals will cause damage to the surface.

•Wipe off water or saliva as soon as possible. These liquids can cause deformation and color fading of the LCD screen when left exposed for some time.

•Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD screen and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.

POSITIONING THE LCD TELEVISION

•Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of the LCD TV.

•Try to leave at least 6” of space around each side of the LCD TV cabinet to allow for proper ventilation.

•Do not place the LCD TV near a radiator or other sources of heat.

•Do not place the LCD TV where it can be exposed to rain or excessive moisture.

RECYCLING PROCEDURE/END OF LIFE DISPOSAL

•To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or nickel cadmium. If possible, when disposing of batteries, use recycling means available in your area.

•The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check your area for companies that will recover used televisions for dismantling and collection of reusable materials, or contact your dealer for TV recycling tips.

•Please dispose of the carton and packing material through the proper waste disposal management in your area.

Help

If this instruction manual does not give an answer or if ‘Trouble shooting tips’ does not solve your TV problem, you can call your Local Magnavox Customer or Service Centre. See the supplied World-wide guarantee booklet.

Please, have the Model and Serial number which you can ﬁnd at the back of your television set or on the packaging, ready, before calling the Magnavox helpline 1-800-705-2000

Model: 26MF231D/32MF231D Serial No:.............................................

Care of the screen See Tips, p. 34

Magnavox is paying a lot of attention to producing environmentally-friendly in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Content

Welcome/registration of your TV . . . . . . . . . . . . . . . .2 IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . 3 Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Use of the remote control . . . . . . . . . . . . . . . . . . . . . . .9 Buttons on the top of the TV . . . . . . . . . . . . . . . . . . . .11 To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to navigate through the Settings menu	12
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	.12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	13
Select the menu language	13
Store TV channels	13
Weak channel installation	14
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Preferences	15
Source	18
Clock	19
TV menu . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .	20
Picture menu	20
Sound menu	22
Features menu	23
Channels menu	24
Connect accessory devices . . . . . . . . . . . . . . . . . . . . .	27
Recorder (vcr-dvd+rw)	27
Recorder and other A/V devices	28
Recorder and cable box with RF output	28
Satellite Receiver / cable box with AV outputs	28
RecorderandsatelliteReceiver/cableboxwithAVoutputs	29
Digital Surround receiver	29
DVD Player or other accessory digital source devices	30
HDMI(HighDeﬁnitionMultimediainterface)connectors	31
Side connections	31
Record with your recorder. . . . . . . . . . . . . . . . . . . . . .	32
Record a TV program	32
To select connected devices. . . . . . . . . . . . . . . . . . . . .	32
Trouble shooting tips . . . . . . . . . . . . . . . . . . . . . .. . . .	33
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	34
Regulatory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	32
Annex1-MagnavoxTVsoftwareupgradewithportablememory . .	35
Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	38

Preparation

CABLE

/ANTENNA

1	Do not insert the power plug in a wall socket before

all connections are made.

Place the TV on a solid surface.

For ventilation, leave at least 4” to 6” free all around the TV. Do not place the TV on a carpet. To prevent any unsafe situations, no naked ﬂame sources, such as lighted candles, should be placed in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

Mounting the TV on the wall

This TV set provides mounting hole on back cover. (26” : 100x 100 mm / 32” :200 x 100 mm)

Caution: Installing the TV requires special skill that should only be performed by qualiﬁed personnel. You should not attempt to do the work yourself. Magnavox bears no

responsibility for improper mounting or mounting that results in accident or injury.

Make sure that the wall mount is being ﬁxed securely enough so that it meets safety standards.

2Basic connections to the TV

Your integrated digital TV automatically decodes and displays the four basic DTV picture resolution standards.

-SDTV (Standard Deﬁnition TV) are broadcast as 480i (480-line interlaced) or 480p (480-line progressive scan) video.

-HDTV (High-Deﬁnition TV) are broadcast either in the 1080i or 720p formats, always with a widescreen picture.

Note: Progressive scan video (p) is more like that you see in a movie theater. Images are much more distinct, free of ﬂicker and motion is smoother.

Your TV has an integrated HDTV tuner, which receives and decodes terrestrial ATSC and unscrambled cable (QAM) signals and displays them. There are two ways to obtain HDTV content:

-through a cable provider

-through an antenna.

Note: Use the illustrations on the left for cable or Antenna connections.

CABLE		CABLE / ANTENNA
		CABLE / ANTENNA
	TO TV	75
	TO TV	2
IN	OUTPUT	2
IN	OUT

Cable box

	Pr	Pb	Y
				Pr	Pb	Y
	L					HDMI
	S-VIDEO	R	VIDEO			HDMI
	L	R	VIDEO	L	R	VIDEO
	CABLE
1	ANTENNA
1
	75	4	AV2:
	2	4	AV2:
	2		L+R+VIDEO
	SPLITTER

IN OUT

Cable box

Note: Video In signal input can be handled by AV1, AV3 as well.

Watching cable TV programs that don’t require the use of a cable box.

Since you’ve connected the cable TV signal directly to the TV’s tuner, you can also watch unscrambled programs by simply tuning to

the desired channel; however, you must ﬁrst use Auto program to store available channels in the TV’s memory. (p. 13)

Note: This connection will supply stereo sound to the TV if the station you are viewing broadcasts stereo sound.

- Cable TV

Connect the cable TV signal to the CABLE/ ANTENNA 75 jack at the bottom of the TV. See page 14 for details on using Autoprogram to store channels in the TV’s memory.

Note: This connection will supply stereo sound to the TV if the station you are viewing broadcasts stereo sound.

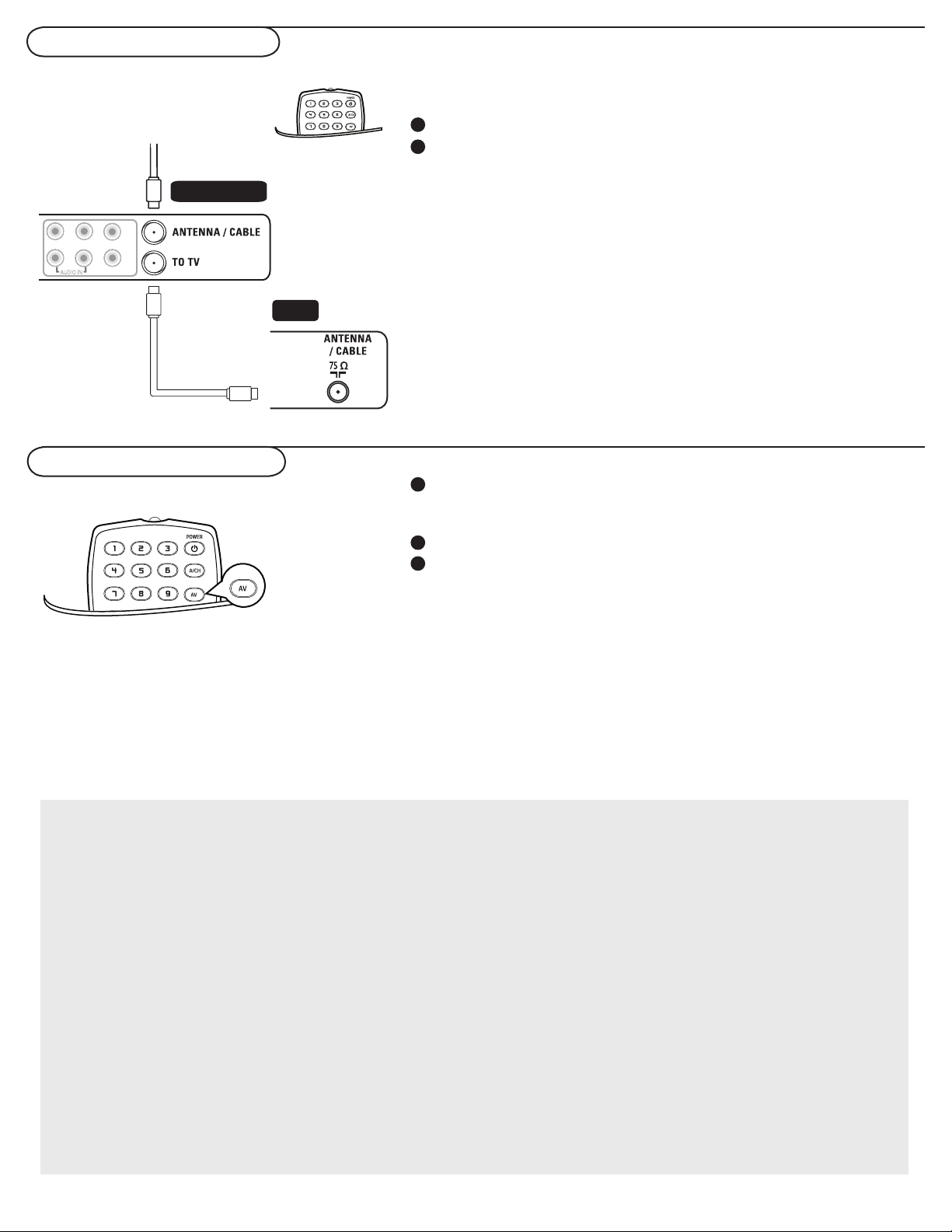

- Cable box with RF IN/OUT

•Connect the incoming cable TV signal to the cable IN jack on the back of the cable box.

•Connect a coaxial cable (not supplied) from the TO TV jack on the back of the cable box to the CABLE/

ANTENNA 75jack at the bottom of the TV.

Note: Your cable box may have a different label for the TO TV jack. Commonly used labels include OUTPUT or OUT.

•Set the OUTPUT CH switch on the cable box to CH 3 or 4 (whichever is correct for your cable box), Next, tune the TV to the corresponding channel. Once tuned,change channels using the cable box, not the TV.

Note: This connection will not supply stereo sound to the TV. The reason is that the RF output on a cable box - labeled TO TV, OUT or OUTPUT for example - will not send a stereo signal to the tuner (VHF/UHF) input on a TV.

- Cable box with A/V outputs

• Connect the incoming cable TV signal to a signal

splitter (not supplied). The signal splitter enables you to avoid having to use the TO TV jack on the back of the cable box. This jack will not supply stereo sound to the TV.

Note: Your cable box may have a different label for the TO TV jack. Commonly used labels include OUTPUT or OUT.

• Connect a coaxial cable (not supplied) to a connector on the signal splitter and to the CABLE/ANTENNA 75

jackon the TV.

•Connect another coaxial cable (not supplied) to a

connector on the signal splitter and to the cable IN jack on the back of the cable box.

•Connect A/V cables (not supplied) to the VIDEO and AUDIO L and R outputs on the back of the cable box and to the AV2 video (labeled VIDEO) and AUDIO

(labeled L and R) jacks on the back of the TV.

•To view programs from your cable box, ﬁrst press the AV button on the remote control.

•Press the cursor down or up buttons until the AV2 signal source is selected.

•Press the OK button to conﬁrm your selection. The AV2 input source becomes current for the viewing of cable TV programs through your cable box.

Note: If your cable box audio/video outputs do not supply video and stereo audio to the TV, you will need to make the connection shown above in “Cable box with RF IN/OUT.

CABLE

/ANTENNA

Note: The ﬁrst time (and only the ﬁrst time) you turn on your set you see an installation introduction screen. The

Installation procedure consists of a series of screens that guide you through the process.

1	After an introduction screen, you are asked
	to select a language of the TV’s on-screen-

menus. (The text of the header and the info on screen

continuously change language.)

2Press the cursor up/down to highlight your language.

3 Press the OK button.

4Follow the on-screen instructions to proceed.

Note: Once you complete the initial installation procedure you can access the

screens from the Settings menu. See p. 15

-Cable box with S-Video, component video (YPbPr) or HDMI connectors

See Connect Accessory Devices, p. 27.

-Antenna

Through an antenna, you can watch any HDTV programs

that are broadcast in your area without paying fees.

If you’re not sure what HDTV programming is available in your area, contact your local content provider or your local electronics retailer.

Broadcasters are currently transitioning from analog to digital TV. This means that a given broadcaster will have two channels on the air, one analog and one digital.

Connect the incoming antenna signal to the CABLE/ ANTENNA 75 jack at the bottom of the TV. See page 14 for details on using Autoprogram to store channels in the TV’s memory.

Note:This connection will supply stereo sound to the TV if it is being broadcast by the station you are watching.

- Direct Broadcast Satellite (DBS)

Satellite systems offer many of the same premium channels available on cable systems, often at a lower price. To view these channels, you’ll need to install a small dish antenna outside your home.

The two main DBS systems, DirecTV and DishNetwork, require separate, proprietary set-top receiver boxes to decode their signals and send them to your digital TV set. These boxes may include a digital TV tuner for off-air DTV broadcasts.

Satellite broadcasters also provide major local channels, depending on the market in which you live. DBS also provides service in areas not covered by cable

because the are in rural areas or other areas not passed by a cable line.

DBS also allows you to watch pay-per-view events.

3 To connect accessory devices, see p. 27.

4Refer to the bottom of the set for the correct operation voltage.

Insert the power cord into the wall socket.

Consult your local dealer if your main power supply voltage is different than that indicated for the TV. Never place the TV on top of the (AC) cord. Placing the TV at top the AC cord could cause a ﬁre or electric shock.

5Remote control:

Insert the two supplied AAA batteries.

The batteries supplied do not contain the heavy metals mercury and cadmium. Please determine and comply with local regulations when disposing of depleted batteries.

6Turn the TV on:

Press the power switch at the front side of the TV. An indicator on the front of the TV lights up.

Press the POWER buttons or the CH/button on the remote control.

Use of the remote control

Note: Pressing most buttons once will activate the assigned function. Pressing a second time will de-activate it. When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after six seconds or press OK to remove immediately.

VOL/Volume

Pressorto adjust the volume.

-to activate a setting

-to display the list of channels stored (according to the selecion made in the Installation mode (Antenna or Cable), p.13.

Color buttons

When functions attached to the color buttons, the color buttons are shown on screen.

MUTE

Interrupt the sound or restore it.

VIEW

To display a list of all channels marked as favorite (incl. subchannels).

Smart Sound button

Press repeatedly to select among the four settings; Personal, Speech, Music, Movies, or Multimedia.

Smart Picture button

Press repeatedly to select among Personal, Rich, Natural, Soft, Multimedia or Eco picture settings.

INFO button

Display information: Press to display (when available) information about the selected TV channel and program or accessory device.

POWER

Press to turn on/off the TV from or to standby mode.

Note: The TV is never powered off completely unless it is physically unplugged.

A/CH

Press to alternate between the currently viewed channel and the previously viewed channel.

Press this button repeatedly to select AV1, AV2, AV3, HDMI1, SIDE or TV when in TV mode, according to where you connected the accessory devices (p. 27).

Type the dot for digital channels.

Channel selection

-To browse through the TV channels or sources stored in the preferred channel list (see p. 26).

-To select between Antenna or Cable TV channels, ﬁrst make your selection in the Settings menu, see, p. 13.

Note: You don’t have to start the installation again once you have searched for and stored the available TV channels.

Settings menu on/off, see p. 12.

To add or remove a channel in the favorite list of TV channels.

FORMAT

Press this button to display a list of available display formats. Available display formats are determined by the type of signal you are receiving.

To choose the display format you prefer, press the FORMAT button repeatedly: Formats:

Automatic, Super Zoom, 4:3, Movie expand

14:9, Movie expand 16:9, 16:9 subtitle and widescreen.

Automatic

Superzoom

4:3

Movie expand14:9

Movie expand16:9

16:9 subtitle

Widescreen

Automatic makes the picture ﬁll the screen as much as possible.

Super zoom removes the black bars on the sides of 4:3

programs with minimal distortion. When in the Movie expand 14:9, Movie expand 16:9 or Super zoom picture format, you can make subtitles visible with the cursor up/down.

Note: Not all screen formats are available when displaying HD sources.

Buttons on the top of theTV

Should your remote be lost or broken you can still change some of the basic settings with the buttons on the top of your TV. Press the power switchto switch the TV on.

Press:

•the + VOLUME -button to adjust to volume;

•the + CHANNEL -buttons to select the TV channels or sources.

The MENU button can be used to display the Settings menu without the remote control.

Use:

•the + VOLUME - buttons and the + CHANNEL - buttons to select menu items in the directions as shown; •the + VOLUME button to conﬁrm your selection.

Note:

When a menu is activated through the MENU button on the top of the TV, a menu can be closed only by navigating to Exit and pressing the MENU button.

To use the menus

Introduction

When you use a menu or take an action, convenient instructions, help texts and messages will be displayed on your TV. Please, follow the displayed instructions and read the help text on the speciﬁc item highlighted.

The color buttons govern different actions you can take on an activated device. Press the corresponding color button on the remote control to perform the required action on a selected device.

Settings	TV
TV	Picture
Setup	Sound
Installation	Features
Exit	Channels

Info

Settings

TV	Picture
Picture	Smart Picture
Sound	Contrast
Features	Brightness
Channels	Color
	Sharpness
	Color temperature
	Tint
	Picture format
Info

How to navigate through the Settings menus

The Settings menu allows you to access and change settings and preferences settings.

•Press the MENU button on the remote control to display the Settings menu.

-Use cursor up/down to highlight and select a menu item on the left panel.

The right panel shows the content of the menu you have highlighted in the left panel.

Note: Sometimes not all the menu items are visible on the screen. Use cursor down to scroll down to additional items.

-Use the cursor right to enter the right panel.

The content of the right panel is moved to the left panel and the right panel shows the content of the newly highlighted item in the left panel.

Note: In some cases, you will want to watch the picture on your screen while adjusting settings. This means that when the

highlight is on the right side panel, the other menu items are hidden. When the cursor left is pressed again, the hidden menu items re-appear and the highlight moves to the left panel.

• Press the cursor left to go one menu level up again.

-Press the OK button on the highlighted item to activate and to dismiss the menu.

-Press the MENU button again to exit the Settings menu.

Note: The menu is also dismissed by pressing one of the color buttons (if present) referring to certain actions which may be executed.

+ 25 hidden pages
