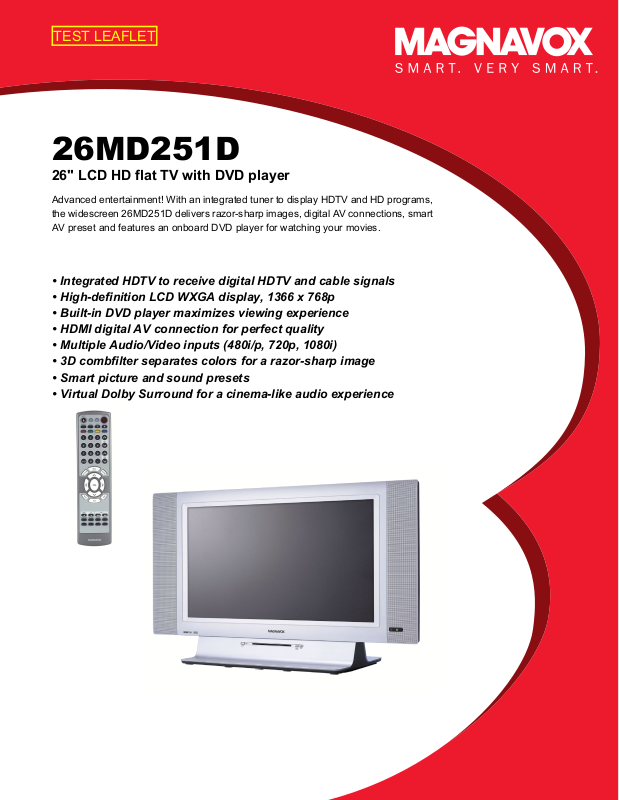

TEST LEAFLET

26MD251D

26" LCD HD flat TV with DVD player

Advanced entertainment! With an integrated tuner to display HDTV and HD programs,
the widescreen 26MD251D delivers razor-sharp images, digital AV connections, smart
AV preset and features an onboard DVD player for watching your movies.

• Integrated HDTV to receive digital HDTV and cable signals

• High-definition LCD WXGA display, 1366 x 768p

• Built-in DVD player maximizes viewing experience

• HDMI digital AV connection for perfect quality

• Multiple Audio/Video inputs (480i/p, 720p, 1080i)

• 3D combfilter separates colors for a razor-sharp image

• Smart picture and sound presets

• Virtual Dolby Surround for a cinema-like audio experience

TEST LEAFLET

26MD251D/37

26" LCD HD flat TV with DVD player

Technical specifications

Picture/Display

Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio (typical): 800:1
Display screen type: LCD WXGA Active Matrix TFT
Picture enhancement: 3/2 - 2/2 motion pull down, 3D
Combfilter, 3D MA deinterlacing, Automatic skin tone
correction, Black stretch, Blue stretch, Green
enhancement, Progressive Scan, White stretch
Screen enhancement: Anti-Reflection coated screen
Viewing angle (H / V): 176 / 176 degree
Response time (typical): 8 (grey to grey) ms
Panel resolution: 1366 x 768p

Supported Display Resolution

Resolution Refresh rate
Video formats
1080i 60Hz
480i 60Hz
480p 60Hz
720p 60Hz

Sound

Output power (RMS): 2 x 5W
Sound System: Mono, SAP, Virtual Dolby Surround

Loudspeakers

Built-in speakers: 2

Convenience

Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning
Ease of Use: Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control, Closed
Captioning Full Text
Remote control type: RC1112713/17
Remote Control: TV, DVD
Screen Format Adjustments: 16:9 subtitle, 4:3,
Automatic, Movie expand 14:9, Movie expand 16:9,
Super Zoom, Superwide, Widescreen
Convenience Enhancements: Sleep Timer
VESA Mount: 100 x 100 mm
Child Protection: Child Lock+Parental Control

Tuner/Reception/Transmission

Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: ATSC, NTSC
Video Playback: Multi-system
Aerial Input: 75 ohm F-type
Number of channels (cable): 125
Number of channels (off-air): 69

Built-in DVD

Playback Formats: CD, CD-R, CD-RW, DVD+R,
DVD+RW, DVD-R, DVD-RW, DVD-Video, MP3-CD,
Picture CD, VCD

Connectivity

AV 1: Audio L/R in, CVBS in, YPbPr
AV 2: Audio L/R in, CVBS in, YPbPr
AV 3: Audio L/R in, CVBS in, S-Video in
Front / Side connections: Audio L/R in, CVBS in, S­video in
Rear Connections: Antenna F-type, Headphone out

3.5 mm jack
Other connections: HDMI, S/PDIF out (coaxial)

Power

Power consumption: < 100 W
Standby power consumption: < 1 W
Ambient temperature: 5 °C to 40 °C
Mains power: 90-240 VAC, 50/60 Hz

Dimensions

Product weight (incl. stand): 14.7 kg
Product weight (+stand) (lb): 32.4 lb
Set dimensions with stand (W x H x D):
820 x 497 x 271 mm
Set dimensions with stand in inch (W x H x D):

32.3 x 19.6 x 10.7 inch

Accessories

Included Accessories: Batteries for remote control,
Power cord, Quick Use Guide, Remote Control, Right
angle antenna adaptor, User Manual, Warranty
certificate

Integrated HDTV tuner

The built-in HDTV tuner that receives and displays
terrestrial ATSC and unscrambled cable (64/256
QAM) signals.

LCD WXGA display, 1366x768p

This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of
1366 x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness
and superb colors. This vibrant and sharp image will
provide you with an enhanced viewing experience.

Built-in DVD player

A multi-format DVD player integrated into the LCD TV
that makes it easy for video fans and music lovers to
enjoy all widely accepted DVD and CD formats as
well as the increasing popular MP3 digital music
without the cost of purchasing and the hassle of
hooking up a separate player. The integrated player
is compatible with DVD, DVD+R/RW, DVD-R/RW,
VCD, CD, CR-RW, picture CD, MP3 and HDCD
discs.

HDMI

HDMI stands for High Definition Multimedia Interface.
It is a direct digital connection that can carry digital
HD video as well as digital multichannel audio. By
eliminating the conversion to analog signals it
delivers perfect picture and sound quality, completely
free from noise.

Multiple AV inputs

Multiple AV inputs accommodate a variety of format
choices in connecting video and audio devices (480i/
p, 720p, 1080i).

3D combfilter

A 3D combfilter is a device that performs field-by-field
comparisons of the television image to accurately
separate the color from the black-and-white
information. It separates brightness and color signals
better in the 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure.

Smart picture & Smart sound

Smart picture and Smart sound presets are optimized
settings for all your favorite types of programs,
various display and audio modes that are directly
accessed through a single key on the remote control.

Virtual Dolby surround

Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally
immersed in your television experience.

Date of issue 2006 08 31
Product Owner: David Wu
Version: 0.1

12 NC: 8639 000 17164
UPC: 6 09585 11597 2

Test leaflet, for internal use only!
Specifications are subject to change without notice.
