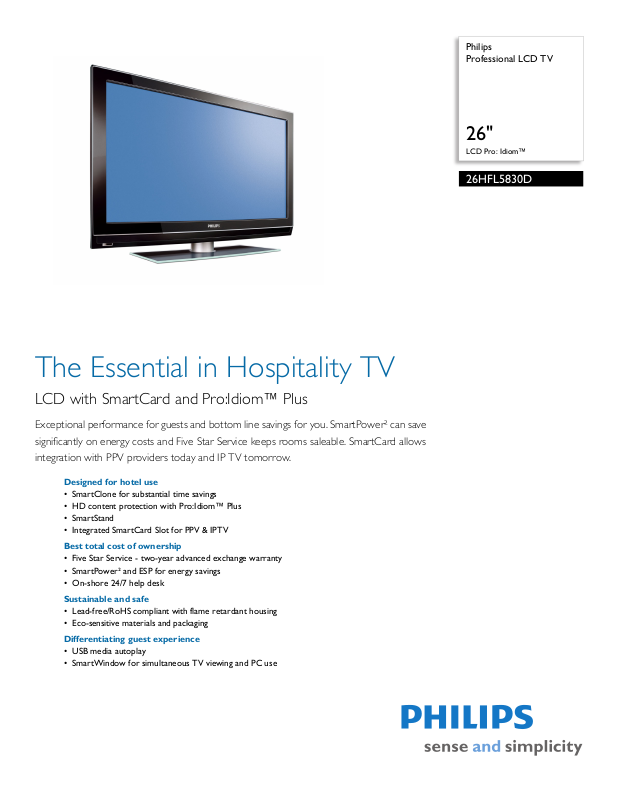

Philips 26HFL5830D User Manual

Philips
Professional LCD TV

26"

LCD Pro: Idiom™

26HFL5830D

The Essential in Hospitality TV

LCD with SmartCard and Pro:Idiom™ Plus

Exceptional performance for guests and bottom line savings for you. SmartPower² can save
significantly on energy costs and Five Star Service keeps rooms saleable. SmartCard allows
integration with PPV providers today and IP TV tomorrow.

Designed for hotel use

• SmartClone for substantial time savings

• HD content protection with Pro:Idiom™ Plus

•SmartStand

• Integrated SmartCard Slot for PPV & IPTV

Best total cost of ownership

• Five Star Service - two-year advanced exchange warranty

• SmartPower² and ESP for energy savings

• On-shore 24/7 help desk

Sustainable and safe

• Lead-free/RoHS compliant with flame retardant housing

• Eco-sensitive materials and packaging

Differentiating guest experience

• USB media autoplay

• SmartWindow for simultaneous TV viewing and PC use

Professional LCD TV

26" LCD Pro: Idiom™

26HFL5830D/27

Specifications Product highlights

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Contrast ratio (typical): 800:1

• Dynamic screen contrast: 6400:1

• Diagonal screen size: 26 inch / 66 cm

• Picture enhancement: Pixel Plus 3 HD, Progressive
Scan, 3/2 - 2/2 motion pull down, Active Control,
3D Combfilter, Dynamic contrast enhancement,
Contrast Plus, Digital Noise Reduction, Jagged Line
Suppression, Luminance Transient Improver, Color
Transient Improvement, Automatic skin tone
correction, Color Enhancement, Motion adaptive
de-interlacing, Picture in Picture

• Screen enhancement: Anti-Reflection coated
screen

• Display screen type: LCD WXGA Active Matrix
TFT

• Panel resolution: 1366 x 768p

• Response time (typical): 8 ms

• Viewing angle (H / V): 160 / 160 degree

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1366 x 768 60Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz

Sound

• Sound System: Stereo, Dolby Digital (AC-3)

• Output power (RMS): 2 x 10W

• Sound Enhancement: Auto Volume Leveller,
Incredible Surround

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Cloning of TV settings via USB,
Advanced Hotel Mode, Fine Tuning, PLL Digital
Tuning, Program Name, Keyboard lock-out,
Security menu access

• Ease of Use: Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control

• Screen Format Adjustments: 4:3, 7 Widescreen
Modes

• Comfort: Hotel Guest features, Sleep timer, Switch
on channel, Volume limitation, Welcome message

• Other convenience: Kensington lock

• Convenience Enhancements: Closed captioning

(digital), Vchip and parental lock

• Interactive hotel features: Smoovie Pay TV

Tuner/Reception/Transmission

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: ATSC, NTSC

• Video Playback: NTSC, PAL

• Number of Preset Channels: 250

• Cable: Unscrambled Digital Cable -QAM

• Terrestrial: ATSC (8VSB)

• Aerial Input: 75 ohm F-type

Connectivity

• AV 1: AV In, S-Video Y/C

• AV 2: Audio L/R in, YPbPr

• AV 3: VGA PC-in, Audio-in mini jack 3.5mm

• AV 4: HDMI

• AV 5: HDMI

• Audio Output - Digital: Coaxial (cinch)

• Other connections: Antenna F-type, RS232 Serial

• Connectivity Enhancements: SmartCard Expansion
Slot, HM-Link, Extra Power supply 12V/1W,
External Loudspeaker connector, USB2.0, RJ12
SmartPlug connector

Power

• Power use SmartPower² = high: < 52 W

• Power use SmartPower² = off: < 115 W

• Standby power consumption: 1.15 W

• Mains power: 110 - 240V, 50/60Hz

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Color cabinet: Black w/gloss black bezel

• Set dimensions in inch (W x H x D):

26.7

x 18.6 x 4.5 inch

• Set dimensions with stand in inch (W x H x D):

26.7

x 21 x 10.4 inch

• Box dimensions in inch (W x H x D):

22.6

x 8 x 35.3 inch

• Product weight (lb): 25.3

• Weight incl. Packaging (lb): 38.6

• VESA wall mount compatible: 200 x 100 mm

Accessories

• Included Accessories: Swivel stand with anti-theft,
Power cord, Warranty Leaflet, Quick start guide

• Optional accessories: Set up Remote RC2573GR,
Mounting brackets/ stands, Guest remote control

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: JPEG Still pictures, MP3,
Slideshow files (.alb)

Green Specifications

• Safety: Flame retardant housing

•Eco Designed

•SmartPower²

•

SmartClone

Philips remains on the forefront of making installation as
simple as possible. SmartClone offers USB cloning, or on
select models, revolutionary RF cloning, which allows all
TV’s on property to be programmed in as little as five
minutes. Additional hardware is required to take advantage
of RF cloning.

Pro:Idiom™ Plus

Pro:Idiom™ was created for the hospitality industry to
protect first run movies and other HD premium content
from piracy. Philips Pro:Idiom™ Plus televisions offer secure
HD conte nt pr otect ion no t onl y for P PV hot els, but no w als o
for stand alone properties. (Additional fees may apply for
stand alone use) (Pro:Idiom™ is a trademark of the Zenith
Corp.)

SmartStand

This TV comes with a swivel stand that allows your guests
to adjust the TV up to 180 degrees so that they can watch
TV from any position in the room. Equipped with built-in
se curity , th is s tan d ca n be secur ed t o a t able o r fu rnitu re t o
deter theft.

Integrated SmartCard Slot

Allows third party decoders and application cards to
interface with the TV, adding functionality to the set
without the need for external boxes or cables. In addition,
IPTV functionality can be added to this TV by simply slotting
in a new card!

Five Star Service

Philips offers unmatched commitment to keeping your
guest rooms in working order. Our products are so reliable
that we offer a two-year advanced exchange warranty. In
the event that something does go wrong, we guarantee to
ship a replacement set to you, within 72 hours during the
first year.

SmartPower² and ESP

Our second generation power saving technology allows the
bac kl ight in te nsity to be dynamic al ly adju st ed by the sy stem
to reduce the power consumption by up to 60%, saving
substantially on energy costs. In addition, Philips' Energy
Savings Programmability (ESP) allows the set to turn itself
off when not in use to save even more energy when guests
or maids leave televisions on for long periods while the
room is vacant.

RoHS & Flame retardant housing

In additon to being lead-free and RoHS compliant, Philips
TVs have a special housing of eco-friendly, non-brominated
flame-retardant materials. Independent tests carried out by
emergency fire services have shown that whereas TVs can
sometimes intensify fires caused by external sources, Philips
TVs will not contribute to the fire.

Eco-sensitive materials

Philips TVs are designed and produced according to our
EcoDesign principles aimed at minimizing overall
environmental impact, through lower power consumption,
removal of hazardous substances, lower weight, more
efficient packaging and better recyclability.

Issue date 2008-06-27

Version: 2.0.5

12 NC: 8670 000 37502
UPC: 6 09585 15024 9

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

USB media autoplay

Philips TVs feature a USB connector that allows the guest
to connect USB memory sticks to play music or photos right
on the TV.

SmartWindow

SmartWindow allows yo ur guests the added c onvenience of
working on their laptop PC's on one half of the screen while
enjoying the TV content of their choice on the other half.
The perfect balance of work and leisure.
