E line |
246E9 |
www.philips.com/welcome |
|
|
|
|
|
EN User manual |
1 |
|
Customer care and warranty |
20 |
|
Troubleshooting & FAQs |
24 |
Table of Contents
1. Important........................................ |
1 |
|
1.1 |
Safety precautions and |
|
|
maintenance................................... |
1 |
1.2 |
Notational Descriptions.............. |
2 |
1.3 |
Disposal of product and packing |
|
|
material........................................... |
3 |
2. Setting up the monitor............... |
4 |
|
2.1 |
Installation...................................... |
4 |
2.2 |
Operating the monitor................ |
6 |
2.3 |

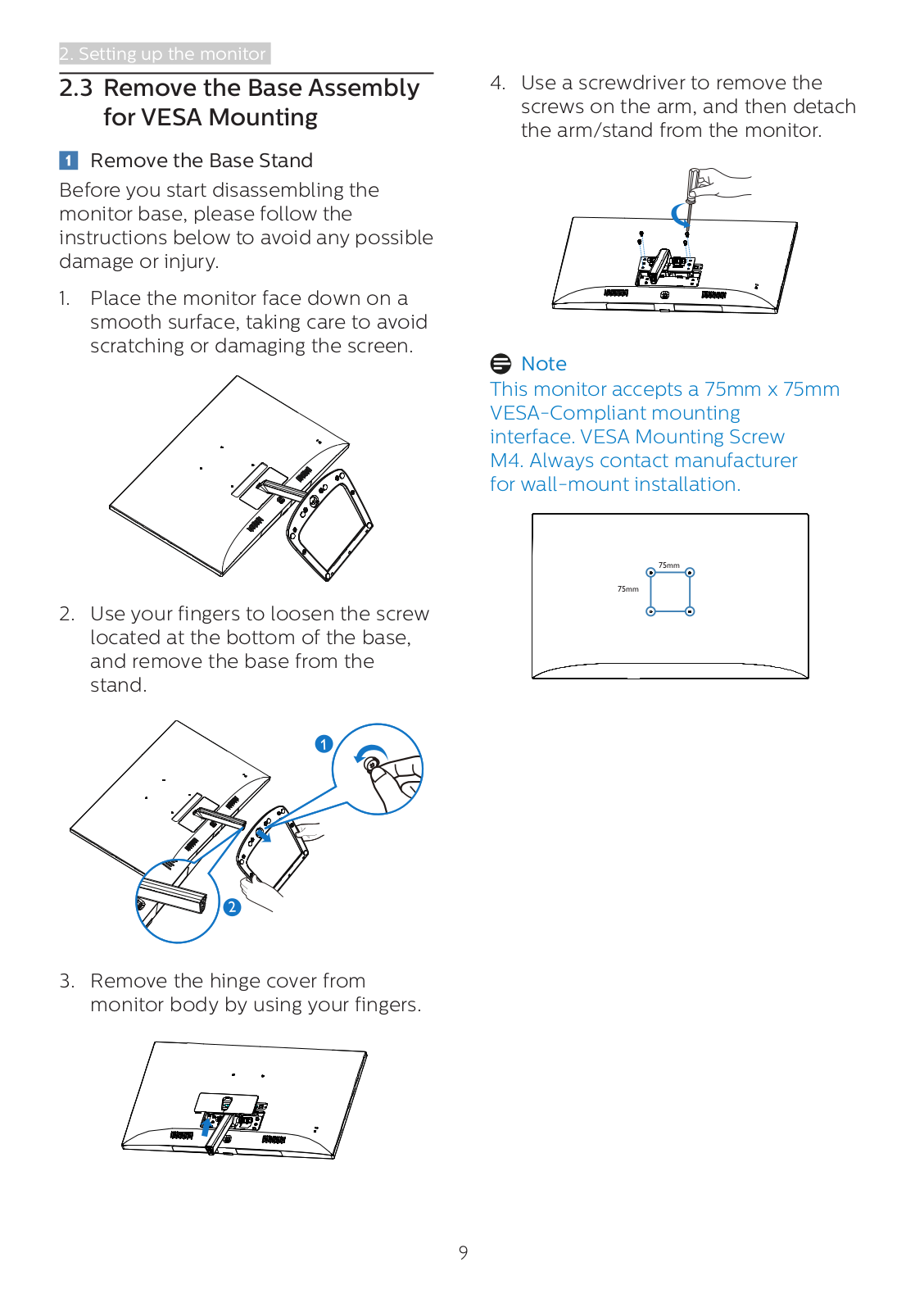

Remove the Base Assembly for |
|
|
VESA Mounting ............................ |
8 |
3. |
Image Optimization..................... |
9 |
|
|
3.1 |

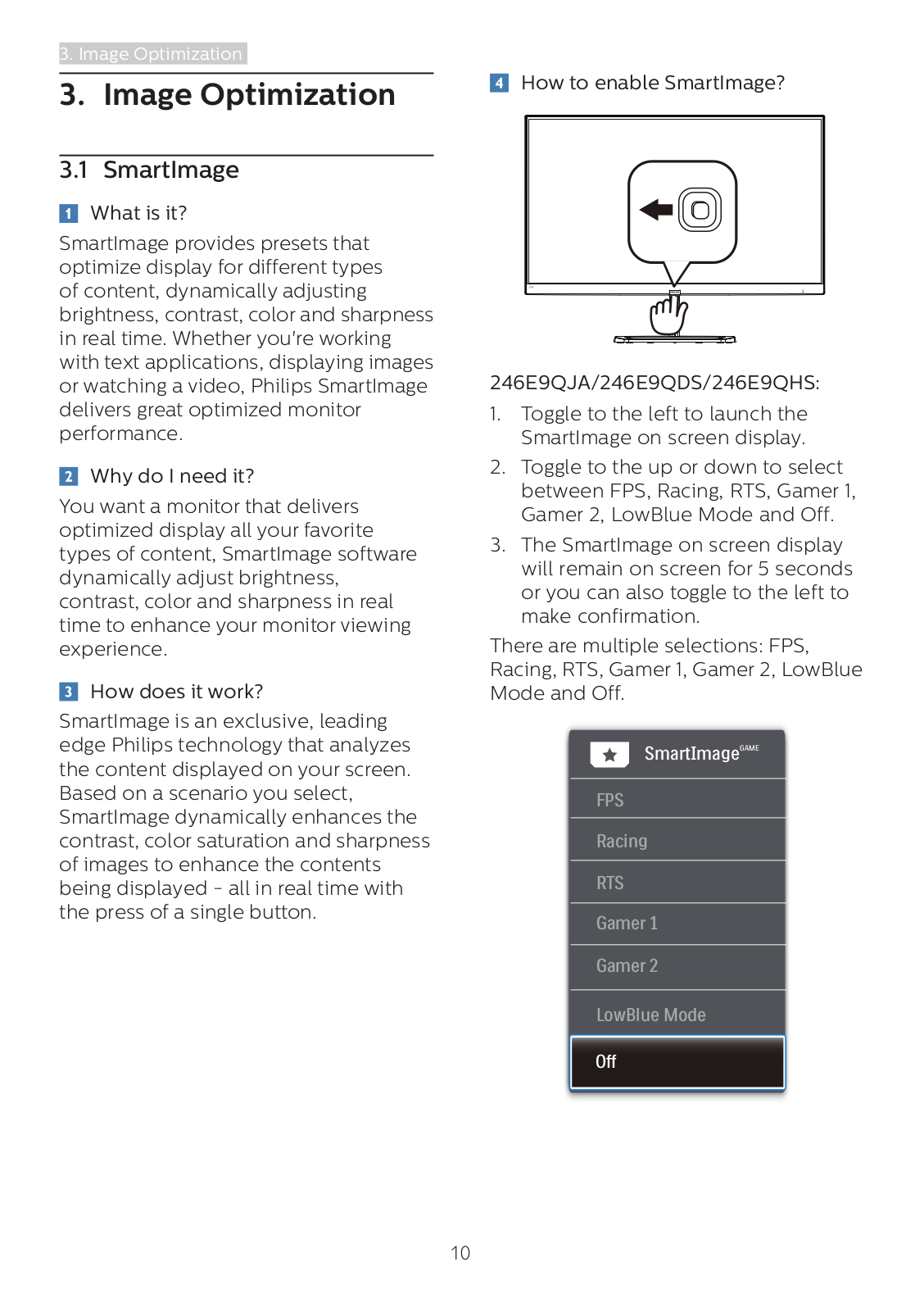

SmartImage.................................... |
9 |
|
3.2 |

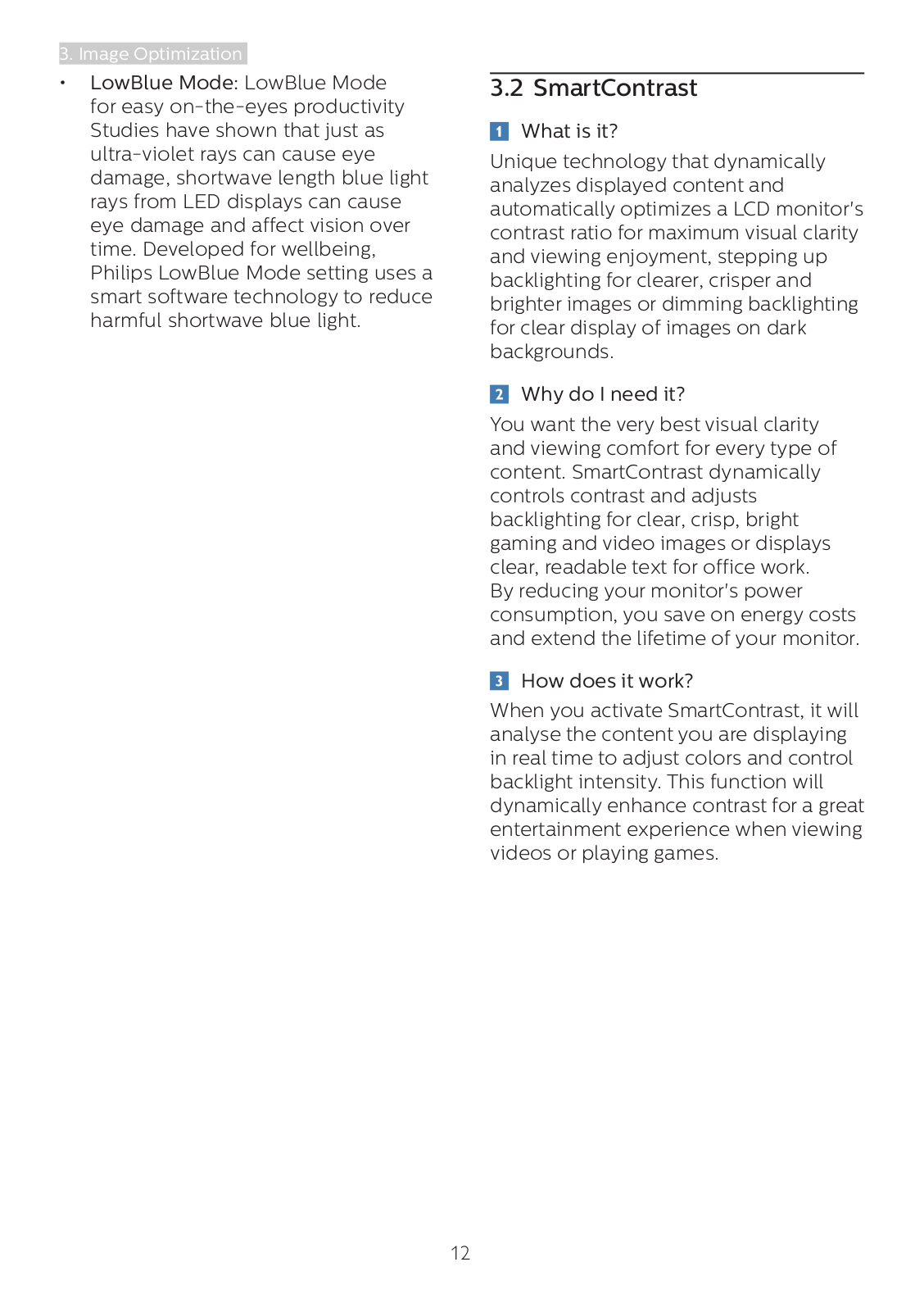

SmartContrast................................ |
11 |
4. |

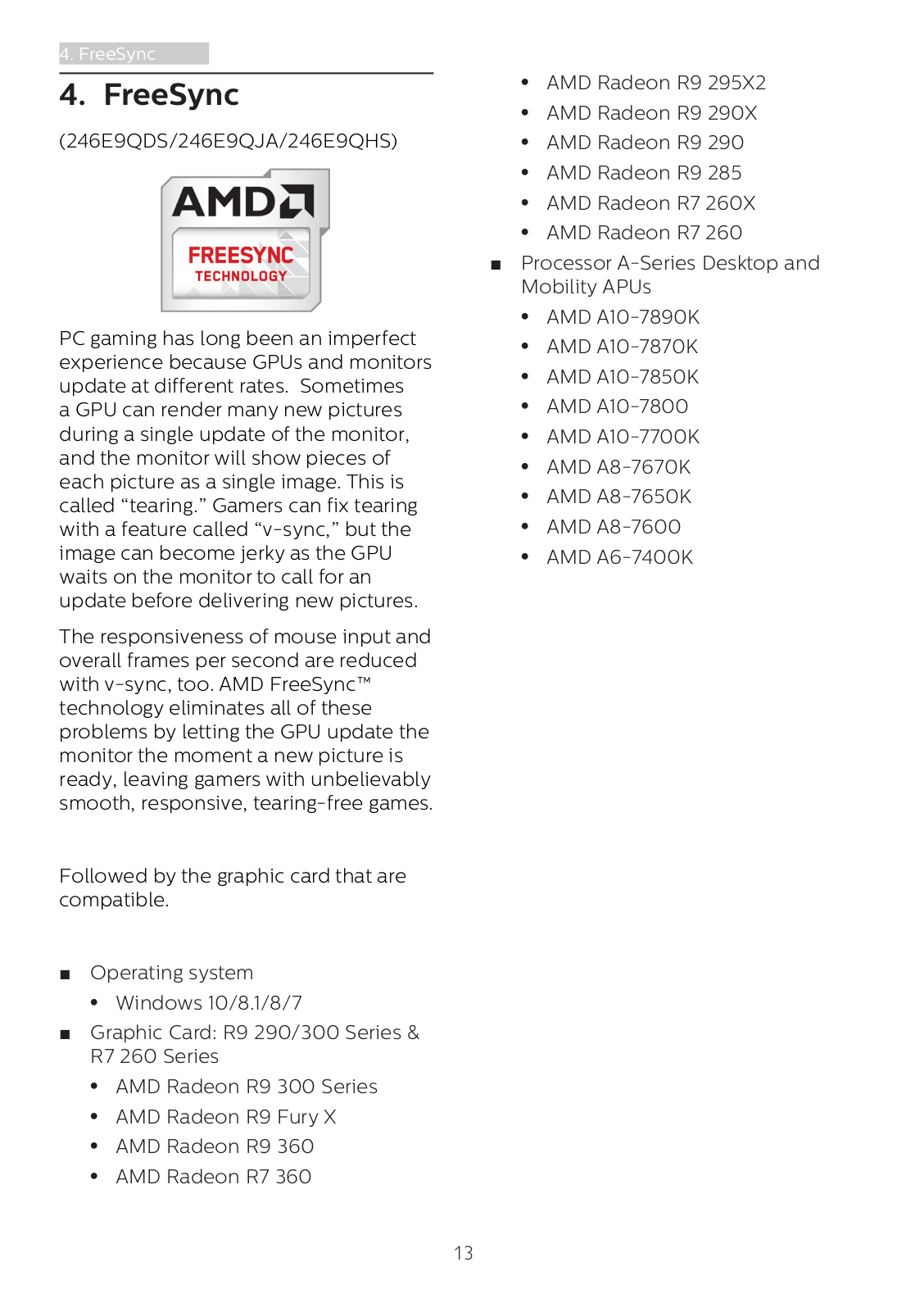

FreeSync ...................................... |
12 |
|
5. |

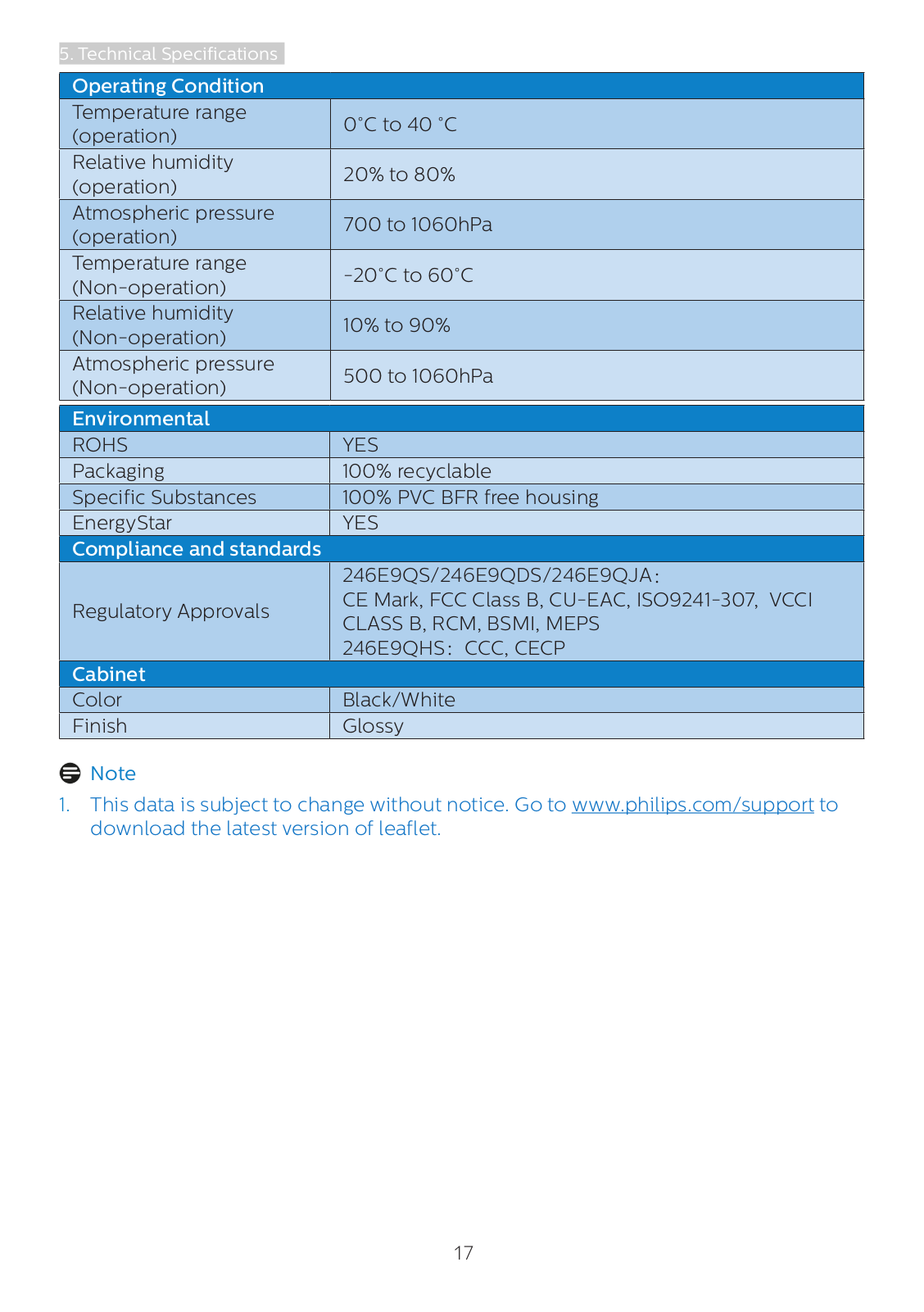

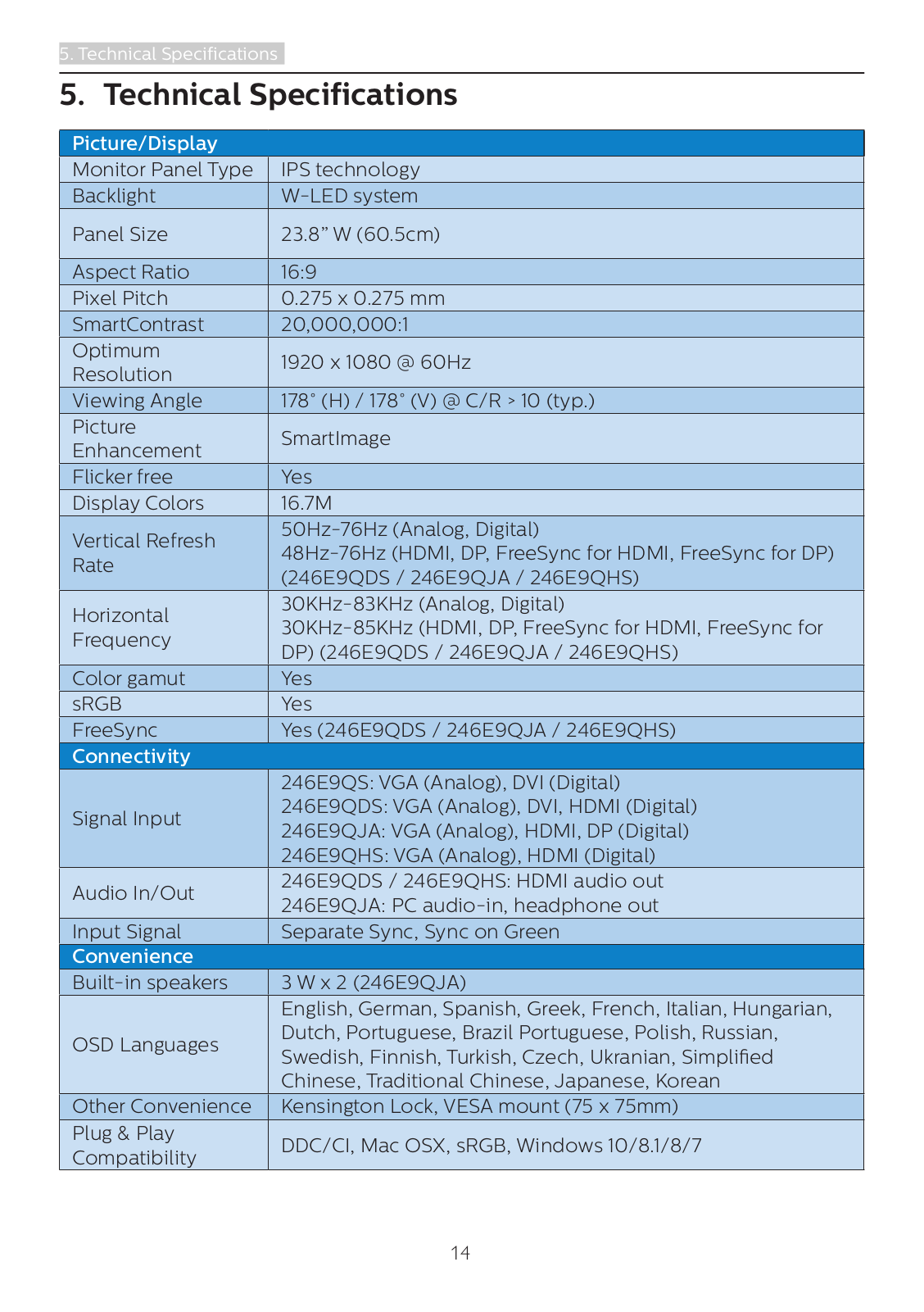

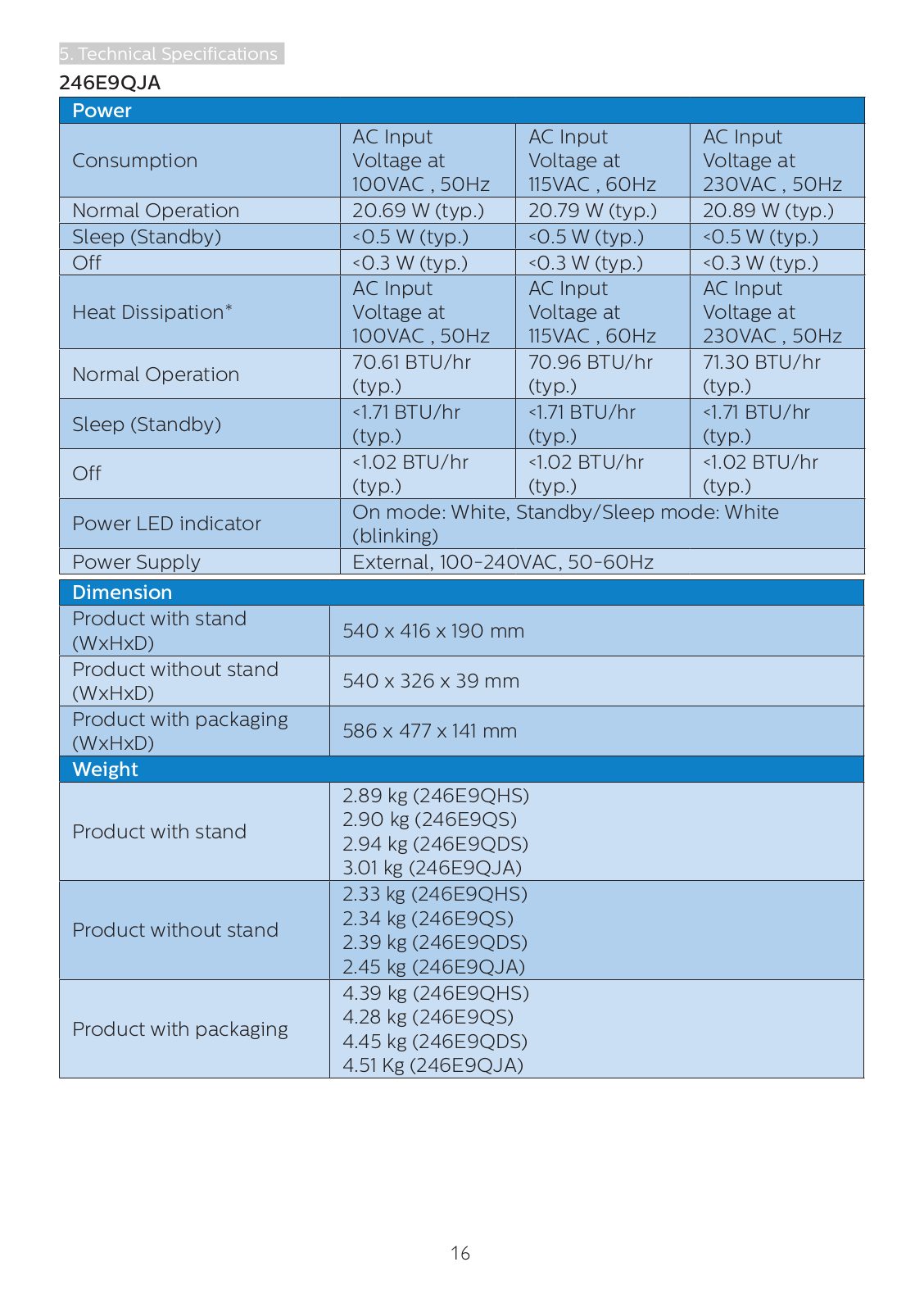

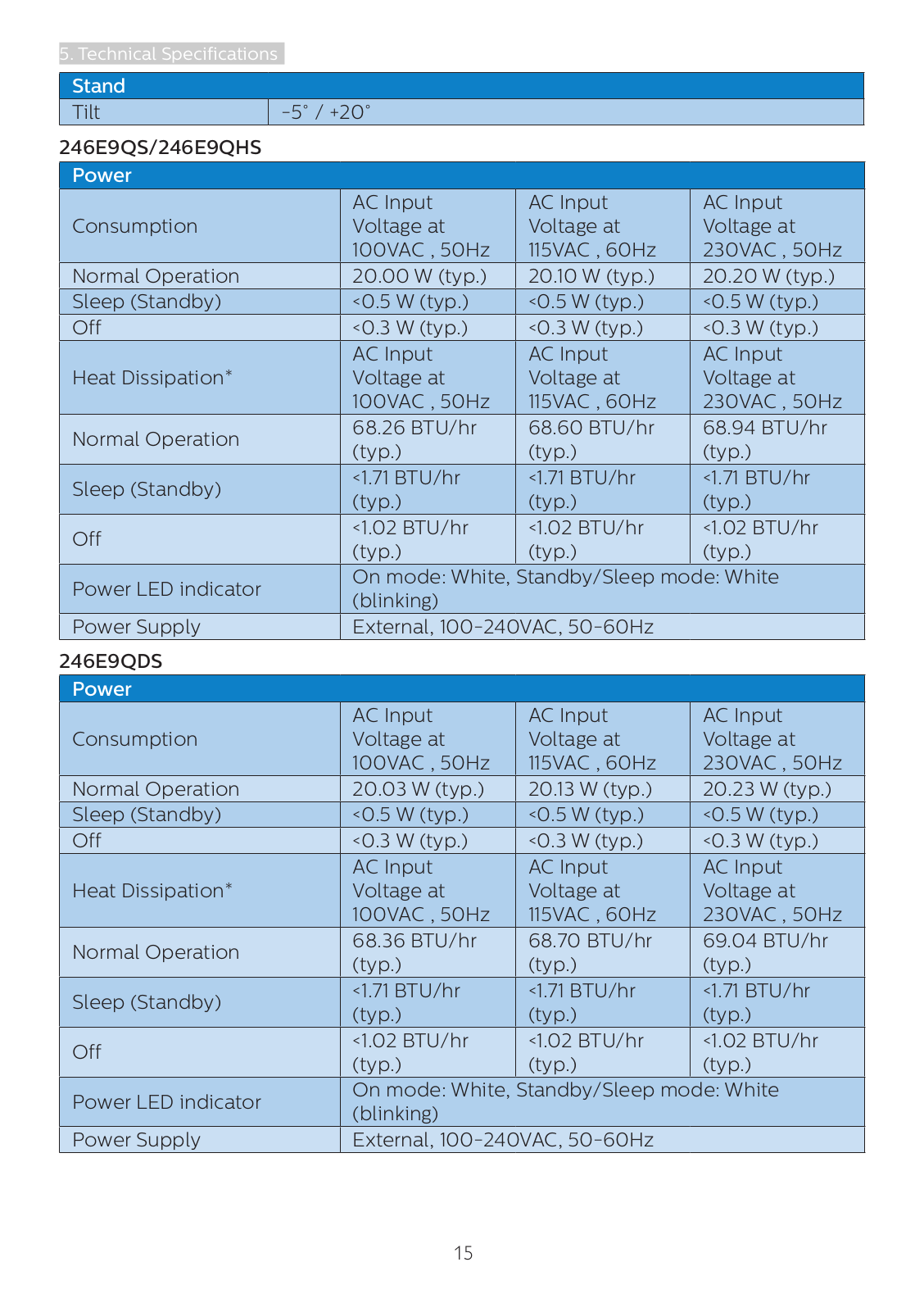

Technical Specifications............ |
13 |
|
|
5.1 |

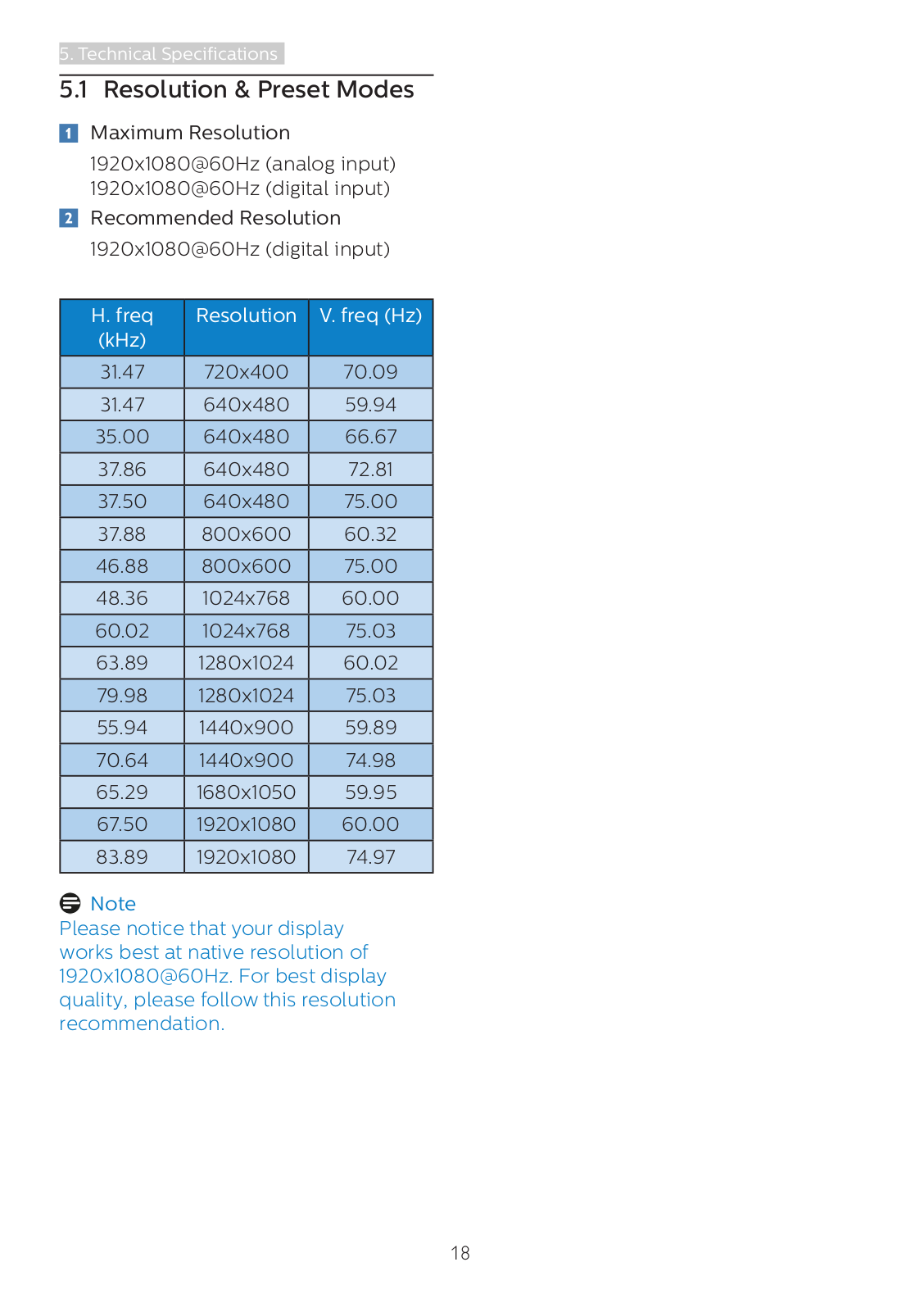

Resolution & Preset Modes...... |
17 |
6. |

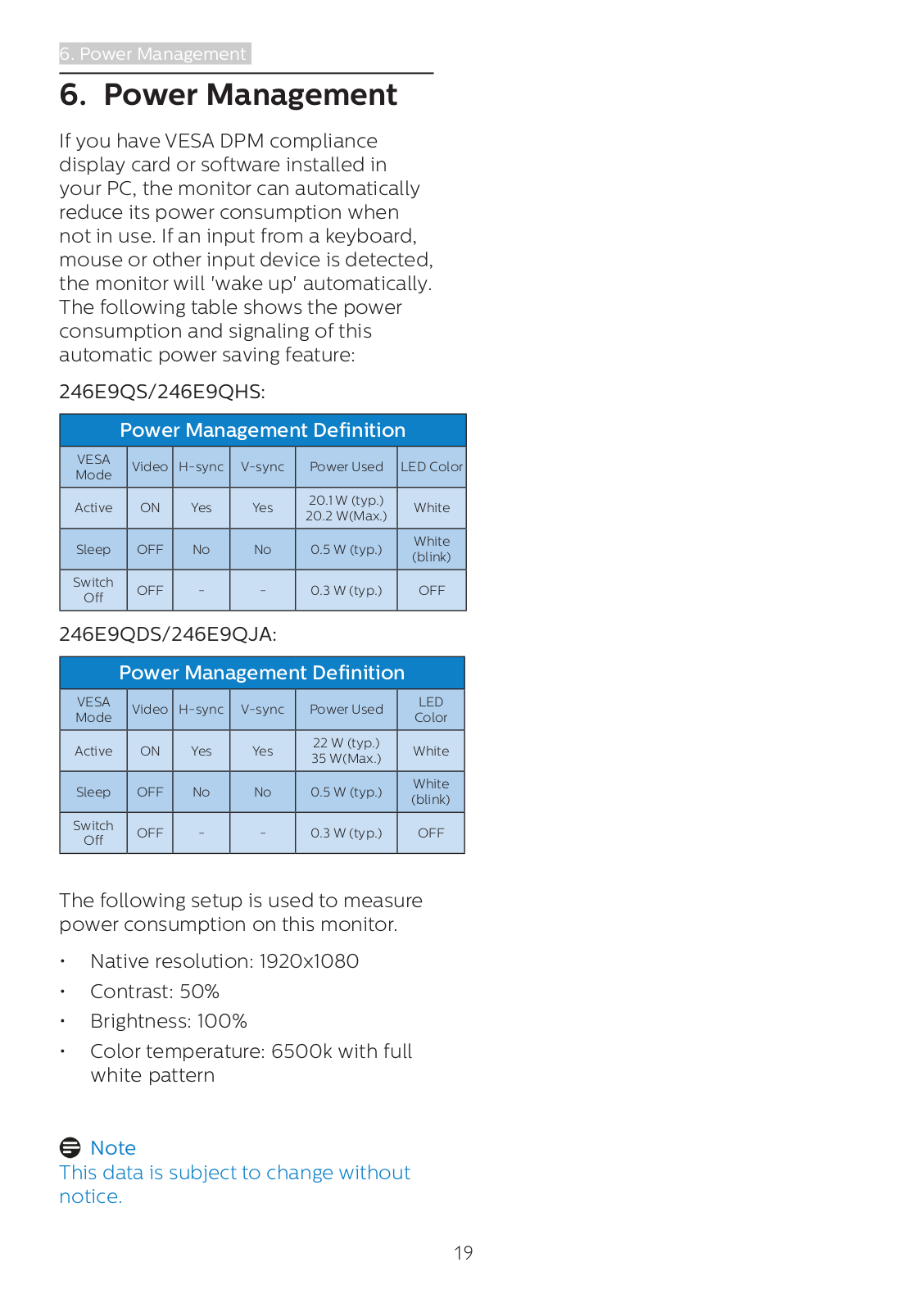

Power Management................... |
18 |
|
7. |
Customer care and warranty.... |
19 |
|
|
7.1 |

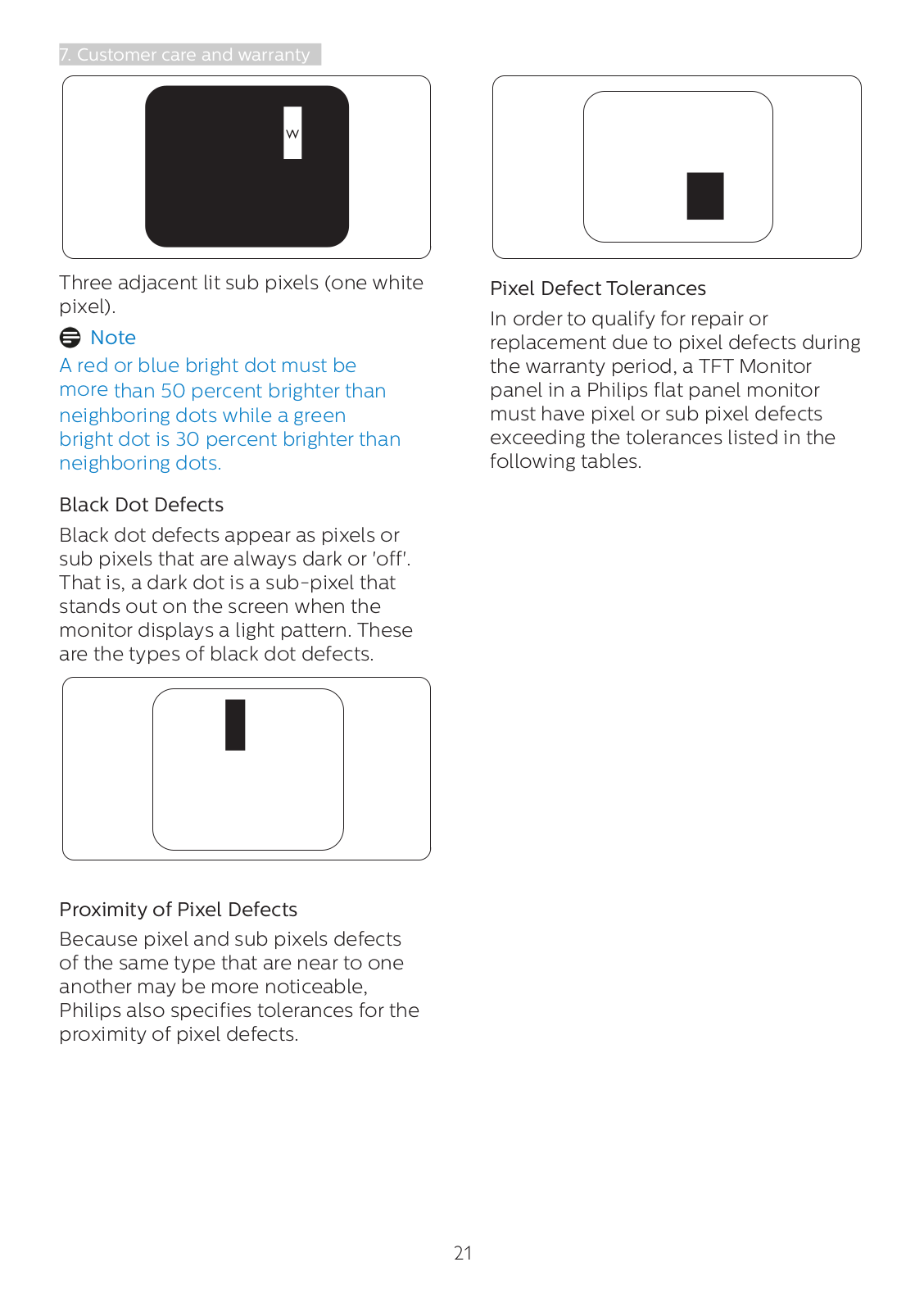

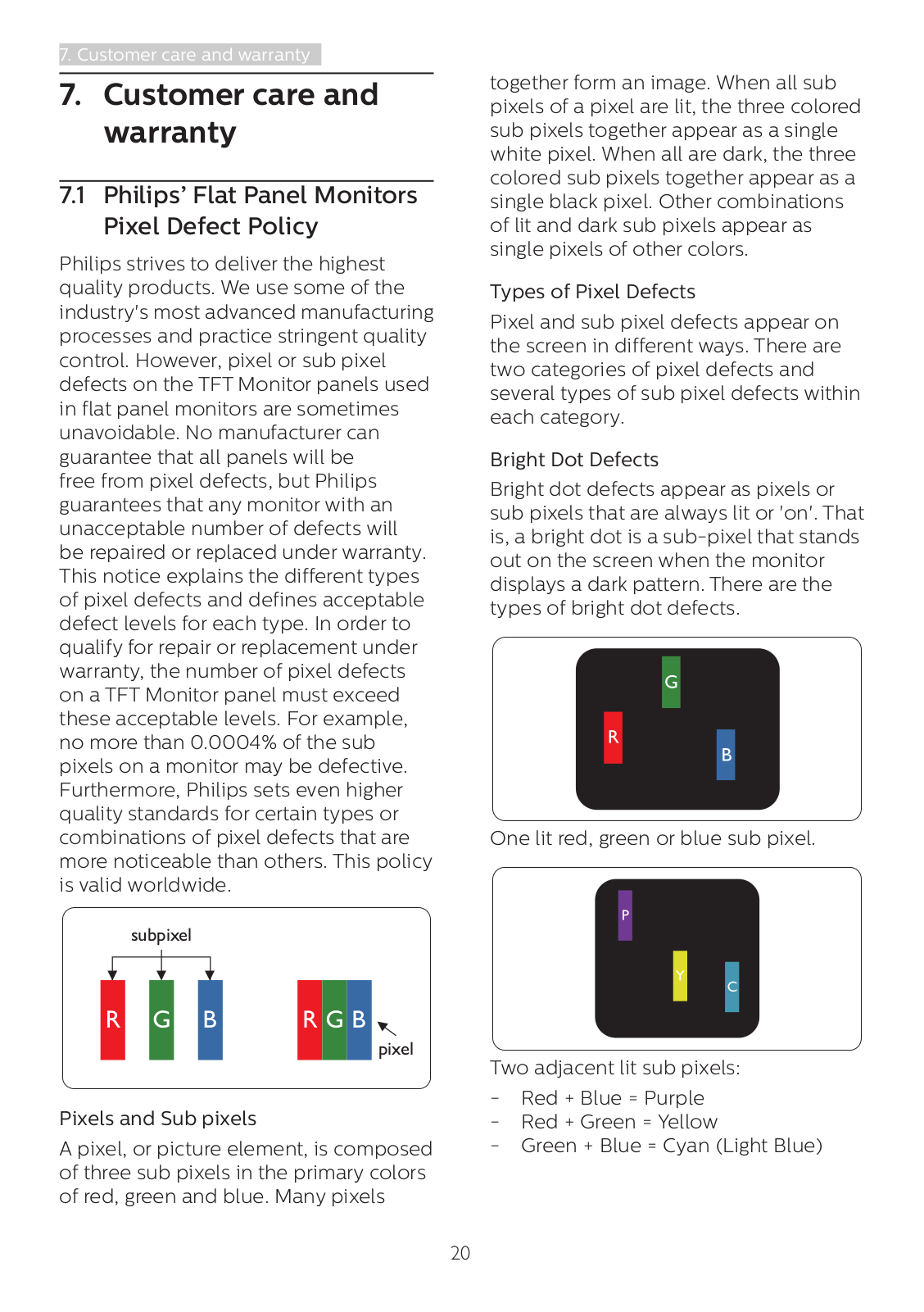

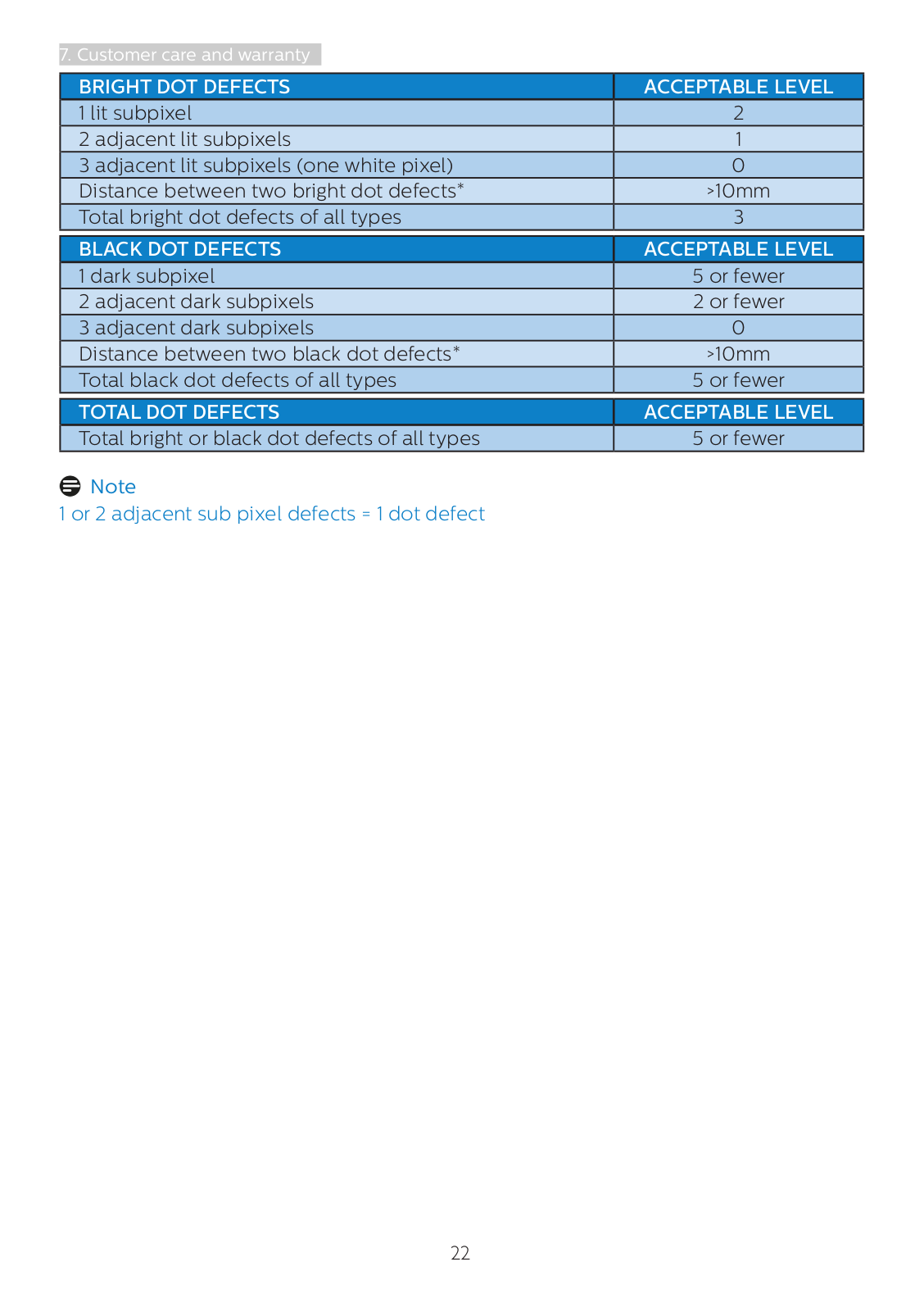

Philips’ Flat Panel Monitors |
|
|
|
Pixel Defect Policy...................... |
19 |
|
7.2 |

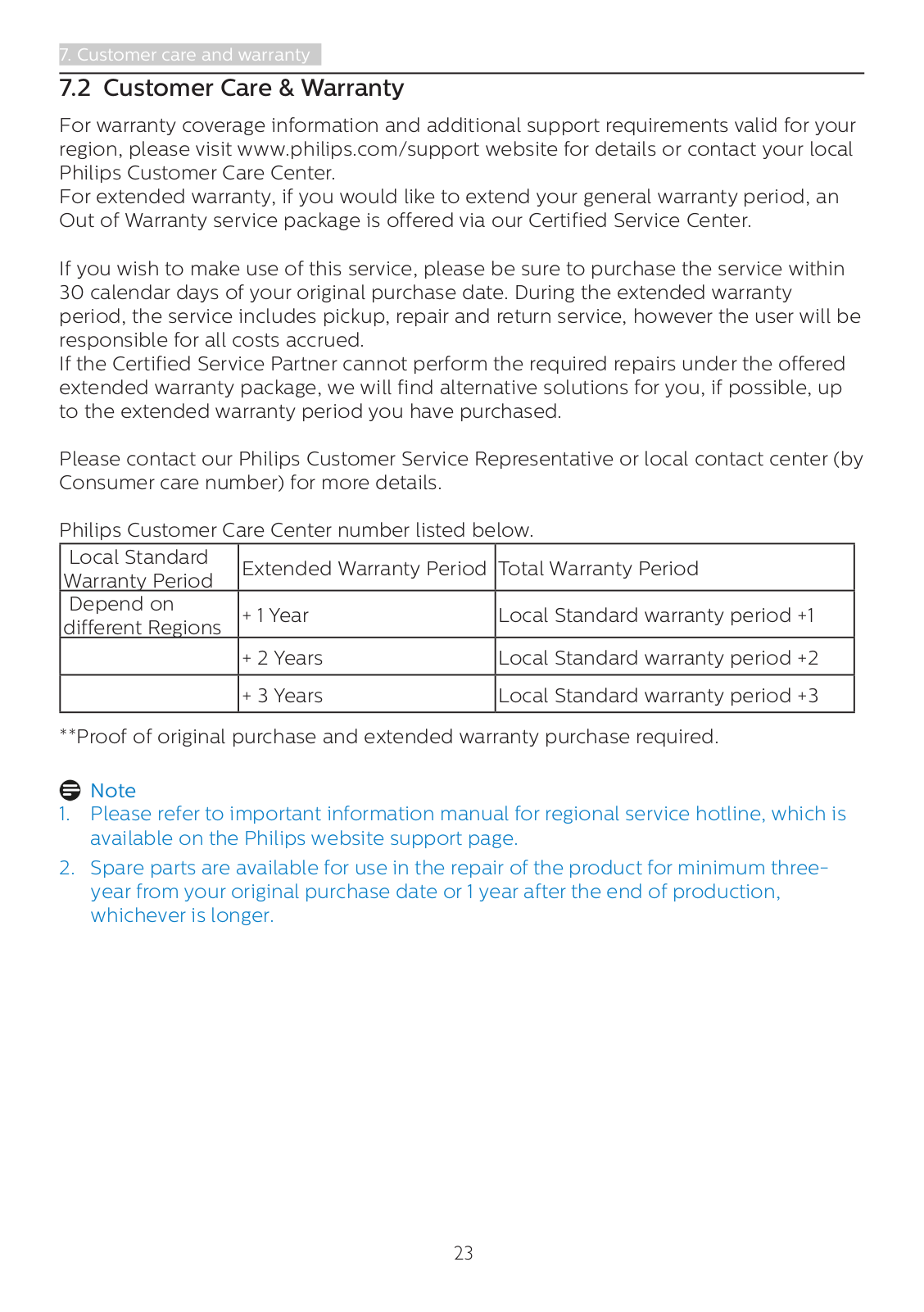

Customer Care & Warranty....... |
22 |
8. |

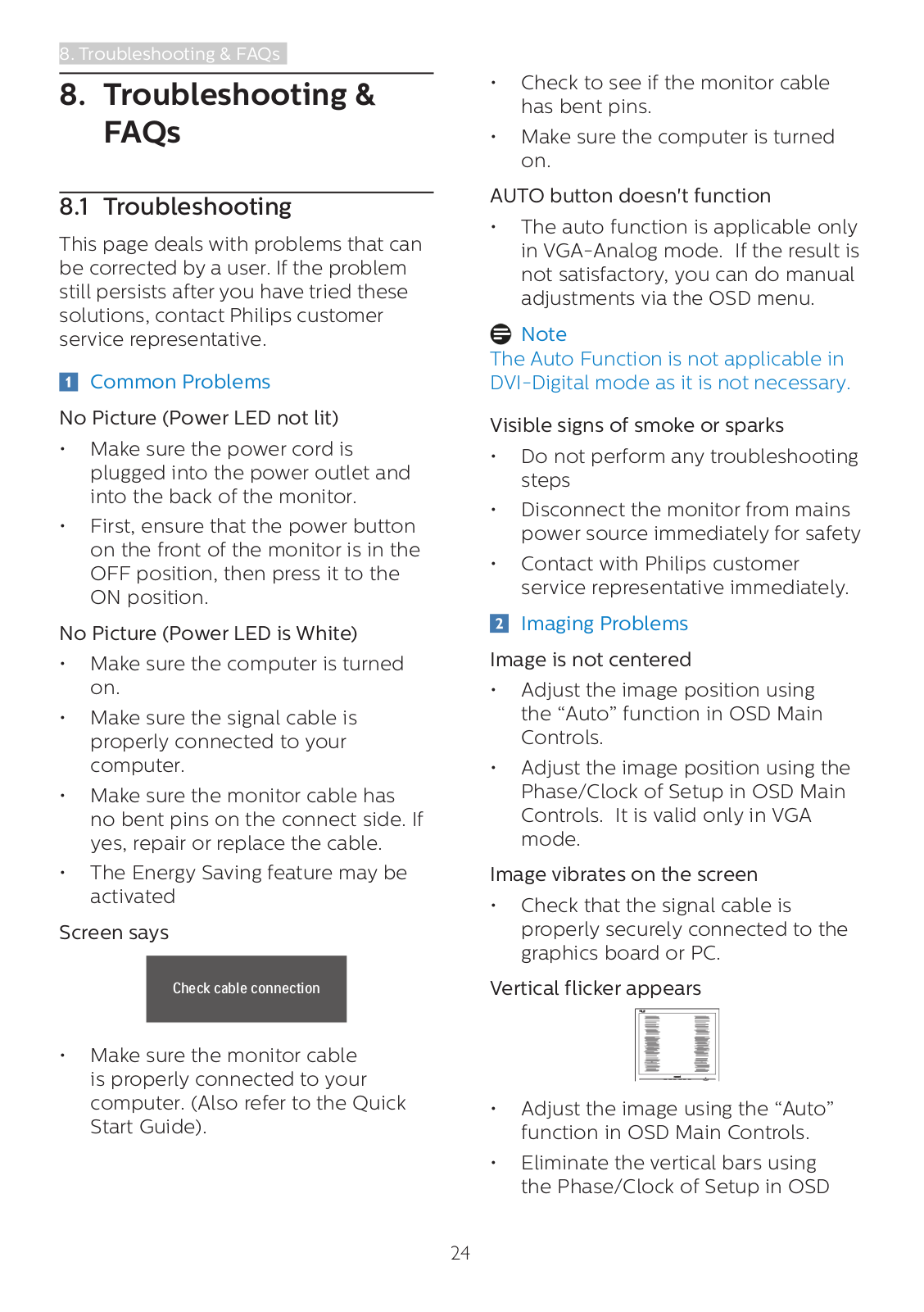

Troubleshooting & FAQs.......... |
23 |
|
|
8.1 |

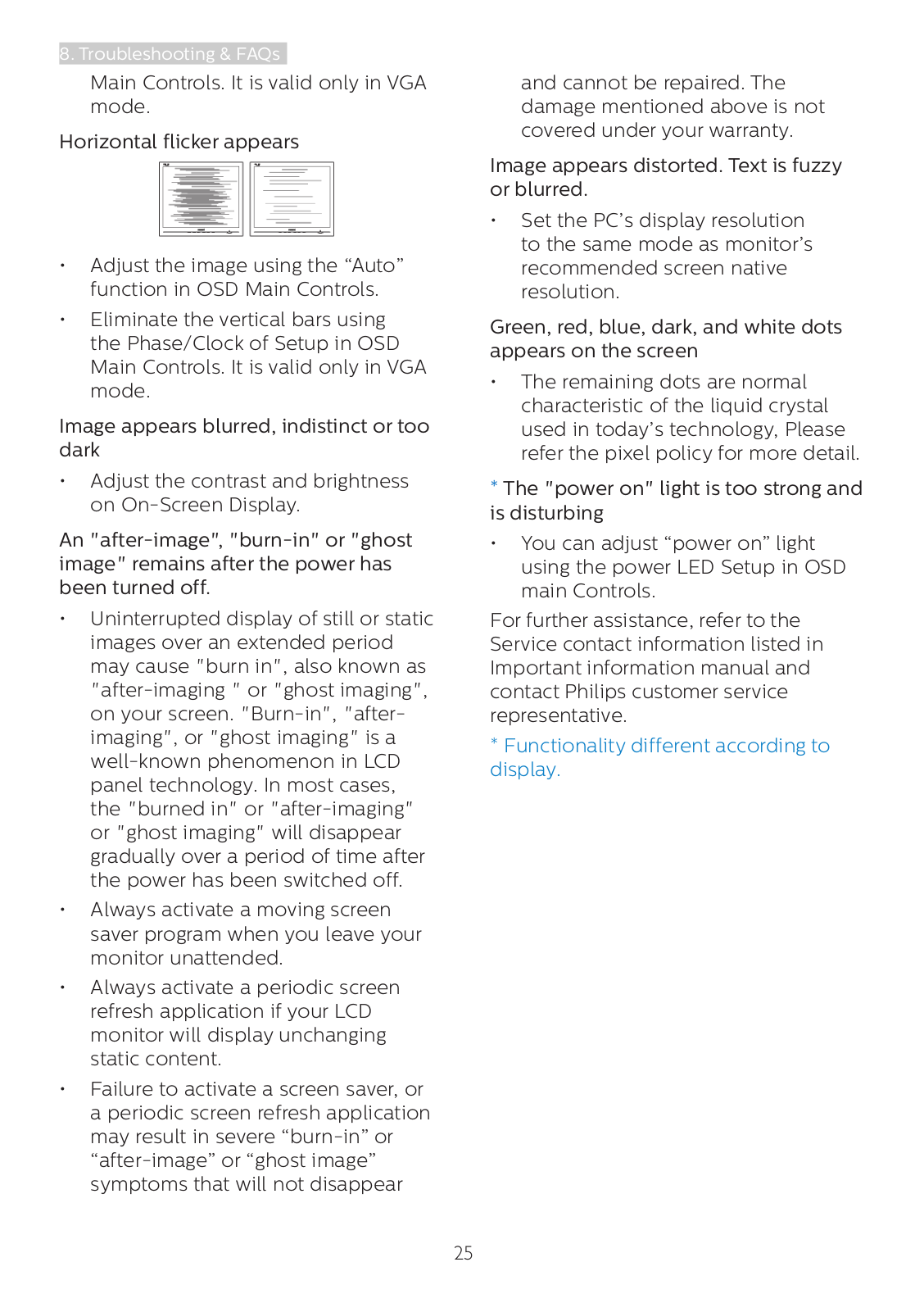

Troubleshooting......................... |
23 |
|
8.2 |

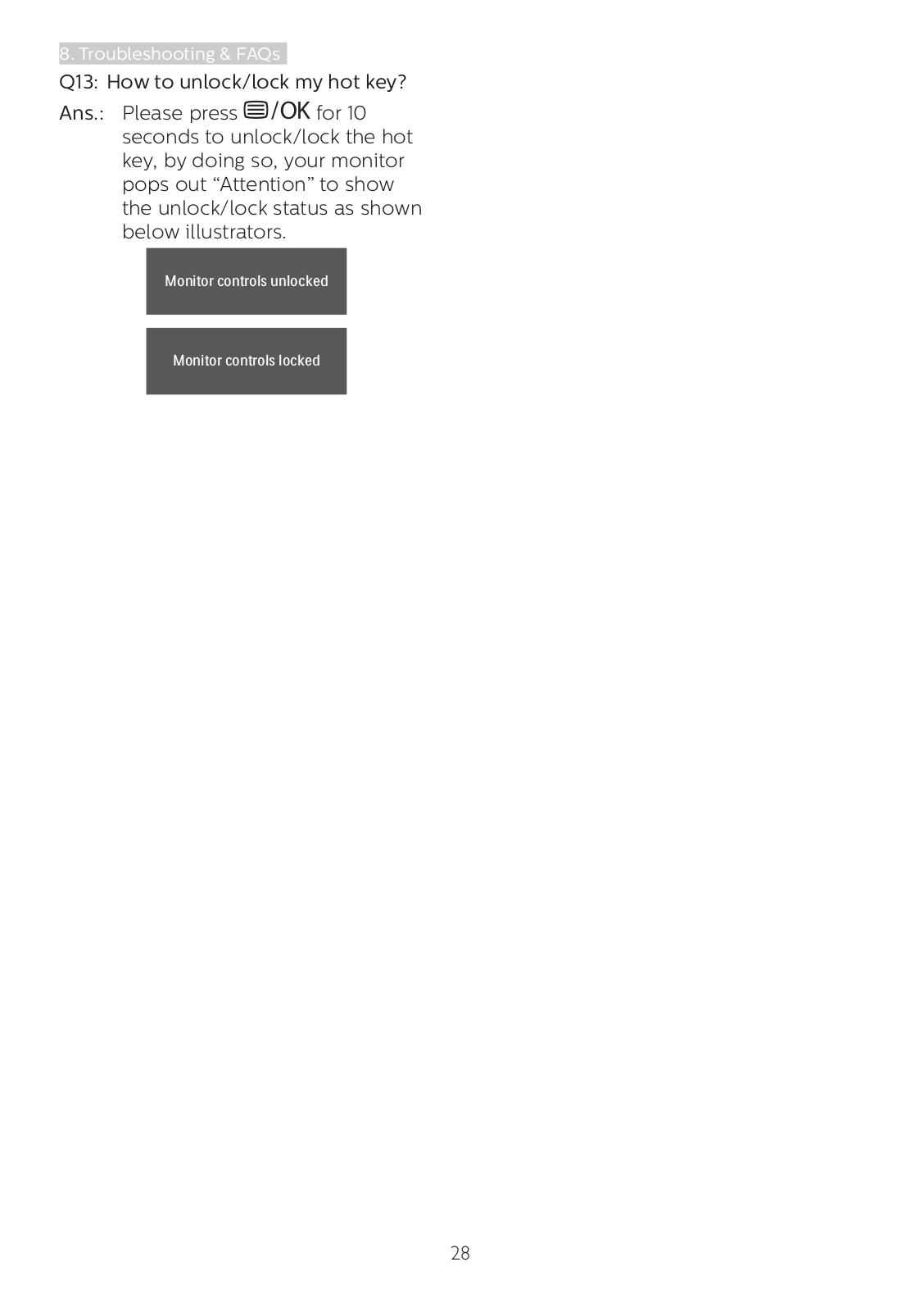

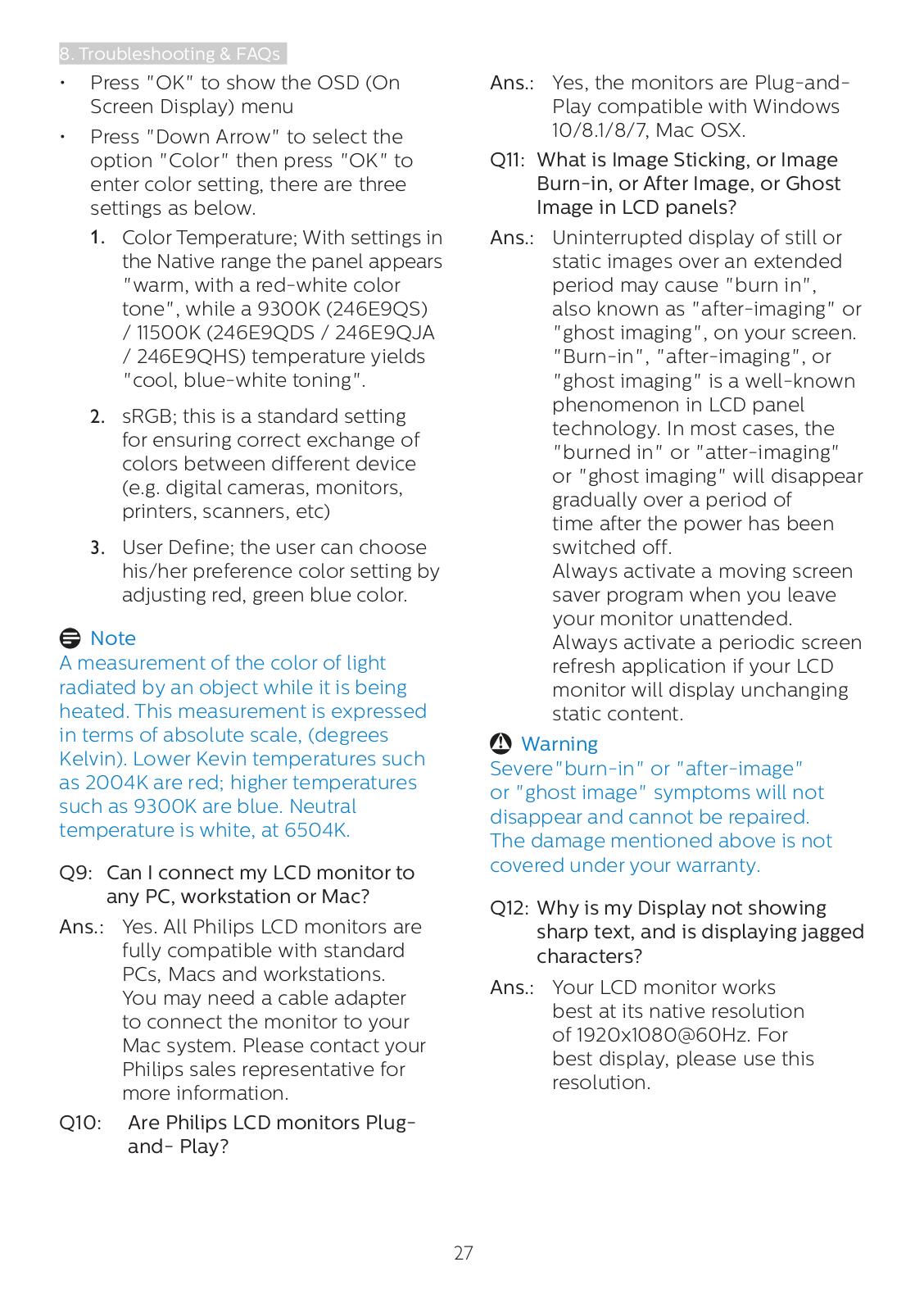

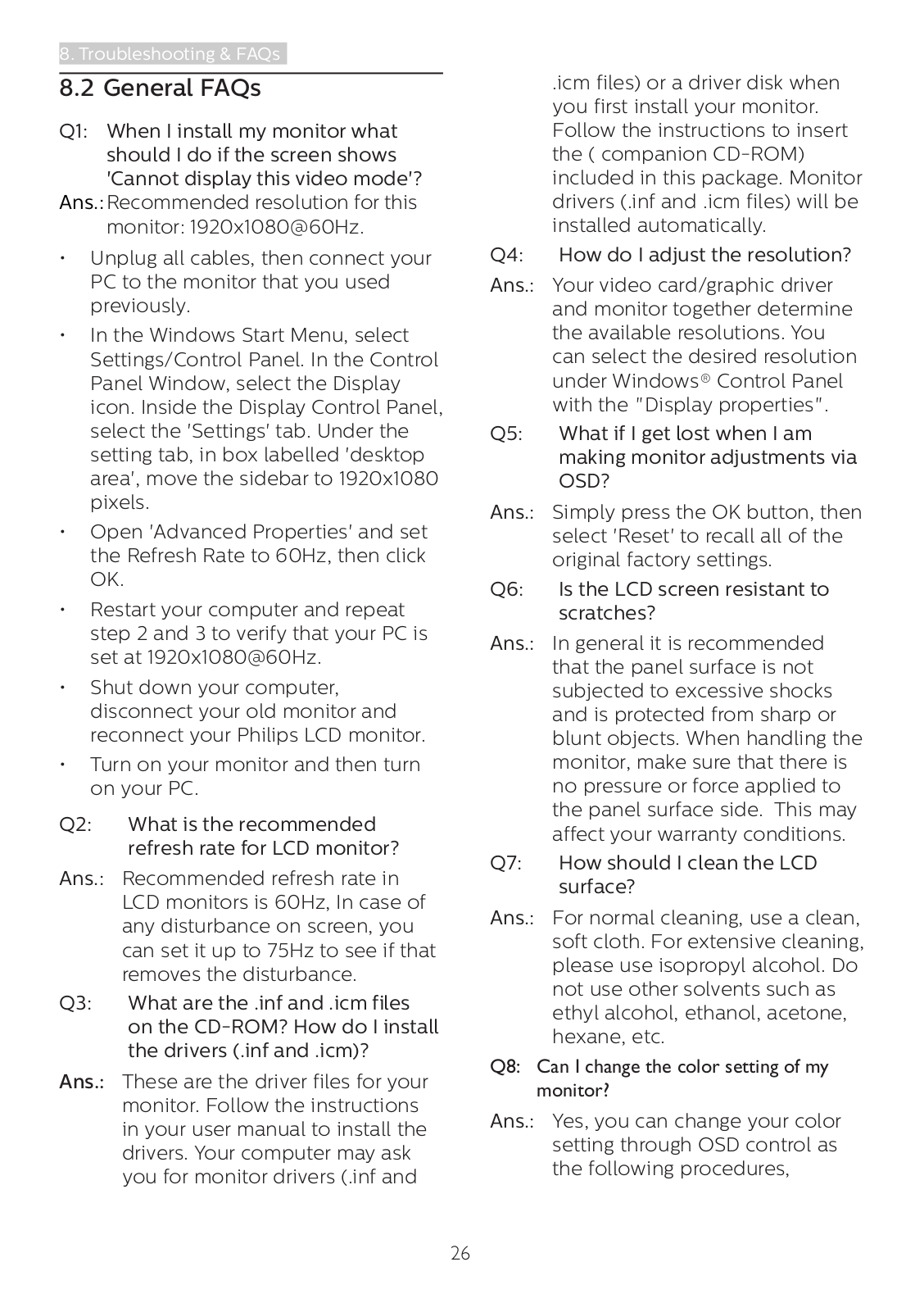

General FAQs.............................. |
25 |
1. Important
This electronic user’s guide is intended for anyone who uses the Philips monitor. Take time to read this user's manual before you use your monitor. It contains important information and notes regarding the operation of your monitor.
The Philips guarantee applies provided the product is handled properly for
its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of
purchase, dealer’s name and model and production number of the product.
Warnings
Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor.
Operation
•Please Keep the monitor out of direct sunlight, very strong bright lights and away from any other heat source. Lengthy exposure to this type of environment may result in discoloration and damage to the monitor.
•Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.
•Do not block the ventilation holes on the cabinet.
•When positioning the monitor, make sure the power plug and outlet are easily accessible.
•If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation.
•Please use approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. (Please refer to Service contact information listed in Important information manual.)
•Operate under the specified power supply. Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.
•Do not disassemble the AC adapter. Disassembling the AC adapter may expose you to the danger of fire or electric shock.
•Protect the cable. Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables, if damaged, the cables may cause fire or electric shock.
•Do not subject the monitor to severe vibration or high impact conditions during operation.
•Do not knock or drop the monitor during operation or transportation.
•Excessive usage of monitor can cause eye discomfort, it’s better to take shorter breaks more often at your workstation than longer breaks and less often; for example a 5-10 minute break after 50-60-minute continuous screen use is likely to be better than a 15-minute break every two hours. Try to keep your eyes from eye strain while using the
1
1. Important
screen for a constant period of time by :
•Looking at something varying distances after a long period focusing on the screen.
•Conscious Blinking often while you work.
•Gently closing and rolling your eyes to relax.
•Reposition your screen to appropriate height and angle according to your height.
•Adjusting the brightness and contrast to appropriate level.
•Adjusting the environment lighting similar to that of your screen brightness, avoid the fluorescent lighting, and surfaces that don’t reflect too much light.
•Seeing a doctor if your symptoms.
Maintenance
•To protect your monitor from possible damage, do not put excessive pressure on the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.
•Unplug the monitor if you are not going to use it for an extensive period of time.
•Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your monitor.
•To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment.
•If your monitor gets wet, wipe it with dry cloth as soon as possible.
•If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center.
•Do not store or use the monitor in locations exposed to heat, direct sunlight or extreme cold.
•In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.
•Temperature: 0-40°C 32-104°F
•Humidity: 20-80% RH
•IMPORTANT: Always activate a moving screen saver program when you leave your monitor unattended.
Always activate a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen.
•"Burn-in", "after-imaging", or "ghost imaging" is a well-known phenomenon in LCD panel technology.
In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off.
Warning
Failure to activate a screen saver, or a periodic screen refresh application
may result in severe “burn-in” or “afterimage” or “ghost image” symptoms that will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty.
2
1. Important
Service
•The casing cover should be opened only by qualified service personnel.
•If there is any need for any document for repair or integration, please contact with your local service center. (Please refer to Service contact information listed in Important information manual.)
•For transportation information, please refer to "Technical Specifications".
•Do not leave your monitor in a car/ trunk under direct sun light.
Note
Consult a service technician if the monitor does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed.
1.2 Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:
Note
This icon indicates important information and tips that help you make better use of your computer system.
Caution
This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.
Warning
This icon indicates the potential for bodily harm and tells you how to avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.
3
1. Important
1.3Disposal of product and packing material
Waste Electrical and Electronic
Equipment-WEEE
This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU
governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.
Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.
All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.
Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative.
Taking back/Recycling Information for Customers
Philips establishes technically and economically viable objectives
to optimize the environmental performance of the organization's product, service and activities.
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national takeback initiatives and recycling programs whenever possible, preferably
in cooperation with competitors, which recycle all materials (products and related packaging material) in accordance with all Environmental Laws and taking back program with the contractor company.
Your display is manufactured with high quality materials and components which can be recycled and reused.
To learn more about our recycling program please visit
http://www.philips.com/a-w/about/ sustainability.html
4
2.Setting up the monitor
Package contents
E line |
Quick
Start
Register your product and get support at
www.philips.com/welcome
Monitor
User’s Manual
* CD
AC/DC Adapter |
* DP |
* Audio cable |
* VGA |
* HDMI |
* DVI |
* Different according to region.
Note
246E9QS/246E9QDS/246E9QHS: Use only the AC/DC adapter model: Philips ADPC1925EX.
246E9QJA: Use only the AC/DC adapter model: Philips ADPC1936.
Install base stand
1.Place the monitor face down on soft and smooth surface taking care to avoid scratching or damaging the screen.
2.Hold the base stand with both hands and firmly insert the base stand into the base column.
(1)Gently attach the base to the base column until the latch locks the base.
(2)Use your fingers to tighten the screw located at the bottom of the base, and secure the base to the column tightly.
5
2. Setting up the monitor
Connecting to your PC 246E9QJA:
|
|
|
3 |
2 |
|
3 |
6 |
5 |
4 |
|
|
|
|
|
|
1 |
7 |
|
|
|
|
|
|
6 |
|
|
|
|
2 |
5 |
|
|
|
|
|
4 |
|
|
|
|
|
1
1AC/DC power input
2Earphone jack
3Audio input
4VGA input
5HDMI input
6Display port input
7Kensington anti-theft lock
246E9QDS:
|
|
|
2 |
|
5 |
4 |
3 |
|
1 |
|
|
6 |
5 |
|
|
4 |
|
2 |
|
3 |
|
|
|
1
1AC/DC power input
2HDMI Audio out
3VGA input
4DVI input
5HDMI input
6Kensington anti-theft lock
246E9QS:
3 2 1
4
3
2
1
1AC/DC power input
2VGA input
3DVI input
4Kensington anti-theft lock
246E9QHS:
2
4 3 1
5
4
3 |
2 |
1
AC/DC power input
HDMI audio out
VGA input
HDMI input
Kensington anti-theft lock
Connect to PC
1.Connect the power cord to the back of the monitor firmly.
2.Turn off your computer and unplug its power cable.
3.Connect the monitor signal cable to the video connector on the back of your computer.
4.Plug the power cord of your computer and your monitor into a nearby outlet.
5.Turn on your computer and monitor. If the monitor displays an image, installation is complete.
6
2. Setting up the monitor
Front view product description
Press to switch power on. Press more than 3 seconds to switch power off.
Access the OSD menu. Confirm the OSD adjustment.
246E9QDS/246E9QS/ 246E9QHS: Adjust the brightness level.
246E9QJA: Adjust the speaker volume.
Adjust the OSD menu.
Change the signal input source.
Adjust the OSD menu.

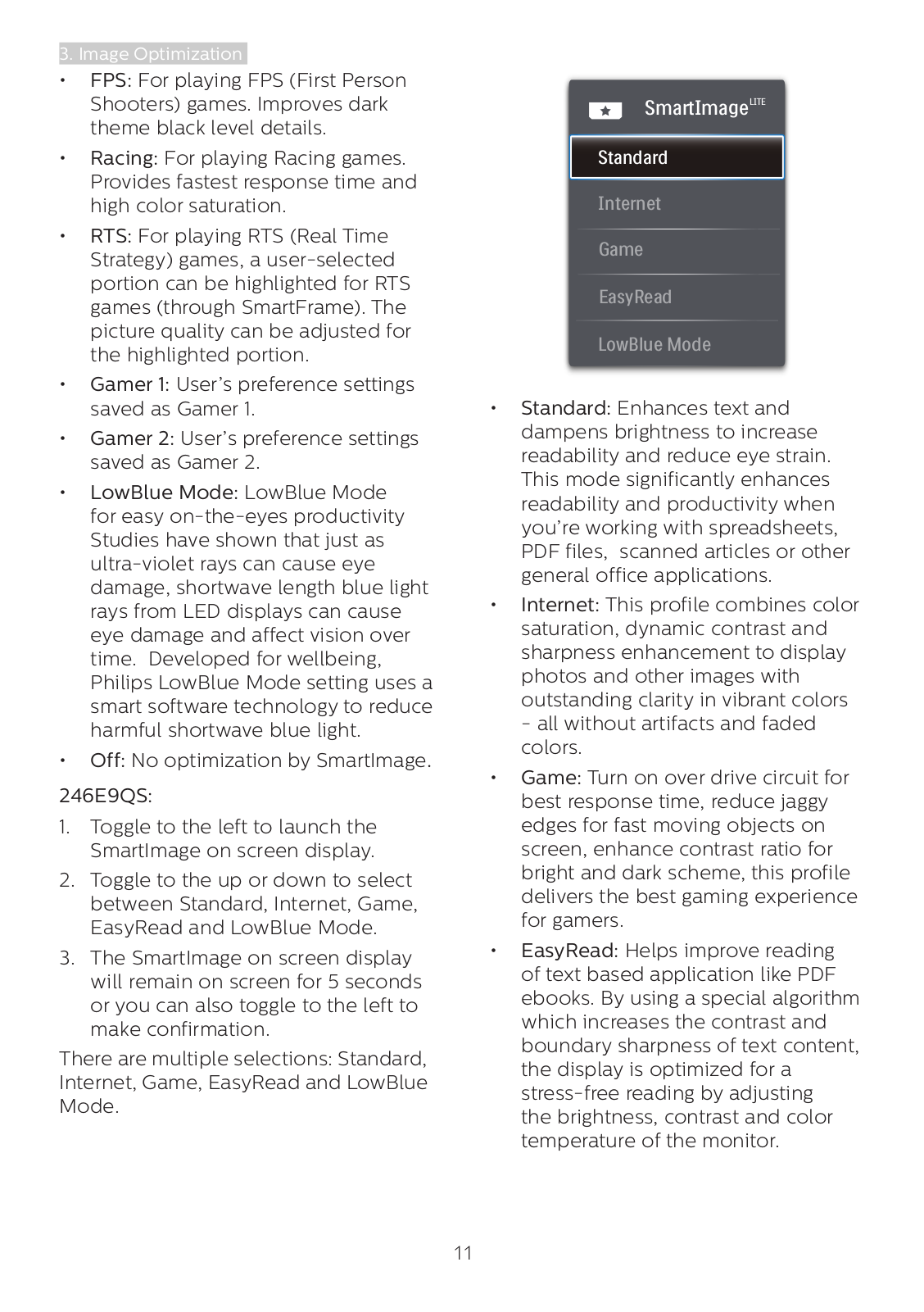

SmartImage. There are multiple selections: 246E9QDS/246E9QJA/ 246E9QHS:
FPS, Racing, RTS, Gamer 1, Gamer 2, LowBlue Mode and Off.
246E9QS:
Standard, Internet, Game, EasyRead, LowBlue Mode.
Return to previous OSD level.
Description of the On Screen Display
What is On-Screen Display (OSD)?
On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below:
246E9QJA/246E9QDS/246E9QHS:
246E9QS:
Basic and simple instruction on the control keys
To access the OSD menu on this Philips Display simply use the single toggle button on the backside of the Display bezel. The single button operates like a joystick. To move the cursor, simply toggle the button in four directions. Press the button to select desired option.
7
2. Setting up the monitor
The OSD Menu
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.
Main menu
LowBlue Mode
Input
Audio (246E9QDS/ 246E9QJA/ 246E9QHS)
Color
Language
OSD Settings
Setup
Sub menu |
|
|
|
|
On |
|
1, 2, 3,4 |
|
Off |
|
|
|
|
|
VGA
DVI (246E9QS/246E9QDS)
HDMI 1.4 (246E9QDS/246E9QJA/246E9QHS) DisplayPort (246E9QJA)
Picture Format |
|
|
|
Wide Screen, 4:3 |
|
||||
Brightness |
|
0~100 |
||
|
||||
Contrast |
|
0~100 |
||
|
||||
Sharpness |
|
0~100 |
||
|
||||
SmartResponse |
|
|
|
Off, Fast, Faster, Fastest |
SmartContrast |
|
|
|
On, Off |
|
|
|||
|
|
|
|
On, Off |
|
|
|
|
Size (1, 2, 3, 4, 5, 6, 7) |
|
|
|
|
|
SmartFrame |
|
|
|
Brightness (0~100) |
|
|
|
||
(246E9QDS/ |
|
|
|
Contrast (0~100) |
|
|
|
||
246E9QJA/ |
|
|
|
H. position |
246E9QHS) |
|
|
|
|
|
|
|
V. position |
|
Gamma |
|
|
|
|
|
|
1.8, 2.0, 2.2, 2.4, 2.6 |
||
|
|
|||
Pixel Orbiting |
|
|
|
On, Off |
|
|
|
||
Over Scan |
|
|
|
On, Off |
|
|
|
||
(246E9QDS/ |
|
|
|
|
246E9QJA/ |
|
|
|
|
246E9QHS) |
|
|
|
|
Volume |
|
|
0~100 |
|
Stand-Alone |
|
|
|
On, Off |
|
|
|
||
(246E9QJA) |
|
|
|
|
Mute |
|
|
|
On, Off |
|
|
|
||
Audio Source |
|
|
|
Audio In, HDMI, |
|
|
|
||
(246E9QJA) |
|
|
|
DisplayPort |
Color Temperature |
|
|
|
Native, 5000K, 6500K, |
|
|
|||
|
|
|
|
7500K, 8200K, 9300K, |
|
|
|
|
11500K (246E9QDS/ |
|
|
|
|
246E9QJA/246E9QHS) |
|
|
|
|
Native, 6500K, 9300K |
|
|
|
||
sRGB |
|
|
|
(246E9QS) |
|
|
|
Red: 0~100 |
|
|
|
|
|
|
User Define |
|
|
|
Green: 0~100 |
|
|
|||
|
|
|
|
Blue: 0~100 |
|
|
|
English, Deutsch, Español, Ελληνική, Français, Italiano, Maryar Nederlands, Português, Português do Brazil Polski ,Svenska Suomi Türkçe Čeština Українська, ,
Horizontal |
|
|
|
|
0~100 |
||||
|
|
|
|
||||||
Vertical |
|
|
|
|
|
0~100 |
|||
|
|
|
|
|
|||||
Transparency |
|
|
|
|
|
Off, 1, 2, 3, 4 |
|||
|
|
|
|
||||||
OSD Time Out |
|
|
|
|
|
|
|
|
5s, 10s, 20s, 30s, 60s |
|
|
|
|
|
|
|
|||
Auto |
|
|
|
|
|
|
|||
H.Position |
|
0~100 |
|||||||
|
|||||||||
V.Position |
|
|
0~100 |
||||||
|
|||||||||
Phase |
|
|
|
|
0~100 |
||||
|
|
|
|
||||||
Clock |
|
|
0~100 |
||||||
|
|
||||||||
Resolution Notification |
|
|
|
|
|
On, Off |
|||
|
|
|
|
|
|||||
Reset |
|
|
|
|
|
|
Yes, No |
||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Information
Resolution notification
This monitor is designed for optimal performance at its native resolution, 1920×1080@60Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920×1080@60Hz for best results.
Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.
Physical Function
Tilt
20° -5°
8
