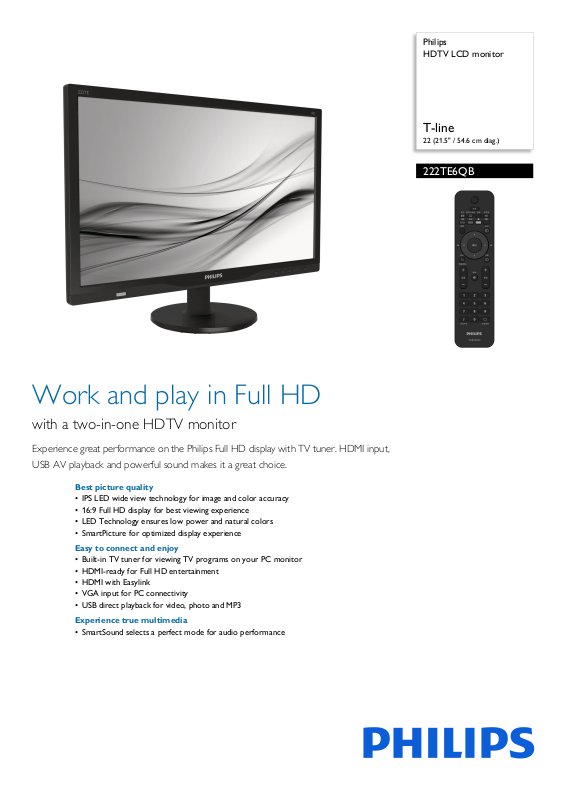

Philips
HDTV LCD monitor
T-line
22 (21.5" / 54.6 cm diag.)
222TE6QB
Work and play in Full HD
with a two-in-one HDTV monitor
Experience great performance on the Philips Full HD display with TV tuner. HDMI input,
USB AV playback and powerful sound makes it a great choice.
Best picture quality
• IPS LED wide view technology for image and color accuracy
• 16:9 Full HD display for best viewing experience
• LED Technology ensures low power and natural colors
•SmartPicture for optimized display experience
Easy to connect and enjoy
• Built-in TV tuner for viewing TV programs on your PC monitor
• HDMI-ready for Full HD entertainment
• HDMI with Easylink
• VGA input for PC connectivity
• USB direct playback for video, photo and MP3
Experience true multimedia
• SmartSound selects a perfect mode for audio performance
222TE6QB/70
HDTV LCD monitor
T-line 22 (21.5" / 54.6 cm diag.)
Highlights
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle. Unlike standard TN
panels, IPS displays gives you remarkably crisp
images with vivid colors, making it ideal not
only for Photos, movies and web browsing, but
also for professional applications which
demand color accuracy and consistent
brightness at all times.
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
LED Technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartPicture
SmartPicture is an exclusive leading edge
Philips technology that analyzes the content
displayed on your screen and gives you
optimized display performance. This user
friendly interface allows you to select various
modes like Office, Image, Entertainment,
Economy etc., to fit the application in use.
Based on the selection, SmartPicture
dynamically optimizes the contrast, color
saturation and sharpness of images and videos
for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a
single button!
Built-in TV tuner
A television tuner built into a monitor to
disp
lay television signals as well as computer
data.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
HDMI with Easylink
HDMI is a single cable to carry both picture
an
d audio signals from your devices to your
MTV, saving you from cable clutter. It carries
uncompressed signals, ensuring that you have
the hightest quality from source to screen.
Together with Philips Easylink, you need only
one remote control to perform most
operations on your MTV. Enjoy high quality
picture and sound without clutter or fuss.
USB multimedia
The USB connector allows access to jpeg
p
hotos, MP3 music and video files of most
USB-sticks (USB memory-class device). Plug
the USB into the slot at the side of MTV and
access the multimedia content using the easy
on screen content browser. You can now view
your videos, photos and music.
SmartSound
SmartSound allows you to select various
m
odes like Movie, Games, Music etc thereby
automatically activating pre defined
frequencies to enhance the sound related to
the function
222TE6QB/70
HDTV LCD monitor
T-line 22 (21.5" / 54.6 cm diag.)
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Diagonal screen size: 21.5 inch / 54.6 cm
• Aspect ratio: 16:9, Widescreen
• Panel resolution: 1920 x 1080
• Response time (typical): 14 ms
• Brightness: 250 cd/m²
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Contrast ratio (typical): 1000:1
• Picture enhancement: Interlaced scan
• Screen enhancement: Anti-glare
•DCR
Supported Display Resolution
• Computer formats
Resolution Refresh rate
Optimum 1920
x 1080
• Video formats
olution Refresh rate
Res
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
60
Hz
Sound
• Output power (RMS): 10 W (5 W + 5W)
• Sound Enhancement: Virtual Surround
• Sound System: Smart Sound
Convenience
• Ease of Installation: Plug & Play, Automatic Tuning
System (ATS)
• Ease of Use: On Screen Display, Program List
• Remote control type: Philips Remote control
• On-Screen Display languages
:
English, Simplified
Chinese
• Other convenience: VESA mount (100x100mm)
• Screen Format Adjustments: Full screen,
descreen, 4:3, Zoom 1, Zoom 2
Wi
• SmartPicture: Vivid, Standard, Eco, Movie, Personal
• SmartSound: Music, Personal, Standard, Speech
• Tilt: -5 ~ 20 degree
Tuner/Reception/Transmission
• Aerial Input: 75 ohm
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
• MPEG1/2/4/H.264/RMVB/XviD
Connectivity
• Ext @ rear: AV x 1, D-sub x 1, HDMI (1.3a) x 1,
Headphone x 1, PC audio in x 1, Tuner x 1, USB x
1 (JPG/MP3/Video)
Power
• On mode: 40 W (max)
• Off mode: 0.5 W (typ.)
• Standby mode: 0.5 W (typ.)
• Ambient temperature: 5 °C to 40 °C
• Mains power: 120-240V, 50-60Hz
Dimensions
• Packaging in mm (WxHxD): 567 x 437 x 118 mm
• Product with stand (mm): 512 x 377 x 185 mm
• Product without stand (mm): 512 x 370 x 63 mm
Weight
• Product with packaging (kg): 4.12 kg
• Product with stand (kg): 2.96 kg
• Product without stand (kg): 2.81 kg
Accessories
• Included accessories: Power cord, Remote
Control (with battery), Quick start guide, User
Manual, VGA cable, Warranty certificate
•
Issue date 2022-04-21
Version: 1.0.1
12 NC: 8670 001 25265
EAN: 87 12581 73257 8
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
