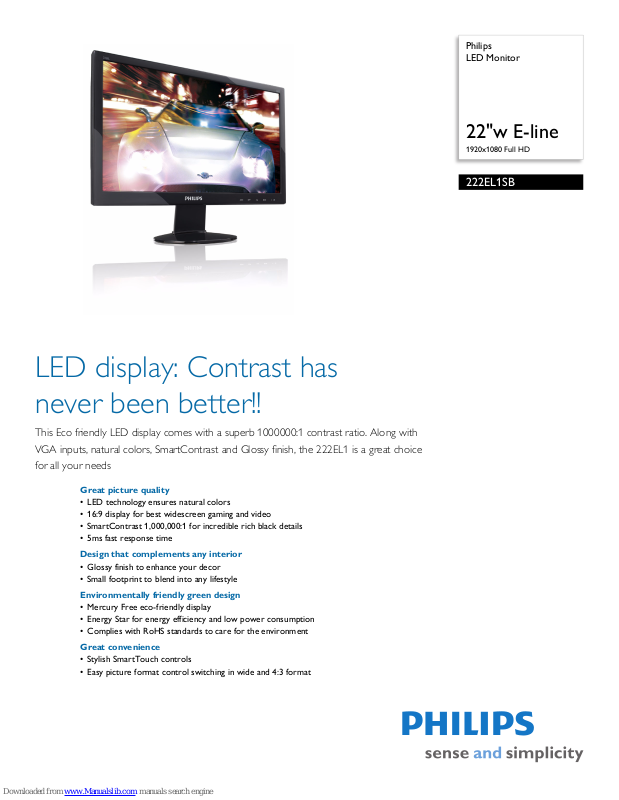

Philips
LED Monitor
22"w E-line
1920x1080 Full HD
222EL1SB
LED display: Contrast has
never been better!!
This Eco friendly LED display comes with a superb 1000000:1 contrast ratio. Along with
VGA inputs, natural colors, SmartContrast and Glossy finish, the 222EL1 is a great choice
for all your needs
Great picture quality
• LED technology ensures natural colors
• 16:9 display for best widescreen gaming and video
• SmartContrast 1,000,000:1 for incredible rich black details
• 5ms fast response time
Design that complements any interior
• Glossy finish to enhance your decor
• Small footprint to blend into any lifestyle
Environmentally friendly green design
• Mercury Free eco-friendly display
• Energy Star for energy efficiency and low power consumption
• Complies with RoHS standards to care for the environment
Great convenience
• Stylish SmartTouch controls
• Easy picture format control switching in wide and 4:3 format
LED Monitor
1,000,000:1
SmartContrast
22"w E-line 1920x1080 Full HD
222EL1SB/00
Highlights
LED technology
White LED's are solid state devices which light up to
full, consistent brightness faster saving startup time.
LED's are free from mercury content which allows for
eco-friendly recycling and disposal process. LED's
allow for better dimming control of LCD backlight,
resulting in super high contrast ratio. It also gives
superior color reproduction thanks to consistent
brightness across the screen.
SmartContrast ratio 1000000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips advanced
video processing combined with unique extreme
dimming and backlight boosting technology results in
vibrant images. SmartContrast will increase the
contrast with excellent blacklevel and accurate
rendition of dark shades and colors. It gives a bright,
lifelike picture with high contrast and vibrant colors.
5ms on/off response time
On-Off response time is the period required for a
liquid crystal cell to go from active (black) to inactive
(white) and back to active (black) again. It is measured
in milliseconds. Faster is better: Lower response time
means faster transitions and, therefore, results in
fewer visible image artifacts in the display of transition
of texts and graphics. On-Off response time is a more
important measure in the display of business content
like documents, graphs and photos.
Mercury Free
Philips monitors with LED backlighting are free of
Mercury content, one of the most toxic natural
substances which affects humans and animals. This
allows for a eco-friendly display through out its lifecycle from manufacturing to disposal. Being at the
forefront of sustainability and with our longstanding
commitment to reduce the environmental impact of
our products, we enable consumers to make simple,
responsible choices about the products they buy and
the impact they have before, during and at the end of
their life cycle.
Energy Star 5.0
Energy Star is a US EPA sponsored energy efficiency
program also adopted by many other countries.
Energy Star certification ensures that you are buying a
product which meets the latest power efficiency
standards which operates with maximum power
efficiency at all operational levels. New Philips
monitors are certified for Energy Star 5.0
specifications and meet or exceed the standard. For
example, in sleep mode Energy Star 5.0 requires less
than 1watt power consumption, whereas Philips
monitors consume less than 0.5watts. Further details
can be obtained from www.energystar.gov
SmartTouch controls
SmartTouch controls are intelligent, touch sensitive
icons that replace protruding buttons. Responding to
your lightest touch, SmartTouch controls, for
example, power up your monitor or brighten and
sharpen your display with SmartImage Lite. When
activated, SmartTouch icons glow to indicate that your
commands have been implemented.
Easy picture format control
Philips easy picture format control on OSD is to
switch from the 4:3 aspect ratio to the widescreen
mode and back again to match the display's aspect
ratio with your content for working with wide
documents without scrolling or viewing widescreen
media in the widescreen mode and distortion-free,
native mode display of 4:3 ratio content.
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 1,000,000:1
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Brightness, Menu, Auto, Power
On/Off
• OSD Languages: English, French, German, Spanish,
• Other convenience: VESA mount (100x100mm),
• Plug & Play Compatibility: DDC/CI, Windows 7/
Stand
• Tilt: -5/20 degree
Power
• On mode: 19.3W (EnergyStar 5.0 test method)
• Standby mode: <0.8W
• Off mode: < 0.5 W
• Power LED indicator: Operation - White, Standby/
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 396 x 518 x 200 mm
• Product without stand (mm): 319 x 518 x 57 mm
• Packaging in mm (WxHxD): 395 x 580 x 133 mm
Weight
• Product with stand (kg): 4.08 kg
• Product without stand (kg): 3.78 kg
• Product with packaging (kg): 5.68 kg
ussian, Simplified Chinese, Portuguese,
Italian, R
Turkish
ington lock
Kens
ista/XP/2000/98, Mac OS X, sRGB
V
-white (blinking)
sleep
Issue date 2011-02-02
Version: 2.0.3
12 NC: 8670 000 62935
EAN: 87 12581 54286 3
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver, RoHS,
EnergyStar 5.0
Compliance and standards
• Regulatory Approvals: CE Mark, FCC, Class B,
SEMKO, TCO 5.0, UL/cUL
Cabinet
• Color: Black
• Finish: Glossy
•
