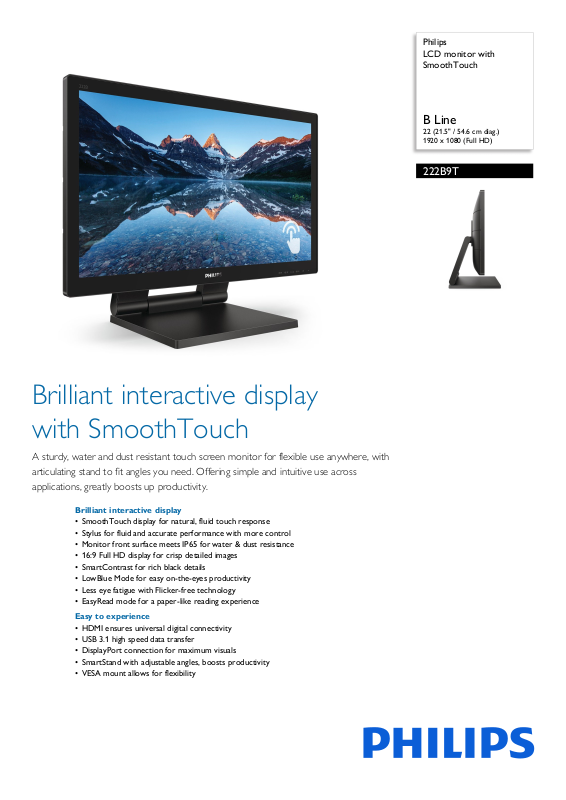

Philips
LCD monitor with
SmoothTouch
B Line
22 (21.5" / 54.6 cm diag.)
1920 x 1080 (Full HD)
222B9T
Brilliant interactive display
with SmoothTouch
A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with
articulating stand to fit angles you need. Offering simple and intuitive use across
applications, greatly boosts up productivity.
Brilliant interactive display
• SmoothTouch display for natural, fluid touch response
• Stylus for fluid and accurate performance with more control
• Monitor front surface meets IP65 for water & dust resistance
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
• LowBlue Mode for easy on-the-eyes productivity
• Less eye fatigue with Flicker-free technology
• EasyRead mode for a paper-like reading experience
Easy to experience
• HDMI ensures universal digital connectivity
• USB 3.1 high speed data transfer
• DisplayPort connection for maximum visuals
• SmartStand with adjustable angles, boosts productivity
• VESA mount allows for flexibility
222B9T/01
LCD monitor with SmoothTouch
B Line 22 (21.5" / 54.6 cm diag.), 1920 x 1080 (Full HD)
Highlights
SmoothTouch
This Philips display uses Projected capacitive 10
point touch technology for fluid response. You
can fully utilize the new capabilities of touch
based applications, and bring your older
applications to life. Touch-type with 10 fingers,
or play exciting interactive games with your
friends. Collaborate with colleagues
interactively at work or school environment
and increase your productivity and efficiency.
Water and dust resistant
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
SmartContrast
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce
harmful shortwave blue light.
Flicker-free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
EasyRead mode
For less than perfect environments, you need a
monitor that's designed to hold up to the
splashes of water and dust that happen in the
everyday world. Ingress Protection (IP) ratings
defined in international standard IEC/EN
60529, are used to define levels of sealing
effectiveness of electrical enclosures against
intrusion from foreign bodies and moisture.
This Philips display meets international the IP
rating for water and dust resistance, it will hold
up to water splashes and dust that happen in
the everyday world.
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave length blue
EasyRead mode for a paper-like reading
experience
SmartStand
Philips SmartStand allows for flexible
adjus
tment of the screen. Its Z type structure
with smooth tilt, height adjustment and folding
capabilities enables you to use it in various
ergonomic positions. You can set the stand in
upright position for better touch control, or
recline it backwards, making it easy for you to
draw or annotate. It even allows you to put the
screen almost flat on the table for some
applications when required.
222B9T/01
LCD monitor with SmoothTouch
B Line 22 (21.5" / 54.6 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: TFT-LCD (TN)
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 476.64 (H) x 268.11 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Pixel Density: 102 PPI
• Response time (typical): 1 ms (Gray to Gray)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Color gamut (typical): NTSC 72% (CIE 1931)
• Display colors: 16.7 M
• Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz
(V)
•sRGB
• Flicker-free
•EasyRead
•LowBlue Mode
50
,000,000:1
Touch
• Touch technology: Projected capacitive
• Touch points: 10 point
• Touch method: Stylus, Finger, Glove*
•Touch interface: USB
• Touch glass hardness: 7 H
• Touch glass coating: Glare
• Touch active area: 476.64 mm (H) x 268.11 mm (V)
• Operating system: Windows 10 / 8.1 / 8 / 7;
Andr
versions*
• Palm rejection area: >= 30 x 30 mm
• Ingress protection: IP65 - front only
• Sealability: Touchscreen sealed to bezel;
uchscr
To
7.0 / 6.0 / 5.0 / 4.4; certain Linux
oid 7.1 /
een sealed to LCD
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), DisplayPort 1.2, HDMI 1.4
• USB: USB 3.1x2 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Control software: SmartControl
•
• OSD Languages: Brazil Portuguese, Czech, Dutch,
• Other convenience: Kensington lock, VESA mount
• Plug & Play Compatibility: DDC/CI, sRGB,
innish, French, German, Greek,
English, F
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
0x1
00mm)
(10
Windows
10 / 8.1 / 8 / 7
Stand
• Tilt: -5 ~ 90 degree
• Folding angle: 0 ~ 70 degree
• Height adjustment: 184 (Hor
(Vertical) mm
izontal), 76
Power
• ECO mode: 10.3 W (typ.)
• On mode: 11.92 W (typ.) (EnergyStar test method)
• Standby mode: < 0.5 W (typ.)
• Off mode: < 0.3 W (typ.)
• Energy Label Class: D
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 515 x 394 x
227 mm
• Product without stand (mm): 515 x 317 x 45 mm
• Packaging in mm (WxHxD): 575 x 420 x 161 mm
Weight
• Product with stand (kg): 7.46 kg
• Product without stand (kg): 4.17 kg
• Product with packaging (kg): 9.91 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
erat
ion: +40,000ft (12,192m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
backlight
)
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
r
y free
Mercu
Compliance and standards
• Regulatory Approvals: CB, CE Mark, FCC Class B,
SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV
Ergo, CU-EAC, EAEU RoHS, cETLus
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
•Monitor with stand
• Cables: D-Sub cable, HDMI cable, DP c
to B cable, Audio cable, Power cable
•User Documentation
• Accessory: Stylus touch pen x 1 (black)
•
able, USB-A
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input, Brightness,
Menu, Power On/Off
Issue date 2021-06-09
Version: 13.0.1
12 NC: 8670 001 57933
EAN: 87 12581 75679 6
Sustainability
• Environmental and energy: EnergyStar 8.0,
EPEAT*, TCO Certified Edge, RoHS, WEEE
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Response time value equal to SmartResponse
* Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm),
CPE (0.03 mm), PVC (0.12 mm)
* Please refer to "SmoothTouch" in user manual for more details of
operating systems support in touch function.
* Fast charging complies with USB BC 1.2 standard
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* The monitor may look different from feature images.
