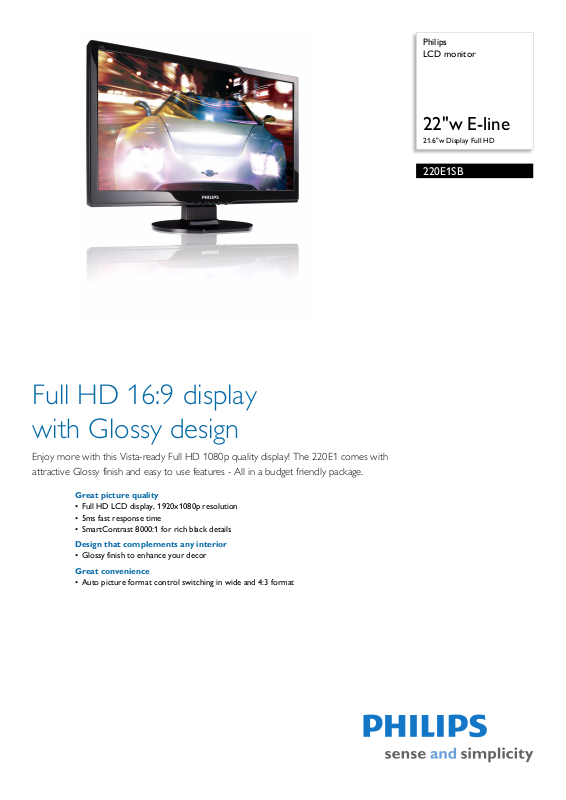

Philips 220E1SB-00 User Manual
Philips
LCD monitor
22"w E-line
21.6"w Display Full HD
220E1SB
Full HD 16:9 display
with Glossy design
Enjoy more with this Vista-ready Full HD 1080p quality display! The 220E1 comes with
attractive Glossy finish and easy to use features - All in a budget friendly package.
Great picture quality
• Full HD LCD display, 1920x1080p resolution
• 5ms fast response time
• SmartContrast 8000:1 for rich black details
Design that complements any interior
• Glossy finish to enhance your decor
Great convenience
• Auto picture format control switching in wide and 4:3 format
LCD monitor
22"w E-line 21.6"w Display Full HD
220E1SB/00
Specifications
Picture/Display
• LCD panel type: TFT-LCD
•Panel Size: 21.6"
• Aspect ratio: 16:9
• SmartContrast ratio (dynamic): 8000:1
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Pixel pitch: 0.248 x 0.248 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Response time (typical): 5 ms
• Optimum Resolution: 1920 x 1080 @ 60Hz
• Display colors: 16.7 M
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 76 Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Composite Sync,
on Green
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Auto (Back), Brightness
), Input (Down), Menu (OK), Power On/Off
(Up
• OSD Languages: English, Fr
Russian, Simplified Chinese, Spanish, Portuguese,
Turkish
• Regulatory Approvals: CE Mark, Energy Star, FCC
lass B, UL/cUL
C
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98, Windows 2000, Windows XP,
Windo
Windows Vista
• Other convenience: Kensingto
• VESA Mount: 100 x 100 mm
Stand
• Tilt: -5 to 20 degree
Separate Sync, Sync
ench, German, Italian,
n lock compatible
Power
•Consumption (On mode): 40 W (typical)
• Power LED indicator: Operation - green, Stand by/
eep - Amber
sl
• Power supply: Built-in, 100-240VAC, 50/60Hz
• Consumption (Off Mo
de): < 0.5 W
Dimensions
• Set dimensions with stand (W x H x D):
512 x 374 x 205 mm
•Set dimensions with st
20.1 x 14.7 x 8.07 inch
•Set dimensions (W x H x D): 512 x 320 x 66 mm
• Set dimensions in inch (W x H x D):
.1 x 12.6 x 2.59 inch
20
•Box dimensions (W x H x D):
57
• Box dimensions in inch (W x H x D):
22
• Product weight (+stand): 4.4 kg
• Product weight (+stand) (lb): 9.7 lb
• Weight incl. Packaging: 6.3 kg
• Weight incl. Packaging (lb): 13.9 lb
x 140 mm
0 x 453
.4 x 17.8 x 5.5 inch
and in inch (W x H x D):
Operating conditions
• Temperature Range (Operation): 0 - 40 °C
• Temperature Range (storage): -20 - 60 °C
• Relative Humidity: 20 - 80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: Energy Star, EPEAT
Silver, RoHS
Cabinet
• Color: Glossy black
• Finish: Glossy besel
•
Highlights
Full HD 1920x1080p LCD display
This display has a resolution t hat i s r eferr ed to as Fu ll
HD. With state-of-the-art LCD screen technology it
has the full high-definition widescreen resolution of
1920 x 1080p. It allows the best possible picture
quality from any format of HD input signal. It
produces brilliant flicker-free pictures with optimum
brightness and superb colors. This vibrant and sharp
image will provide you with an enhanced viewing
experience.
5ms on/off response time
On-Off response time is the period required for a
liquid crystal cell to go from active (black) to inactive
(white) and back to active (black) again. It is
measured in milliseconds. Faster is better: Lower
response time means faster transitions and,
therefore, results in fewer visible image artifacts in
the display of transition of texts and graphics. On-Off
response time is a more important measure in the
display of business content like documents, graphs
and photos.
SmartContrast ratio 8000:1
You want the LCD display with the highest contrast
and most vibrant images. Philips advanced video
processing combined with unique extreme dimming
and backlight boosting technology results in vibrant
images. SmartContrast will increase the contrast
with excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
Auto picture format control
Issue date 2009-05-02
Version: 1.0.10
12 NC: 8670 000 51432
EAN: 87 12581 47642 7
Philips auto picture format control on OSD is to
switch from the 4:3 aspect ratio to the widescreen
mode and back again to match the display's aspect
ratio with your content for working with wide
documents without scrolling or viewing widescreen
media in the widescreen mode and distortion-free,
native mode display of 4:3 ratio content.
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
