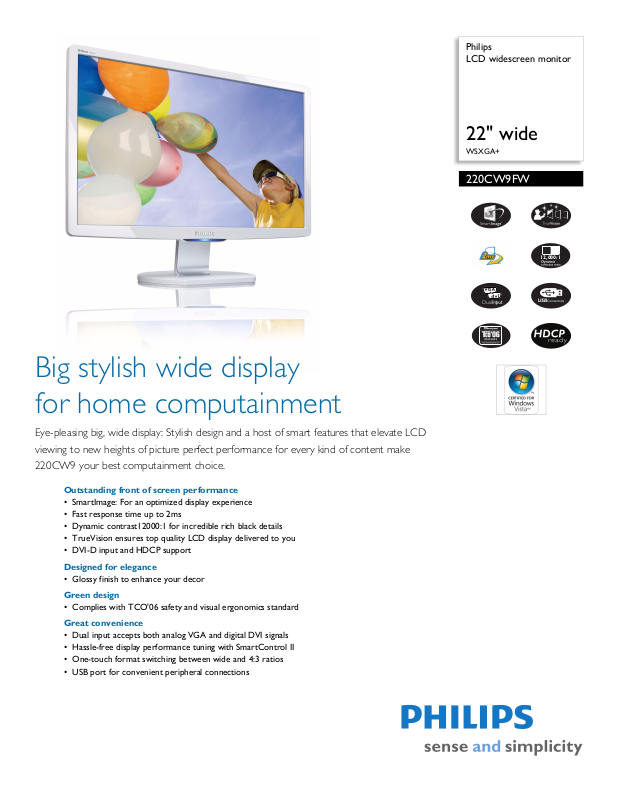

Philips 220CW9F User Manual
Philips
LCD widescreen monitor
22" wide
WSXGA+
220CW9FW
12,000:1
Big stylish wide display
for home computainment
Eye-pleasing big, wide display: Stylish design and a host of smart features that elevate LCD
viewing to new heights of picture perfect performance for every kind of content make
220CW9 your best computainment choice.
Outstanding front of screen performance
• SmartImage: For an optimized display experience
• Fast response time up to 2ms
• Dynamic contrast12000:1 for incredible rich black details
• TrueVision ensures top quality LCD display delivered to you
• DVI-D input and HDCP support
Designed for elegance
• Glossy finish to enhance your decor
Green design
• Complies with TCO'06 safety and visual ergonomics standard
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• One-touch format switching between wide and 4:3 ratios
• USB port for convenient peripheral connections
LCD widescreen monitor
220CW9FW/00
22" wide WSXGA+
Specifications Product highlights
Picture/Display
• Panel Size: 22" / 55.9 cm
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Recommended Resolution: 1680 x 1050 @ 60Hz
• Maximum Resolution: 1680 x 1050 @ 75Hz
• Display colors: 16.7 M
• Aspect ratio: 16:10
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast ratio (dynamic): 12000:1
• SmartResponse: 2 ms (Gray to Gray)
• Picture enhancement: SmartImage
• Response time (typical): 5 ms
• Effective viewing area: 474 x 296 mm
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 - 75 Hz
• Pixel pitch: 0.282 x 0.282 mm
• Video Dot Rate: 165 MHz
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-D
• USB: 1 x USB 2.0
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
• Sync input impedance: 2.2k ohm
• Video input impedance: 75 ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Convenience Enhancements: SmartControl II,
Picture format selection, On-screen Display
• Monitor Controls: Auto (Back), Auto picture,
Brightness Control, Input (Down), Menu (OK),
Power On/Off, SmartImage
• OSD Languages: English, French, German, Italian,
Russian, Simplified Chinese, Spanish, Portuguese
• Plug & Play Compatibility: DDC/CI, Mac OS X,
sRGB, Windows 98, Windows 2000, Windows XP,
Windows Vista
• Regulatory Approvals: CE Mark, Energy Star, FCC
Class B, SEMKO, UL/cUL, TCO '06
• Tilt: -5° to 20°
• Other convenience: Kensington lock compatible
Dimensions
• Set dimensions with stand (W x H x D):
508
x 425 x 201 mm
• Set dimensions with stand in inch (W x H x D):
20.0
x 16.7 x 7.91 inch
• Relative humidity: 20% - 80%
• Set dimensions (W x H x D): 508 x 344 x 69 mm
• Set dimensions in inch (W x H x D):
20.0
x 13.5 x 2.72 inch
• MTBF: 50,000 hrs
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Box dimensions (W x H x D): 562 x 482 x 130 mm
• Box dimensions in inch (W x H x D):
22.1
x 18.98 x 5.1 inch
• Product weight (+stand): 4.4 kg
• Product weight (+stand) (lb): 9.7 lb
• Weight incl. Packaging: 6.24 kg
• Weight incl. Packaging (lb): 13.76
Power
• Consumption: < 45 W (Typical)
• Consumption (economy mode): 34 W
• Off Mode: < 0.8 W
• Complies with: Energy Star
• Power LED indicator: Operation - Blue, Stand by/
sleep -blue(blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
SmartImage
SmartImage is an exclusive, leading edge Philips technology
that analyzes the content displayed on your screen. Based
on a scenario you select, SmartImage dynamically
enhances the contrast, color saturation and sharpness of
images and videos for ultimate display performance - all in
real time with the press on a single button.
2ms GtG response time
GtG response time is the average time that it takes for a
pixel to go from one arbitrary position to another, which is
the average time of transition between several sets of
random color levels. Faster is better: Lower response time
means faster transitions and, therefore, results in fewer
visible image artifacts in the display of fast moving images.
GtG res ponse time is an impor ta nt way to measure di sp lay
quality of multimedia content like movies, videos and
games.
Dynamic contrast ratio 12000:1
You want the LCD flat display with the highest contrast and
most vibrant images. Philips advanced video processing
combined with unique extreme dimming and backlight
boosting technology results in vibrant images. Dynamic
Contrast will increase the contrast with excellent blacklevel
and accurate rendition of dark shades and colors. It gives a
bright, lifelike picture with high contrast and vibrant colors.
TrueVision
TrueVision is industry-leading, proprietary Philips testing
and algorithm technology for monitor adjustment and fine
tuning, an extensive process that ensures ultimate display
performance in compliance with a standard four-times
more stringent than Microsoft's Vista requirements from
each and every monitor that leaves the factory - not just a
few review samples. Only Philips goes to these lengths to
deliver this exacting level of color accuracy and display
quality in every new monitor.
HDCP ready
High-Bandwidth Digital Content Protection (HDCP) is a
copyright protection system that is incorporated into the
DVI connector. It helps stop unauthorized duplication of
copyrighted content. HDCP allows you to play protected
content media such as movies and concerts. It checks the
signal to prevent piracy, allowing only legal copies of
content to display.
SmartControl II
SmartControl II is monitor-based software with an easy-touse on-screen graphic interface that guides you through
fine-tuning resolution, color calibration and other display
settings including brightness, contrast, clock & phase,
position, RGB, white point and - on models with onboard
speakers - volume adjustments.
Auto picture format button
Philips auto picture format is a button that switches from
the 4:3 aspect ratio to the widescreen mode and back
again to match the display's aspect ratio with your content
for working with wide documents without scrolling or
viewing widescreen media in the widescreen mode and
distortion-free, native mode display of 4:3 ratio content.
TCO'06 compliance
TCO'06 - compliant monitors meet ergonomic,
environmental and health standards for multimedia
Issue date 2008-10-27
Version: 3.1.5
12 NC: 8670 000 47735
EAN: 87 12581 45207 0
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
displays created by TCO - the Swedish Confederation of
Professional Employees; TCO'06, the most stringent-ever,
covers requirements for visual ergonomics in multimedia
display, including health considerations as well as other
features that characterize good quality displays. A TCO'06compliant display's specifications must meet or exceed
TCO'06 standards for visual ergonomics, emissions and
energy conservation.
