e-Manual
Philips LCD Monitor Electronic User’s Manual
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/INDEX.HTM [98-06-23 09:36]
Safety and Troubleshooting Information
Safety Precautions and
Maintenance
FAQs
Troubleshooting
Regulatory Information
Other Related Information
Safety and Troubleshooting Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
Operation:
● Keep the monitor out of direct sunlight and away from stoves or any other heat source.
● Remove any object that could fall into ventilation holes or prevent proper cooling of the
monitors electronics.
● Do not block the ventilation holes on the cabinet.
● When positioning the monitor, make sure the power plug and outlet are easily accessible.
● If turning off the monitor by detaching the power cable or DC power cord, wait for 6
seconds before attaching the power cable or DC power cord for normal operation.
● Please use approved power cord provided by Philips all the time. If your power cord is
missing, please contact with your local service center. (Please refer to Customer Care
Consumer Information Center)
● Do not subject the LCD monitor to severe vibration or high impact conditions during
operation.
● Do not knock or drop the monitor during operation or transportation.
Maintenance:
● To protect your display from possible damage, do not put excessive pressure on the LCD
panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by
placing your hand or fingers on the LCD panel.
● Unplug the monitor if you are not going to use it for an extensive period of time.
● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be
wiped with a dry cloth when the power is off. However, never use organic solvent, such
as, alcohol, or ammonia-based liquids to clean your monitor.
● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to
dust, rain, water, or excessive moisture environment.
● If your monitor gets wet, wipe it with dry cloth as soon as possible.
● If foreign substance or water gets in your monitor, please turn the power off immediately
and disconnect the power cord. Then, remove the foreign substance or water, and send
it to the maintenance center.
● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or
extreme cold.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/safety.htm 第 1 頁 / 共 2 [98-06-23 09:36]
Safety and Troubleshooting Information
● In order to maintain the best performance of your monitor and use it for a longer lifetime,
please use the monitor in a location that falls within the following temperature and
humidity ranges.
❍ Temperature: 0-40°C 32-95°F
❍ Humidity: 20-80% RH
IMPORTANT: Always activate a moving screen saver program when you leave your
monitor unattended. Always activate a periodic screen refresh application if your LCD
monitor will display unchanging static content. Uninterrupted display of still or static
images over an extended period may cause “burn in”, also known as “after-imaging” or
“ghost imaging”, on your screen. "Burn-in", "after-imaging", or "ghost imaging" is a wellknown phenomenon in LCD panel technology. In most cases, the “burned in” or “afterimaging” or “ghost imaging” will disappear gradually over a period of time after the power
has been switched off.
WARNING: Severe” burn-in” or “after-image” or “ghost image” symptoms will not
disappear and cannot be repaired. The damage mentioned above is not covered under
your warranty.
Service:
● The casing cover should be opened only by qualified service personnel.
● If there is any need for any document for repair or integration, please contact with your
local service center. (please refer to the chapter of "Consumer Information Center")
● For transportation information, please refer to "Physical Specifications".
● Do not leave your monitor in a car/trunk under direct sun light.
Consult a service technician if the monitor does not operate normally, or you are
not sure what procedure to take when the operating instructions given in this
manual have been followed.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/safety.htm 第 2 頁 / 共 2 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
Safety and Troubleshooting
General FAQs
Screen Adjustments
Compatibility with Other
Peripherals
LCD Panel Technology
Ergonomics, Ecology and
Safety Standards
Troubleshooting
Regulatory Information
Other Related Information
FAQs (Frequently Asked Questions)
General FAQs
Q:
When I install my monitor what should I do if the screen shows 'Cannot display this video
mode'?
A: Recommended video mode for Philips 22": 1680x1050 @60Hz.
1. Unplug all cables, then connect your PC to the monitor that you used
previously.
2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel
Window, select the Display icon. Inside the Display Control Panel, select the
'Settings' tab. Under the setting tab, in box labeled 'desktop area', move the
slidebar to 1680x1050 pixels (22").
3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK.
4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at
1680x1050@60Hz (22").
5. Shut down your computer, disconnect your old monitor and reconnect your
Philips LCD monitor.
6. Turn on your monitor and then turn on your PC.
Q: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .
icm)?
A: These are the driver files for your monitor. Follow the instructions in your user
manual to install the drivers. Your computer may ask you for monitor drivers (.inf and .
icm files) or a driver disk when you first install your monitor. Follow the instructions to
insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and .
icm files) will be installed automatically.
Q: How do I adjust the resolution?
A: Your video card/graphic driver and monitor together determine the available
resolutions. You can select the desired resolution under Windows® Control Panel
with the "Display properties"
.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 1 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
Q: What if I get lost when I am making monitor adjustments?
A: Simply press the Menu button, the Setup button, then select 'Reset' to recall all of
the original factory settings.
Q: What is the Auto function?
A: The AUTO adjustment key restores the optimal screen position, phase and clock
settings by pressing of a single button – without the need to navigate through OSD
(On Screen Display) menus and control keys.
Note: Auto function is available in selected models only.
Q: My Monitor has no power (Power LED does not light up). What should I do?
A: Make sure the AC power cord is connected between the monitor and AC outlet,
and click a key on keyboard/mouse to wake up the PC.
Q: Will the LCD monitor accept an interlaced signal under PC models?
A: No. If an Interlace signal is used, the screen displays both odd and even horizontal
scanning lines at the same time, thus distorting the picture.
Q: What does the Refresh Rate mean for LCD?
A: Unlike CRT display technology, in which the speed of the electron beam is swept
from the top to the bottom of the screen determines flicker, an active matrix display
uses an active element (TFT) to control each individual pixel and the refresh rate is
therefore not really applicable to LCD technology.
Q: Will the LCD screen be resistant to scratches?
A: A protective coating is applied to the surface of the LCD, which is durable to a
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 2 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
certain extent (approximately up to the hardness of a 2H pencil). In general, it is
recommended that the panel surface is not subject to any excessive shocks or
scratches.
Q: How should I clean the LCD surface?
A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use
isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone,
hexane, etc.
Q:Can I change the color setting of my monitor?

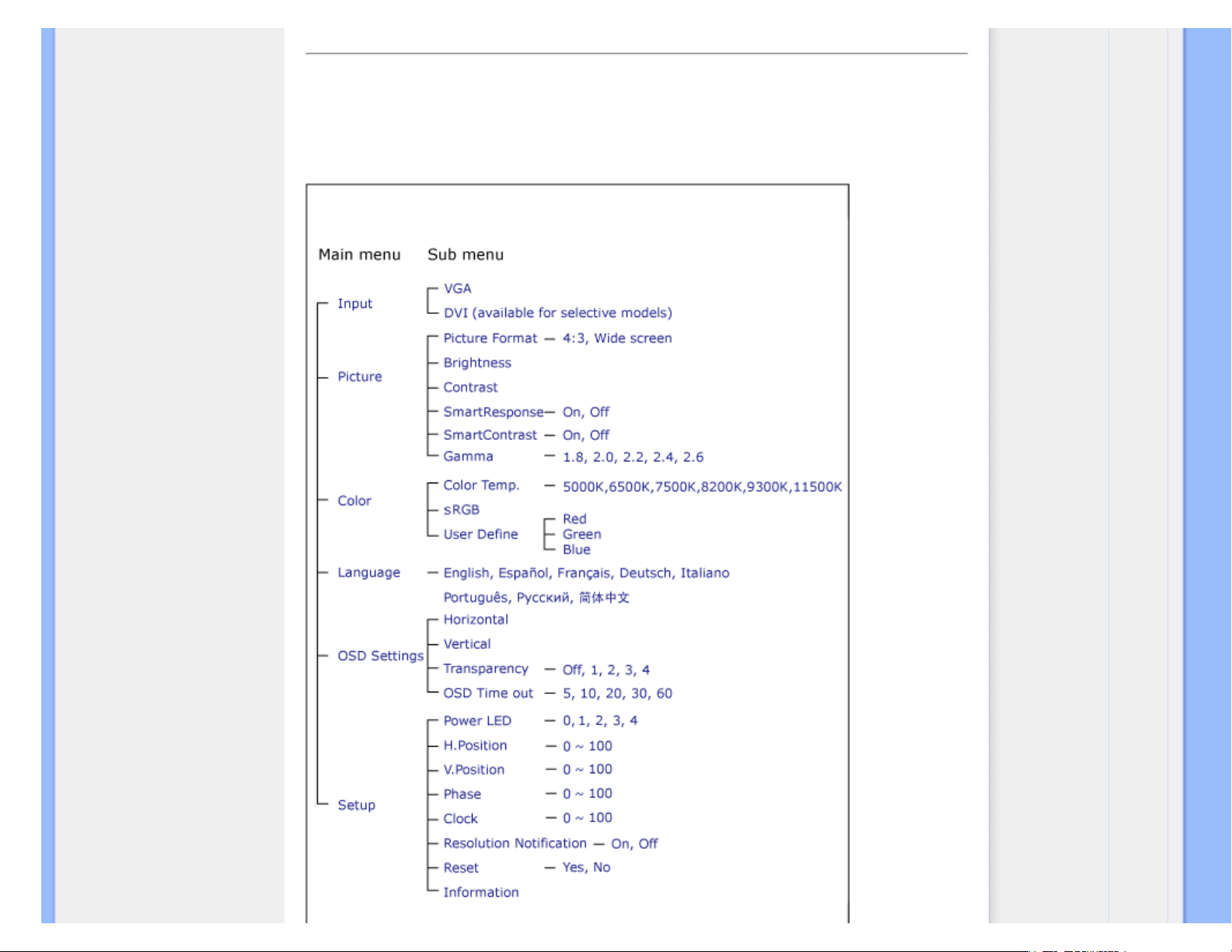

A:Yes, you can change your color setting through OSD control as the following
procedures,

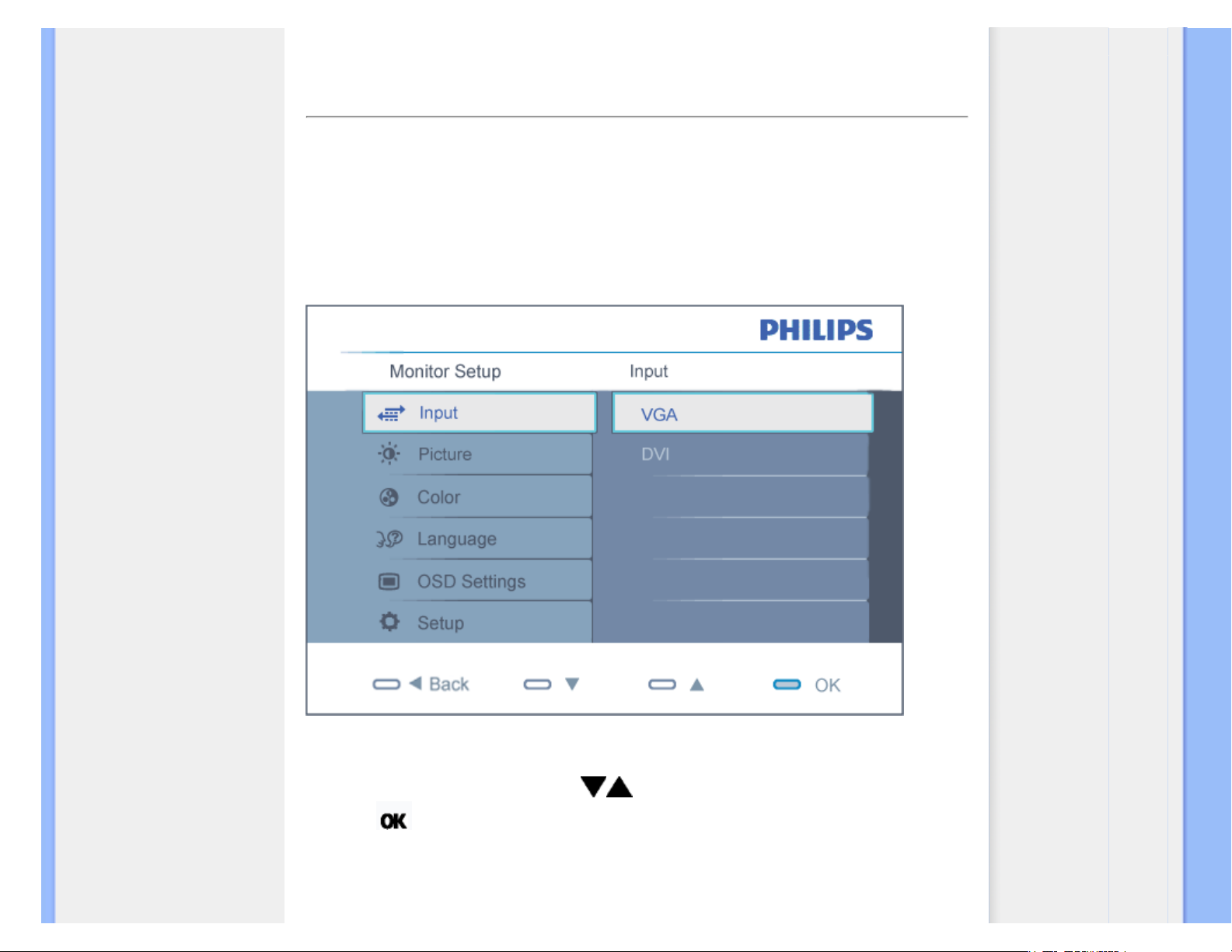

1. Press "Menu" to show the OSD (On Screen Display) menu
2. Press "Down Arrow" to select the option "Color" then press "OK" to enter color
setting, there are three settings as below.
a. Color Temperature; The six settings are 5000K, 6500K, 7500K,
8200K, 9300K and 11500K. With settings in the 5000K range the panel
appears ‘warm,' with a red-white color tone, while a 11500K
temperature yields ‘cool, blue-white toning."
b. sRGB; this is a standard setting for ensuring correct exchange of
colors between different device (e.g. digital cameras, monitors, printers,
scanners, etc)
c. User Define; the user can choose his/her preference color setting by
adjusting red, green blue color.

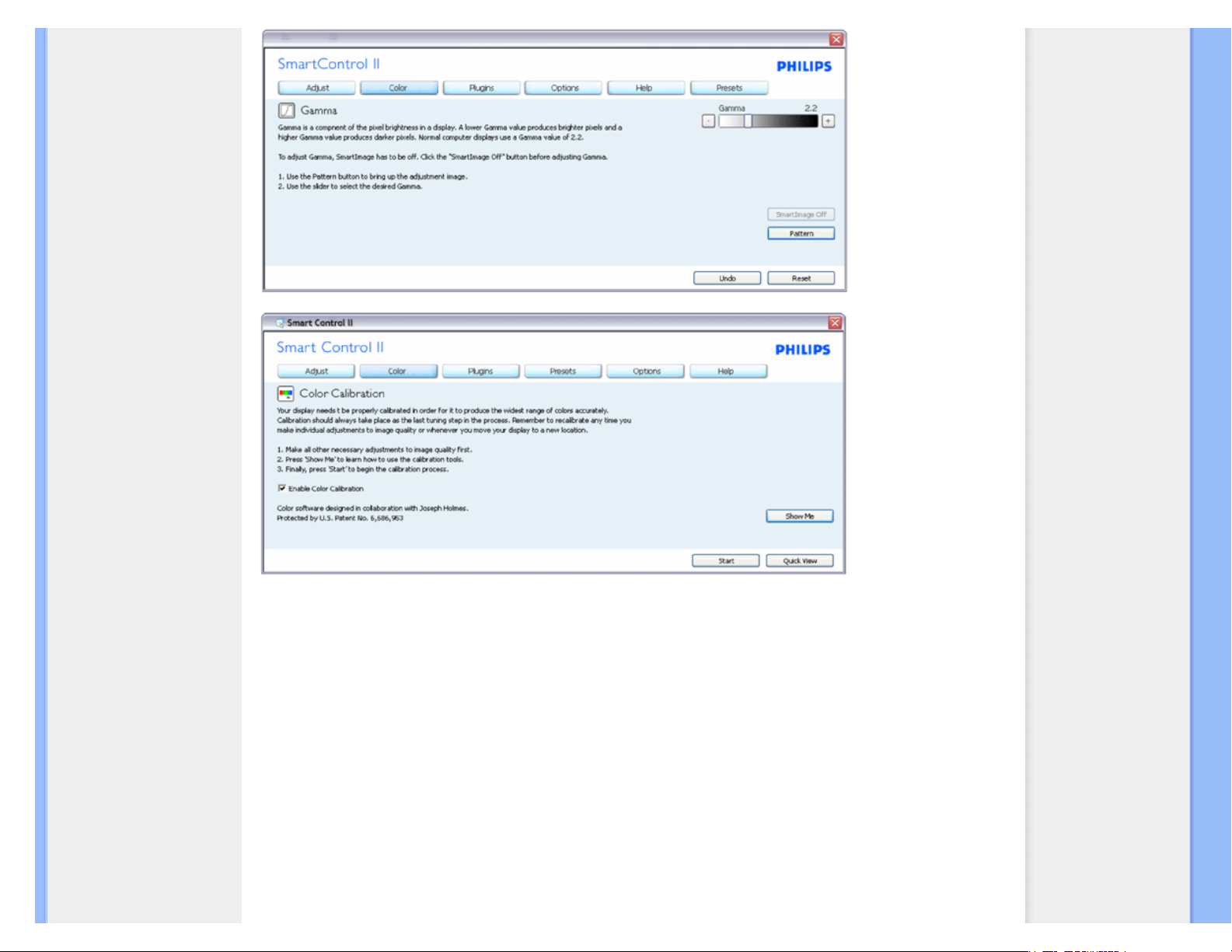

d. Gamma; The five settings are 1.8, 2.0, 2.2, 2.4, and 2.6.
*A measurement of the color of light radiated by an object while it is being heated.
This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower
Kelvin temperatures such as 2004K are red; higher temperatures such as 9300K are
blue. Neutral temperature is white, at 6504K.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 3 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
Screen Adjustments
Q:
When I install my monitor, how do I get the best performance from the monitor?
A:For best performance, make sure your display settings are set at
1680x1050@60Hz for 22".
Q: How do LCDs compare to CRTs in terms of radiation?
A: Because LCDs do not use an electron gun, they do not generate the same amount
of radiation at the screen surface.
RETURN TO TOP OF THE PAGE
Compatibility with other Peripherals
Q:
Can I connect my LCD monitor to any PC, workstation or Mac?
A: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and
workstations. You may need a cable adapter to connect the monitor to your Mac
system. Please contact your Philips sales representative for more information.
Q: Are Philips LCD monitors Plug-and-Play?
A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, XP
and Vista.
Q: What is USB (Universal Serial Bus)?
A: Think of USB as a smart plug for PC peripherals. USB automatically determines
resources (like driver software and bus bandwidth) required by peripherals. USB
makes necessary resources available without user intervention. There are three main
benefits of USB. USB eliminates "case anxiety," the fear of removing the computer
case to install circuit board cards -- that often requires adjustment of complicated IRQ
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 4 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
settings -- for add-on peripherals. USB does away with "port gridlock." Without USB,
PCs are normally limited to one printer, two Com port devices (usually a mouse and
modem), one Enhanced Parallel Port add-on (scanner or video camera, for example),
and a joystick. More and more peripherals for multimedia computers come on the
market every day. With USB, up to 127 devices can run simultaneously on one
computer. USB permits "hot plug-in." No need to shut down, plug in, reboot and run
set up to install peripherals. No need to go through the reverse process to unplug a
device. Bottom line: USB transforms today's "Plug-and-Pray" into true Plug-and-Play!
Please refer to glossary for more information about USB.
Q: What is a USB hub ?
A: A USB hub provides additional connections to the Universal Serial Bus. A hub's
upstream port connects a hub to the host, usually a PC. Multiple downstream ports in
a hub allows connection to another hub or device, such as a USB keyboard, camera
or printer.
RETURN TO TOP OF THE PAGE
LCD Panel Technology
Q:
What is a Liquid Crystal Display?
A: A Liquid Crystal Display (LCD) is an optical device that is commonly used to
display ASCII characters and images on digital items such as watches, calculators,
portable game consoles, etc. LCD is the technology used for displays in notebooks
and other small computers. Like light-emitting diode and gas-plasma technologies,
LCD allows displays to be much thinner than cathode ray tube (CRT) technology.
LCD consumes much less power than LED and gas-displays because it works on the
principle of blocking light rather than emitting it.
Q:
What differentiates passive matrix LCDs from active matrix LCDs?
A: An LCD is made with either a passive matrix or an active matrix display grid. An
active matrix has a transistor located at each pixel intersection, requiring less current
to control the luminance of a pixel. For this reason, the current in an active matrix
display can be switched on and off more frequently, improving the screen refresh time
(your mouse pointer will appear to move more smoothly across the screen, for
example). The passive matrix LCD has a grid of conductors with pixels located at
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 5 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
each intersection in the grid.
Q: What are the advantages of TFT LCD compared with CRT?
A: In a CRT monitor, a gun shoots electrons and general light by colliding polarized
electrons on fluorescent glass. Therefore, CRT monitors basically operate with an
analog RGB signal. A TFT LCD monitor is a device that displays an input image by
operating a liquid crystal panel. The TFT has a fundamentally different structure than
a CRT: Each cell has an active matrix structure and independent active elements. A
TFT LCD has two glass panels and the space between them is filled with liquid
crystal. When each cell is connected with electrodes and impressed with voltage, the
molecular structure of the liquid crystal is altered and controls the amount of inlet
lighting to display images. A TFT LCD has several advantages over a CRT, since it
can be very thin and no flickering occurs because it does not use the scanning
method.
Q: Why is vertical frequency of 60Hz optimal for an LCD monitor?
A: Unlike a CRT monitor, the TFT LCD panel has a fixed resolution. For example, an
XGA monitor has 1024x3 (R, G, B) x 768 pixels and a higher resolution may not be
available without additional software processing. The panel is designed to optimize
the display for a 65MHz dot clock, one of the standards for XGA displays. Since the
vertical/horizontal frequency for this dot clock is 60Hz/48kHz, the optimum frequency
for this monitor is 60Hz.
Q: What kind of wide-angle technology is available? How does it work?
A: The TFT LCD panel is an element that controls/displays the inlet of a backlight
using the dual-refraction of a liquid crystal. Using the property that the projection of
inlet light refracts toward the major axis of the liquid element, it controls the direction
of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal
varies with the inlet angle of the light, the viewing angle of a TFT is much narrower
than that of a CRT. Usually, the viewing angle refers to the point where the contrast
ration is 10. Many ways to widen the viewing angle are currently being developed and
the most common approach is to use a wide viewing angle film, which widens the
viewing angle by varying the refraction ratio. IPS (In Plane Switching) or MVA (Multi
Vertical Aligned) is also used to give a wider viewing angle.
Q: Why is there no flicker on an LCD Monitor?
A: Technically speaking, LCDs do flicker, but the cause of the phenomenon is
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 6 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)
different from that of a CRT monitor -- and it has no impact of the ease of viewing.
Flickering in an LCD monitor relates to usually undetectable luminance caused by the
difference between positive and negative voltage. On the other hand, CRT flickering
that can irritate the human eye occurs when the on/off action of the fluorescent object
becomes visible. Since the reaction speed of liquid crystal in an LCD panel is much
slower, this troublesome form of flickering is not present in an LCD display.
Q: Why is an LCD monitor virtually low of Electro Magnetic Interference?
A: Unlike a CRT, an LCD monitor does not have key parts that generate Electro
Magnetic Interference, especially magnetic fields. Also, since an LCD display utilizes
relatively low power, its power supply is extremely quiet.
RETURN TO TOP OF THE PAGE
Ergonomics, Ecology and Safety Standards
Q:
What is the CE mark?
A: The CE (Conformité Européenne) mark is required to be displayed on all regulated
products offered for sale on the European market. This 'CE' mark means that a
product complies with the relevant European Directive. A European Directive is a
European 'Law' that relates to health, safety, environment and consumer protection,
much the same as the U.S. National Electrical Code and UL Standards.
Q: Does the LCD monitor conform to general safety standards?
A: Yes. Philips LCD monitors conform to the guidelines of TCO Displays 5.0
standards for the control of radiation, electromagnetic waves, energy reduction,
electrical safety in the work environment and recyclability. The specification page
provides detailed data on safety standards.
Q:
After I change new PC, I found this information on screen, how can I do?
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 7 頁 / 共 8 [98-06-23 09:36]
FAQs (Frequently Asked Questions)

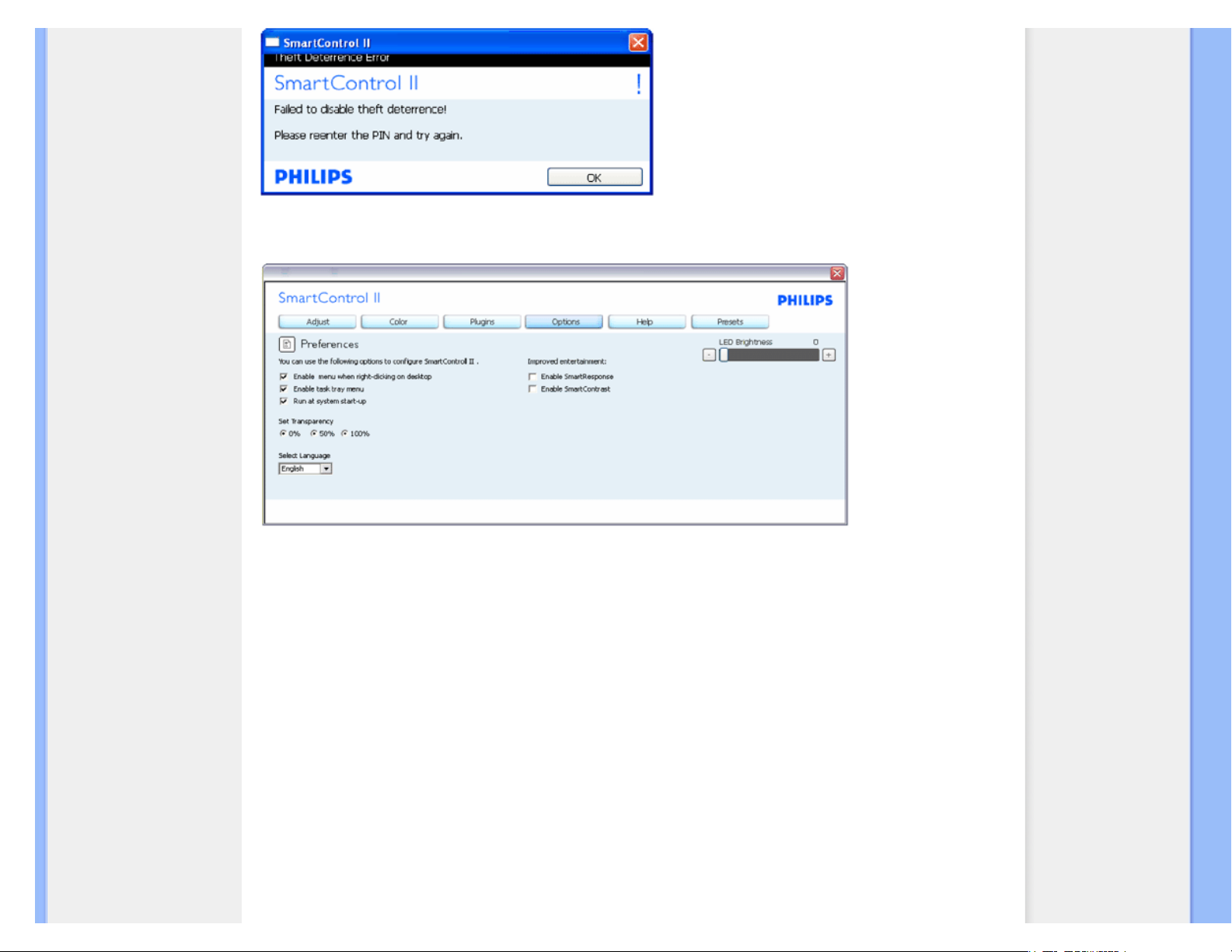

A:

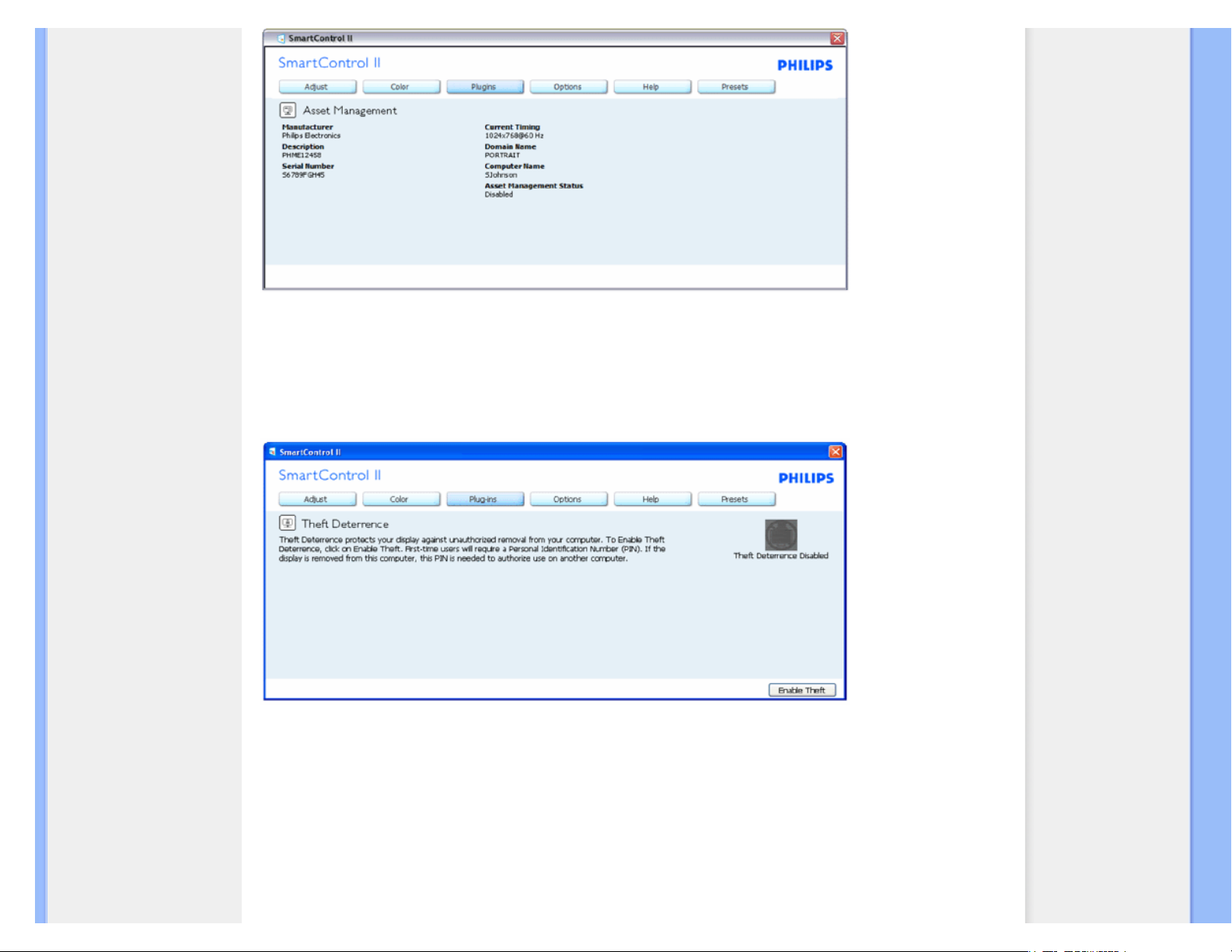

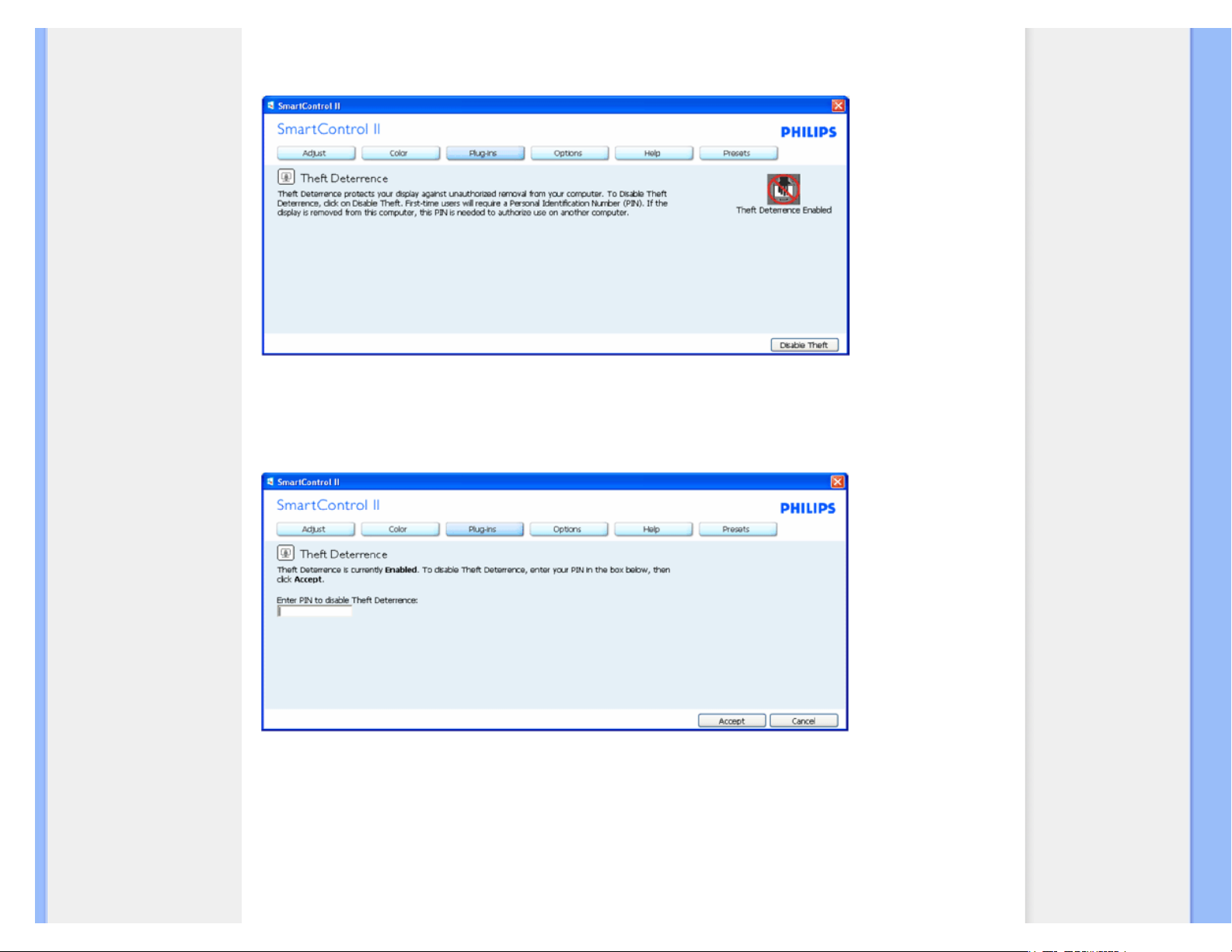

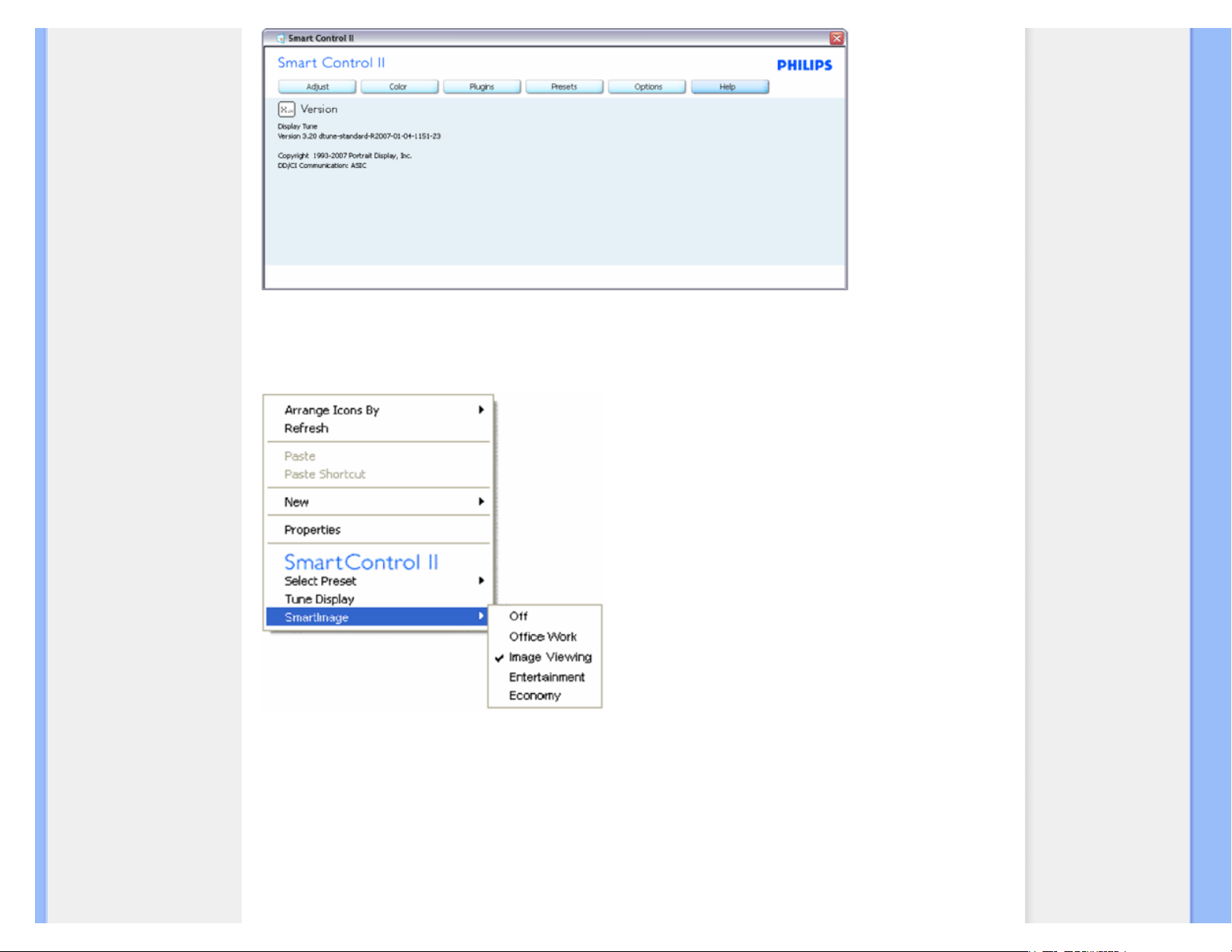

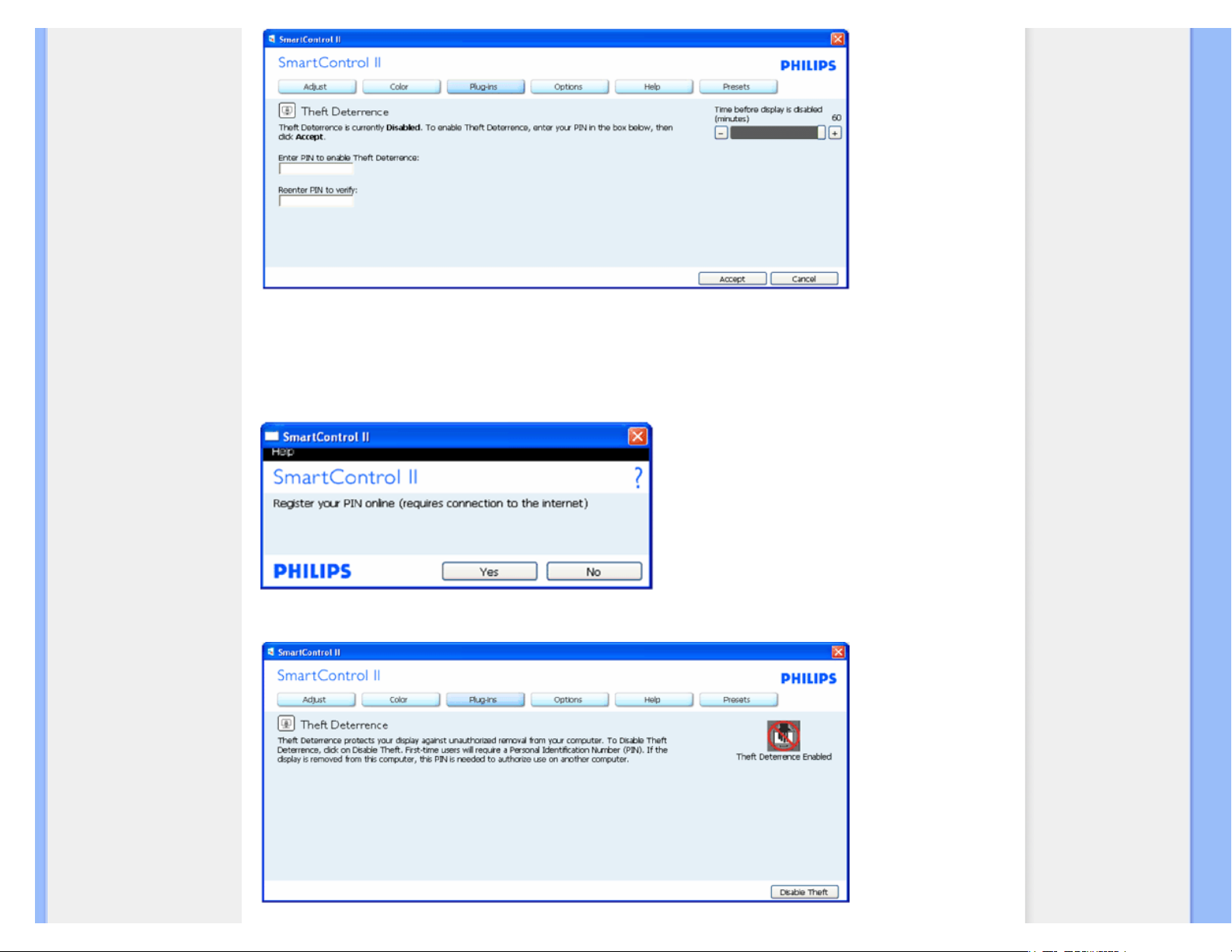

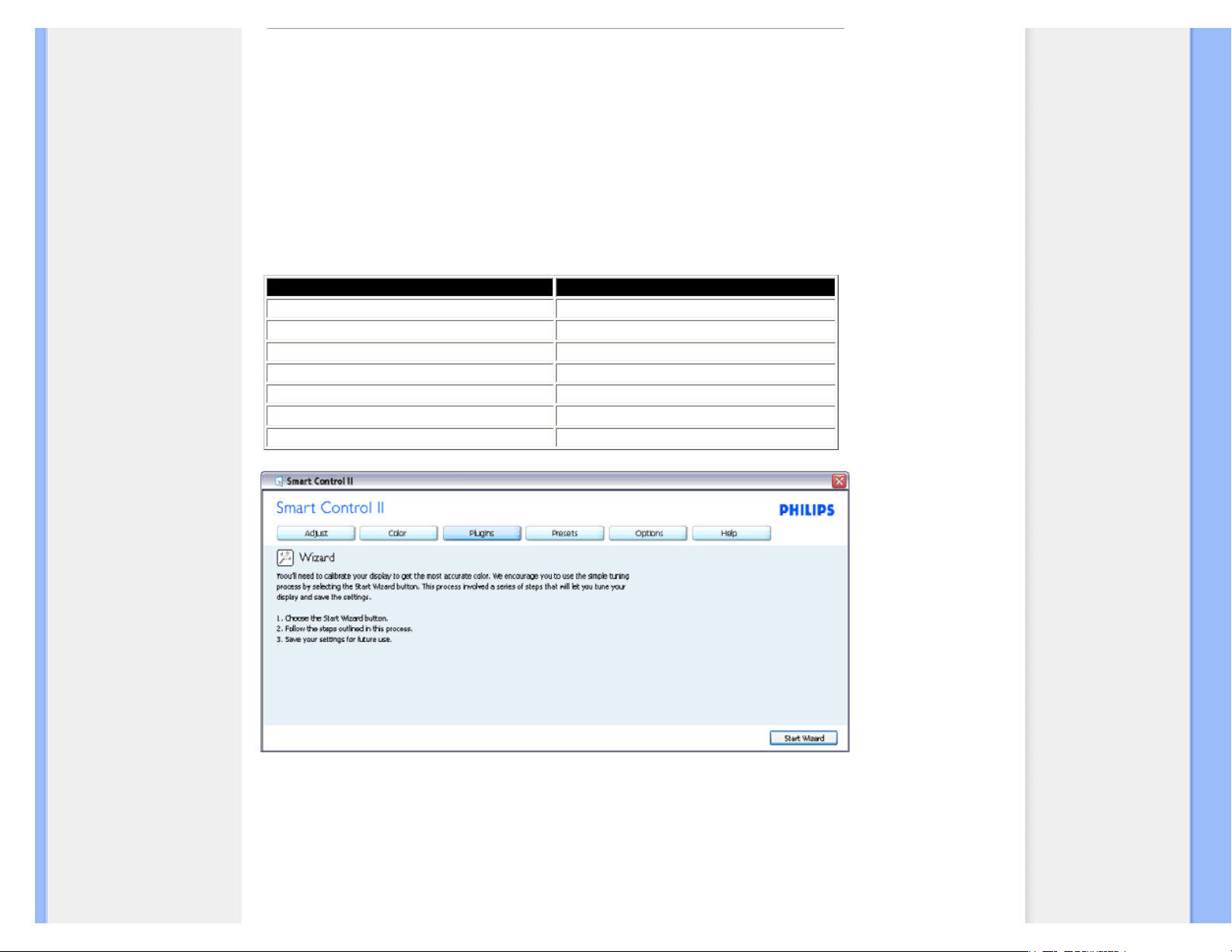

Because you activate Theft Deterrence function in SmartControl II. Please contact
IT manager or Philips Service Center.
More information is provided in the Regulatory Information section.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_faq.htm 第 8 頁 / 共 8 [98-06-23 09:36]
Troubleshooting
• Safety and
Troubleshooting
• FAQs
• Common Problems
• Imaging Problems
• Regulatory Information
• Other Related
Information
Troubleshooting
This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these
solutions, contact Philips customer service representative.
Common Problems
Having this problem Check these items
No Picture
(Power LED not lit)
● Make sure the power cord is plugged into the power outlet
and into the back of the monitor.
● First, ensure that the power button on the front of the monitor
is in the OFF position, then press it to the ON position.
No Picture
(Power LED is white blinking)
● Make sure the computer is turned on.
● Make sure the signal cable is properly connected to your
computer.
● Check to see if the monitor cable has bent pins.
● The Energy Saving feature may be activated
Screen says
● Make sure the monitor cable is properly connected to your
computer. (Also refer to the Quick Set-Up Guide).
● Check to see if the monitor cable has bent pins.
● Make sure the computer is turned on.
AUTO button not working properly
● The Auto Function is designed for use on standard Macintosh
or IBM-compatible PCs running Microsoft Windows.
● It may not work properly if using nonstandard PC or video
card.
Imaging Problems
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_troub.htm 第 1 頁 / 共 3 [98-06-23 09:36]
Troubleshooting
Display position is incorrect
● Press the Auto button.
● Adjust the image position using the Phase/Clock of Setup in
OSD Main Controls.
Image vibrates on the screen
● Check that the signal cable is properly connected to the
graphics board or PC.
Vertical flicker appears
● Press the Auto button.
● Eliminate the vertical bars using the Phase/Clock of Setup in
OSD Main Controls.
Horizontal flicker appears
● Press the Auto button.
● Eliminate the vertical bars using the Phase/Clock of Setup in
OSD Main Controls.
The screen is too bright or too dark
● Adjust the contrast and brightness on On-Screen Display.
(The backlight of the LCD monitor has a fixed life span. When
the screen becomes dark or begins to flicker,
please contact
your sales representative).
An after-image appears
● If an image remains on the screen for an extended period of
time, it may be imprinted in the screen and leave an afterimage. This usually disappears after a few hours
An after-image remains after the power
has been turned off.
● This is characteristic of liquid crystal and is not caused by a
malfunction or deterioration of the liquid crystal. The afterimage will disappear after a period of time.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_troub.htm 第 2 頁 / 共 3 [98-06-23 09:36]
Troubleshooting

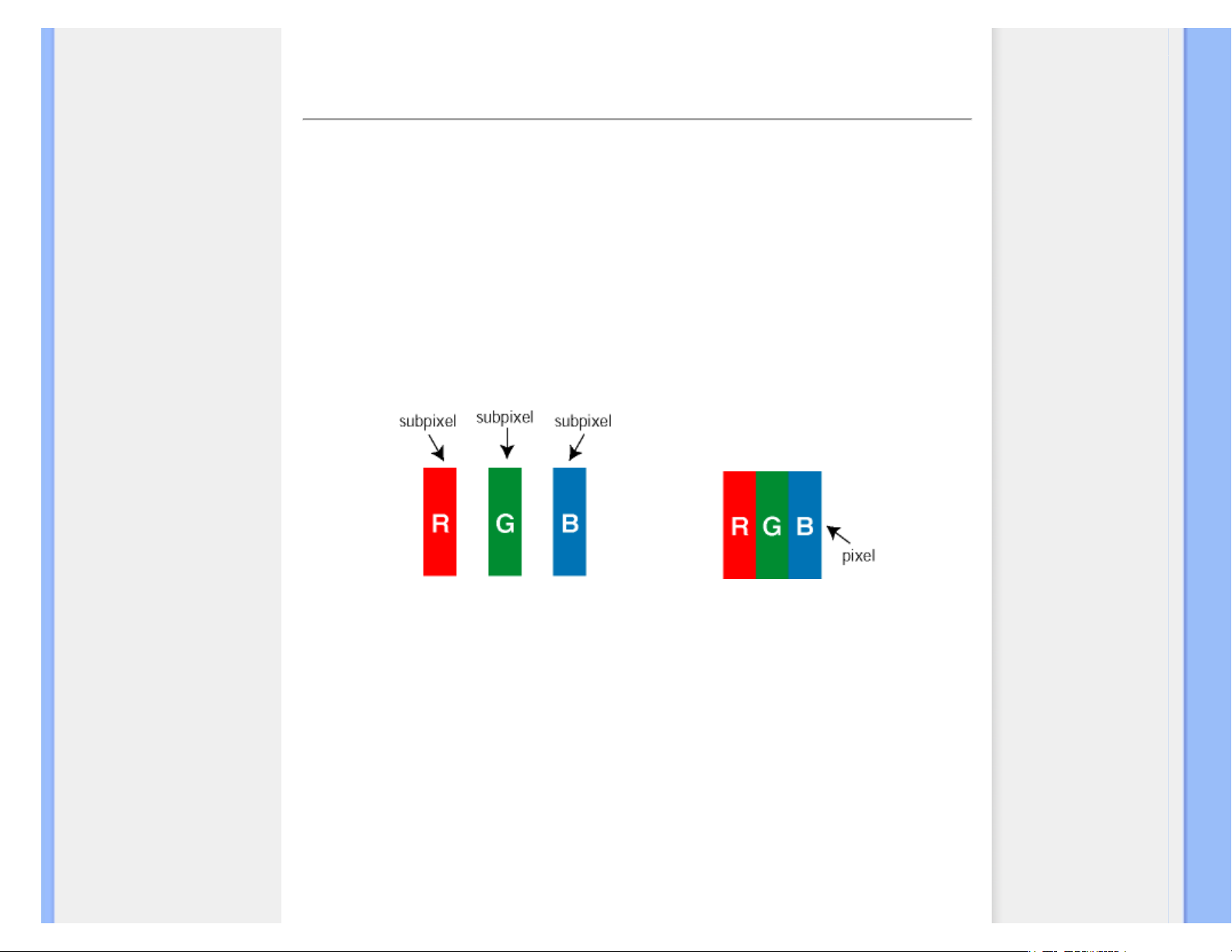

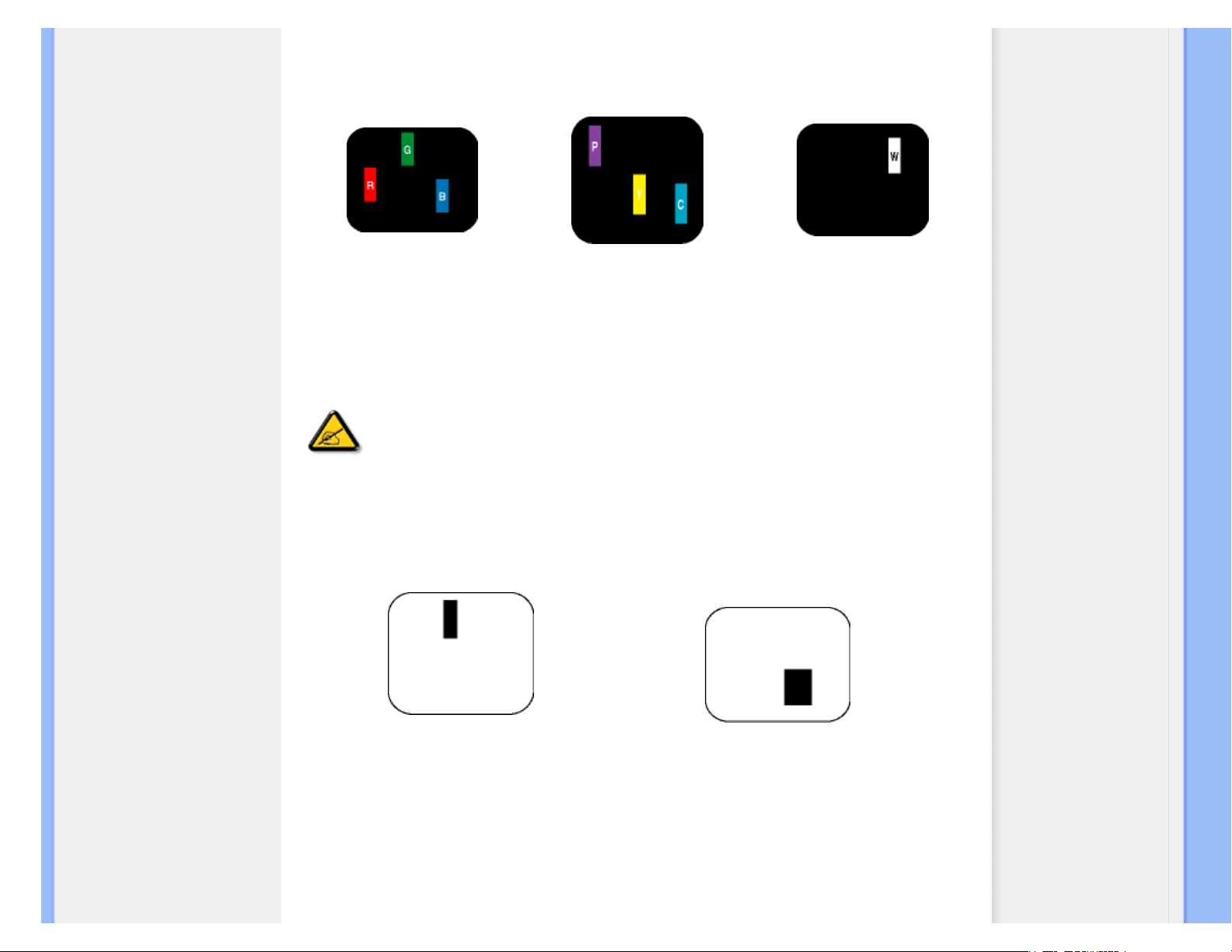

Green, red, blue, dark, and white dots
remains
● The remaining dots are normal characteristic of the liquid
crystal used in todays technology.
Adjust white "power on" light
● Adjust white "power on" light using the power LED of Setup in
OSD Main Controls.
For further assistance, refer to the Consumer Information Centers list and contact Philips customer service
representative.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_troub.htm 第 3 頁 / 共 3 [98-06-23 09:36]
Regulatory Information
TCO Displays 5.0 Information
Recycling Information for Customers
Waste Electrical and Electronic
Equipment-WEEE
CE Declaration of Conformity
Energy Star Declaration
Federal Communications
Commission (FCC) Notice (U.S.
Only)
FCC Declaration of Conformity
Commission Federale de la
Communication (FCC Declaration)
EN 55022 Compliance (Czech
Republic Only)
MIC Notice (South Korea Only)
Polish Center for Testing and
Certification Notice
North Europe (Nordic Countries)
Information
BSMI Notice (Taiwan Only)
Ergonomie Hinweis (nur
Deutschland)
Philips End-of-Life Disposal
Information for UK only
China RoHS
Lead-free Product
Troubleshooting
Other Related Information
Frequently Asked Questions (FAQs)
Regulatory Information
Available for selective models
TCO Displays 5.0 Information
Congratulations,
Your display is designed for both you and the planet!
This display carries the TCO Certified label. This ensures that the display is designed for minimal
impact on the climate and natural environment, while offering all the performance expected from top
of the line electronic products. TCO Certified is a third party verified program, where every product
model is tested by an accredited independent test laboratory. TCO Certified represents one of the
toughest certifications for displays worldwide.
Some of the Usability features of the TCO Displays 5.0 requirements:
Visual Ergonomics
Good visual ergonomics in order to improve the working environment for the user and to reduce sight and strain problems. Important
parameters are:
● Light levels without color tint, Uniform color and luminance, Wide color gamut
● Calibrated color temperature and gamma curve
● Wide luminance level, Dark black levels, Low motion blur
Electrical Safety
● Product fulfills rigorous safety standards
Emissions
● Low alternating electric and magnetic fields emissions
● Low acoustic noise emissions
Some of the Environmental features of the TCO Displays 5.0 requirements:
● The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS
or ISO 14001)
● Very low energy consumption both in on- and standby mode
● Restrictions on chlorinated and brominated flame retardants, plasticizer and polymers
● Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance)
● Both product and product packaging is prepared for recycling
● The brand owner offers take-back options
The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as
well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT
equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and ITmanufacturers all over the world.
For more information, please visit www.tcodevelopment.com
For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 1 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
from surrounding light and bright surfaces.
RETURN TO TOP OF THE PAGE
Recycling Information for Customers
There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium,
Norway, Sweden and Denmark.
In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT
product recycling management process, detail can be found in web site www.epa.gov.tw
The monitor contains parts that could cause damage to the nature environment. Therefore, it is vital that the monitor is recycled at
the end of its life cycle.
For help and service, please contact Consumers Information Center or F1rst Choice Contact Information Center.
RETURN TO TOP OF THE PAGE
Waste Electrical and Electronic Equipment-WEEE
Attention users in European Union private households
This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EG
governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You
are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To
determine the locations for dropping off such waste electrical and electronic, contact your local government office, the
waste disposal organization that serves your household or the store at which you purchased the product.
Attention users in United States:
Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local, State and Federal
laws. For the disposal or recycling information, contact www.mygreenelectronics.com or www.eiae.org.
RETURN TO TOP OF THE PAGE
CE Declaration of Conformity
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 2 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
This product is in conformity with the following standards
- EN60950-1:2001 (Safety requirement of Information Technology Equipment)
- EN55022:2006 (Radio Disturbance requirement of Information Technology Equipment)
- EN55024:1998 (Immunity requirement of Information Technology Equipment)
- EN61000-3-2:2006 (Limits for Harmonic Current Emission)
- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker)
following provisions of directives applicable
- 2006/95/EC (Low Voltage Directive)
- 2004/108/EC (EMC Directive)
and is produced by a manufacturing organization on ISO9000 level.
The product also comply with the following standards
- ISO13406-2 (Ergonomic requirement for Flat Panel Display)
- GS EK1-2000 (GS specification)
- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display)
- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)
- TCO'03, TCO Displays 5.0 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO:
Swedish Confederation of Professional Employees) for TCO versions
RETURN TO TOP OF THE PAGE
Energy Star Declaration
This monitor is equipped with a function for saving energy which supports the VESA Display
Power Management Signaling (DPMS)
standard. This means that the monitor must be
connected to a computer which supports VESA DPMS. Time settings are adjusted from the
system unit by software.
VESA State LED Indicator Power Consumption
Normal operation ON (Active) White < 32 W (typ.)
Power Saving
Alternative 2
One step
Sleep White Blinking < 0.8 W
Switch Off Off < 0.5 W
As an ENERGY STAR® Partner, we have determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
We recommend you switch off the monitor when it is not in use for a long time.
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 3 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING
EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
FCC Declaration of Conformity
Declaration of Conformity for Products Marked with FCC Logo,
United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 4 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de
class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon
à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une
installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences
qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer
des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir
l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce
qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur
pourrait essayer de corriger la situation en prenant les mesures suivantes:
● Réorienter ou déplacer l'antenne de réception.
● Augmenter la distance entre l'équipement et le récepteur.
● Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
● Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de
conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE
MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
EN 55022 Compliance (Czech Republic Only)
RETURN TO TOP OF THE PAGE
MIC Notice (South Korea Only)
Class B Device
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 5 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
Please note that this device has been approved for non-business purposes and may be used in any environment, including
residential areas.
RETURN TO TOP OF THE PAGE
Polish Center for Testing and Certification Notice
The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment
that works together (computer, monitor, printer, and so on) should have the same power supply source.
The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form
of a fuse with a nominal value no larger than 16 amperes (A).
To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which
should be located near the equipment and easily accessible.
A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN93/T-42107 and PN-89/E-06251.
RETURN TO TOP OF THE PAGE
North Europe (Nordic Countries) Information
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 6 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
Placering/Ventilation
VARNING:
FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR
DU STÄLLER DIN UTRUSTNING PÅPLATS.
Placering/Ventilation
ADVARSEL:
SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT
ER NEMT TILGÆNGELIGE.
Paikka/Ilmankierto
VAROITUS:
SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI
IRROTTAA PISTORASIASTA.
Plassering/Ventilasjon
ADVARSEL:
NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR
STØMTILFØRSEL ER LETTE Å NÅ.
RETURN TO TOP OF THE PAGE
BSMI Notice (Taiwan Only)
RETURN TO TOP OF THE PAGE
Ergonomie Hinweis (nur Deutschland)
Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 7 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
Röntgenstrahlen" festgelegten Vorschriften.
Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Inbetriebnahme hinweist, da
die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind.
Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß
1. Reparaturen nur durch Fachpersonal durchgeführt werden.
2. nur original-Ersatzteile verwendet werden.
3. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird.
Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem
Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem
Zeichenkontrast wären die Folge).
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.
ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß
NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND.
RETURN TO TOP OF THE PAGE
End-of-Life Disposal
Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to
increase the amount of reusable materials and to minimize the amount to be disposed of.
Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer.
(For customers in Canada and U.S.A.)
This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations.
For additional information on recycling contact www.eia.org (Consumer Education Initiative)
RETURN TO TOP OF THE PAGE
Information for UK only
WARNING - THIS APPLIANCE MUST BE GROUNDING.
Important:
This apparatus is supplied with an approved moulded 13A
plug. To change a fuse in this type of plug proceed as
follows:
1. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or
BSI approved type.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 8 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it
should be cut off and an appropriate 3-pin plug fitted in its
place.
If the mains plug contains a fuse, this should have a value
of 5A. If a plug without a fuse is used, the fuse at the
distribution board should not be greater than 5A.
Note: The severed plug must be destroyed to avoid a
possible shock hazard should it be inserted into a 13A
socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured in accordance
with the following code:
BLUE - "NEUTRAL" ("N")
BROWN - "LIVE" ("L")
GREEN & YELLOW - "GROUND" ("G")
1. The GREEN AND YELLOW wire must be connected to
the terminal in the plug which is marked with the letter "G"
or by the Ground symbol
or coloured GREEN or GREEN
AND YELLOW.
2. The BLUE wire must be connected to the terminal which
is marked with the letter "N" or coloured BLACK.
3. The BROWN wire must be connected to the terminal
which marked with the letter "L" or coloured RED.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply
over the three wires.
RETURN TO TOP OF THE PAGE
China RoHS
The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic
Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are
produced and sold for China market have to meet China RoHS request.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-ED...001/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 9 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
RETURN TO TOP OF THE PAGE
Lead-free Product
Lead free display promotes environmentally sound recovery and disposal of waste from electrical and
electronic equipment. Toxic substances like Lead has been eliminated and compliance with European
community’s stringent RoHs directive mandating restrictions on hazardous substances in electrical and
electronic equipment have been adhered to in order to make Philips monitors safe to use throughout its life
cycle.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-E...01/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 10 頁 / 共 11 [98-06-24 08:52]
Regulatory Information
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-E...01/CD-Contents/lcd/manual/ENGLISH/220C1/SAFETY/REGS/REGULAT.HTM 第 11 頁 / 共 11 [98-06-24 08:52]
Other Related Information
Safety and Troubleshooting
FAQs
Troubleshooting
Regulatory Information
Information
for Users in the U.S
Information
for Users Outside the U.S
Other Related Information
Information for Users in the U. S.
For units set at 115 V :
Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord
a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.
For units set at 230 V:
Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord
a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.
Information for Users outside the U.S.
For units set at 230 V:
Use a Cord Set consisting of a minimum 18 AWG cord and grounding type attachment plug rated
15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which
the equipment will be installed and / or be marked HAR.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/safety/saf_other.htm [98-06-23 09:37]
About This Manual
About This Guide
Notational Descriptions
About This Manual
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It
describes the LCD monitor's features, setup, operation and other important information. Its
contents are identical to the information in our printed version.
It includes the following sections:
● Safety and Troubleshooting Information provides tips and solutions for common problems
as well as other related information you may need.
● About This Electronic User's Manual gives an overview of information included, along with
notation icon descriptions and other documentation for your reference.
● Product Information gives an overview of the monitor's features as well as the technical
specifications for this monitor.
● Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
● On-Screen Display provides information on adjusting the settings on your monitor.
● Customer Care and Warranty contains a list of worldwide Philips Consumer Information
Centers along with help desk phone numbers and information on the warranty applicable
to your product.
● Glossary defines technical terms.
● Download and Print Option transfers this entire manual to your hard drive for easy
reference.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
.htm 第 1 頁 / 共 2 [98-06-23 09:37]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/about/about
About This Manual
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic
type. These blocks contain notes, cautions or warnings. They are used as follows:
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In
such cases, the specific presentation of the warning is mandated by the relevant regulatory
authority.
RETURN TO TOP OF THE PAGE
.htm 第 2 頁 / 共 2 [98-06-23 09:37]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/about/about
Product Information
Your LCD Monitor
Smartimage
SmartContrast
SmartSaturate
SmartSharpness
Technical Specifications
Resolution & Preset Modes
Philips Pixel Defect Policy
Automatic Power Saving
Physical Specification
Pin Assignment
Product Views
Physical Function

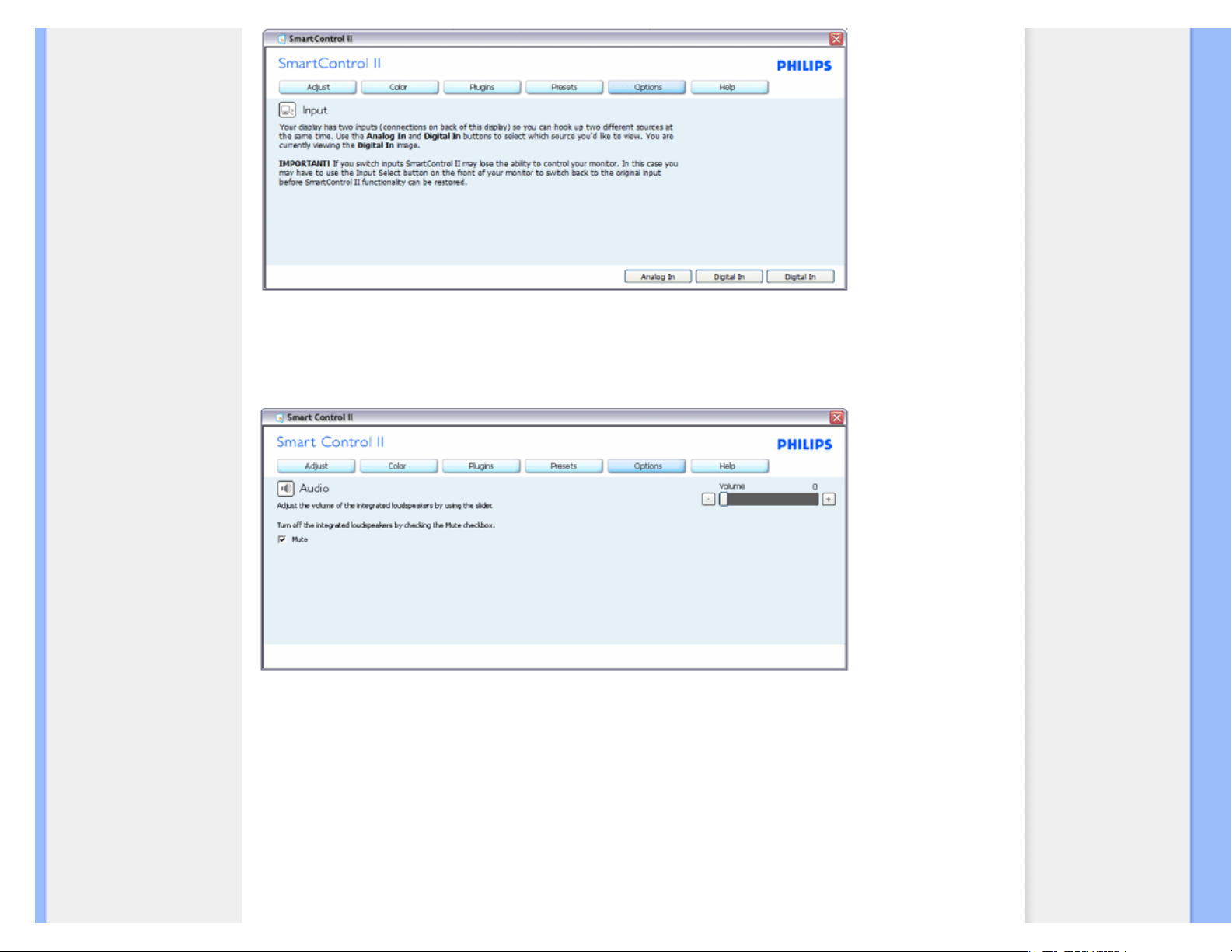

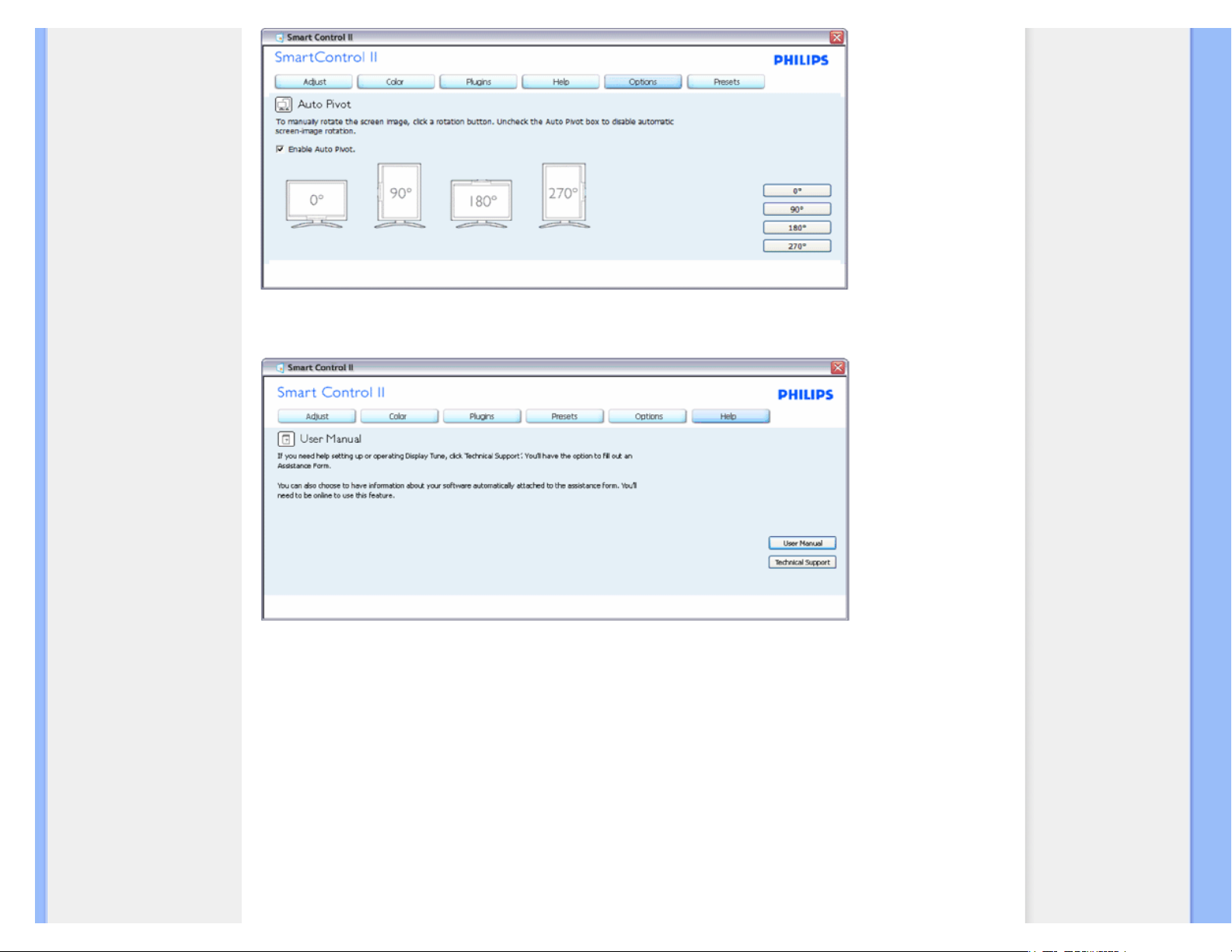

SmartControl II
Product Information
Your LCD monitor
Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register
your product at. www.philips.com/welcome
SmartImage
What is it?
SmartImage provides presets that optimize display for different types of content, dynamically adjusting brightness,
contrast, color and sharpness in real time. Whether you're working with text applications, displaying images or watching
a video, Philips SmartImage delivers great optimized LCD display performance.
RETURN TO TOP OF THE PAGE
Why do I need it?
You want a LCD display that delivers optimized display all your favorite types of content, SmartImage software
dynamically adjust brightness, contrast, color and sharpness in real time to enhance your LCD viewing experience.
How does it work?
SmartImage - software based on Philips award-winning LightFrame™ technology - analyzes the content displayed on
your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation
and sharpness of images and video for ultimate display performance - all in real time with the press on a single button.
How to enable SmartImage?
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 1 頁 / 共 10 [98-06-23 09:38]
Product Information
1.
Press
to launch the SmartImage on screen display;
2.
Keep press
to toggle between Office Work, Image Viewing, Entertainment, Economy, and Off;
3. The SmartImage on screen display will remain on screen for 5 seconds or you can also press”OK” to make
confirmation.
4. When SmartImage is enabled, the sRGB scheme is disabled automatically. To use sRGB you need to
disable SmartImage with the
button at the front bezel of your monitor.

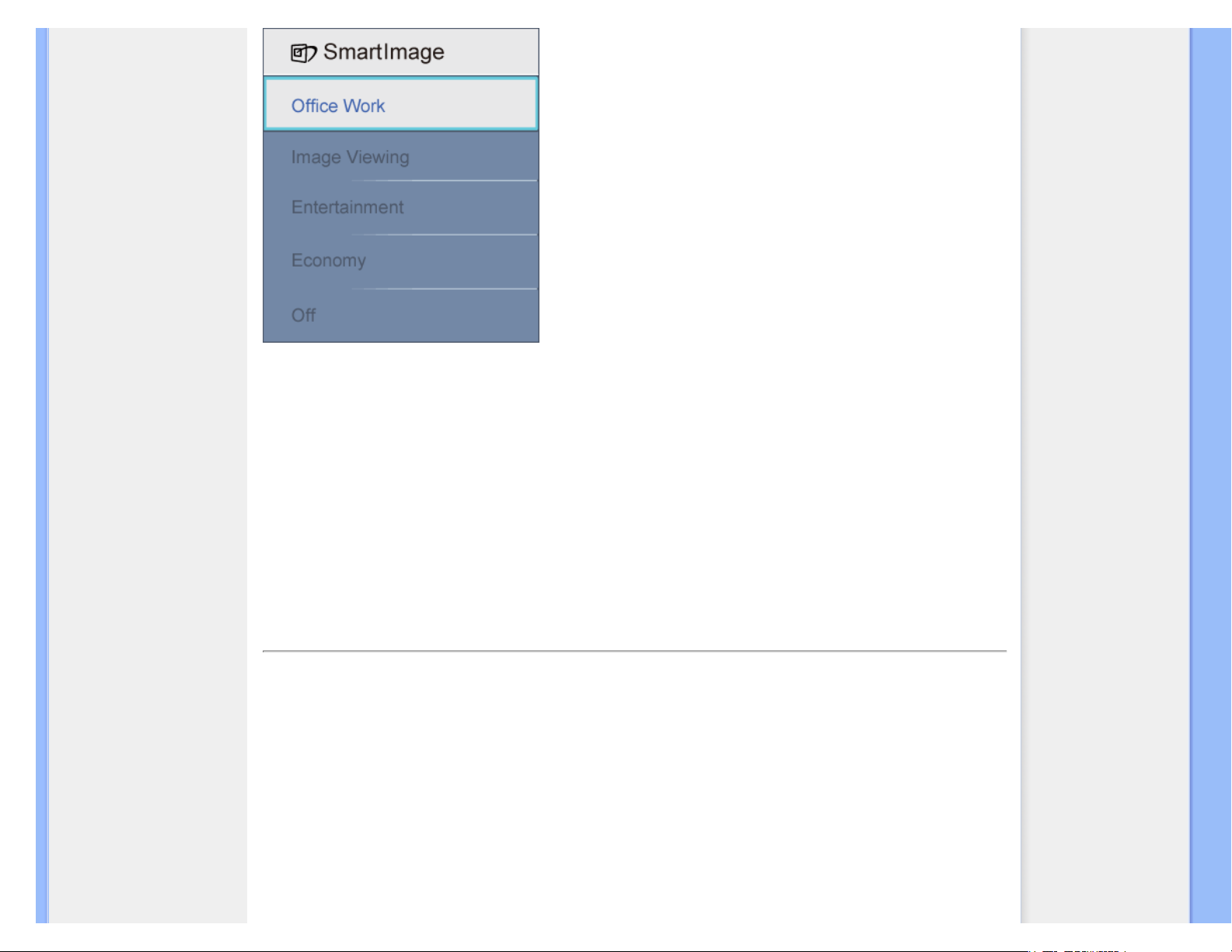

Except using key to scroll down, you can also press buttons to choose and press “OK” to confirm selection
and close the SmartImage OSD.There are five modes to be selected: Office Work, Image Viewing, Entertainment,
Economy, and Off.
There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 2 頁 / 共 10 [98-06-23 09:38]
Product Information
1. Office Work: Enhances text and dampens brightness to increase readability and reduce eye strain. This mode
significantly enhances readability and productivity when you're working with spreadsheets, PDF files, scanned articles or
other general office applications.
2.
Image Viewing: This profile combines color saturation, dynamic contrast and sharpness enhancement to display photos
and other images with outstanding clarity in vibrant colors - all without artifacts and faded colors.
3. Entertainment: Ramped up luminance, deepened color saturation, dynamic contrast and razor sharpness displays every
details in darker areas of your videos without color washout in brighter areas maintaining a dynamic natural values for the
ultimate video display.
4.
Economy: Under this profile, brightness, contrast are adjusted and backlighting fine-tuned for just right display of
everyday office applications and lower power consumption.
5. Off: No optimization by SmartImage.
RETURN TO TOP OF THE PAGE
SmartContrast
What is it?
Unique technology that dynamically analyzes displayed content and automatically optimizes a LCD monitor's contrast
ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images
or dimming backlighting for clear display of images on dark backgrounds.
Why do I need it?
You want the very best visual clarity and viewing comfort for every type of content. SmartContrast dynamically
controls contrast and adjusts backlighting for clear, crisp, bright gaming and video images or displays clear, readable text
for office work. By reducing your monitor's power consumption, you save on energy costs and extend the lifetime of
your monitor.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 3 頁 / 共 10 [98-06-23 09:38]
Product Information
How does it work?
When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and
control backlight intensity. This function can obviously enhance contrast in dynamic for more entertainment fun when
viewing videos or playing games.
RETURN TO TOP OF THE PAGE
SmartSaturate
What is it?
Smart technology that controls color saturation - the degree to which one on screen color is diluted by neighboring colors to deliver rich and vibrant images for more entertainment fun when you are viewing videos.
Why do I need it?
You want rich, vibrant images for more entertainment fun when viewing photos or videos
.
How does it work?
SmartSaturate dynamically controls color saturation - the degree to which on-screen color is diluted by neighboring colors to deliver rich, vibrant display for more entertainment fun when you are viewing images or videos in your
display's Entertainment mode and is turned off for top quality display of office application and in the Economy mode to
reduce power consumption
.
RETURN TO TOP OF THE PAGE
SmartSharpness
What is it?
Smart technology that enhances sharpness when you need it for ultimate display performance and more entertainment
fun when you are viewing videos or photos.
Why do I need it?
You want the ultimate in sharpness for more entertainment fun when viewing photos or videos.
How does it work?
Smart technology enhances sharpness when you need it for ultimate display performance and more entertainment fun
when you are viewing videos or photos in the Entertainment mode and is turned off for top quality display of
office applications and in the Economy mode to reduce power consumptions.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 4 頁 / 共 10 [98-06-23 09:38]
Product Information
Technical Specifications*
LCD PANEL
Type
TFT LCD
Screen size
22" visual
Pixel Pitch
0.282 x 0.282 mm
LCD Panel type
1680 x 1050 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
Effective viewing area
473.76 x 296.1 mm
SCANNING
Vertical refresh rate
56 Hz-76 Hz
Horizontal Frequency
30 kHz - 83 kHz
VIDEO
Video dot rate
165 MHz
Input impedance
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 5 頁 / 共 10 [98-06-23 09:38]
Product Information
- Video
75 ohm
- Sync
2.2K ohm
Input signal levels
0.7 Vpp
Sync input signal
Separate sync
Composite sync
Sync on green
Sync polarities
Positive and negative
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
A.
Maximum Resolution
- For 220C1
1680 x 1050 at 75 Hz (analog input)
1680 x 1050 at 60 Hz (digital input)
B. Recommended Resolution
- For 220C1
1680 x 1050 at 60 Hz (digital input)
18 factory preset modes:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 6 頁 / 共 10 [98-06-23 09:38]
Product Information
H. freq (kHz) Resolution V. freq (Hz)
31.469 640*350 70.086
31.469 720*400 70.087
31.469 640*480 59.940
35.000 640*480 67.000
37.500 640*480 75.000
35.156 800*600 56.250
37.879 800*600 60.317
46.875 800*600 75.000
48.363 1024*768 60.004
60.023 1024*768 75.029
63.981 1280*1024 60.020
79.976 1280*1024 75.025
55.469 1440*900 59.901
55.935 1440*900 59.887
70.635 1440*900 74.984
70.635 1680*1050 60.000
64.674
1680*1050 60.000
66.587
1920*1080 60.000
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce
its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor
will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power
saving feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used
LED
color
Active ON Yes Yes < 32 W (typ.)
White
Sleep
OFF No No < 0.8 W
White
Blinking
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 7 頁 / 共 10 [98-06-23 09:38]
Product Information
Switch Off OFF - - < 0.5 W Off
This monitor is ENERGY STAR
®
compliant. As an ENERGY STAR® Partner, we have
determined that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications

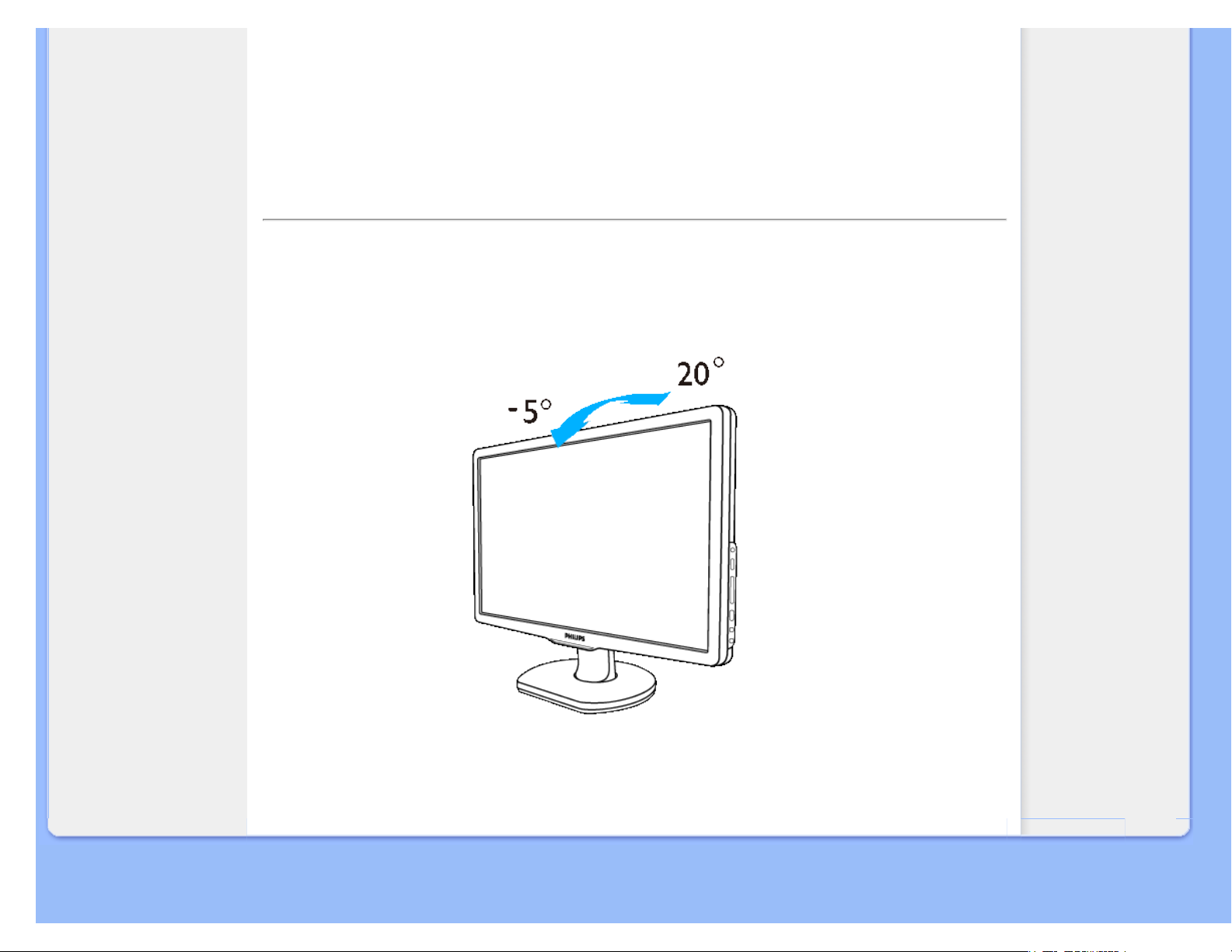

Tilt
-5°+2/-0 ~+ 20°+3/-0
Power supply
100 ~ 240 VAC, 50/60 Hz
Power consumption
32 W* (typ.)
Temperature
0° C to 40° C (operating)
-20° C to 60° C (storage)
Relative humidity
20% to 80%
System MTBF
50K hours (CCFL 50K hours)
* This data is subject to change without notice.
The native resolution of the monitor is 1680 x 1050. By default, your monitor has 100% brightness (max.), 50% contrast,
and 6500K color temperature, with a full white pattern.
RETURN TO TOP OF THE PAGE

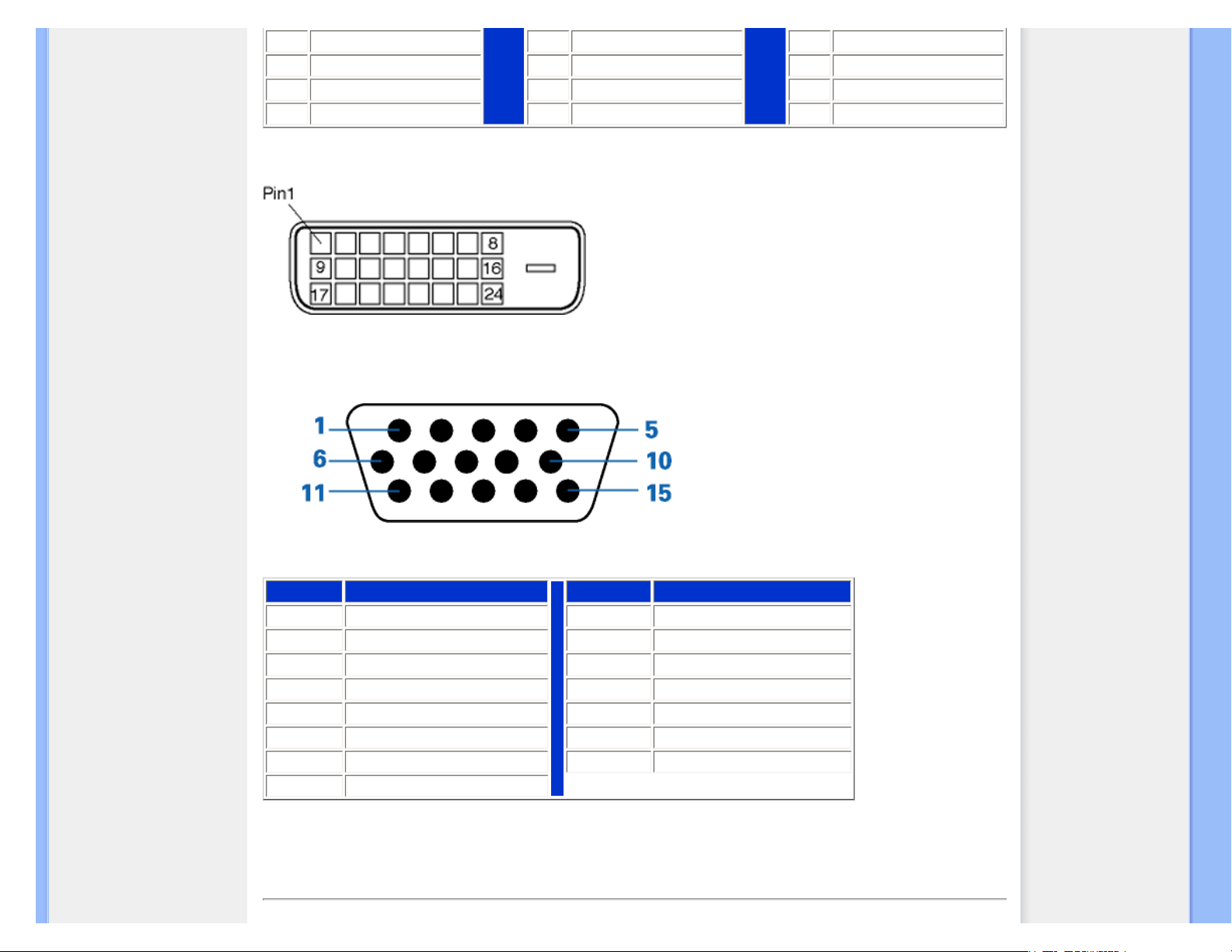

Pin Assignment
1.The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments
are listed in the following table:
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
1
T.M.D.S. Data2-
9 T.M.D.S. Data1-
17
T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+
18
T.M.D.S. Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield
19
T.M.D.S. Data0/5 Shield
4 No connect 12 No connect
20
No connect
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 8 頁 / 共 10 [98-06-23 09:38]
Product Information
5 No connect 13 No connect
21
No connect
6 DDC Clock 14 +5V Power
22
T.M.D.S. Clock Shield
7 DDC Data 15 Ground (for +5V)
23
T.M.D.S. Clock+
8 No connect
16
Hot Plug Detect
24
T.M.D.S. Clock-
2.The 15-pin D-sub connector (male) of the signal cable:
Pin No.
Assignment
Pin No.
Assignment
1
Red video input
9
DDC + 5 V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Sense (GND)
12
Serial data line (SDA)
5
Cable detect (GND)
13
H. Sync / H+V. Sync
6
Red video ground
14
V. Sync
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 9 頁 / 共 10 [98-06-23 09:38]
Product Information
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
Tilt
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/product.htm 第 10 頁 / 共 10 [98-06-23 09:38]
Philips Pixel Defect Policy
Product Features
Technical Specifications
Resolution & Preset Modes
Automatic Power Saving
Physical Specification
Pin Assignment
Product Views
Philips Pixel Defect Policy
Philips' Flat Panel Monitors Pixel Defect Policy
Philips strives to deliver the highest quality products. We use some of the industry's most advanced
manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on
the TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can
guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with
an unacceptable number of defects will be repaired or replaced under warranty. This notice explains
the different types of pixel defects and defines acceptable defect levels for each type. In order to
qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel
must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 19"
XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain
types or combinations of pixel defects that are more noticeable than others. This policy is valid
worldwide.
Pixels and Sub pixels
A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and
blue. Many pixels together form an image. When all sub pixels of a pixel are lit, the three colored sub
pixels together appear as a single white pixel. When all are dark, the three colored sub pixels together
appear as a single black pixel. Other combinations of lit and dark sub pixels appear as single pixels of
other colors.
Types of Pixel Defects
Pixel and sub pixel defects appear on the screen in different ways. There are two categories of pixel
defects and several types of sub pixel defects within each category.
el.htm 第 1 頁 / 共 4 [98-06-23 09:38]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/pix
Philips Pixel Defect Policy
Bright Dot Defects Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is,
a bright dot is a sub-pixel that stands out on the screen when the monitor displays a dark pattern.
There are the types of bright dot defects:
One lit red, green or blue sub
pixel
Two adjacent lit sub pixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)
Three adjacent lit sub pixels
(one white pixel)
A red or blue bright dot must be more than 50 percent brighter than neighboring dots
while a green bright dot is 30 percent brighter than neighboring dots.
Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. That
is, a dark dot is a sub-pixel that stands out on the screen when the monitor displays a light pattern.
These are the types of black dot defects:
One dark sub pixel Two or three adjacent dark sub pixels
Proximity of Pixel Defects
Because pixel and sub pixels defects of the same type that are near to one another may be more
noticeable, Philips also specifies tolerances for the proximity of pixel defects.
el.htm 第 2 頁 / 共 4 [98-06-23 09:38]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/pix
Philips Pixel Defect Policy
Pixel Defect Tolerances
In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT
LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the
tolerances listed in the following tables.
BRIGHT DOT DEFECTS ACCEPTABLE LEVEL
MODEL
220C1
1 lit subpixel 3
2 adjacent lit subpixels 1
3 adjacent lit subpixels (one white pixel) 0
Distance between two bright dot defects* >15mm
Total bright dot defects of all types 3
BLACK DOT DEFECTS ACCEPTABLE LEVEL
MODEL
220C1
1 dark subpixel 5
2 adjacent dark subpixels 2
3 adjacent dark subpixels 0
Distance between two black dot defects* >15mm
Total black dot defects of all types 5
TOTAL DOT DEFECTS ACCEPTABLE LEVEL
MODEL
220C1
Total bright or black dot defects of all types 5
Note:
el.htm 第 3 頁 / 共 4 [98-06-23 09:38]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/pix
Philips Pixel Defect Policy
* 1 or 2 adjacent sub pixel defects = 1 dot defect
RETURN TO TOP OF THE PAGE
el.htm 第 4 頁 / 共 4 [98-06-23 09:38]file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/pix
SmartControl
Product Information
Philips Pixel Defect Policy
Philips SmartControl ll
System support and
requirement
Installation
Start to use
Q&A
SmartControl II (Selective Models)
Philips SmartControl II
SmartControl II is monitor-based software with an easy-to-use on-screen graphic interface that guides you through finetuning resolution, color calibration and other display settings including brightness, contrast, clock & phase, position, RGB,
white point and - on models with onboard speakers - volume adjustments.
System support and requirement:
1. Sytem support: 2000, XP, NT 4.0, XP 64 Edition, Vista 32/64. IE Support 6.0/7.0.
2. Language support: English, Simplified Chinese, German, Spanish, French, Italian, Russian, Portuguese.
3. Philips Monitor support DDC/CI Interface.
Installation:

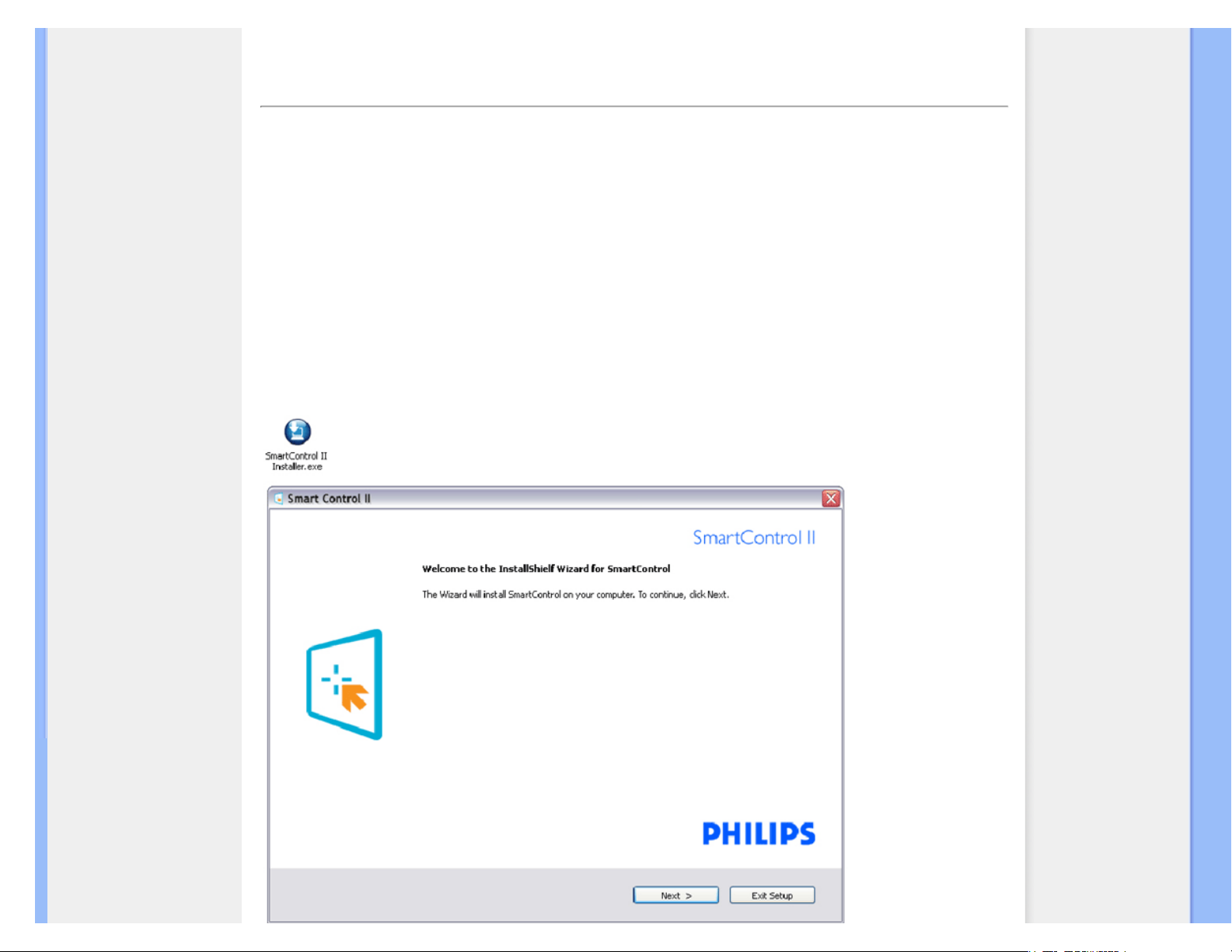

file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 1 頁 / 共 17 [98-06-23 09:38]
SmartControl
● Follow the instruction and complete the installation.
● You can lauch after installation complete.
● If you want to launch later, you can either click the shortcut on desktop or toolbar.
Start to use:
1. First launch -Wizard
● The first time after installation of SmartControl II, it will automatically go to Wizard for first time launch.
● The wizard will guide you through adjustment your monitor performance step by step.
● You can go to Plug-in menu to launch wizard later on as well.
● You can adjust more options without wizard by Standard pane.
Wizard Analog Sequence Wizard Digital Sequence
Resolution Resolution
Focus
Contrast
Brightness Brightness
Contrast White Point (Color Temp)
Position File
White Point (Color Temp)
-
File -
2. Start with Standard pane:
Adjust menu:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 2 頁 / 共 17 [98-06-23 09:38]
SmartControl

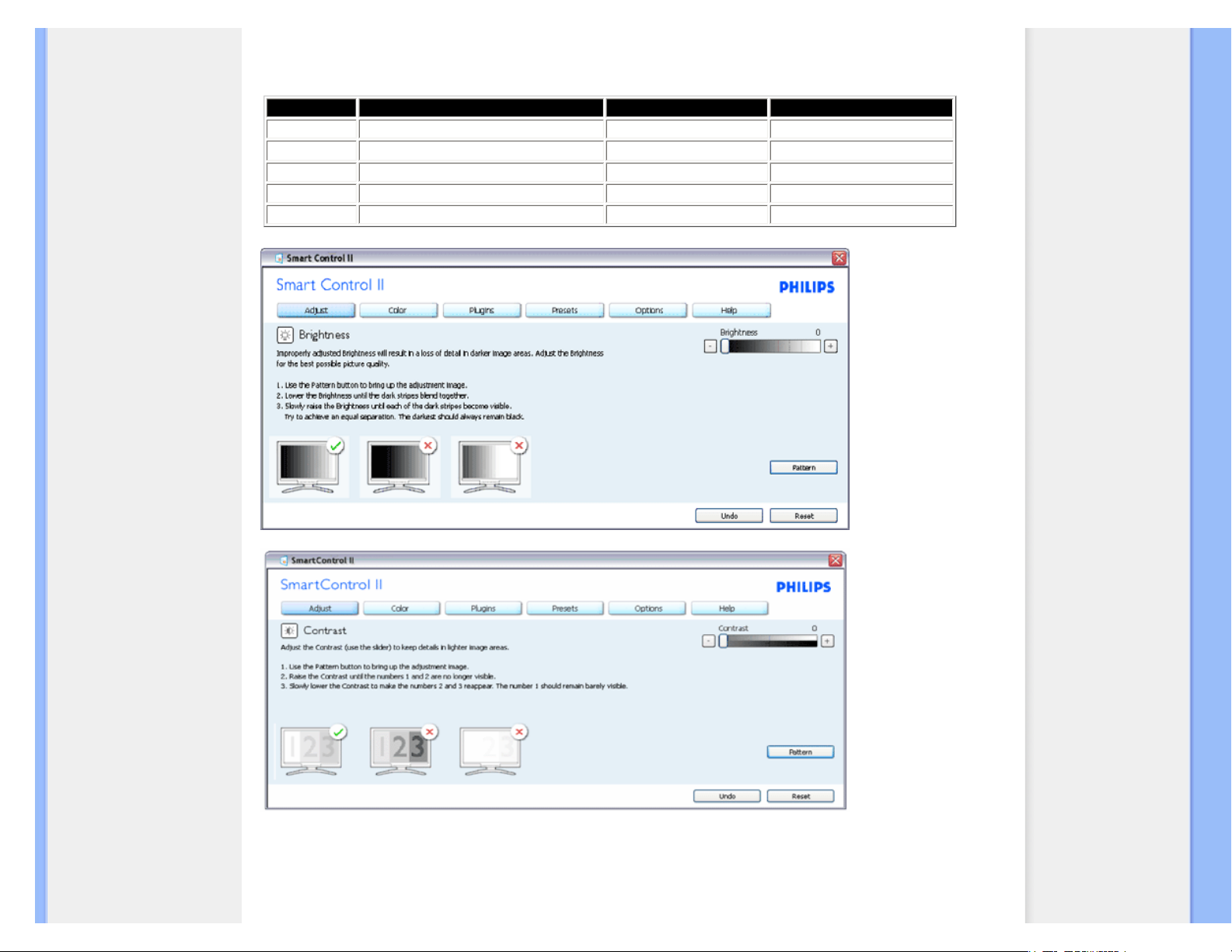

● Adjust Menu allow you to adjust Brightness, Contrast, Focus, Position and Resolution.
● You can follow the instruction and do the adjustment.
● Cancel prompts user if you want to cancel installation.

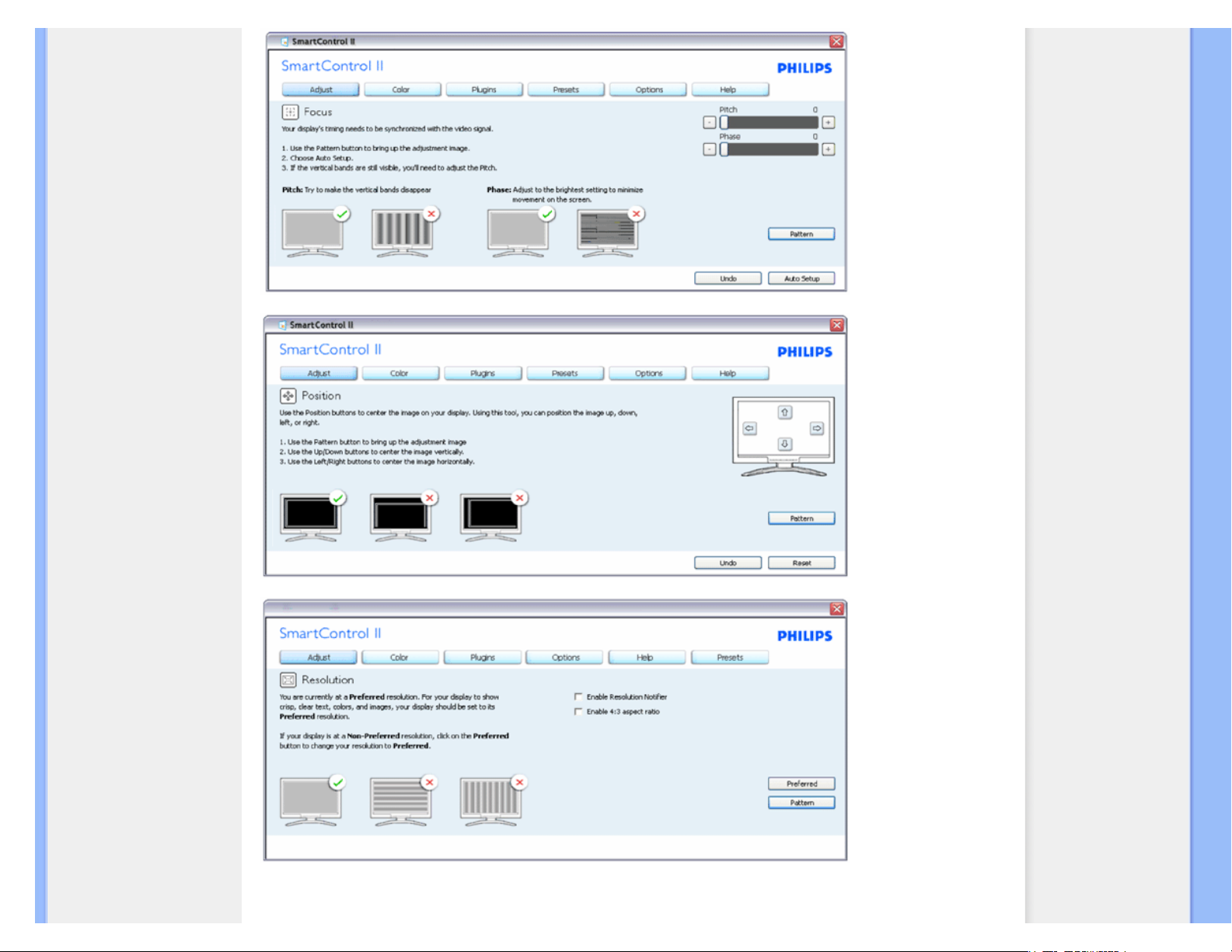

Tab Heading Sub Menu Display in Analog Display in Digital
Adjust Brightness Yes Yes
Adjust
Contrast
Yes
Yes
Adjust Focus (Clock & Clock Phase) Yes No
Adjust Position Yes No
Adjust Resolution Yes Yes
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 3 頁 / 共 17 [98-06-23 09:38]
SmartControl
Color menu:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 4 頁 / 共 17 [98-06-23 09:38]
SmartControl
● Color Menu allow you to adjust RGB, Black Level, White Point, Color Calibration, and
SmartImage (Please refer to SmartImage section).
● You can follow the instruction and do the adjustment.
● Refer to below table for sub-menu item base on your input.
● Example for Color Calibration

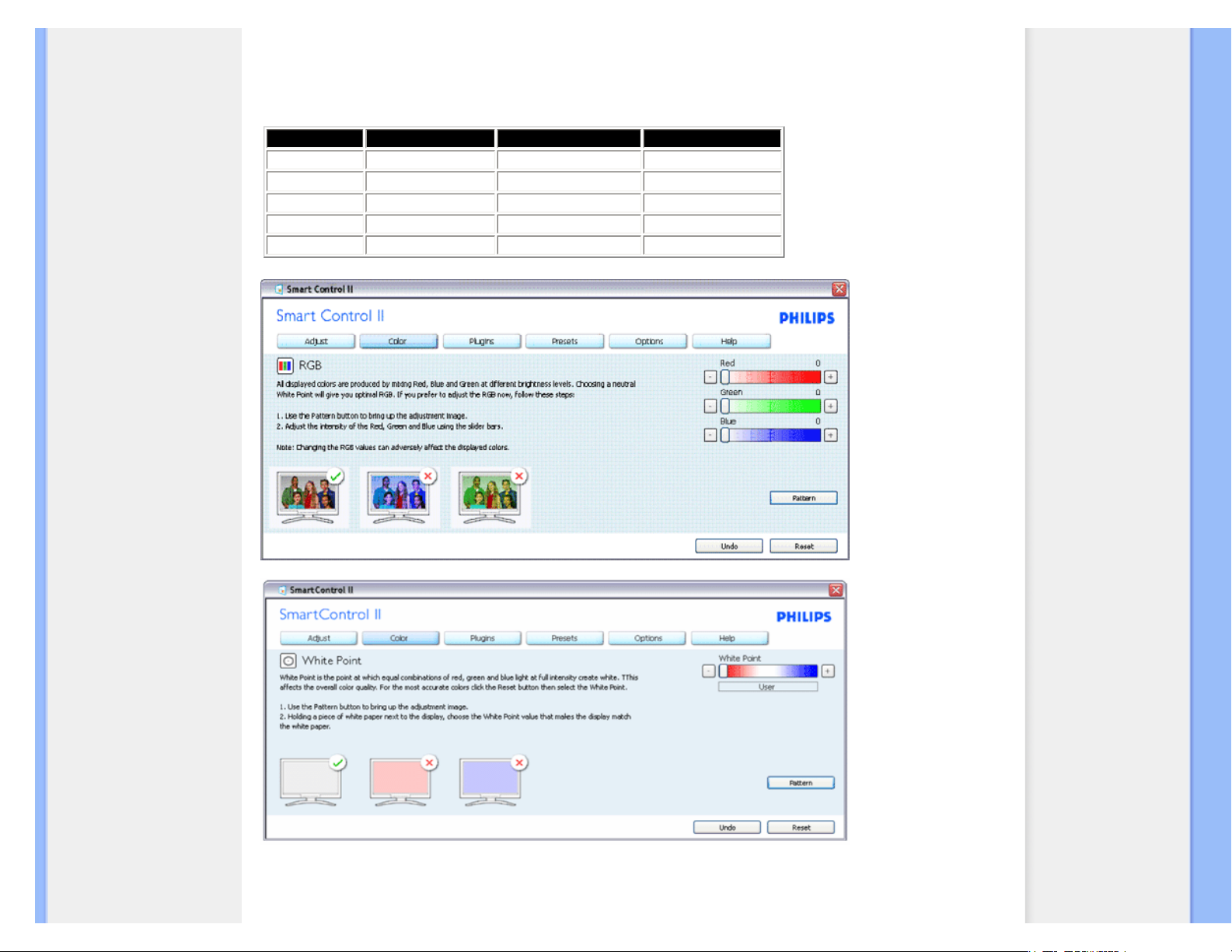

Tab Heading Sub Menu Display in Analog Display in Digital
Color RGB Yes Yes
Color
Black Level Yes
Yes
Color White Point Yes Yes
Color Color Calibration Yes Yes
Color Viewing Mode Yes Yes
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 5 頁 / 共 17 [98-06-23 09:38]
SmartControl
1. "Show Me" starts color calibration tutorial.
2. Start - starts the 6-step color calibration sequence.
3. Quick View loads the before/after images.
4. To return to Color home pane, click the Cancel button.
5. Enable color calibration - by default is on. If unchecked, does not allow for color calibration to happen, dimes out start
and quick view buttons.
6. Must have patent info in calibration screen.
First color Calibration Screen:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 6 頁 / 共 17 [98-06-23 09:38]
SmartControl

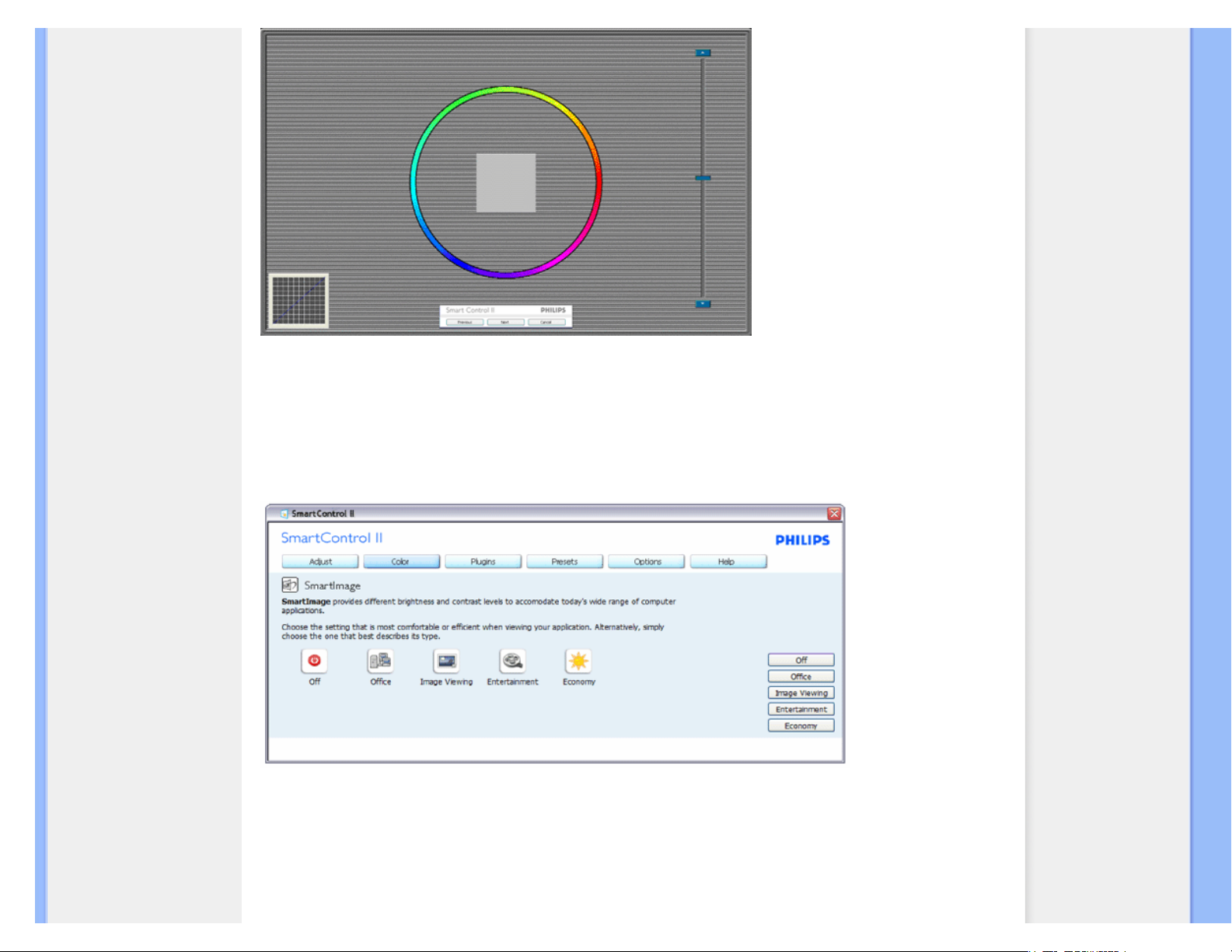

1. Previous button is disabled until the second color screen.
2. Next goes to the succeeding target (6-targets).
3. Final next goes File>Presets pane.
4. Cancel closes the UI and returns to the plug in page.
SmartImage - Allows user to change setting for better display setting based on content.
When Entertainment is set, SmartContrast and SmartResponse are enabled.
Plug-Ins - Asset Management Pane will only be active when selecting Asset Management from the drop-down
Plug Ins menu.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 7 頁 / 共 17 [98-06-23 09:38]
SmartControl
Displays Assent Management information on Managment, Description, Serial Number, Current Timing, Domain Name,
and Asset Management Status.
To return to Plug-in home pane select the plug-in tab.
Plug-Ins - Theft Deterrence Pane will only be active when selecting Theft Deterrence Mode from the drop-down
Plug Ins menu.
To enable Theft Deterrence, clicking Enable Theft Mode button brings up the following screen:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 8 頁 / 共 17 [98-06-23 09:38]
SmartControl
1. User can enter PIN between 4 and 9 digits numbers only.
2. After entering PIN, Accept button takes user to the pop-up dialog box on the following page.
3. Minimum minutes set to 5. Slider set to 5 by default.
4. Does not require the display be attached to a different host to go into theft mode.
Once a PIN is entered and accepted, the following dialog box appears:
● Click on No button takes user to the following screen.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU...B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 9 頁 / 共 17 [98-06-23 09:38]
SmartControl
● Click on Yes button takes user to secure web site landing page.
After creating PIN, the Theft Deterrence pane will indicate Theft Deterrence Enabled and provide PIN Options button:
1. Theft Deterrence Enabled is displayed.
2. Disable Theft Mode opens pane screen on next page.
3. PIN Options button only available after user creates PIN, button opens secure PIN web site.
Disable Theft button opens the following pane:
1.
After entering PIN, Accept button disables PIN.
2. Cancel button opens up main Theft Deterrence pane, displaying Theft Deterrence Disabled. Enable Theft Mode and
PIN Options buttons.
3. Entering incorrect PIN results in the following dialog box:
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 10 頁 / 共 17 [98-06-23 09:38]
SmartControl
Options>Preferences - Will only be active when selecting Preferences from the drop-down Options menu. On a
non-supported display capable of DDC/CI, only the Help and Options tabs are available.
1. Displays current preference settings.
2. A checked box enables the feature. The check box is a toggle.
3. Enable Context Menu on desktop is checked (On) by default. Enable Context menu displays SmartControl II selections for
Select Preset and Tune Display in the desktop right-click context menu. Disabled removes SmartControl II from the right click
context menu.
4. Enable Task Tray icon is checked (On) by default. Enable context menu shows the task tray menu for SmartControl II. A right
click on the task tray icon displays the menu options for Help, Technical Support. Check for Upgrade, About, and Exit.
When Enable task tray menu is disabled, the task tray icon will only display EXIT.
5. Run at Startup is checked (On) by default. When disabled, SmartControl II will not launch at start or be in the task tray. The
only way to launch SmartControll II is either from the desktop short cut or from the program file. Any preset set to run at
startup will not load when this box is unchecked (Disabled).
6. Enable transparency mode (Vista, XP, and 2k only). Default is 0% Opaque.
Options>Input - Will only be active when selecting Input from the drop-down Options menu. On a nonsupported display capable of DDC/CI, only the Help and Options tabs are available. All other SmartControl II tabs
are not available.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 11 頁 / 共 17 [98-06-23 09:38]
SmartControl
1. Display the Source instruction pane and current input source setting.
2. On single input displays, this pane will not be visible.
Options>Audio - Will only be active when selecting Volume from the drop-down Options menu.
On a non-supported display capable of DDC/CI, only the Help and Options tabs are available.
Option>Auto Pivot
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 12 頁 / 共 17 [98-06-23 09:38]
SmartControl
Help>User Manual - Will only be active when selecting User Manual from the drop-down Help menu. On a
non-supported display capable of DDC/CI, only the Help and Options tabs are available.
Help>Version - Will only be active when selecting Version from the drop- down Help menu. On a nonsupported display capable of DDC/CI, only the Help and Options tabs are available.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 13 頁 / 共 17 [98-06-23 09:38]
SmartControl
Context Sensitive menu
The Context Sensitive menu is Enabled by default. If Enable Context Menu has been checked in the
Options>Preferences pane, then the menu will be visible.
The Context Menu has four entries:
1. SmartControll II - When selected the About Screen is displayed.
2. Select Preset - Provides a hierarchical menu of saved presets for immediate use. A check mark shows the currently selected
preset. Facoty Preset can also be called from the drop down menu.
3. Tune Display - Opens the SmartControl II control panel.
4. Fly off for SmartImage - Check current settings, Off, Office Work, ImageViewing, Entertainment, Economy.
Task Tray Menu Enabled
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 14 頁 / 共 17 [98-06-23 09:38]
SmartControl

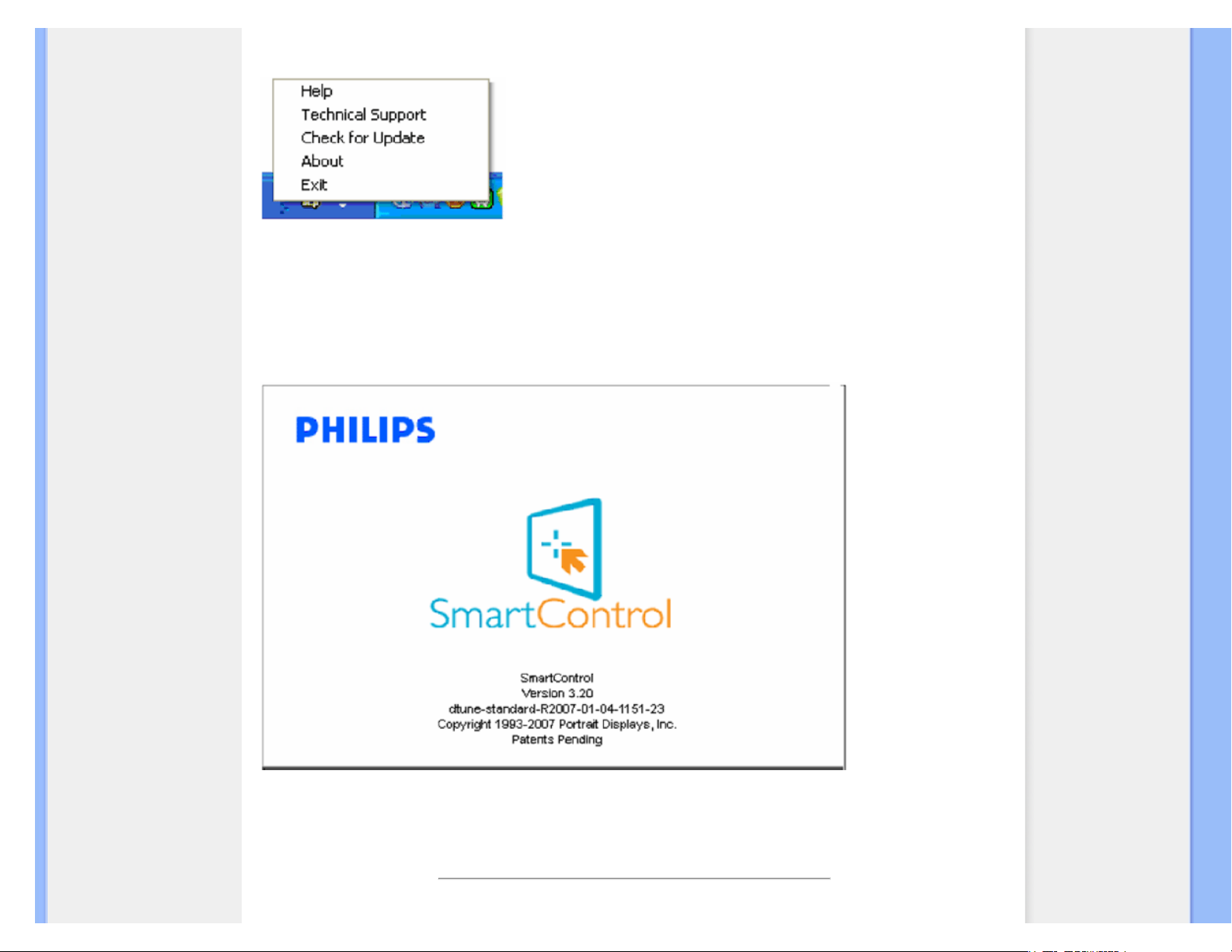

The task tray menu can be displayed by right-clicking on the SmartControl II icon from the task tray. Left Click will launch
the application.
The task tray has five entries:
1. Help - Access to User Manual file: opnes User Manual file using the default browser window.
2. Technical Support - displays the tech support page.
3. Check for Update - takes the user to PDI Landing and checks the user's version against the most current available.
4. About - Displays detailed reference information: product version, release information, and product name.
5. Exit - Close SmartControll II. To run SmartControll II again either select SmartControll II from Program menu, double-click the
desktop PC icon or restart the system.
Task Tray Menu Disabled
When the Task Tray is disabled in the preference folder, only the EXIT selection is available. To completely
remove SmartControll II from the task tray, disable Run at Startup in Options>Preferences.
Q&A
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 15 頁 / 共 17 [98-06-23 09:38]
SmartControl
Q1. I change the monitor on a PC to a different one and the SmartControl becomes un-usable, what do I do?
A. Restart your PC and see if SmartControl can work. Otherwise, you will need to remove and re-install SmartControl
to ensure proper driver is installed.
Q2. The SmartControl functions well at the beginning, but it is not workable, what can I do?
A. If the following actions were executed, the monitor driver may need to be re-installed.
● Change video graphic adapter to another one
● Update video driver
● Activities on OS, such as service pack or patch
● Run Windows Update and updated monitor and/or video driver
● Windows was booted with the monitor power off or disconnected.
To find out, please right click My Computer and click on Properties->Hardware-> Device Manager.
If you see "Plug and Play Monitor" shows under Monitor, then you need to re-install. Simply remove SmartControl and
re-install it.
Q3. After installing SmartControl, when clicking on SmartControl tab, nothing shows up after a while or a failure
message shows, what happened?
A. It might be your graphic adaptor is not compatible with the SmartControl. If your graphic adaptor is one of the
above mentioned brands, try to download the most updated graphic adaptor driver from corresponding companies web
site. Install the driver. Remove SmartControl, and re-install it once more.
If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips web site for
any updated SmartControl driver available.
Q4. When I click on Product Information, only partial information is shown, what happened?
A. It might be your graphic card adaptor driver is not the most updated version which fully supporting DDC/CI
interface. Please try to download the most updated graphic adaptor driver from corresponding companies web site. Install
the driver. Remove SmartControl, and re-install it once more.
Q5. I forgot my PIN for Theft Deterrence Function. How can I do?
A. Please contact IT manager or Philips Service Center.
Q6. In a monitor with the Smartlmage feature, the sRGB scheme of color temperature function in SmartControl is
not responding, why?
A. When Smartlmage is enabled, the sRGB scheme is disabled automatically. To use sRGB, you need to
disable Smartlmage with the
button at the front bezel of your monitor.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 16 頁 / 共 17 [98-06-23 09:38]
SmartControl
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF....0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/product/SMART.HTM 第 17 頁 / 共 17 [98-06-23 09:38]
Installing Your LCD Monitor
Front View Produt Description
Connecting to Your PC
The Base
Getting Started
Optimizing Performance
Installing Your LCD Monitor
Front View Product Description

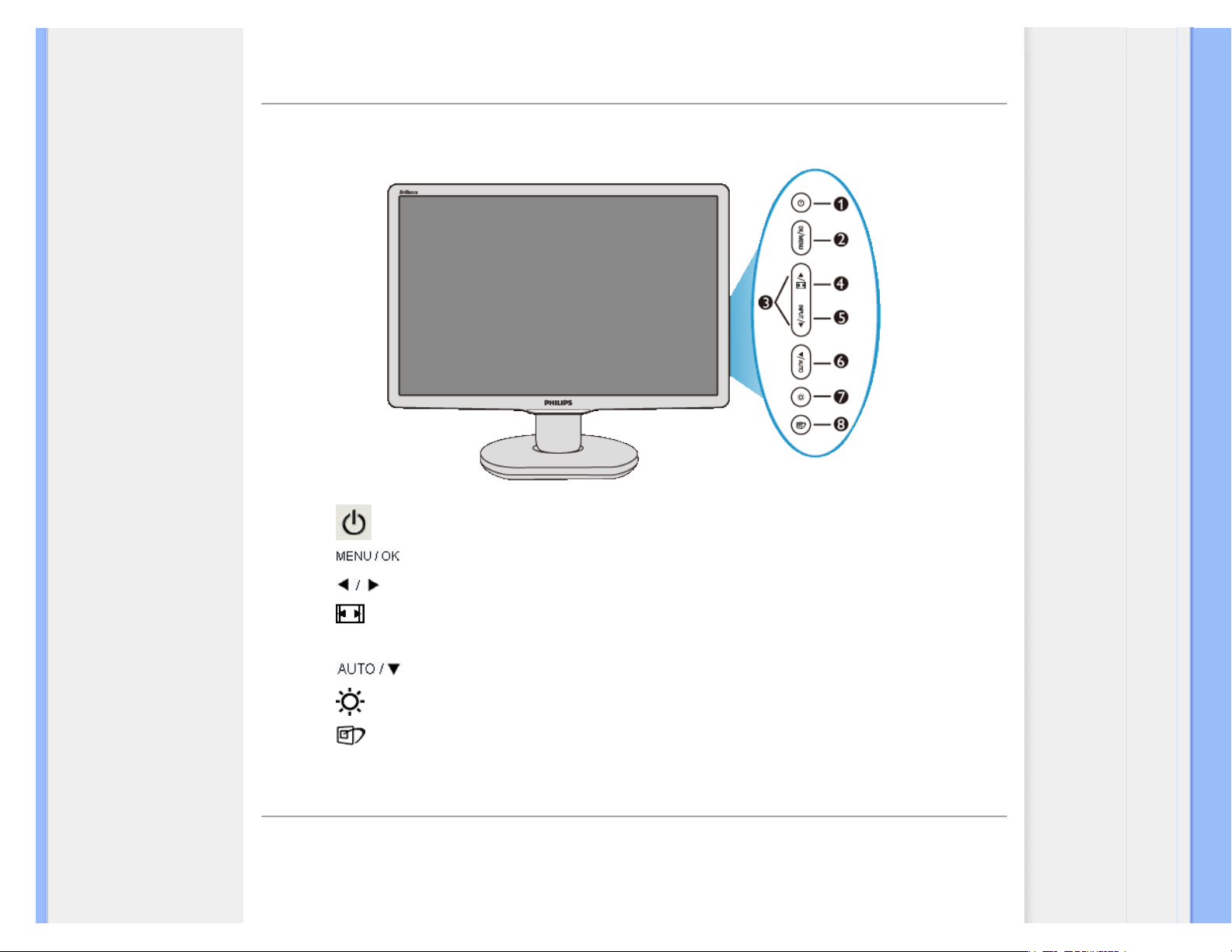

1 To switch monitor's power On and Off
2
To access the OSD menu
3
To adjust the OSD menu
4
Change to 4:3 display
5
Input
To change the signal input source
6
Automatically adjust the horizontal position, vertical position, phase and
clock settings / Return to previous OSD level
7
To adjust brightness of the display
8
SmartImage. There are five modes to be selected: Office Work, Image
Viewing, Entertainment, Economy, and Off
RETURN TO TOP OF THE PAGE

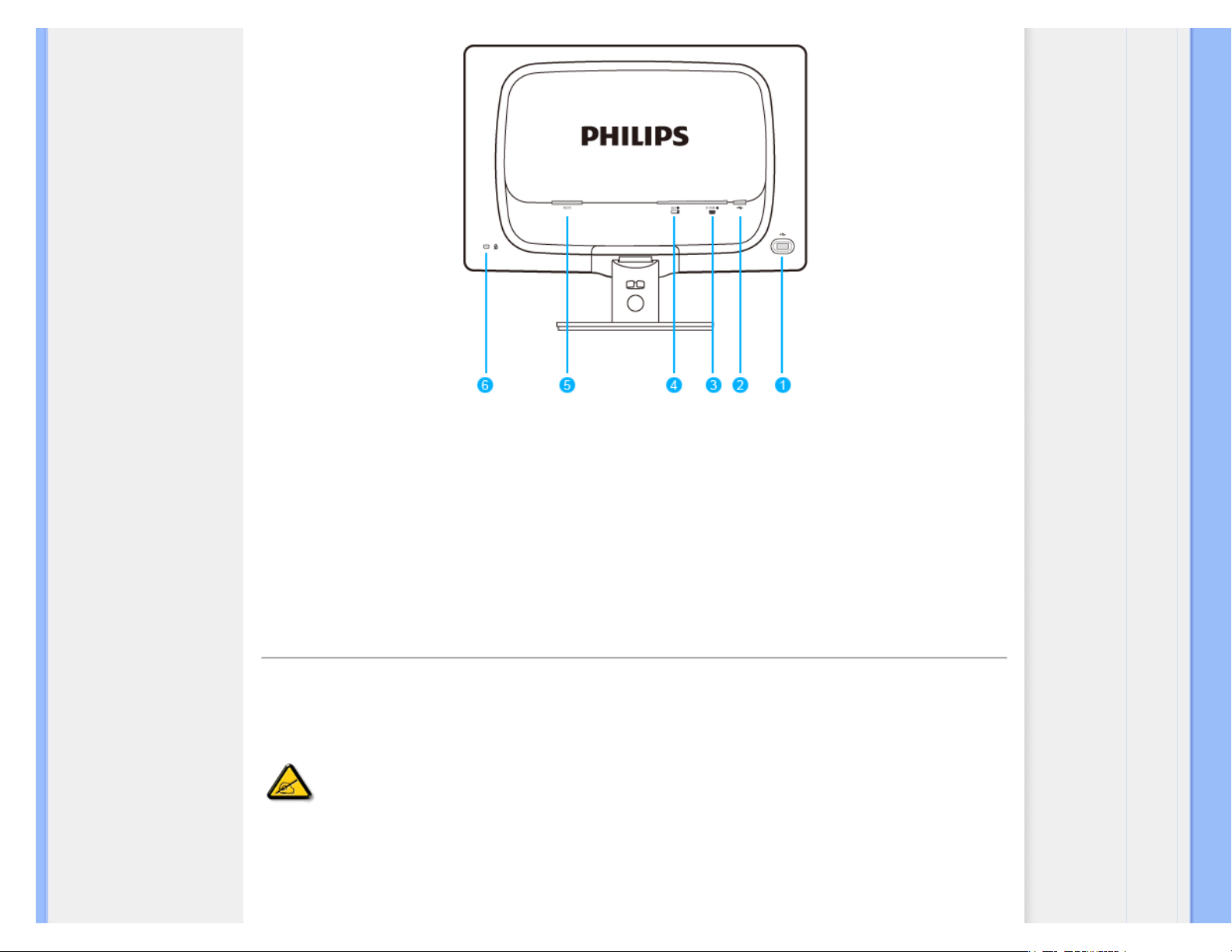

Rear View
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/install.htm 第 1 頁 / 共 3 [98-06-23 09:39]
Installing Your LCD Monitor
1 USB downstream port
2 USB upstream port
3 VGA input
4 DVI-D input (available for selective models)
5 AC power input
6 Kensington anti-thief lock
RETURN TO TOP OF THE PAGE
Optimizing Performance
● For best performance, ensure that your display settings are set at 1680x1050, 60Hz.
Note: You can check the current display settings by pressing the 'OK' button
once. The current display mode is shown in OSD main controls called
RESOLUTION.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/install.htm 第 2 頁 / 共 3 [98-06-23 09:39]
Installing Your LCD Monitor
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/install.htm 第 3 頁 / 共 3 [98-06-23 09:39]
Connecting to Your PC
Front View Product
Description
Accessory Pack
Connecting to Your PC
Getting Started
Optimizing Performance
The Base
Connecting to Your PC
Accessory Pack

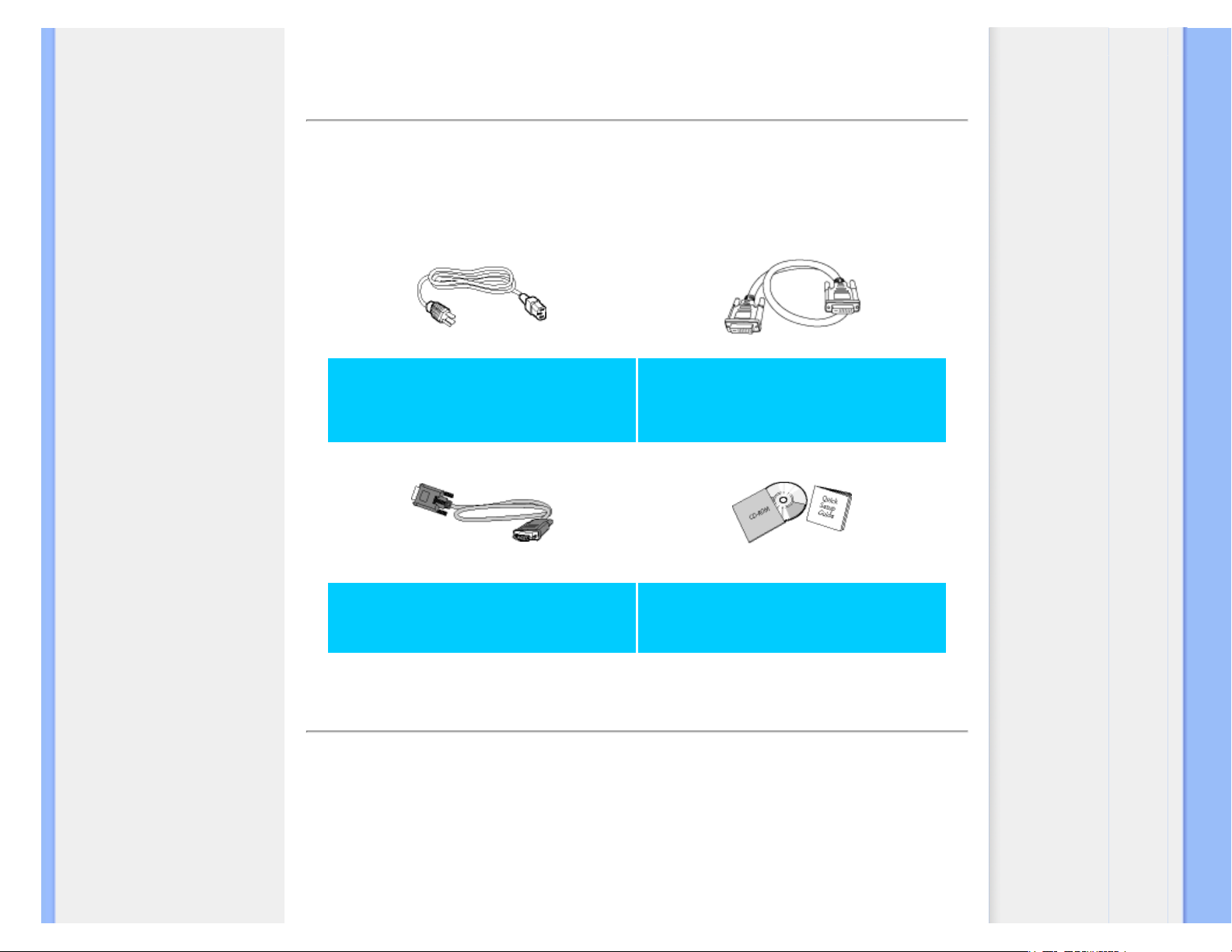

Unpack all the parts.
Power cord
DVI cable (Optional)
VGA cable (Optional)
EDFU pack
RETURN TO TOP OF THE PAGE
Connecting to Your PC
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF...V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/INSTALL/CONNECT.HTM 第 1 頁 / 共 3 [98-06-23 19:04]
Connecting to Your PC

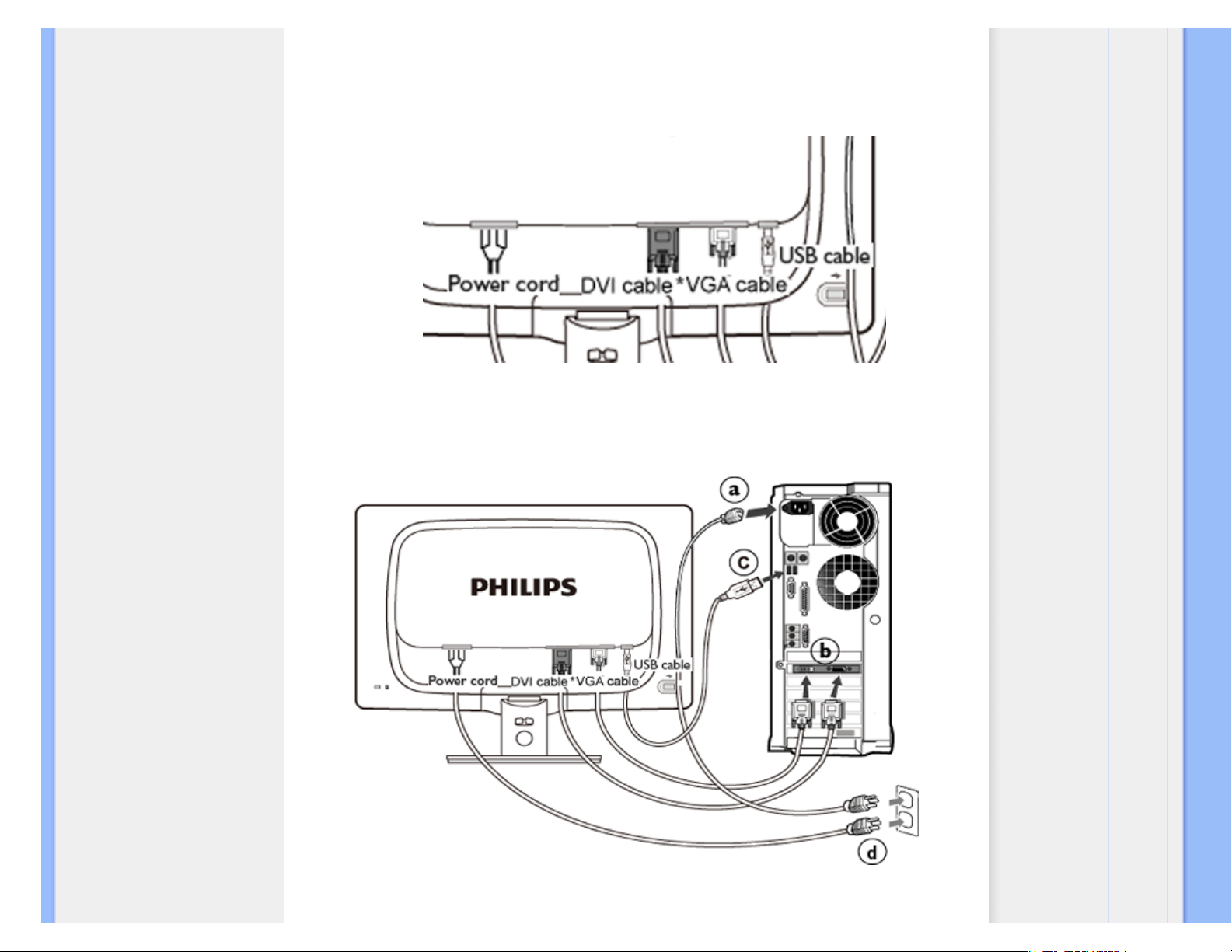

1) Connect the power cord to the back of the monitor firmly. (Philips has pre-connected
VGA cable for the first installation.
*available for selective models
*available for selective models
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF...V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/INSTALL/CONNECT.HTM 第 2 頁 / 共 3 [98-06-23 19:04]
Connecting to Your PC
2) Connect to PC
(a) Turn off your computer and unplug its power cable.
(b) Connect the monitor signal cable to the video connector on the back of your
computer.
(c) Connect the USB cable to the USB port of your computer.
(d) Plug the power cord of your computer and your monitor into a nearby outlet.
(e) Turn on your computer and monitor. If the monitor displays an image,
installation is complete.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDF...V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/INSTALL/CONNECT.HTM 第 3 頁 / 共 3 [98-06-23 19:04]
The Base
Front View Product
Description
Accessory Pack
Connecting to your PC
Getting Started
Optimizing Performance
Attach the Base Stand
Detach the Base Stand
The Base
Attach the Base Stand

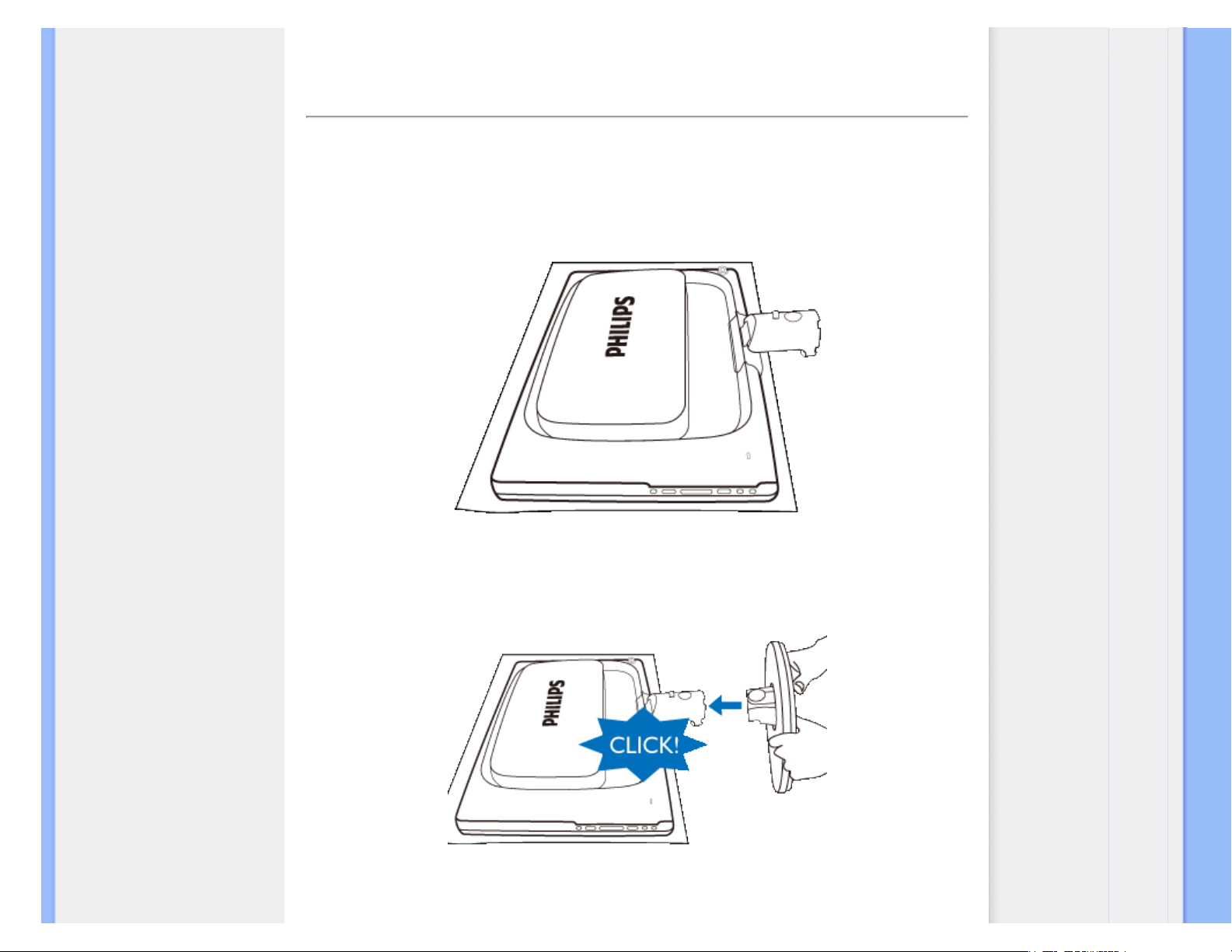

1) Place the monitor face down on a smooth surface taking care to avoid scratching or
damaging the screen.
2) Hold the monitor base with both hands and firmly insert the base stand into the base
column.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/base.htm 第 1 頁 / 共 2 [98-06-23 09:39]
The Base
RETURN TO TOP OF THE PAGE
Detach the Base Stand

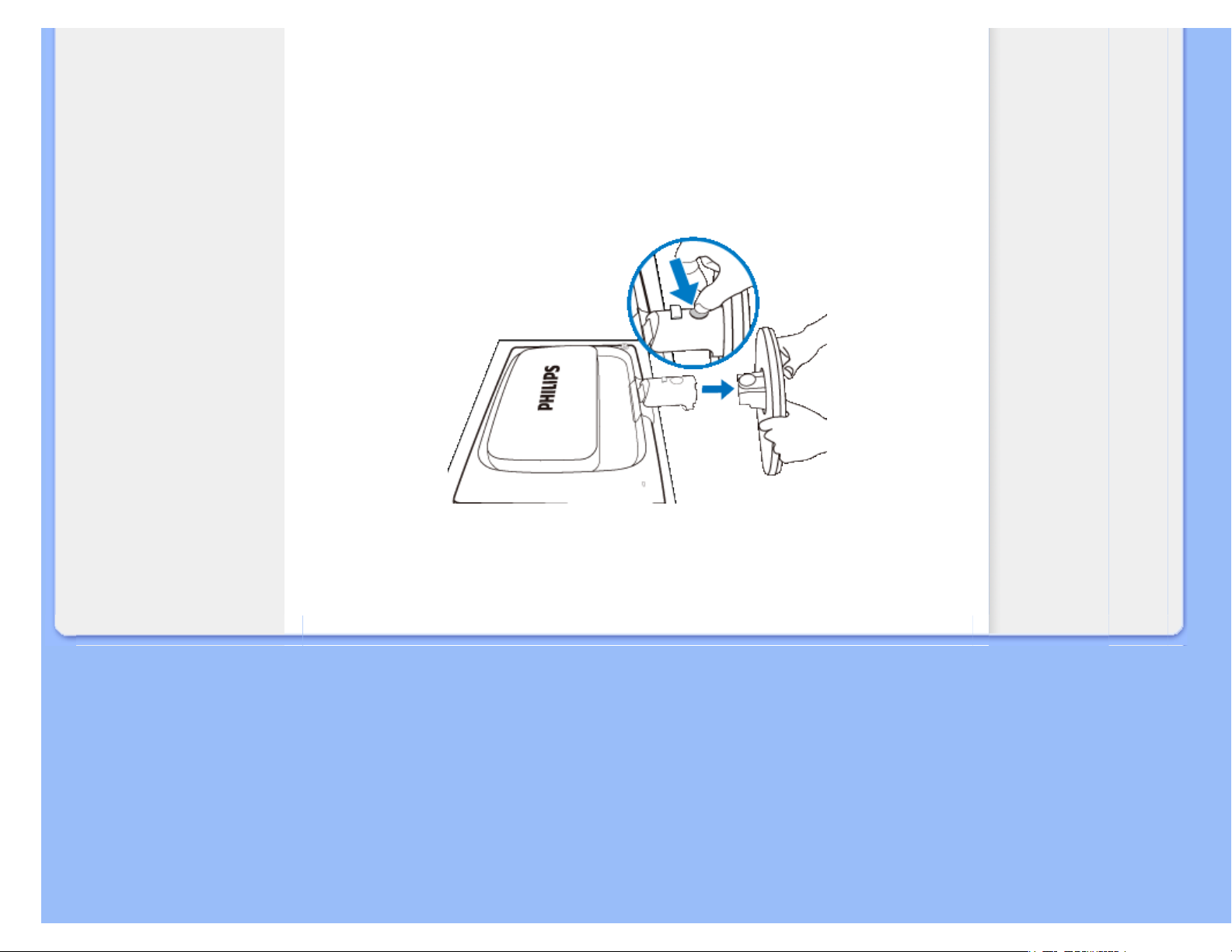

Place the monitor face on a safe surface, push down on the release button and pull the
base stand away from the monitor body.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/base.htm 第 2 頁 / 共 2 [98-06-23 09:39]
Getting Started
Your LCD Monitor :
Front View Product
Description
Setting Up and Connecting
Your Monitor
Getting Started
Optimizing Performance
Getting Started
Getting Started
Use the information file ( .inf) for Windows® 98/2000/XP/Vista or later
The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for
Windows® 98/2000/XP/Vista. This information file ( .inf) should be installed in order that your
Philips monitor can be enabled from the 'Monitor' dialog box in Windows® 98/2000/XP/Vista and
the Plug & Play application can be activated. The installation procedure based on Windows®
98, 2000, XP and Vista is specified as follows.
For Windows® 98
1. Start Windows® 98
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, point to 'Change...' then click on 'Next'
6. Select 'Display a list of all the drivers in a specific location, so you can choose the driver
you want.' then click on 'Next' and then click on 'Have Disk...'.
7. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click
on the 'OK' button.
8. Click on the 'OK' button then select your monitor model and click on the 'Next' button.
9. Click on the 'Finish' button then the 'Close' button.
For Windows® 2000
1. Start Windows® 2000.
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please
stop installation.
- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps
given below.
6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
7. Select 'Display a list of the known drivers for this device so that I can choose a specific
driver', then click on 'Next' and then click on 'Have disk...'.
8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).
9. Click on the 'Open' button, then click on the 'OK' button.
10. Select your monitor model and click on the 'Next' button.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/gt_start.htm 第 1 頁 / 共 3 [98-06-23 09:40]
Getting Started
11. Click on the 'Finish' button then the 'Close' button.
If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.
For Windows® XP
1. Start Windows® XP.
2. Click on the 'Start' button and then click on 'Control Panel'.
3. Select and click on the category 'Printers and Other Hardware'
4. Click on the 'Display' Item.
5. Select the 'Settings' tab then click on the 'Advanced' button.
6. Select 'Monitor' tab
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please
stop installation.
- If the 'Properties' button is active, click on 'Properties' button.
Please follow the steps below.
7. Click on the 'Driver' tab and then click on 'Update Driver...' button.
8. Select the 'Install from a list or specific location [advanced]' radio button and then click on
the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the
'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the
appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with
Windows® XP' message, please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display_Properties
dialog box.
For Windows® Vista
1. Start Windows® Vista.
2. Click the Start button; select and click on 'Control Panel'.
3. Select and click on 'Hardware and Sound'
4. Choose 'Device Manager' and Click on 'Update device drivers'.
5. Select 'Monitor' and then right click on 'Generic PnP Monitor'.
6. Click on 'Update Driver Software'.
7. Select 'Browse my computer for driver software'.
8. Click the 'Browse'button and choose the drive in which you've placed the disk. Example:
(CD-ROM Drive:\\Lcd\PC\drivers\).
9. Click the 'Next' button.
10. Wait few minutes for installing the driver, and then click 'Close' button.
If your Windows® 98/2000/XP/Vista version is different or you need more detailed installation
information, please refer to your Windows® 98/2000/XP/Vista user's manual.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/gt_start.htm 第 2 頁 / 共 3 [98-06-23 09:40]
Getting Started
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/install/gt_start.htm 第 3 頁 / 共 3 [98-06-23 09:40]
On-Screen Display
Description of the On-Screen
Display
The OSD Tree
On-Screen Display
Description of the On Screen Display
What is the On-Screen Display?
On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust
screen performance or select functions of the monitors directly through an on-screen instruction
window. A user friendly on screen display interface is shown as below :
Basic and simple instruction on the control keys.
In the OSD shown above users can press
buttons at the front bezel of the monitor to move
the cursor,
to confirm the choice or change.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/osd/osddesc.htm 第 1 頁 / 共 3 [98-06-23 09:40]
On-Screen Display
The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference
when you want to work your way around the different adjustments later on.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/osd/osddesc.htm 第 2 頁 / 共 3 [98-06-23 09:40]
On-Screen Display
Resolution notification
This monitor is designed for optimal performance at its native resolution, 1680X1050@60Hz. When
the monitor is powered on at a different resolution, an alert is displayed on screen: Use
1680x1050@60Hz for best results.
Display of the native resolution alert can be switched off from Setup in the OSD (On Screen
Display) menu.
RETURN TO TOP OF THE PAGE
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/osd/osddesc.htm 第 3 頁 / 共 3 [98-06-23 09:40]
Customer Care & Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR
WARRANTY COVERAGE
WESTERN EUROPE:
Austria Belgium Denmark France Germany
Greece Finland Ireland Italy Luxembourg the Netherlands Norway
Portugal Sweden Switzerland Spain United Kingdom Poland
EASTERN EUROPE:
Czech Republic Hungary Russia Slovakia Slovenia
Turkey
LATIN AMERICA:
Argentina Brasil
NORTH AMERICA:
Canada USA
PACIFIC:
Australia New Zealand
ASIA:
China Hong Kong India Indonesia Korea Malaysia Pakistan
Philippines Singapore Taiwan Thailand Vietnam
AFRICA:
South Africa
MIDDLE EAST:
United Arab Emirates
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warranty.htm [98-06-23 09:40]
Your Philips F1rst Choice Warranty
Your Philips F1rst Choice Warranty
Thank you for purchasing this Philips monitor.
All Philips monitors are designed and manufactured to high standards and deliver
high-quality performance, ease of use and ease of installation. Should you
encounter any difficulties while installing or using this product, please contact the
Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This
three-year service warranty entitles you to a swap model on-site if your monitor
turns out to be faulty or defective. Philips aims at a swap within 48 hours of your
call being received.
What is covered?
The Philips F1rst Choice Warranty applies within Andorra, Austria, Belgium, Cyprus, Denmark,
France, Germany, Greece, Finland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, the
Netherlands, Norway, Poland, Portugal, Sweden, Switzerland, Spain and the United Kingdom and
only for monitors originally designed, manufactured, approved and/or authorized for usage within
these countries.
Warranty coverage begins as from the day you buy your monitor. For three years thereafter, your
monitor will be swapped by at least an equivalent monitor in case of defects provided for under the
warranty coverage.
The swap monitor remains yours and Philips keeps the defective/original monitor. For the swap
monitor the warranty period remains equal to that of your original monitor, being 36 months as from
the purchase date of your original monitor.
What is excluded?
The Philips F1rst Choice Warranty applies provided the product is handled properly for its intended
use, in accordance with its operating instructions and upon presentation of the original invoice or
cash receipt, indicating the date of purchase, dealer's name and model and production number of
the product.
The Philips F1rst Choice Warranty may not apply if:
● The documents have been altered in any way or made illegible;
● The model or production number on the product has been altered, deleted, removed or made
illegible;
● Repairs or product modifications and alterations have been executed by unauthorized service
organizations or persons;
● Damage is caused by accidents including but not limited to lightning, water or fire, misuse or
neglect;
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_1st.htm 第 1 頁 / 共 3 [98-06-23 09:41]
Your Philips F1rst Choice Warranty
● Reception problems caused by signal conditions or cable or antenna systems outside the
unit;
● Defects caused by abuse or misuse of the monitor;
● Product requires modification or adaptation to enable it to comply with local or national
technical standards, which apply in countries for which the product was not originally
designed, manufactured, approved and/or authorized. Therefore always check whether a
product can be used in a specific country.
● Note that products that are not originally designed, manufactured, approved and/or
authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips
F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
Just a click away
In case of any problems, we advise you to read the operating instructions carefully or go to the www.
philips.com/support website for additional support.
Just a phone call away
In order to avoid unnecessary inconvenience, we advise you to read the operating instructions
carefully or go to the www.philips.com/support website for additional support before contacting the
Philips helpdesk.
To solve your problem quickly, please prepare the following details before contacting the Philips
helpdesk:
● Philips type number
● Philips serial number
● Purchase date (copy of purchase may be required)
● PC environment Processor:
❍ CUP and Graphic card name and driver version
❍ Operating system
❍ Application being used
● Other cards installed
Having the following information available will also help speed up the process:
● Your proof of purchase indicating: date of purchase, dealer name, model and product serial
number.
● The full address to which the faulty monitor has to be collected and the swap model should
be delivered.
Philips' customer help desks are located worldwide. Click here to access the F1rst Choice Contact
Information.
Or you can reach us via:
Website: http://www.philips.com/support
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_1st.htm 第 2 頁 / 共 3 [98-06-23 09:41]
Your Philips F1rst Choice Warranty
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_1st.htm 第 3 頁 / 共 3 [98-06-23 09:41]
F1rst Choice Contact Information
F1rst Choice Contact Information
Country Code Telephone number Tariff
Austria +43 0810 000206 € 0.07
Belgium +32 078 250851 € 0.06
Denmark +45 3525 8761 Local call tariff
Finland +358 09 2290 1908 Local call tariff
France +33 082161 1658 € 0.09
Germany +49 01803 386 853 € 0.09
Greece +30 00800 3122 1223 Free of charge
Ireland +353 01 601 1161 Local call tariff
Italy +39 840 320 041 € 0.08
Luxembourg +352 26 84 30 00 Local call tariff
The Netherlands +31 0900 0400 063 € 0.10
Norway +47 2270 8250 Local call tariff
Poland +48 0223491505 Local call tariff
Portugal +351 2 1359 1440 Local call tariff
Spain +34 902 888 785 € 0.10
Sweden +46 08 632 0016 Local call tariff
Switzerland +41 02 2310 2116 Local call tariff
United Kingdom +44 0207 949 0069 Local call tariff
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warfirst.htm [98-06-23 09:42]
Your Guarantee in Central and Eastern Europe
Your Guarantee in Central and Eastern Europe
Dear Customer,
Thank you for purchasing this Philips product, which has been designed and manufactured to the
highest quality standards. If, unfortunately, something should go wrong with this product Philips
guarantees free of charge labor and replacement parts during a period of 36 months from date of
purchase.
What is covered?
This Philips Guarantee in Central and Eastern Europe applies within Czech Republic, Hungary,
Slovakia, Slovenia, Russia and Turkey and only for monitors originally designed, manufactured,
approved and/or authorized for usage within these countries.
Warranty coverage begins as from the day you buy your monitor. For 3 years thereafter, your
monitor will be serviced in case of defects provided for under the warranty coverage.
What is excluded?
The Philips guarantee applies provided the product is handled properly for its intended use, in
accordance with its operating instructions and upon presentation of the original invoice or cash
receipt, indicating the date of purchase, dealer's name and model and production number of the
product.
The Philips guarantee may not apply if:
● the documents have been altered in any way or made illegible;
● the model or production number on the product has been altered, deleted, removed or made
illegible;
● repairs or product modifications and alterations have been executed by unauthorized service
organizations or persons;
● damage is caused by accidents including but not limited to lightning, water or fire, misuse or
neglect.
● Reception problems caused by signal conditions or cable or antenna systems outside the
unit;
● Defects caused by abuse or misuse of the monitor;
● Product requires modification or adaptation to enable it to comply with local or national
technical standards, which apply in countries for which the product was not originally
designed, manufactured, approved and/or authorized. Therefore always check whether a
product can be used in a specific country.
Please note that the product is not defective under this guarantee in the case where modifications
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_ee.htm 第 1 頁 / 共 2 [98-06-23 09:42]
Your Guarantee in Central and Eastern Europe
become necessary in order for the product to comply with local or national technical standards
which apply in countries for which the product was not originally designed and/or manufactured.
Therefore always check whether a product can be used in a specific country.
Just a click away
In case of any problems, we advise you to read the operating instructions carefully or go to the www.
philips.com/support website for additional support.
Just a phone call away
In order to avoid unnecessary inconvenience, we advise you to read the operating instructions
carefully before contacting our dealers or Information Centers
In case your Philips product is not working correctly or is defective, please contact your Philips
dealer or directly the Philips Service and Consumer Information Centers
Website: http://www.philips.com/support
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_ee.htm 第 2 頁 / 共 2 [98-06-23 09:42]
Consumer Information Centers
Consumer Information Centers
Argentina Australia Brasil Canada New Zealand Belarus Bulgaria
Croatia Czech Republic Estonia United Arab Emirates Hong Kong
Hungary India Indonesia Israel Latvia Lithuania Malaysia
Middle East + North Africa New Zealand Pakistan Romania Russia
Serbia & Montenegro Singapore Slovakia Slovenia South Africa
South Korea Taiwan Philippines Thailand Turkey Ukraine Vietnam
Eastern Europe
BELARUS
Technic al Center of JV IBA
M. Bogdanovich str. 155
BY - 220040 Minsk
Tel: +375 17 217 33 86
BELARUS
Service.BY
Petrus Brovky st. 19 – 101-B
220072, Minsk
Belarus
BULGARIA
LAN Service
140, Mimi Balkanska Str.
Office center Translog
1540 Sofia, Bulgaria
Tel: +359 2 960 2360
www.lan-service.bg
CZECH REPUBLIC
General Consumer Information Center
800 142100
Xpectrum
Lu.ná 591/4
CZ - 160 00 Praha 6 Tel: 800 100 697 or 220 121 435
Email:info@xpectrum.cz
www.xpectrum.cz
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 1 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
CROATIA
Renoprom d.o.o.
Ljubljanska 4,
Sv. Nedjelja,10431
Croatia
Tel: +385 1 333 0974
ESTONIA
FUJITSU SERVICES OU
Akadeemia tee 21G
EE-12618 Tallinn
Tel: +372 6519900
www.ee.invia.fujitsu.com
HUNGARY
Serware Szerviz
Vizimolnár u. 2-4
HU - 1031 Budapest
Tel: +36 1 2426331
Email: inbox@serware.hu
www.serware.hu
HUNGARY
Profi Service Center Ltd.
123 Kulso-Vaci Street,
H-1044 Budapest ( Europe Center )
Hungary
Tel: +36 1 814 8080
m.andras@psc.hu
LATVIA
ServiceNet LV
Jelgavas iela 36
LV - 1055 Riga,
Tel: +371 7460399
Email: serviss@servicenet.lv
LITHUANIA
ServiceNet LT
Gaiziunu G. 3
LT - 3009 KAUNAS
Tel: +370 7400088
Email: servisas@servicenet.lt
www.servicenet.lt
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 2 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
ROMANIA
Blue Ridge Int'l Computers SRL
115, Mihai Eminescu St., Sector 2
RO - 020074 Bucharest
Tel: +40 21 2101969
SERBIA & MONTENEGRO
Kim Tec d.o.o.
Viline vode bb, Slobodna zona
Beograd L12/3
11000 Belgrade
Serbia
Tel. +381 11 20 70 684
SLOVAKIA
General Consumer Information Center
0800004551
Datalan Servisne Stredisko
Puchovska 8
SK - 831 06 Bratislava
Tel: +421 2 49207155
Email: servis@datalan.sk
SLOVENIA
PC HAND
Brezovce 10
SI - 1236 Trzin
Tel: +386 1 530 08 24
Email: servis@pchand.si
RUSSIA
CPS
18, Shelepihinskaya nab.
123290 Moscow
Russia
Tel. +7(495)797 3434
Profservice:
14A -3, 2Karacharovskaya str,
109202, Moscow ,
Russia
Tel. +7(095)170-5401
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 3 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
TURKEY
Türk Philips Ticaret A.S.
Yukari Dudullu Org.San.Bolgesi
2.Cadde No:22
34776-Umraniye/Istanbul
Tel: (0800)-261 33 02
UKRAINE
Comel
Shevchenko street 32
UA - 49030 Dnepropetrovsk
Tel: +380 562320045
www.csp-comel.com
LLC Topaz Company
Topaz-Service Company,
Mishina str. 3,
Kiev
Ukraine-03151
Tel: +38 044 245 73 31
Latin America
ARGENTINA
Azopardo 1480.
(C1107ADZ) Cdad. de Buenos Aires
Tel: 0800 3330 856
Email: CIC.monitores@Philips.com
BRASIL
Alameda Raja Gabaglia, 188 - 10°Andar - V.
Olímpia - S. Paulo/SP - CEP 04551-090 -
Brasil
Tel: 0800-7254101
Email: CIC.monitores@Philips.com
Pacific
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 4 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
AUSTRALIA
Company: AGOS NETWORK PTY LTD
Address: 4/5 Dursley Road, Yenorra, NSW 2161, Australia
Tel: 1300 360 386
Fax: +61-2-80808147
Email: philips@agos.com.au
Service hours: Mon.~Fri. 8:00am-7:30pm
NEW ZEALAND
Company: Visual Group Ltd.
Address: 28 Walls Rd Penrose Auckland
Phone: 0800 657447
Fax: 09 5809607
E-mail: vai.ravindran@visualgroup.co.nz
Service Hours: Mon.~Fri. 8:30am~5:30pm
Asia
HONG KONG/Macau
Company Name: PHK Service Limited
Address: Flat A, 10/F., Pak Sun Building, 103 - 107 Wo Yi Hop Road, Kwai Chung, New Territories, Hong
Kong
Tel.: (852) 2610-6908 / (852) 2610-6929 for Hong Kong and (853) 2856-2277 for Macau
Fax: (852) 2485 3574 for Hong Kong and (853) 2856 1498 for Macau
E-mail: enquiry@phkservice.com.hk
Service Hours: Mon.~Sat. 09:00am~06:00pm
India
Company: REDINGTON INDIA LTD
Address: SPL Guindy House, 95 Mount Road, Chennai 600032, India
Tel: +9144-42243352/353
E-mail: aftersales@in.aocmonitor.com
Service hours: Mon.~Fri. 9:00AM~5:30PM; Sat. 9:00AM~1:00PM
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 5 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
Indonesia
Company Name: PT. Gadingsari elektronika Prima
Address: Kompleks Pinang 8, Jl. Ciputat raya No. 8F, Pondok Pinang. Jakarta
Tel: 021-750909053, 021-750909056
Fax: 021-7510982
E-mail: gepta@cbn.net.id
Service hours: Mon.~Fri. 8:30am~4:30pm; Sat. 8:30am~2:00pm
Additional service points:
1. Philips Building Jl. Buncit Raya Kav 99. Jakarta Selatan.
Phone: 021-7940040, ext 1722/1724, 98249295, 70980942
2. Jl. Tanah Abang 1 no 12S. Jakarta Pusat.
Phone: 021-3455150, 34835453
3. Rukan City Home no H31, Gading Square. Jl. Bulevar Barat. Kelapa Gading. Jakarta Utara. Phone: 02145870601, 98131424
South Korea
Company: PCS One Korea Ltd.
Address: 112-2, Banpo-dong, Seocho-ku, Seoul, 137-040, Korea
Call Center Tel: 080-600-6600
Tel: 82 2 591 1528
Fax: 82 2 595 9688
E-mail: cic_korea@philips.com
Service hours: Mon.~Fri. 9:00AM~ 6:00PM; Sat. 9:00AM~1:00PM
Malaysia
Company: After Market Solutions (CE) Sdn Bhd
Address: Lot 6. Jalan 225/51A, 46100 Petaling Jaya, Selangor DE, Malaysia.
Phone: 603 7953 3370
Philips Info Line: 1-800-880-180
Fax: 603 7953 3338
E-mail: pceinfo.my@philips.com
Service Hours: Mon.~Fri. 8:15am~5:15pm; Sat. 9:00am~1:00pm
Pakistan
Philips Consumer Service
Address: Mubarak manzil, 39, Garden Road, Saddar, Karachi-74400
Tel: (9221) 2737411-16
Fax: (9221) 2721167
E-mail: care@philips.com
Website: www.philips.com.p
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 6 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
Singapore
Company: Philips Electronics Singapore Pte Ltd (Philips Consumer Care Center)
Address: 620A Lorong 1 Toa Payoh, TP4 Building Level 1, Singapore 319762
Tel: (65) 6882 3999
Fax: (65) 62508037
E-mail: consumer.care.sg@philips.com
Service hours: Mon.~Fri. 9:00am~6:00pm; Sat. 9:00am~1:00pm
Taiwan
Company: FETEC.CO
Address: 3F, No.6, Lane 205, Sec. 1, Chang Hsing Rd, Lu Chu Hs, Taoyuan, Taiwan R.O.C 33800
Consumer Care: 0800-231-099
Tel: (03)2120336
Fax: (03)3129184
E-mail: knlin08@xuite.net
Service hours: Mon.~Fri. 8:30am~7:00pm
Thailand
Company: Axis Computer System Co., Ltd.
Address: 1421 Soi Lardprao 94, Srivara Town In Town Soi 3 Road, Wangthonglang, Bangkok 10310
Thailand
Tel: (662) 934-5498
Fax: (662) 934-5499
E-mail: axis5@axiscomputer.co.th
Service Hours: Mon.~Fri. 08:30am~05:30pm
Vietnam
Company: Digiworld Corp
Address: 211-213 Vo Van Tan St, Ward 5, Dist.3 , Ho Chi Minh city, Vietnam
Tel: 848-38266065
Fax: 848-38267307
E-mail: Digicare@dgw.com.vn
Service hours: 8:00 to 12:00 AM and 13:30 to 17:30 PM (from Monday to Friday)
Philippines
Glee Electronics Inc
Contact nos. (632) 636-3636 / 7064028 to 29
Fax no. (632) 7064026
Receiving Centers
NEO CARE - Megamall
4th Level Cyberzone, Building B,
SM Megamall, Mandaluyong City
NEO CARE - SM North EDSA
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 7 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
4th Level Cyberzone, Annex Bldg.
SM City North EDSA, Quezon City
441-1610
MDR Microware Sales Inc.
Cebu Branch
N. Escario corner Clavano St., Cebu City Phils.
# 255-4415/ 255-3242/253-9361/4124864 to 67
Sun # 0922-8210045 to 46
Davao Office:
C. Arellano St., Davao City 8000
082- 225-3021/225-3022
Sun# 0922-8210015
CDO Office:
1445 Corrales Ext.,CDO City
088-856-8540/856-8541
Sun # 0922-8210080
Iloilo Office:
C. Lim Comp., Gomez St., Iloilo City
# 033 338-4159/ 033 508-3741
Sun # 0922-8808850
Africa
SOUTH AFRICA
Company name: Sylvara Technologies Pty Ltd
Address: Ho Address Palm Springs Centre Christoffel Road Van Riebeeck Park Kempton Park, South Africa
Tel: +27878084456
Fax: +2711 391 1060
E-mail: customercare@philipssupport.co.za
Service hours: Mon.~ Fri. 08:00am~05:00pm
Middle East
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 8 頁 / 共 9 [98-06-23 09:42]
Consumer Information Centers
Middle East + North Africa
Company: AL SHAHD COMPUTER L.L.C
Address: P.O.BOX: 29024, DUBAI, UNITED ARAB EMIRATES
TEL: 00971 4 2276525
FAX: 00971 4 2276242
E-mail: shahd52@eim.ae
Service hours: Sat.~Thur. 9:00am~1:00pm & 4:00pm- 8:00pm
Israel
Company: Eastronics LTD
Address: 13 Rozanis St. P.O.B. 39300, Tel Aviv 61392 Israel
Tel: 1-800-567000 call free in Israel; (972-50-8353722 after service hours until 20:00)
Fax: 972-3-6458759
E-mail: eastronics@eastronics.co.il
Service hours: Sun.~Thurs. 08:00 - 18:00
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/warcic.htm 第 9 頁 / 共 9 [98-06-23 09:42]
International Guarantee
Your International Guarantee
Dear Customer,
Thank you for purchasing this Philips product which has been designed and manufactured to the
highest quality standards.
If, unfortunately, something should go wrong with this product Philips guarantees free of charge
labor and replacement parts irrespective of the country where it is repaired during a period of 12
months from date of purchase. This international Philips guarantee complements the existing
national guarantee obligations to you of dealers and Philips in the country of purchase and does not
affect your statutory rights as a customer.
The Philips guarantee applies provided the product is handled properly for its intended use, in
accordance with its operating instructions and upon presentation of the original invoice or cash
receipt, indicating the date of purchase, dealer's name and model and production number of the
product.
The Philips guarantee may not apply if:
● the documents have been altered in any way or made illegible;
● the model or production number on the product has been altered, deleted, removed or made
illegible;
● repairs or product modifications and alterations have been executed by unauthorized service
organizations or persons;
● damage is caused by accidents including but not limited to lightning, water or fire, misuse or
neglect.
Please note that the product is not defective under this guarantee in the case where modifications
become necessary in order for the product to comply with local or national technical standards
which apply in countries for which the product was not originally designed and/or manufactured.
Therefore always check whether a product can be used in a specific country.
In case your Philips product is not working correctly or is defective, please contact your Philips
dealer. In the event you require service whilst in another country a dealer address can be given to
you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can
be found in the relevant part of this booklet.
In order to avoid unnecessary inconvenience, we advise you to read the operating instructions
carefully before contacting your dealer. If you have questions which your dealer cannot answer or
any related question please contact the Philips Consumer Information Centers or via:
Website:
http://www.philips.com
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_intl.htm 第 1 頁 / 共 2 [98-06-23 09:42]
International Guarantee
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_intl.htm 第 2 頁 / 共 2 [98-06-23 09:42]
United States Guarantee
Your Philips F1rst Choice Warranty(USA)
Thank you for purchasing this Philips monitor.
All Philips monitors are designed and manufactured to high standards and
deliver high-quality performance, ease of use and ease of installation. Should
you encounter any difficulties while installing or using this product, please
contact Philips directly to benefit from your Philips F1rst Choice Warranty. This
three-year service warranty entitles you to a swap model on-site within 48
hours of your call being received within the first year of purchase. If you have
any problems with your monitor within the second or third year of purchase, we
will repair it after it has been sent to the service provider at your expense and
returned to you within five working days, free of charge.
LIMITED WARRANTY (Computer Monitor)
Click here to access the Warranty Registration Card.
Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange*
*Product will be exchanged with a new or renewed to original specifications unit within two
business days for the first year. This product must be shipped in at your expense for service during
years two and three.
WHO IS COVERED?
You must have proof of purchase to receive warranty service. A sales receipt or other document
showing that you purchased the product is considered proof of purchase. Attach it to this owner's
manual and keep both nearby.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For three years thereafter, all parts will be
repaired or replaced, and labor is free. After three years from the day of purchase, you pay for the
replacement or repair of all parts, and for all labor charges.
All parts, including repaired and replaced parts, are covered only for the original warranty period.
When the warranty on the original product expires, the warranty on all replaced and repaired
products and parts also expires.
WHAT IS EXCLUDED?
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_usa.htm 第 1 頁 / 共 4 [98-06-23 09:43]
United States Guarantee
Your warranty does not cover:
● labor charges for installation or setup of the product, adjustment of customer controls on the
product, and installation or repair of antenna systems outside of the product.
● product repair and/or part replacement because of misuse, accident, unauthorized repair or
other cause not within the control of Philips Consumer Electronics.
● reception problems caused by signal conditions or cable or antenna systems outside the
unit.
● a product that requires modification or adaptation to enable it to operate in any country other
than the country for which it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
● incidental or consequential damages resulting from the product. (Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion may not apply
to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not
copyrighted.)
● the model or production number on the product has been altered, deleted, removed or made
illegible.
Where IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is officially distributed by Philips
Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the
product, the local Philips service organization will attempt to provide service (although there may be
a delay if the appropriate spare parts and technical manual(s) are not readily available).
Where CAN I GET MORE INFORMATION?
For more information, contact the Philips Customer Care Center by calling (877) 835-1838 (U.S.A.
customers only) or (919) 573-7855.
Before Requesting Service...
Please check your owner's manual before requesting service. Adjustments of the controls
discussed there may save you a service call.
TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...
Contact the Philips Customer Care Center phone number listed below for product assistance and
procedures for servicing:
Philips Customer Care Center
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_usa.htm 第 2 頁 / 共 4 [98-06-23 09:43]
United States Guarantee
(877) 835-1838 or (919) 573-7855
(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties
of merchantability and fitness for a particular purpose, are limited in duration to the duration of this
express warranty. But, because some states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
TO GET WARRANTY SERVICE IN CANADA...
Please contact Philips at:
(800) 479-6696
Three years free parts and three years free labor will be provided at Philips Canada depot or any
one of its authorized service centers.
(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed
or implied, including any implied warranties of merchantability or fitness for a particular purpose.
Philips is not liable under any circumstances for any direct, indirect, special, incidental or
consequential damages, howsoever incurred, even if notified of the possibility of such damages.)
REMEMBER... Please record the model and serial numbers found on the product below.
MODEL # ________________________________________________
SERIAL # ________________________________________________
This warranty gives you specific legal rights. You may have other rights which vary from state/
province to state/province.
Before contacting Philips, please prepare the following details so we can solve your problem
quickly.
● Philips type number
● Philips serial number
● Purchase date (copy of purchase may be required)
● PC environment Processor:
❍ CUP and Graphic card name and driver version
❍ Operating system
❍ Application being used
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_usa.htm 第 3 頁 / 共 4 [98-06-23 09:43]
United States Guarantee
● Other cards installed
Having the following information available will also help speed up the process:
● Your proof of purchase indicating: date of purchase, dealer name, model and product serial
number.
● The full address to which the swap model should be delivered.
Just a phone call away
Philips customer help desks are located worldwide. Within the U.S. you can contact Philips
customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from
10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
For more information on this and more great Philips products visit our website at:
Website:
http://www.philips.com
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/warranty/war_usa.htm 第 4 頁 / 共 4 [98-06-23 09:43]
Glossary
Glossary
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
Active matrix
This is a kind of liquid crystal display structure in which switching transistors are attached to each
pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing
angle than a passive matrix display. Also refer to TFT (thin film transistor).
Amorphous silicon (a-Si)
A semiconductor material that is used to make the thin film transistors (TFTs) layer of an active
matrix LCD.
Aspect ratio
The width-to-height ratio of the active area of a display. In general, most monitors have an aspect
ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10.
B
Backlight
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/glossary/glossary.htm 第 1 頁 / 共 10 [98-06-23 09:43]
Glossary
The light source for a transmissive LCD. There are two techniques used in nowaday LCD designs.
Most TFT LCD panels use CCFLs (cold cathode fluorescent light) and a diffuser panel directly
behind the liquid crystal layer. New technology using Light Emitting Diodes (LED) are still under
development.
Brightness
The dimension of color that is referred to an achromatic scale, ranging from black to white, also
called lightness or luminous reflectance. Because of confusion with saturation, the use of this term
should be discouraged.
C
CCFL(cold cathode fluorescent light)
These are the fluorescent light tubes providing the light for the LCD module. These tubes are
generally very thin, approximately 2 mm in diameter.
Chromaticity
That part of color specification, which does not involve illuminance. Chromaticity is two-dimensional
and specified by pairs of numbers such as dominant wavelength and purity.
CIE (Commission International de I'Eclairage)
The International Commission on Illumination, the primary international organization concerned with
color and color measurement.
Color temperature
A measurement of the color of light radiated by an object while it is being heated. This
measurement is express in terms of absolute scale, (degrees Kelvin). Lower Kelvin temperatures
such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is
white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define.
Contrast
The luminance variation between light and dark areas in an image.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/glossary/glossary.htm 第 2 頁 / 共 10 [98-06-23 09:43]
Glossary
Contrast ratio
The ratio of luminance between the brightest white pattern and the darkest black pattern.
RETURN TO TOP OF THE PAGE
D
D-SUB
A VGA Analog input connector. Your monitor comes with a D-Sub cable.
Digital Visual Interface (DVI) (available for selective models)
The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual
data types that is display technology independent. The interface is primarily focused at providing a
connection between a computer and its display device. The DVI specification meets the needs of all
segments of the PC industry (workstation, desktop, laptop, etc.) and will enable these different
segments to unite around one monitor interface specification.
The DVI interface enables:
1. Reduce signal loss and video noise in signal due to less signal conversion.
2. Independent from display technology, and can be used on LCD, Plasma, LCOS, etc.
3. Plug and play through hot plug detection, EDID and DDC2B.
4. Digital and Analog support in a single connector (DVI-I only).
RETURN TO TOP OF THE PAGE
E
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/glossary/glossary.htm 第 3 頁 / 共 10 [98-06-23 09:43]
Glossary
Energy Star Computers Program
An energy conservation program launched by the US Environmental Protection Agency (EPA),
promotes the manufacture and marketing of energy-efficient office automation equipment.
Companies joining this program, must be willing to commit themselves to manufacture one or more
products capable of going into a low -power state (< 30 W) either after a period of inactivity, or after
a predetermined time selected by the user.
RETURN TO TOP OF THE PAGE
G
Gamma
Screen luminance as a function of video voltage approximately follows a mathematical power
function of the input video signal, the exponent of which is called gamma.
Grayscale
An achromatic scale ranging from black through a series of successively lighter grays to white.
Such a series may be made up of steps, which appear to be equally distant from one another. If the
Analog/ Digital converter is 8 bit, then the monitor can display at most 2
8
= 256 levels. For a color
monitor, R.G.B. each color hads 256 levels. Thus, total color can display is 256x256x256= 16.7
million.
H
Hue
The main attribute of a color that distinguishes it from other colors. For example, a color may have a
green, yellow, or purple hue. Color defined as having hue are know as chromatic colors. White,
black, and grays possess no hue.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/glossary/glossary.htm 第 4 頁 / 共 10 [98-06-23 09:43]
Glossary
I
IPS (In Plane Switching)
A technique of improving the viewing angle of an LCD where the liquid crystal molecules are
switched in the plane of the LCD layer rather than vertical to it.
L
LCD (liquid crystal display)
A display composed of liquid crystal suspended between two transparent sheets. The display is
composed thousands of pixels which can be turned on or off with electrical stimulation. Thus,
colorful images/texts can be generated.
Liquid crystal
The compound found in liquid crystal displays. Liquid crystal reacts predictably when electrically
stimulated. This makes it the ideal compound to turn LCD pixels "on" or "off." Liquid crystal is
sometimes abbreviated as LC.
Luminance
A measure of the brightness or luminous intensity of light, usually expressed in units of Candelas
per square meter (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2.
RETURN TO TOP OF THE PAGE
N
Nit
A unit of luminance equal to 1 cd/m2 or 0.292 ftL.
file:///E|/LCD%20Monitor%20OEM/Philips/M1-project/220C1/220C1-EDFU/5B.0V401.001/CD-Contents/lcd/manual/ENGLISH/220C1/glossary/glossary.htm 第 5 頁 / 共 10 [98-06-23 09:43]
Loading...
