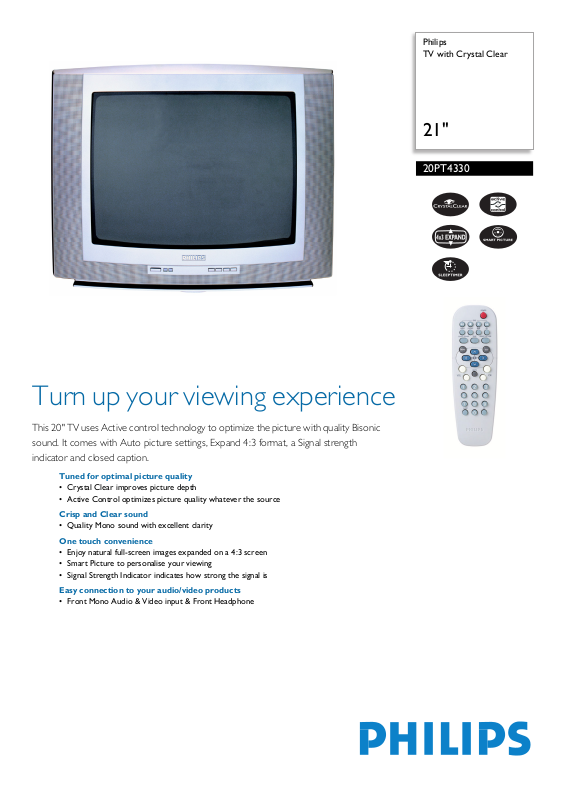

Philips 20PT4330-85R, 20PT4330 User Manual

For preview purpose only

Philips
TV with Crystal Clear

21"

20PT4330

Turn up your viewing experience

This 20" TV uses Active control technology to optimize the picture with quality Bisonic
sound. It comes with Auto picture settings, Expand 4:3 format, a Signal strength
indicator and closed caption.

Tuned for optimal picture quality

• Crystal Clear improves picture depth

• Active Control optimizes picture quality whatever the source

Crisp and Clear sound

• Quality Mono sound with excellent clarity

One touch convenience

• Enjoy natural full-screen images expanded on a 4:3 screen

• Smart Picture to personalise your viewing

• Signal Strength Indicator indicates how strong the signal is

Easy connection to your audio/video products

• Front Mono Audio & Video input & Front Headphone

For preview purpose only

TV with Crystal Clear

21"

Technical specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 20 inch / 51 cm

• Visible diagonal screen size: 47 cm

• Picture enhancement: Active Control, Crystal
Clear, Color Temperature Adjustment

• Picture processing: 50 Hz, 60Hz Analog

• Signal strength indication

• Appropriate for Hotel rooms: Hotel Mode

Tuner/Reception/Transmission

• TV system: NTSC

• Aerial Input: 75 ohm F-type

Connectivity

Sound

• Sound System: Mono

• Output power (RMS): 1x3W

• Front / Side connections: AV input, Headphone
out

Power

Loudspeakers

• Built-in speakers: 1

• Mains power: AC 90-140V, 50/60Hz

Dimensions

Convenience

• Ease of Use: AutoPicture

• Teletext: Closed Captioning

• Remote control type: RCLB014

• Screen Format Adjustments: 4:3, 4:3 expand

• Clock: Sleep Timer

• Box dimensions (W x H x D):
667x593x566mm

• Set dimensions (W x H x D):
592x465x472mm

• Set weight: 17.0 kg

• Weight incl. Packaging: 20.2 kg

• Set color: Silver Shadow

•

20PT4330/85R

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.

Active Control

Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.

Quality Mono sound

Crisp and clear mono sound

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.

Smart picture

Smart Picture button on the remote control enables
one-touch selection of various preset optimized image
settings to suit different TV program. Do refer to the
DFU for the various Smart Picture modes.

Signal Strength Indicator

The signal strength indicator displays signal strength
when you change the channel, and continuously tracks
and updates the incoming signal strength.

Front AV & Headphone

Front Mono Audio & Video input & Front Headphone

Date of issue 2006-06-29

Version: 5.0

12 NC: 8670 000 18764
EAN: 87 10895 78000 1

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.

www.philips.com
