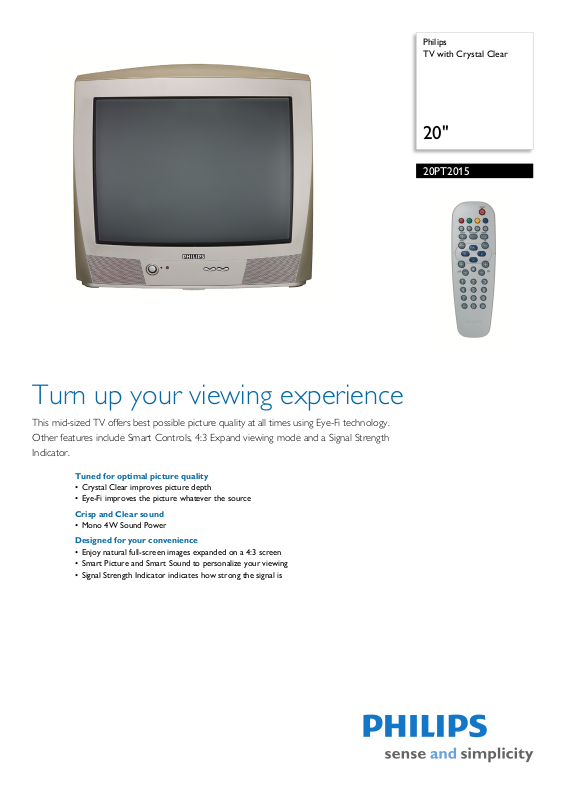

Philips 20PT2015 User Manual
Philips
TV with Crystal Clear
20"
20PT2015
Turn up your viewing experience
This mid-sized TV offers best possible picture quality at all times using Eye-Fi technology.
Other features include Smart Controls, 4:3 Expand viewing mode and a Signal Strength
Indicator.
Tuned for optimal picture quality
• Crystal Clear improves picture depth
• Eye-Fi improves the picture whatever the source
Crisp and Clear sound
• Mono 4W Sound Power
Designed for your convenience
• Enjoy natural full-screen images expanded on a 4:3 screen
• Smart Picture and Smart Sound to personalize your viewing
• Signal Strength Indicator indicates how strong the signal is
TV with Crystal Clear
20"
20PT2015/94
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 20 inch / 51 cm
• Visible diagonal screen size: 47 cm
• Picture enhancement: Co
Control, Color Temperature Adjustment
• Picture processing: 50 Hz
Sound
• Sound Enhancement: Bass Boost, Treble Boost
• Output power (RMS): 1x4W
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of Installation: Fine Tuning
• Ease of Use: Auto Volume Leveller (AVL
Picture, Smart Sound
• Remote control type: RCLA015
• Screen Format Adjustments: 4:3, 4:3 expand
• Clock: On/Off event timer, Sleep Timer
• Signal strength indication
ntrast Plus, Active
), Smart
Tuner/Reception/Transmission
• Tuner bands: UVSH
• TV system: PAL B/G
• Video Playback: NTSC, PAL
• Aerial Input: 75 ohm coaxial (IEC75)
•Tuner Display: PLL
• Number of Preset Channels: 200
Connectivity
• Other connections: Monitor out
• AV 1: CVBS in
Power
• Power consumption: 50W +/- 10% W
• Standby power consumption: < 3W
• Mains power: AC 140-276V, 50/60Hz
Dimensions
• Product weight: 18 kg
• Weight incl. Packaging: 20 kg
•
Highlights
Crystal Clear
Combining picture enhancements like Contrast plus
and color improvement, Crystal Clear improves
picture depth.
Eye-Fi
Eye-Fi ensures that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Eye-Fi optimizes
the viewing experience.
4W Sound Power
Mono 4W Sound Power
4x3 Expand
4x3 Expand enables widescreen movies to be viewed
on a 4:3 aspect ratio TV screen by removing the
black bars at the top and bottom of the image. You
are able to watch full-screen movies without
compromizing on picture quality and resolution.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart
Sound provide you with direct access via a single key
on the remote control. You can select optimized
picture and sound settings for the various picture
and sound modes.
Signal Strength Indicator
The signal strength indicator displays signal strength
when you change the channel, and continuously
tracks and updates the incoming signal strength.
Issue date 2009-03-30
Version: 1.0.4
12 NC: 8670 000 24081
EAN: 87 10895 96314 5
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
