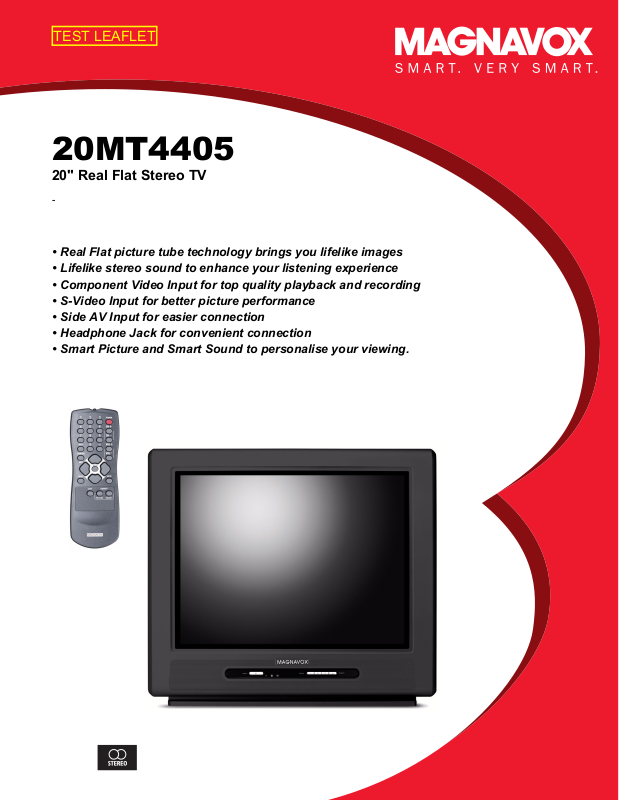

TEST LEAFLET
20MT4405
20" Real Flat Stereo TV
-
• Real Flat picture tube technology brings you lifelike images
• Lifelike stereo sound to enhance your listening experience
• Component Video Input for top quality playback and recording
• S-Video Input for better picture performance
• Side AV Input for easier connection
• Headphone Jack for convenient connection
• Smart Picture and Smart Sound to personalise your viewing.
![](/html/9a/9ad3/9ad33bf58af35fcf9debfd379b1fd33fc3689ab1e7a904712f02e919b2ebc212/bg2.png)
TEST LEAFLET
20MT4405/17
20" Real Flat Stereo TV
Technical specifications
Picture/Display
Aspect ratio: 4:3
Visible screen diagonal (inch): 20 inch
Display screen type: Real Flat picture tube
Picture enhancement: Black stretch, Color
Temperature Adjustment, Comb Filter, Tint,
AutoPicture (5 modes), Contrast Plus, Sharpness
Adjustment
Sound
Output power (RMS): 2 x 3 W
Sound Enhancement: Auto Volume Leveller,
AutoSound (4 modes), Incredible Surround, Treble
and Bass Control, Balance
Convenience
Remote Control: TV
Screen Format Adjustments: 4:3, 4:3 expand
Clock: Sleep Timer
On-Screen Display languages: English, French,
Spanish
Convenience Enhancements: Auto Program, Closed
Captioning (analog), Menu Languages, Vchip and
parental lock
Tuner/Reception/Transmission
TV system: NTSC
Video Playback: NTSC
Aerial Input: 75 ohm F-type
Connectivity
AV 1: CVBS in, CVI
AV 2: CVBS in, S-Video
AV 3: Monitor Out
Front / Side connections: CVBS in, Headphone out
Power
Power consumption: 72 W
Standby power consumption: < 1 W
Mains power: AC 90-140V, 60Hz
Dimensions
Set dimensions in inch (W x H x D):
20.94 x 18.5 x 19.1 inch
Product weight (lb): 50.83
Box dimensions in inch (W x H x D):
23.62 x 20.9 x 21.5 inch
Weight incl. Packaging (lb): 58.57
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.
The special alloy invar shadow mask helps maintain
sharper focus and eliminates 'color blooming'
compared to standard tubes.
Stereo sound
Stereo sound is sound reproduced using two
independent audio channels, through a pair of widely
separated speaker systems. This creates a pleasant
and natural impression of sound heard from various
directions as in natural hearing.
Component Video Input (YPbPr
Component Video is the highest quality
interconnection standard for analog video. It is
sharper than S-video and composite video. Philips
DVD recorders can record directly from component
video (such as YPbPr) sources including satellite
receivers
S-Video Input
An S-video format signal preserves the video quality
better than standard video input.
Side AV Input
Headphone Jack
Smart Picture & Smart Sound
Preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select the optimized picture
and sound settings for the various picture and sound
modes. Do refer to the user manual for the various
picture and sound smart modes.
Date of issue 2006 09 06
Product Owner: Serene Teo
Version: 0.4
12 NC: 8670 000 23674
UPC: 0 37849 96795 9
Test leaflet, for internal use only!
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics
N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.magnavox.com
