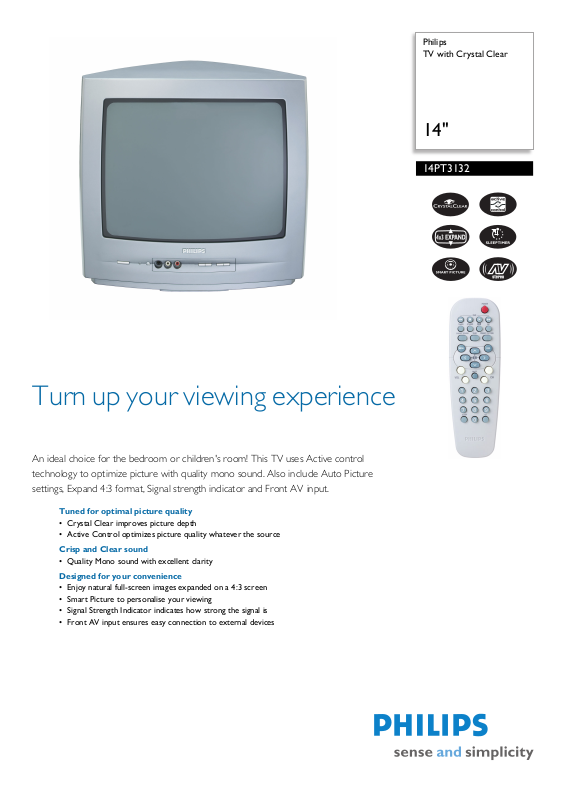

Philips 14PT3132 User Manual
Philips
TV with Crystal Clear
14"
14PT3132
Turn up your viewing experience
An ideal choice for the bedroom or children's room! This TV uses Active control
technology to optimize picture with quality mono sound. Also include Auto Picture
settings, Expand 4:3 format, Signal strength indicator and Front AV input.
Tuned for optimal picture quality
• Crystal Clear improves picture depth
• Active Control optimizes picture quality whatever the source
Crisp and Clear sound
• Quality Mono sound with excellent clarity
Designed for your convenience
• Enjoy natural full-screen images expanded on a 4:3 screen
• Smart Picture to personalise your viewing
• Signal Strength Indicator indicates how strong the signal is
• Front AV input ensures easy connection to external devices
TV with Crystal Clear
14"
14PT3132/85R
Specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 14 inch / 37 cm
• Visible diagonal screen size: 34 cm
• Picture enhancement: Contrast Plus, Active
Control, Color Temperature Adjustment
• Picture processing: 50 Hz, 60Hz Analog
Sound
• Output power (RMS): 1x3W
• Sound System: Mono
Loudspeakers
• Built-in speakers: 1
Convenience
• Ease of Use: AutoPicture, Auto Volume Leveller
(AVL)
• Teletext: Closed Captioning
• Screen Format Adjustments: 4:3, 4:3 expand
• Clock: Sleep Timer
• Signal strength indication
• Appropriate for Hotel rooms: Hotel Mode
Tuner/Reception/Transmission
• TV system: NTSC
• Video Playback: NTSC
• Aerial Input: 75 ohm F-type
Connectivity
• Front / Side connections: AV input, Headphone
out
Power
• Power consumption: 36 W
• Standby power consumption: < 3 W
• Mains power: AC 90-140V, 50/60Hz
Dimensions
• Set dimensions (W x H x D):
376
x 348 x 373 mm
• Set weight: 9.0 kg
• Weight incl. Packaging: 11.4 kg
• Box dimensions (W x H x D):
480
x 463 x 466 mm
• Set color: Techno Silver
•
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture
setting over 3,000 times per minute, Active Control Plus
ensures that the viewing experience is optimized.
Quality Mono sound
Crisp and clear mono sound
4x3 Expand
4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.
Smart picture
Smart Picture button on the remote control enables
one-touch selection of various preset optimized image
settings to suit different TV program. Do refer to the
DFU for the various Smart Picture modes.
Signal Strength Indicator
The signal strength indicator displays signal strength
when you change the channel, and continuously tracks
and updates the incoming signal strength.
Front AV Input
Front AV Input makes it much more convenient to
connect external devices like audio equipment, games
and video cameras. It's the easy way to enjoy an extra
audio sensation or a totally immersive gaming
experience.
Date of issue 2007-01-15
Version: 11.0
12 NC: 8670 000 18752
EAN: 87 10895 77119 1
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
