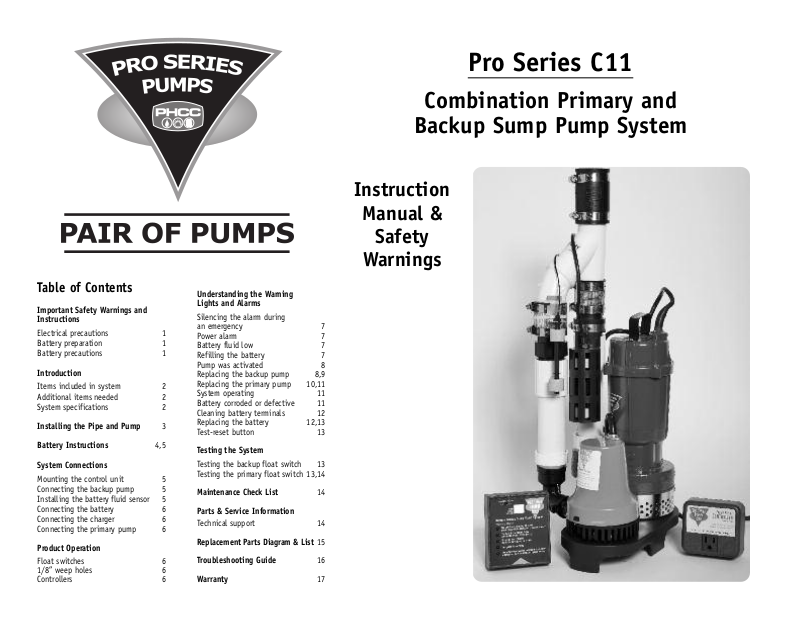

PHCC Pro C11 User Manual

Download

Combination Primary and

Backup Sump Pump System

Instruction

Manual &

Safety

Warnings

Pro Series C11

Table of Contents

Important Safety Warnings and Instructions

Electrical precautions 1 Battery preparation 1 Battery precautions 1

Introduction

Items included in system 2 Additional items needed 2 System specifications 2

Installing the Pipe and Pump 3

Battery Instructions 4,5

System Connections

Mounting the control unit 5 Connecting the backup pump 5 Installing the battery fluid sensor 5 Connecting the battery 6 Connecting the charger 6 Connecting the primary pump 6

Product Operation

Float switches 6 1/8” weep holes 6 Controllers 6

Understanding the Warning Lights and Alarms

Silencing the alarm during an emergency 7 Power alarm 7 Battery fluid low 7 Refilling the battery 7 Pump was activated 8 Replacing the backup pump 8,9 Replacing the primary pump 10,11 System operating 11 Battery corroded or defective 11 Cleaning battery terminals 12 Replacing the battery 12,13 Test-reset button 13

Testing the System

Testing the backup float switch 13 Testing the primary float switch 13,14

Maintenance Check List 14

Parts & Service Information

Technical support 14

Replacement Parts Diagram & List 15

Troubleshooting Guide 16

Warranty 17

Important Safety Warnings & Instructions

SAVE THESE INSTRUCTIONS. This manual

contains important SAFETY WARNINGS and OPERATING INSTRUCTIONS for the Pro Series combination sump pump system. You will need to refer to it before attempting any installation or maintenance. ALWAYS keep these instructions with the unit so that they will be easily accessible.

Failure to read and follow these warnings and instructions could result in property damage, serious injury, or death. It is important to read this manual, even if you did not install the Pro Series combination sump pump system, since this manual contains safety information regarding the use and maintenance of this product. DO NOT DISCARD THIS MANUAL.

ELECTRICAL PRECAUTIONS

DANGER

Risk of electrical shock and fire hazard. May result in death, serious injury, shock or burns. To help reduce these risks, observe the following precautions:

• DO NOT walk on wet areas of the basement

until all power has been turned off. If the main power supply is in a wet basement, call an electrician.

• ALWAYS disconnect the pumps from the power

source before servicing or making adjustments.

• ALWAYS unplug the control units and

disconnect the cables from the battery before attempting any maintenance or cleaning.

• NEVER handle the pump or control unit with

wet hands or when standing on a wet or damp surface while the pump is plugged into the power source.

• MAKE SURE THERE IS A PROPERLY GROUNDED RECEPTACLE AVAILABLE. This pump is wired with a 3-prong grounded plug. To reduce the risk of electric shock, be certain that it is only connected to a properly grounded 3-prong receptacle (preferably with ground fault circuit interrupt). If you have a 2-prong receptacle, have a licensed electrician

replace it with a 3-prong receptacle according to local codes and ordinances.

• NEVER bypass grounding wires or remove the

ground prong from the plug.

• DO NOT use an extension cord. The electrical

outlet should be within the length of the pump's power cord, and at least 4 feet above the floor level to minimize potential hazards from flood conditions.

• DO protect the electrical cord from sharp

objects, hot surfaces, oil and chemicals. Avoid kinking the cord.

• MAKE SURE the supply circuit has a fuse or

circuit breaker rated to handle the power requirements noted on the nameplate of the pump.

CAUTION

To reduce the risk of hazards that can cause injury or property damage, observe the following precautions:

• DO NOT use the power cord or strain relief to

carry the pumps. Use the handle.

• DO NOT pull on the cord to disconnect the

system or the pump. Pull the plug.

• DO NOT expose the control units to rain or

snow.

• DO NOT operate the pumps or control units if

they have been damaged in any way.

• DO NOT use pumps in pits handling raw

sewage, salt water, or hazardous liquids.

• DO NOT disassemble the pumps or control

units. When service is required, contact Glentronics' technical support at 800-9910466, option 3. Return the product to the manufacturer for any repairs at the following address:

Glentronics, Inc.

640 Heathrow Drive, Lincolnshire, IL 60069

BATTERY PREPARATION

WARNING / POISON

Sulfuric acid can cause blindness or severe burns. Avoid contact with skin, eyes or clothing. In the event of accident, flush with

water and call a physician immediately. KEEP OUT OF REACH OF CHILDREN.

To help reduce these risks, observe the following precautions:

• Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery.

•

Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.

• Wear eye and clothing protection and avoid touching your eyes while working with battery acid or working near the battery.

• If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 15 minutes and get medical attention.

• Battery posts and terminals contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

BATTERY PRECAUTIONS

DANGER

Explosive gases could cause serious injury or death. Cigarettes, flames or sparks could cause battery to explode in enclosed spaces. Charge in well-ventilated area. Always shield eyes and face from battery. Keep vent caps tight and level.

To help reduce these risks, observe the following precautions:

• NEVER smoke or allow a spark or flame in the vicinity of the battery.

• Use the Pro Series control unit for charging a LEAD-ACID battery only. DO NOT use the control unit for charging dry-cell batteries that are most commonly used with home appliances.

• Be sure the area around the battery is wellventilated.

• When cleaning or adding water to the battery, first fan the top of the battery with a piece of cardboard or another non-metallic blow away any hydrogen or oxygen gas that may have been emitted from the battery.

material to

• DO NOT drop a metal tool onto the battery. It

might spark or short-circuit the battery and cause an explosion.

• Remove personal metal items such as rings, bracelets, watches, etc. when working with a lead-acid battery. A short circuit through one of these items can melt it causing a severe burn.

• ALWAYS remove the charger from the electrical outlet before connecting or disconnecting the battery cables. Never allow the rings to touch

each other.

• Check the polarity of the battery posts. The POSITIVE (+) battery post usually has a larger diameter than the NEGATIVE (-) post.

POSITIVE POST HAS LARGER DIAMETER

• When connecting the battery cables, first connect the small ring on the end of the WHITE wire to the NEGATIVE (-) post of the battery, and then connect the large ring on end of the BLACK wire to the POSITIVE (+) post of the battery.

POSITIVE

POST

Do not use system to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc.

NEGATIVE POST HAS SMALLER DIAMETER

DANGER

NEGATIVE

POST

Page 1

Introduction

The Pro Series Pair of Pumps combination system is designed to provide both primary and backup pumping capabilities. The primary pump will operate as long as it is receiving AC power. If the power is interrupted, or more water is coming into the sump than the AC pump can handle, the backup sump pump will begin pumping automatically. The backup system has unique monitoring features that diagnose a problem and sound an alarm. A light on the display panel of the control unit will indicate the cause of the alarm and the corrective action. The two systems have been pre-assembled for easy installation.

For added reliability, the float switches have, not one, but two floats. Should one float fail to operate, the second float automatically activates the pump.

The Pair of Pumps Combination Sump Pump System includes:

• A 1/3 HP primary pump with a caged dual float switch, and a blue piggyback controller that plugs into the wall outlet

• A blue backup pump

• A black control unit with a battery fluid sensor, a dual float switch, and battery cables

• A battery charger

• A battery cap with a hole to accommodate the fluid sensor

• A battery box

• A rubber union

• A battery filler bottle for adding distilled water to the battery

You will also need to supply:

• A Pro Series 1000 Standby Battery or a Pro Series 2200 Standby Battery

• A surge protector (recommended)

• Six (6) quarts of 1.265 specific gravity battery acid

DO NOT use an automotive battery with this system

For some installations you may need additional items:

• 1-1/2” rigid PVC pipe to connect to the existing plumbing

• A PVC pipe connector or a rubber union

• PVC pipe cleaner and cement

Battery Box

Controller

Backup

Pump

Backup Pump

Float Switch

Backup

Pump

Fluid Sensor

Battery Wires

Primary

Pump Float

Switch

Primary Pump

Cable Tie

Primary Pump Controller

Battery

Filler

Bottle

Rubber Union

Battery Cap

System Specifications

Power supply requirements .......115 volts, 60 Hz

AC pump pumping capacity...... 2770 GPH @ 10’

............................................. 46 GPM @ 10’

DC pump pumping capacity...... 1000 GPH @ 10’

............................................. 17 GPM @ 10’

Overall dimensions.................. 11” W x 23¾” H

Page 2

Installing the Pipe and Pump

233/4”

CUT

PVC TO

THIS

LENGTH

The Pro Series Pair of Pumps combination system is compact and will fit in a sump pit as small as 12” wide. It measures 23¾” inches from the bottom of the pump stand to the top of the Yconnector where it will be attached to the discharge pipe.

Use a pit that conforms to all local codes, and check the code to see if a gate valve or ball valve if is required.

The discharge pipe must be positioned in a downward slope when it exits the building, so any remaining water will drain away. Failure to do this will prevent water from exiting the pit, and damage the pump if the line freezes.

The system should be placed on a flat surface free from dirt and debris. If the bottom of the sump pit is not clean, remove as much of the debris as possible. The pumps are attached to a sump foot (stand) to raise them above any debris.

Diagram A

233/4“

If you are replacing an old sump pump, unplug

the pump from the outlet.

1. Remove the check valve or rubber union. Discard the check valve. The Pro Series system contains built-in check valves, so the old check valve will not be needed. If the existing system is installed without a check valve or rubber union, saw the pipe apart above the sump pit. (Refer to the diagram in step 3)

2. Remove the old pump from the pit, and unscrew the pipe and pipe adapter from the pump. You can use this pipe for the rest of the installation.

3. Measure the distance from the bottom of the sump pit to the end of the discharge pipe. Subtract 24¾” inches (the height of the pump system + 1 inch). Cut a piece of 1-1/2” rigid PVC pipe to that length.

4. (a) Connect this piece to the discharge pipe by cementing the two pieces together with a 1-1/2” PVC pipe connector. (Follow the instructions on the PVC pipe cleaner and cement.) OR

, (b) connect the two pieces of

pipe together with a rubber union.

5. Remove the attached cords and controllers from the carton and place them next to the pump system. BE SURE THE CORDS AND CONTROLLERS DO NOT FALL INTO THE SUMP PIT.

6. Loosen the hose clamps on the enclosed rubber union, and slide the union up on the discharge pipe until it is even with the bottom of the pipe.

7. Lift the combination system by the handle on the primary pump and lower it into the sump pit. Make sure it is level.

8. Inspect the two float switches. They should both be vertical.

9. Position the top of the pump system pipe so that it is directly below the discharge pipe. Slide the rubber union down until ½ of the rubber union is covering the pump pipe, and the other half is covering the bottom of the discharge pipe. Tighten the hose clamp screws securely.

4a3

LIFT

8 9

Page 3

Battery Instructions

2nd LEVEL

1st LEVEL

LATES

CELL WALL

BATTERY TERMINALS

BATTERY CAP RINGS

CROSS SECTION OF BATTERY

The Pro Series 1000 Standby Battery has been designed to run this system for a minimum of 6 hours continuously. However, most of the time the pump will turn on and off, and the battery will run the pump intermittently for days. In addition, the unique materials in the battery enable it to last for 5-7 years in standby service.

To extend the run time of the pump, use the Pro Series 2200 Standby Battery. This larger battery will run this pump continuously for 12 hours.

CAUTION

• The use of automotive batteries is NOT recommended. Automotive batteries are not designed for this application. They will only run the pump for a short time and will have a shorter life than a standby battery.

• The battery fluid sensor is designed to fit the Pro Series Standby batteries. Measuring the battery fluid is one of the most important features of the system, since about 80% of backup sump pump failures are the result of a battery that has dried out.

• The internal construction of some wet cell batteries may not be compatible with this system. The use of a Pro Series battery is HIGHLY recommended.

DANGER

Do not insert the fluid sensor into any battery except a Pro Series Standby Battery. Do not drill a hole in another brand of battery to accommodate the fluid sensor. Batteries emit explosive gases which can cause serious injury or death.

PREPARING THE PRO SERIES STANDBY BATTERY

The Pro Series Standby batteries are shipped dry (without acid) so they never lose power before you take them home. A battery is activated when the acid is added, and then it slowly begins to deteriorate as it ages. By adding the acid just before use, the battery will always be fresh. Use 1.265 specific gravity battery acid to fill the battery. It is available where you purchased the battery.

NOTE: Pro Series batteries now come in two configurations. The tops of the batteries look different, and the directions for filling the batteries and connecting the fluid sensor will vary slightly. Instructions for both batteries follow. If the top of your battery looks like the photo of BATTERY A, follow the instructions on this page. If the top of your battery looks like the photo of BATTERY B, follow the instructions on page 5.

DANGER/POISON

Contains sulfuric acid. Wear eye and clothing protection. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eyes, flush with water for 15 minutes, and get prompt medical attention. Review the safety instructions on page 1.

TO FILL THE BATTERY

1. Place the battery box on the floor. Place the dry (unfilled) battery into the battery box.

2. Remove the foil seal on the top of the battery.

3. Carefully push in the perforated tab at the top of the acid pack. Lift up the large tab and pull out the dispensing hose. Hold the hose upright above the pack and squeeze the hose forcing all the acid back into the pack.

BATTERY A

DO NOT throw an old battery in the trash. Take it to a service station or recycling center.

4. Position the acid pack and battery as shown below. Pinch the end of the hose together and cut off the tip. Insert the end of the hose into each cell. Control the flow by pinching the hose with thumb and forefinger. Fill each

cell of the battery to a level just covering

Diagram B

1. Fill to 1st level, cover the plates

2. Then fill to 2nd level, just below the bottom of the cap rings

the battery plates, and then go back and top off each cell equally. It is important to have all the cells filled equally battery will not operate properly. The acid

should reach a level about ¼” below the cap ring as shown in the diagram above. DO NOT OVERFILL THE BATTERY. (Diagram B)

A newly filled battery will sometimes require additional acid after about 20 minutes. Reexamine the fill level, and add additional acid if necessary. The battery acid may bubble at this time and give off a sulfur-like smell, but this is normal. After the battery has been filled, screw the caps securely on the top of the battery.

CAUTION

When you fill the battery for the FIRST time, it will be the ONLY time you add acid to the battery. In the future, when the fluid level is low, add distilled water to the cells. NEVER add more acid.

or the

Page 4

BATTERY B

If your battery looks like the battery above, follow these directions.

1. Place the battery box on the floor. Place the dry (unfilled) battery into the battery box.

2. Remove the two battery caps by lifting them up with a screwdriver. DO NOT lift the cap by prying it up from the groove on the back of the cap. It may damage the vent.

4. Position the acid pack and battery as shown at the right. Pinch the end of the hose together and cut off the tip. Insert the end of the hose into each cell. Control the flow

by pinching the hose with thumb and forefinger. Fill each cell of the battery to a

level just covering the battery plates, and then go back and top off each cell equally. It is important to have all the cells filled equally or the battery will not operate properly. The acid should reach a level about

¼” below the cap ring as shown in Diagram B on the previous page. DO NOT OVERFILL THE BATTERY.

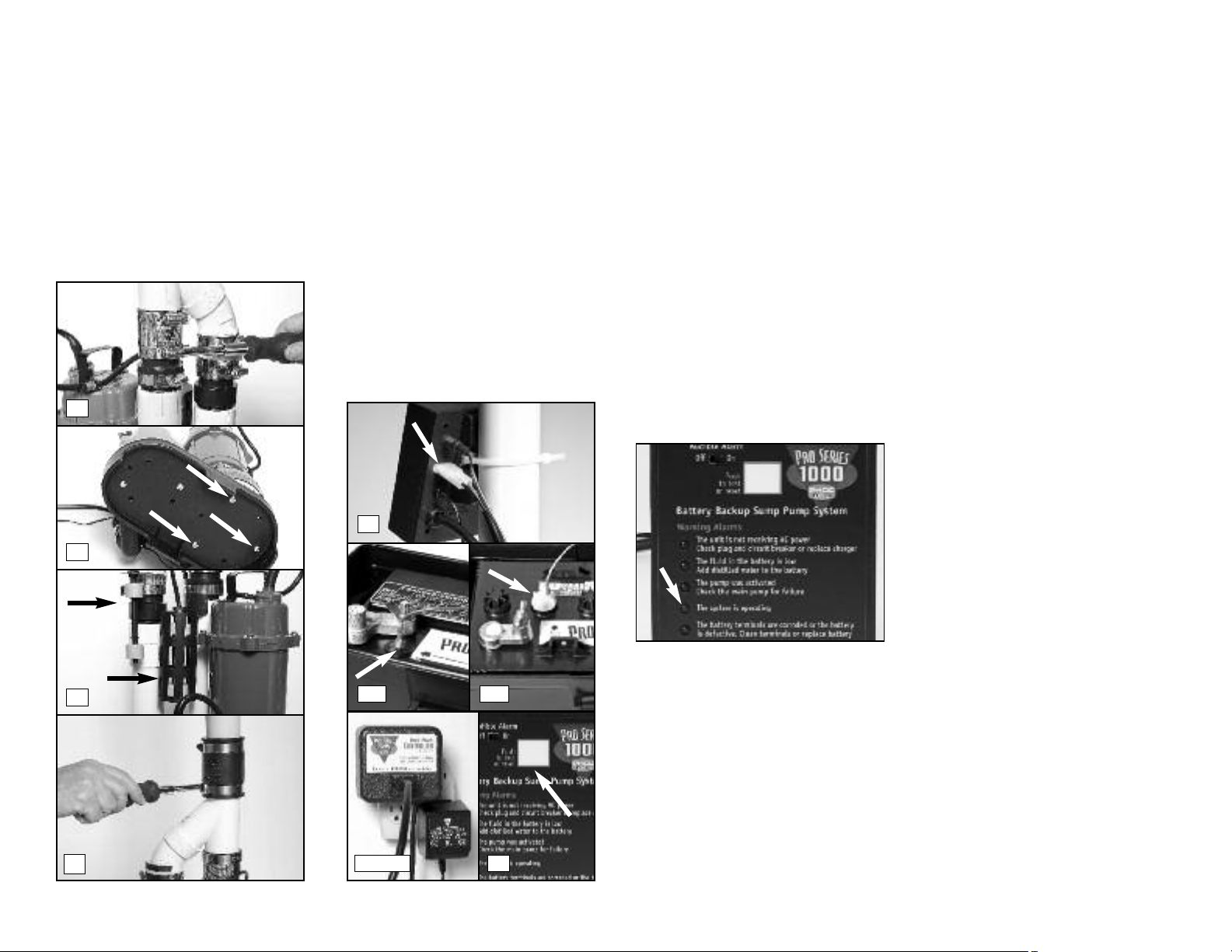

System Connections

DANGER

Risk of electrical shock or battery explosion, which can cause serious injury or death. Wear eye protection. Work in a well-ventilated area. Do not smoke or allow a spark or flame in the vicinity of the battery. Avoid dropping metal tools on the battery. If battery acid contacts eyes, flush with water for 15 minutes. Review the safety instructions on page 1.

When you position the control unit on the discharge pipe, be sure the charger cord will reach the AC power outlet, and the pump cable and the float switch will reach the bottom of the sump. Position the unit in a well-ventilated area. Do not place anything on top of the battery. (Diagram C, page 6)

1. Mounting the control unit: (a) Thread one

plastic wire tie through the two mounting brackets on the back of the control unit. (b) Secure the controller to the discharge pipe of the Pro Series pumps by wrapping the tie around the pipe and pulling it tight.

2. Connecting the backup pump: Remove the

security tag from the pump and plug the pump wires into the pump connector on the back of the control unit.

3. Installing the battery fluid sensor: Remove

the cover of the battery box by pushing in the tabs on the front and back, then lifting up. Fan the area around the top of the battery with a piece of cardboard (or another nonmetallic material) to remove any hydrogen or oxygen gas that may have been emitted from the battery.

4. If you are using BATTERY A, replace the battery cap that is 2nd from the POSITIVE (+) post with the battery cap that is provided in the Pro Series package. An arrow on the top of the battery marks this position. There are two holes in the battery cap. Insert the fluid sensor in the hole that is off-center on the top of the cap. Do not glue the sensor into the cap.

5. If you have BATTERY B, a hole has been molded into the top of the battery to accept the fluid sensor rod. The sensor hole is marked by the label on top of the battery. Hold the sensor straight and press it firmly

Page 5

CAUTION

When you fill the battery for the FIRST time, it will be the ONLY time you add acid to the battery. In the future, when the fluid level is low, add distilled water to the cells. NEVER add more acid.

into the hole all the way up to the connector. Do not bend the sensor rod.

CAUTION

6. If you are not using the Pro Series Standby battery, you cannot use the battery fluid sensor. However, you must attach the sensor to the POSITIVE (+) post of the battery or the alarm will sound continuously. The Pro Series sump pump system will not warn you if the fluid level is low in this configuration. You will need to check your battery every couple of months to see if it needs water. If the battery dries out, the system will not work.

7. Connecting the battery: Remove the wing nuts from the battery terminals. Remove the security tag from the battery cables. Attach the battery cables to the battery…the WHITE

wire to the NEGATIVE (-) post, and the BLACK wire to the POSITIVE (+) post. Replace the wing nuts and tighten them.

8. Connecting the charger: Immediately plug

the charger into the charger hole on the back of the control unit, then into an AC outlet on the wall. (You should provide additional protection for the control unit by using a surge protector.)

9. If any of the alarms are sounding, press the WHITE button on the front of the control panel to silence them.

10. Secure the cover on the battery box by

slipping the tabs through the fittings on the front and back of the box.

11. Connecting the primary pump: Plug the

blue piggyback controller into a properly grounded 3-prong outlet (preferably with

ground fault circuit interrupt). Then plug the primary pump into the receptacle on the controller.

12. For a neater installation, secure the cables from the controllers to the discharge pipe in a couple places with additional cable ties. Make sure the wires are not touching each other or overlapping each other.

13. After the initial installation, be sure to check the pump operation by filling the sump with water and observing the pump through one full cycle. The primary pump should run for 10 seconds after the lower float drops.

14. A pit cover is recommended for all installations as a safety measure, and to prevent debris from falling into the pit. Place the cover on top of the pit making sure not to pinch or crimp the pump wires with the cover. The pit cover usually has an existing hole that will allow the cords to be passed through it, or you can drill a hole in the cover.

Diagram C

Product Operation

The dual float switch on the primary pump contains two large floating rings enclosed within a protective cage. Water will lift the bottom float by ¼”, which will activate the pump. If for any reason the lower float does not activate the pump, the water will rise to the second float, and it will activate the pump. As the pump evacuates the water from the pit, the floats will drop. The pump will run for an additional 10 seconds to extend the cycle after the lower float drops. The blue controller for the primary pump powers this switch.

During a power outage, or if more water is entering the sump than the primary pump can handle, the backup pump will automatically begin pumping. It also has a dual float switch, so if one float fails to activate the pump, the second float will activate the pump as soon as the water reaches that level. As the water recedes below the float switch, a timer in the control unit will run the pump an additional 25 seconds to empty the pit.

While the pumps are active, water will come out of the 1/8” hole that is drilled in the pipe above the pump. This is normal. The hole is needed to prevent an air lock within the system. Do not obstruct this hole or an air lock may prevent the pump from activating, and the basement will flood.

POSITIVE

POST

NEGATIVE

POST

11 12

Batteries and sump pumps need maintenance. The control unit on the backup system monitors the battery and power conditions, and sounds an alarm when maintenance is required. Following is an explanation of the warnings and alarms.

Page 6

Understanding the Warnings & Alarms

The Pro Series backup pump control unit features a series of warning lights that pinpoint potential problems. In addition, an alarm sounds to alert you to the problem. In some cases the lights and alarm will go off automatically when the problem has been solved. In others, the WHITE button on the front of the control unit must be pushed to silence the alarm. Refer to the table below for a quick review of the features and their corresponding alarm status.

Alarm can be Alarm shuts off

silenced before automatically

Warning corrected is corrected

Power problem

Fluid level is low

Pump was activated WHITE button

System is operating

Battery problem

problem is when problem

Yes Yes

No Yes

Yes

No alarm No alarm

No Yes

No, push the

1 2 3 4 5

SILENCING THE ALARM DURING AN EMERGENCY

The Pro Series backup pump control unit is equipped with a switch that will silence the audible alarm during an extended emergency. The “AC power” be silenced during a power outage or during heavy rains when the pump is activated repeatedly.

To silence both the “AC power” and “Pump” alarms, slide the “Audible Alarm” switch to OFF. The “AC power” and/or the “Pump” light will remain on, but the audible alarm will not sound.

When the emergency has ended, slide the switch to the ON position to resume the full monitoring capability, or you will not be warned the next time an emergency occurs.

The “Fluid level” alarms cannot be silenced. Both require immediate attention.

The unit is not receiving AC power

There are several causes for power failure. The most common is a power outage by your electric company. During this emergency, the Pro Series system will automatically switch to battery power and protect your basement from flooding.

You can silence the “AC power” alarm by sliding the ”Audible Alarm” switch to OFF. The alarm will be silenced, but the light will stay on. The system will continue to operate while the power alarm is silenced. Be sure to slide the switch

to the ON position when the power is restored to resume full monitoring capability.

1. If the power is on in the rest of the house, check the home circuit breaker or fuse box for failure, and correct the problem.

2. Check the charger. Make sure it is securely plugged into the wall outlet. Make sure the outlet is working.

3. Check the charger plug that fits into the rear panel of the control unit. Make sure it is securely plugged into the control unit.

The control unit must receive 115 volts AC +/5% from the AC outlet. Any voltage lower than

and “Pump”3alarms can

‚ and “Battery problem”

110 volts will activate the “AC power” alarm. Lower voltages can be caused by utility company brown outs or a heavy power draw from other appliances on the same circuit. Reduce the number of appliances on the circuit.

If all the connections are secure and the wall outlet is operating, but the “AC power” warning light is still on, replace the charger unit with the Pro Series part number 1015003. Contact Glentronics at 800-991-0466, option #3 for parts.

The fluid in the battery is low

REFER TO THE PHOTOS AT RIGHT

If this warning light and alarm are on, you need to add distilled water to the battery. (This alarm cannot be silenced. When the battery is refilled and the sensor is replaced, the alarm will go off automatically.)

DANGER

REFILLING THE BATTERY

1. Unplug the primary pump, and its blue piggyback controller from the wall outlet.

Unplug the charger for the backup pump control unit, too.

2. Remove the cover of the battery box by pushing in the tabs on the front and back, then lifting up.

3. Fan the area around the top of the battery with a piece of cardboard (or another nonmetallic material) to remove any hydrogen or oxygen gas that may have been emitted from the battery.

4. Remove the fluid sensor from the top of the battery, and then unscrew the wing nuts and remove the battery cables from the battery.

Remove

Page 7

5. Pry up the two battery caps, or unscrew the six battery caps depending on the configuration of your battery. Add distilled water to the battery filler bottle and replace the nozzle. Place the nozzle of the battery filler into each cell of the battery and press down. It will fill the battery cell to the correct level and stop automatically. If distilled water is not available, tap water with a low mineral content may be used. Well water is not

MORE ACID.

6. Replace the battery caps. Replace the fluid sensor in the hole on the top of the battery, or in the cap 2nd from the POSITIVE (+) post, depending on the configuration of your battery.

recommended. NEVER ADD

7. Replace the battery cables…the WHITE wire to the NEGATIVE (-) post, and the BLACK wire to the POSITIVE (+) post. Replace the wing nuts and tighten.

8. Replace the cover on the battery box.

9. Plug the primary pump into the blue piggyback controller, and plug both into the wall outlet. (You should provide additional protection for the control unit by using a surge protector.)

The pump was activated

When the water rises in the sump pit and activates the float switch, the pump will begin pumping, and the “Pump was activated” light and alarm will turn on. The alarm stays on to alert you to the fact that the standby system was used to empty water from the sump. Try to determine what caused the system to activate.

• Check the main AC pump for failure. It may

not be working, the float switch may be stuck, or it may be too small to handle the inflow of water.

• Make sure the discharge pipe is not clogged or

frozen.

• If the power was out, the backup pump was

automatically activated. You need to push the WHITE button on the front of the control panel to reset the alarm.

During a power outage or times when the pump is activated repeatedly, you can temporarily silence the alarm by sliding the “Audible Alarm” switch to OFF. When the primary pump has

resumed normal operation, and the backup pump is no longer activating repeatedly, slide the switch to the ON position to resume the full monitoring capability. The alarm and

pump light will still be on. Push the WHITE button on the front of the control panel to silence the alarm.

REPLACING THE BACKUP PUMP

Before you begin this process, you will need a new backup pump. You may also want to change the check valves at this time. The check valves have a 1½” MPT on one end, and a 1½” SLIP on the other end. See page 15 for part numbers. You will also need two (2) new wire ties.

DANGER

1. Unplug the primary pump, and its blue piggyback controller from the wall outlet. Unplug the charger for the backup pump control unit, too.

2. Unplug the backup pump from the back of the black control unit.

3. Remove the cover of the battery box and fan the area around the top of the battery with a piece of cardboard (or another non-metallic material) to remove any hydrogen or oxygen gas that may have been emitted from the battery

4. Remove the sensor from the battery, and remove the battery wires from the battery terminals. Be sure they do not touch each other while one is connected to the battery.

YOU WILL BE DISCONNECTING ALL THE WIRES. BE SURE THEY DO NOT FALL INTO

THE SUMP PIT.

Remove

Page 8

5. Slowly loosen the rubber union on the top of the combination pump assembly to separate the pipes. The water trapped in the pipe will pour out into the sump as the rubber union is loosened.

6. Separate the pump assembly from the rubber union and lift it out of the sump pit by the handle on the primary pump. Tip the assembly over the sump pit to drain away any remaining water.

7. Lay the pumps down and remove the two (2) screws holding the backup pump to the sump foot.

8. (a) Squeeze the clamps on the elbow of the backup pump with a wrench to loosen them. (b) Then squeeze the clamps together with your fingers and pull the pump off of the elbow.

9. Remove the elbow from the new pump. You will not need it. Squeeze the clamps on the pump elbow and insert the elbow into the new pump.

10. Screw the base of the new backup pump into

the sump foot.

11. (OPTIONAL) While you have the pump out of

the sump pit, this would be a good time to replace the check valves. A check valve with 1½”MPT on one end, and 1½” SLIP on the other is commonly available, or you may order this part #1141001 from Glentronics. (a) You will need to loosen the screws on the no-hub connectors on both pipes. (b) Remove the float switches. Then ease off the Y-assembly. (c) The check valves can

then be unscrewed from the pipes and new valves can be screwed into the pipes. (d) Replace the Y-assembly and tighten the screws on the no-hub connectors. (e) Replace the float switches making sure they are vertical with the float for the primary pump lower than the float for the backup pump. You will need to secure them with a wire tie.

12. Lower the pumps into the sump pit by the handle on the primary pump.

13. Ease the Y-assembly back into the rubber union on the discharge pipe and tighten the hose clamps.

14. Connect the backup pump to the back of the black control unit.

15. Insert the fluid sensor into the top of the battery, or into the battery cap, depending

on which battery you own.

16. Connect the battery wires to the battery terminals, WHITE to the NEGATIVE (-) post, and BLACK to the POSITIVE (+) post.

17. Plug the charger from the black control unit into the outlet. (You should provide added protection for the control unit by using a surge protector.)

18. Plug the primary pump into the blue piggyback controller, and plug both into the wall outlet.

19. If any of the alarms are sounding, press the WHITE button for 1 second.

20. Fill the sump with water to make sure the primary pump is working. When the pumping cycle is finished, lift the float switch on the backup pump to make sure it activates the backup pump.

Page 9

11a

11b

11c

11e

1917 & 18

REPLACING THE PRIMARY PUMP

Before you begin this process, you will need a new primary pump. You may also want to change the check valves at this time. The check valves have a 1½” MPT on one end, and a 1½” SLIP on the other end. See page 15 for part numbers. You will also need two (2) new wire ties.

DANGER

cardboard (or another non-metallic to remove any hydrogen or oxygen gas that may have been emitted from the battery.

4. Remove the sensor from the battery; remove the battery wires from the battery terminals. Be sure they do not touch each other while one is connected to the battery.

5. Slowly

6. Lift the pump assembly out of the pit by the

loosen the rubber union on the top of the combination pump assembly to separate the pipes. The water trapped in the pipe will pour out into the sump as the rubber union is loosened.

handle on the primary pump. Tip the assembly over the sump pit to drain any

material)

remaining water.

7. Unscrew the no-hub connector on the pipe connected to the primary pump.

8. Lay the pumps down and remove the three (3) screws holding the primary pump to the sump foot. Save these screws or replace them with #14 x ¾” self-tapping stainless steel screws.

9. Ease the pump out of the no-hub connector.

10. Loosen the hose clamp holding the float

switch, cut the wire tie holding the switch, and remove the switch from the pipe. Note its position.

11. Unscrew the pipe and the adapter from the

primary pump, and screw it on to the new pump.

12. (OPTIONAL) While you have the pump apart, this would be a good time to replace the check valves. A check valve with 1½”MPT on one end, and 1½” SLIP on the other is commonly available, or you may order this part #1141001 from Glentronics. (a) Unscrew the check valve on the primary pump and screw in a new one. (b) To replace the other check valve, remove the other nohub connector and the float switch and ease the Y-assembly off of the pipe. Unscrew the old check valve and screw in the new valve.

YOU WILL BE DISCONNECTING ALL THE WIRES. BE SURE THEY DO NOT FALL INTO THE SUMP PIT.

1. Unplug the primary pump, and its blue piggyback controller from the wall outlet. Unplug the charger for the backup pump control unit, too.

2. Unplug the backup pump from the back of the black control unit.

3. Remove the cover of the battery box and fan the area around the top of the battery with a piece of

Remove

12a

12b

Page 10

13. Reconnect the pipes to the Y-assembly and

line up the pipe on the primary pump parallel to the pipe on the backup pump. Tighten the no-hub connectors.

14. The strainers on the pumps may vary slightly.

If the new strainer does not line up with the holes on the sump foot, drill three holes through the foot into the strainer in the same positions where the screws were before. Use a #4 or a 3/16” drill bit. Screw the sump foot on to the pump with #14 x ¾” self tapping stainless steel screws.

15. Replace the float switches making sure they are vertical with the float for the primary pump lower than the float for the backup pump. You will need to secure them with a wire tie.

16. Lower the pump back into the pit by the handle of the primary pump.

17. Connect the top of the system to the rubber union and tighten the hose clamp.

18. Connect the backup pump to the back of the black control unit.

19. Insert the fluid sensor into the top of the battery, or into the battery cap, depending on which battery you own.

20. Connect the battery wires to the battery terminals, WHITE to the NEGATIVE (-) post, and BLACK to the POSITIVE (+) post.

19a 19b

2321 & 22

21. Plug the charger from the black control unit into the outlet. (You should provide added protection for the control unit by using a surge protector.)

22. Plug the primary pump into the blue piggyback controller, and plug both into the wall outlet.

23. If any of the alarms are sounding, press the WHITE button for 1 second.

24. Fill the sump with water to make sure the primary pump is working. When the pumping cycle is finished, lift the float switch on the backup pump to make sure it activates the backup pump.

The system is operating

This green light should always be flashing. It will flash when there is power coming from either the battery or the AC outlet.

The battery terminals are corroded or the battery is defective

This light and alarm will come on when the control unit detects there is less than ½ hour of pumping power left in the battery, or that the battery is defective. The alarm cannot be silenced, because action needs to be taken to protect your basement. If your battery is more than five (5) years old, replace it. If not, here are several situations that would cause the pump to run the battery for an extended time and

discharge the battery: Check the list below before you replace the battery.

• If the top light on the controller is also on, it means that the unit is not receiving AC power. Either the AC power is out, the circuit breaker has blown, or the outlet is bad. When the problem is corrected, the battery should recharge.

• If the third light on the controller is also on, check your main pump for failure. The backup pump may have been activated repeatedly if your main AC pump is broken or you are experiencing heavy rains and your main pump cannot keep up with the inflow of water. You may need to upgrade or replace your main pump. When the problem is corrected, the battery should recharge.

• If no other lights are on, this means the terminals may be corroded, and the battery cannot charge properly. Unplug the charger from the wall outlet. Then, check the battery cables and the battery terminals for corrosion. Clean and tighten them as needed. The procedure is described on page 12.

If the battery terminals have been cleaned and the light is still on, there could be a problem with the controller or the battery. The best way to determine if the battery is the problem is to have it charged and load tested at any local car service station. If the battery is bad and less than one (1) year old, it can be returned to the place of purchase for a replacement (receipt required). If the battery is good, contact Glentronics’ service department for further instructions. The phone number is 800-9910466, option #3.

If the battery alarm goes on while the pump is running and the power is out, you will have a minimum of one-half (1/2) hour of continuous pumping time to replace the battery. (In most cases, the pump does not run continuously, and therefore, you actually have a longer time to replace it.) You will not be able to silence the alarm. Left unattended, the basement will flood. In a severe emergency, if a replacement battery is not available, you could temporarily use your car battery, or recharge this battery by

Page 11

connecting it to your car battery. Once the AC power is restored, the battery will recharge automatically, unless it is old or damaged. The alarm will turn off when the AC power is restored and the pumping energy reaches one-half (½) hour or more.

In the event that your Pro Series sump pump system has pumped for an extended period of time, the battery may be very depleted. In this condition, when the AC power is returned to the unit, a battery alarm will continue to sound. The battery may need a longer period to recharge.

For a faster recharge, an automotive or marine battery charger can be used to recharge the battery. Follow the manufacturer’s instructions and safety information included with the charger.

WARNING

When another charger is used, first disconnect the Pro Series charger from the control unit, and then disconnect the control unit from the battery. Using another charger

without disconnecting the control unit will destroy the control unit and void the warranty.

TO CLEAN THE BATTERY TERMINALS AND CABLES

DANGER

2. Remove the cover of the battery box by pushing in the tabs on the front and back, then lifting up.

3. Fan the area around the top of the battery with a piece of cardboard (or another nonmetallic material) to remove any hydrogen or oxygen gas that may have been emitted from the battery.

4. Remove the fluid sensor from the top of the battery. Unscrew the wing nuts. Remove the battery cables.

5. Clean the battery posts with a battery terminal cleaner or a wire brush.

6. Clean any corrosion off of the ring connectors on the ends of the battery wires. Use a stiff brush

or sandpaper. DO NOT apply corrosion resisting sprays or pads to the terminal rings or posts after you have cleaned them, since this could prevent the system from charging properly.

7. Replace the fluid sensor in the top of the battery. Then replace the battery cables, WHITE to the NEGATIVE (-) post and BLACK to the POSITIVE (+) post. Tighten the wing nuts.

8. Plug the primary pump into the blue

piggyback controller, and plug both into the wall outlet. Plug the charger into an outlet, too. (You should provide additional protection for the control unit by using a surge protector.)

9. If any of the alarms are sounding, press the WHITE button on the front of the control panel for one (1) second.

REPLACING THE BATTERY

DANGER

REFER TO THE PHOTOS BELOW AND ON PAGE 13

1. Unplug the primary pump, and its blue piggyback controller from the wall outlet. Unplug the charger for the backup pump control unit, too.

2. Remove the cover of the battery box by pushing in the tabs on the front and back, then lifting up.

REFER TO THE PHOTOS AT RIGHT

1. Unplug the primary pump, and its blue piggyback controller from the wall outlet. Unplug the charger for the backup pump control unit, too.

Remove

8 9

Page 12

3. Fan the area around the top of the battery with a piece of cardboard (or another nonmetallic material) to remove any hydrogen or oxygen gas that may have been emitted from the battery.

4. Remove the fluid sensor from the top of the battery. Unscrew the wing nuts and remove the battery cables.

5. Remove the old battery from the battery box and place the new battery in the box. Fill the battery following the instructions on page 4 or 5.

6. Clean any corrosion off of the ring connectors

on the ends of the battery wires. Use a stiff brush or sandpaper. DO NOT apply corrosion resisting sprays or pads to the terminal rings or posts after you have cleaned them, since this could prevent the battery from charging properly.

7. Replace the battery cables, WHITE to the NEGATIVE (-) post and BLACK to the POSITIVE (+) post. Tighten the wing nuts.

8. Insert the fluid sensor in the top of the battery, or in the cap 2nd from the POSITIVE (+) post, depending on the configuration of your battery.

9. Plug the primary pump into the blue piggyback controller, and plug both into the wall outlet. Plug the charger into an outlet, too. (You should provide additional protection for the control unit by using a surge protector.)

10. If any of the alarms are sounding, press the WHITE button on the front of the control panel for one (1) second.

Test/reset button

The TEST button may be used to check the backup pump and system. Push the TEST button. This will activate the pump for as long as you hold the button. It will stop as soon as you let go of the button.

If the “Pump was activated” alarm is sounding, press the button for one (1) second to reset the alarm.

TESTING THE FLOAT SWITCH FOR THE BACKUP PUMP

WHITE button on the front of the control unit to completely silence the alarm.

BE SURE TO PLUG IN THE MAIN AC PUMP WHEN YOU HAVE COMPLETED THE TEST.

Remove

8a 8b

109

It is important to manually test the float switches periodically.

DANGER

Unplug the main AC pump when installing or servicing the backup pump to avoid electric shock. Failure to do so could cause serious injury or death. Review the safety instructions on page 1.

Lift the float up and let go. This will activate the pump. The control unit will run the pump for approximately 25 seconds so it can empty all the water in the sump pit. If there is no water in the pit, the pump can run dry for this amount of time. The alarm will sound and the “Pump was activated” light will go on. After the pump has stopped, push the WHITE button to silence the alarm. If the WHITE button is pressed before the pump has stopped, the alarm will go off temporarily. Wait for the pump to stop pumping, and then push the

Lift

Float

TESTING THE FLOAT SWITCH FOR THE PRIMARY PUMP

Lift the float up with a pencil, or another nonmetallic item, and let it go to activate the pump. The pump will run an additional 10 seconds after the float returns to the original position. It will not damage the pump to run it for this short time if the sump pit is dry. However, do not hold the float up for an extended time without water in the sump pit.

Lift

Float

While the pumps are active, water will come out of the 1/8” hole that is drilled in the pipe above the pump. This is normal. The hole is needed to prevent an air lock within the system. Do not

Page 13

obstruct this hole or an air lock may prevent the pump from activating, and the basement will flood.

MAINTENANCE CHECK LIST

Maintenance should be performed 1-2 times per year

1. Lift the float switches on both pumps as described above.

2. Remove all debris from the bottom of the pit.

3. Remove all debris floating in the water.

4. Remove all debris from the float switch cage.

5. Fill the pit with water. Make sure the pumps turn on at the intended levels.

6. While the pump is running, make sure the pump is evacuating water at a good pace.

PARTS & SERVICE INFORMATION

You can receive technical support, parts, or service information by calling Glentronics, Inc. at 800-991-0466, option #3, or by visiting the Pro Series website at www.stopflooding.com. Send your unit to the following address if repairs are needed:

Glentronics, Inc.

640 Heathrow Drive

Lincolnshire, IL 60069-4205

Page 14

Replacement Parts List

PS -C22 Description Part No.

Controller for backup pump PHCC-1000-CON1

Dual float switch with controller for AC pump DFC1

1/3 HP AC sump pump ST1033-GL

PHCC 1000 backup pump 1011009

Battery box 1113003

PVC “Y” fitting 1120007

Battery cap with hole 1125000

Sump foot 1143000

Battery fill bottle BF

Stainless steel screw, #14 x 3/4” * 1100024

45º PVC pipe fitting, 1-1/2” * 1200008

Pipe adapter for backup pump, 1-1/2” FTP x 1-1/2” slip * 1120009

Wire tie for float switch, 11” * 1122000

Stainless steel hose clamp, 2-1/2” diameter * 1122002

Check valve, 1-1/2” MPT x 1-1/2” SLIP * 1141001

No-hub coupling, 1-1/2” * 1142000

BOTTOM VIEW

*Stock items available in plumbing department

Call 800-991-0466, option 3 to order parts.

Page 15

SIDE VIEW

Primary Pump Troubleshooting Guide

DANGER

Read safety warnings & instructions before attempting any repairs or maintenance.

Backup Pump Troubleshooting Guide

DANGER

Read safety warnings & instructions before attempting any repairs or maintenance.

Potential Cause THE PUMP WILL NOT START OR RUN Solutions

Pump is not plugged in . . . . . . . . . . . . . . . . . . . .

No AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Poor power source . . . . . . . . . . . . . . . . . . . . . . . .

Locked impeller . . . . . . . . . . . . . . . . . . . . . . . . .

Defective float switch . . . . . . . . . . . . . . . . . . . . .

Defective pump . . . . . . . . . . . . . . . . . . . . . . . . .

Plug pump in properly (see instructions) Check circuit breaker or fuse, and GFI reset button Check circuit line wires, cable and outlet Remove strainer and clear obstruction Replace float switch with new float switch Replace pump with new pump

Potential Cause THERMAL PROTECTOR TRIPPING OR NOT FUNCTIONING Solutions

Locked impeller . . . . . . . . . . . . . . . . . . . . . . . . .

Incorrect power supply . . . . . . . . . . . . . . . . . . . .

Pump running continuously with no water present . .

Remove strainer and clear obstruction Check power supply source and voltage Check float switch

Potential Cause PUMP STARTS AND STOPS TOO FREQUENTLY Solutions

Float switches mounted too low . . . . . . . . . . . . . .

Water back flowing from pipe . . . . . . . . . . . . . . . .

Malfunctioning float switch . . . . . . . . . . . . . . . . .

Raise both float switches Install or replace check valve Replace float switch with new float switch

Potential Cause PUMP WILL NOT SHUT OFF Solutions

Clogged or frozen discharge . . . . . . . . . . . . . . . . .

Blocked intake strainer . . . . . . . . . . . . . . . . . . . .

One or both of the floats is obstructed and cannot

drop down . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Defective float switch . . . . . . . . . . . . . . . . . . . . .

Check valve is stuck . . . . . . . . . . . . . . . . . . . . . .

Clear blockage or thaw frozen line Clear debris from intake strainer

Clear debris from inside the float cage (Loosen nut on top of float, then remove c-clip on bottom of float. Remove debris. Tighten nut on top of float, then replace c-clip on bottom of float.) When reassembling the float, the magnetic strip on the inside of the float should be facing down. Replace float switch with new float switch Replace check valve.

Potential Cause INSUFFICIENT OR NO WATER VOLUME Solutions

Check valve on secondary pump will not close and

water re-circulates within the system . . . . . . . . . . .

Partially blocked impeller . . . . . . . . . . . . . . . . . . .

Clogged or frozen discharge pipe . . . . . . . . . . . . . .

Broken or leaking pipe . . . . . . . . . . . . . . . . . . . . .

Low power voltage . . . . . . . . . . . . . . . . . . . . . . .

Check valve is stuck . . . . . . . . . . . . . . . . . . . . . .

Replace the check valve on the secondary pump Remove strainer and clear obstruction Clear blockage or thaw frozen line Repair pipe Check power voltage, wires and cable condition Replace check valve.

Potential Cause ABNORMAL SOUND OR VIBRATION Solutions

Check valve is broken . . . . . . . . . . . . . . . . . . . . .

Blocked intake screen . . . . . . . . . . . . . . . . . . . . .

Defective pump . . . . . . . . . . . . . . . . . . . . . . . . .

Replace the check valve Clear debris from intake screen Replace pump

Potential Cause BATTERY FLUID LOW Solutions

The battery fluid is low . . . . . . . . . . . . . . . . . . . . . .

The fluid sensor is installed improperly . . . . . . . . . . .

Not using a Pro Series battery . . . . . . . . . . . . . . . . .

Add distilled water to each cell of the battery The fluid sensor should be inserted into the designated hole on the top of the battery and pushed down This feature cannot be used. Attach the fluid sensor to the positive post of the battery

Potential Cause BATTERY PROBLEM Solutions

Terminals are corroded . . . . . . . . . . . . . . . . . . . . . .

Cables are loose . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery is discharged below 25% . . . . . . . . . . . . . . .

Battery is old or damaged . . . . . . . . . . . . . . . . . . . .

Clean terminals and cables Tighten wing nuts Replace battery if power is out. There is only 1 hour of continuous pumping power left. Battery will recharge when power is restored Replace battery

Potential Cause POWER FAILURE Solutions

Power outage . . . . . . . . . . . . . . . . . . . . . . . . . . . .

An outlet, fuse, or circuit breaker has failed . . . . . . .

The charger is unplugged from the wall or the back of

the controller . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The control unit is receiving less than 110 volts from

the outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

None. The backup pump will run off of the battery. Flip the alarm switch to the off position to silence the alarm. Be sure to flip it back to on when the power is restored. Try another outlet, replace the fuse, or reset the circuit breaker

Make sure the power cord is plugged in securely

None, if the utility company has instigated brown outs. Otherwise, reduce the number of other appliances on the circuit

Potential Cause PUMP WILL NOT SHUT OFF Solutions

Backup pump is unplugged . . . . . . . . . . . . . . . . . . .

Backup pump is clogged . . . . . . . . . . . . . . . . . . . . .

Backup pump is broken . . . . . . . . . . . . . . . . . . . . . .

Make sure the pump is securely plugged into the back of the control unit Remove strainer from pump and clean out any debris Replace the pump

Potential Cause INSUFFICIENT OR NO WATER VOLUME Solutions

The main AC pump failed because of a power outage . The water was coming into the sump faster than the

main pump could evacuate it . . . . . . . . . . . . . . . . . .

The float switch on the main AC pump is stuck or

defective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The main AC pump is broken . . . . . . . . . . . . . . . . . .

The main AC pump could not keep up with the inflow

of water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The check valve is stuck and the water cannot pass

through it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The discharge pipe is clogged or frozen and the water

cannot pass through it . . . . . . . . . . . . . . . . . . . . . .

There is a slight chance of false activation if the float switch cord is wrapped around the AC power cord

None. The backup pump was activated when needed

Free the float switch on the main pump or replace it Replace the main AC pump

None. The backup pump was activated as needed. If this is a recurring problem, install a higher capacity main pump

Replace the check valve

Thaw, clean out the blockage, or replace the discharge pipe

. . . .

Move the float switch cord away from the AC power cord

Potential Cause ABNORMAL SOUND OR VIBRATION Solutions

Check valve is broken . . . . . . . . . . . . . . . . . . . . . . .

Discharge pipe is clogged or frozen . . . . . . . . . . . . .

Make sure check valve is functioning, or replace it Clear the discharge pipe

Page 16

Limited Warranty

GLENTRONICS, INC. warrants to the original retail purchaser that all of its pump, switch, sensor, battery box and control unit products are free from defective materials and workmanship for the period indicated below:

All parts and labor (excluding installation) for a period of

three (3) years from the date of purchase

The defective product must be returned directly to the factory, postage prepaid with the original bill of sale or receipt to the address listed below. Glentronics, Inc., at its option, will either repair or replace the product and return it postage prepaid.

CONDITIONS

The unit must be shipped freight prepaid, or delivered, to Glentronics, Inc. to provide the services described hereunder in either its original carton and inserts, or a similar package affording an equal degree of protection.

The unit must not have been previously altered, repaired or serviced by anyone other than Glentronics, Inc., or its agent; the serial number on the unit must not have been altered or removed; the unit must not have been subject to accident, misuse, abuse or operated contrary to the instructions contained in the accompanying manual.

The dealer’s dated bill of sale, or retailer’s receipt, must be retained as evidence of the date of purchase and to establish warranty eligibility.

This warranty does not cover product problems resulting from handling liquids hotter than 120 degrees Fahrenheit, handling inflammable liquids, solvents, strong chemicals or severe abrasive solutions; normal wear; user abuse; misuse, neglect, improper maintenance, commercial or industrial use; improper connections or installation; damages caused by lightning strikes, excessive surges in AC line voltage, water damage to the controller, other acts of nature, or failure to operate in accordance with the enclosed written instructions.

Page 17

GLENTRONICS, INC. WILL NOT BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INDIRECT DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS EXPRESS WARRANTY SHALL BE EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE CUSTOMER’S EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY, OR OF ANY IMPLIED WARRANTY NOT EXCLUDED HEREIN, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT.

For information or service contact:

Glentronics, Inc.

640 Heathrow Drive

Lincolnshire, IL 60069

800-991-0466

Model # PS-C11 Serial # _____________________ Purchase Date__________________

CHECK OUT THIS OTHER PHCC PRO SERIES PRODUCT

WATER ALARM

Minimize the risk of water damage

You can detect leaks before they become bigger problems by placing a water alarm wherever there is a risk of water damage…in the utility room, laundry room, kitchen, bathroom or basement. The alarm will sound when as little as 1/32” of water reaches the sensor.

Page 18

PHCC Pro C11 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
