TABLE OF CONTENTS
1
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
TABLE OF CONTENTS
TABLE OF CONTENTS . ... ....................................... ... ... ... .... ... ....................................... ... ... ... ... ....................... 1
CHARACTERISTICS......................................................................................................................................... 3
Engine........................................................................................................................................................3
Capacities. .................................................................................................................................................3
Chassis......................................................................................................................................................4
Dimensions and weight................................................. ... ... ... .... ... ....................................... ......................4
Tyres. .........................................................................................................................................................4
Chassis markings.......................................................................................................................................4
Engine marking..........................................................................................................................................4
SERVICE SCHEDULE AND COMMISSIONING............................................................................................... 5
Check.........................................................................................................................................................5
Change. .....................................................................................................................................................5
Check and lubricate. ..................................................................................................................................6
Clean and adjust........................................................................................................................................6
Test machine..............................................................................................................................................6
Battery preparation (Except battery without maintenance)*. .....................................................................7
Checks before handing over to the customer.............................................................................................7
SPECIAL IMPORTANT POINTS....................................................................................................................... 8
Oil and fuel.................................................................................................................................................8
Starting up after overhauling the engine....................................................................................................8
TIGHTENING TORQUES ................................. .... ... ... ... ... .......................................... .... ... ................................ 9
Body panels. ..............................................................................................................................................9
Cycle part...................................................................................................................................................9
Standard. ...................................................................................................................................................9
SPECIAL TOOLS ............................................................................................................................................ 10
LOCATION OF COMPONENTS...................................................................................................................... 11
BODY PANELS ............................................................................................................................................... 12
Removal of the front top shield panel.......................................................................................................12
Removal of the radiator covers. ...............................................................................................................12
Removal of the front lower shield pannel.................................................................................................13
Removal of the dirt shield. .......................................................................................................................13
Removal of the rear shield panel. ............................................................................................................13
Removal of the footboard.........................................................................................................................14
Removal of the under body panel............................................................................................................14
Installing the under body panel................................................................................................................15
Page 4
TABLE OF CONTENTS
2
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Installing the footboard.............................................................................................................................15
Installing the front lower shield panel.......................................................................................................16
MISCELLANEOUS OPERATIONS ................................................................................................................. 18
Removal of the radiator top connecting pipe............................................................................................18
Removal of the header tank.....................................................................................................................18
Removal of the radiator lower connecting pipe........................................................................................18
Removal of the RH and LH radiators. ......................................................................................................19
Removal of the cylinder / piston...............................................................................................................19
Removal of the engine temperature sensor.............................................................................................20
Removal of the regulator..........................................................................................................................20
Page 5
CHARACTERISTICS
3
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
CHARACTERISTICS
Engine.
Capacities.
Blaster.
Type. 2-stroke single-cylinder.
Cooling. Liquid.
Bore x stroke. 39.9 x 39.8 mm.
Cubic capacity. 49.9 cc.
Max. power output. 3.6 kW at 7300 rpm.
Max. torque rating. 7000 rpm.
Fuel supply. Carburettor Gurtner PY15.
Lubrication. Electric oil pump.
Transmission. By 2 variable pulleys and V-type belt.
Clutch. Centrifugal automatic.
Spark plug. NGK CR7EB.
Exhaust. Catalytic.
Fuel tank. 5.5 l 95 or 98 lead-free.
Oil tank.
1.2 l.
Semi synthetic for 2 stroke engines with separate oiling.
Relay box. 0.12 l SAE 80W90 life lubricated.
Coolant.
1.3 l.
Peugeot coolant part number 754614.
Page 6
CHARACTERISTICS
4
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Chassis.
Dimensions and weight.
Tyres.
Front suspension. Upside down telescopic front fork.
Travel. 73 mm.
Rear suspension. Combined spring and hydraulically-damped shock absorber.
Travel. 65 mm.
Overall length.
1720 mm.
Width at handlebar.
705 mm.
Height (without rear-view
mirrors)
110 mm.
Wheelbase.
1210 mm.
Ground clearance.
135 mm.
Unladen weight.
81.5 kg.
Front wheel rim. 10 inch aluminium alloy.
Front tyre. 120/90 - 10.
Front tyre pressure. 1.7 bars.
Rear wheel rim. 10 inch aluminium alloy.
Rear tyre. 130/90 - 10.
Rear tyre pressure. 2 bars.
Chassis markings. Engine marking.
1. VIN number and manufacturer's plate. 2. Engine number.
1
XXXXXXXXXXXX
2
Page 7
SERVICE SCHEDULE AND COMMISSIONING
5
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
SERVICE SCHEDULE AND COMMISSIONING
Heavy duty servicing is for vehicles used under "harsh" conditions: door-to-door deliveries, intensive
urban use (courier), short journeys with engine cold, dusty areas, ambient temperature over 30°C.
* Depending on equipment.
# Change if necessary.
Service operations.
500 kms or
1 months.
Every 5000 kms
or 12 months.
Every
10000 kms.
Heavy duty servicing. 500 kms Every 2500 kms. Every 5000 kms.
Check.
Idle setting. X X X
Throttle cable play. X X X
Steering column play. X X X
Operation of electrical equipment. X X X
Condition of front and rear brake hydraulic
controls *.
XXX
Condition of petrol pipes. X X X
Condition of oil pipes. X X X
Tyre pressures. X
Tyre condition, pressure and wear. X X
Brake fluid level. X X X
Battery electrolyte level. X X X
Coolant level. X X X
Tightness of nuts and bolts. X X X
Change.
Spark plug. X X
Intake silencer. X
Front brake pads #. X X
Rear brake linings #. X
Drive pulley bearings and guides #. X X
Transmission belt. X
Brake fluid and coolant. Once every 2 years
Page 8
SERVICE SCHEDULE AND COMMISSIONING
6
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
* Depending on equipment.
# Change if necessary.
Service operations.
500 kms or
1months.
Every 5000 kms
or 12 months.
Every
10000 kms.
Heavy duty servicing. 500 kms. Every 2500 kms. Every 5000 kms.
Check and lubricate.
Driven pulley: Moving flange and needle b ush. X
Kick lever boss/Kick starter control shaft. X X
Rear brake cam. X
Clean and adjust.
Carburettor. X
Test machine.
On road. X X X
Page 9
SERVICE SCHEDULE AND COMMISSIONING
7
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Battery preparation (Except battery without maintenance)*.
Remove the battery.
Remove the 6 filler caps and the vent plug.
Fill with electrolyte to the level marked "UPPER LEVEL".
Electrolyte: (35% sulfuric acid = 1.28 g/cm
3
)
1 litre can P/N 752740.
5 litre can P/N 752741.
Leave the battery to stand for around half an hour.
Top up if necessary.
Charge the battery for at least 2 hours with a current of 0.4A.
Refit the battery and connect the vapour vent pipe.
Connect the red wire lug to the battery's + terminal, and the green wire lug to the battery's - terminal.
Then, the battery level should be topped up if necessary, after fully charging, using distilled water only.
Checks before handing over to the customer.
Check the wheel nuts are tight.
Check nuts and bolts are tight.
Check brake adjustment and efficiency.
Check the tyre pressures cold.
Check operation of the lights, flashers, horn, and brake light.
Check the different warning lights work.
Carry out a road test with the machine.
* Depending on equipment.
Page 10
SPECIAL IMPORTANT POINTS
8
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
SPECIAL IMPORTANT POINTS
Oil and fuel.
This engine is designed to run on 95 or 98 unleaded fuel only.
The oil to use for the separate lubrication system is "Esso 2T Special" or "Esso 2T Special low-
smoke" oil approved by the manufacturer.
The fuel pipes must be changed if they show signs of wear, cracks, etc.
The air pipe between the air pump and the exhaust is specific owing to its heat resistance
properties.
Should it be changed, replace it with a genuine pipe.
Petrol is highly inflammable, do not smoke in the working area and avoid pr oximity to flames or
sparks. Work in a clear and well-ventilated area.
Before carrying out any work, leave the engine to cool for at least 2 hours.
Starting up after overhauling the engine.
The oil pump must be drained in accordance with the recommended procedures.
When switching on the ignition, the "STOP" warning light on the instrument cluster goes on and then
goes off when the engine is alive. This indicates that the warning light and the electric system of the
lubricating system are operational.
When starting the engine hot or cold do not accelerate.
Check the coolant level in the header tank.
Page 11
TIGHTENING TORQUES
9
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
TIGHTENING TORQUES
Body panels.
Cycle part.
Standard.
Front mudguard. 0.8 m.daN.
Handlebar cover. 0.1 m.daN.
Front shield panels. 0.1 m.daN.
Rear shield. 0.4 m.daN.
Footboard. 1 m.daN.
Rear panels. 0.1 m.daN.
Grab handle. 2 m.daN.
Rear mudguard. 0.8 m.daN.
Front wheel spindle. 6 m.daN.
Rear wheel spindle nut. 10 m.daN.
Linkrod to engine pivot. 5.2 m.daN.
Linkrod to frame pivot. 5.2 m.daN.
Shock absorber top mount. 4.31 m.daN.
Shock absorber bottom mount. 2 m.daN.
Exhaust to cylinder mounting nut. 1.5 m.daN.
Exhaust to casing mounting bolt. 2 m.daN.
Upper cone (in 2 operations). 4/2.3 m.daN.
Upper cone locknut. Hand tightened.
Steering locknut. 7 m.daN.
Front brake caliper. 2.5 m.daN.
Front brake disc. 1 m.daN.
Handle bar. 2.5 m.daN.
Nut and bolt 5 mm diameter. 0.5 m.daN.
Nut and bolt 6 mm diameter. 1 m.daN.
Nut and bolt 8 mm diameter. 2.2 m.daN.
Nut and bolt 10 mm diameter. 3.5 m.daN.
Nut and bolt 12 mm diameter. 5.5 m.daN.
Page 12
SPECIAL TOOLS
10
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

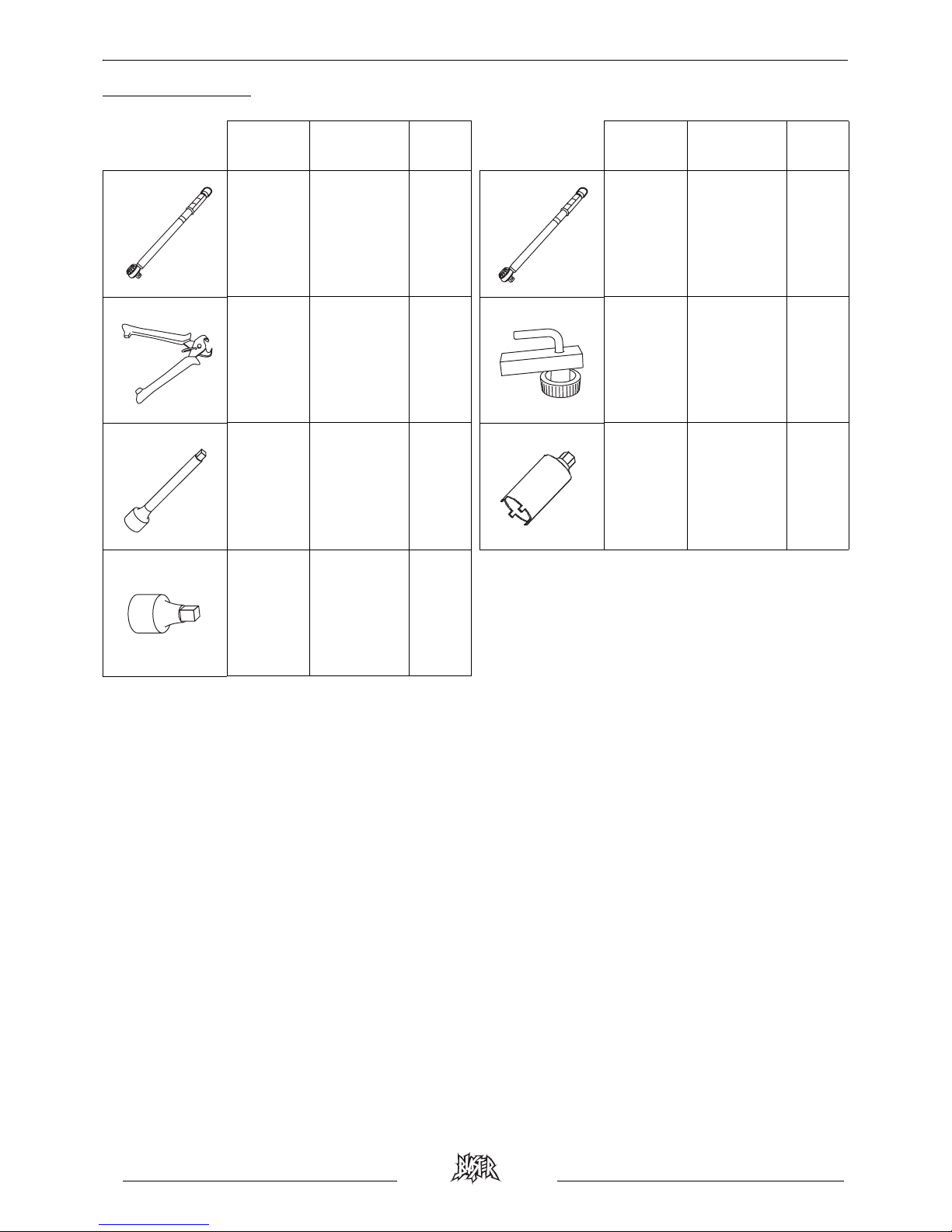

SPECIAL TOOLS
Tool N°. Designation.
Used
with.
Tool N°. Designation.
Used
with.
068994
Torque
wrench
8 N.m to
54 N.m.
752235
752236
753977
Torque
wrench
30 N.m to
150 N.m.
752235
752236
750539
Tie-wrap
pliers.
755996 Hose clamp.
752235
1/2 extension
.
68994
or
753977
757860 Steering tool
752236
1/23/8 adapter.
68994
or
753977
Page 13
LOCATION OF COMPONENTS
11
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

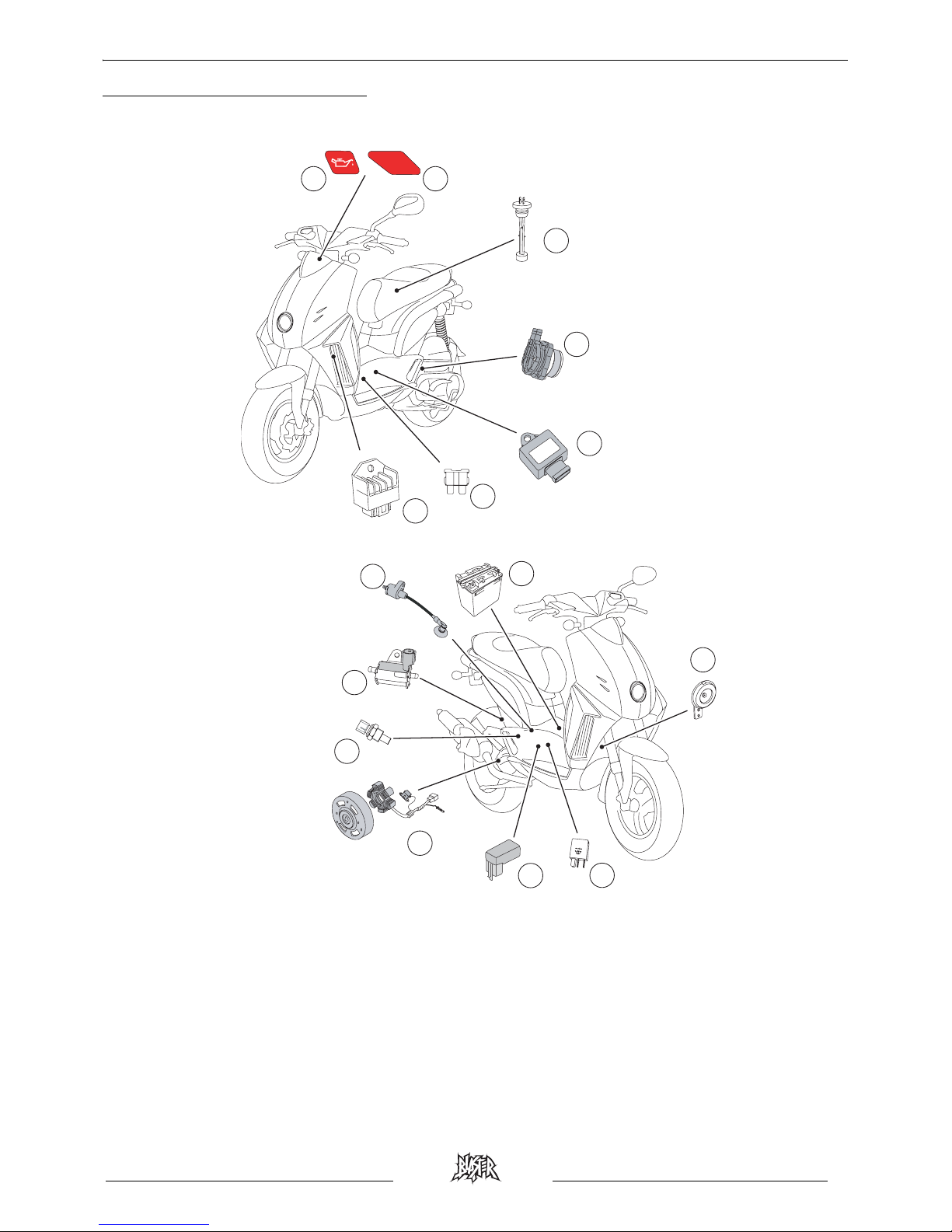

LOCATION OF COMPONENTS
1. Oil pump control unit.
2. Battery.
3. Ignition sensor.
4. CDI unit.
5. Oil level indicator.
6. Oil pump.
7. HT coil.
8. Low oil level warning light.
9. STOP light.
10. Regulator.
11. Starter motor relay.
12. Horn.
13. Engine temperature sensor.
14. 7.5 A fuse.
15. Air pump.
5
10
14
1
15
2
98
6
13
3
7
4
11
12
-
UPPER LE
VEL
LOW
ER LE
VEL
12V - 25A
STOP
STOP
NC
Page 14
BODY PANELS
12
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
BODY PANELS

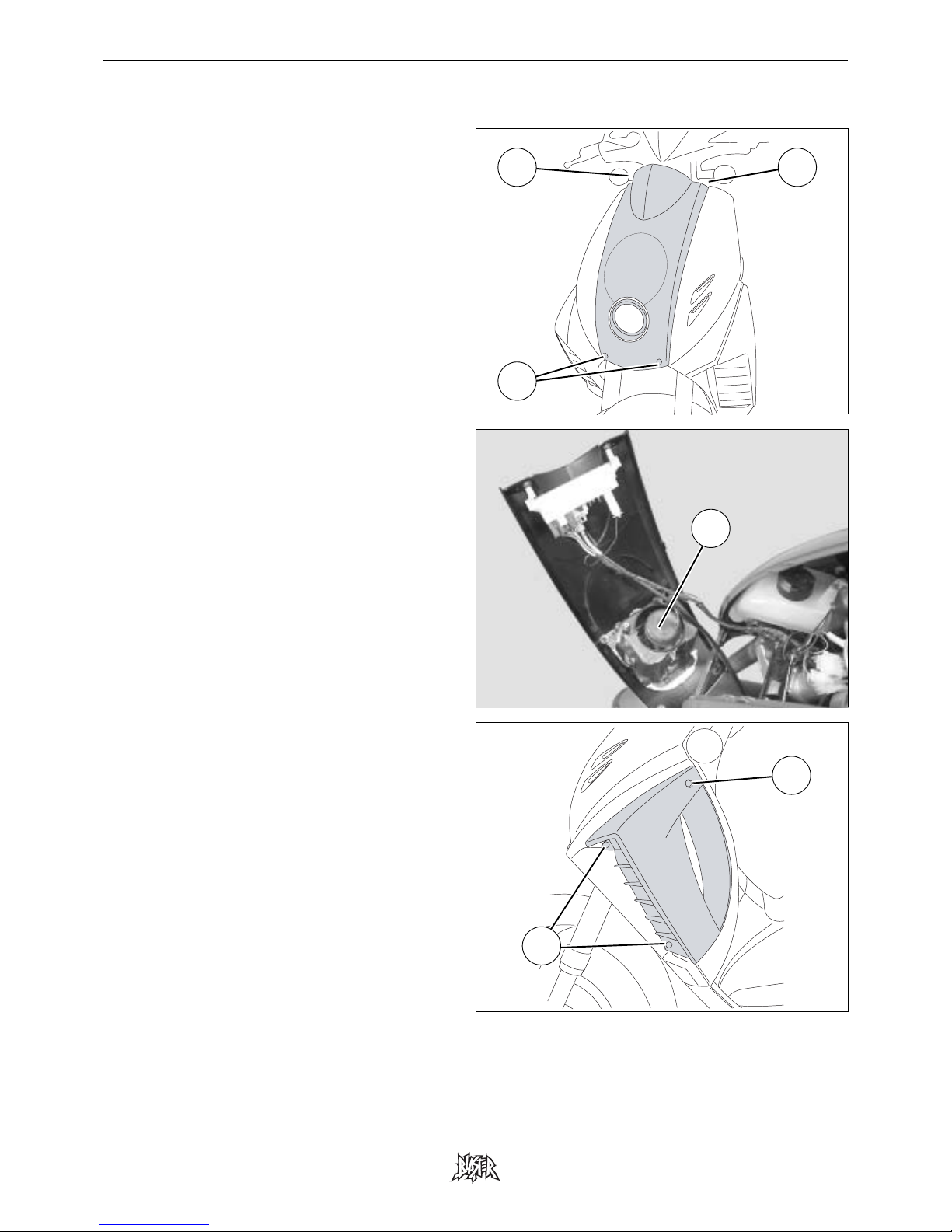

Removal of the front top shield panel.
Procedure 1.
- Disconnect the speedometer driver control
cable.
- Unclip the control cable from the front
mudguard.
- Remove the 4 screws that secure the shield
panel (1).
- Unclip the rubber protector (2).
- Disconnact the headlight.
- Disconnect the instrument cluster.
- Remove the front upper shield panel.

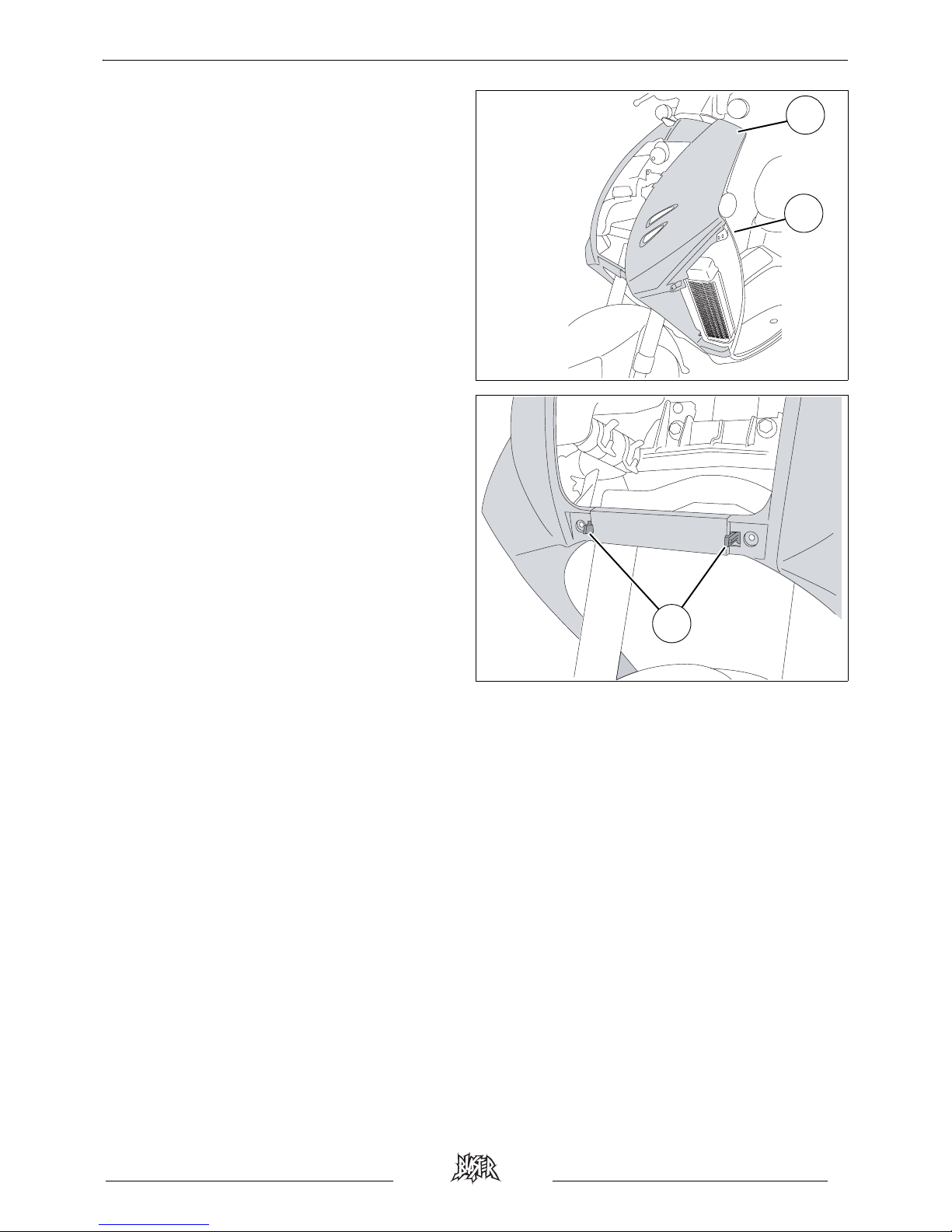

Removal of the radiator covers.
Procedure 2.
- Remove the 3 retaining screws (1) from the
radiator covers.
- Remove the radiator covers.
1 1
1
2
1
1
Page 15
BODY PANELS
13
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

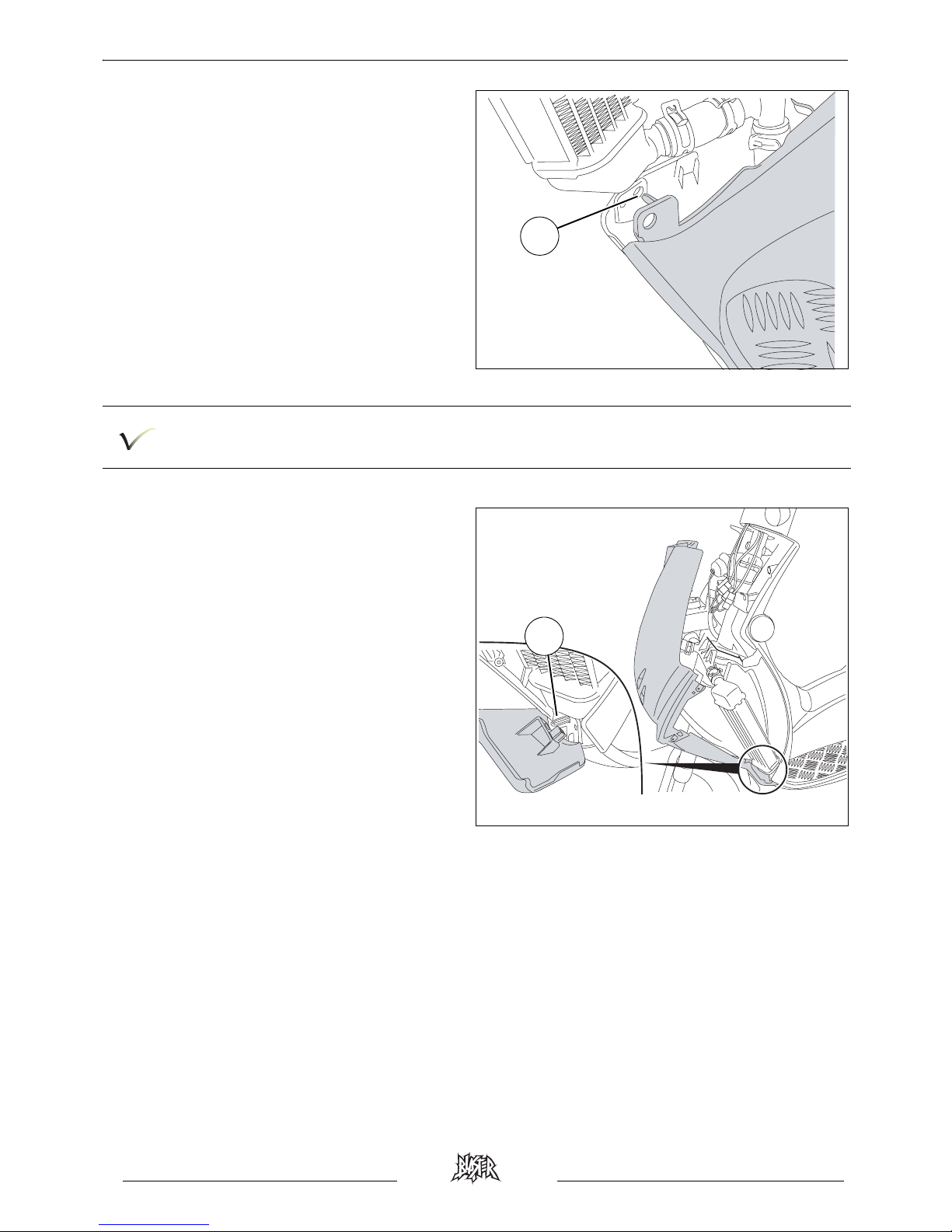

Removal of the fr ont lower shield pannel.
Procedure 3.
- Remove the front upper shield panel (see
procedure 1).
- Remove the radiator covers (see
procedure 2).
- Remove the 4 screws (1) that secure the front
shield panel.
- Unclip the front shield panel from the rear
shield panel as shown in (A) and the tabs (B)
of the dirt shield.
- Remove the front shield panel.
Removal of the dirt shield.
Procedure 4.
- Remove the front lower shield panel (see
procedure 3).
- Remove the dirt shield (1) by unclipping it
from the upper bracket and by swivelling it to
the right or to the left.
Removal of the rear shield panel.
Procedure 5.
- Remove the front lower shield panel (see
procedure 3).
- Remove the 3 screws (1) that secure the rear
shield panel.
- Remove the key from the ignition switch.
- Using a screwdriver, unclip the lower tabs (C).
- Remove the rear shield panel.
1
A
B
1
1
1
C
Page 16
BODY PANELS
14
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Removal of the footboard.
Procedure 6.
- Remove the rear shield panel (see
procedure 5).
- Remove the shock absorber
trim (1) (1 screw).
- Remove the side fairings (2 screw).
- Remove the 2 clips (2) in order to avoid
scratching the frame.
- Remove the complete footrest ass'y (3).
- Remove the 2 screws (4) that secure the
footboard.
- Remove the footboard ass'y.

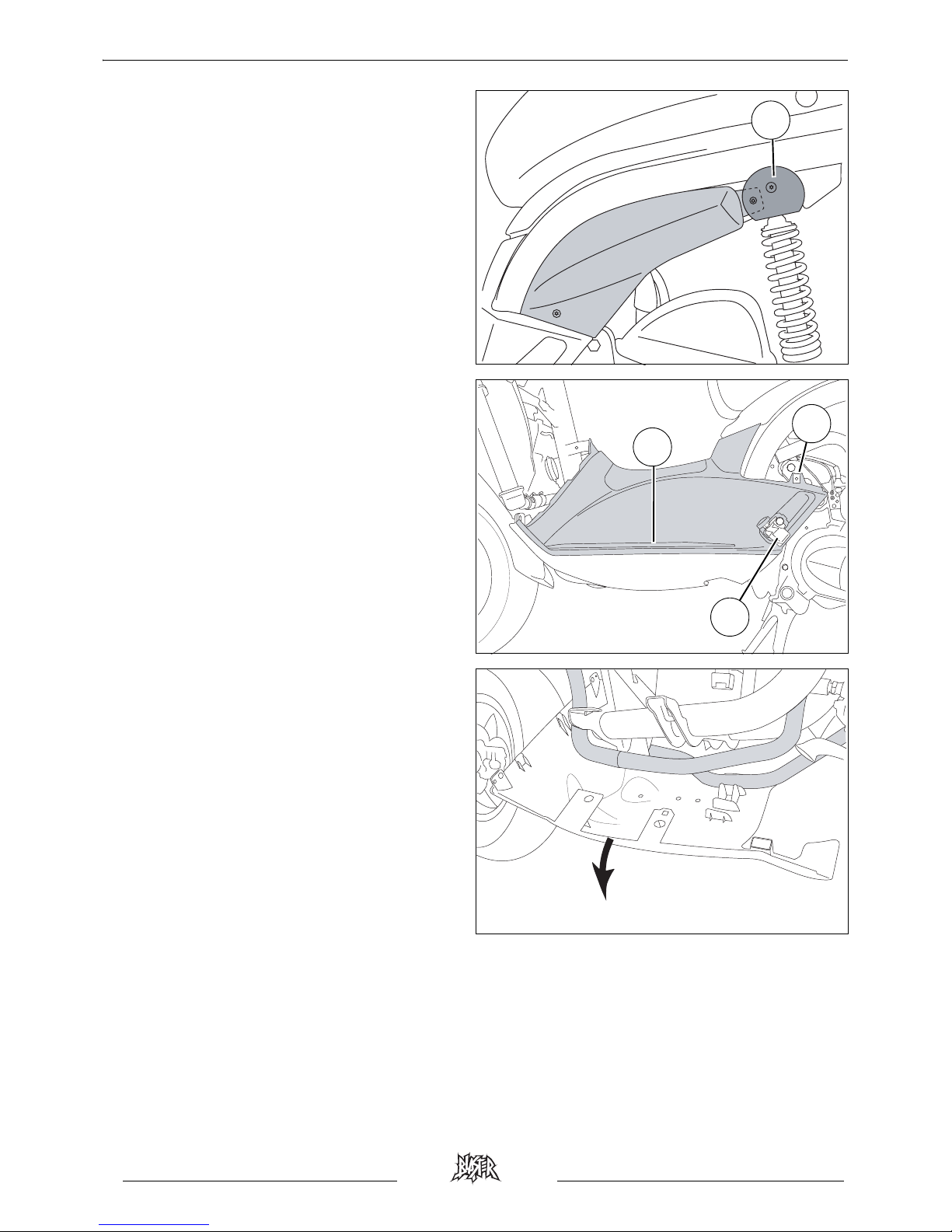

Removal of the under body panel.
- Unclip the under body panel.
1
2
1
2
3
2
4
Page 17
BODY PANELS
15
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Installing the under body panel.
- Cip on the under body panel.
Make sure the pipe of the cooling system is properly positioned in the locations moulded in the
under body panel.
Installing the footboard.
- Install the footboard by starting to fit the front
part.
Page 18
BODY PANELS
16
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

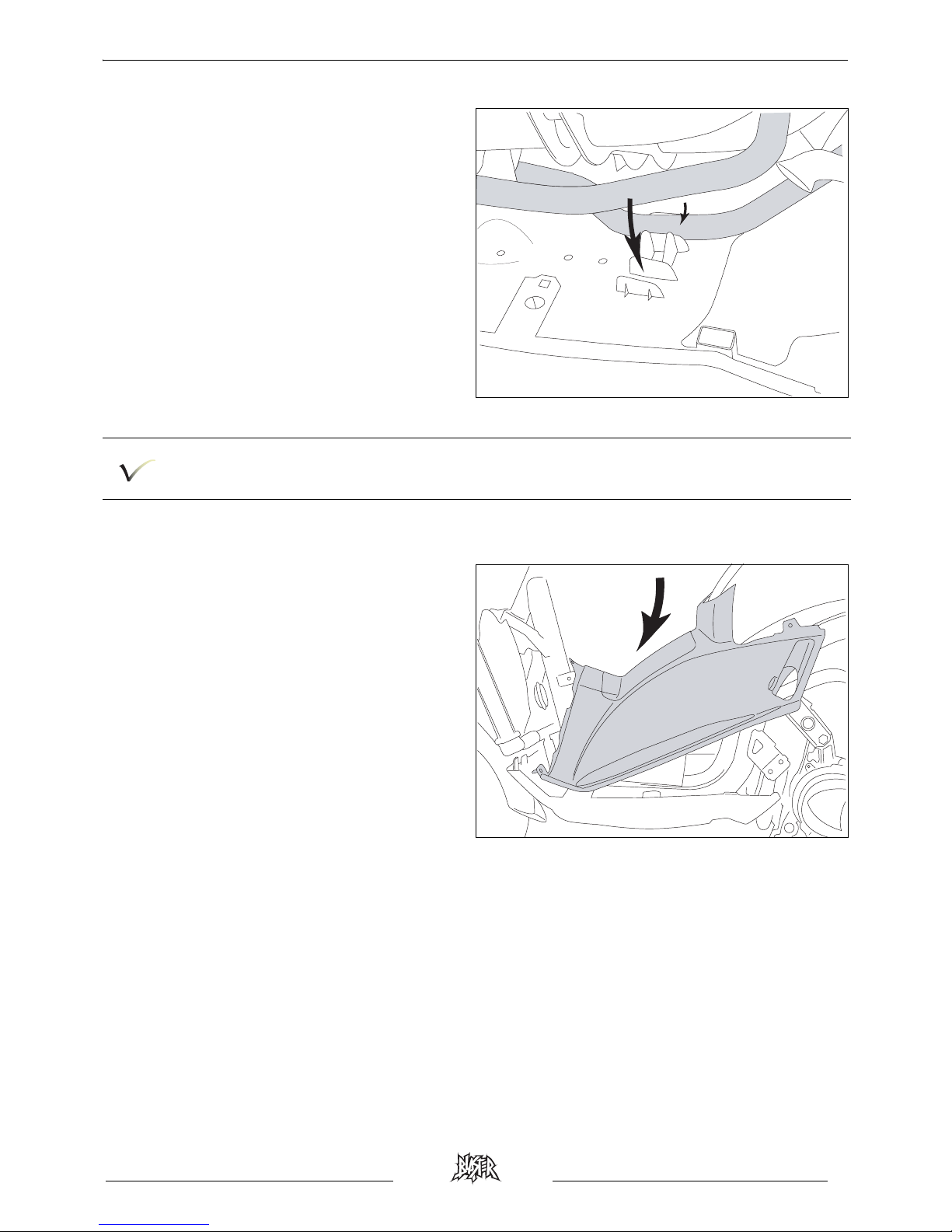

- Fit the locating pin (1) into the holes provided
in the under body panel.
Follow the procedure to install the footboard carefully in order to avoid it from contacting the
radiators.
Installing the front lower shield panel.
- Install the shield panel by fitting the footboard
locating pins (1) into the holes provided in the
under shield panel.
1
1
Page 19
BODY PANELS
17
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

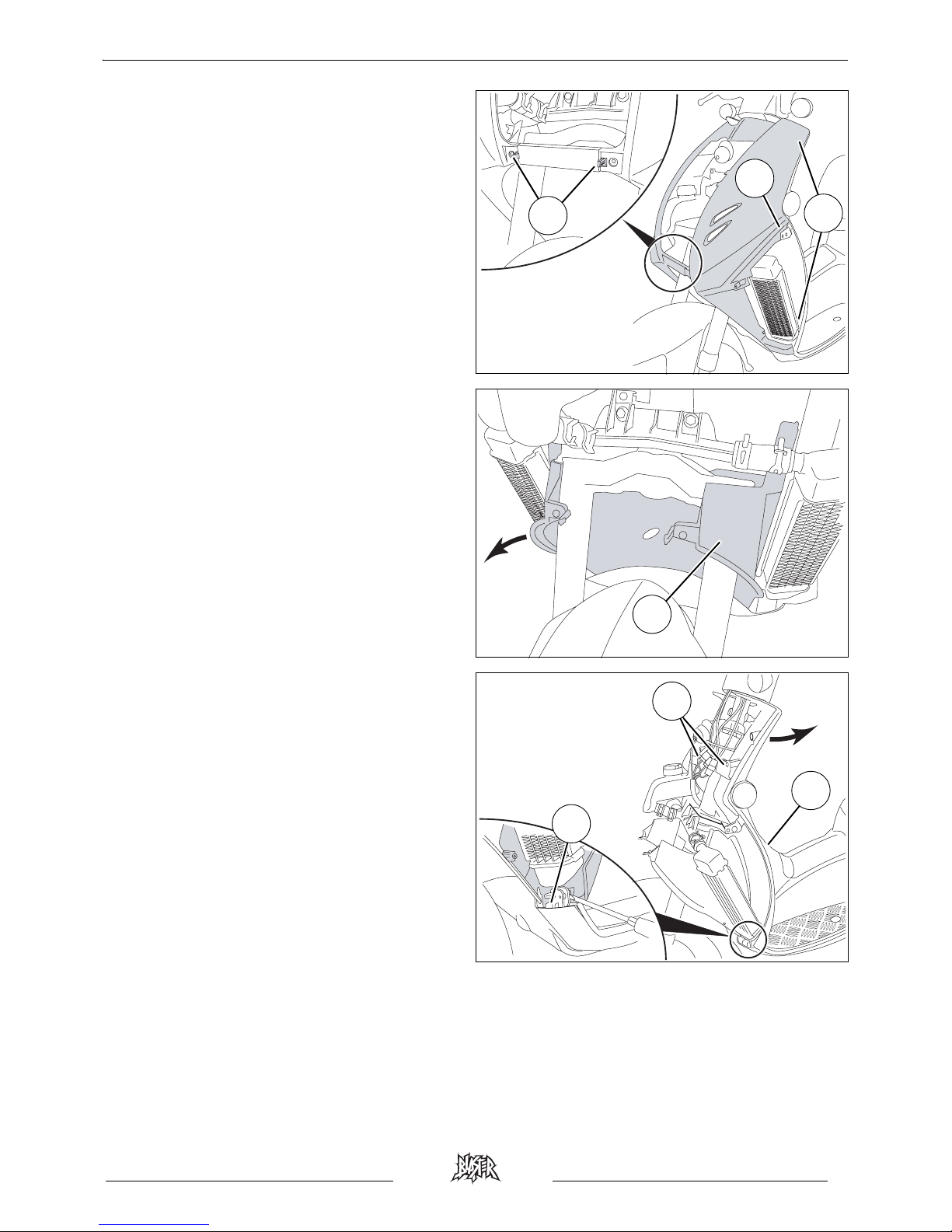

- Push the front shield panel against the rear
shield panel by clipping in the following order:
A. Side tabs.
B. The screw tightening locations.
C. The dirt guard clips.
B
A
C
Page 20
MISCELLANEOUS OPERATIONS
18
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
MISCELLANEOUS OPERATIONS

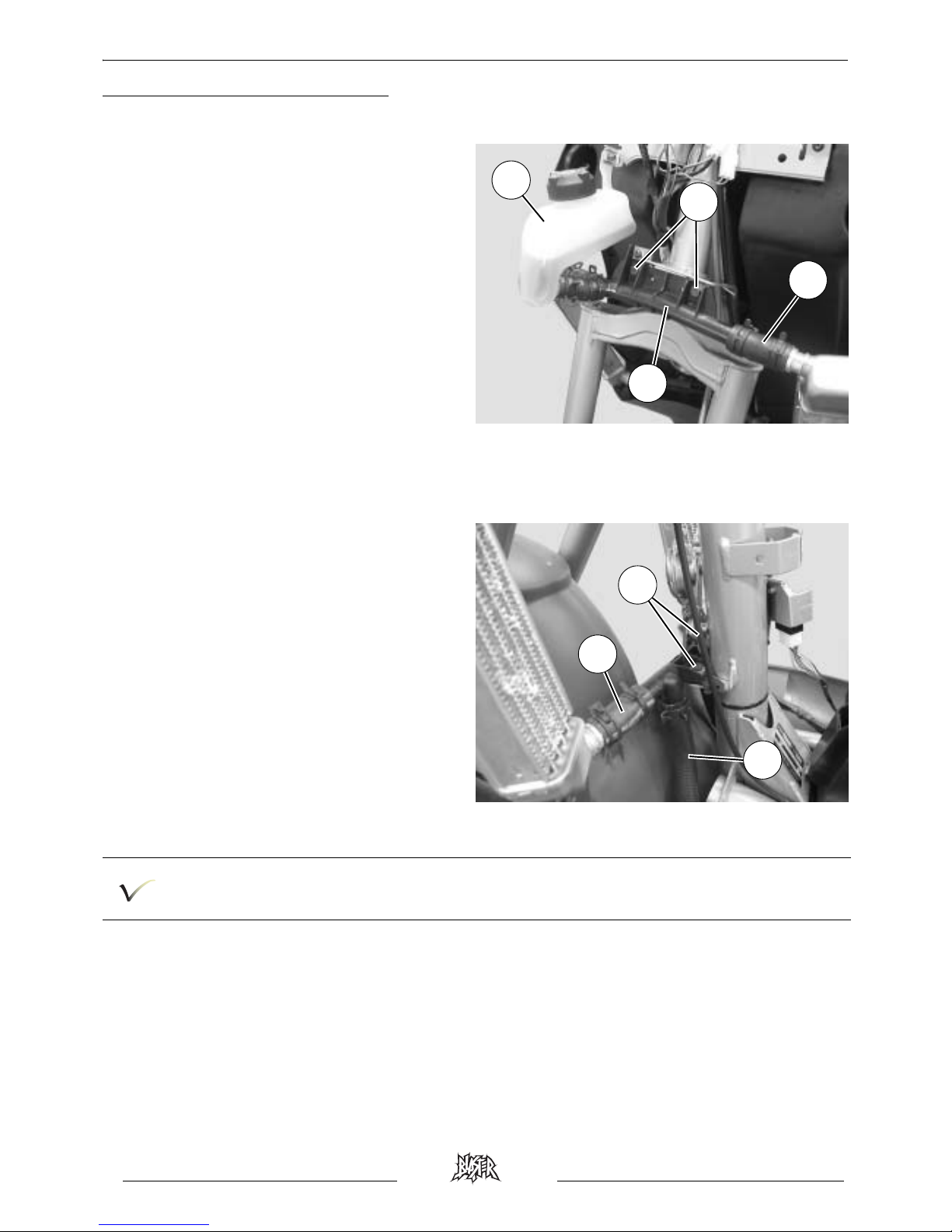

Removal of the radiator top connecting
pipe.
Removal of the header tank.
- Remove the front lower shield panel (see
procedure 3).
- Disconnect the lower pump from the coolant
pump to drain the cooling system (Collect the
fluid in a clean pan).
- Remove the the screw that secures the
header tank (1).
- Disconnect the pipe from the header tank
- Remove the header tank.
- Disconnect the upper pipes (2) from the RH
and LH radiator.
- Remove the 2 screws (3) that secure the
connecting pipe (4)
- Remove the connecting pipe.
Removal of the radiator lower
connecting pipe.
- Remove the footboard (see procedure 6).
- Disconnect the lower pump from the coolant
pump to drain the cooling system.
- Remove the lower pipes (1) from the
radiators.
- Disconnect the pipes (2) which come from the
engine.
- Remove the 2 screw (3) that secure the
connecting pipe.
- Remove the connecting pipe.
When re-installing, make sure to fit all the pipes against the radiator stop.
All the collar opening tabs are to be oriented upwards.
1
2
3
4
1
2
3
Page 21
MISCELLANEOUS OPERATIONS
19
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
Removal of the RH and LH radiators.
- Remove the mudguard (see procedure 4).
- Disconnect the lower pump from the coolant
pump to drain the cooling system.
- Disconnect the pipes (1) from the RH and LH
radiator.
- Remove the RH or LH radiator.
All the collar opening tabs are to be oriented upwards.
Removal of the cylinder / piston.
- Remove the footboard (see procedure 6).
- Remove the exhaust.
- Disconnect the lower pump from the coolant
pump to drain the cooling system.
- Disconnect the coolant pipes from the cylinder
head and cylinder.
- Disconnect the temperature sensor.
For removal of the cylinder head, cylinder and piston, see the workshop manual.
1
1
Page 22
MISCELLANEOUS OPERATIONS
20
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

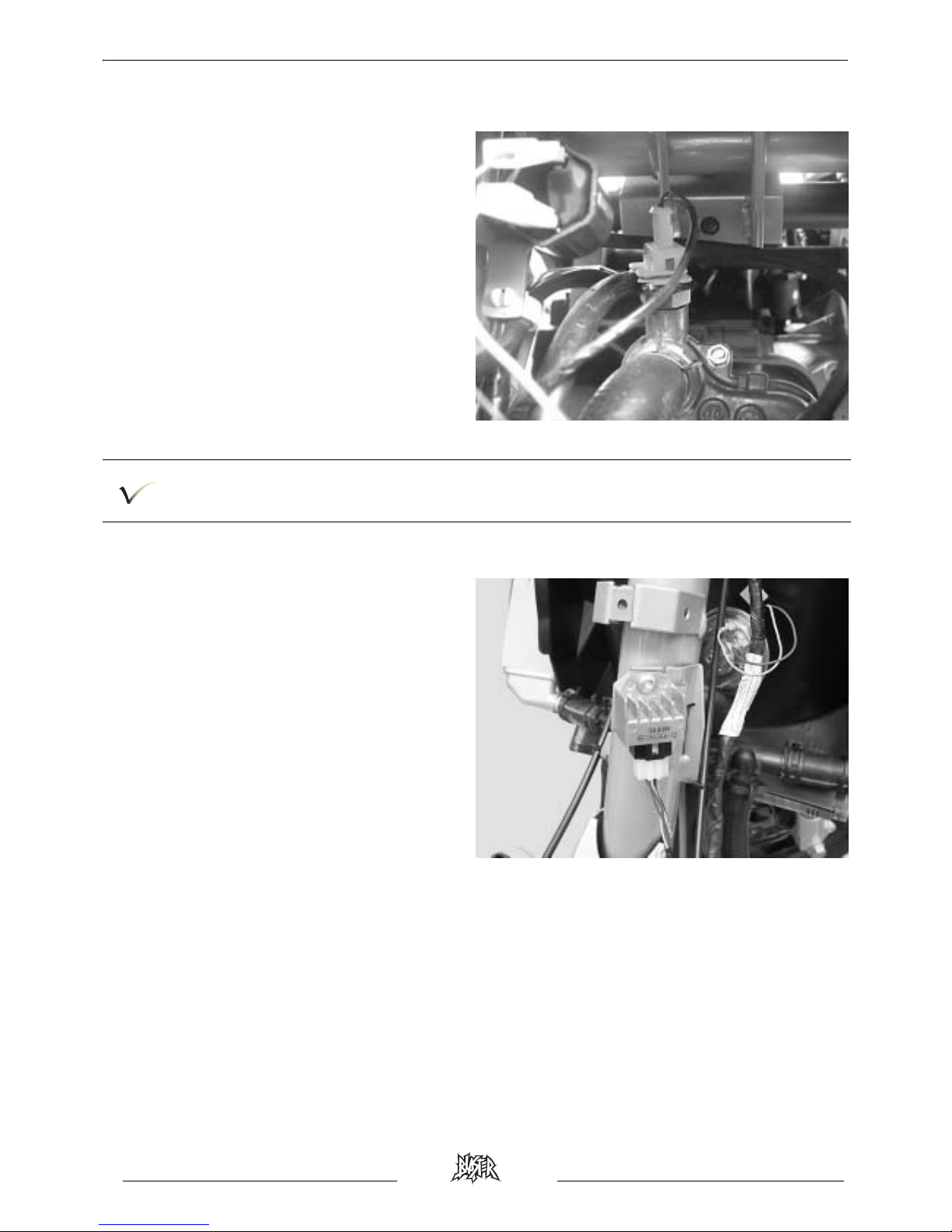

Removal of the engine temperature
sensor.

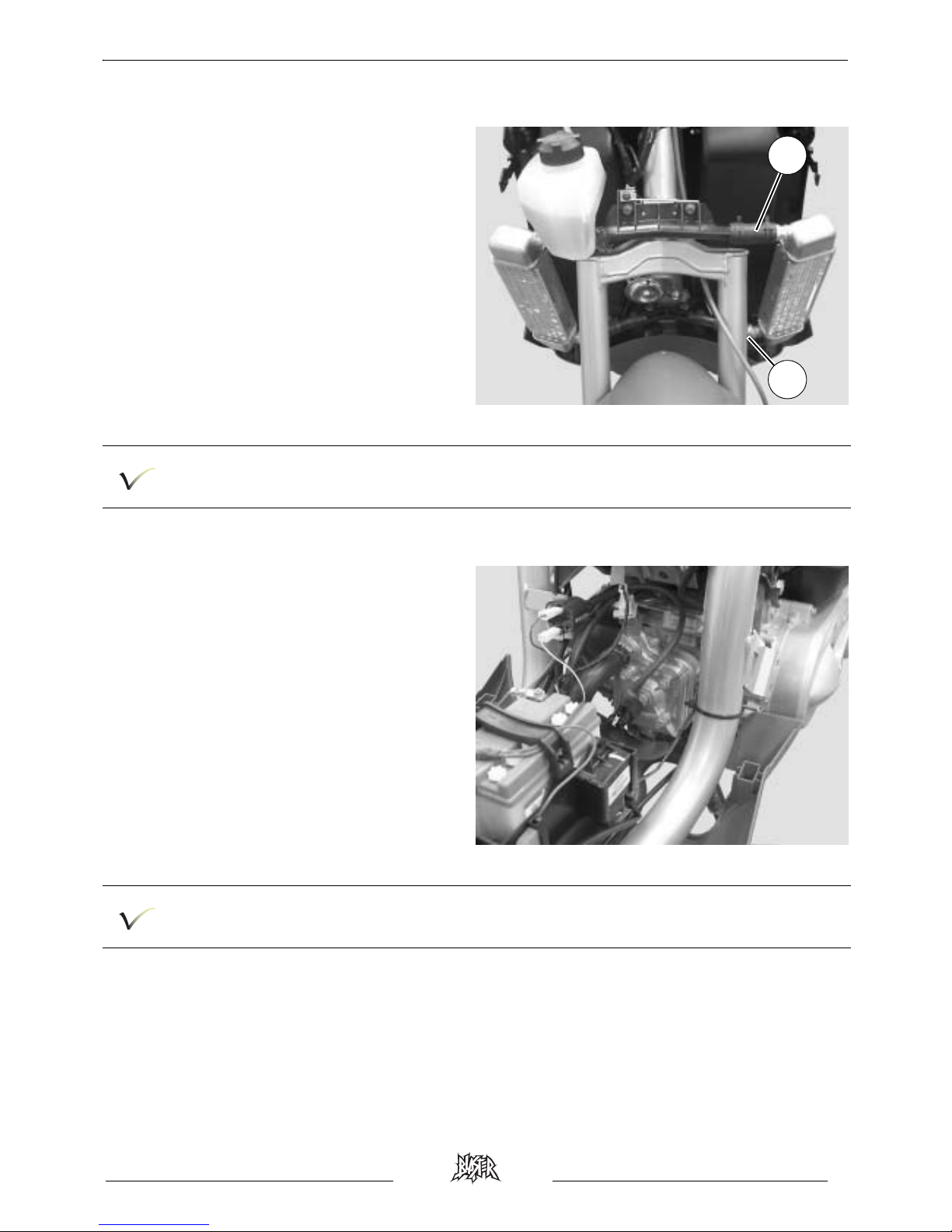

- Remove the battery access door.
- Remove the battery.
- Disconnect the temperature sensor.
- Remove the engine temperature sensor.
Refit a sensor quickly to prevent loss of coolant.
Removal of the regulator.
- Remove the footboard (see procedure 6).
- Disconnect and remove the regulator.
Page 23
Page 24
P/N 758078
In our permanent concern to make improvements PEUGEOT MOTOCYCLES reserves the right to suppress,
modify, or add any reference mentioned.
DC/APV Printed in the E.U. 04/2005 (non contractual pictures)
Loading...
