FAMILIARISATION

INSTRUMENTS AND CONTROLS

1. Audio equipment steering wheel

control.

2. Steering lock and ignition.

3. Wipers/wash-wipe/trip computer

controls.

4. Instrument panel.

5. Driver’s air bag.

Horn.

6. Rear parking assistance button.
Dynamic stability

control (ESP/ASR) button.

Central locking button.
Alarm button.

Electric child lock button.

7. Gear lever.

8. Handbrake.

9. Exterior mirror controls.

Electric window controls.
Rear electric windows deactivation

control.

10. Headlamp height adjustment.

11. Front door window de-icing vent.

12. Side adjustable and closing vent.

13. Windscreen de-icing vent.

4

5

FAMILIARISATION

INSTRUMENTS AND CONTROLS

1. Steering wheel adjustments

control.

2. Cruise control/speed limiter switch.

3. Lights and direction indicators

controls.

4. Hazard warning lights switch.

5. Fragrance diffuser.

6. Multifunction display.

Seat belt fastening status warning

lights.

7. Sunshine sensor.

8. Passenger air bag.

9. Speaker (tweeter).

10. Glove box/Passenger air bag

disarming/Audio/video sockets/
Fuse box.

11. Bonnet release control.

12. Front ashtray/Lighter.

13. Heating/air conditioning controls.

14. CD changer.

15. Audio RD4 or RT3 GPS audio/

telephone.

16. Central adjustable and closing

vents.

FAMILIARISATION

OPENING

Remote control key

A. Unfolding/Folding the key.
B. Unlocking the vehicle.

 64

i

Also...
C. Normal locking

or
Deadlocking of the vehicle.

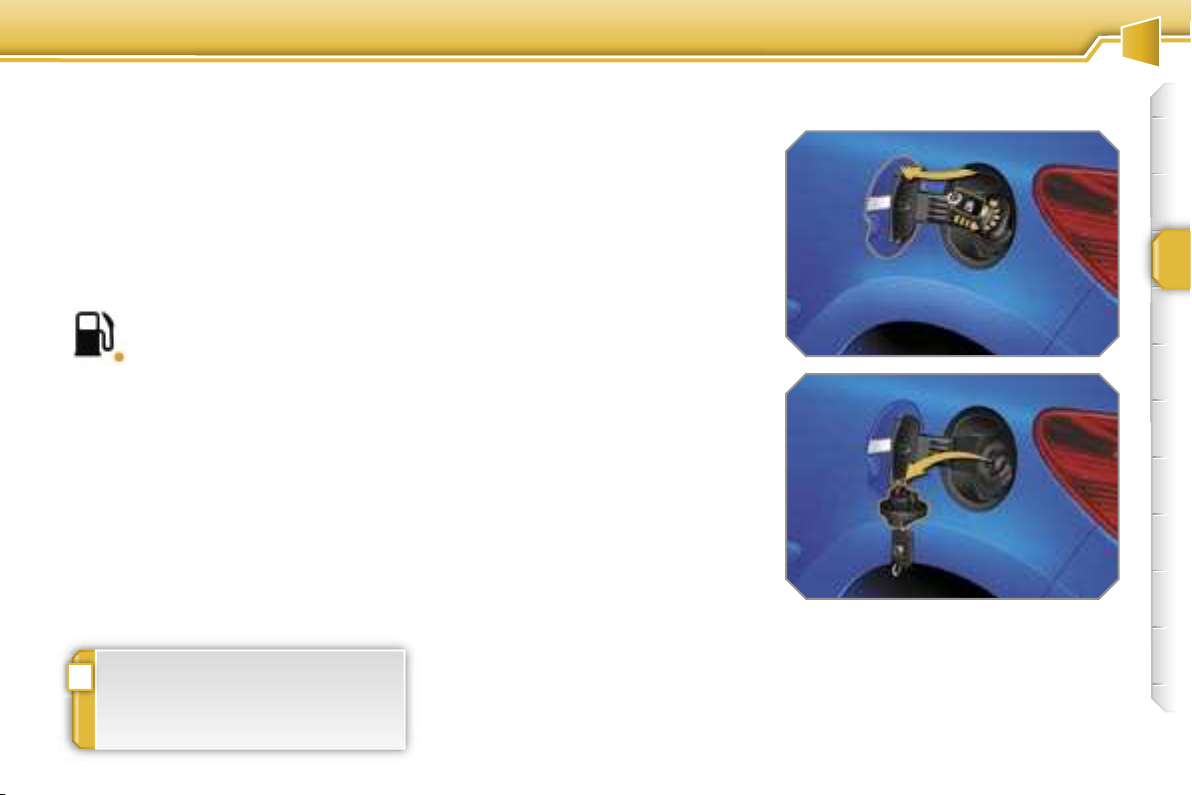

Fuel tank

1. Opening the fuel filler flap.

2. Opening and hooking the fuel filler

cap.

Capacity of the tank: approximately
50 litres.

 77

Bonnet

A. Interior control.
B. Exterior control.
C. Bonnet strut.

 115

6

FAMILIARISATION

SITTING COMFORTABLY

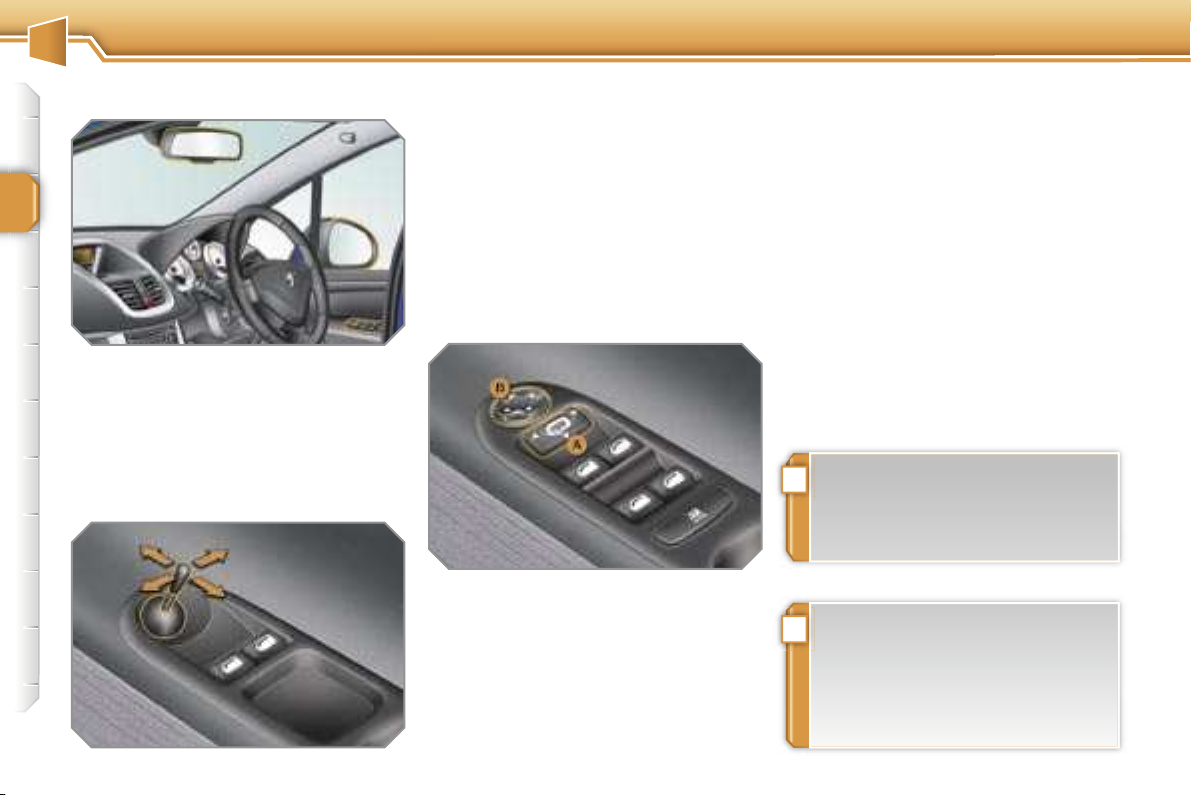

Exterior mirrors adjustment

A. Selecting the mirror.
B. Adjusting the position of the mirror.
C. De-selecting the mirror.

 56

i

Also...
D. Folding/Unfolding.

Interior mirror adjustment

1. Selecting the "day" position of the

mirror.

2. Directing the mirror.

 57

Front seat belt

1. Fastening.

2. Height adjustment.

 98

8

9

FAMILIARISATION

SEEING CLEARLY

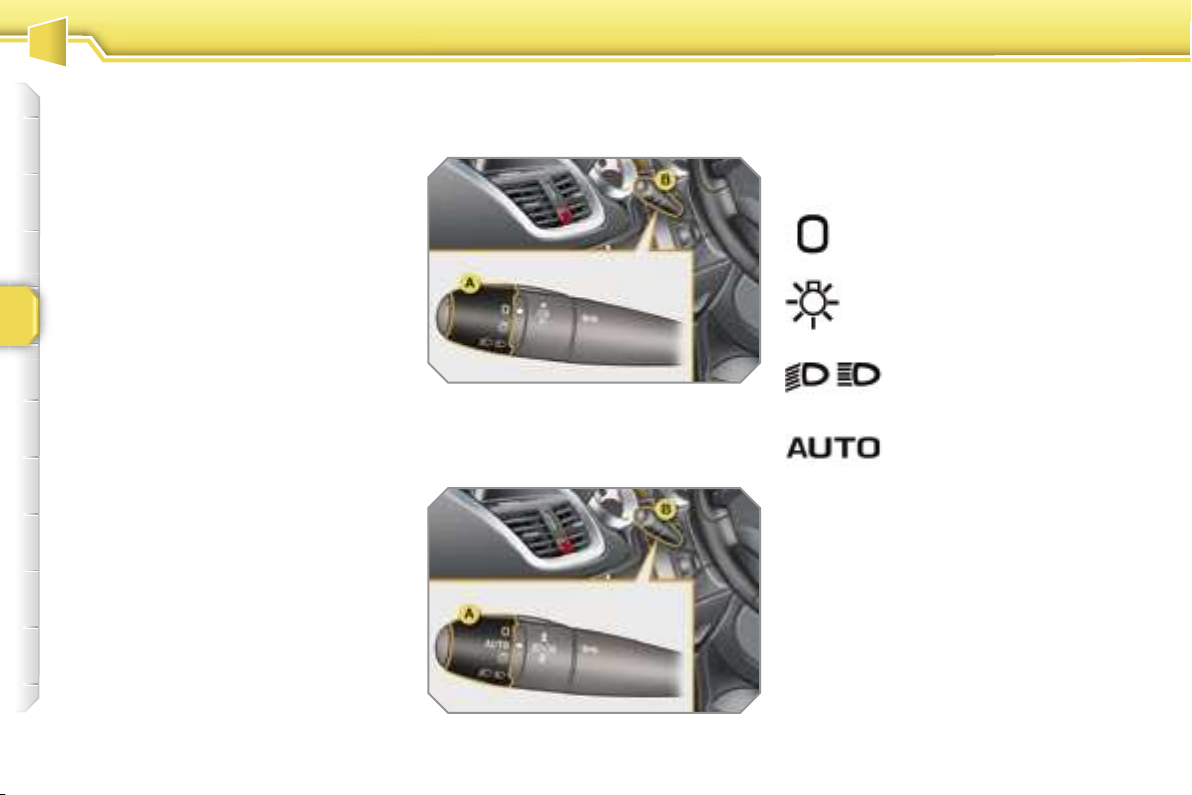

Lights

Ring A

Switching on "AUTO" mode

 Push the lever downwards and

release it.

Ring B

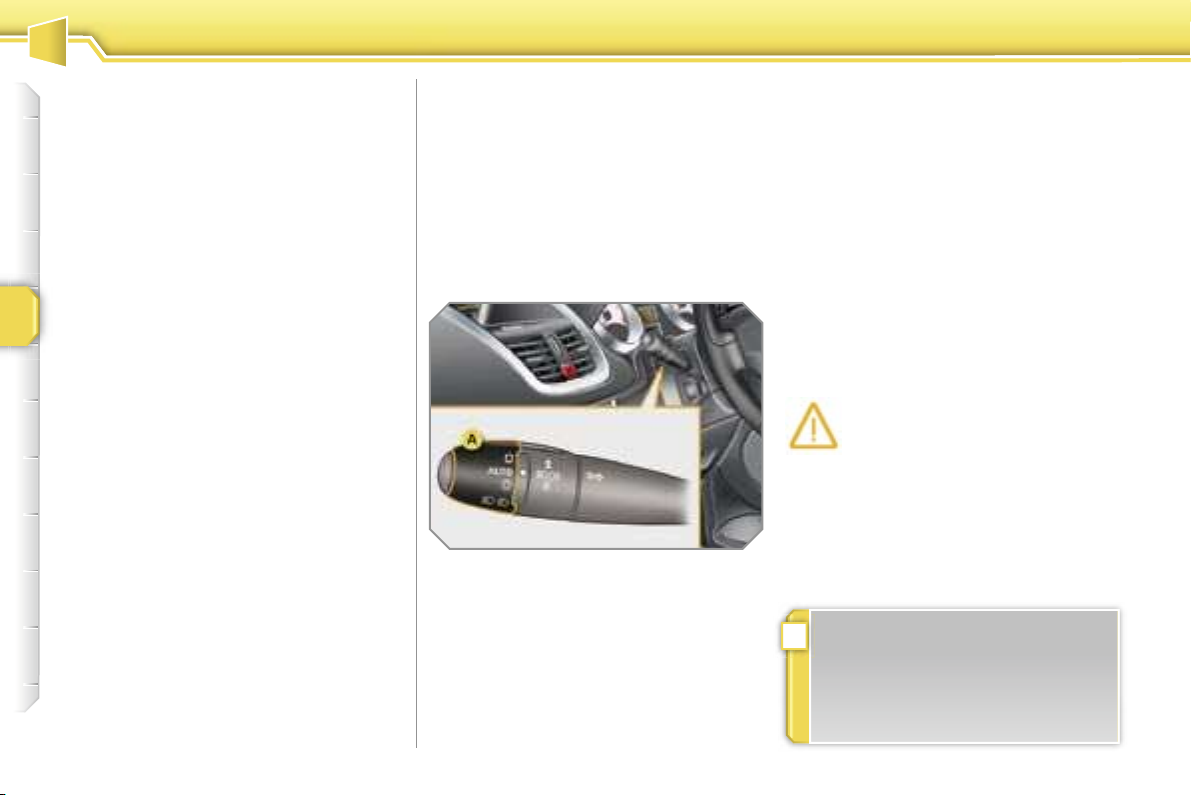

Lever A: windscreen wipers

2. Fast wipe.

1. Normal wipe.
I. Intermittent wipe.

0. Park.
AUTO

 Automatic wiping or single

wipe.

Wash-wipe: pull the lever towards you.

 82

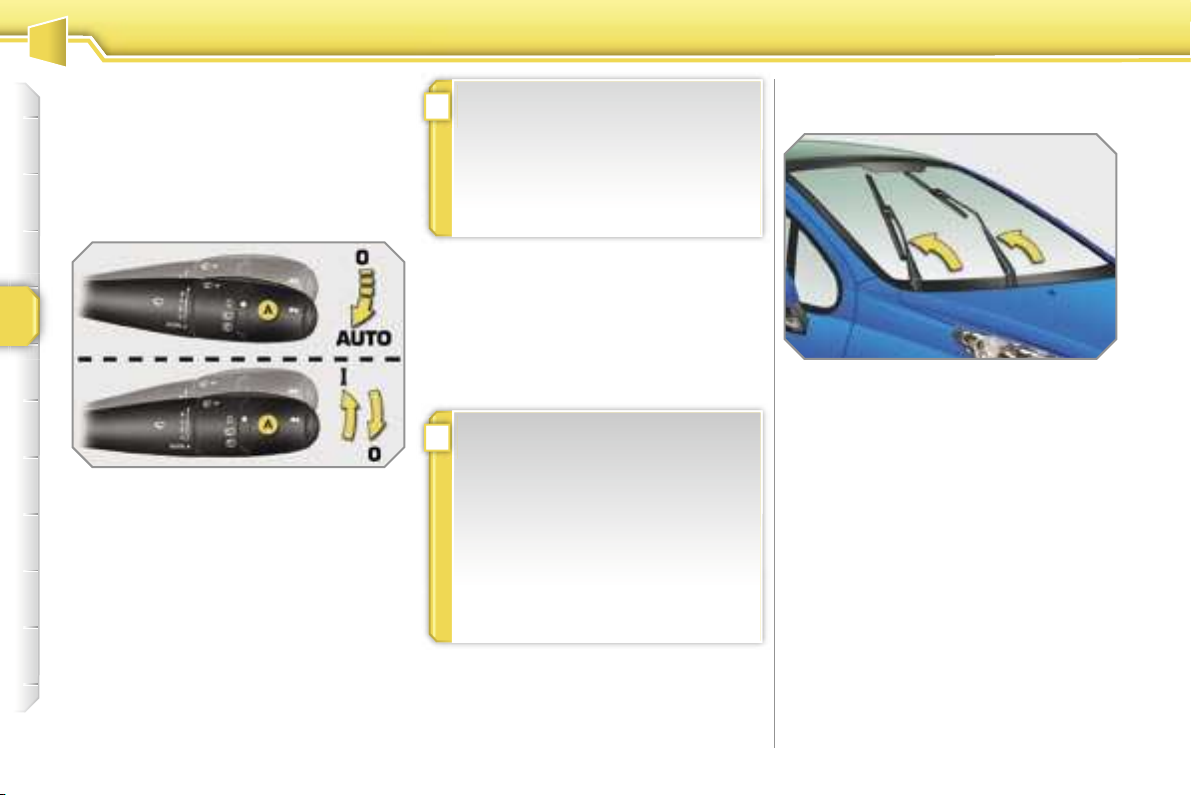

Wipers

Switching off "AUTO" mode

 Push the lever upwards and return it

to position "0".

 84

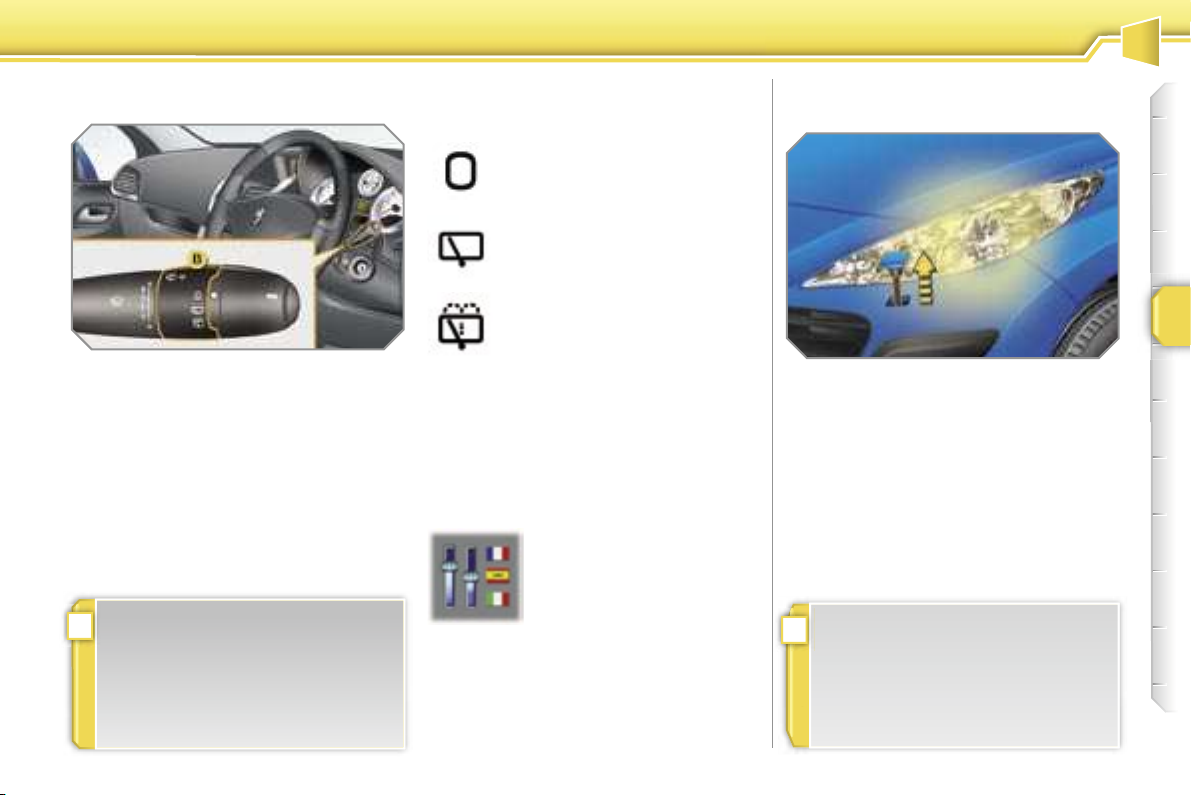

Ring B: rear wiper

 78  83

Lights off.

Automatic switching on of the
lights.

Side lights.

Dipped/main beam headlamps.

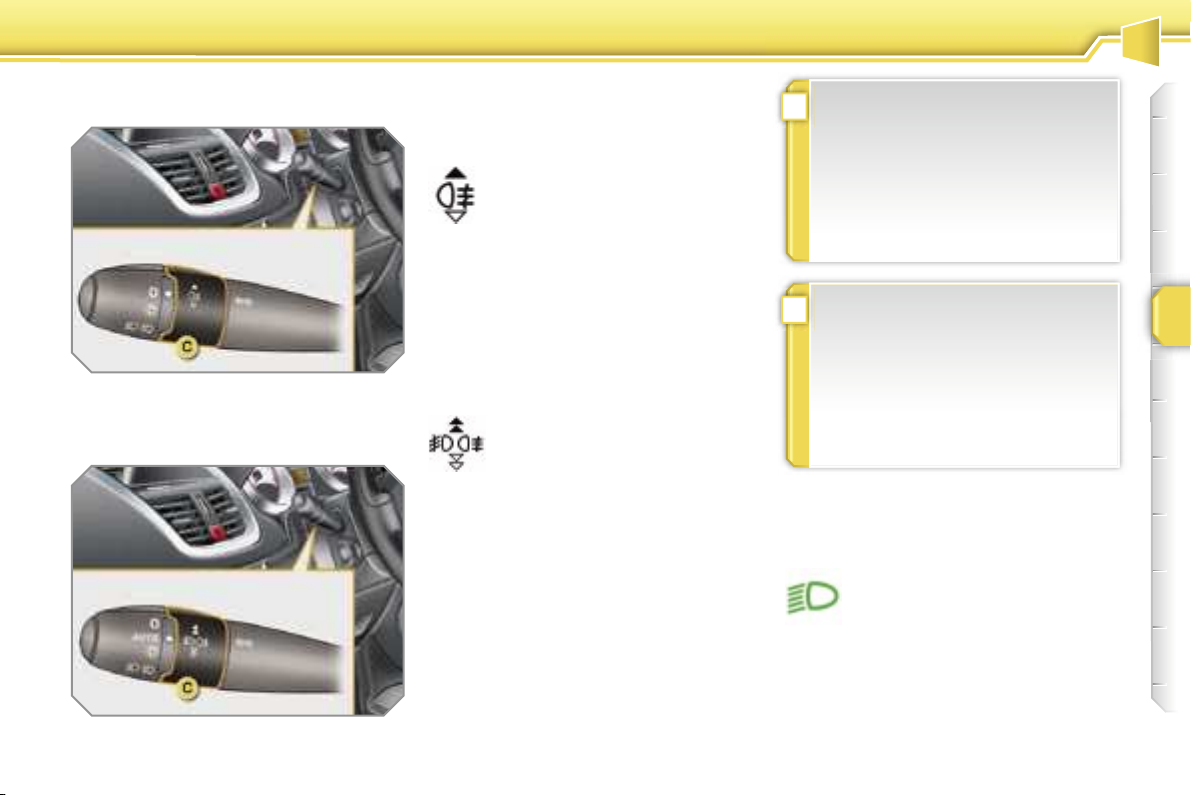

Rear fog lamps.

or

Front and rear fog lamps.

Park.

Intermittent wipe.

Wash-wipe.

–

FAMILIARISATION

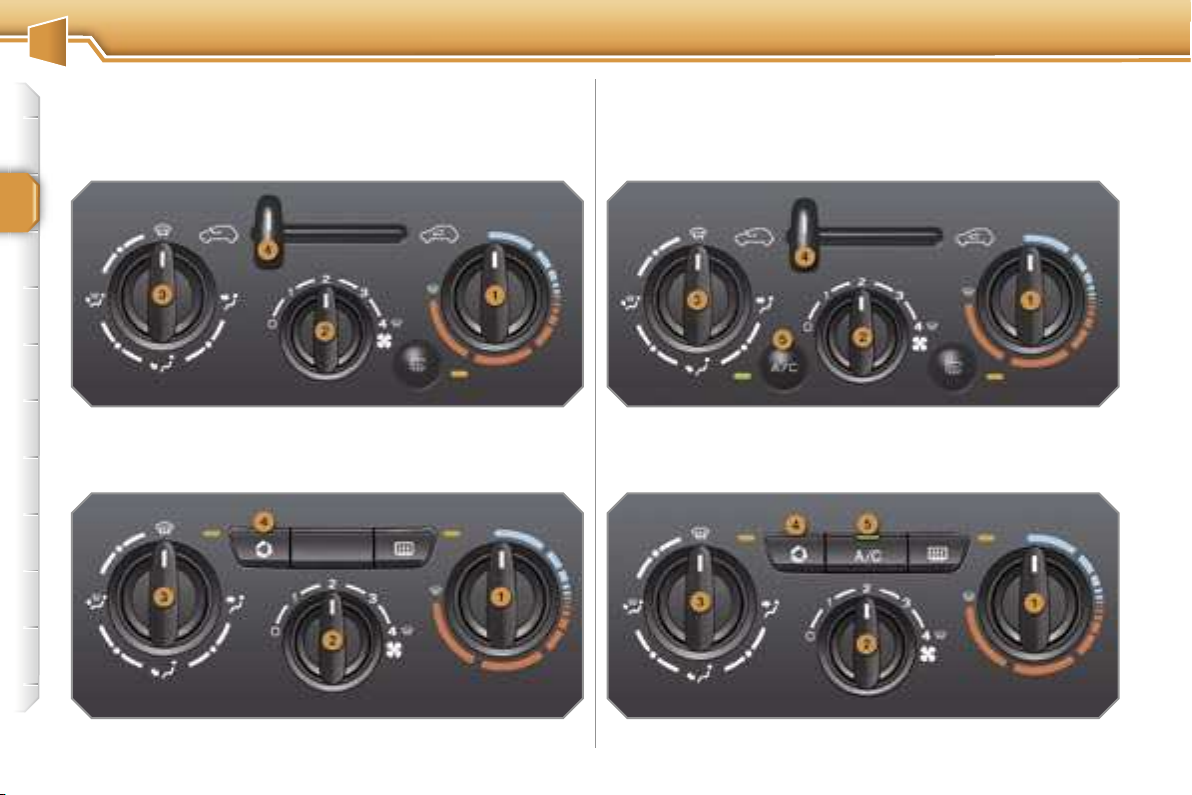

VENTILATION

Advice on interior settings

Heating or Manual air conditioning

I require ...

Air distribution Air flow

HEAT

COOL

DEMISTING

DE-ICING

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is preferable.

Air recirculation/

Exterior air intake

Temperature Manual A/C

10

MONITORING

FAMILIARISATION

Instrument panel Controls bar

A. With the ignition on, the fuel gauge

needle should rise.

B. With the engine running, the

associated low level warning light
should switch off.

C. With the ignition on, the oil level

indicator should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
level which is low.

 20

Warning lights

1. With the ignition on, the orange

and red warning lights come on.

2. With the engine running, these

warning lights should switch off.

If a warning light remains on, refer to
the page concerned.

 21

Lighting of the indicator light indicates
the status of the corresponding function.

A. Deactivation of the rear parking

assistance.

 112

B. Deactivation of the ESP/ASR

system.

 97

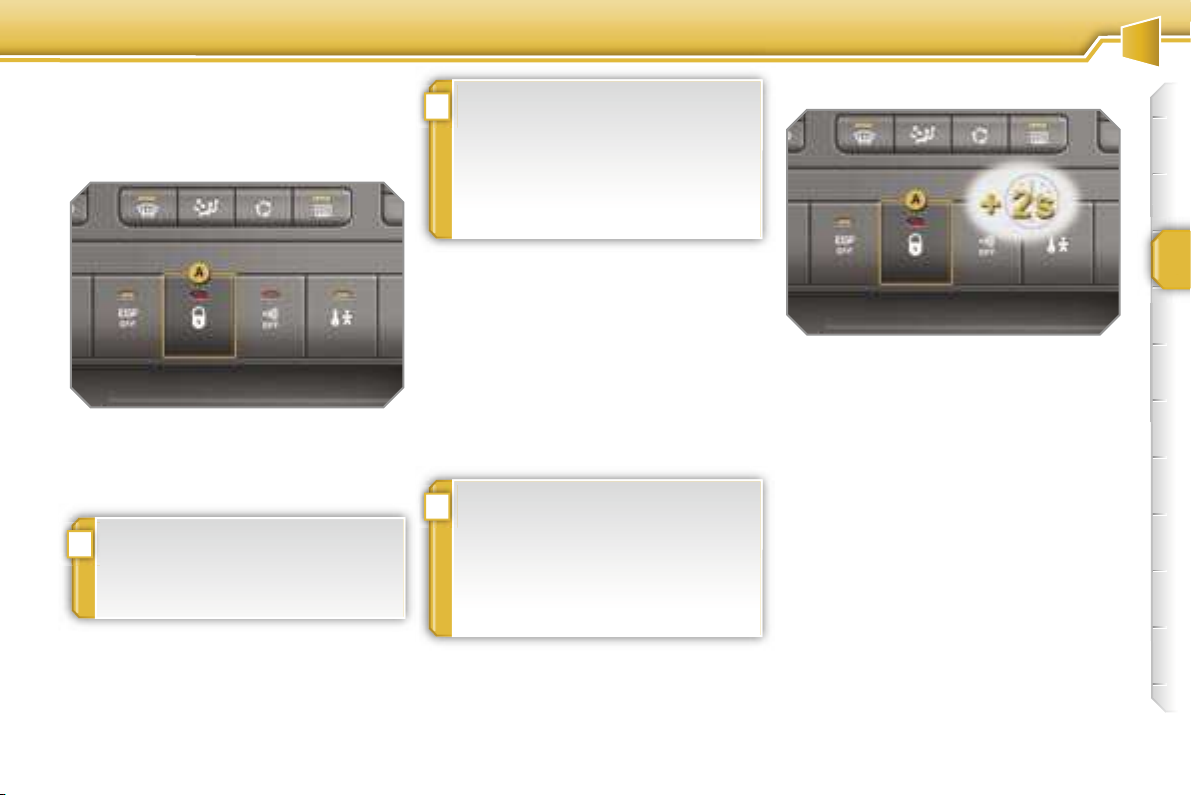

C. Central locking.

 73

D. Deactivation of the interior

protection alarm.

 68

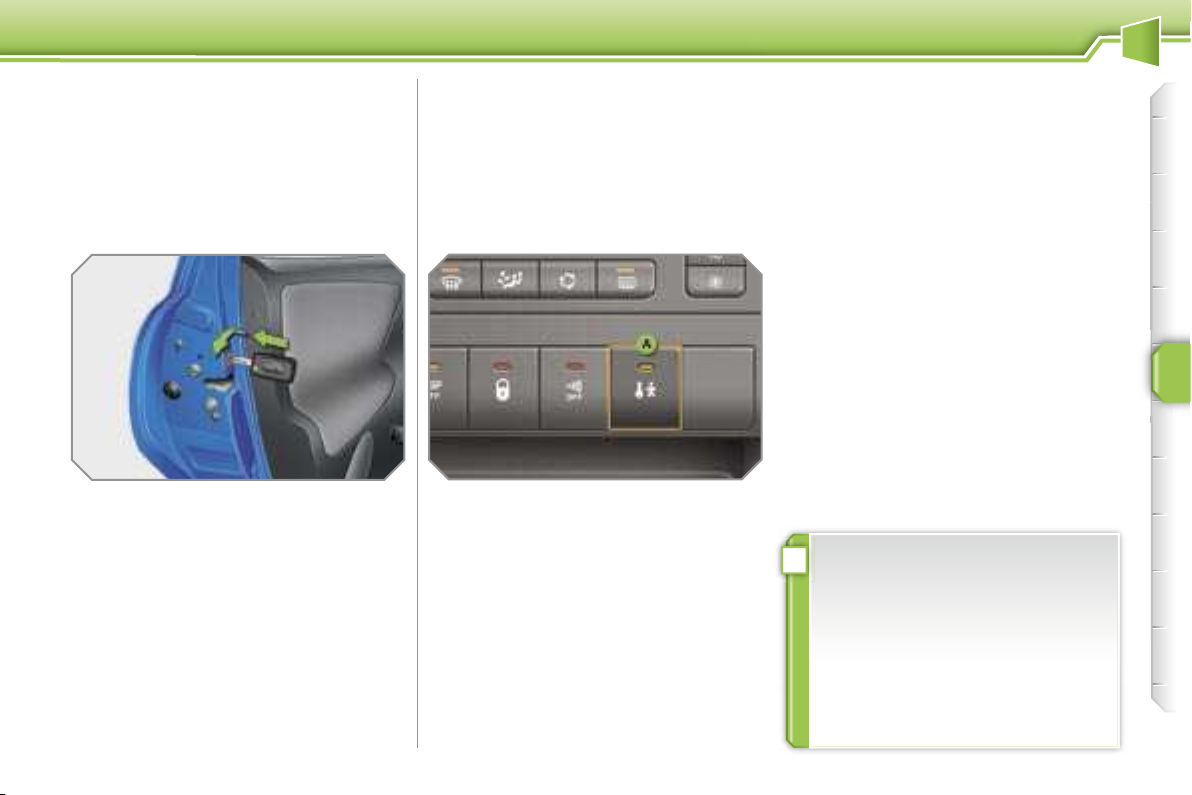

E. Activation of the electric child lock.

 93

11

FAMILIARISATION

KEEPING YOUR PASSENGERS SAFE

Front passenger air bag Ignition switch

1. Open the glove box.

2. Insert the key.

3. Select position:

"ON" (activation), with front

passenger or "forwards facing"
child seat,

"OFF" (deactivation), with "rear

facing" "child seat".

4. Remove the key keeping the

switch in this position.

 101

Front and rear seat belts

A. Front left seat belt not fastened or

unfastened warning light lit in red.

B. Front right seat belt fastened

warning light lit in green.

C. Rear left seat belt fastened

warning light lit in green.

D. Rear centre seat belt unfastened

warning light lit in red.

E. Rear right seat belt fastened

warning light lit in green.

 99

STARTING

1. Stop position.

2. Ignition position.

3. Starting position.

 66

12

13

FAMILIARISATION

DRIVING SAFELY

Speed limiter Instrument panel display

1. Selecting/Switching off speed

limiter mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter on/off.

The values must be set with the engine
running.

 108

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. Selecting/Switching off cruise

control mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Cruise control on/off.

In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox.

 110

Cruise control

Cruise control

Speed limiter

FAMILIARISATION

EXTERIOR FEATURES

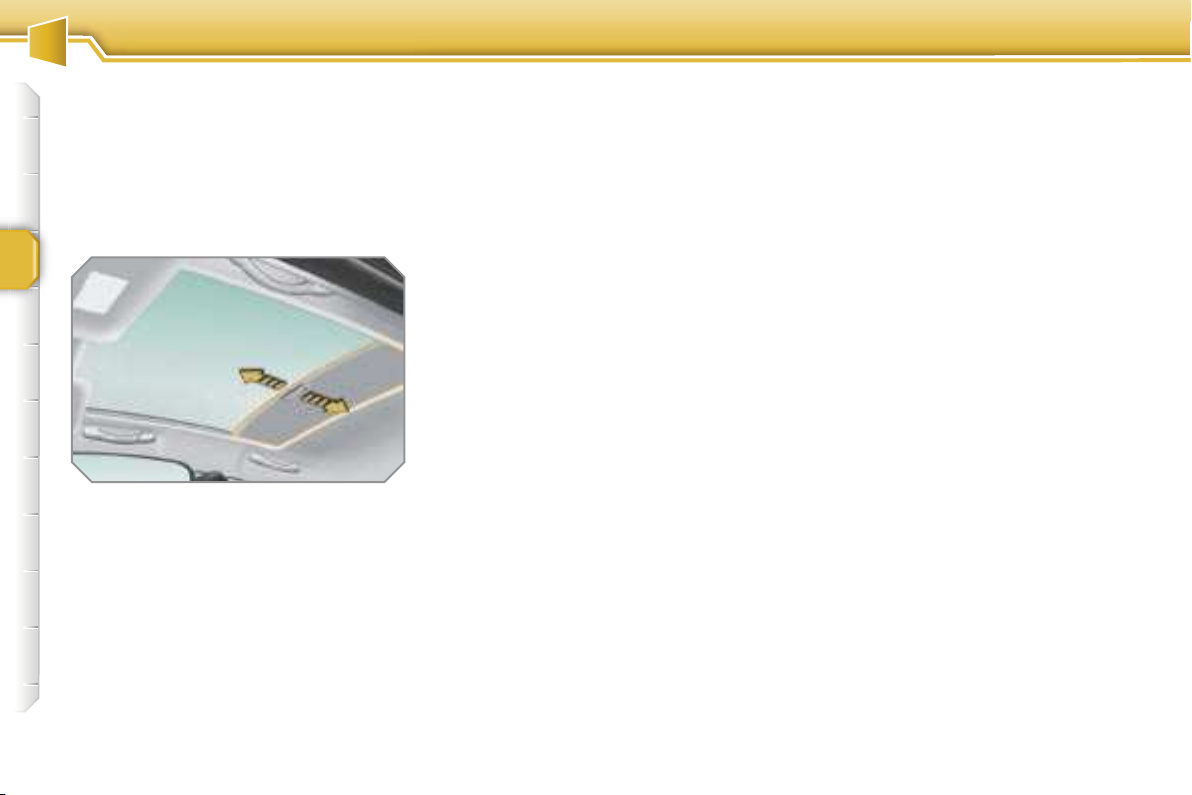

Panoramic roof

This extensively glazed roof provides
incomparable visibility and light in the
passenger compartment.

 76

Directional lighting

This additional lighting automatically
provides extended visibility when
turning.

 81

Rear parking assistance

This equipment provides a warning
when reversing by detecting obstacles
located behind the vehicle.

 112

Tyre under-inflation detection

This equipment monitors the pressure
in each tyre and warns you if a puncture
or deflation occurs.

 95

14

INTERIOR FEATURES

FAMILIARISATION

Dual zone automatic air
conditioning

This equipment permits the setting of a
different level of comfort for the driver and
front passenger. It then automatically
controls this level in relation to the
exterior climatic conditions.

 49

"2 Tronic" gearbox

This equipment provides perfect driving
by combining a fully automatic mode, a
manual mode and an auto-sequential
mode which unites the advantages of
the other two modes.

 105

Fragrance diffuser

This fragrance diffuser diffuses the perfume
that you have selected throughout the
passenger compartment by means of its
location in the ventilation system.

 51

Audio and communication
systems

This equipment benefits from the latest
technology: MP3 compatible audio
RD4, Bluetooth hands-free kit, RT3
audio/telephone with navigation, JBL
audio system.

RT3  151
RD4  174

15

1

WARNING LIGHTS AND INDICATORS

PETROL - DIESEL MANUAL GEARBOX OR "2 TRONIC" GEARBOX
INSTRUMENT PANELS

Panel which groups together the vehi­cle operation dials and indicator lights.

Dials

1. Rev counter.

Indicates the speed of rotation

of the engine (x 1000 rpm).

2. Fuel gauge.
Indicates the quantity of fuel

remaining in the tank.

3. Cooling temperature.
Indicates the temperature of the

engine coolant (° Celsius).

4. Speedometer.
Indicates the current speed of the

moving vehicle (km/h or mph).

5. Oil temperature.
Indicates the temperature of the oil

in the engine (° Celsius).

6. Display.

7. Display zero reset button.

Resets the selected function to

zero (trip distance recorder or
service indicator).

8. Instrument panel lighting
button.

Adjusts the brightness of the light-

ing of the instruments and controls.

9. "2 Tronic" gearbox.

Indicates the programme selected

and the gear engaged.

Display

A. Speed limiter

or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
C. Service indicator.
(km or miles) then,

Engine oil level indicator.

then

Distance recorder.

(km or miles)
These three functions are dis-

played in succession when the ig­nition is switched on.

For further information, refer to the sec­tion which corresponds to the function
and to the display associated with it.

20

21

The indicator/warning light comes
on continuously or flashes.

Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc­curred.

Indicator and warning lights

Visual indicators which inform the driv­er when a system comes into opera­tion (operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).

Associated warnings

The lighting of certain indicator/warning
lights may be accompanied by an audi­ble signal and a message on the multi­function display.

Operation indicator lights

The lighting of one of the following indi­cator lights confirms that the correspond­ing system has come into operation.

Left-hand direction indicator.

Handbrake applied.

Right-hand direction
indicator.

Main beam headlamps.

Dipped headlamps.

Diesel engine pre-heating.

Wait until this switches off be­fore operating the starter.

Front fog lamps.

Rear fog lamps.

When the ignition is switched on

The warning lights come on for a few
seconds when the vehicle ignition is
switched on.

When the engine is started, these warn­ing lights should switch off.

If they remain on, before moving off,
consult the warning light concerned.

WARNING LIGHTS AND INDICATORS

1

!

1

WARNING LIGHTS AND INDICATORS

Deactivation indicator lights

The lighting of one of the following in­dicator lights confirms that the corre­sponding system has been switched off
intentionally.

Passenger air bag system
disarmed.

The passenger air bag system
is activated automatically when
the vehicle is started.

A special switch, located in the glove
box, permits the disarming of this sys­tem. This is confirmed by continuous
lighting of this indicator light.

22

Deactivation of the dynamic
stability control (ESP).

The ESP system is activated

is started.
A special button, located in the centre

of the fascia, permits the deactivation of
this system. This is confirmed by con­tinuous lighting of this indicator light and
of the indicator light on the button.

automatically when the vehicle

WARNING LIGHTS AND INDICATORS

1

Warning lights

When the engine is running or the
vehicle is moving, the lighting of one of
the following warning lights indicates
the occurrence of a fault which requires
action on the part of the driver.

!

Any fault resulting in the lighting of
a warning light must be the subject
of further diagnostics by reading
the associated message on the
multifunction display.

If a problem arises, do not hesitate
to contact a PEUGEOT dealer.

Centralised alert.

Lighting of the centralised alert
is associated with the lighting
of another warning light:

- punctured wheel,

- braking,

- engine oil pressure,

- coolant temperature.

It is imperative that the vehicle is
stopped as soon as it is safe to do so.

Service.

Lighting of the service warning
light indicates the occurrence of
a problem in one of the systems

warning light.
To identify the problem, consult the

message on the multifunction display.
After checking:

- the remote control battery,

- the tyre inflation pressures,

- the engine oil level,

- the screenwash level,

- the condition of the bulbs,
for other cases, contact a PEUGEOT
dealer.

that the vehicle is stopped as soon as it
is safe to do so.

Change the damaged wheel and have it
repaired by a PEUGEOT dealer.

system.
However, this does not prevent the op-

eration of the vehicle’s assisted braking.

which does not have a specific

Punctured tyre.

The lighting of this warning light
indicates that one or more tyres
are punctured. It is imperative

Anti-lock braking system
(ABS).

The lighting of this warning light
indicates the occurrence of a
fault in the anti-lock braking

23

1

24

Air bags.

The lighting of this warning
light indicates the occurrence

of a fault in one of the air bags
(front, side or curtain) or pre-tensioning
seat belt systems.

Dynamic stability control

(ESP).

The ESP system is activated auto-

matically when the vehicle is started.
Unless the system has been deactivated,

continuous lighting of this warning light
and flashing of the indicator light on the
button indicate the occurrence of a fault in
this system.

Engine autodiagnostics

system.

The lighting of this warning light

indicates the occurrence of a
fault in the engine management system.

Flashing of this warning light indicates
the occurrence of a fault in the emission
control system.

Engine oil pressure.

The lighting of this warning light

indicates the occurrence of a

fault in the engine lubrication
circuit. It is imperative that the vehicle is
stopped as soon as it is safe to do so.

Battery charge.

The lighting of this warning light
indicates the occurrence of a

fault in the battery charging cir­cuit (dirty or loose terminals, slack or
cut alternator belt, ...).

Braking.

The lighting of this warning light

indicates the occurrence of a fault

in one of the braking systems:

- significant drop in the level in the cir-

cuit,

- electronic brake force distribution

(EBFD) faulty (if lit at the same time

as the ABS warning light).
It is imperative that the vehicle is
stopped as soon as it is safe to do so.

If the vehicle is moving, check that the
handbrake has been released fully.

Low fuel level.

The lighting of this warning light indi­cates that there is enough fuel left to
drive approximately 30 miles (50 km).

The capacity of the fuel tank is approximately
50 litres.

Low coolant level.

Flashing of this warning light in­dicates a drop in the level in the

cooling system. It is imperative
that the vehicle is stopped as soon as it
is safe to do so.

Door open.

A door, the boot or the bonnet
is still open:

-

if the speed is below 6 mph (10 km/h),
this warning light comes on continuously,

- if the speed is above 6 mph (10 km/h),
this warning light comes on continuously,
accompanied by an audible signal.

Seat belt not fastened/
unfastened.

The lighting of this warning light

indicates that the driver* and/or
the front passenger has not fastened
his seat belt or has unfastened it.

It also indicates that one or more rear
passengers have unfastened their seat
belt.

Power steering.

The lighting of this warning light

indicates the occurrence of a fault

in the electric power steering.

Presence of water in diesel.

The lighting of this warning light

indicates the presence of water

in the diesel filter.

There is a risk of damage to the
injection system on Diesel engines.

Directional headlamps.

Flashing of this warning light
indicates the occurrence of a
fault in the directional head­lamps system.

* According to country.

WARNING LIGHTS AND INDICATORS

WARNING LIGHTS AND INDICATORS

1

Coolant temperature indicator

System which informs the driver of
the changes in the temperature of the
engine coolant while driving.

With the engine running, when the
needle is:

- in zone A, the temperature is correct,

- in zone B, the temperature is too

high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on the
multifunction display.

You MUST stop as soon as it is safe
to do so.

Contact a PEUGEOT dealer.

After driving for a few minutes, the
temperature and pressure in the cooling
system increase.

To top up the level:

 wait for the engine to cool,
 unscrew the cap by two turns to allow

the pressure to drop,

 when the pressure has dropped,

remove the cap,

 top up the level to the "MAX" mark.

Engine oil temperature indicator

System which informs the driver of
the changes in the temperature of the
engine oil while driving.

With the engine running, when the
needle is:

- in zone C, the temperature is correct,

- in zone D, the temperature is too high;

the oil pressure warning light and the
central STOP warning light come on,
accompanied by an audible signal
and a message on the multifunction
display.

You MUST stop as soon as it is safe
to do so.

Contact a PEUGEOT dealer.

25

1

WARNING LIGHTS AND INDICATORS

Service indicator

System which informs the driver when
the next service is due, in accordance
with the manufacturer’s servicing
schedule.

The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:

- the distance travelled,

- the time elapsed since the last
service.

More than 500 miles (1 000 km)
remain before the next service is due

For 5 seconds after the ignition is
switched on, the spanner symbolising
the maintenance operations comes
on. The distance recorder display line
indicates the distance remaining before
the next service is due.

Example: 4 800 miles/km remain before
the next service is due.

For 5 seconds after the ignition is
switched on, the display indicates:

5 seconds after the ignition is switched
on, the maintenance spanner is
switched off; the distance recorder
resumes its normal operation. The
display then indicates the total and trip
distances.

Less than 500 miles (1 000 km)
remain before the next service is due

Example: 400 miles (900 km) remain

before the next service is due.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The maintenance
spanner remains on to indicate that a
service must be carried out soon.

26

WARNING LIGHTS AND INDICATORS

1

Service overdue

For 5 seconds after the ignition is
switched on, the maintenance spanner
flashes to indicate that the service must
be carried out as soon as possible.

Example: the service is overdue by
300 miles (km).

For 5 seconds after the ignition is
switched on, the display indicates:

5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The maintenance

spanner remains lit.

i

The distance remaining may
be weighted by the time factor,
depending on the driver’s driving
habits.

Therefore, the maintenance
spanner may also come on if
you have exceeded the two year
service interval.

Service indicator zero reset

After each service, the service indicator
must be reset to zero.

To do this, carry out the following
procedure:

 switch off the ignition,
 press and hold the trip distance

recorder zero reset button,

 switch on the ignition; the

distance recorder display begins a
countdown,

 when the display indicates "=0",

release the button; the service
spanner disappears.

i

Following this operation, if you
wish to disconnect the battery, lock
the vehicle and wait at least five
minutes for the zero reset to be
taken into account.

27

1

WARNING LIGHTS AND INDICATORS

Engine oil level indicator

System which informs the driver of the
validity or invalidity of the engine oil
level.

This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

i

The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

Oil level correct

Lack of oil

This is indicated by the flashing of
"OIL", linked with the service warning
light, accompanied by an audible signal
and a message on the multifunction
display.

If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.

Oil level gauge fault

This is indicated by the flashing of

"OIL --". Contact a PEUGEOT dealer.

Dipstick

Refer to the "Checks" section to locate
the dipstick and the oil filler cap on your
engine.

There are 2 marks on the
dipstick:

- A = max; never exceed

this level,

- B = min; top up the level

via the oil filler cap, using
the type of oil suited to
your engine.

28

WARNING LIGHTS AND INDICATORS

1

Total distance recorder

System which measures the total
distance travelled by the vehicle during
its life.

The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver’s door is
opened and when the vehicle is locked
or unlocked.

Trip distance recorder

System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the button

until zeros appear.

Lighting rheostat

System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

Activation

When the lights are on:

press the button to change the brightness



of the instruments and controls,

 when the lighting reaches the

minimum setting, release the button,
then press again to increase it,

or
 when the lighting reaches the maximum

setting, release the button, then press
again to reduce it,

 when the lighting reaches the level

of brightness required, release the
button.

Deactivation

When the lights are off, or in day mode on
vehicles fitted with daytime lights, pressing
the button does not have any effect.

CLOCK

Integrated system which displays the
time with independent setting of the
hours and minutes.

Button 1: setting of the hours.
Button 2: setting of the minutes.

Setting

 Press the corresponding button

briefly to obtain slow scrolling.

or
 Continue to press the corresponding

button to obtain rapid scrolling.

29

1

WARNING LIGHTS AND INDICATORS

MONOCHROME SCREEN A
(without RD4 audio equipment)

Displays on the screen

This displays the following information:

- the time,

- the date,

- the outside temperature* (this flashes
if there is a risk of ice),

- the status of the accesses (doors,
boot, ...),

- the trip computer (refer to the end of
the section).

Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may
appear temporarily. These can be
cleared by pressing the "ESC" button.

Controls General menu

 Press the "MENU" button to scroll

through the various menus of the
general menu:

- vehicle configuration,

- options,

- display settings,

There are three display control buttons:

- "ESC" to abandon the operation in

progress,

- "MENU" to scroll through the menus

or sub-menus,

- "OK" to select the menu or sub-menu

required.

- languages,

- units.

 Press the "OK" button to select the

menu required.

* With air conditioning only.

30

WARNING LIGHTS AND INDICATORS

1

Vehicle configuration

Once the "Vehicle configuration" menu
has been selected, you can activate or
deactivate the following equipment:

- wiper linked with reverse gear (refer to
the "Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- "follow-me-home" lighting (refer to the
"Visibility" section).

Options

Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).

Display settings

Once the "Display settings" menu has
been selected, you can gain access to
the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

 Once you have selected a setting,

press the "OK" button to change its
value.

 Wait for approximately ten seconds

without any action to allow the
changed data to be recorded or
press the "ESC" button to cancel.

The display then returns to the normal
display.

Languages

Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues­Brasil, Deutsch, English, Espanol).

Units

Once the "Units" menu has been
selected, you can change the units of
the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).

For safety reasons, configuration

!

of the multifunction displays by
the driver must take place when
stationary.

31

1

WARNING LIGHTS AND INDICATORS

MONOCHROME SCREEN C General menu

Displays on the screen

This displays the following information:

- the time,

- the date,

- the outside temperature* (this flashes
if there is a risk of ice),

- the status of the accesses (doors,
boot, ...),

- the audio sources (radio, CD, ...),

- the trip computer (refer to the end of
the section).

Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. These can be
cleared by pressing the "ESC" button.

* With air conditioning only.

Controls

From the RD4 audio equipment control
panel, you can:

 press the "MENU" button to gain

access to the general menu,

 press the "" or "" buttons to scroll

through the items on the screen,

 press the "MODE" button to change

the permanent application (trip
computer, audio source, ...),

 press the "" or "" buttons to

change a setting value,

 press the "OK" button to confirm,
or

 press the "ESC" button to abandon

the operation in progress.

 Press the "MENU" button to gain

access to the general menu:

- audio functions,

- trip computer (refer to the end of
the section),

- personalisation-configuration,

- telephone (hands-free kit).

 Press the "" or "" buttons to select

the menu required, then confirm by
pressing the "OK" button.

"Audio functions" menu

With the RD4 audio equipment switched
on, once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
(introscan, shuffle, CD repeat).

For further details concerning the "Audio
functions" application, refer to the RD4
part of the "Audio and Telematics"
section.

"Trip computer" menu

Once this menu has been selected,
you can consult information concerning
the status of the vehicle (warnings log,
status of the functions, ...).

34

WARNING LIGHTS AND INDICATORS

1

"Personalisation-Configuration"
menu

Once this menu has been selected, you
can gain access to the following functions:

- define the vehicle parameters,

- display configuration,

- selection of the language.

Define the vehicle parameters

Once this menu has been selected, you
can activate or deactivate the following
equipment:

- wiper linked with reverse gear (refer to
the "Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- "follow-me-home" lighting (refer to the
"Visibility" section).

Example: setting of the duration of the
"follow-me-home" lighting

 Press the "" or "" buttons, then

the "OK" button to select the menu
required.

 Press the "" or "" buttons, then

the "OK" button to select the "Follow-
me-home lighting" line.

 Press the "" or "" buttons to

set the value required (15, 30 or
60 seconds), then press the "OK"
button to confirm.

 Press the "" or "" buttons, then

the "OK" button to select the "OK"
box and confirm or press the "ESC"
button to cancel.

Display configuration

Once this menu has been selected, you
can gain access to the following settings:

- brightness-video setting,

- date and time setting,

- selection of the units.

Selection of the language

Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil).

"Telephone" menu

With the RD4 audio equipment switched
on, once this menu has been selected you
can configure your Bluetooth hands-free kit
(matching), consult the various telephone
directories (calls log, services, ...) and
manage your communications (pick up,
hang up, call waiting, secret mode, ...).

For further details concerning the "Tele­phone" application, refer to the RD4 part
of the "Audio and Telematics" section.

For safety reasons, the configuration

!

of the multifunction displays by
the driver must take place when
stationary.

35

1

WARNING LIGHTS AND INDICATORS

MONOCHROME SCREEN CT Displays on the screen

When the ignition is switched on, this
displays the following information
automatically and directly:

- the time,

- the date,

- the outside temperature (if there is
a risk of ice, you are warned by a
message).

Warning messages (e.g.: "Fuel level
low") and vehicle function status
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. These can be
cleared by pressing the "ESC" button.

COLOUR SCREEN DT

General menu

When the RT3 GPS audio/telephone
is switched on, select the menu
which corresponds to the following
applications:

- the satellite navigation system and the
traffic information,

- the audio sources (radio, CD, ...),

- the trip computer (consumption,
route, ...),

- the directories,

- the telephone,

- the configuration of the screen and
the setting of the parameters of the
vehicle’s equipment,

- the guidance on the map*,

* With colour screen DT only.

- the displaying of a video*.

36

Controls

From the RT3 GPS audio/telephone
control panel, to select one of the
applications:

 press the "MENU" button to gain

access to the general menu,

 turn the dial to move the selection,
 press the dial to confirm the

selection,

or
 press the "ESC" button to abandon

the operation in progress and return
to the previous display.

For further details concerning these
applications, refer to the RT3 part of the
"Audio and Telematics" section.

WARNING LIGHTS AND INDICATORS

1

"Configuration" menu

 Press the "MENU" button on the

RT3 GPS audio/telephone to gain
access to the general menu.

 Turn the dial to select the

"Configuration" menu, then press

it to confirm.

Once this menu has been selected,
you can gain access to the following
functions:

Define the vehicle parameters

Once the "Define the vehicle
parameters" menu has been selected,
you can activate or deactivate certain
driving and comfort equipment:

- wiper linked with reverse gear (refer to
the "Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- "follow-me-home" lighting and duration
(refer to the "Visibility" section).

Example: setting the duration of the
"follow-me-home" lighting

 Turn the dial to select the "Lighting

configuration" menu, then press it

to confirm.

 Select the line "Duration of the

"follow-me-home" lighting" then
confirm.

 Select the duration then press the

dial.

 Turn the dial to set the value required

(15, 30 or 60 seconds), then press
the dial.

 Select the "OK" box, then confirm.

37

1

WARNING LIGHTS AND INDICATORS

Display configuration

Once the "Display configuration" menu
has been selected, you gain access to
the following parameters:

- selection of the palette of colours
available for the display*,

- setting of the brightness and brilliance
of the display,

- setting of the voice commands; setting
of the voice synthesiser (volume, male
or female); activation of the auxiliary
input AUX*,

- from the "international parameters",
setting of the date and time (12 or
24 hour mode, adjustment of the
minutes on GPS); selection of the
units (temperature in °Celsius or
°Fahrenheit; consumption in l/100 km
or mpg or km/l),

- selection of the display, information and
voice commands language (Français,
English, Italiano, Portugues, Espanol,
Deutsch, Nederlands).

38

i

The configuration CD-ROM is
required for changing the voice
used by the voice synthesiser
(male or female) or the language
used by the system.

!

For safety reasons, configuration
of the multifunction displays by
the driver must take place when
stationary.

* With colour screen DT only.

"Video" menu*

You can connect video equipment
(camcorder, digital camera, DVD player,
...) to the three audio/video sockets,
located in the glove box.

Videos can only be displayed when
stationary.

Once this menu has been selected, you
can select:

- "Activate video mode" to activate/
deactivate the video,

- "Video parameters" to set the display
format, the brightness, the contrast
and the colours.

 Press the "MODE" or "DARK"

button to disconnect the displaying
of the video.

 Press the "SOURCE" button several

times in succession to select an
audio source other than that of the
video.

TRIP COMPUTER

System which provides current
information concerning the route
travelled (range, consumption, ...).

WARNING LIGHTS AND INDICATORS

1

Monochrome screen A

Data displays

 Press the button, located at the end

of the wipers stalk, to display the
various items of trip computer data
in succession.

The trip computer data is the following:

- the range,

- the current consumption,

- the distance travelled,

- the average consumption,

- the average speed.

Zero reset

 Press the control for more than

two seconds to reset the distance
travelled, the average consumption
and the average speed to zero.

39

A few definitions…

WARNING LIGHTS AND INDICATORS

1

Range

(km or miles)
This indicates the number of

miles (or kilometres) which
can still be travelled with the fuel re­maining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled.

i

This figure may increase following
a change of driving style or relief,
resulting in a significant drop in the
current consumption.

When the range falls below 20 miles
(30 km), dashes are displayed. After fill­ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

!

If dashes are displayed continu­ously while driving in place of the
digits, contact a PEUGEOT dealer.

Current consumption

(l/100km or km/l or mpg)
This is the average quantity of

fuel consumed over the last few
seconds.

i

This function is only displayed from
20 mph (30 km/h).

Average consumption

(l/100km or km/l or mpg)
This is the average quantity

of fuel consumed since the
last trip computer zero re­set.

Distance travelled

(km or miles)
This indicates the distance

travelled since the last trip
computer zero reset.

Distance remaining to be
travelled

(km or miles)

This is the distance remaining
to be travelled to the final destination. It
is calculated either instantly by the navi­gation system if guidance is activated,
or entered by the user.

If the distance is not entered, dashes
are displayed in place of the digits.

Average speed

(km/h or mph)

This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

41

1

WARNING LIGHTS AND INDICATORS

TRIP COMPUTER

System which provides current infor­mation concerning the route travelled
(range, consumption, …).

Monochrome screen C

Monochrome screen CT

Colour screen DT

Data displays

 Press the button, located at the end

of the wipers stalk, to display the
various trip computer tabs in succes­sion:

- the current information tab
with:

• the range,

• the current consump-

tion,

• the distance remaining

to be travelled,

- the route "1" tab with:

• the distance travelled,

• the average consump-

tion,

• the average speed,
for the first route.

- the route "2" tab with:

- the distance travelled,

- the average consump­tion,

- the average speed,

for the second route.

Route zero reset

 When the route required is displayed,

press the control for more than two
seconds.

Routes "1" and "2" are independent
but their use is identical.

Route "1" permits, for example, daily
calculations, and route "2" monthly cal­culations.

40

A few definitions…

WARNING LIGHTS AND INDICATORS

1

Range

(km or miles)
This indicates the number of

miles (or kilometres) which
can still be travelled with the fuel re­maining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled.

i

This figure may increase following
a change of driving style or relief,
resulting in a significant drop in the
current consumption.

When the range falls below 20 miles
(30 km), dashes are displayed. After fill­ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

!

If dashes are displayed continu­ously while driving in place of the
digits, contact a PEUGEOT dealer.

Current consumption

(l/100km or km/l or mpg)
This is the average quantity of

fuel consumed over the last few
seconds.

i

This function is only displayed from
20 mph (30 km/h).

Average consumption

(l/100km or km/l or mpg)
This is the average quantity

of fuel consumed since the
last trip computer zero re­set.

Distance travelled

(km or miles)
This indicates the distance

travelled since the last trip
computer zero reset.

Distance remaining to be
travelled

(km or miles)

This is the distance remaining
to be travelled to the final destination. It
is calculated either instantly by the navi­gation system if guidance is activated,
or entered by the user.

If the distance is not entered, dashes
are displayed in place of the digits.

Average speed

(km/h or mph)

This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

41

1

WARNING LIGHTS AND INDICATORS

"TRIP COMPUTER" MENU

System which provides general
information concerning the status of
certain equipment with which your
vehicle is equipped, such as the warnings
log, the status of the functions...

Warnings log

This summarises the active warning
messages, displaying them in succes­sion on the multifunction display.

Status of the functions

This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the destination

This enables you to enter an approxi­mate value for the distance to the final
destination.

42

Screen C

 Press the "MENU" button to gain

access to the general menu.

 Press the arrows, then the "OK"

button to select the "Trip computer"
menu.

 On the "Trip computer" menu, select

one of the following applications:

WARNING LIGHTS AND INDICATORS

 On the "Trip computer" menu, select

one of the following applications:

1

Screen CT or DT

 Press the "MENU" button to gain

access to the general menu.

 Turn the dial and press it to select

the "Trip computer" menu.

Trip computer configuration

This function enables you to enter the
distance to the destination (when no
guidance is activated; otherwise, the
information is provided by the naviga­tion) and change the units (°C or °F, km
and litres, miles and Gallons or km and
km/litre).

Diagnostics

This presents the information relating to
the warnings log, the level of charge re­maining in the back-up battery and the
number of satellites which can be seen
by the GPS system.

Status of the functions

This summarises the active or inactive
status of the functions present on the
vehicle.

43

2

COMFORT

VENTILATION

System which creates and maintains
comfortable conditions in the vehicle’s
passenger compartment.

Air intake

The air circulating in the passenger com­partment is filtered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.

44

Air treatment

The incoming air follows various routes
depending on the controls selected by
the driver:

- direct arrival in the passenger com­partment (air intake),

- passage through a heating circuit
(heating),

- passage through a cooling circuit (air
conditioning).

The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.

The air distribution control enables you
to diffuse the air in the passenger com­partment combining several air vents.

The air flow control enables you to in­crease or reduce the speed of the ven­tilation blower.

Control panel

The controls of this system are grouped
together on control panel A on the cen­tre console. Depending on the model,
the functions offered are:

- the level of comfort required,

- the air flow,

- the air distribution,

- the de-icing and demisting,

- the manual or automatic air condition­ing controls.

Air diffusion

1. Windscreen de-icing or demisting

vents.

2. Front side window de-icing or

demisting vents.

3. Side adjustable and closing vents.

4. Central adjustable and closing

vents.

5. Air outlets to the front footwells.

6. Air outlets to the rear footwells.

RECOMMENDATIONS FOR VENTILATION AND AIR

i

CONDITIONING

In order for these systems to be fully effective, follow the operation and
maintenance rules below:

 If the interior temperature remains very high after the vehicle has been

parked in the sun for a considerable time, do not hesitate to ventilate the
passenger compartment for a few minutes.

Place the air flow control at a sufficient level to provide an adequate renewal

of air in the passenger compartment.

 To obtain an even air distribution, take care not to obstruct the exterior air

intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the fascia; this is used for

regulation of the air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, once or twice a

month to keep it in perfect working order.

 Ensure that the passenger compartment filter is in good condition.
Have the filter elements replaced regularly. If you drive in a dusty

environment, replace them twice as often (refer to the "Checks" section,
"Engines" paragraph).

 To guarantee correct operation of the air conditioning system, you are also

advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a

PEUGEOT dealer.

When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engine power and
therefore improvement of the towing capacity.

The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.

COMFORT

The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.

2

45

2

COMFORT

HEATING/VENTILATION

Control panel with manual control

Control panel with electric control

MANUAL AIR CONDITIONING

Control panel with manual control

Control panel with electric control

46

COMFORT

47

2. Air flow adjustment

 Turn the dial from position

1 to position 4 to obtain an
air flow sufficient to ensure
your comfort.

Windscreen, side windows
and footwells.

Footwells.
(vents closed)

Central and side vents.

 Turn the dial from blue

(cold) to red (hot) to adjust
the temperature to suit your
requirements.

Windscreen and side win­dows.

1. Temperature adjustment

The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "".

The heating/ventilation or air condition­ing systems can only operate when the
engine is running.

HEATING/VENTILATION AND
MANUAL AIR CONDITIONING

Control panel with manual control

4. Air intake/Air recirculation

The intake of exterior air prevents the
formation of condensation on the wind­screen and side windows.

The recirculation of interior air prevents
exterior odours and smoke from enter­ing the passenger compartment.

Return to exterior air intake mode as
soon as possible to avoid deterioration
of the air quality and prevent condensa­tion.

Control panel with electric control

De-icing - Demisting

To quickly de-ice or demist the wind­screen and side windows:

 place the air intake control 4 in the

"Exterior air intake" position,

 place the air distribution dial 3 in the

"Windscreen" position,

 place the temperature dial 1 and the air

flow dial 2 in the maximum position,

 close the central vents,
 switch on the air conditioning by

pressing the "A/C" button.

 If you place the air flow control

in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort­able level. However, a slight
flow of air, due to the movement
of the vehicle, can still be felt.

3. Air distribution adjustment

 Move the manual control to the right

to the "Interior air recirculation" posi­tion.

 Move the manual control to the left

to return to the "Exterior air intake"
position.

 Press the button to recircu-

late the interior air. This is
displayed by lighting of the
indicator light.

 Press the button again to permit the

intake of exterior air. This is displayed
by switching off of the indicator light.

2

i

2

COMFORT

HEATING/VENTILATION

Control panel with manual control

Control panel with electric control

MANUAL AIR CONDITIONING

Control panel with manual control

Control panel with electric control

46

COMFORT

47

2. Air flow adjustment

 Turn the dial from position

1 to position 4 to obtain an
air flow sufficient to ensure
your comfort.

Windscreen, side windows
and footwells.

Footwells.
(vents closed)

Central and side vents.

 Turn the dial from blue

(cold) to red (hot) to adjust
the temperature to suit your
requirements.

Windscreen and side win­dows.

1. Temperature adjustment

The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "".

The heating/ventilation or air condition­ing systems can only operate when the
engine is running.

HEATING/VENTILATION AND
MANUAL AIR CONDITIONING

Control panel with manual control

4. Air intake/Air recirculation

The intake of exterior air prevents the
formation of condensation on the wind­screen and side windows.

The recirculation of interior air prevents
exterior odours and smoke from enter­ing the passenger compartment.

Return to exterior air intake mode as
soon as possible to avoid deterioration
of the air quality and prevent condensa­tion.

Control panel with electric control

De-icing - Demisting

To quickly de-ice or demist the wind­screen and side windows:

 place the air intake control 4 in the

"Exterior air intake" position,

 place the air distribution dial 3 in the

"Windscreen" position,

 place the temperature dial 1 and the air

flow dial 2 in the maximum position,

 close the central vents,
 switch on the air conditioning by

pressing the "A/C" button.

 If you place the air flow control

in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort­able level. However, a slight
flow of air, due to the movement
of the vehicle, can still be felt.

3. Air distribution adjustment

 Move the manual control to the right

to the "Interior air recirculation" posi­tion.

 Move the manual control to the left

to return to the "Exterior air intake"
position.

 Press the button to recircu-

late the interior air. This is
displayed by lighting of the
indicator light.

 Press the button again to permit the

intake of exterior air. This is displayed
by switching off of the indicator light.

2

i

2

COMFORT

5. Air conditioning On/Off
(manual air conditioning)

The air conditioning is de­signed to operate effectively in
all seasons, with the windows
closed.

It enables you to:

- lower the temperature, in summer,

- increase the effectiveness of the de-

misting, in winter above 0 °C.

Switching on

 Press the "A/C" button, the associ-

ated indicator light comes on.

The air conditioning does not oper­ate when the air flow adjustment dial
2 is in position "0".

Switching off

 Press the "A/C" button again, the as-

sociated indicator light switches off.

REAR SCREEN DE-ICING

The control button is located on
the heating or air conditioning
system control panel.

Switching on

The rear screen de-icing can only oper­ate when the engine is running.

 Press this button to de-ice the rear

screen and the exterior mirrors. The
indicator light associated with the
button comes on.

Switching off

The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-

eration before it is switched off auto­matically by pressing the button
again. The indicator light associated
with the button switches off.

i

If the engine is switched off before
the de-icing is switched off automa­tically, de-icing will resume next time
the engine is switched on.

 Switch off the de-icing of the

rear screen and exterior mirrors
as soon as you consider this
necessary as lower current con­sumption results in reduced fuel
consumption.

48

2

COMFORT

5. Air conditioning On/Off
(manual air conditioning)

The air conditioning is de­signed to operate effectively in
all seasons, with the windows
closed.

It enables you to:

- lower the temperature, in summer,

- increase the effectiveness of the de-

misting, in winter above 0 °C.

Switching on

 Press the "A/C" button, the associ-

ated indicator light comes on.

The air conditioning does not oper­ate when the air flow adjustment dial
2 is in position "0".

Switching off

 Press the "A/C" button again, the as-

sociated indicator light switches off.

REAR SCREEN DE-ICING

The control button is located on
the heating or air conditioning
system control panel.

Switching on

The rear screen de-icing can only oper­ate when the engine is running.

 Press this button to de-ice the rear

screen and the exterior mirrors. The
indicator light associated with the
button comes on.

Switching off

The de-icing switches off automatically
to prevent an excessive consumption of
current.

 It is possible to stop the de-icing op-

eration before it is switched off auto­matically by pressing the button
again. The indicator light associated
with the button switches off.

i

If the engine is switched off before
the de-icing is switched off automa­tically, de-icing will resume next time
the engine is switched on.

 Switch off the de-icing of the

rear screen and exterior mirrors
as soon as you consider this
necessary as lower current con­sumption results in reduced fuel
consumption.

48

COMFORT

49

When the engine is cold, to prevent
too great a distribution of cold air,
the air flow will only reach its opti­mum level gradually.

On entering the vehicle, if the in­terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re­quired level of comfort. The system
eliminates the temperature differ­ence automatically and as quickly
as possible.

The air conditioning can only operate
with the engine running.

The driver and his front pas­senger can each set the tem­perature to suit their require­ments.

A setting around 21 enables you to ob­tain an optimum level of comfort. De­pending on your requirements, a setting
between 18 and 24 is usual.

In addition, it is recommended that you avoid
a left/right setting difference of more than 3.

4. Automatic visibility programme

The automatic comfort pro­gramme may not be sufficient
to quickly demist or de-ice the
windscreen and side windows
(humidity, several passen­gers, ice...).

 In this case, select the automatic vis-

ibility programme.

The system automatically controls the
air conditioning, the air flow and the air
intake and provides optimum distribu­tion of the ventilation to the windscreen
and side windows.

 To exit this programme, press the "vis-

ibility" button again or the "AUTO"

button, the indicator light on the button
switches off and "AUTO" is displayed.

Automatic operation

1. Automatic comfort programme

 Press the "AUTO" button.

The "AUTO" symbol is dis­played.

2. Driver’s side adjustment

3. Passenger side adjustment

DUAL ZONE AUTOMATIC AIR CONDITIONING

We recommend that you use this mode:
it provides optimised automatic control
of all of the functions, passenger com­partment temperature, air flow, air dis­tribution and air recirculation, in accord­ance with the comfort value that you
have selected.

This system is designed to operate ef­fectively in all seasons, with the win­dows closed.

The value indicated on the display cor­responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

 Turn dial 2 or 3 to the left to reduce

the value or to the right to increase it.

2

i

i

2

COMFORT

Resuming manual control

Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.

 Press the "AUTO" button to return

to fully automatic operation.

For maximum cooling or heating of

i

the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.

 Turn dial 2 or 3 to the left until

"LO" is displayed or to the right
until "HI" is displayed.

5. Air conditioning On/Off

 Press this button to switch

the air conditioning off.

Switching the system off may result in
discomfort (humidity, condensation).

 Press the button again to return to

automatic operation of the air con­ditioning. The symbol "A/C" is dis­played.

50

6. Air distribution adjustment

 Press this button several

times in succession to di­rect the air flow in turn to­wards:

- the windscreen, the side windows and
the footwells,

- the windscreen and side windows (de­misting or de-icing),

- the central and side vents,

- the central vents, the side vents and
the footwells,

- the footwells.

7. Air flow adjustment

 Press the "small fan" but-

ton to reduce the air flow.

 Press the "large fan" button

to increase the air flow.

The air flow symbol, the fan, is filled in
progressively in relation to the value re­quired.

8. Air intake/Air recirculation

 Press this button to recircu-

late the interior air. The air
recirculation symbol is dis­played.

Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.

 As soon as possible, press this but-

ton again to permit the intake of ex­terior air and prevent condensation.

Avoid prolonged operation in inte-

!

rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).

Deactivation of the system

 Press the "small fan" button until

the fan symbol disappears.

This action deactivates all of the func­tions of the air conditioning system.

The temperature is no longer main­tained at a comfortable level. However,
a slight flow of air, due to the movement
of the vehicle, can still be felt.

 Press the "large fan" button again

or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.

Avoid driving for too long with the

!

air conditioning deactivated.

COMFORT

2

FRAGRANCE DIFFUSER

System which permits the diffusion of
fragrance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.

Controls

A. Adjustment dial.

This dial permits simultaneous adjust­ment of the ventilation and of the inten­sity of diffusion of the fragrance. There
are three main positions:

0. Zero ventilation.

1. Maximum ventilation/Zero diffusion.

2. Maximum ventilation/Maximum

diffusion.

The intensity of diffusion of the fra-

i

grance may depend on the ventila­tion or air conditioning settings.

B. Fragrance cartridge.

This cartridge can be removed very
easily.

You can change it at any time and store
it, using the cap which seals it if it has
been partly used.

You can obtain different fragrance car­tridges from your PEUGEOT dealer.

!

As a safety precaution, do not han­dle the cartridge while driving.

Do not disassemble the cartridges.
Do not try to refill the fragrance dif-

fuser or the cartridges. Only use
genuine PEUGEOT cartridges.

Avoid any contact with the skin and
the eyes.

Store out of reach of children and
pets.

Removing the cartridge

 Turn the cartridge one quarter of a turn.
 Remove the cartridge from the fas-

cia.

 Refit its sealing cap.

Fitting the cartridge

 Remove the sealing cap from the

cartridge.

 Install the cartridge in the fascia.
 Press the cartridge and turn it one

quarter of a turn.

Do not discard the original car-

i

tridge as this is used as a closer
when you are not using a fragrance
cartridge.

To prolong the lifespan of the car­tridge, set the dial to position "0" or
"1" as soon as you no longer wish
to diffuse the fragrance in the pas­senger compartment.

51

2

COMFORT

FRONT SEATS

Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.

1. Forwards-backwards
adjustment

 Lift the control and slide the seat for-

wards or backwards.

52

2. Driver’s or passenger’s seat
height adjustment

 Pull the handle upwards or push it

downwards as many times as nec­essary to obtain the required posi­tion.

3. Seat back angle adjustment
 Push the handle towards the rear.

COMFORT

2

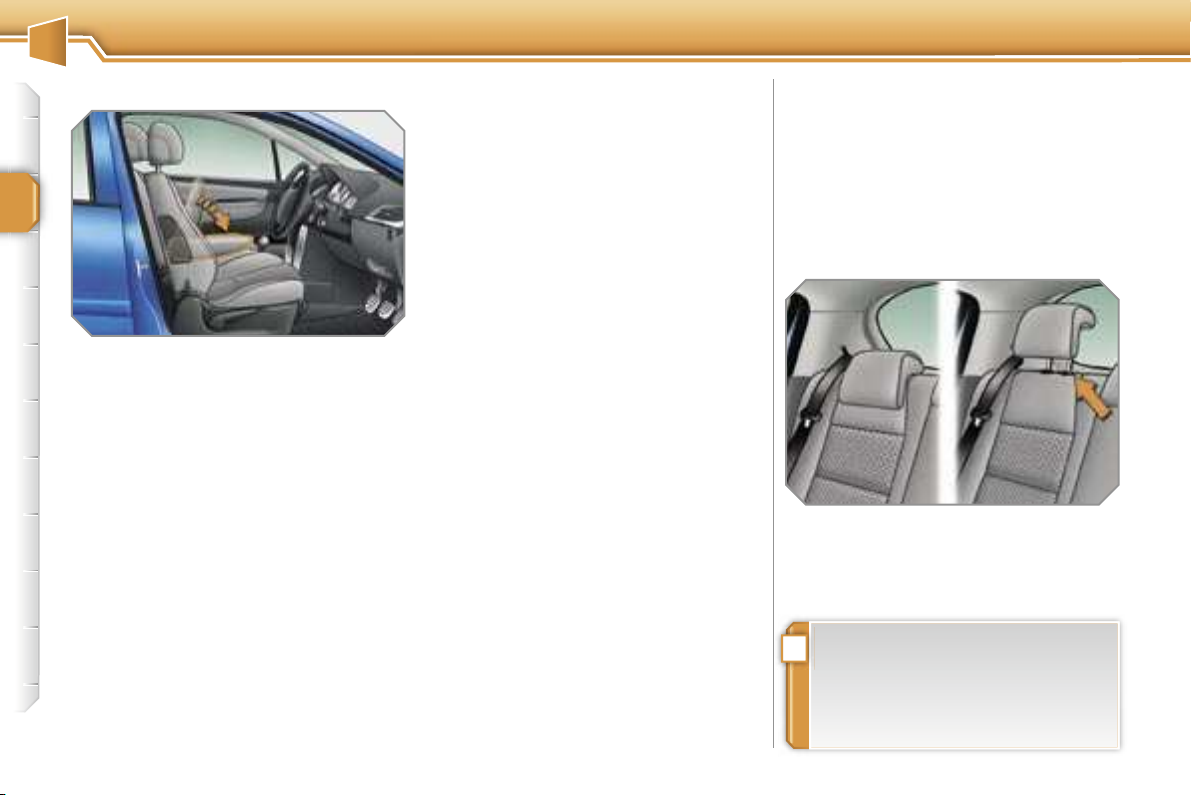

4. Access to rear seats (3 door)

 Pull the handle to fold the seat back

and move the seat forwards. On re­positioning, the seat returns to its ini­tial position.

!

No person or object must prevent
the seat slide from returning to its
initial position; return to this posi­tion is necessary for the seat to
lock in place.

5. Head restraint height and angle
adjustment

 To raise the head restraint, pull it up-

wards.

 To remove the head restraint, press

the lug A and pull the head restraint
upwards.

 To put the head restraint back in po-

sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.

 To lower the head restraint, press

the lug A and the head restraint at
the same time.

The head restraint has a frame with

!

a notch which prevents the head re­straint from lowering; this is a safety
device which provides protection in
the event of an impact.

The adjustment is correct when
the upper edge of the head re­straint is level with the top of the
head.

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

 To tilt the head restraint, tilt the lower

part forwards or rearwards.

53

2

COMFORT

6. Armrests

These can be folded down and are re­movable.

 To remove them, press the button lo-

cated between the armrest and the
side of the seat and pull it.

REAR SEATS

Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot.

Rear head restraints

These have a high position (comfort)
and a low position (rear visibility).

They can also be removed; to remove them:
 pull the head restraint upwards to

the stop,

 then, press the lug.

!

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

54

2

COMFORT

6. Armrests

These can be folded down and are re­movable.

 To remove them, press the button lo-

cated between the armrest and the
side of the seat and pull it.

REAR SEATS

Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot.

Rear head restraints

These have a high position (comfort)
and a low position (rear visibility).

They can also be removed; to remove them:
 pull the head restraint upwards to

the stop,

 then, press the lug.

!

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

54

Folding the seat

To fold a rear seat without any risk of
damage to it, always start with the
seat cushion, never the seat back:

 move the corresponding front seat

forward if necessary,

 raise the front of the seat cushion 1,
 tilt the seat cushion 1 against the

front seat,

 check that the seat belt is positioned

correctly on the side of the seat
back,

 pull control 2 upwards to release the

seat back 3,

 place the head restraints in the low

position or remove them if neces­sary,

 tilt the seat back 3.

Repositioning the seat

When repositioning the rear seat:
 straighten the seat back 3 and secure

it,

 fold back the seat cushion 1.

COMFORT

!

When repositioning the rear seat,
take care not to trap the seat belts.

2

55

2

COMFORT

MIRRORS

Exterior mirrors

Adjustable mirror permitting the lateral
rearward vision necessary when over­taking or parking.

Manual model

Adjustment

 Move the lever in all four directions

to direct the mirror correctly.

Folding

 When parked, fold the mirror manu-

ally to protect it.

Unfolding

 Before starting, unfold the mirror.

Electric model

Adjustment

 Slide switch A to the right or to the

left to select the corresponding mir­ror.

 Move knob B in all four directions to

adjust.

 Return switch A to the centre posi-

tion.

Folding

 from outside: lock the vehicle using

the remote control or the key.

 from inside: with the ignition on, pull

switch A rearwards.

Unfolding

 from outside: unlock the vehicle us-

ing the remote control or the key.

 from inside: with the ignition on, pull

switch A rearwards.

i

The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.

!

The objects observed are, in real­ity, closer than they appear.

Take this into account to correctly
judge the distance of vehicles ap­proaching from behind.

56

COMFORT

2

Interior mirror

Adjustable mirror permitting central
rearward vision.

Manual model

The mirror is fitted with a night anti­dazzle device.

Adjustment

 Adjust the mirror to direct it correctly

in the "day" position.

Day/night position

 Pull the lever to change to the "night"

anti-dazzle position.

 Push the lever to change to the nor-

mal "day" position.

Automatic day/night model

System which automatically and gradu­ally changes between the day and night
uses.

To avoid glare, the interior mirror dark­ens automatically in relation to the in­tensity of the light from the rear.

It clears as soon as the light (light beam
of vehicles behind, sun...) decreases,
so providing optimum visibility.

Switching on

 Switch on the ignition and press

switch 1.

The indicator light 2 comes on and the
mirror operates in automatic mode.

Switching off

 Press switch 1.
The indicator light 2 switches off and

the mirror remains at its clearest.

i

In order to provide optimum vis­ibility during your manoeuvres, the
mirror clears automatically when
reverse gear is engaged.

!

As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".

57

2

COMFORT

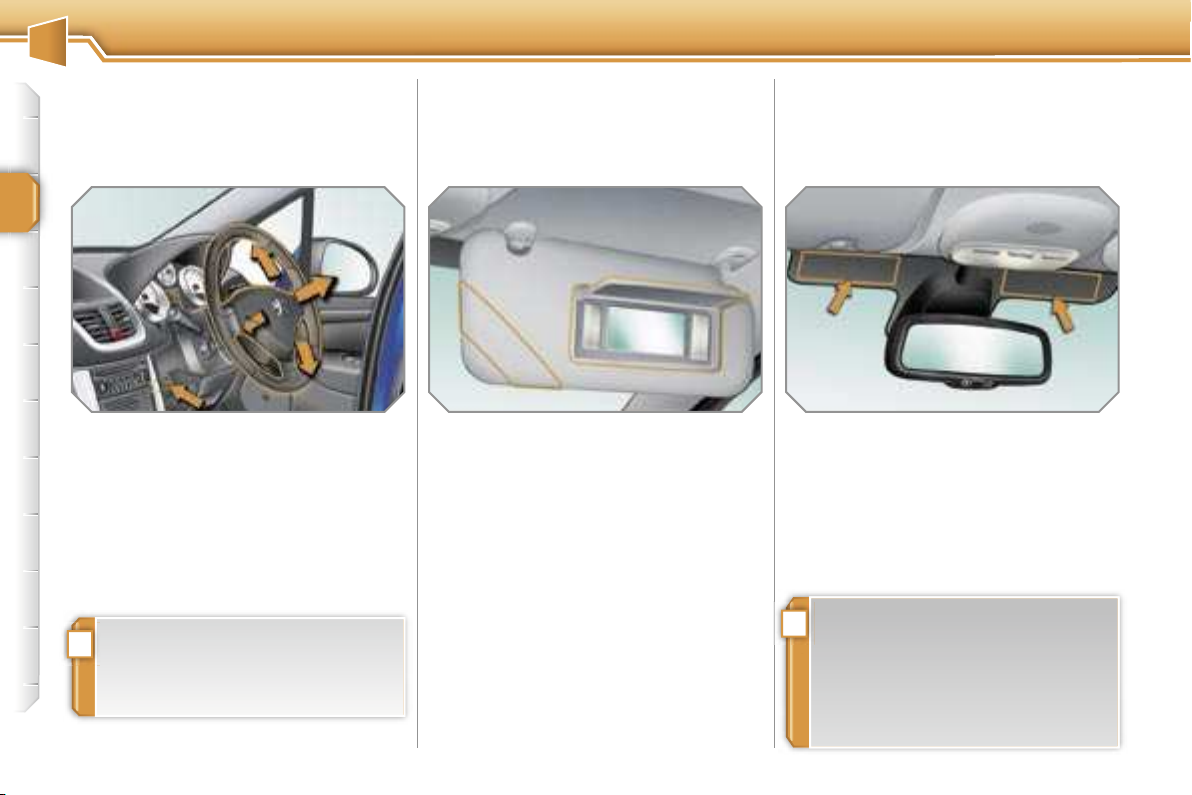

STEERING WHEEL ADJUSTMENT

The height and depth of the steering
wheel can be adjusted to adapt the driv­ing position to the size of the driver.

Adjustment

 When stationary, pull the control to

unlock the steering wheel.

 Adjust the height and depth.
 Push the control to lock the steering

wheel.

As a safety precaution, it is impera-

!

tive that these operations are car­ried out while the vehicle is station­ary.

SUN VISOR

Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the con-

cealing flap; the mirror is lit automati­cally.

This sun visor is also equipped with a
ticket holder.

TOLL CARD/CAR PARK TICKET
WINDOWS

Facility for affixing toll cards and/or car
park tickets.

These windows are located on each
side of the base of the interior mirror.

They are two non-reflective areas of the
athermic windscreen.

The athermic windscreen limits

i

heating of the passenger compart­ment by reducing the effects of the
sun’s rays (ultra-violet). It consists
of a reflective layer, which also
blocks certain radio-electric signals
(toll card payments).

58

COMFORT

2

MAT

Removable component which protects
the carpet against exterior dirt.

Fitting

When fitting the mat for the first time,
use only the fixings provided in the wal­let attached.

Removal

To remove the mat on the driver ’s side:
 move the seat as far back as pos-

sible,

 unclip the fixings,
 remove the fixings, then the mat.

Refitting

To refit the mat on the driver ’s side:

 position the mat correctly,
 refit the fixings by pressing,
 check that the mat is secured cor-

rectly.

To prevent the mat from becoming

!

caught under the pedals:

- only use mats which are suited to
the fixings already present in the
vehicle; it is imperative that these
are used.

- never fit one mat on top of anoth­er.

59

2

COMFORT

INTERIOR LAYOUT

1. Glove box with light

(see details on following page)

2. Storage compartment with
non-slip mat

3. Storage compartment

4. Door tray

5. Map holder

6. Storage compartment with
non-slip mat

7. Ashtray with light/Lighter

(see details on following page)

60

8. Storage compartments

9. Can holder

COMFORT

2

Glove box with light

This has an upper open storage com­partment and locations for storing a
small bottle of water, the vehicle’s hand­book, ...

Its lid has locations for storing a pen, a pair
of spectacles, tokens, cards, a can, ...

It may be fitted with a lock.
 To open the glove box, raise the han-

dle.

It is lit when the lid is opened.

Ashtray with light/Lighter

It houses the front passenger air bag
disarming switch A and three sockets*
B for connecting audio/video equipment
(refer to the "Audio and Telematics"
section to activate the auxiliary input
sockets).

If the vehicle is fitted with air condi­tioning, it provides access to the ven­tilation nozzle C, which can be opened
or closed, distributing the same condi­tioned air as the vents in the passenger
compartment.

 Press the lid to open the ashtray.
 To empty it, after opening, remove

the receptacle from the ashtray.

* With DT colour display only.

61

2

COMFORT

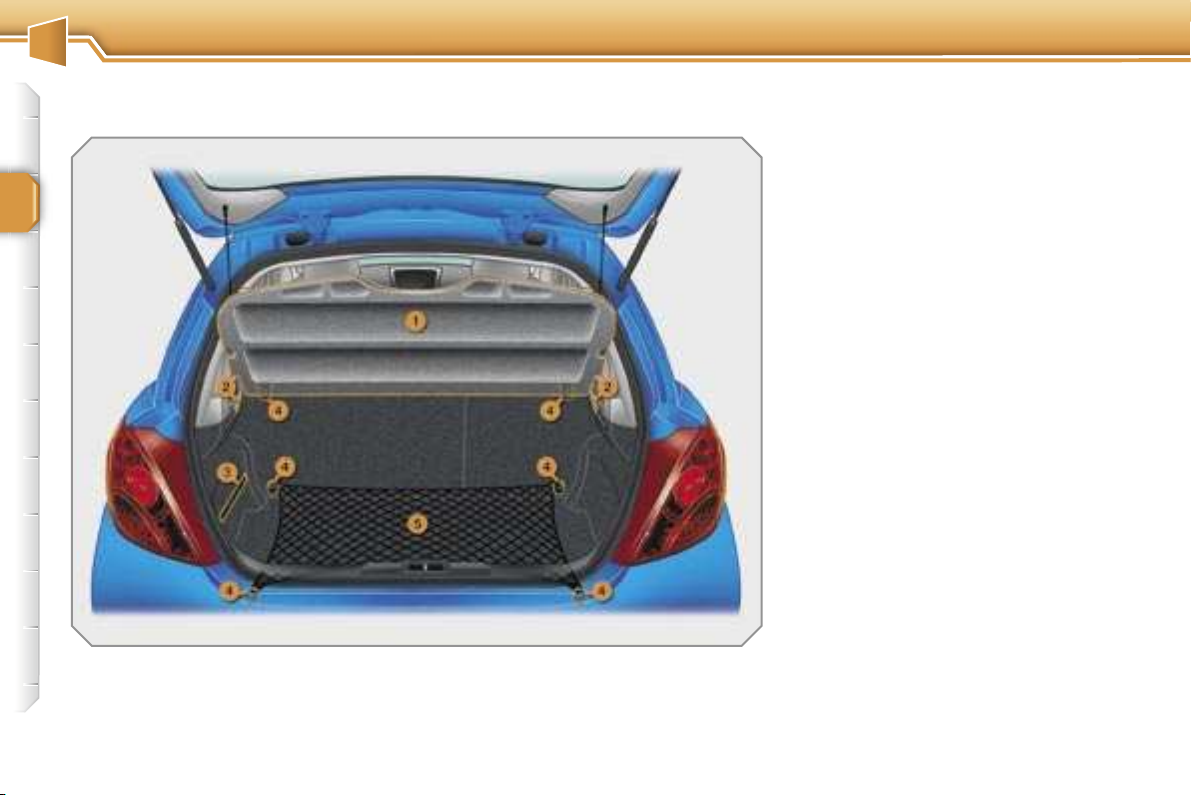

BOOT LAYOUT

1. Rear shelf

(see details on following page)

2. Hooks

(see details on following page)

3. Luggage retaining strap

4. Stowing rings

5. Luggage retaining net

(see details on following page)

62

COMFORT

2

Rear shelf

To remove the shelf:

 unhook the two cords,
 raise the shelf slightly, then remove it.

You have two storage options:

- either upright behind the front seats,

- or upright behind the rear seats.

Hooks

The hooks permit the securing of shop­ping bags.

i

When changing a wheel

The hooks permit easy access to
the spare wheel by retaining the
boot carpet by means of its cord.

Luggage retaining net

Hooked onto the stowing rings, this en­ables you to secure your luggage.

63

3

ACCESSES

REMOTE CONTROL KEY

System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec­tion against theft.

Unlocking the vehicle

Unfolding the key

 First press button A to unfold the

key.

Unlocking using the remote control

 Press the open padlock to

unlock the vehicle.

Unlocking using the key

 Turn the key to the left in the driver's

door lock to unlock the vehicle.

Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.

The exterior mirrors unfold at the same
time.

Locking the vehicle

Normal locking using the remote
control

 Press the closed padlock

to lock the vehicle.

Normal locking using the key

 Turn the key to the right in the

driver's door lock to lock the vehicle.

Locking is confirmed by fixed lighting of
the direction indicators for approximate­ly two seconds.

The exterior mirrors fold at the same
time.

i

If one of the doors or the boot is still
open, the central locking does not
take place.

Deadlocking using the remote
control

 Press the closed padlock to lock the

vehicle.

 Press the closed padlock again

within five seconds to deadlock the
vehicle.

Deadlocking using the key

 Turn the key to the right in the

driver's door lock to lock the vehicle.

 Turn the key to right again within five

seconds to deadlock the vehicle.

Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.

The exterior mirrors fold at the same
time.

!

Deadlocking renders the exterior
and interior door controls inopera­tive.

It also deactivates the manual cen­tralised control button.

Therefore, do not leave anyone
inside the vehicle when it is dead­locked.

64

ACCESSES

3

Folding the key
 First press button A to fold the key.

i

The vehicle will relock automatically
after thirty seconds unless a door
is opened. This system prevents
unintentional unlocking.

The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the
courtesy lights and flashing of the
direction indicators for a few seconds.

Anti-theft protection

Electronic engine immobiliser

The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.

This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.

In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.

In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

Confidential card

This is given to you with the duplicate
keys on delivery of your vehicle.

It bears the identification code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.

This code is hidden by a film which
should not be removed until necessary.

!

Keep this card in a safe place,
never in the vehicle.

Carry this card with you, in the same
way as your personal papers.

65

3

ACCESSES

Starting the vehicle

 Insert the key in the starter.
 Wait a few seconds for the starting

code to be recognised.

 Turn the key fully towards the fascia

to position 3 (Starting).

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to

position 1 (Stop).

 Remove the key from the starter.

Remote control problem

Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a

PEUGEOT dealer as soon as possible.

Reinitialisation

 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately

for a few seconds.

 Switch off the ignition and remove

the key from the starter.

The remote control is fully operational
again.

Changing the battery

Battery ref.: CR1620/3 volts.

If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.

 Unclip the casing using a coin at the

notch.

 Slide the flat battery out of its

location.

 Slide the new battery into its location

observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

66

Key reminder

i

If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.

67

Keys

Make a careful note of the number of each key. This number is coded on the
label attached to the key.

If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.

Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reprogrammed.

The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reprogramming.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more difficult in an emergency.

As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system,
this could cause malfunctions.

When purchasing a second-hand vehicle

Ensure that you are given the confidential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that the

keys in your possession are the only ones which can start the vehicle.

Do not throw the remote control
batteries away, they contain
metals which are harmful to the
environment.

Take them to an approved collection
point.

ACCESSES

3

!

ACCESSES

3

Folding the key
 First press button A to fold the key.

i

The vehicle will relock automatically
after thirty seconds unless a door
is opened. This system prevents
unintentional unlocking.

The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the
courtesy lights and flashing of the
direction indicators for a few seconds.

Anti-theft protection

Electronic engine immobiliser

The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.

This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.

In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.

In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

Confidential card

This is given to you with the duplicate
keys on delivery of your vehicle.

It bears the identification code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.

This code is hidden by a film which
should not be removed until necessary.

!

Keep this card in a safe place,
never in the vehicle.

Carry this card with you, in the same
way as your personal papers.

65

3

ACCESSES

Starting the vehicle

 Insert the key in the starter.
 Wait a few seconds for the starting

code to be recognised.

 Turn the key fully towards the fascia

to position 3 (Starting).

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to

position 1 (Stop).

 Remove the key from the starter.

Remote control problem

Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a

PEUGEOT dealer as soon as possible.

Reinitialisation

 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately

for a few seconds.

 Switch off the ignition and remove

the key from the starter.

The remote control is fully operational
again.

Changing the battery

Battery ref.: CR1620/3 volts.

If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.

 Unclip the casing using a coin at the

notch.

 Slide the flat battery out of its

location.

 Slide the new battery into its location

observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

66

Key reminder

i

If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.

67

Keys

Make a careful note of the number of each key. This number is coded on the
label attached to the key.

If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.

Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reprogrammed.

The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reprogramming.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more difficult in an emergency.

As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system,
this could cause malfunctions.

When purchasing a second-hand vehicle

Ensure that you are given the confidential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that the

keys in your possession are the only ones which can start the vehicle.

Do not throw the remote control
batteries away, they contain
metals which are harmful to the
environment.

Take them to an approved collection
point.

ACCESSES

3

!

3

ACCESSES

Starting the vehicle

 Insert the key in the starter.
 Wait a few seconds for the starting

code to be recognised.

 Turn the key fully towards the fascia

to position 3 (Starting).

 When the engine starts, release the

key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to

position 1 (Stop).

 Remove the key from the starter.

Remote control problem

Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to

unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a

PEUGEOT dealer as soon as possible.

Reinitialisation

 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately

for a few seconds.

 Switch off the ignition and remove

the key from the starter.

The remote control is fully operational
again.

Changing the battery

Battery ref.: CR1620/3 volts.

If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.

 Unclip the casing using a coin at the

notch.

 Slide the flat battery out of its

location.

 Slide the new battery into its location

observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

66

Key reminder

i

If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.

3

ACCESSES

ALARM

System which protects and dissuades
against the theft of your vehicle. It
provides two types of protection, exterior
and interior, as well as an anti-tamper
function.

Exterior protection

The system detects opening of the
vehicle.

The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.

Interior protection

The system detects any variation in the
volume in the passenger compartment.

The alarm is triggered if anyone breaks
a window or moves inside the vehicle.

If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.

Anti-tamper function

The system detects the putting out of
service of its components.

The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.

Locking the vehicle with full
alarm

Activation

 Switch off the ignition and get out of

the vehicle.

 Lock or deadlock the vehicle using

the locking button on the remote
control.

The alarm is activated; the indicator light
on button A flashes once per second.

Deactivation

 Unlock the vehicle using the unlocking

button on the remote control.

The alarm is deactivated; the indicator
light on button A switches off.

Locking the vehicle with exterior
protection alarm only

Deactivation of the interior
protection

 Switch off the ignition.
 Within ten seconds, press button A until

the indicator light is lit continuously.

 Get out of the vehicle.
 Lock or deadlock the vehicle using

the locking button on the remote
control.

The exterior protection alarm alone
remains activated; the indicator light on
button A flashes once per second.

In order to be taken into account,

i

this deactivation must be carried
out each time the ignition is
switched off.

Reactivation of the interior
protection

 Unlock the vehicle using the unlocking

button on the remote control.

The alarm is activated again with both
types of protection; the indicator light on
button A switches off.

68

Do not make any modifications to

!

the alarm system, this could cause
malfunctions.

ACCESSES

3

Triggering

This is indicated by sounding of the siren
and flashing of the direction indicators
for approximately thirty seconds.

After it has been triggered, the alarm is
again operational.

!

If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.

If the indicator light on button A
flashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition
is switched on, this flashing stops
immediately.

To avoid triggering the alarm when
washing your vehicle, lock it using
the key.

Do not activate the alarm before
disconnecting the battery, otherwise
the siren will sound.

Failure of the remote control

 Unlock the vehicle using the key in

the driver’s door lock.

 Open the door; the alarm is

triggered.

 Switch on the ignition; the alarm

stops.

Locking the vehicle without
alarm

 Lock or deadlock the vehicle using

the key in the driver’s door lock.

Malfunction

When the ignition is switched on, lighting
of the indicator light on button A for ten
seconds indicates a siren fault.

Contact a PEUGEOT dealer as soon as
possible.

Automatic operation*

Depending on the legislation in force in
your country, one of these cases may
occur:

- 45 seconds after the vehicle is locked

using the remote control, the alarm is
activated, regardless of the status of
the doors and boot.

- 2 minutes after the last door or the

boot is closed, the alarm is activated.

 To avoid triggering the alarm on

entering the vehicle, first press the
unlocking button on the remote
control.

* According to country.

69

3

ACCESSES

ELECTRIC WINDOWS

System which opens or closes a window
manually or automatically. It may be
fitted with a system which provides
protection if an obstacle is detected and
a deactivation system to prevent misuse
of the rear controls.

1. Driver’s electric window switch.

2. Passenger’s electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window switch.

5. Disarming of the rear electric
window switches.

Operation

Manual

 Press or pull the switch gently. The

window stops as soon as the switch
is released.

Automatic

 Press or pull the switch fully. The

window opens or closes completely
when the switch is released.

 Pressing the switch again stops the

movement of the window.

i

The electric window controls remain
operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.

Safety auto-reverse

When the window rises and meets an
obstacle, it stops and partially lowers
again.

In the event of unwanted opening of

i

the window on closing (for example
in the presence of frost):

 press the switch until it opens

completely,

 then pull it immediately until it

closes.

 continue to hold the switch for

approximately one second after
the window has closed.

The safety auto-reverse function
is not active during these
operations.

Disarming the rear window controls

 For the safety of your children, press

switch 5 to prevent operation of the
rear windows irrespective of their
position.

When the button is pressed down,
disarming is active.

When the button is raised, disarming is
deactivated.

70

ACCESSES

3

Reinitialisation

Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again

until it closes completely,

 hold the switch for approximately

one second after closing,

 press the switch to lower the window

automatically,

 when the window has reached the

low position, press the switch again
for approximately one second.

The safety auto-reverse function is
not active during these operations.

!

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.

In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.

When the driver operates the
passenger electric window
switches, he must ensure that no
one is preventing correct closing of
the windows.

The driver must ensure that
the passengers use the electric
windows correctly.

Be aware of children when
operating the windows.

REAR QUARTER WINDOWS

On the 3-door versions, system for
ventilation of the rear seats limiting the
partial opening of the window.

Opening

 Tilt the lever outwards.
 Push it fully to secure the window in

the open position.

Closing

 Pull the lever to release the window.
 Tilt the lever fully inwards to secure

the window in the closed position.

71

ACCESSES

3

Reinitialisation

Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again

until it closes completely,

 hold the switch for approximately

one second after closing,

 press the switch to lower the window

automatically,

 when the window has reached the

low position, press the switch again
for approximately one second.

The safety auto-reverse function is
not active during these operations.

!

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.

In the event of contact during
operation of the windows, you
must reverse the movement of the
window. To do this, press the switch
concerned.

When the driver operates the
passenger electric window
switches, he must ensure that no
one is preventing correct closing of
the windows.

The driver must ensure that
the passengers use the electric
windows correctly.

Be aware of children when
operating the windows.

REAR QUARTER WINDOWS

On the 3-door versions, system for
ventilation of the rear seats limiting the
partial opening of the window.

Opening

 Tilt the lever outwards.
 Push it fully to secure the window in

the open position.

Closing

 Pull the lever to release the window.
 Tilt the lever fully inwards to secure

the window in the closed position.

71

3

ACCESSES

DOORS

Opening

From outside

 After unlocking the vehicle using the

remote control or the key, pull the
door handle.

From inside

 Pull the front door control to open

the door; this unlocks the vehicle
completely.

 Pull the rear door control to open the

door; this unlocks the door concerned
only.

The interior door controls do

!

not operate when the vehicle is
deadlocked.

Closing

If a door is not closed correctly:

- when the engine is running,

this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,

- when the vehicle is moving (speed

above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.

72

ACCESSES

3

Manual centralised control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking

 Press button A to lock the vehicle.
The red indicator light on the button

comes on.

i

If one of the doors is open, the cen­tral locking from the inside does not
take place.

Unlocking

 Press button A again to unlock the

vehicle.

The red indicator light on the button
switches off.

If the vehicle is locked or dead-

i

locked from the outside, the red
indicator light flashes and button A
is inactive.

 In this case, use the remote

control or the key to unlock the
vehicle.

Automatic centralised control

System which provides full automatic
locking or unlocking of the doors and
boot while driving.

You can activate or deactivate this func­tion.

Locking

When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.

!

If one of the doors is open, the
automatic central locking does not
take place.

If the boot is open, the automatic
central locking of the doors is active.

Unlocking

 Above 6 mph (10 km/h), press but-

ton A to unlock the doors and boot
temporarily.

Activation

 Press button A for more than two

seconds.

A confirmation message appears on the
multifunction display.

Deactivation

 Press button A again for more than

two seconds.

A confirmation message appears on the
multifunction display.

73

3

ACCESSES

Emergency control

System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.

Locking the driver’s door

 Insert the key in the lock, then turn it

to the right.

Unlocking the driver’s door

 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

 Insert the key in the lock, located on

the edge of the door, then turn it one

eighth of a turn.

Unlocking the front and rear
passenger doors

 Pull the interior door opening

control.

BOOT

Opening

 After unlocking the vehicle using the

remote control or the key, pull the
handle and raise the tailgate.

Closing

If the tailgate is not closed correctly:

- when the engine is running,

this warning light comes on,
accompanied by a message
on the multifunction display

- when the vehicle is moving (speed

above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.

for a few seconds,

Tailgate release

System for mechanical unlocking of the
boot in the event of a central locking
malfunction.

Unlocking

 Fold back the rear seats to gain

access to the lock from inside the
boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

74

3

ACCESSES

Emergency control

System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.

Locking the driver’s door

 Insert the key in the lock, then turn it

to the right.

Unlocking the driver’s door

 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

 Insert the key in the lock, located on

the edge of the door, then turn it one

eighth of a turn.

Unlocking the front and rear
passenger doors

 Pull the interior door opening

control.

BOOT

Opening

 After unlocking the vehicle using the

remote control or the key, pull the
handle and raise the tailgate.

Closing

If the tailgate is not closed correctly:

- when the engine is running,

this warning light comes on,
accompanied by a message
on the multifunction display

- when the vehicle is moving (speed

above 6 mph (10 km/h)), this warning
light comes on, accompanied by an
audible signal and a message on
the multifunction display for a few
seconds.

for a few seconds,

Tailgate release

System for mechanical unlocking of the
boot in the event of a central locking
malfunction.

Unlocking

 Fold back the rear seats to gain

access to the lock from inside the
boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

74

ACCESSES

3

SUNROOF

System which improves the ventilation and
light in the passenger compartment. It is fit­ted with a system which provides protection
if an obstacle is detected and a shutter to
maintain a comfortable temperature.

Operation

Opening

 Turn the control to the left (nine

possible settings).

A deflector gradually unfolds on
opening to prevent unwanted gusts of
air.

Closing

 Return the control to the initial posi-

tion "O".

Safety auto-reverse

When the sunroof is closing and meets
an obstacle, it stops then partially opens
again.

i

In the event of unwanted opening
of the roof on closing (for example,
in the presence of ice), and imme­diately after the roof stops:

 move the control to the "O"

position and press the control
immediately,

 continue to press the control

until the roof is fully closed.

The safety auto-reverse function
is not active during these opera­tions.

Shutter

The sunroof shutter is manual.
It is stored automatically when the roof

is opened.

Reinitialisation

If a malfunction occurs following recon­nection of the battery, the sunroof must
be reinitialised:

 place the control in the initial position

"O",

 press the centre of the control for

more than two seconds,

 wait until the roof closes completely,
 then, the sunroof opens again by a

few millimetres.

The safety auto-reverse function is
not active during these operations.

!

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.

In the event of contact during oper­ation of the roof, you must reverse
the movement of the roof. To do
this, press the switch concerned.

When the driver operates the roof
switch, he must ensure that no one
is preventing correct closing of the
roof.

The driver must ensure that the
passengers use the sunroof cor­rectly.

Be aware of children when operating
the roof.

75

3

ACCESSES

PANORAMIC ROOF

System which consists of a panoramic
surface of tinted glass to increase the
light and visibility in the passenger
compartment. It is fitted with a manual
shutter in two parts to maintain a
comfortable temperature.

Opening

 Take the shutter by its handle and

push it rearwards to the required
position.

Closing

 Take the shutter by its handle and pull

it forwards to the required position.

76

FUEL TANK

Reservoir which should be refilled with
fuel, when the minimum level has been
detected.

Fuel tank capacity: approximately
50 litres.

Low fuel level

When the fuel tank minimum
level is reached, this warning
light comes on on the instrument
panel.

The distance which can be
travelled with the fuel remaining is
approximately 30 miles (50 km).

If you run out of fuel, refer also to the
"Practical information" section.

Filling

A label affixed to the inside of the flap
reminds you of the type of fuel to be
used depending on your engine.

To fill the tank in complete safety:

 it is imperative that the engine is

switched off,

 open the fuel filler flap,
 insert the key in the cap, then turn it

to the left,

 remove the cap and hook it onto the

clip located on the inside of the flap,

 fill the tank, but do not continue

after the 3rd cut-off of the pump;

this could cause malfunctions.

ACCESSES

3

i

The key cannot be removed from
the lock until the cap is put back on
the tank.

When you have filled the tank:

 put the cap back in place,
 turn the key to the right, then remove

it from the cap,

 close the flap.

77

4

VISIBILITY

LIGHTING CONTROLS

System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.

Main lighting

The vehicle’s various front and rear
lights are designed to adapt the driver’s
visibility gradually in relation to the
climatic conditions:

- side lights, to be seen,

- dipped headlamps to see without

dazzling other drivers,

- main beam headlamps for good

visibility when the road is clear.

Additional lighting

Other lights are installed to respond to
particular driving conditions:

- rear fog lamps to be seen from a

distance,

- front fog lamps for even better

visibility,

- directional headlamps for improved

visibility around bends.

Programmes

Various automatic lighting control
modes are also available according to
the following options:

- "follow-me-home" lighting,

- automatic lighting,

- directional lighting.

78

Model without AUTO

Model with AUTO

Manual controls

The lighting commands are made
directly by the driver by means of ring

A and lever B.
A. main lighting mode selection ring,

with:

lights off,

side lights only,

dipped or main beam
headlamps,

automatic lighting.

B. lever for inversion of the lights by

pulling:

dipped headlamps/main beam

headlamps.

In the lights off and side lights modes,
the driver can switch on the main beam
headlamps directly ("headlamp flash")
for as long as he pulls the lever.

Displays

The corresponding indicator light comes
on on the instrument panel to confirm
the selective switching on of the lighting
selected.

VISIBILITY

79

Model with rear fog

lamps only

Model with front and rear

fog lamps

front and rear fog lamps

rear fog lamps

C. fog lamps selection ring.
These operate with the dipped and main

beam headlamps.

 To switch on the fog lamps, turn push

ring C forwards.

When the lights are switched off
automatically (on AUTO model), the fog
lamps and the dipped headlamps will
remain on.

 To switch off all of the lights, turn

push ring C rearwards.

 To switch on the fog lamps, turn push

ring C forwards.

 To switch off the rear fog lamps,

turn push ring C rearwards twice in
succession.

When the lights are switched off
automatically (on AUTO model) or when
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.

 Turn the ring rearwards to switch

off the fog lamps, the side lights will
then switch off.

Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer necessary.
In normal light levels, the power
of their beams may dazzle other
drivers.

Lights on reminder

The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle’s lights, with
the ignition off.

In this case, switching off the lights
will stop the audible signal.

Daytime lights*

On vehicles fitted with daytime lights,
the dipped headlamps come on when
the vehicle is started.

* According to country.

This indicator light comes on
on the instrument panel.

The instruments and controls (instru­ment panel, multifunction display, air
conditioning control panel, ...) are not
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.

4

!

i

4

VISIBILITY

"

Follow-me-home" lighting

The dipped headlamps remain on
temporarily, after switching off the
vehicle’s ignition, to make the driver’s
exit easier in poor light.

Activation

 With the ignition off, activate a

"headlamp flash" using lever B.

 A second "headlamp flash" switches

the function off again.

Switching off

The "follow-me-home" lighting is
switched off automatically following the
door locking command, after a given
time.

80

Automatic lighting

The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de­tected (sensor behind the interior mir­ror) or when the windscreen wipers are
switched on.

As soon as the brightness returns to a
sufficient level or the windscreen wipers
are switched off, the lights are switched
off automatically.

Activation

 Turn ring A to the "AUTO" position.

The automatic lighting is accompa­nied by a message on the multifunc­tion display.

Switching off
 Turn ring A to a position other than

"AUTO". Switching off is accompa-

nied by a message on the multifunc­tion display.

Coupling with the
"Follow-me-home" lighting

Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:

- selection of the duration of maintaining
of the lighting for 15, 30 or 60 seconds in
the vehicle parameters on the multifunc­tion display configuration menu,

- automatic activation of "follow-me­home" lighting when automatic light­ing is in operation.

Operating fault

In the event of a malfunction
of the brightness sensor, the
lights come on accompanied

audible signal and a message on the
multifunction display.

In this case, contact a PEUGEOT dealer.

!

by the service warning light, an

Do not cover the brightness sen­sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir­ror; the associated functions would
no longer be controlled.

4

VISIBILITY

"

Follow-me-home" lighting

The dipped headlamps remain on
temporarily, after switching off the
vehicle’s ignition, to make the driver’s
exit easier in poor light.

Activation

 With the ignition off, activate a

"headlamp flash" using lever B.

 A second "headlamp flash" switches

the function off again.

Switching off

The "follow-me-home" lighting is
switched off automatically following the
door locking command, after a given
time.

80

Automatic lighting

The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de­tected (sensor behind the interior mir­ror) or when the windscreen wipers are
switched on.

As soon as the brightness returns to a
sufficient level or the windscreen wipers
are switched off, the lights are switched
off automatically.

Activation

 Turn ring A to the "AUTO" position.

The automatic lighting is accompa­nied by a message on the multifunc­tion display.

Switching off
 Turn ring A to a position other than

"AUTO". Switching off is accompa-

nied by a message on the multifunc­tion display.

Coupling with the
"Follow-me-home" lighting

Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:

- selection of the duration of maintaining
of the lighting for 15, 30 or 60 seconds in
the vehicle parameters on the multifunc­tion display configuration menu,

- automatic activation of "follow-me­home" lighting when automatic light­ing is in operation.

Operating fault

In the event of a malfunction
of the brightness sensor, the
lights come on accompanied

audible signal and a message on the
multifunction display.

In this case, contact a PEUGEOT dealer.

!

by the service warning light, an

Do not cover the brightness sen­sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir­ror; the associated functions would
no longer be controlled.

VISIBILITY

4

DIRECTIONAL LIGHTING

When the dipped or main beam head­lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.

The use of this lighting is optimum
above all at low and average speed
(city driving, winding roads, ...).

with directional lighting

without directional lighting

Programming

The function is activated or
deactivated via the multi­function display configura­tion menu.

By default, this function is
activated.

Switching on

The system is switched on from a cer­tain speed and a certain angle of rota­tion of the steering wheel.

Switching off

The system is switched off below a
certain angle of rotation of the steering
wheel.

It is switched off when reverse gear is
engaged.

Operating fault

In the event of a malfunction, this
warning light flashes on the instrument
panel, accompanied by a message on
the multifunction display.

Contact a PEUGEOT dealer.

HEADLAMP ADJUSTMENT

To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 5 people.

2. 5 people + maximum authorised

load.

3. Driver + maximum authorised load.

The initial setting is position "0".

i

81

4

VISIBILITY

WIPER CONTROLS

System for the selection and control of
the various front and rear wiping modes
permitting the dispersal of rain and
cleaning.

The vehicle’s various front and rear
wipers are designed to gradually
improve the driver’s visibility in relation
to the weather conditions.

Programmes

Various automatic wiping control modes
are also available depending on the
following options:

- automatic windscreen wiping,

- rear wiping on engaging reverse
gear.

Model with intermittent wiping

Model with AUTO wiping

Manual controls

The wiping commands are made directly
by the driver using lever A and ring B.

Windscreen wipers
A. wiping speed selection lever:

fast (heavy rain),

normal (moderate rain),

intermittent (in proportion to
the speed of the vehicle),

off,

single wipe
(press downwards),

automatic (refer to the
following page).

82

VISIBILITY

4

Rear wiper

!

In the presence of snow or
considerable frost and when using
a tailgate bicycle carrier, deactivate
the automatic rear wiper via the
multifunction display configuration
menu.

B. rear wiper selection ring:

off,

intermittent wipe,

wiping with screenwash
(fixed duration).

Reverse gear

When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.

Programming

The function is activated or
switched off via the multi­function display configura­tion menu.

By default, this function is
activated.

Windscreen and headlamp
wash

 Pull the windscreen wiper stalk

towards you. The windscreen wash
then the windscreen wipers operate
for a fixed period.

The headlamp wash is also activated, if
the dipped headlamps are on.

On vehicles fitted with automatic

i

air conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odour inside the passenger
compartment.

83

4

VISIBILITY

Automatic windscreen wiping

The windscreen wipers operate auto­matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.

Activation

This is controlled manually by the driver
by pushing lever A to the "AUTO" posi­tion.

It is accompanied by a message on the
multifunction display.

Switching off

This is controlled manually by the driver
by moving lever A to another position
and returning it to position "0".

It is accompanied by a message on the
multifunction display.

i

The automatic wiping must be re­activated if the ignition has been off
for more than one minute, by push­ing lever A downwards.

Operating fault

If an automatic wiping malfunction oc­curs, the wipers will operate in intermit­tent mode.

Contact a PEUGEOT dealer to have the
system checked.

!

Do not cover the rain sensor, cou­pled with the brightness sensor and
located in the centre of the wind­screen behind the interior mirror.

Switch off the ignition when using
an automatic car wash.

In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto­matic wiping.

Special position of the
windscreen wipers

In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.

This action enables you to position the
wiper blades for winter parking.

To park the wipers after this has been
done, switch on the ignition and operate
the stalk.

84

4

VISIBILITY

Automatic windscreen wiping

The windscreen wipers operate auto­matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.

Activation

This is controlled manually by the driver
by pushing lever A to the "AUTO" posi­tion.

It is accompanied by a message on the
multifunction display.

Switching off

This is controlled manually by the driver
by moving lever A to another position
and returning it to position "0".

It is accompanied by a message on the
multifunction display.

i

The automatic wiping must be re­activated if the ignition has been off
for more than one minute, by push­ing lever A downwards.

Operating fault

If an automatic wiping malfunction oc­curs, the wipers will operate in intermit­tent mode.

Contact a PEUGEOT dealer to have the
system checked.

!

Do not cover the rain sensor, cou­pled with the brightness sensor and
located in the centre of the wind­screen behind the interior mirror.

Switch off the ignition when using
an automatic car wash.

In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto­matic wiping.

Special position of the
windscreen wipers

In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of the
windscreen.

This action enables you to position the
wiper blades for winter parking.

To park the wipers after this has been
done, switch on the ignition and operate
the stalk.

84

VISIBILITY

85

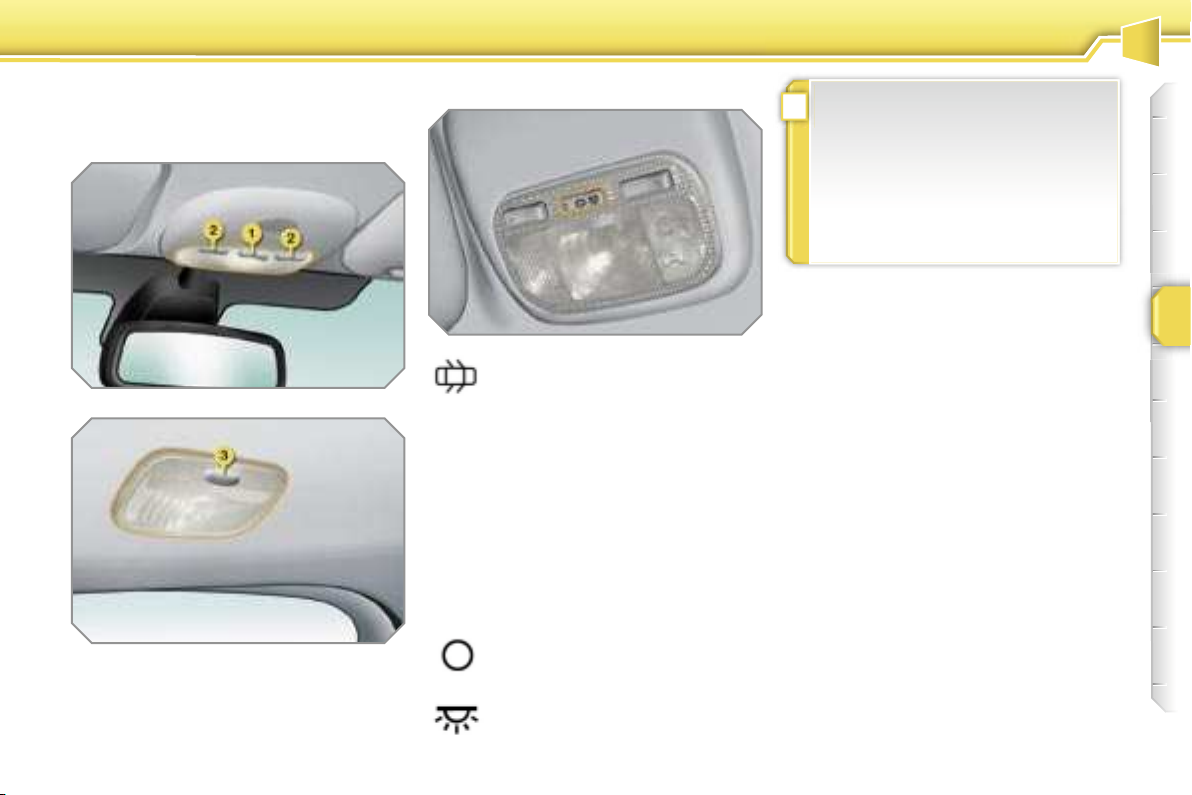

COURTESY LIGHTS

Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light

Front and rear courtesy lights

In this position, the courtesy
light comes on gradually:

Map reading lights

 With the ignition on, press the cor-

responding switch.

In permanent lighting mode, diffe­rent lighting times are available:

- with the ignition off, approximate­ly ten minutes,

- in energy economy mode, ap­proximately thirty seconds,

- with the engine running, unlim­ited.

- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when the remote control locking
button is activated, in order to locate
your vehicle.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is closed.

Permanently off.

Permanent lighting.

4

i

5

CHILD SAFETY

GENERAL POINTS RELATING
TO CHILD SEATS

Although one of PEUGEOT’s main
criteria when designing your vehicle,
the safety of your children also depends
on you.

For maximum safety, please follow
these precautions:

- since 1992, and in accordance with

Directive 2000/3, all children under

the age of 12 must travel in approved
child seats* suited to their weight,

on seats fitted with a seat belt or
ISOFIX mountings**.

- statistically, the safest seats in

your vehicle for the transportation
of children are the rear seats,

- a child weighing less than 9 kg
must travel in the "rearwards­facing" position both in the front
and in the rear.

PEUGEOT recommends that

i

children should travel in the rear
seats of your vehicle:

- "rearwards-facing" up to the

age of 2,

- "forwards-facing" over the age

of 2.

86

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

"Rearwards-facing"

When a "rearwards-facing" child seat is
installed on the front passenger seat,
it is essential that the passenger air
bag** is disarmed. Otherwise, the child

would risk being seriously injured or
killed if the air bag were to inflate.

"Forwards-facing"

When a "forwards-facing" child seat is
installed on the front passenger seat,
adjust the vehicle’s seat to the interme­diate longitudinal position with the seat
back upright and leave the passenger
air bag armed**.

Intermediate longitudinal

position

* According to current legislation in the

country.

** According to model.

CHILD SAFETY

87

Passenger air bag OFF**

** According to version.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt:

Group 0: from birth to 10kg

Group 0+: from birth to 13 kg

L1

"BRITAX

Babysure"

(E11 0344117)

Installed in

the rear-facing

position.

L2

"ROMER

Baby-Safe"
(E1 03301146)
Installed in the

rear-facing position.

L3

"MAXI COSI

Cabrio"

(E4 03443301/

E4 04443517)

Installed in the

rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

L4

"KIDDY Life"
(E1 03301135) For
the safety of young

children (from 9 to

18 kg), PEUGEOT

recommends use

of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

L5

"RECARO Start"

(E1 03301108)

L6

"KLIPPAN Optima"

(E17 030007) From

the age of 6 years

(approximately
22 kg), the booster
is used on its own.

5

CHILD SAFETY

87

Passenger air bag OFF**

** According to version.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt:

Group 0: from birth to 10kg

Group 0+: from birth to 13 kg

L1

"BRITAX

Babysure"

(E11 0344117)

Installed in

the rear-facing

position.

L2

"ROMER

Baby-Safe"
(E1 03301146)
Installed in the

rear-facing position.

L3

"MAXI COSI

Cabrio"

(E4 03443301/

E4 04443517)

Installed in the

rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

L4

"KIDDY Life"
(E1 03301135) For
the safety of young

children (from 9 to

18 kg), PEUGEOT

recommends use

of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

L5

"RECARO Start"

(E1 03301108)

L6

"KLIPPAN Optima"

(E17 030007) From

the age of 6 years

(approximately
22 kg), the booster
is used on its own.

5

5

CHILD SAFETY

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.

Weight of the child/indicative age

Seat

Front passenger seat (c)

fixed U U U U

height adjustable

Rear side seats U U U U

Rear centre seat L1, L2, L3 X X X

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before installing your child on this seat.

U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or

"forward facing".

X: seat not suitable for the installation of a child seat of the weight group indicated.
L-: only the child seats indicated may be installed on the seat concerned (according to country).

Less than 13 kg

(groups 0 (b)
and 0+) Up to
1 year approx

From 9 to 18 kg

(group 1) From 1 to

3 years approx

From 15 to 25 kg

(group 2) From 3 to

6 years approx

From 22 to 36 kg

(group 3) From 6 to

10 years approx

88

ADVICE ON CHILD SEATS

!

The incorrect installation of a child seat
in a vehicle compromises the child’s
protection in the event of an accident.

Remember to fasten the seat belts or
the child seat harnesses keeping the

slack in relation to the child’s body to
a minimum, even for short journeys.

For optimum installation of the "for­ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle’s seat and
that the head restraint does not cause
any discomfort.

If the head restraint has to be remo­ved, ensure that it is stored or at­tached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking.

Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.

Disarm the passenger air bag* when a
"rear facing" child seat is installed on
the front seat.

Otherwise, the child would risk being
seriously injured or killed if the air bag
were to inflate.

Installing a booster seat

The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.

Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.

PEUGEOT recommends the use of a
booster seat which has a back, fitted
with a seat belt guide at shoulder level.

CHILD SAFETY

As a safety precaution, do not leave:

- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with the
windows closed,

- the keys within reach of children
inside the vehicle.

To prevent accidental opening of the
doors, use the "Child lock"*.

Take care not to open the rear
windows by more than one third*.

To protect young children from the
rays of the sun, fit side blinds on the
rear windows.

5

* According to version.

89

5

CHILD SAFETY

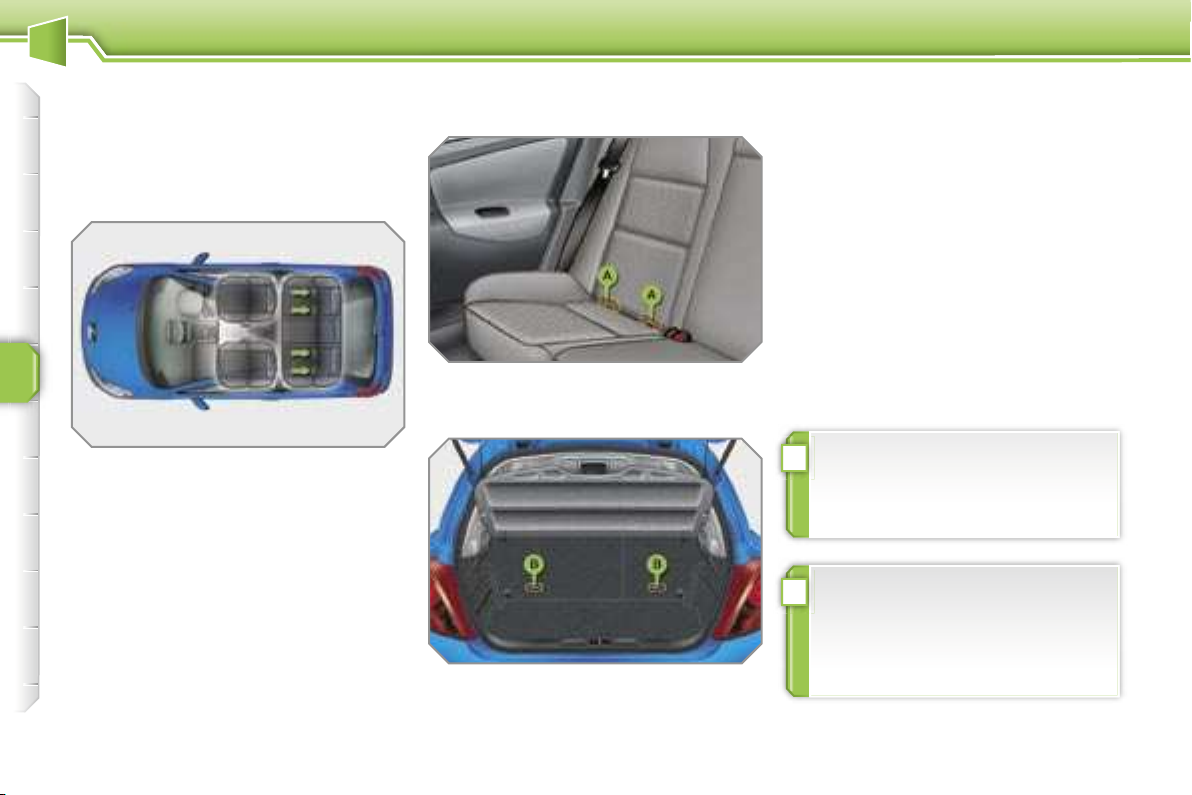

"ISOFIX" MOUNTINGS

Your vehicle has been approved in accor­dance with the new ISOFIX regulation.

The seats*, represented below, are fit­ted with regulation ISOFIX mountings:

90

These are three rings for each seat:

- two lower rings A, located between

the vehicle seat back and cushion,

- an upper ring B, referred to as the
TOP TETHER.

This ISOFIX mounting system guaran­tees you fast, reliable and safe fitting of
the child seat in your vehicle.

The ISOFIX child seats are fitted with
two locks which are secured easily on
these lower rings A.

Some also have an upper strap which
is attached to the upper ring B.

To attach this strap, raise the vehicle
seat’s head restraint then pass the hook
between its rods. Then fix the hook on
the upper ring B and tighten the upper
strap.

The incorrect installation of a child

!

seat in a vehicle compromises the
child’s protection in the event of an
accident.

i

For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats.

* According to version.

CHILD SAFETY

91

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

These child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fitting the child seat given in the seat manufacturer’s installation guide.

MAXI COSI CabrioFix (size category E)

Group 0+: less than 13 kg

Installed in the rear facing position.

The ISOFIX base is fitted with a height adjustable support.

This support must be in contact with the vehicle floor.

RÖMER Duo (size category B1)

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured on the ISOFIX upper ring,

referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

5

i

5

CHILD SAFETY

92

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS

In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
on the vehicle seats fitted with ISOFIX mountings.

In the case of the universal and semi-universal ISOFIX child seats, the child seat’s ISOFIX size category, determined by a
letter from A to G, is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation of an Isofix Universal seat, "Forward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an Isofix Semi-Universal seat which is:

- "rear facing" fitted with a "Top Tether" upper strap or a stay,

- "forward facing" fitted with a stay,

- an infant car seat fitted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "Isofix Mountings" section.

X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
* The ISOFIX infant car seat is fixed to the lower rings of a seat equipped with ISOFIX mountings and occupies the three rear seats.
To install it on the rear seats of a 3-door model, the front seat belt must be adjusted to the lowest position.

** The head restraint of the seat equipped with ISOFIX mountings must be removed and stored.

Weight of the child/indicative age

Less than 10 kg

(group 0)

Up to 6 months

approx

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat* "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1

Universal and

semi-universal

ISOFIX child seats

which can be installed

on the rear seats

IL-SU** X IL-SU** X IL-SU**

IUF**

IL-SU**

CHILD SAFETY

5

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior con­trol.

The control is located on the edge of
each rear door.

Locking

 Turn the red control one quarter of

a turn to the right using the ignition
key.

Unlocking

 Turn the red control one quarter of a

turn to the left using the ignition key.

ELECTRIC CHILD LOCK

Remote control system to prevent
opening of the rear doors using their
interior controls.

The control is located in the centre of
the fascia.

Activation

 Press button A.
The indicator light on button A comes

on, accompanied by a message on the
multifunction display.

Deactivation

 Press button A again.
The indicator light on button A switches

off, accompanied by a message on the
multifunction display.

!

This system is independent and in
no circumstances does it take the
place of the central locking control.

Check the status of the child lock
each time you switch on the ignition.

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.

93

6

SAFETY

DIRECTION INDICATORS

Selection of the left or right direction
indicators to signal a change of direction
of the vehicle.

 Lower the lights stalk when moving

to the left.

 Raise the lights stalk when moving

to the right.

i

If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

HAZARD WARNING LIGHTS

A visual warning by means of the
direction indicators to alert other road
users to a vehicle breakdown, towing or
accident.

 Press button A, the direction

indicators flash.

They can operate with the ignition off.

Automatic lighting of hazard
warning lights*

When braking in an emergency,
depending on the deceleration, the
hazard warning lights come on.

They will switch off automatically the
first time you accelerate.

 If they do not, press button A to

switch the direction indicators off.

HORN

Audible warning to alert other road
users to an imminent danger.

 Press one of the spokes of the

steering wheel.

i

Use the horn moderately and only
in the following cases:

- immediate danger,

- when overtaking a cyclist or a
pedestrian,

- when approaching an area where
there is no visibility.

94

As a safety precaution in a traffic

i

jam, switch on the hazard warning
lights if you are the last in the
queue.

* According to country.

SAFETY

6

TYRE UNDER-INFLATION
DETECTION

System which automatically checks the
pressure of the tyres while driving.

Sensors fitted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).

The tyre under-inflation detection sys-

i

tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.

Flat tyre

This warning light comes on on the
instrument panel, accompanied
by an audible signal and a mes­sage on the multifunction display
locating the wheel concerned.

 Check the tyre pressures as soon as

possible.
This check must be carried out when
the tyres are cold.

Puncture

This warning light and the STOP
warning light come on on the
instrument panel, accompanied by
an audible signal and a message
on the multi-function display
locating the wheel concerned.

 Stop immediately, avoiding any sud-

den movement of the steering wheel
and the brakes.

 Change the damaged wheel (punc-

tured or very deflated tyre), and have
the tyre pressure checked as soon
as possible.

Sensor(s) not detected or faulty

This warning light comes
on on the instrument panel,
accompanied by an audible

multifunction display locating the wheel
or wheels which are not detected or
indicating a fault in the system.

Contact a PEUGEOT dealer to replace
the faulty sensor(s).

i

signal and a message on the

This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fitted.

The spare wheel is not fitted with
a sensor.

!

All repairs and changing of tyres
on a wheel fitted with this system
must be carried out by a PEUGEOT
dealer.

If, when changing a tyre, you in­stall a wheel which is not detected
by your vehicle (example: fitting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.

i

This system does not eliminate
the need to have the tyre pres­sure checked regularly (refer to the
"Identification features" paragraph)
to ensure that the optimum dynamic
performance of the vehicle is main­tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).

The tyre pressures must be checked
cold, at least once a month. Re­member to check the pressure of
the spare wheel.

The tyre under-inflation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.

95

6

SAFETY

BRAKING ASSISTANCE
SYSTEMS*

Group of supplementary systems which
help you to obtain optimum braking
in complete safety in emergency
situations:

- the anti-lock braking system (ABS),

- the electronic brake force distribution

(EBFD),

- the emergency braking assistance

(EBA).

Anti-lock braking system
and electronic brake force
distribution

Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular on
poor or slippery surfaces.

Activation

The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.

Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.

Operating fault

If this warning light comes on,
accompanied by an audible
signal and a message on the

a malfunction of the anti-lock braking
system which could result in loss of
control of the vehicle when braking.

message on the multifunction display, it
indicates a malfunction of the electronic
brake force distribution which could
result in loss of control of the vehicle
when braking.

You MUST stop as soon as it is safe
to do so.

In both cases, contact a PEUGEOT
dealer.

i

multifunction display, it indicates

If this warning light comes on,
together with the STOP and ABS
warning lights, accompanied
by an audible signal and a

When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer’s recommendations.

Emergency braking assistance

System which, in an emergency, enables
you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.

Activation

It is triggered by the speed at which the
brake pedal is pressed.

The effect of this is a reduction in the
resistance of the pedal and an increase
in braking efficiency.

96

When braking in an emergency,

!

press very firmly without releasing
the pressure.

* According to country.
