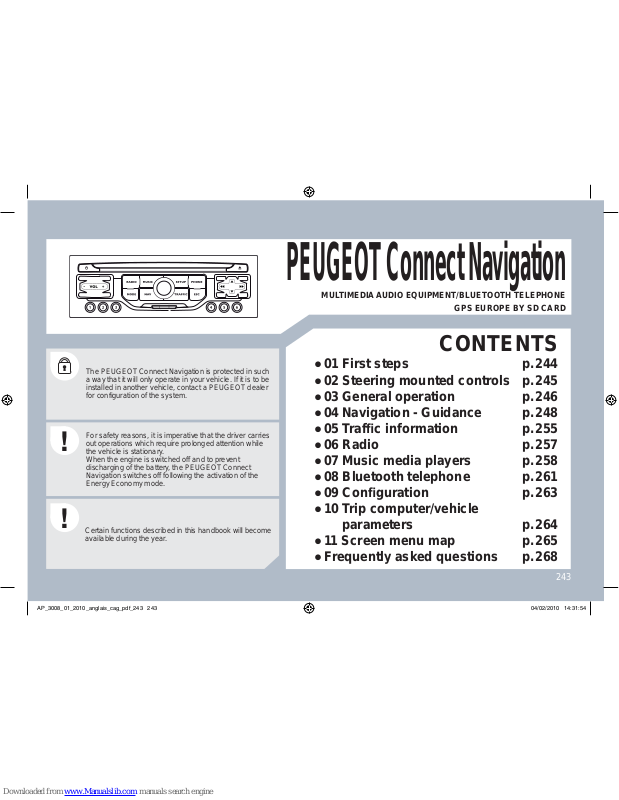

The PEUGEOT Connect Navigation is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for con¿ guration of the system.

Certain functions described in this handbook will become available during the year.

PEUGEOT Connect Navigation

CONTENTS

Ɣ 01 First steps p . Ɣ 02 Steering mounted controls p . Ɣ 03 General operation p . Ɣ 04 Navigation - Guidance p . Ɣ 05 Traf¿ c information p . Ɣ 06 Radio p . Ɣ 07 Music media players p . Ɣ 08 Bluetooth telephone p . Ɣ 09 Con¿ guration p . Ɣ 10 Trip computer /vehicle

parameters p . Ɣ 11 Screen menu map p . Ɣ Frequently asked questions p .

For safety reasons, it is imperative that the driver carries out operations which require prolonged attention while the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the PEUGEOT Connect Navigation switches off following the activation of the Energy Economy mode.

MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE

GPS EUROPE BY SD CARD

244 245 246 248 255 257 258 261 263

264 265 268

AP_3008_01_2010_anglais_cag_pdf_243 243

04/02/2010 14:31:54

244

01

1

5

10

2

34 6

13

11

9

14 15

78

12

16

1. Engine not running

- Short press: on/off.

- Long press: CD pause, mute for the radio. Engine running

- Short press: CD pause, mute for the radio.

- Long press: reinitialisation of the system.

2. Volume adjustment (each source is independent, including navigation messages and alerts).

3. Access to the "Radio" Menu. Display the list of stations.

4. Access to the "Music" Menu. Display the tracks.

6. Access to the "Phone" Menu. Display the call list.

7. Access to the "MODE" Menu.

Selection of the successive display of: Radio, Map, NAV (if navigation is in progress), Telephone

(if a conversation is in progress), Trip Computer.

Long press: display of a black screen (DARK).

8. Access to the "Navigation" Menu. Display the last destinations.

9. Access to the "Traf¿ c" Menu. Display the current traf¿ c alerts.

10. ESC: abandon the operation in progress.

11. CD eject.

12. Selection of the previous/next radio station from the list.

Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.

13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.

14. Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: store the current radio station.

15. Reader for navigation SD card only.

16. Dial for selection of the screen display and according to the

context of the menu. Short press: contextual menu or con¿ rmation. Long press: speci¿ c contextual menu of the list displayed.

FIRST STEPS

PEUGEOT Connect Navigation CONTROL PANEL

3 - 4. Long press: access to the audio settings: front/rear and left/

right balance, bass/treble, equalizer, loudness, automatic volume adjustment, initialise the settings.

5. Access to the "SETUP" Menu. Long press: access to the GPS coverage and the

demonstration mode.

AP_3008_01_2010_anglais_cag_pdf_244 244

04/02/2010 14:31:54

245

02

STEERING MOUNTED CONTROLS

RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous entry in the address book.

RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next entry in the address book.

RADIO: change to the next radio station on the list. Long press: automatic search for a higher frequency. CD/CD CHANGER: selection of the next track. CD/CD CHANGER: continuous press: fast forward play.

RADIO: change to the previous radio station on the list. Long press: automatic search for a lower frequency. CD/CD CHANGER: selection of the previous track. CD/CD CHANGER: continuous press: fast backward play.

- Change the sound source.

- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds: access to the address book.

Volume increase.

Volume decrease.

Mute: by pressing the volume increase and decrease buttons simultaneously.

Restore the sound: by pressing one of the two volume buttons.

AP_3008_01_2010_anglais_cag_pdf_245 245

04/02/2010 14:31:55

246

03 GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen menu map" section.

Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.

RADIO /MUSIC MEDIA PLAYERS

TELEPHONE

(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION

(If guidance is in progress)

SETUP:

system language * , date and time * , display, vehicle settings * , unit and system settings, "Demo mode".

TRAFFIC:

TMC information and messages.

* Available according to model.

TRIP COMPUTER

AP_3008_01_2010_anglais_cag_pdf_246 246

04/02/2010 14:31:55

247

03

1

2

3

2

1

3

1

2

1

2

1

2

1

GENERAL OPERATION

A press on the OK dial gives access to short-cut menus according to the display on the screen.

MUSIC MEDIA PLAYERS:

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE REPEAT ADVICE BLOCK ROAD ROUTE INFO

SHOW DESTINATION

TRIP INFO

Route type

Avoid

Satellites

ZOOM/SCROLL VOICE ADVICE ROUTE OPTIONS

RADIO:

IN FM MODE

TRAFFIC INFO (TA)

RDS

RADIOTEXT

REGIONAL PROG.

AM

IN AM MODE

TA

REFRESH AM LIST

FM

FULL SCREEN MAP:

DISPLAY ACCORDING TO THE CONTEXT

TRAFFIC INFO (TA) PLAY OPTIONS

NORMAL ORDER

RANDOM TRACK

REPEAT FOLDER

SCAN

SELECT MUSIC

TELEPHONE:

END CALL HOLD CALL DIAL DTMF-TONES PRIVA TE MODE MICRO OFF

ABORT GUIDANCE /RESUME GUIDANCE SET DESTINATION POIS NEARBY POSITION INFO MAP SETTINGS ZOOM/SCROLL

AP_3008_01_2010_anglais_cag_pdf_247 247

04/02/2010 14:32:06

248

1

2

3

5

6

4

04

NAVIGATION - GUIDANCE

SELECTING A DESTINA TION

Press the NAV button again or select the Navigation Menu function and press the dial to con¿ rm.

Select the "Destination input" function and press the dial to con¿ rm.

Press the NAV button.

Select the letters of the town one by one con¿ rming each time by pressing the dial.

Once the country has been selected, turn the dial and select the town function. Press the dial to con¿ rm.

NAVIGATION MENU

DESTINATION INPUT

Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be modi¿ ed. Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the ¿ rst few letters) of the towns in the country selected can be accessed via the LIST button on the virtual keypad.

Select the "Address input" function and press the dial to con¿ rm.

ADDRESS INPUT

The list of the last 20 destinations appears under the Navigation Menu function.

AP_3008_01_2010_anglais_cag_pdf_248 248

04/02/2010 14:32:06

249

7

8

9

10

04

To clear a destination; from steps 1 to 3, select "Choose from last destinations". A long press on one of the destinations displays a list of actions from which you can select: Delete entry Delete list

Repeat steps 5 to 7 for the "Street" and "House number" functions.

Turn the dial and select OK. Press the dial to con¿ rm.

Select the "Save to address book" function to record the address entered in a directory ¿ le. Press the dial to con¿ rm the selection. PEUGEOT Connect Navigation allows up to 4 000 contact ¿ les to be recorded.

To speed up the process, the post code can be entered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance" and the press the dial to con¿ rm.

During guidance, pressing the end of the lighting stalk repeats the last guidance instruction.

Y ou can zoom in/zoom out on the map using the dial. It is possible to scroll the map or select its orientation via the shortcut menu of the FULL SCREEN MAP. Press the dial then select "Map settings".

Select the route type: "Fast route", "Short route" or "Optimized route" and press the dial to con¿ rm. It is also possible to select a destination via "Choose from address book" or "Choose from last destinations".

CHOOSE FROM LAST DESTINATIONS CHOOSE FROM ADDRESS BOOK

START ROUTE GUIDANCE

NAVIGATION - GUIDANCE

AP_3008_01_2010_anglais_cag_pdf_249 249

04/02/2010 14:32:08

250

4

3

2

1

7

6

5

04

NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics" function. This function gives access to the "Traf¿ c independent" or "Semi- dynamic" options.

Select the "Avoidance criteria" function. This function provides access to the AVOID options (motorways, toll roads, ferries).

Turn the dial and select the "Recalculate" function to take into account the route options selected. Press the dial to con¿ rm.

Press the NAV button.

Press the NAV button again or select the Navigation Menu function and press the dial to con¿ rm.

Select the "Route type" function and press the dial to con¿ rm. This function allows you to change the route type.

Select the "Route options" function and press the dial to con¿ rm.

RECALCULATE

AVOIDANCE CRITERIA

ROUTE DYNAMICS

ROUTE TYPE

ROUTE OPTIONS

NAVIGATION MENU

The route selected by the PEUGEOT Connect Navigation audio/telephone depends directly on the route options. Changing these options may change the route completely.

AP_3008_01_2010_anglais_cag_pdf_250 250

04/02/2010 14:32:08

251

7

6

5

4

3

2

1

04

ADDING A STOPOVER

Enter a new address, for example.

Once the new address has been entered, select OK and press the dial to con¿ rm.

Select "Recalculate" and press the dial to con¿ rm.

Press the NAV button.

Press the NAV button again or select the "Navigation" Menu function and press the dial to con¿ rm.

Select the "Add stopover" function (5 stopovers maximum) and press the dial to con¿ rm.

Select the "Stopovers" function and press the dial to con¿ rm.

OK

ADDRESS INPUT

ADD STOPOVER

STOPOVERS

"NAVIGATION" MENU

RECALCULATE

The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the PEUGEOT Connect Navigation will always return you to the previous stopover.

Stopovers can be added to the route once the destination has been selected.

NAVIGATION - GUIDANCE

AP_3008_01_2010_anglais_cag_pdf_251 251

04/02/2010 14:32:09
