Petsafe Drinkwell Ceramic Lotus Pet Fountain User Manual

For any technical, product setup
or usage questions, please call
1-800-732-2677.

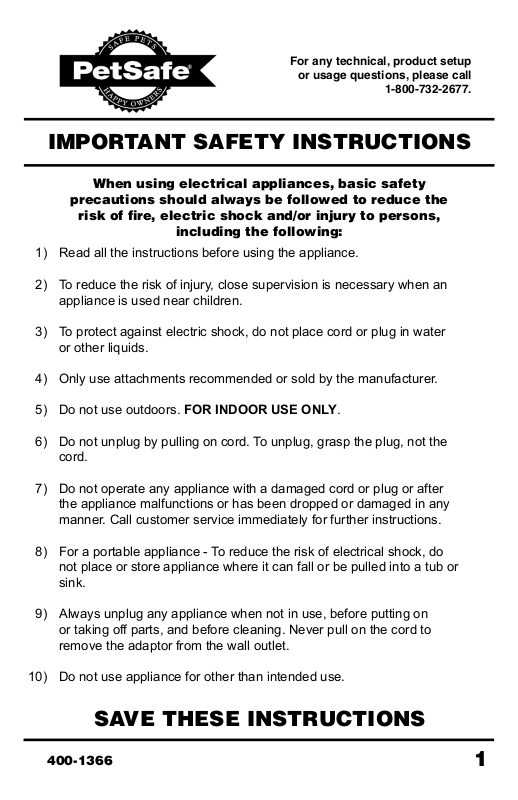

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock and/or injury to persons,
including the following:
Read all the instructions before using the appliance.
1)
To reduce the risk of injury, close supervision is necessary when an
2) appliance is used near children.
To protect against electric shock, do not place cord or plug in water
3) or other liquids.
4)
Do not use outdoors. FOR INDOOR USE ONLY.
5)
Do not unplug by pulling on cord. To unplug, grasp the plug, not the
6) cord.
Do not operate any appliance with a damaged cord or plug or after
7) the appliance malfunctions or has been dropped or damaged in any manner. Call customer service immediately for further instructions.
For a portable appliance - To reduce the risk of electrical shock, do
8) not place or store appliance where it can fall or be pulled into a tub or sink.
Always unplug any appliance when not in use, before putting on
9) or taking off parts, and before cleaning. Never pull on the cord to remove the adaptor from the wall outlet.
Do not use appliance for other than intended use.
10)
SAVE THESE INSTRUCTIONS
400-1366
1
Ceramic Lotus Pet Fountain
Operating Guide
U.S. Patents No. 5,799,609 and 5,842,437
Thank you for choosing the PetSafe brand. You and your pet deserve a
companionship that includes memorable moments and a shared understanding
together. Our products and training tools promote a lifestyle of protection, teaching
and love; essentials that influence memories for a lifetime. If you have any questions
about our products or training your pet, please visit our website at www.petsafe.net
or contact our Customer Care Center at 1-800-732-2677.
Table of Contents
Important Safety Instructions.............................................
Components.......................................................................
Operating Instructions........................................................
Fountain Disassembly & Cleaning ....................................
Replacing the Filter.............................................................
Pump Maintenance............................................................
Reassembly of Your Fountain............................................
Fountain & Your Environment............................................
Tips On Use.......................................................................
Manufacturer’s Safety Instructions.....................................
Components
Housing
50 oz Water Capacity
Upper
Dish
1 2 3 5 6 7
8 10 10 11
OPERATING INSTRUCTIONS
DO NOT RUN DRY - FOR INDOOR USE ONLY
As with any electrical device, check the electrical cord for any tears
1) or damage before use.
Make sure the inline plug is fully connected. (See Fig. 1)
2)
The fountain will come partially assembled. Make sure the nut on the
3) bottom of the bowl is fully tightened and secure. (See Fig. 2)
Fig. 1
Remove the housing by lifting straight up. Several parts will already
4)
be in place, including: the foam lter, pump, intake tube, cord
pass-thru tube, gasket and the tube connector. (See Fig. 3a) Make sure the electrical cord is secured in place by the clip on the tube connector. (See Fig. 3b)
Fig. 3a Fig. 3b
Fig. 2
Housing
Cap
Connector
Tube
Intake
Tube
O-ring
Cord
Pass-Thru
Tube
Gasket
Nut
Foam Filter
Pump
Main Bowl
Adaptor
5)
Replace the housing by aligning the large gap at the bottom of the housing with the raised bump on the bottom of the main bowl. The gap in the housing is shown in Fig. 4a (next page) and the raised
bump is circled in Fig. 4b (next page). The housing should rest at
and stable on the bottom of the bowl. If the housing is slightly raised up or wobbles at all, it is placed incorrectly, remove and replace the
housing as instructed above until it rests at.
32
