Petsafe DrinkWell Operating Manual

1

SAVE THESE INSTRUCTIONS

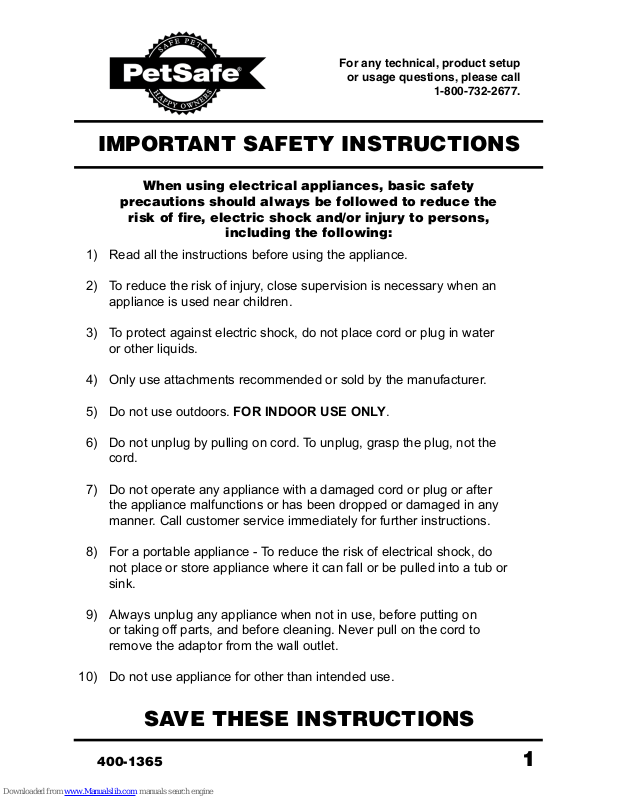

IMPORTANT SAFETY INSTRUCTIONS

Read all the instructions before using the appliance.

To reduce the risk of injury, close supervision is necessary when an
appliance is used near children.

To protect against electric shock, do not place cord or plug in water
or other liquids.

Only use attachments recommended or sold by the manufacturer.

Do not use outdoors. FOR INDOOR USE ONLY.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.

Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions or has been dropped or damaged in any
manner. Call customer service immediately for further instructions.

For a portable appliance - To reduce the risk of electrical shock, do
not place or store appliance where it can fall or be pulled into a tub or
sink.

Always unplug any appliance when not in use, before putting on
or taking off parts, and before cleaning. Never pull on the cord to
remove the adaptor from the wall outlet.

Do not use appliance for other than intended use.

1)

2)

3)

4)

5)

6)

7)

8)

9)

10)

When using electrical appliances, basic safety

precautions should always be followed to reduce the

risk of fire, electric shock and/or injury to persons,

including the following:

For any technical, product setup

or usage questions, please call

1-800-732-2677.

400-1365

32

Multi-Tier Pet Fountain

Operating Guide

Table of Contents

Important Safety Instructions.............................................

Components.......................................................................

Operating Instructions........................................................

Replacing the Filter.............................................................

Fountain Disassembly & Cleaning ....................................

Pump Maintenance............................................................

Reassembly of Your Fountain............................................

Tips On Use.......................................................................

Fountain & Your Environment............................................

Manufacturer’s Safety Instructions.....................................

1
2
3
4
5
6
7
8
9

10

Bowl

Pump

100 oz Water Capacity

Charcoal
Filter

Components

As with any electrical device, check the electrical cord for any tears
or damage before use.

Make sure the inline plug is fully connected. (See Fig. 1)

Remove the housing by gripping the side walls and squeezing inward
to release the locking tabs. (See Fig. 2) Lift straight up and set aside.

DO NOT RUN DRY - FOR INDOOR USE ONLY

OPERATING INSTRUCTIONS

1)

2)

3)

NOTE: Rinse the filter thoroughly under cold water before placing in the
fountain. This will remove any loose charcoal dust, which is harmless. A

small amount of charcoal dust may shed for the life of the filter. This is

normal and not harmful to your pet.

Insert the charcoal lter. The lter will t into the housing diagonally
with the black side of the lter facing towards the pump. The lter

should be inserted on its side and will slide in between the two slots

circled in Fig. 3a. Make sure the lter is pushed all the way down.

(See Fig. 3b)

4)

Housing

Fig. 2

U.S. Patents No. 5,799,609 and 5,842,437

5)

Fig. 1

Fig. 3b

Housing

Cap

Fig. 3aFig. 3a

Replace the housing by aligning the locking tabs over the bowl piece.
Gently slide the housing downward until the tabs lock in place.

Thank you for choosing the PetSafe brand. You and your pet deserve a

companionship that includes memorable moments and a shared understanding

together. Our products and training tools promote a lifestyle of protection, teaching

and love; essentials that influence memories for a lifetime. If you have any questions

about our products or training your pet, please visit our website at www.petsafe.net

or contact our Customer Care Center at 1-800-732-2677.
