Electronic Total Station

R-300 SERIES

R-315(N)/R-325(N)/R-335(N)

R-322(N)/R-323(N)/R-326

Instruction Manual

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page c

Safety Precautions (Must be followed)

The following items are intended to prevent possible injury to the user or other people and/or damage to the instrument before it occurs.These safety precautions are important to the safe operation of this product and should be observed at all times.

■ Distinctive Displays

The following displays are used to distinguish precautions by the degree of injury or damage that may result if the precaution is ignored.

WARNING

Items indicated by this display are precautions which if ignored would result in serious injury.

CAUTION

Items indicated by this display are precautions which if ignored may result in injury or material.

● Here “injury” refers to injuries such as cuts, burns or electric shock the treatment of which will not likely require hospitalization or long-term attention.

● “Material damage” refers to damage to facilities, buildings, acquired data, etc.

■ Three R-300 Quick Reference Guide are provided in your carrying case.

They are 1. Basic Procedures, 2. Power Topo Lite Operating Procedures and

3. PSF Operating Procedures.

This instrument complies with the protection requirement for residential and commercial areas. If this instrument is used close to industrial areas or transmitters, the equipment can be influenced by electromagnetic fields.

Before using this product, be sure that you have thoroughly read and understood this instruction manual to ensure proper operation. After reading this manual, be sure to keep it in a convenient place for easy reference.

PRECAUTIONS REGARDING SAFETY

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page d

WARNING

Do not stare into the laser beam directly as this may result in damage to your eyes. R-300 is a Class II Laser product. (The reflectorless type is a Class IIIa (3R) laser product.)

Do not look into the laser radiation aperture directly as this may result in damage to your eyes.

Never use the telescope to view intense light such as direct sunlight or sunlight reflected through a prism as this may result in loss of sight.

Do not disassemble, modify or repair this product as there a risk of laser radiation.

Do not aim the laser beam at a person as it is harmful to the eyes and body. Receive the examination treatment by the doctor when the eyesight or body trouble is doubted by any chance.

● Electro-Magnetic Compatibility (EMC): This instrument complies with the protection requirement for residential and commercial areas. If this instrument is used close to industrial areas or transmitters, the equipment can be influenced by electromagnetic fields.

● Do not use this product in a coal mine, in a location where there is coal dust, or near flammable material as there is a risk of explosion.

● Do not disassemble, modify or repair this product as there is a risk of fire, electric shock and burn injury. If you think the product requires repair, contact the retail outlet where you purchased it or an authorized repair site.

● Only use the BC03 battery charger intended for this product as the battery charger.Use of another battery charger entails a r isk of fire or burn injur y from the battery bursting into flames due to possible differences in voltage or polarity.

● Do not use a damaged electric cord plug or loose electric outlet when charging as there is a risk of fire or electric shock.

● Do not charge the battery while covered by clothes or similar item as there is a risk of fire if the clothes ignite.

● Do not use the battery or charger when wet as there is a risk of fire and burn injury due to shor t-circuit.

● To prevent making short-circuit when removing the battery and charger from the case and storing them, apply electrically resistant tape to the poles of the battery. Storing the battery and charger as-is may result in fire or burn injury due to shor t-circuit.

● Do not throw the battery into fire or expose it to heat as there is a risk of injury if it explodes.

PRECAUTIONS REGARDING SAFETY

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 1

PRECAUTIONS REGARDING SAFETY

The instrument contains a rechargeable battery and it is rechargeable. At the end of its useful life, it may be illegal to dispose of the battery. Check with your local solid waste officials for details for recycling.

Ni-MH

CAUTION

For security, please do the opening inspection and inspection every a fixed period and adjustment.

When the laser beam enters eyes, an unexpected accident might be caused by the blink of eyes. Establish the laser product to avoid the height of eyes of a driving person and walker.

Establish an instrument so that laser beam does not hit a reflection thing as a mirror and a glass window.The refection beam of the laser is also harmful to the human body.

Besides the time when you measure the distance, cut off the power supply or shade the beam of aperture with caps.

Keep the laser product in the place where the person who does not have the product knowledge such as children does not touch by mistake.

Destroy the power supply mechanism of the instrument so as not to emit the laser beam when throwing away it.

● Do not remove the handgrip without good reason.If it does come off, be sure to attach it securely to the instrument with screws. If it is not fastened securely, the instrument may fall when you grasp the handgrip, leading to possible injury.

● Do not short the poles of the battery or charger as there is a r isk of injury or fire.

● Do not touch any fluid which may leak from the battery as there is a risk of

chemical burn injury or reaction.

● Do not insert or remove the electric plug with wet hands as there is a risk of electric shock.

● Do not use the case to stand on as it is slippery and unstable and may cause you to fall, resulting in possible injury.

● Be sure the tripod itself and the instrument on the tripod are both installed securely as insecure installation may cause the tripod to fall over or the instrument to drop, resulting in possible injury.

● Do not carry the tripod with the metal shoe pointing toward another person as the person may be injured if they strike him or her.

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 2

PRECAUTIONS REGARDING SAFETY

Usage Precautions

Surveying instruments are high-precision instruments. In order to assure that the Electronic Total Station R-300 series product which you have purchased will provide long-lasting maximum performance, the precautions in this manual must be followed.Be sure to follow these instructions and use this product properly at all times.

[Solar Observation]

WARNING

Never view the sun directly using the telescope as this may result in loss of sight. Never point the objective lens directly at the sun as this may damage internal components. When using the instr ument for solar observation, be sure to attach the special solar filter (MU64) designed for this product to the objective lens.

[Laser Beam]

Do not stare into laser beam. R-300 is a class-II Laser product. (The reflectorless type is a Class IIIa (3R) laser product.)

[EDM axis]

The R series EDM is the red visible laser beam and the beam diameter is very small.The beam is emitted from the objective center and the base plate center hole.The EDM axis is designed to coincide with the telescope sight axis but both axes may not sometimes coincide slightly according to the intense temperature change and time lapse.

[Target Constant]

Confirm the Target Constant of the instrument before measurement. If a different constant is to be used, use the correct constant of the target.The constant is stored in the instrument's memory when tur ned off.

[Reflectorless and Reflector sheet]

● The measurement range is determined by the white side of the Kodak Gray Card facing the instrument and by its surrounding brightness.

There is a possibility that the range may vary when the target does not satisfy the conditions above at survey work.

● Pay attention to following in case of distance measurement by Reflectorless. In a situation resulting in low accuracy, perform the distance measurement by Reflector sheet or Prism. (R-315N/R-325N/R-335N/R-322N/R-323N)

q There is a possibility that correct distance measurement may be impossible by

dispersion or reduction of laser beam when the laser beam comes into the target from diagonal angle.

w There is a possibility that the instrument cannot calculate correctly when

receiving reflected laser beam from forth and back directions in case of measuring the target on the road.

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 3

PRECAUTIONS REGARDING SAFETY

e There is a possibility that synthesized values are calculated and the distance

may become longer or shorter than the actual one when the operator measure the target of slope or sphere or rugged shape.

r There is a possibility that the instrument cannot calculate correctly by

collecting the reflected laser beam from a man or a car that comes and goes in front of the target.

● When using Reflector sheet, set the Reflector sheet to have its surface be approx. ver tical to the aiming line. If it is positioned not to be approx. right angle, there is a possibility that correct distance measurement may be impossible by dispersion or reduction of laser beam.

[Battery & Charger]

● Never use any battery charger other than the BC03 battery charger as this may result in damage to the instrument.

● If water should happen to splash on the instrument or the battery, wipe it off immediately and allow it to dry in a dry location. Do not put the instr ument in the case until it is completely dry as this may result in damage to the instrument.

● Turn off the power when removing the battery from the instrument as removing the battery while the power is still on may result in damage to the instrument.

● The battery mark displayed on the instrument is only an estimate of remaining battery power and is not completely accurate. Replace the batter y quickly when it is about to run down as the time a battery lasts on one charge differs depending on conditions of ambient temperature, and the measurement mode of the instrument.

● Confirm the battery level remaining before operating.

[Auto focus]

The Auto focus mechanism is very precise but will not function under every condition. Focusing depends on brightness, contrast, the shape and size of the target. In such a case, press the AF button and focus on the target by operating the Power focus key or the AF ring.

[LD POINT, Laser pointer]

When you make a correct direction using the “LD POINT”, aim the laser beam at the wall and mark the center and then confirm the discrepancy between the reticle center and the marked point beforehand.

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 4

PRECAUTIONS REGARDING SAFETY

[Storage and Operating Environment]

● To prevent making short-circuit when removing the battery and charger from the case and storing them, apply electrically resistant tape to the poles of the battery. Storing the battery and charger as is may result in fire or burn injur y due to short-circuit.

● Avoid storing the instrument in places subject to extreme high, low or radically fluctuating temperature. (Ambient temperature range during use: –20° C to +50° C)

● Distance measurements may take longer when atmospheric conditions are poor such as when heat shimmer is present.When storing the instr ument, always put it in its case and avoid storage in dusty location or location subject to vibration or extreme heat or humidity.

● Whenever there is a sharp temperature difference between the instrument’s storage and usage locations allow the instrument to adjust to the ambient for an hour or more before use.Be sure to protect the instrument from the sun if the location is subject to intense direct sunlight.

● During surveys for which the survey precision or atmospheric measurement method has been defined measure the atmospheric temperature and pressure separately and enter those values rather than using the Automatic Atmospheric Correction function.

● The battery should be charged approximately once per month if the instrument is to be stored for an extended period of time.The instrument should also be removed from its case occasionally and aired out.

● In addition to these precautions, be sure to handle the instrument properly at all times following the descriptions given in the various sections of this manual to assure safe and proper measurements.

[Transpor ting and Carr ying the Instr ument]

● Be careful to protect this instrument from shock of impact and excessive vibration which may result in damage during transportation and shipment.

● When transporting the instrument, always put it in the case and wrap shockabsorbing material around it and be sure it is handled as “FRAGILE”.

[Checks and Repairs]

● Always check the instrument before beginning work and check that the instrument is maintaining the proper level of precision.Pentax bears absolutely no responsibility for damages due to survey results obtained from surveys conducted without an initial instrument check.

● Never disassemble the instrument, battery or charger even if you do detect an abnormality as there is a risk of fire or electric shock due to shor t-circuit. If you think the product requires repair, contact the retail outlet where you purchased it or an authorized repair site.

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 5

PRECAUTIONS REGARDING SAFETY

Safety Precautions ............................................................................................ 1

Usage Precautions ............................................................................................ 3

1 BEFORE USING THE INSTRUMENT

1-1 Names of Parts ................................................................................... 9

1-2 Unpacking and Packing .................................................................... 11

1-3 Standard equipment ......................................................................... 11

1-4 Attaching and Charging the Battery ................................................. 12

2 DISPLAY AND KEYBOARD

2-1 Display and Keyboard ...................................................................... 16

2-2 Operation Key ................................................................................... 16

2-3 Function Key ..................................................................................... 17

2-4 Alphanumeric Input .......................................................................... 19

2-5 LD Point, Laser pointer ..................................................................... 19

3 PREPARATION FOR SURVEYING

3-1 Centering and Leveling of the Instrument ........................................ 20

3-2 Laser plummet .................................................................................. 20

3-3 Optical plummet (Option) ................................................................. 22

3-4 Leveling with Circular vial ................................................................. 23

3-5 Leveling with Electronic vial ............................................................. 23

3-6 Eyepiece Adjustment ........................................................................ 25

3-7 Target Sighting ................................................................................. 26

3-8 Attachment and Detachment of Tribrach .......................................... 32

4 TURNING THE POWER ON

4-1 Turning the Power On and Off .......................................................... 33

4-2 Adjusting LCD Contrast .................................................................... 34

4-3 Adjusting Illumination Brightness ..................................................... 35

4-4 Adjusting Reticle Illumination ........................................................... 35

5 ANGLE MEASUREMENT

5-1 Measuring an Angle ......................................................................... 36

5-2 Resetting the Horizontal Angle to 0 ................................................. 37

5-3 Holding the Horizontal Angle ............................................................ 37

5-4 Inputting an Arbitrary Horizontal Angle ............................................ 38

5-5 Displaying the % Slope of the Vertical Angle ................................... 40

5-6 Changing the Horizontal Angle

from Clockwise to Counterclockwise ................................................ 41

CONTENTS

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 6

6 DISTANCE MEASUREMENT

6-1 Target Setting ................................................................................... 42

6-2 Distance Measurement .................................................................... 44

7 CORRECTION MODE

7-1 Changing the Target Constant .......................................................... 46

7-2 Changing the Temperature ............................................................... 48

7-3 Changing the Atmospheric Pressure ............................................... 50

7-4 Changing the ppm Value .................................................................. 52

8 INITIAL SETTING

8-1 Overview ........................................................................................... 53

8-2 Entering the Mode for Initial Setting 1 .............................................. 53

8-3 Entering the Mode for Initial Setting 2 .............................................. 53

8-4 Entering the Mode for Initial Setting 4 .............................................. 54

8-5 Entering the Mode for Initial Setting 5 .............................................. 54

8-6 Example of Changing an Initial Setting Content .............................. 55

8-7 Initial Setting 1 .................................................................................. 56

8-8 Initial Setting 2 .................................................................................. 57

8-9 Initial Setting 4 .................................................................................. 60

8-10 Initial Setting 5 .................................................................................. 61

9 ACCSESSING THE FUNCTIONS

9-1 Accessing by Help key ..................................................................... 62

9-2 Accessing by 007 ............................................................................. 63

10 CHECKS AND ADJUSTMENTS

10-1 Electronic Vial ................................................................................... 65

10-2 Circular Vial ...................................................................................... 67

10-3 Vertical Reticle .................................................................................. 68

10-4 Perpendicularity of Line of sight to horizontal axis ........................... 69

10-5 Vertical 0 point error ........................................................................ 70

10-6 Laser Plummet .................................................................................. 71

10-7 Optical Plummet ............................................................................... 72

10-8 Offset Constant ................................................................................ 73

10-9 Beam axis and Line of sight ............................................................. 74

10-10 The EDM beam axis ......................................................................... 74

11 SPECIFICATIONS 12 DATA COLLECTOR

CONTENTS

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 7

13 APPENDIX

13-1 Error Messages ................................................................................ 79

13-2 Atmospheric Correction .................................................................... 80

13-3 hPa and mmHg Conversion Tables .................................................. 81

13-4 Error when no Atmospheric Correction is made .............................. 82

13-5 Atmospheric Refraction and Earth Cur vature Correction ................ 83

13-6 Distance Range ................................................................................ 84

14 NOTICE TO THE USER OF THIS PRODUCT

CONTENTS

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page 8

1 BEFORE USING THE INSTRUMENT

1-1 Names of Parts

1 BEFORE USING THE INSTRUMENT

Collimator

Power focus key

Eyepiece

Circular vial

Display panel

Key board

Circular vial

Leveling screw

Focusing knob

AF button

Laser indicator

Instrument height

mark

Battery latch Battery pack

Telescope tangent

screw

Telescope clamp

screw

Clamp screw

Tangent screw

Detaching knob

Base plate

R-325(N)/R-322(N)/R-323(N): Detachable type

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 9

1 BEFORE USING THE INSTRUMENT

● Dual display panel is an optional accessory.

R-335 (N): Shift type

Top handle

Objective lens

Centering knob

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 10

1-2 Unpacking and Packing

Unpacking the Instrument from the case

q Set the case down gently with the lid facing upwards. w Open the latches while pressing down on the lock (safety mechanism) and

open the lid of the case.

e Remove the instrument from the case.

Packing the Instrument in the case

q Make sure the telescope is fairly level and lightly tighten the telescope clamp

screw.

w Line up the housing marks (round yellow marks on the instrument) and tighten

the upper and lower clamp screws.

e With the housing marks facing upward, set the instrument gently in the case

without forcing it.

r Close the lid to the case and secure the latches.

1-3 Standard equipment

q Instrument w Carrying case e BP02 battery r BC03/AC01 charger t Plumb bob y Hexagonal wrench u Rain cover i Quick Reference Guide (Basic , PTL and PSF procedures) o CD-R (Basic operation & Special Functions manual)

1 BEFORE USING THE INSTRUMENT

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 11

1-4 Attaching and Charging the Battery

Removing the Battery

q Turn the lock lever anticlockwise and remove the Battery. w Lift up the battery pack and remove it from the instrument.

● Be absolutely sure to turn the power off when removing the battery as removing the battery while the power is still on may result in damage to the instrument.

Attaching the Battery

q Align the guide grooves on the battery pack with the guide grooves on the

instrument and push the top of the battery pack into place.

w Turn the lock lever clockwise to fix.

1 BEFORE USING THE INSTRUMENT

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 12

Remaining Battery Charge

When the instrument’s power is turned on, a battery mark “”will be displayed on the right of the display screen.This mark can be used to check the charge status of the battery.

Plenty of charge left.

Get the spare battery ready. Replace with the spare battery.

Low battery: Please change. Replace with the spare batter y or charge.

Charging the battery

● The battery BP02 is not charged at our factory shipment so charge it.

● For BP02 charge, use the special BC03 charger.

[Connection of code]

q Insert the output plug of the power supply code in Jack of the AC adaptor. w Insert the output plug of the AC adaptor in Jack of the charger. e Insert the power supply plug of the power supply code in the outlet of AC

power supply.

[Installation of battery]

q Draw the battery to the lock lever side and put it on the battery pocket.The

battery is firmly installed on the batter y pocket.

w Press down the battery and then slide it to the opposite direction of the lock

lever.

e The lock lever goes up, and the battery is fixed. r Under such a condition, if “Connection of the code” is done, the charge with

the battery is begun.

1 BEFORE USING THE INSTRUMENT

Power supply cord

AC adaptor

Charger

[Detaching the battery]

q Press the lock lever and slide the battery to the lock lever direction. w Detach the battery packing from the battery pocket.

[Display panel]

q Power supply lamp (red) :Turns on when the power supply is turned on. w Charge lamp (green) :Turns on while charging and turns off when the

charge is completed.

e Discharge lamp (yellow) :Turns on when you push the discharge button.

Turns off when the discharge is completed.

r Installation lamp (red) : Blinks or turns on when the batter y packing is

attached normally. Blinks when charge or discharge and turns on when charge is completed. (The charge lamp in the lower does not blink and does not turns on)

t Discharge button : Discharge lamp lights when you push this button,

and the discharge of battery begins.

1 BEFORE USING THE INSTRUMENT

Lock lever

Battery

Battery pocket

Charger

[How to charge]

q It begins charging automatically when you set the battery packing in the

charger which beams the power supply lamp.

w Leave just as it is until the charge is completed. e When the charge is completed, the charge lamp is turned off. r Detach the battery packing from the charger when the charge is completed.

Refreshing the battery

The use time shortens gradually by the phenomenon of “Effect of the memory” when the NiMH battery leaves capacity and repeats the charge.The voltage recovers after refreshing and the use time returns normally in such a battery. Please refresh one degree every five times of the charge.

[Refreshing]

Set the battery in the charger as well as the case of the charge. Push the electrical discharge button.The electrical discharge lamp lights and the electrical discharge begins. The electrical discharge lamp is turned off when the electrical discharge ends, the charge lamp lights, and the charge starts automatically. Leave just as it is until the charge is completed.When the charge is completed, the charge lamp is turned off. Detach the battery from the charger.

[Time of refreshing and charge]

Battery BP02 is discharged from the state of a full charge at about 960 minutes and the charge is completed from the electrical discharge at about 130 minutes. However, the electrical discharge time is proportional to the remainder capacity of the battery. Moreover, the time required for refreshing might be different from the above-mentioned time according to a surrounding temperature and the state of the battery.

1 BEFORE USING THE INSTRUMENT

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 15

2 DISPLAY AND KEYBOARD

2-1 Display and Keyboard

2-2 Operation Key

Key Description

[POWER] ON/OFF of power supply [ESC]

Returns to previous screen or cancels an operation.

[Illumination]

Turns the illumination of the LCD display and telescope reticle on and off.

[ENT]

Accepts the selected (highlighted) choice or the displayed screen value.

[Laser] Displays the laser plummet *1, electronic vial function, and the LD point

screen when you push the laser plummet/electronic vial key. (Refer to “2-5 Laser Pointer”, “3-2 Laser plummet”, and “3-5 Leveling with Electronic vial”).

*1:Only the product with the laser plummet function

[ Alphanumeric]

At the numerical value screen, the numerical value and the sign ‘.’ displayed are input.The English characters printed right under numeric of each key are input.

[HELP] Pressing [lLLU]+[ESC] key causes a help menu to appear in A MODE or B

MODE or causes a help message to appear.

+/-

ABCABC

DEFDEF

GHIGHI JKLJKL MNOMNO

PQRSPQRS TUVTUV

WXYZWXYZ

ESCESC ENTENT

HELPHELP LaserLaser

F1 F2 F 3 F4 F5

2 DISPLAY AND KEYBOARD

Alphanumeric and +/- key

Laser plummet and Electronic vial key

ESC keyIllumination keyFunction keyPower supply key

Enter key

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 16

2 DISPLAY AND KEYBOARD

2-3 Function Key

Display F. Key Description

Mode A

[MEAS] F1 Pressing this key one time measures the distance in normal mode

another measurement type can be selected by Initial Setting 2. Pressing this key twice measures the distance in coarse mode another measurement type can be selected by Initial Setting 2.

[TARGET] F2 Select the target type by following order.

SHEET/ REFRECTORLESS /PRISM

(Reflectorless type instrument)

SHEET/PRISM

(Prism type instrument) [0 SET] F3 Resets the horizontal angle to 0° 0’ 0” by pressing twice. [DISP] F4 Switches the display composition in the order

“H.angle/H.dst./V.dst.”, “H.angle/V.angle/S.dst.” and “H.angle/V.angle/H.dst./S.dst./V.dst.”.

[MODE] F5 Switches the screen between MODE A and MODE B.

Mode B

[S.FUNC] F1 PowerTopoLite or PSF [ANG SET] F2 Brings up the angle setting screen for setting angle-related parameters

(H.ANGLE/%GRADE, H.ANGLE INPUT and R/L REVERSE).

[HOLD] F3 Pressing this key twice retains (holds) the horizontal angle shown on the

display.

[CORR] F4 Brings up the screen for changing the Target constant, Temperature,

Pressure setting.

[MODE] F5 Switches the screen between MODE A and MODE B.

Other functions

[f] F1 Moves the cursor to the left. [e] F2 Moves the cursor to the right. [▲▲] F1 Goes back five Items on the screen. [▼▼] F2 Goes forward five items on the screen. [RETICLE] F3 Changing the Reticle illumination when pressing Illumination key. [g] F3 Moves the cursor up. [LCD] F4 Changing the LCD contrast when pressing Illumination key. [h] F4 Moves the cursor down. [ILLU] F5 Changing the LCD illumination when pressing Illumination key. [CLEAR] F5 Clear the figure. [SELECT] F5 Open the selection window.

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 17

2 DISPLAY AND KEYBOARD

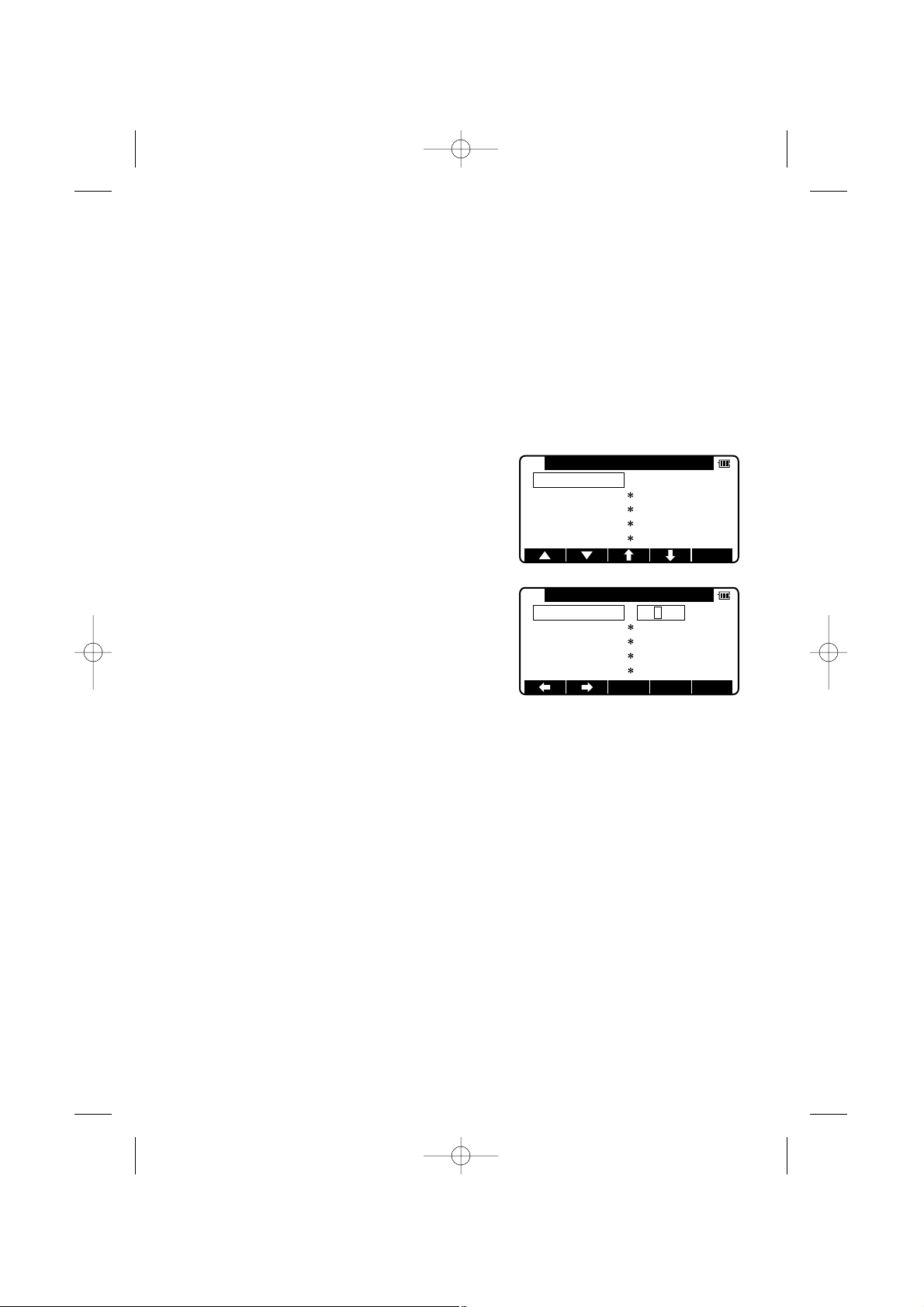

[How to move the menu number] Example:

The cursor is located at Menu 1.

Press the numeric key 0 and 2 to move to Menu 2 or press [F4] [h].

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 18

2 DISPLAY AND KEYBOARD

2-4 Alphanumeric Input

The point name is inputted by the Alphanumeric keys as following.

Key Letter under Key Letter & Figure order to input

[0] [@][.][_][-][:][/][0] [1] PQRS [P][Q][R][S][p][q][r][s][1] [2] TUV [T][U][V][t][u][v][2] [3] WXYZ [W][X][Y][Z][w][x][y][z][3] [4] GHI [G][H][I][g][h][i][4] [5] JKL [J][K][L][j][k][l][5] [6] MNO [M][N][O][m][n][o][6] [7] [ ][?][!][_][ ][^][|][&][7] [8] ABC [A][B][C][a][b][c][8] [9] DEF [D][E][F][d][e][f][9]

[.] [.][,][:][;][#][(][)]

[+/-] [+][-][*][/][%][=][<][>]

2-5 LD POINT, Laser Pointer

The Laser pointer function turns the laser beam on continuously to become the aiming point so that visual confirmation is possible. q When the [LD POINT] key is pressed after pressing the [Laser] key, the Laser

pointer function is turned on. The Laser indicator is tur ned on and the “” mark on the left of the screen blinks while the Laser pointer function is operating.

w If the [Laser] key is pressed and the [LD POINT] key is pressed while the

Laser pointer function is operating, the Laser pointer function is turned off.

● The beam of the sun is strong and visual confirmation is difficult in daytime when outdoors.

● The laser beam is designed not to be able to observe through the telescope.

● Please visually align the laser beam to the target and mark the center.

Confirm the alignment (horizontal and vertical ) before measuring when performing accurate work like stake out when using the Laser pointer function. Also refer to 10-10.The EDM beam axis.

● Please do not look at the laser source of beam directly.

PENTAX R-300 (p01-19) 10/30/02 11:21 AM Page 19

3 PREPARATION FOR SURVEYING

3-1 Centering and Leveling of the Instrument

Setting up the instrument and the tripod

q Adjust the tripod legs so that a height suitable for observation is obtained

when the instrument is set on the tripod.

w Hang the plumb bob on the hook of the tripod, and

coarse center over the station on the ground.At this time, set the tripod and fix the metal shoes firmly into the ground so that the tripod head is as level as possible, and the plumb bob coincides with the station on the ground.

e If the tripod head is mis-leveled by the action of

fixing the metal shoes into the ground, correct the level by extending or retracting each leg of the tripod.

3-2 Laser plummet

Laser plummet model

The laser plummet is not set to be ON at factory shipping.The laser plummet operation of power supply ON can be set by command No 520, LD PLUM & E VIAL. For using Command number, refer to 9-2. Accessing by 007.

[For the Detaching type laser plummet equipment model]

Turn on the laser plummet function by pushing the Laser key. Match the position with the leveling screw so that the laser mark coincides with the ground mark.

Instrument

Base plate

Tripod head

Center screw

Metal shoe

Contract

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 20

3 PREPARATION FOR SURVEYING

[For the Shift type laser plummet equipment model]

● Turn on the laser plummet function by pushing the Laser key.

● Match the position by the tripod so that the laser mark coincides with the

ground mark.

● The centering knob is loosened, and the upper plate is pushed by the tip of a finger, and a center mark is matched to the ground mark.

● Tighten the centering knob.

● Loosen the horizontal clamp screw, and rotate the instrument by 90°, and

confirm the vial of the circular vial is at the center at any position. Correct the vial with the leveling screw when the vial comes off from the center.

[Brightness adjustment of laser]

Sometimes the state of the surface of the ground mark or a surrounding environmental dose not allow observing the laser spot easily. Please adjust the brightness of the laser if necessary.

If the Laser key is pressed, the brightness adjustment screen of the laser plummet device, is displayed.

The Laser plummet becomes dark by , key and becomes bright by / key

The adjustment is completed with the ENT key and it returns to electronic vial screen.

ENT

DOWN UP

LD PLUM. POWER ADJ

ENT

DOWN UP

LD PLUM. POWER ADJ

ELECTRONIC VIAL

T.COMP. ON

30"/1DIV

LD POINT

PLUM ADJ

SENS.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 21

3 PREPARATION FOR SURVEYING

● The brightness adjustment step of the laser is 10 steps.

● The laser plummet spot can become difficult to see in bright sunlight which

makes it difficult to perform the occasional check.In this case, use your foot or the carrying case to make a shadow over the laser position.

● The laser plummet is adjusted to be within ±0.8 mm at the instrument height of 1.5m at factory shipping.

● Please confirm the amount of the gap (direction of X and Y direction) with the laser plummet beforehand compared with plumb bomb etc. when working like accurately putting out a perpendicular direction using the laser plummet function.

● Please do not look at the laser source of beam directly.

3-3 Optical plummet (Option)

[Detachable type]

q Look through the optical plummet eyepiece, and rotate the eyepiece knob until

the center mark can be seen clearly.

w Rotate the focusing knob of the optical plummet and adjust the focus to the

station on the ground.

e Rotate the levelling screws and aligh the center mark to the ground mark.

[Shift type]

q Look through the optical plummet eyepiece, and rotate the eyepiece knob until

the center mark can be seen clearly.

w Rotate the focusing knob of the optical plummet and adjust the focus on the

ground mark.

e Loosen the centering clamp screw and push the upper plate by finger and

stay the center mark on the ground mark.

r Tighten the centering clamp screw. t Loosen the horizontal clamp screw and rotate the instrument every 90° and

confirm the Circular vial is centered correctly. If the bubble is not centered, it can be properly set using the leveling screws.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 22

3 PREPARATION FOR SURVEYING

3-4 Leveling with Circular vial

Tripod is adjusted according to the following points by extending or contracting the legs so that the bubble of the Circular vial goes to the center of the circle.

● Shorten the leg at the side of the bubble or extend the leg opposite of the bubble to position the bubble in the center of the vial circle.

● All three legs are extended or contracted until the bubble is in the center. During this process, the foot is not placed on the tripod leg point and the position of the tripod points do not change.

3-5 Leveling with Electronic vial

[Electronic vial screen]

1. If the Laser key is pushed, it becomes a display screen for the Electronic vial.

2. It returns to the former screen by the [ESC] key .

● When R-300 instrument is seen at the position of “Left circle position”, the screen in the electronic vial shows the correct movement direction.Please note that the movement of the electronic vial is in the opposite direction when the observing in “Right circle position”.

● When instrument is within the tilt compensation range, length and sidewise±3’, “ON” is displayed at the right screen, “OVER” is displayed beyond the limits of range and “NIL” is displayed at no compensation setting.

● With command No “520” or “Initial setting 2”, when the [TILT DISP] is selected as ON, the [F1-TILT] of the vial screen becomes effective.The Vial tilt value is indicated when pushing the [TILT] key.With “TILT DISP.UNIT”

3 PREPARATION FOR SURVEYING

[Leveling]

q Rotate instrument horizontally and make two

Leveling screws arbitrarily chosen parallel to the display.

w Turn on the Electronic vial function by pushing

the Laser key. Put the bubble of the Circular vial in the center of the circle when the display shows “TILT OVER”.

e Turn two Leveling screws arbitrarily chosen in

an opposite direction mutually and put the vial of the horizontal Electronic vial in the center. (Figure A)

r Put the bubble of the lengthwise Electronic

vial in the center by operating the Leveling screw of one remainder. (Figure B)

t The procedures are different according to the

state of the Automatic inclination correction as following.

[When using the Automatic inclination correction by 2 axes]

Please read procedure y because the horizontal angle and the perpendicular angle error by a perpendicular axis are automatically corrected.

[When using the Automatic inclination correction by 1 axis]

The instrument is horizontally rotated by 180° after the bubble of the Electronic vial is adjusted on the center at a Left circle position side and confirm that the bubble of the vial is at the center at the right circle position.

[When using without Automatic inclination correction]

Confirm the bubble is at the center even if the instrument is rotated by each 90°.

y Confirm whether the plummet is on the ground mark. When you confirm it is

not on the mark, loosen the center screw and move the instrument over the ground mark correctly and fix the instrument by a center screw. Repeat from q to y.

(A)

(B)

Leveling screw

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 24

3 PREPARATION FOR SURVEYING

3-6 Eyepiece Adjustment

Eyepiece adjustment

The eyepiece adjustment is performed before target sighting.

q Remove the telescope lens cap. w Point the telescope at a bright object, and rotate

the eyepiece ring full counter-clockwise.

e Look through the eyepiece, and rotate the

eyepiece ring clockwise until the reticle appears as its maximum sharpness.

● When looking into the eyepiece, avoid an intense look to prevent parallax and eye fatigue.

● When it is hard to see the reticle due to poor brightness, press [ILLU] to illuminate it . For adjusting intensity of brightness, refer to page 35.

Sight axis

Vertical lines (double)

Vertical line (single)

Horizontal line

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 25

3-7 Target Sighting

[Auto focus]

The Auto focus mechanism is very precise but will not function under every condition.There is a slight possibility of focusing failure owing to brightness, contrast, the shape and size of the target. In such a case, press the AF button and focus on the target by operating the Power focus key or the AF ring.

No contrast like a white wall Bright back light

Obstacle in front of a target A wall composed of

single horizontal lines

3 PREPARATION FOR SURVEYING

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 26

[Target sighting by Auto focus]

The Auto focus of R-300 series has following two modes.

1. Normal mode :Pressing AF button focuses on the target.

2. Continuous mode: Pressing AF buttons for two seconds beeps, and releasing

the key enters into the Continuous mode.This mode enables you to perform the Auto focus approx.for one minutes only by sighting through the telescope and following the target.

3 PREPARATION FOR SURVEYING

Normal mode : Press the AF button. Continuous mode : Pressing AF buttons for two

seconds beeps and release the key.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 27

[Auto focus :Target sighting by Normal mode]

q Loosen the telescope clamp and horizontal clamp screws. w Point the telescope at the target using a collimator. e Tighten the above two screws. r Adjust the eyepiece. t Look through the telescope and press the AF button. Move your eye vertically

and horizontally to see if the target image moves in relation to reticle.

y Align the reticle accurately on the target using telescope and horizontal

tangent screws.

● If the target image does not move, there is no parallax.If it moves, eliminate the parallax.

● Even when vertical angle measurement is not performed, it is recommended that the target should be placed at the reticle center.

● Operating the Power focus key rotates the AF ring, so do not touch it while it is rotating.

3 PREPARATION FOR SURVEYING

AF button

Collimator

Target sighting

Target

Collimator

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 28

[Auto focus :Target sighting by Continuous mode]

beep, and release the key to enter into the Continuous mode.

y Align the reticle accurately on the target using telescope and horizontal

tangent screws.

u Point the telescope to the next target as well.

● Keep the target close to the reticle center when following it by the Continuous mode.

● Continuous mode automatically ceases after approx.one minute.

● Pressing the AF button or operating the Power focus key releases the

continuous mode.

● Operating the Power focus key rotates the AF ring, so do not touch it while it is rotating.

3 PREPARATION FOR SURVEYING

Collimator

AF button Pressing AF buttons for two seconds beeps and release the key.

Target

Collimator

Target sighting

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 29

[Auto focus :Target sighting by Power focus mode]

on the target.

y Align the reticle accurately on the target using telescope and horizontal

tangent screws.

● Tilting the Power focus key “clockwise” makes it possible to focus on closer objects and “counterclockwise” will focus on farther objects.

● Tilting angle of the Power focus key makes it possible to perform following three focusing speeds. Low speed :When tilted to middle position by approx. 5 degrees Middle speed : When tilted fully by approx. 10 degrees High speed :When tilted fully by approx. 10 degrees and passed one

second

● Operating the Power focus key rotates the AF ring, so do not touch it while it is rotating.

3 PREPARATION FOR SURVEYING

Collimator

Power focus key

Target

Collimator

Target sighting

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 30

[Target sighting by Manual focus]

target can be seen clearly and the target image does not move in relation to reticle even if your eye is vertically and horizontally moved.

y Aligh the reticle accurately on the target using telescope and horizontal

tangent screws.

● The AF ring rotation “clockwise” makes it possible to focus on closer objects and “counterclockwise” will focus on further objects.

3 PREPARATION FOR SURVEYING

Collimator

AF ring

Target

Collimator

Target sighting

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 31

3-8 Attachment and Detachment of Tribrach

The tribrach of R-322, 323, 325, 322N, 323N, 325N, and 326 are detachable from the instrument if required when replacing the instrument with a target or unit prism for example.

Detachment

First loosen the recessed screw with a screwdriver, then rotate the locking knob until the arrow points upward, and lift the instrument up.

Attachment

Mount the instrument on the tribrach with the guide marks coinciding, and rotate the locking knob until the arrow points downward.

The guide and guide mark must be fitted to attach the instrument. When the tribrach does not need to be attached or detached or instrument is to be transported, tighten the recessed screw with a screwdriver to fix the locking knob.

3 PREPARATION FOR SURVEYING

Instrument

Tribrach

Recessed screw Tribrach locking lever

Guide mark

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 32

4 TURNING THE POWER ON

4-1 Turning the Power On and Off

Pressing the [POWER] key shows the initial screen.

(The [POWER] key is also used to turn the power off.) After a few seconds, it turns to Electronic vial screen. Move the vials to center by adjusting the leveling screws.

Pressing the [ENT] key views the angle and distance measurement screen.

● The Auto Power Off function will automatically turn the power off if no operations are performed for approximately 10 minutes. (Factory default setting)

● The [POWER] key is controlled by software in the instrument while it is working, and this key is valid only when turning off causes no problem.

● The value displayed when the power was last time turned off will be displayed for the horizontal angle.If this horizontal angle is not needed, please perform horizontal angle 0 SET.

For details on resetting the horizontal angle 0 ............See page 37.

For details on changing the horizontal angle from

clockwise to counterclockwise ...............................See page 41.

For details on measuring the vertical angle .................See page 40.

For details on distance measurement .........................See page 42.

For details on the automatic power-off function ..........See page 59.

For details on the Electronic vial ..................................See page 65.

ELECTRONIC VIAL

T.COMP. ON

30"/1DIV

LD POINT

PLUM ADJ

SENS.

MEAS TARGET 0 SET DISP MODE

MODE A 15°C S 0

H. angle 40"39'85° H. dst.

0000000°

. dst.

000000°

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 33

4-2 Adjusting LCD Contrast

Press [F4] while holding down the Illumination key to access the screen for adjusting LCD contrast.

Pressing [F1] [ ] will lighten the contrast,while pressing the [F2] [ ] will darken the contrast.

Press [ENT] to exit adjustment mode and return to the previous screen.

● Pressing the Illumination key views the F3-RETICLE, F4-LCD and F5-ILLU.

● LCD contrast may be adjusted as necessary at any time.

● The contrast may be adjusted to any one of 25 levels.

● LCD contrast may be unappealing under certain environmental conditions

such as high temperature. Adjust the LCD contrast as described above in such situations.

4 TURNING THE POWER ON

ENT

LOW HIGH

LCD DENSITY ADJ

ENT

LOW HIGH

LCD DENSITY ADJ

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 40"39'85° H

. dst.

0000000°

. dst.

000000°

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 34

4-3 Adjusting Illumination Brightness

Press [F5] while holding down the Illumination key to access the screen for adjusting illumination brightness.

Pressing the [F1] [f] will decrease brightness, while pressing the [F2] [e] will increase brightness.

Press [ENT] to exit adjustment mode and return to the previous screen.

● Pressing the Illumination key views the F3-RETICLE, F4-LCD and F5-ILLU.

● Illumination brightness of the LCD screen and telescope reticle may be

adjusted as necessary at any time.

● Illumination brightness may be adjusted to any one of 10 levels.

4-4 Adjusting Reticle Illumination

Press [F3] while holding down the Illumination key to access the screen for adjusting reticle illumination.The procedure to adjust the reticle illumination is the same way as 4-3.

● Pressing the Illumination key views the F3-RETICLE, F4-LCD and F5-ILLU.

4 TURNING THE POWER ON

ENT

DOWN UP

ILLU INTENSITY ADJ

ENT

DOWN UP

ILLU INTENSITY ADJ

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle H. dst.

00000

. dst.

0000000

40"39'85°

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 35

5 ANGLE MEASUREMENT

5-1 Measuring an Angle

Aim at the first target, then press [F3] [0 SET] twice in succession to reset the horizontal angle to 0.

Aim at the second target, then read the horizontal angle.

Pressing [F4] [DISP] displays the vertical angle.

● The [0 SET] key cannot reset the vertical angle to 0.

● Pressing the [DISP] key cycles through the sets of display items:

“H.angle/H.dst./V.dst.”, “H angle/V.angle/S.dst.”, and “H.angle/V. angle/H.dst./S.dst./V.dst.”.

● Even though you turn the power off during a survey, the horizontal angle displayed last time is saved, so that it is restored when the power is turned on next time.

● When the restored horizontal angle is not necessary, reset it to 0.

5 ANGLE MEASUREMENT

MODE A 15°CS0

H. angle 00"00'0° H. dst. V. dst.

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'60° H

. dst.

V. dst.

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'60° V

. angle

40"05'87°

. dst.

MEAS TARGET 0 SET DISP MODE

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 36

5-2 Resetting the Horizontal Angle to 0

Pressing [F3] [0 SET] twice in succession resets the horizontal angle to 0° 0' 0".

● The [F3] [0 SET] cannot reset the vertical angle to 0.

● Pressing the [F3] [0 SET] accidentally during measurement does not reset the

horizontal angle to 0 unless you press it again. Once the buzzer stops sounding, you can go to the next step.

● You can reset the hor izontal angle to 0 any time except when it has been held.

5-3 Holding the Horizontal Angle

To hold the horizontal angle currently being displayed, press [F3] [HOLD] twice in succession. The horizontal angle value is displayed in reverse video when being held.

● lf you want to hold the horizontal angle when you are in mode A, press [F5] [MODE] first to switch to mode B, then press [F3] [HOLD].

● The [F3] [HOLD] cannot hold the vertical angle or distance.

● To release the horizontal angle from being held, press [F3] [HOLD] once.

● Pressing [F3] [HOLD] accidentally during measurement does not hold the

horizontal angle unless you press it again. Once the buzzer stops sounding you can go to the next step.

5 ANGLE MEASUREMENT

MODE A 15°CS0

H. angle 00"00'0° H

. dst.

V. dst.

MEAS TARGET 0 SET DISP MODE

S. FUNC

ANG SET

HOLD CORR MODE

MODE B 15°CS0

H. angle 20"45'130° H

. dst.

V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 37

5-4 Inputting an Arbitrary Horizontal Angle

In case of Horizontal angle 123° 45' 20" input Press [F5] [MODE] to enter mode B.

Press [F2] [ANG SET] to display the angle setting screen, then press [F4] [h] to move the cursor to “2. H. ANGLE INPUT”.

Press [F5] [SELECT] to open the horizontal angle input window. [F5] [CLEAR] is used to clear the values.

5 ANGLE MEASUREMENT

S. FUNC

ANG SET

HOLD CORR MODE

MODE B 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

092° 30' 20"

ANGLE SET

CLEAR

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 000° 00' 00"

R/L REVERSE

: RIGHT.

00° 00' 00"

ANGLE SET P-30

CLEAR

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 38

Press the numeric key as 123.4520.

Press the [ENT] key to accept the horizontal angle set to 123° 45' 20" and change the screen to mode A.

● The former data is called by pressing the [CLEAR] key again.

5 ANGLE MEASUREMENT

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 123° 45' 20"

R/L REVERSE

: RIGHT

123° 45' 20"

ANGLE SET

CLEAR

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"45'123° H. dst. V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 39

5-5 Displaying the % Slope of the Vertical Angle

Press [F5] [MODE] to enter mode B.

Press [F2] [ANG SET] to display the Angle setting screen.

Press the [F5] [SELECT] to change the screen to display the slope % of Vertical angle.

Press [F4] [DISP] to display the slope value in %.

● The 0% represents the horizontal 0, and +100% and -100% represent 45° up and down slopes respectively.

● To return the screen from the slope (%) display to the 360° scale, also take above same steps by entering mode B.

● If the slope (%) exceeds [+/-]1000%, “Out of grade range” is displayed, indicating that the current vertical angle cannot be measured.

● When the telescope returns to a slope within slope [+/-] 1000%, the slope (%) display returns automatically from the “Out of grade range”message to the numeric value.

5 ANGLE MEASUREMENT

S. FUNC

ANG SET

HOLD CORR MODE

MODE B 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

MODE A 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92°

%. grade

-1.84%

S. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 40

5-6 Changing the Horizontal Angle from Clockwise

to Counterclockwise

Press [F5] [MODE] to enter mode B.

Press [F2] [ANG SET] to display the Angle setting screen.

Press [F4] [h] to move the cursor to “3. R/L REVERSE”.

Press [F5] [SELECT] to add a minus sign (-) to the horizontal angle value as a counterclockwise angle.

● To return the horizontal angle from counterclockwise to clockwise, also take the above same procedures, press [F5] [SELECT] to select the clockwise angle.

● When the counterclockwise horizontal angle is selected, the order of aiming at the targets becomes the reverse (the right one first, then the left one) of the order for the clockwise angle.

5 ANGLE MEASUREMENT

S. FUNC

ANG SET

HOLD CORR MODE

MODE B 15°CS0

H. angle 20"30'92° H. dst. V. dst.

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

ANGLE SET

ANGLE / %GRADE

: ANGLE

H. ANGLE INPUT

: 092° 30' 20"

R/L REVERSE

: RIGHT

SELECT

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 40"29'-267° H

. dst.

V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 41

6 DISTANCE MEASUREMENT

6-1 Target Setting

The target mode and its Constant of current setting are shown at the left of the battery mark. For example in case of each Constant 0, Reflector sheet; S 0, Reflectorless(Non-Prism); N 0, Prism; P 0

Pressing [F2][TARGET] changes the target mode.

● The target mode is changed sequentially as follows. Reflector sheet - Prism - Reflectorless (reflectorless models),Reflector sheet Prism (standerd models).

● The selected target mode is stored in the memory even if the power is turned off. So, next time you can use the same mode after turning on.

● The target Constant differs according to the selected target mode. So, confirm the target mode and its Constant shown at the top screen after changing the target.

1. (Distance measurement by Reflectorless (Non-Prism) mode)

● The measurement range is determined by the white side of the Kodak Gray Card facing the instrument and by its surrounding brightness. There is a possibility that the range may vary when the target does not satisfy the conditions above at survey work.

● Pay attention to the following in case of distance measurement by Reflectorless. In case of resulting in low accuracy, perform the distance measurement by Reflector sheet or Prism.

● The Reflectorless “Long Range mode” can be accessed by the 007 CODE number 521 [REF.LESS RANGE]. The measurement range of this mode is 150m and the Laser class is IIIa.This mode can be performed by selecting the “LONG” at 1.REF.LESS RANGE.

● The CODE number 521 [REF.LESS RANGE] shows 1.REF.LESS RANGE (NORMAL/LONG) ,2.LONG RANGE MES(ON/OFF).and 3.LONG RANGE SETUP(EACH TIME/PERMANENT).

● The WARNING (Laser Power) screen is displayed when Range LONG and Message ON are selected, and then F1-MEAS key is pressed.F1-MEAS, F3NORMAL and F5-LONG are viewed.

● Pressing [MEAS] one time selects “Second MEAS setting” and twice selects “QUIT”. And then, Nor mal or Long measurement is selected by pressing F3 or

F5.

6 DISTANCE MEASUREMENT

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H. dst. V. dst.

( ( ( ) ) )

TARGET CHANGED (CONST.:0mm) SHEET

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 42

q There is a possibility that correct distance measurement may be impossible by

dispersion or reduction of laser beam when the laser beam comes into the target from diagonal angle.

w There is a possibility that the instrument cannot calculate correctly when

receiving reflected laser beam from forth and back directions in case of measuring the target on the road.

e There is a possibility that synthesized values are calculated and the distance

may become longer or shorter than the actual one when the operator measures the target of slope or sphere or rugged shape.

r There is a possibility that the instrument cannot calculate correctly collecting

the reflected laser beam from a man or a car that comes and goes in front of the target.

2. Distance measurement by Reflector sheet mode

Position the Reflector sheet whose reflecting surface faces the aiming line to be approx. r ight angle when the distance is measured by it. If it is positioned not to be approx. r ight angle, there is a possibility that correct distance measurement may be impossible by dispersion or reduction of laser beam.

3. Applied measurement range by Each target mode

● (Reflectorless (Non-Prism) mode): It can measure the distance by Reflector sheet and Prism, but the measurable distance is less than 200m.

● Reflector sheet mode: It can measure the distance by Prism mode, but the measurable distance is less than 1000m.

● Prism mode: It can measure by Reflector sheet as well.

● Reflector sheet mode and Prism mode: It is sometimes possible to measure without reflector sheet or prism under special conditions like in the close distance, targeting on a wall surface. However, there is a possibility including some errors in this case, so be sure to select the Reflectorless mode.

● The target Constant should be correctly selected and confirmed in case that the Reflector sheet is used at the Prism mode and the Prism is used at the Reflector sheet mode.

6 DISTANCE MEASUREMENT

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 43

6 DISTANCE MEASUREMENT

6-2 Distance Measurement

The R-300 series has two distance measurement modes of primary MEAS and second MEAS. Pressing the [F1][MEAS] one time goes to MEAS and twice goes to second MEAS. You can freely select and allocate your desired measurement mode in primar y MEAS and second MEAS by the Initial Setting 2.The “MEASURE SHOT”is set at primary MEAS and “TRACK CONT” is set at second MEAS as a Factory default setting.

● MEASURE SHOT means the Distance measurement by the Shot mode.

● MEASURE CONT means the Distance measurement by the Continuous

mode.

● TRACK SHOT means the Fast distance measurement by the Shot mode.

● TRACK CONT means the Fast distance measurement by the Continuous

mode.

Confirm the target Constant before beginning the distance measurement.

Example:“MEASURE SHOT” at primary MEAS (Factory default setting)

Collimate the telescope at a Target and press the [F1] [MEAS] once to start measuring the distance. Once distance measurement has been started, the distance measurement mark remains displayed. Upon reception of a reflected light from the Target, the instrument beeps and displays the

✽

mark to start the Shot measurement automatically.

● If the instrument is in mode B, press the [F5][MODE] to switch to mode A and press [F1] [MEAS].

● Pressing the [F1][MEAS] after collimating the telescope at the prism starts Shot distance measurement with the “MEAS” text blinking.Distance measurement is completed and the “MEAS” text stops blinking the moment the distance measured by Shot measurement is displayed. During Continuous measurement, the “MEAS” text keeps on blinking.Pressing the [F1][MEAS] again terminates both distance measurement and blinking the “MEAS” text.

● Pressing [F4] [DISP] cycles through the sets of display items:

“H.angle/H.dst./V.dst.”, “H.angle/V.angle/S.dst.”, and “H.angle/V.angle/H.dst./S.dst./V.dst.”

● Pressing the [ESC] or [F2][TARGET] or [F5][MODE] during distance measurement stops it.

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

SHOT

( ( ( ) ) )

✽

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 44

● If the shot count for distance measurement has been set to 2 or more in

“Initial Setting 2", the distance is measured for the specified number of times to display the averaged value.

● If the Automatic Distance measurement : [AUTO MEAS] in “Initial Setting 2” has been set to “MEAS” the first measurement is star ted only by aiming at the Target. Press [F1] [MEAS] for each measurement after the first one.

● If the Automatic Distance Signal : [MEAS SIGNAL] in “Initial Setting 2” has been set to VALUE, a two-digit number representing the AIM value appears as soon as measurement starts (The AIM value varies depending on the distance and atmospheric conditions.)

● The minimum distance unit : [MEAN. MIN DISP] COARSE or FINE can be selected by the initial setting 2.

Example:“TRACK CONT” at second MEAS (Factory default setting)

Collimate the telescope at a Target and press [F1] [MEAS] twice in succession to start measuring the distance, Upon reception of a reflected light from the Target, the instrument beeps and displays the ✽mark to start the TRACK distance measurement.

● If the instrument is in mode B, press [F5] [MODE] to switch to mode A and press [F1] [ MEAS ] twice.

● Pressing [F1] [MEAS] twice after collimating the telescope at the Target starts Continuous distance measurement at fast speed with the “MEAS” text blinking. It remains blinking during the measurement. If you press the [F1] [ MEAS ] again, Distance measurement is completed and the “MEAS” text stops blinking.

● Pressing [F4] [DISP] cycles through the sets of display items:

“H.angle/H.dst./V.dst.”, “H.angle/V.angle/S.dst.”, and “H.angle/V.angle/H.dst./S.dst./V.dst.”

● Pressing the [ESC] or [F2] [TARGET] or [F5] [MODE] during fast distance measurement stops it.

6 DISTANCE MEASUREMENT

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

CONT

( ( ( ) ) )

✽

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 45

7 CORRECTION MODE

7-1 Changing the Target Constant

Changing the Target Constant can be performed only when the Reflector sheet and Prism Constant settings are “INPUT” in Initial Setting 1.

Example: Prism Constant - 25mm setting Press [F4] [CORR] in mode B.

(If the instrument is in mode A, press [F5] [MODE] to enter mode B.) (SHEET CONST : Reflector sheet constant)

Press the [F5] [SELECT] to enable the Prism Constant to be changed.

Clear the exiting values by pressing [CLEAR] key. Input 25 by pressing the numeric keys.

7 CORRECTION MODE

SELECT

CORRECTION

PRISM CONST

: -30mm

SHEET CONST

0mm

3.TEMP 15°C

4.PRESS 1013hPa

5.ppm 0ppm

CORRECTION

PRISM CONST

: -30mm

SHEET CONST

0mm

3.TEMP 15°C

4.PRESS 1013hPa

5.ppm 0ppm

CLEAR

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 46

Press the [ENT] key to accept the Prism Constant to -25 mm.

Pressing the [ENT] key returns the instrument to mode A.

● To set the Reflector sheet constant to “0” select “0” for “Prism Constant” in “Initial Setting 1”.

● To set the Prism constant to “0”or “- 30” select “0” or “- 30” for “Prism Constant” in “Initial Setting 1”.

● When the “Reflector sheet Constant” has been set to “0” in Initial Setting 1 and “Prism Constant” has been set to “0” or “- 30", “”is displayed to the left of “0” or “- 30” on the correction menu screen. When “”is on the screen, the Constant cannot be changed (by entering a numeric key).

● Once set, the Reflector sheet Constant and Prism Constant remains on the measurement screen as “S 0” or “P 0”.

● The factory initial of Reflector sheet Constant and Prism Constant are 0.

● Once set, each Constant remains in memory even after the power is turned

oft.

7 CORRECTION MODE

CORRECTION

PRISM CONST

: -25mm

SHEET CONST

0mm

3.TEMP 15°C

4.PRESS 1013hPa

5.ppm 0ppm

SELECT

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H. dst. V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 47

7-2 Changing the Temperature

The temperature setting can be changed only when “Atmospheric Correction” has been set to “ATM INPUT” in “Initial Setting 1”.

Example: Setting the temperature to +22°C Press [F4] [CORR] in mode B.

(If the instrument is in mode A, press [F5] [MODE] to enter mode B.)

Press [F4] [h] to move the cursor to “3.TEMP” and press the [F5] [SELECT] to enable the temperature to be changed.

Clear the exiting values by pressing [CLEAR] key . Input 22 by pressing the numeric keys.

7 CORRECTION MODE

SELECT

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 1013hPa

5.ppm 0ppm

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 1013hPa

5.ppm 0ppm

CLEAR

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +22°C

4.PRESS : 1013hPa

5.ppm 0ppm

CLEAR

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 48

Press the [ENT] key to accept the Temperature to +22°C.

Pressing the [ENT] key returns the instrument to mode A.

● The valid range of Temperatue input is from -30°C to +60°C.

● When “Atmospheric Correction” in “Initial Setting 1” has been set to “1 . AUTO”

or “4. NIL”, “”is displayed to the left of the temperature value on the correction menu screen.When “”is on the screen, the temperature cannot be changed. If “Atmospheric Correction” in “Initial Setting 1” has been set to “3. ppm INPUT”, no temperature is displayed on the correction menu screen.

● Once set, the temperature is displayed at the center of the top of the measurement screen.

● The factory initial of temperature is “1.AUTO”.

● Once set, the temperature remains in memory even after the power is turned

off.

● Temperature correction is based on 15°C. If this instrument is used without correcting the temperature, a distance error per 100 m is about -0.1mm per +1°C as a temperature difference from 15°C. A distance error per 100 m is about 0.1 mm per -1°C as a temperature difference from 15°C.(For more accurate values, See page 82.)

7 CORRECTION MODE

SELECT

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +22°C

4.PRESS : 1013hPa1013hPa

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H. dst. V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 49

7-3 Changing the Atmospheric Pressure

The atmospheric pressure setting can be changed only when “Atmospheric Correction” has been set to “ATM INPUT” in “Initial Setting 1”.

Example: Setting the pressure to 900 hPa Press [F4] [CORR] in mode B.

(If the instrument is in mode A, press [F5] [MODE] to enter mode B.)

Press [F4] [h] to move the cursor to “4.PRESS” and press the [F5] [SELECT] to enable the temperature to be changed.

Clear the exiting values by pressing [CLEAR] key . Input 900 by pressing the numeric keys.

7 CORRECTION MODE

SELECT

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 1013hPa

5.ppm 0ppm

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 1013hPa

5.ppm 0ppm

SELECT

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 0900hPa

5.ppm 0ppm

CLEAR

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 50

Press the [ENT] key to accept the PRESS to 900 hPa.

Pressing the [ENT] key returns the instrument to mode A.

● The valid range of Pressure input is from 600 to 1120 hPa. (420 - 840 mmHg)

● When “Atmospheric Correction” in “Initial Setting 1” has been set to “1. AUTO”

or “4. NIL”, “”is displayed to the left of the pressure value on the correction menu screen.When “”is on the screen, the pressure cannot be changed. If “Atmospheric Correction” in “Initial Setting 1” has been set to “3.ppm INPUT”, no pressure is displayed on the correction menu screen.

● Once set, the pressure is displayed at the center of the top of the measurement screen.

● The factory initial of pressure is “1. AUTO”.

● Once set, the pressure remains in memory even after the power is turned off.

● Pressure correction is based on 1013 hectopascals (hPa).

● If this instrument is used without correcting the pressure, a distance error per

100 m is about - 0.3 mm per -10 hPa as a pressure difference from 1013 hPa. (For more accurate values, see page 82.)

7 CORRECTION MODE

SELECT

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP : +15°C

4.PRESS : 0900hPa

5.ppm 0ppm

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H. dst. V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:08 AM Page 51

7-4 Changing the ppm Value

The ppm value can be changed only when “Atmospheric Correction” has been set to “ppm INPUT” in “Initial Setting 1”. “TEMP” and “PRESS” are not displayed.

Example: Setting the ppm value to 31 ppm Press [F4] [CORR] in mode B.

(If the instrument is in mode A, press [F5] [MODE] to enter mode B.)

Press [F4] [h] to move the cursor to “3. ppm” and press the [F5] [SELECT] to enable the temperature to be changed.

Press the [CLEAR] key.

Input 31 by pressing numeric keys.

Pressing the [ESC] key returns the instrument to mode A.

● The valid range of ppm values is from -199 to +199.

● Once set, the ppm value is displayed at the center of the top of the

measurement screen.

● The factory initial of ppm value is “1.AUTO”.

● Once set, the ppm value remains in memory even after the power is turned

off.

7 CORRECTION MODE

CORRECTION

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP 0mm

4.PRESS 0mm

5.ppm : +12ppm

SELECT

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP 0mm

4.PRESS 0mm

5.ppm : +000ppm

CORRECTION

CLEAR

PRISM CONST

0mm

SHEET CONST

0mm

3.TEMP 0mm

4.PRESS 0mm

5.ppm : +031ppm

CORRECTION

CLEAR

MEAS TARGET 0 SET DISP MODE

MODE A 15°CS0

H. angle 20"30'92° H

. dst.

V. dst.

PENTAX R-300 (p20-52) 10/30/02 11:09 AM Page 52

8 INITIAL SETTING

8-1 Overview

For the R-300 series, you can select and save the desired setting for a variety of prescribed instrument conditions, called Initial Setting. The Initial Setting is saved in four modes, “Initial Setting 1”, “Initial Setting 2”, “Initial Setting 4”, and “Initial Setting 5”, in which you can select and save the instrument conditions described below. The factory default for each of these conditions is marked by . To change Initial Setting, follow the operating procedures for entering each Initial Setting mode on Page 53 and the operating procedures for changing an Initial Setting on Page 55.

8-2 Entering the Mode for Initial Setting 1

Press the [POWER] key while holding [F1] key down to access the screen for Initial Setting 1.

Press [F3] [g] or [F4] [h] to position the cursor at the item of interest.

8-3 Entering the Mode for Initial Setting 2

Press the [POWER] key while holding [F2] key down to access the screen for Initial setting 2.

● Select the item of interest in the same way as in the mode for Initial setting 1.

● Pressing [F2] [ ] scrolls the screen down five items; pressing [F1] [ ] scrolls

it up five items.

SELECT

SET 1

1.ATM CORR : AUTO

PRISM CONST

: 0mm

SHEET CONST

: 0mm

CRV/REF CORR

: 0.14

COMP AXIS

: NIL

SELECT

SET 1

1.ATM CORR : AUTO

PRISM CONST

: 0mm

SHEET CONST

: 0mm

CRV/REF CORR

: 0.14

COMP AXIS

: NIL

SELECT

SET 2

MEAS MIN DISP

: COARSE

2.SHOT COUNT : 1 TIME

3.SHOT INPUT : 01 TIMES

4.LD PLUM : ON

5.TILT DISP : ON

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 53

8 INITIAL SETTING

8-4 Entering the Mode for Initial Setting 4

Press the [POWER] key while holding [F4] key down to access the screen for Initial setting 4.

● Select the item of interest in the same way as in the mode for Initial setting 1.

8-5 Entering the Mode for Initial Setting 5

Press the [POWER] key while holding [F5] key down to access the screen for Initial setting 5.

● Select the item of interest in the same way as in the mode for Initial setting 1.

● Pressing [F2] [ ] scrolls the screen down five items; pressing [F1] [ ] scrolls

it up five items.

SELECT

SET 4

TEMP UNIT

: °C

PRESS UNIT

: hPa

DIST. UNIT

ANG. UNIT

: DEG

SELECT

SET 5

1.BAUD RATE : 1200

2.DATA LENGTH : 8

3.PARITY BITS : NIL

4.STOP BITS : 1

SIGNAL CONTROL

:ON

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 54

8 INITIAL SETTING

8-6 Example of Changing an Initial Setting Content

(Selection of Atmospheric Correction)

This section describes the operating procedures for selecting “1.ATM CORR” in Initial Setting 1 as an example of changing an Initial Setting content. Use this example as a reference when changing other items because it is also applicable to the operating procedures for changing them.

Access the screen for Initial Setting 1 by taking procedures “Entering the Mode for Initial Setting 1” on page 50.

Press [F5] [SELECT] to open the screen for selecting the atmospheric correction.

Press [F3] [g] or [F4] [h] to position the cursor at the desired item, then press [ENT] key to select that item. Pressing the [ENT] key settles the change of selected item. Pressing the [ESC] key invalidates the change of selected item.

Pressing again the [ESC] key or [ENT] key quits the initial setting screen and usual start screen appears.

SELECT

SET 1

1.ATM CORR : AUTO

PRISM CONST

: 0mm

SHEET CONST

: 0mm

CRV/REF CORR

: 0.14

COMP AXIS

: NIL

8-7 Initial Setting 1

1. Selection of Atmospheric Correction : [ATM CORR] Select whether Atmospheric Correction is to be performed by using the automatic measurement correction function with a atmospheric sensor, by entering the atmospheric temperature and pressure measured with a thermometer and barometer, by entering ppm value, or by fixing the ppm value to 0 (NIL) not to perform Atmospheric Correction.

2. Selection of Prism Constant : [PRISM CONST] Select whether the Prism Constant to be input is set to 0 mm, - 30mm or to an arbitrary value to be entered from the keyboard.

3. Selection of Reflector sheet Constant : [SHEET CONST] Select whether the target constant to be input is set to 0 mm, or to an arbitrary value to be entered from the keyboard.

4. Selection for Refraction & Curvature Corrections : [CRV/REF CORR] Select whether the correction factor to be input for both differences (Refraction, Curvature) is set to 0.14, 0.2, or none (NIL). Selecting “3. NIL” results in no correction of both values.

5. Selection of Tilt Compensation : [COMP AXIS] Select whether Tilt Compensation is to be single-axis compensation, dual-axis compensation, or disabled (NIL).

● The factory default for each instrumet condition is marked by .

8 INITIAL SETTING

1. AUTO

2. ATM INPUT

3. ppm INPUT

4. NIL

1. 0mm

2. INPUT

1. -30mm

2. 0mm

3. INPUT

1. 0.14

2. 0.2

3. NIL

1. 2 AXES

2. AXIS

3. NIL

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 56

1. 3 AXIS

2. 2 AXIS

3. 1 AXIS

4. NIL

8 INITIAL SETTING

8-8 Initial Setting 2

1. Selection of Minimum Distance measurement unit : [MEAS. MIN DISP] COARSE or FINE:

2. Selection of the Shot count : [SHOT COUNT] Select whether the shot count for Shot distance measurement is to be 1,3, 5, or an arbitrary count to be entered.

3. Setting the Shot input : [SHOT INPUT] Set the shot number for Shot distance measurement.

● The valid range of values for the shot number is from 1 to 99.

● This setting is enabled only when the shot number

(Above 2.) has been set to “4. INPUT”.

4. Selection of Laser plummet : [LD PLUM.] Laser plumb ON/OFF is selected.

5. Selection of Tilting angle display : [TILT DISP.] X and Y tilting values are displayed.

6. Selection for Minimum tilt display : [TILT DISP. UNIT] COARSE or FINE:

7. Selection of Reflectorless range : [RANGE] If you need the Normal or Long range.

8. Selection of Long range message : [MESSAGE] If you need the long range message.

9. Selection of Long range setup : [SET UP] If the above No.7 selection is required each time or permanent.

1. COARSE

2. FINE

1. NORMAL

2. LONG

1. ON

2. OFF

1. EACH TIME

2. PERMANENT

1. OFF

2. ON

1. OFF

2. ON

1. 1 TIME

2. 3 TIMES

3. 5 TIMES

4. INPUT

0 3 TIMES

1. COARSE

2. FINE

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 57

8 INITIAL SETTING

10.Selection of primary MEAS setting : [PRIM. MEAS KEY] Select whether the primary distance measurement is MEAS SHOT or MEAS CONT or TRACK SHOT or TRACK CONT.

11.Selection of second MEAS setting : [SEC. MEAS KEY] Select whether the second distance measurement is TRACK CONT or TRACK SHOT or MEAS CONT or MEAS SHOT.

12.Selection of Minimum angle display : [MIN UNIT ANG] Select whether to set the minimum angle display mode to “COARSE (5 seconds)” or “FINE (1 second)”.

13.Selection of Vertical angle style : [V. ANG. STYLE] Select whether the 0 point for vertical angle is set to be “Z.0”, “H.0” or “COMPAS”.

14.Selection for Automatic power-off function : [AUTO OFF] Select the time interval (10, 20, or 30 minutes) for activating the automatic power-off function, or select NIL, disabling the function.

● The automatic power-off function automatically turns the power supply off after the specified period of time (in minutes) when no operation for distance measurement or for key entry has been performed with the angle remaining unchanged.

15.Selection for Distance measurement automatic power- off function : [EDM OFF] Select the time interval (3, 5, or 10 minutes) for activating the distance measurement automatic power-off function, or select NIL, disabling the function.

● The distance measurement automatic power-off function automatically poweroff distance measurement after the specified period of time when no key operation has been performed with the measured value remaining unchanged (over about 0.1 m) during measurement.

1. MEAS SHOT

2. MEAS CONT

3. TRACK SHOT

4. TRACK CONT

1. TRACK CONT

2. TRACK SHOT

3. MEAS CONT

4. MEAS SHOT

1. COARSE

2. FINE

1. Z. 0

2. H. 0

3. COMPAS

1. 10 MIN

2. 20 MIN

3. 30 MIN

4. NIL

1. 3 MIN

2. 5 MIN

3. 10 MIN

4. NIL

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 58

8 INITIAL SETTING

16.Selection for Automatic illumination power-off function : [ILLU. OFF] Select the time interval (3, 5, or 10 minutes) for activating the automatic illumination power-off function, or select NIL, disabling the function.

17.Selection for Distance measurement buzzer : [DIST.BUZ] Select whether to enable or disable the beep when the prism receives a light during distance measurement or during repeated distance measurement.

18.Selection for H. angle 90° buzzer : [QUAD BUZ] Select whether to enable or disable the beep at every 90° during angle measurement.

19.Selection of Distance measurement signal : [MEAS. SIGNAL] Select whether to display a signal indicator or AIM value to be displayed from when distance measurement is started to when measured data is displayed.

20.Selection of Automatic distance measurement : [AUTO MEAS.] Automatic distance measurement repeats measurement automatically when the telescope has been collimated at the prism. Select NIL, MEAS or TRACK.

21.Selection for priority Display : [PRIORITY DISP] Select the display order of the sets of display items which pressing the [DISP] key cycles through.The set of display items selected here appears first after the power is turned on.

22.Selection of the Coordinate axis as XYZ,YXZ, NEZ or

ENZ

Select the coordinate axis as XYZ, YXZ, NEZ, ENZ. This [COORD.AXIS] is only for the PSF software.

1. MARK

2. VALUE

1. NIL

2. MEAS

3. TRACK

1. HA HD VD

2. HA VA SD

3. HA VA HD SD VD

1. 3 MIN

2. 5 MIN

3. 10 MIN

4. NIL

1. ON

2. OFF

1. OFF

2. ON

1. XYZ

2. YXZ

3. NEZ

4. ENZ

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 59

8-9 Initial Setting 4

1. Selection of Temperature unit setting : [TEMP. UNIT] Select °C or °F as the unit for Temperature.

2. Selection of Pressure unit setting : [PRESS UNIT] Select hPa (hectopascal) , mmHg, inchHg as the unit for pressure to be input.

3. Selection of Distance unit setting : [DIST.UNIT] Select m or ft or ft+inch as the unit for Distance.

4. Selection of Angle unit setting : [ANG. UNIT] Select DEG or DEC or GRD or MIL as the unit for Angle.

8 INITIAL SETTING

1. °C

2. °F

1. hPa

2. mmHg

3. inchHg

1. m

2. ft

3. ft+inch

1. DEG

2. DEC

3. GRD

4. M I L

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 60

8 INITIAL SETTING

8-10 Initial Setting 5

1. Selection of Transfer rate (baud rate) : [BAUD UNIT] Select a baud rate of 1200, 2400, 4800, or 9600.

2. Selection of Data bits : [DATA LENGTH] Select a data length of 8 bits or 7 bits.

3. Selection of Parity : [PARITY BITS] Select no (NIL) parity bit, even parity, or odd par ity.

4. Selection of Stop bit : [STOP BITS] Select the number of stop bits to be used: 1 or 2.

5. Selection of Control signal : [SIGNAL CONTROL] Select whether the control signal is effective or not.

6. Selection of XON/XOFF : [XON/XOFF] Select whether to enable or disable XON/XOFF.

7. Selection of Through command : [THROUGH COMMAND] Select whether to disable data output without receiving any data request command or enable the “a” to “f” command data output.

1. 1200

2. 2400

3. 4800

4. 9600

1. 8

2. 7

1. NIL

2. EVEN

3. ODD

1. 1

2. 2

1. ON

2. OFF

1. ON

2. OFF

1. NIL

2. a

3. b

4. c

5. d

6. e

7. f

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 61

9 ACCESSING THE FUNCTIONS

9-1 Accessing by Help key

You can use the [HELP] key to display specific Initial Setting (such as the Prism Constant and Priority mode).

Press the [lLLU]+[ESC] key in mode A or B.

The help menu will then be displayed.Press [F1] [ ] [F2] [ ] or [F3] [g] [F4] [h] to position the cursor to the desired item.

SELECT

HELP

1.HELP

401 TARGET CONST

402 ATM CORR

: AUTO

501 TRACK MIN DISP

: 1mm

502 SHOT COUNT

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 62

9 ACCESSING THE FUNCTIONS

9-2 Accessing by 007

The R-300 allows you to enter a special code of 007 with the Alphanumeric keys to display Specific Initial Setting. (such as the Pr ism Constant and Prior ity mode)

Press the numeric keys [0] [0] [7] in mode A or B.The screen will then change to the command input screen.

Press the numeric keys for the desired command number in the Command No.Table. (For example, press [5] [0] [1] for MEAS.MIN DISP.)

Press the [ENT] key to access the MEAS.MIN DISP.

MODE A 15°CS0

000

CLEAR

H. angle 20"30'92° H

. dst.

V. dst.

MODE A 15°CS0

501

CLEAR

H. angle 20"30'92° H

. dst.

V. dst.

MEAS MIN DISP

501

H. angle 20"30'92° H

. dst.

V. dst.

1. COARSE

2. FINE

SELECT

PENTAX R-300 (p53-64) 10/30/02 11:13 AM Page 63

9 ACCESSING THE FUNCTIONS

[Instrument setting items]

007code HELP menu list Default Other options

401 TARGET CONST PRISM CONST -30mm 0mm, INPUT

SHEET CONST 0mm INPUT 402 ATM CORR AUTO ATM INPUT, ppm INPUT, NIL 501 MEAS. MIN DISP COARSE FINE 502 SHOT COUNT SHOT CONT 1 time 3 times, 5 times, INPUT

SHOT INPUT 01 times (input) 503 CRV/REF CORR 0.14 0.2, NIL 504 MIN UNIT ANG. COARSE FINE 505 V.ANG. STYLE Z.0 H.0, COMPASS 508 DIST.BUZ ON OFF 509 QUAD BUZ OFF ON 510 AUTO OFF 10 MIN 20 MIN, 30 MIN, NIL 511 EDM OFF 3 MIN 5 MIN, 10 MIN, NIL 512 ILLU.OFF 3 MIN 5 MIN, 10 MIN, NIL 514 MEAS.SIGNAL MARK VALUE

10 CHECKS AND ADJUSTMENTS

● Checks and Adjustments should be performed before and during measurement.

● The instrument should be checked after long storage and transportation.

● The checks should be performed in the following order.

[Cautions on CHECKS AND ADJUSTMENTS]

● When adjustment is completed, be sure that adjusting screws are completely tightened.When finishing tur ning adjusting screws, be sure that screws are turned in a direction for tightening.

● Repeat check after adjustment, and check if the instrument has been adjusted properly.

● When adjustment is completed, be sure that adjusting screws are completely tightened.When finishing tur ning adjusting screws, be sure that screws are turned in a direction for tightening.

● Repeat check after adjustment, and check if the instrument has been adjusted properly.

10-1 Electronic vial

Checks

q Align the Electronic vial in parallel with a line

joining any two of the leveling screws.Then, adjust the two screws to center the bubble in the Electronic vial.

w Turn two leveling screws in an opposite

direction mutually and have the bubble of the side of the electronic vial to the center.

e Make the bubble of the length of the electronic

vial to the center by operating the leveling screw of one remainder.

r Rotate the instrument by 180° and confirm the

position of the bubble of the electronic vial.At this time, it is not necessary to adjust it if the bubble of the electronic vial is in the vicinity of the center.

(A)

(B)

Leveling screws

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 65

● Please check the electronic vial in a steady environment that has no vibration or rapid temperature change.

● When the electronic vial is checked outdoors and on a tripod, avoid sunlight influence by using a sunshade.Please wait for a while until the instrument and tripod are at the same temperature as the surrounding air.

● When the instrument is seen at the position of “Left circle”, movement and the inclination of the instrument become the same on the screen in the electronic vial. Please note that the movement of the bubble becomes opposite direction if it is seen at the position of “Right circle”.

Adjustments

It is necessary to adjust as following when the bubble is not in the vicinity of the center in the confirmation of r.

Procedure to adjust the electronic vial:

Press the [POWER] and [LASER] key simultaneously. Following screen is viewed.

Aim at a target and press [F3] key. Following screen is viewed.

Turn the instrument 180˚ and reverse the telescope. Aim at the same target accurately, then press [F3]. Following screen is viewed.

Pressing the [ENT] key completes the adjustment.

10 CHECKS AND ADJUSTMENTS

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 66

Electronic vial adj.

Avoid direct sunlight and viration during adjustment Aim at a target accurately, then press [F3]

Electronic vial adj.

Turn the instrument 180˚ and reverse the telescope. Aim at the same target accurately, then press [F3]

0 SET

SELECTSELECTF3SELECTSELECT

0 SET

SELECTSELECTF3SELECTSELECT

Electronic vial adj.

Successfully accomplished. Press [ENT].

F5SELECTF3SELECTSELECT

10 CHECKS AND ADJUSTMENTS

10-2 Circular Vial

Checks

q Adjust by the electronic vial beforehand. w Confirm the position of the bubble of the Circular vial.

At this time, it is not necessary to adjust if the bubble is at the center of the circle.

Adjustments

When the bubble of the Circular vial comes off from the center according to check procedure w, it is necessary to adjust. Turn the bubble adjustment screw with a hex wrench (L type wrench) and put the bubble in the center of the circle.

[Only the detaching type model]

Turn the bubble adjustment screws with the reticle adjustment pin and put the bubble in the center of the circle.

● Tighten the screws equally after the above adjustment.

Circular vial

Circular vial adj. screw

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 67

10 CHECKS AND ADJUSTMENTS

10-3 Vertical Reticle

Checks

q Set the instrument up the tripod and carefully level it. w Sight the target Point A with telescope. e Using the telescope fine adjustment screws, move Point A to the edge of the

field of view by screw (point A’).

r No adjustment is necessary if Point A moves along the vertical line of the

reticle.

Adjustments

q If Point A is off from the vertical line of the reticle, first remove the eyepiece

cover.

w Using the adjusting pin, loosen the four reticle adjustment screws slightly

loosening each screw by the same amount, and then rotate the reticle line around the sight axis and align the vertical line of the sight axis with Point A’.

e Tighten the reticle adjustment screws again by the same amount, and repeat

the check to make sure the adjustment is correct.

Vertical line

Line of sight axis

Reticle adjusting screws

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 68

10 CHECKS AND ADJUSTMENTS

10-4 Perpendicularity of Line of sight to horizontal axis

Checks

q Position a target Point A at a distance 30m - 50m away from the instrument,

and sight it with the telescope.

w Loosen the telescope lock screw and turn the telescope until a point is sighted

at a distance roughly equal to that of Point A.This is Point B.

e With the telescope still reversed loosen the horizontal lock screw and rotate

the instrument around the vertical axis, and sight Point A again.

r Loosen the telescope lock screw and turn the telescope until a point is sighted

at a distance equal to that of Point B.This is Point C.

t No adjustment is necessary if Point B and C are aligned.

Adjustments

q If Points B and C are not aligned, mark Point D at 1/4 the length of the BC,

from Point C in the direction of Point B.

w Using the adjustment pin, rotate the reticle adjustment screws horizontally

opposite each other (see preceding page), and move the reticle to sight Point D.

e Repeat the check and make sure the adjustment is correct.

30 - 50m

q e

D C

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 69

10-5 Vertical 0 point error

Be sure to follow check procedures mentioned below after making adjustments on reticle and perpendicularity of line of sight to horizontal axis.

Checks

q Set up the instrument and turn the power on. w Sight the telescope at any reference target A at Normale state.Read the

vertical angle ( γ ).

e Turn the telescope and rotate the alidade.Sight the same target A again at

Back state and read the vertical angle R.

r If γ+R = 360° , no fur ther adjustment is necessar y.

Adjustments

If the deviation d (γ+ R - 360° ) is wide, contact your local dealer.

10 CHECKS AND ADJUSTMENTS

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 70

10 CHECKS AND ADJUSTMENTS

10-6 Laser Plummet

Checks

q Set the instrument on the tripod, and place a piece of white paper with a

cross drawn on it right under the instrument.

w Press the [LASER] key, and move the paper so that the intersecting point of

the cross comes to the center of the Laser mark.

e Rotate the instrument around the vertical axis, and observe the center mark

position against the intersecting point of the cross at each 90° rotation.

r If the Laser mark always coincides with the intersecting point, no adjustment

is necessary.

Adjustments

When a center part where a cross intersection and the laser mark look the brightest shifts by 0.8mm or more (at the instrument height 1.5m), it is necessary to adjust it. A repair engineer does this adjustment. Please contact the PENTAX dealer.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 71

10-7 Optical Plummet

Checks

q Set the instrument on the tripod, and place a piece of white paper with a

cross drawn on it right under the instrument.

w Look through the optical plummet, and move the paper so that the intersecting

point of the cross comes to the center of the field of view.

e Adjust the leveling screws so that the center mark of the optical plummet

coincides with the intersecting point of the cross.

r Rotate the instrument around the vertical axis. Look through the optical

plummet each 90° of rotation, and observe the center mark position against the intersecting point of the cross.

t If the center mark always coincides with the intersecting point, no adjustment

is necessary.

Adjustments

q If the center mark does not coincide with the intersecting point, rotate the

optical plummet focusing knob cover and remove it.

w Mark the point set on the line of sight at each step of 90° on the white paper

and call them A, B, C and D.

e Join the opposed points (A,C and B,D) with a straight line, and set the

intersecting point 0.

r Turn the four optical plummet adjusting screws with a adjusting pin so that the

center mark coincides with the intersecting point 0.

t Repeat from r, and check that adjustment is correct.

10 CHECKS AND ADJUSTMENTS

Adjusting screws

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 72

10 CHECKS AND ADJUSTMENTS

10-8 Offset Constant

The offset constant rarely changes. It is recommended, however, that check be done once or twice a year. The check of the offset constant can be done on a certified base line. It can also be obtained in a simple way as described below.

Checks

1. Locate points A, B and C at about 50m intervals on even ground.

2. Set up the instrument at point A, and measure the distances between AB and AC.

3. Set up the instrument at point B, and measure the distance BC.

4. Obtain the offset constant (K):

K=AC - (AB+BC)

Adjustments

● Contact your local dealer for adjustment of the off-set constant when the K is not nearly 0.

Instrument Prism Prism

Instrument Prism

ABC

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 73

10-9 Beam axis and Line of sight

Be sure to check that the beam axis and line of sight are aligned when the adjustments on reticle and perpendicularity of line of sight to horizontal axis are made.

Checks

q Set the prism at a distance greater than 50 m. w Accurately sight the center of the prism through the telescope. e Turn the power on and press (MEAS) to measure. r No adjustment is necessary if beam receiving buzzer sounds immediately and

measurement value is displayed in a few seconds.

Adjustments

● If instrument function is not as described in r, contact your local dealer.

● This check should be done under good weather conditions.

10-10 The EDM beam axis

The distance measurement (EDM) beam axis is adjusted to be aligned to the sighting axis of the telescope, but it can be changed a little in case of rapid temperature change, shock or aging.Check your instrument by following procedures.

Checks

q Install the instrument on the tripod and level it at the distance of approx.50 m

from the wall.

w Displace the target plate attached to the end of this manual. Place the target

plate adjusting its center to the center of telescope cross line and to be about horizontal to the instrument.

e Turn the power on, and confirm the [TARGET] is set to the Reflecting sheet

mode (“S” will be indicated at the top of display, left side of the battery remains sign when it is that.) When it is not, press [F2] [TARGET] and set to Reflecting sheet mode (Reference p38 6.1 Target Setting).

r Press [F1] [MEAS], then the laser spot appears on the target plate. If the

“Center” of the laser spot is within the internal circle (10mm) of the target plate at this moment, the adjustment is unnecessary.

● The laser spot disappears in approx. 20 seconds after pressing [F1][MEAS]. Press [MEAS] again, if it is necessary.

10 CHECKS AND ADJUSTMENTS

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 74

10 CHECKS AND ADJUSTMENTS

[Example: Adjustment is necessary] [Example: Adjustment is unnecessar y]

Adjustments

At the procedure 4. above, if the “Center” of laser spot is not within the internal circle (10mm) of the target plate, the adjustment is necessary. Please contact your PENTAX dealer.

10mm

+ +

20mm

10mm

Target Plate

approx. 50 m

Laser spot “Center”

Internal circle

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 75

11 SPECIFICATIONS

Reflectorless items are applicable to “N” models only.

Telescope

Image Erect Optical aperture 45mm EDM aperture 45mm Reticle illumination Intensity settings: 10 steps Auto&Power focus Method Power Pointer Visible laser Magnification 30 x Resolving power 3” Field of view 2.6% (1° 30’) Minimum focus 1.0m Auto-Focus

Distance measurement

Laser Class Visible Laser: Class II (2) / Class IIIa (3R) -Long range mode in Reflectorless

Measurement range (Good condition)

Reflectorless

Reflector sheet 1.5m - 600m (800m) Mini prism 1.5m - 1100m (1600m) 1P

Accuracy

Prism Reflector Sheet Reflectorless At Auto-Atm.

Prism, Ref.sheet: ±(3 +10ppm x D)mm / Reflectorless: ±(5 +10ppm x D)mm

Correction

Measuring time (minimum count)

Fine 2.5sec. (0.1mm) Normal 1.5sec. ( 1 mm) Track 0.4 sec. ( 1 cm)

Yes No

Phase differential ---

By main battery ---

Auto-focus / Power Focus / Manual Manual

1.5m -Normal range mode: — 70m (90m), / Long range mode 150m(180m)

1.5m - 3400m (4500m) 1.5m - 3000m (4000m)

1.5m - 2000m (2800m)

200m - 4500m (5600m) 200m - 4000m (5000m)

200m - 2800m

(3500m)

±(5 + 2ppm x D)mm ±(5 + 3ppm x D)mm —

R-322 (N) R-323 (N) R-325 (N) R-335 (N) R-315 (N) R-326

±(2+2ppm

x D)mm

±(3+2ppm

x D)mm

±(5 + 3ppm x D)mm

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 76

11 SPECIFICATIONS

Angle measurement

Measuring method Absolute rotary encoder Detection 2 sides Minimum count 1” (2cc) / 5” (10cc) selectable Accuracy

(DIN18723) Compensator Tangent screw

Sensitivity of vials

Plate level (electronic)

Circular level 8’/2mm Plummet Visible Laser, ±0.8 mm (instrument height 1.5m) Base Water resistant IPx6 Ambient -20°C ~ +50°C / -4°F ~122°F (Working range)

temperature Tripod thread

Dimensions/Weight

Instrument 172(W) x 343(H) x 440(L) mm Weight

(incl. Battery) Carrying case 268(W) x 442(H) x 465(L) mm/3.9kg

Battery pack BP02

Power source Ni-MH (Rechargeable)(4300mAh) , DC6V Operation time

Weight Approx. 380g

Charger BC03 and AC Adapter AC01

Input voltage DC16V , 100~240V Output voltage DC7.5V/ 9V , DC16V Weight 280g

Internal Memory

Coordinates data 7500 points (Measured and input coordinate data)

2” 3” 5” 6”

Triple axis Dual axis

2 speed 1 speed

30”/1div. 40”/1div.

Detachable

5/8” x 11 35mm x 2 5/8” x 11

5.7 kg 5.5 kg 5.7 kg

Shifting Fixed Detachable

R-322 (N) R-323 (N) R-325 (N) R-335 (N) R-315 (N) R-326

Continuous Approx.5 hrs (ETH+EDM),12 hrs (ETH) with Approx. 2.2 hrs of of charging time

Note: Reflector sheet: By PENTAX genuine Reflector sheet (5cm x 5 cm)

● Normal conditions: 20km visibility with slight shimmer

● (Good conditions): 40km visibility, overcast, no heat no shimmer and moderate wind

● Reflectorless The measurement range and accuracy are determined by the white side

of the Kodak Gray Card.

● The measurement range at TRACK mode by Reflectorless mode is over 5m.

● The measurement range may vary by measurement conditions.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 77

12 DATA COLLECTOR

The instrument can communicate directly with a computer through the RS232C interface.By use of a data collector you can automate data entry from the collection of survey data to the transfer of the data to a computer.This is useful in saving time and protecting data integrity.

● About connection with data collector and the handling, please refer to an “Instruction manual” of the data collector.

● Connecting a data collector to a computer is different with every system. Please contact your local dealer about them.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 78

13 APPENDIX

13-1 Error Messages

Message

Out of tilt range

Excess data

Mismatched Target

Target is too close.

Unsuitable Condition

ERROR!! EDM ERROR 04

-05, 34-39, 50-53 ERROR!!

ETH ERROR 7076

ERROR!! ETH ERROR 19

ERROR S DATA of EDM

ERROR P DATA of EDM

ERROR ETH DATA

Meaning

Displayed when the instrument is tilted beyond the vertical compensation range (±3') in case 1 axis or 2 axis automatic compensation is selected.This message may be temporarily displayed if the instrument is turned too fast.

The input data exceeds the allowable range.

● The distance is measured by Prism at Reflector sheet mode, and the distance is over than 1000m.

● The distance is measured by Prism or Reflector sheet at Reflectorless mode, and the distance is over than 200m.

● The measurement distance is less than 1.5m at Reflector sheet mode.

● The measurement distance is less than 1.5m at Prism mode.

● Under too strong sun light.

● Unstable light value owing to shimmer

or obstacles.

● Reflector sheet, Target and Prism do not face the instrument.

● Reflector sheet, Target and Prism are not correctly sighted.

● Measurement range is over at Reflectorless mode.

● Sufficient signal does not return by sighting sharp edge etc. at Reflectorless mode.

Distance measurement system problem

Angle measurement system problem

Memory problem

Problem of the internal EDM parameters

Problem of the internal ETH parameters

What to do

Re-level the instrument.Repair is needed if the message is displayed when it is properly leveled.

Press the [ESC] key and enter the correct data.

Select the correct target mode.

Select a longer point, or use a tape measure.

Change the object that has much better reflectivity, or use a reflecting sheet, or wait until the sun activity has weakened.

Turn the power off, and then turn on again. Repair is needed when the message appears consistently.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 79

13-2 Atmospheric Correction

The speed at which light travels through the air varies depending on the temperature and atmospheric pressure.The R-100 series is designed to measure distances at the speed of light in order to measure accurately, Atmospheric Correction needs to be used.The instrument is designed to correct for weather conditions automatically if the temperature and pressure are input. Correction is then carried out based on the following formula.

Calculation formula

K=(276.26713 –

78.565271· P

) × 10

273.14941 + t

K: Atmospheric Correction Constant P: Atmospheric pressure (hPa) t:Temperature(°C) Distance after Atmospheric Correction D = Ds (1+K) Ds: Measured distance when no Atmospheric Correction is used.

13 APPENDIX

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 80

13 APPENDIX

13-3 hPa and mmHg Conversion Table

Converting from hPa to mmHg

hPa 0 10 20 30 40 50 60 70 80 90

mmHg mmHg mmHg mmHg mmHg mmHg mmHg mmHg mmHg mmHg

500 375 383 390 398 405 413 420 428 435 443 600 450 458 465 473 480 488 495 503 510 518 700 525 533 540 548 555 563 570 578 585 593 800 600 608 615 623 630 638 645 653 660 668

900 675 683 690 698 705 713 720 728 735 743 1000 750 758 765 773 780 788 795 803 810 818 1100 825 833 840 848 855 863 870 878 885 893 1200 900 908 915 923 930 938 945 953 960 968

Converting from mmHg to hPa

mmHg

0 102030405060708090

hPa hPa hPa hPa hPa hPa hPa hPa hPa hPa

400 533 547 560 573 587 600 613 627 640 653

500 667 680 693 707 720 733 747 760 773 787

600 800 813 827 840 853 867 880 893 907 920

700 933 947 960 973 987 1000 1013 1027 1040 1053

800 1067 1080 1093 1107 1120 1133 1147 1160 1173 1187

900 1200 1213 1227 1240 1253 1267 1280 1293 1307 1320

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 81

13 APPENDIX

13-4

Error when no Atmospheric Correction is made

When measurement is carried out with no Atmospheric Correction (with the settings fixed at a temperature of 15°C and an atmospheric pressure of 1013 hPa or 760 mmHg), the Error per 100 meters in temperature and pressure will be shown in the tables below.

● When the actual pressure is 1013 hPa (760 mmHg) and the temperature is 25°C, conducting the measurement with the temperature left at 15°C will result in the measurement being short by 0.9 mm per 100 meters.

Error table:When hPa (15°C, 1013hPa as standard)

Unit:mm

hPa

1200 1100 1013 900 800 700 600 500

C°

45 2.0 -0.5 -2.6 -5.5 -8.0 -10.5 -13.0 -15.5 35 3.0 0.4 -1.8 -4.7 -7.3 -9.9 -12.5 -15.1 25 4.0 1.4 -0.9 -4.0 -6.6 -9.3 -12.0 -14.6 15 5.2 2.4 -0.0 -3.1 -5.9 -8.6 -11.4 -14.2

5 6.3 3.5 1.0 -2.2 -5.1 -8.0 -10.8 -13.7

-5 7.6 4.7 2.1 -1.3 -4.2 -7.2 -10.2 -13.1

-15 9.0 5.9 3.2 -0.2 -3.3 -6.4 -9.5 -12.6

Error table:With mmHg (15°C, 760mmHg as standard)

Unit:mm

mmHg

900 800 760 700 600 500 400

C°

45 2.0 -1.3 -2.6 -4.6 -8.0 -11.3 -14.6 35 3.0 -0.4 -1.8 -3.9 -7.3 -10.8 -14.2 25 4.0 0.5 -0.9 -3.1 -6.6 -10.2 -13.7 15 5.2 1.5 0.0 -2.2 -5.9 -9.6 -13.3

5 6.3 2.5 1.0 -1.3 -5.1 -8.9 -12.7

-5 7.6 3.7 2.1 -0.3 -4.2 -8.2 -12.2

-15 9.0 4.9 3.2 0.8 -3.3 -7.4 -11.5

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 82

13 APPENDIX

13-5

Atmospheric Refraction and Earth Curvature Correction

● Atmospheric refraction and earth cur vature correction refers to correcting both the bending of the light beam caused by atmospheric refraction and the effect on the height differential and horizontal distance caused by the earth curvature.

● Correction called “atmospheric refraction and earth curvature correction” is initiated to correct error when the slope distance and vertical angle are caused to determine the horizontal distance and the height differential, with this instrument, the following formula is used to correct these factors.

● Calculation formula when atmospheric refraction and earth curvature correction parameter is set to “ON”:

Corrected horizontal distance (H)

Corrected vertical distance (V)

● Calculation formula when atmospheric refraction and earth curvature correction parameter is set to “OFF”:

S: Slope distance α: Vertical angle from horizontal K: Atmospheric refraction coefficient (0.14 or 0.2) Re:Diameter of earth (6,370 km)

Horizontal distance H' = S · Cosα Vertical distance V' = S · Sinα

V= S (Sinα + Cosα ·

1–K

· S · Cosα)

2Re

H= S (Cosα + Sinα ·

K–2

· S · Cosα)

2Re

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 83

13 APPENDIX

13-6 Distance Range

Generally speaking, the maximum range which can be measured varies considerably depending on the atmospheric conditions. For this reason, the Specifications illustrate the values for both Good and Normal weather conditions. It is extremely difficult to judge when weather conditions are “Good” and when they are “Normal”.With this instrument, the conditions noted below are used to differentiate between the two situations, (Good weather conditions for surveying are different from Normal weather conditions, and in surveying situations, cloudy skies are considered more favorable than sunny skies.)

Weather conditions for measurement ranges are based on the following standard values:

Normal: Visibility of approximately 20 km, with slight shimmer and moderatewind. Good: Visibility of approximately 40 km, overcast, with no shimmer and

moderate wind.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 84

14 NOTICE TO THE USER OF THIS PRODUCT

14 NOTICE TO THE USER OF THIS

PRODUCT

To assure compliance with the Safety standard 21 CFR, Chapter 1. Subchapter J. The U.S.bureau of Radiological Health requires the following information to be provided to user.:

It can be dangerous to look into the beam with optical equipment such as binoculars and telescopes.

1) Specifications of Laser Radiation A) The EDM module of the R-300 produces a visible light beam, which is

emitted from the telescope objective lens and the center hole of the instrument base plate.The R-300 is designed and built to have a laser diode radiating at 620-690 nm.

B) Radiant power

The R-300 is designed and built to radiate a maximum average radiant power of 4.75mw. (0.95mw for the model without “N”) from the telescope, and 0.95mw from the center hole of the base plate.The user may be subject to this radiation as a beam while operation until such time that the instrument is turned off.

2) The following labels are affixed to and must remain attached to this laser product. A) The following Certification label is located near the Plate level.:

“This laser product is complied with the provisions of 21 CFR 1040. 10 and

1040.11. For a Class II laser product.” Or for R-300 N models: “This laser product is complied with the provisions of 21 CFR 1040. 10 and

1040.11. For a Class IIIa laser product.”

B) Caution label is located near the exit aperture :

“AVOID EXPOSURE Laser radiation is emitted from this aperture.”

C) Warning logotype is located on the surface of the telescope:

“CAUTION LASER RADIATION DO NOT STARE INTO BEAM” Or for R-300 N models: “DANGER LASER RADIATION AVOID DIRECT EYE EXPOSURE”

D) Warning label is Located near the exit aperture.

3) Caution to maintain the safety in compliance with the standard A) To maintain the safety standard, refrain from any operation, maintenance,

or adjustment other than described in this instruction manual.

B) Operation, maintenance or adjustment other than those specified in this

instruction manual may result in hazardous radiation exposure.

C) Maintenance and repair not covered in this manual must be done by an

authorized Pentax dealer.

D) The Laser beam emission by the Distance measurement can be

terminated by pressing F1 MEAS key.

E) Pressing Laser key → F2 LD POINT key can terminate the laser beam

emission by the laser pointer.

F) The Laser beam emission by the Laser plummet can be terminated by

pressing Laser key.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 85

Laser beam is transmitted from this aperture.

Warning logotype

For R-300N model

For R-300 model

For R-300N model

For R-300 model

For North America

Certification

R-300N model

R-300 model

LED is turned on at the time of emission.

Warning logotype

14 NOTICE TO THE USER OF THIS PRODUCT

Laser beam is transmitted from this aperture.

Identification label

Warning label

Aperture label

Laser beam is transmitted from this aperture.

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 86

14 NOTICE TO THE USER OF THIS PRODUCT

[TARGET PLATE]

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 87

PENTAX R-300 (p65-88) 10/30/02 11:11 AM Page 88

Member symbol of the Japan Surveying Instruments Manufacturers’Association representing the high quality surveying products.

10.2002 First Edition

TS01101E

PENTAX R-300 (p01-19) 10/30/02 11:20 AM Page b

2-5-2, Higashi-Oizumi, Nerima-ku,

Tokyo, 178-8555, Japan

Tel: +81-3-5905-1222 Fax:+81-3-5905-1225

Pentax R-322-N, R-335-N, R326, R-323N, R-315N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions (Must be followed)

PRECAUTIONS REGARDING SAFETY

Usage Precautions

1 BEFORE USING THE INSTRUMENT

1-1 Names of Parts

1-2 Unpacking and Packing

1-3 Standard equipment

1-4 Attaching and Charging the Battery

2 DISPLAY AND KEYBOARD

2-1 Display and Keyboard

2-2 Operation Key

2-3 Function Key

2-4 Alphanumeric Input

2-5 LD POINT, Laser Pointer

3 PREPARATION FOR SURVEYING

3-1 Centering and Leveling of the Instrument

3-2 Laser plummet

3-3 Optical plummet (Option)

3-4 Leveling with Circular vial

3-5 Leveling with Electronic vial

3-6 Eyepiece Adjustment

3-7 Target Sighting

3-8 Attachment and Detachment of Tribrach

4 TURNING THE POWER ON

4-1 Turning the Power On and Off

4-2 Adjusting LCD Contrast

4-3 Adjusting Illumination Brightness

4-4 Adjusting Reticle Illumination

5 ANGLE MEASUREMENT

5-1 Measuring an Angle

5-2 Resetting the Horizontal Angle to 0

5-3 Holding the Horizontal Angle

5-4 Inputting an Arbitrary Horizontal Angle

5-5 Displaying the % Slope of the Vertical Angle

6 DISTANCE MEASUREMENT

6-1 Target Setting

6-2 Distance Measurement

7 CORRECTION MODE

7-1 Changing the Target Constant

7-2 Changing the Temperature

7-3 Changing the Atmospheric Pressure

7-4 Changing the ppm Value

8 INITIAL SETTING

8-1 Overview

8-2 Entering the Mode for Initial Setting 1

8-3 Entering the Mode for Initial Setting 2

8-4 Entering the Mode for Initial Setting 4

8-5 Entering the Mode for Initial Setting 5

8-7 Initial Setting 1

8-8 Initial Setting 2

8-9 Initial Setting 4

8-10 Initial Setting 5

9 ACCESSING THE FUNCTIONS

9-1 Accessing by Help key

9-2 Accessing by 007

10 CHECKS AND ADJUSTMENTS

10-1 Electronic vial

10-2 Circular Vial

10-3 Vertical Reticle

10-4 Perpendicularity of Line of sight to horizontal axis

10-5 Vertical 0 point error

10-6 Laser Plummet

10-7 Optical Plummet

10-8 Offset Constant

10-9 Beam axis and Line of sight

10-10 The EDM beam axis

11 SPECIFICATIONS

12 DATA COLLECTOR

13 APPENDIX

13-1 Error Messages

13-2 Atmospheric Correction

13-3 hPa and mmHg Conversion Table

Error when no Atmospheric Correction is made

Atmospheric Refraction and Earth Curvature Correction

13-6 Distance Range

14 NOTICE TO THE USER OF THIS PRODUCT
