Pentax PZ70 User Manual

Specifications and Main Features

  • This model is a single-lens reflex (SLR) camera with autofocus.
  • Supports lens mounts for K, F, and FA types from Pentax.
  • Lens type: it can be either Power Zoom or Manual Focus.
  • It takes one (2CR5 type) 6V lithium battery.
  • Automatically sets film speed when DX coded films are used (ISO from 25 to 5000).
  • Temperature range of operation: designed to work properly on temperatures of 50 degrees C – Minus 10 degrees C (122degreeF to 14degreeF) – shutter speed range.

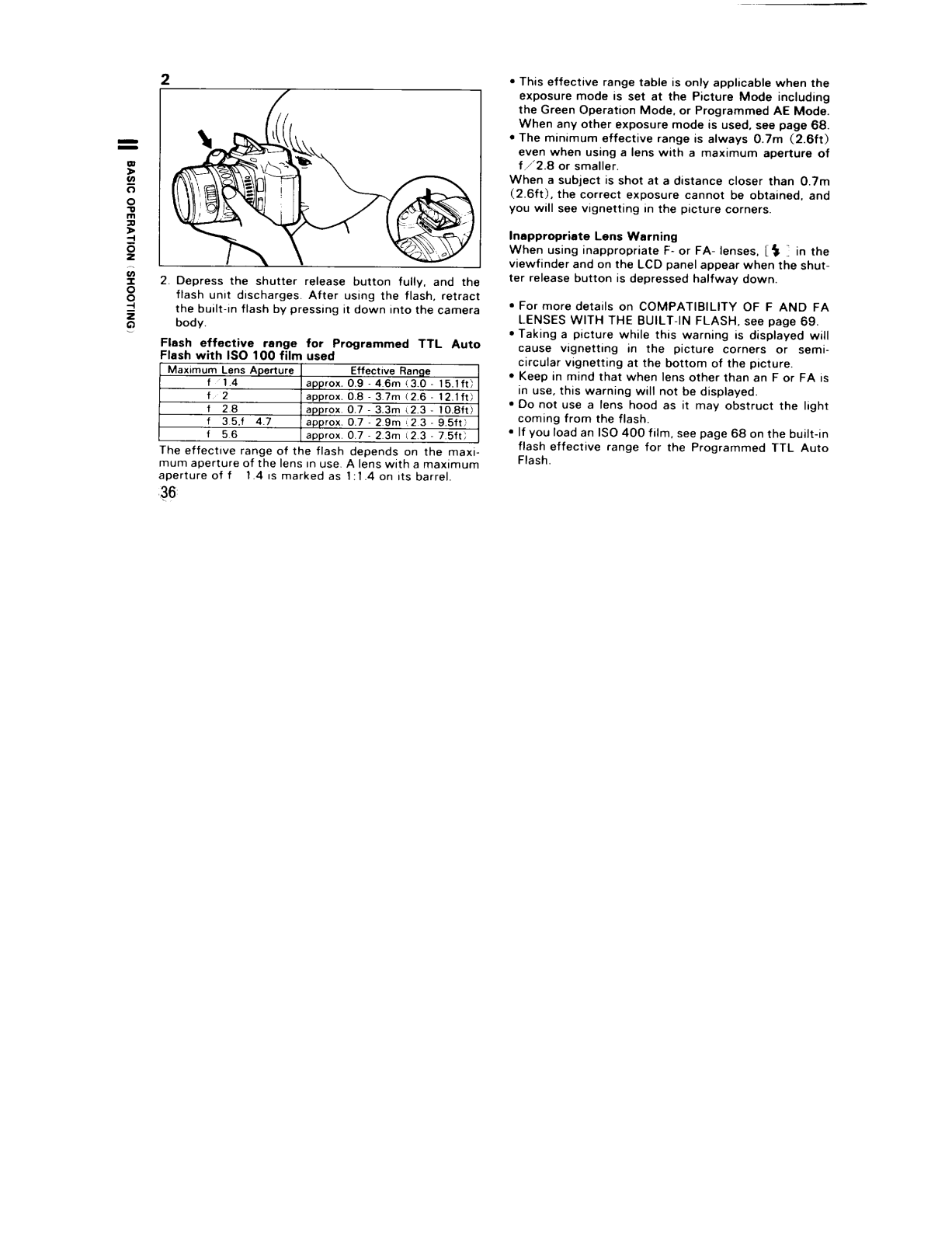

  • Has a built-in TTL flash, which includes a red-eye reduction feature.
  • Two focus modes: AF - Automatic Focus and MF - Manual Focus.
  • Different picture modes are : Portrait, Landscape, Action and Close up.

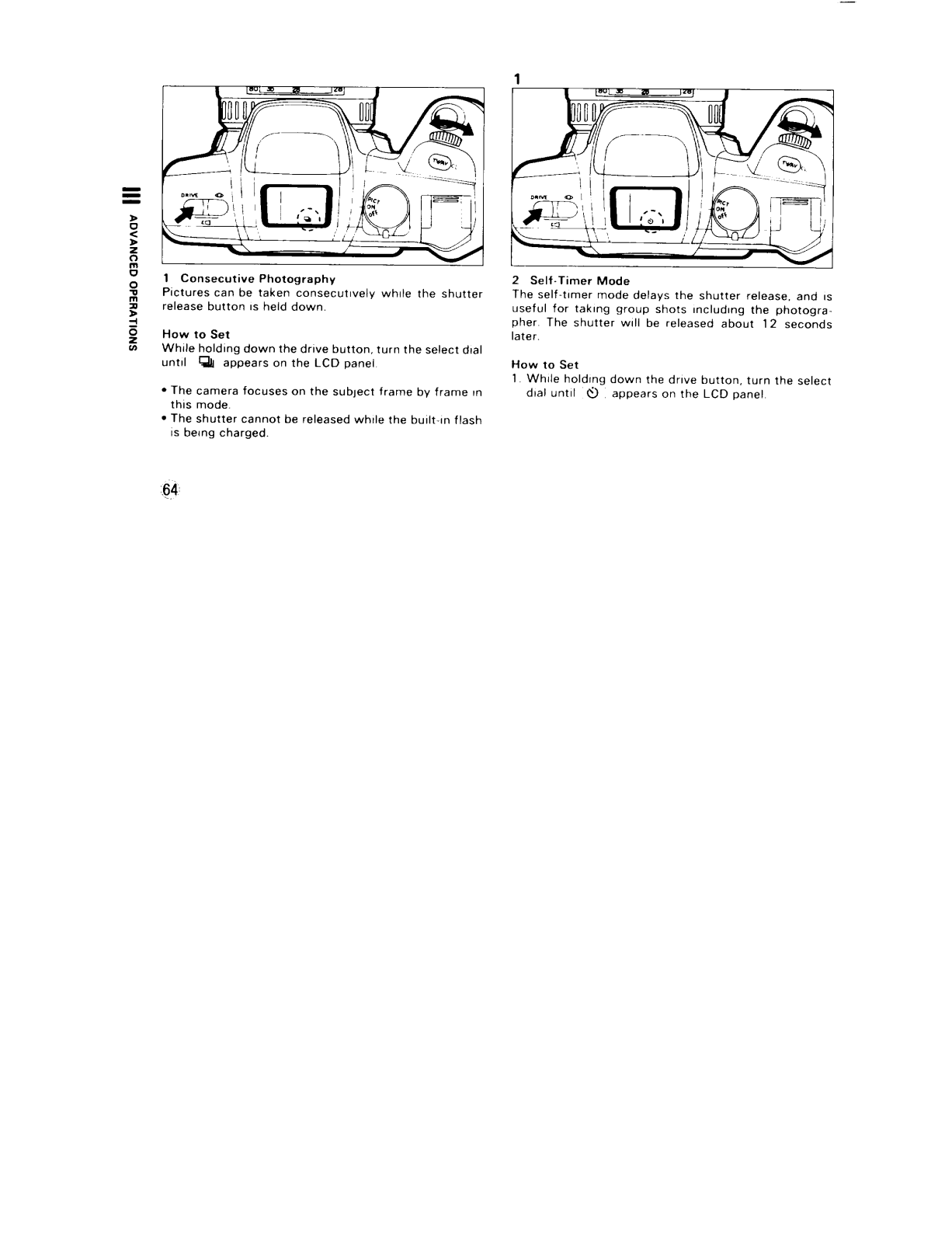

  • The camera has three drive modes: single frame, continuous shooting and self-timer.
  • An LCD panel gives information about operating status and settings for user feedback.
  • Effective range of a flash depends on lens maximum aperture.
  • Roll count per single battery: Roughly 100 rolls for normal still cameras; around 25 rolls with 50 percent flash usage.
  • Also supports power zoom functions for use with Pentax-FA lenses.
  • 5 Picture modes are available and can be selected easily as per photographic needs.

Frequently Asked Questions

Q: What type of battery does the camera use?

A: This camera requires a single 6V lithium battery (2CR5 type).

Q: Can I focus with this camera manually?

A: Yes, the camera has a MF (Manual focus) mode, compatible with manual focus lenses.

Q: What ISO levels are available on the camera?

A: The camera is capable of handling DX films coded with an ISO ranging from 25 up to 5000.

Q: Am I able to use the camera in cold temperatures?

A: Yes, the camera can function between temperatures of 50 degrees centigrade to -10 degrees centigrade(122 degrees ferinheit to 14 degrees ferinheit ).

Q: Does the camera have a built – in flash?

A: Yes, there is TTL built – in flash, which reduces the red eye and can be used with any exposure mode.

Q: How long can I take photos for with a single charge?

A: Considering existing light photography, this battery can be used to make about 100 rolls.

Q: Are there other designed picture settings for different types of photography?

A: Yes, a number of them are included, Portrait, Landscape, Action, Close-up and so on.

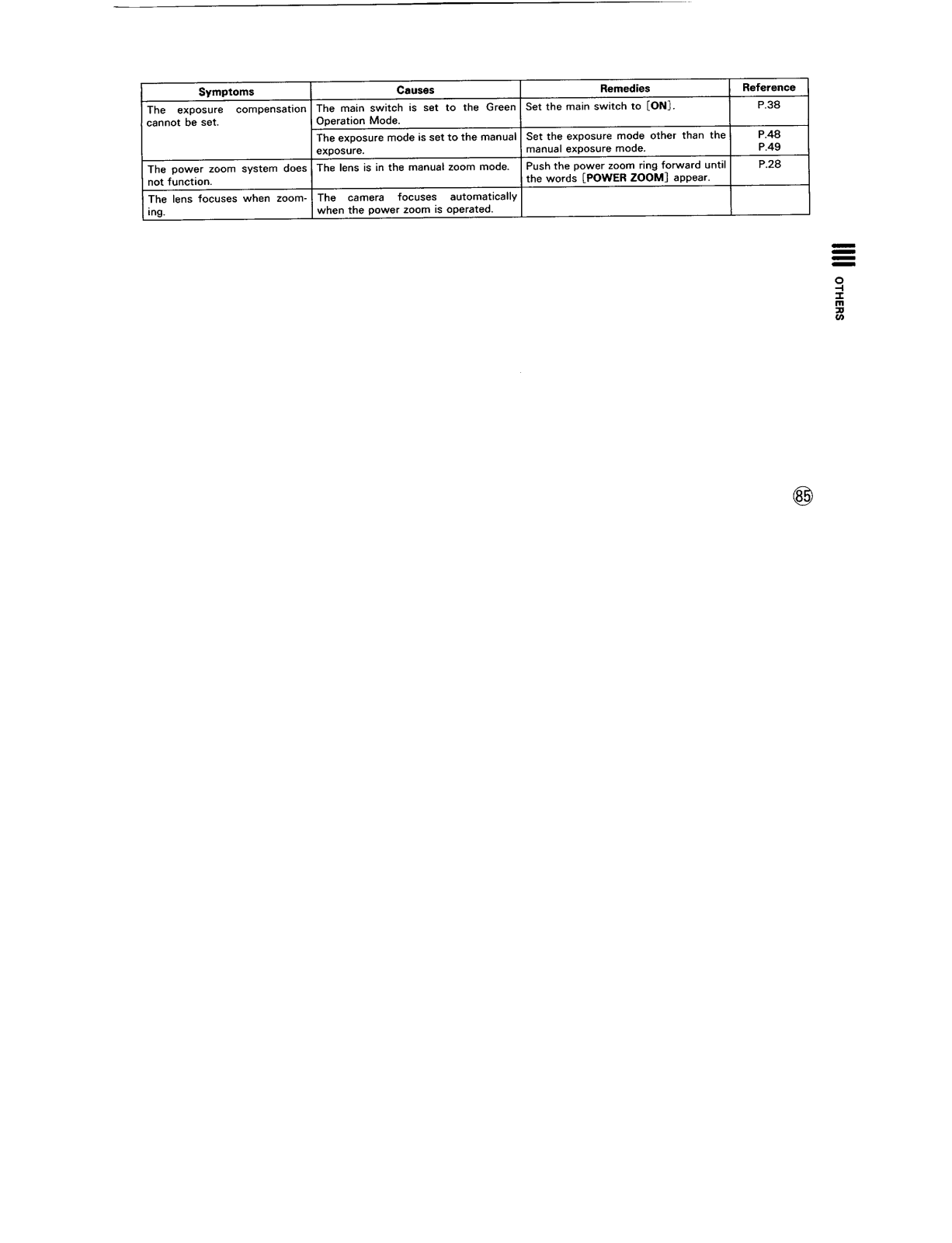

Q: If the autofocus does not lock, what should I do?

A: When you cannot achieve autofocusing on your subject, try to focusing on the subject manually first.
