Pelco ID-PCB, ID-CB User Manual

INSTALLATION

ID-CB Conduit Box/ ID-PCB Conduit Box and Ceiling Panel

C2246M (5/10)

Contents

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing a Ceiling Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing a Suspended Ceiling Tile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing a Solid Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing the Conduit Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Wiring the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 C2246M (5/10)

List of Illustrations

1 Ceiling Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Conduit Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Installing the Conduit Box in a Ceiling Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Lens Pin Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 RJ-45 Pin Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Alarm and Relay Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 24 VAC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

8 Installing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9 Installation Completed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

C2246M (5/10) 3

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Only use attachments/accessories specified by the manufacturer.

6. Installation should be done only by qualified personnel and conform to all local codes.

7. Use only installation methods and materials capable of supporting four times the maximum specified load.

8. Only use replacement parts recommended by Pelco.

9. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is designed for indoor
use only and it must not be installed where exposed to rain and moisture.

4 C2246M (5/10)

Installation

You can install the ID-CB conduit box using one of the following installation methods:

• In a suspended ceiling with a ceiling panel (ID-PCB includes the conduit box and the ceiling panel).

• In a suspended ceiling with a prepared ceiling tile (ID-CB only).

• In a prepared solid ceiling (ID-CB only).

INSTALLING A CEILING PANEL

1. Locate the area in the suspended ceiling where the conduit box and IP camera will be mounted.

2. Remove a ceiling tile from the desired location.

3. Replace the ceiling tile with a 2 x 2 foot (61 x 61 cm) ceiling panel.

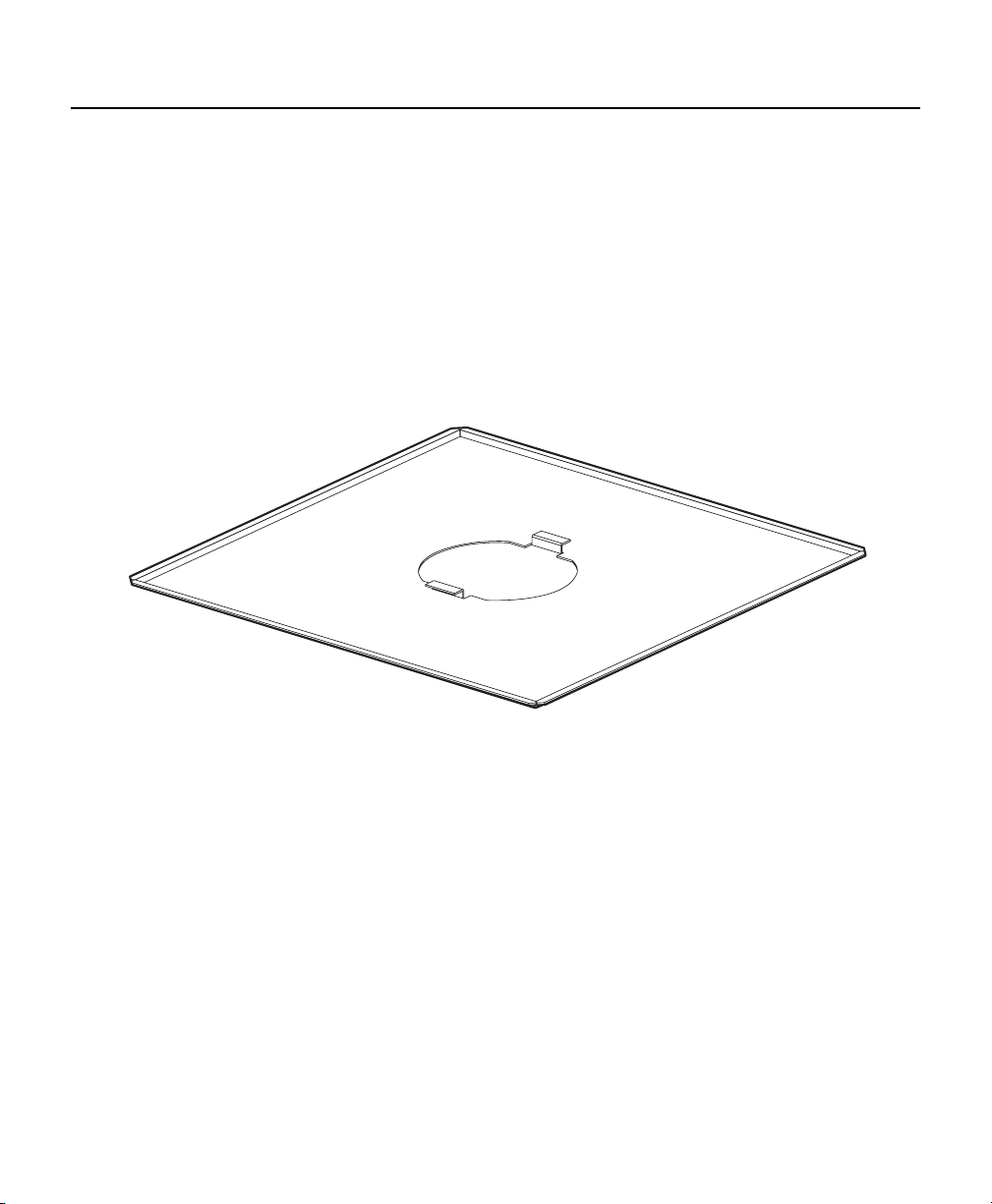

Figure 1. Ceiling Panel

PREPARING A SUSPENDED CEILING TILE

1. Remove a ceiling tile from the desired location.

2. Cut a hole in the center of the ceiling tile that is 7.00 inches (17.80 cm) in diameter (refer to the Ceiling Panel
dimension drawing on page 10).

3. Replace the prepared ceiling tile in the suspended ceiling.

PREPARING A SOLID CEILING

1. Locate the area for the installation.

2. Cut a hole in the solid ceiling that is 7.00 inches (17.80 cm) in diameter (refer to the Ceiling Panel dimension drawing
on page 10).

C2246M (5/10) 5

INSTALLING THE CONDUIT BOX

1. Prepare the wiring for the system video, power, and alarm/relay.

2. Pull the prepared wiring into the conduit box through the back conduit fitting (refer to Figure 3).

3. Compress the spring clips on the conduit box and push it through the hole in the ceiling panel until the clips spring
back.

4. Tighten the machine screws completely to secure the conduit box to the ceiling panel, ceiling tile, or solid ceiling.

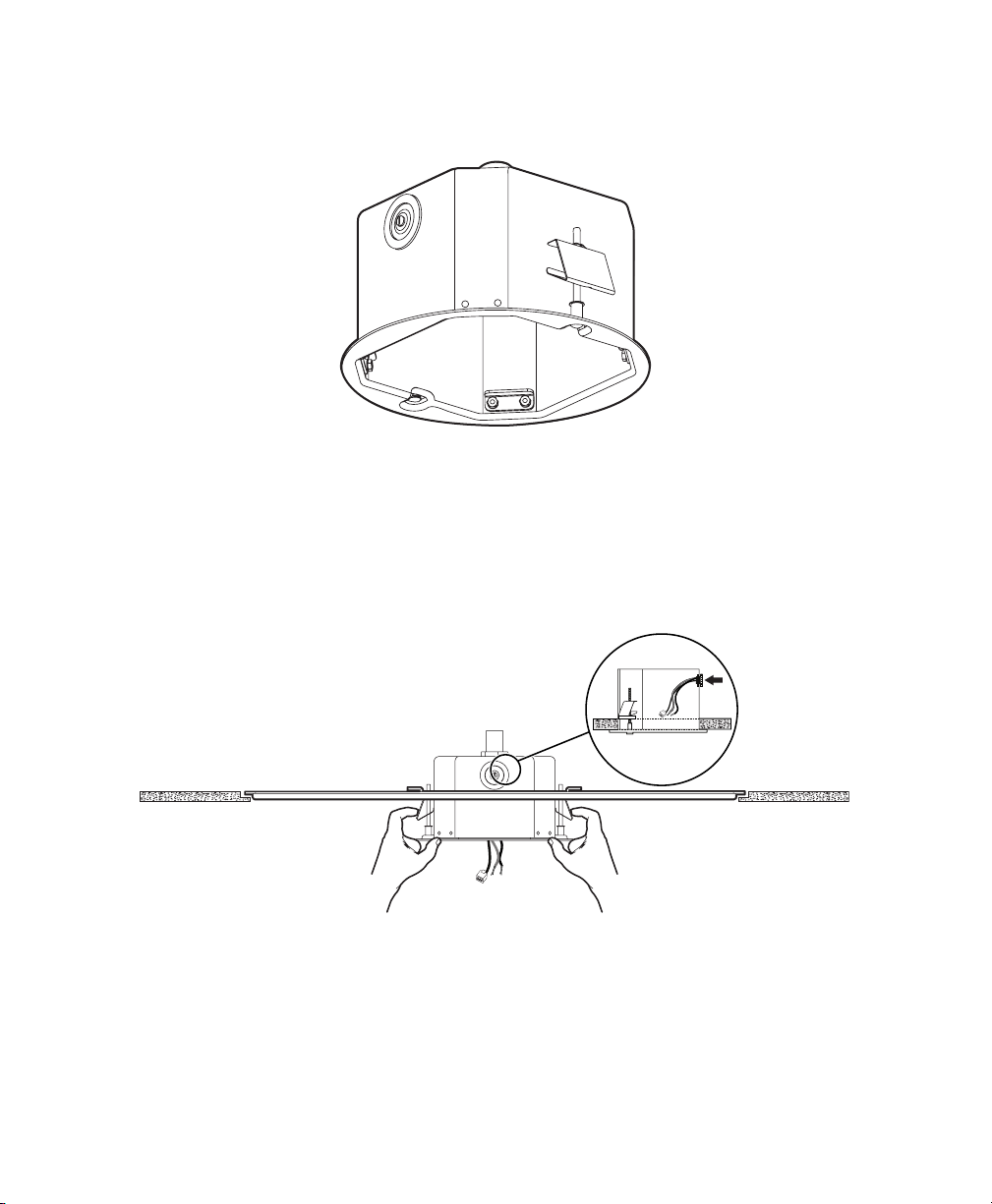

Figure 2. Conduit Box

Figure 3. Installing the Conduit Box in a Ceiling Panel

6 C2246M (5/10)

WIRING THE CAMERA MODULE

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

8 7 6 5 4 3 2 1

1. Install the lens on the ID or IDE Series camera module:

NOTE: Megapixel lenses are designed and tested to deliver optimal image quality to megapixel cameras. A standard
definition lens installed on a megapixel camera will limit the resolution of the camera and create poor image quality.

a. Remove the cover from the lens mount.

b. Screw the lens onto the lens mount. Be careful to prevent dust from entering the space between the lens and

the imager. If necessary, use clean, compressed air to remove any foreign matter (refer to the instructions
shipped with the lens).

c. Connect the auto iris lens to the 4-pin connector located on the side of the camera. Refer to Figure 4 for pin

designation and iris drive connector information.

3

4

Pin DC (AID) Auto Iris Lens

1 Control coil negative (–)

2 Control coil positive (+)

3 Drive coil positive (+)

12

4 Drive coil negative (–)

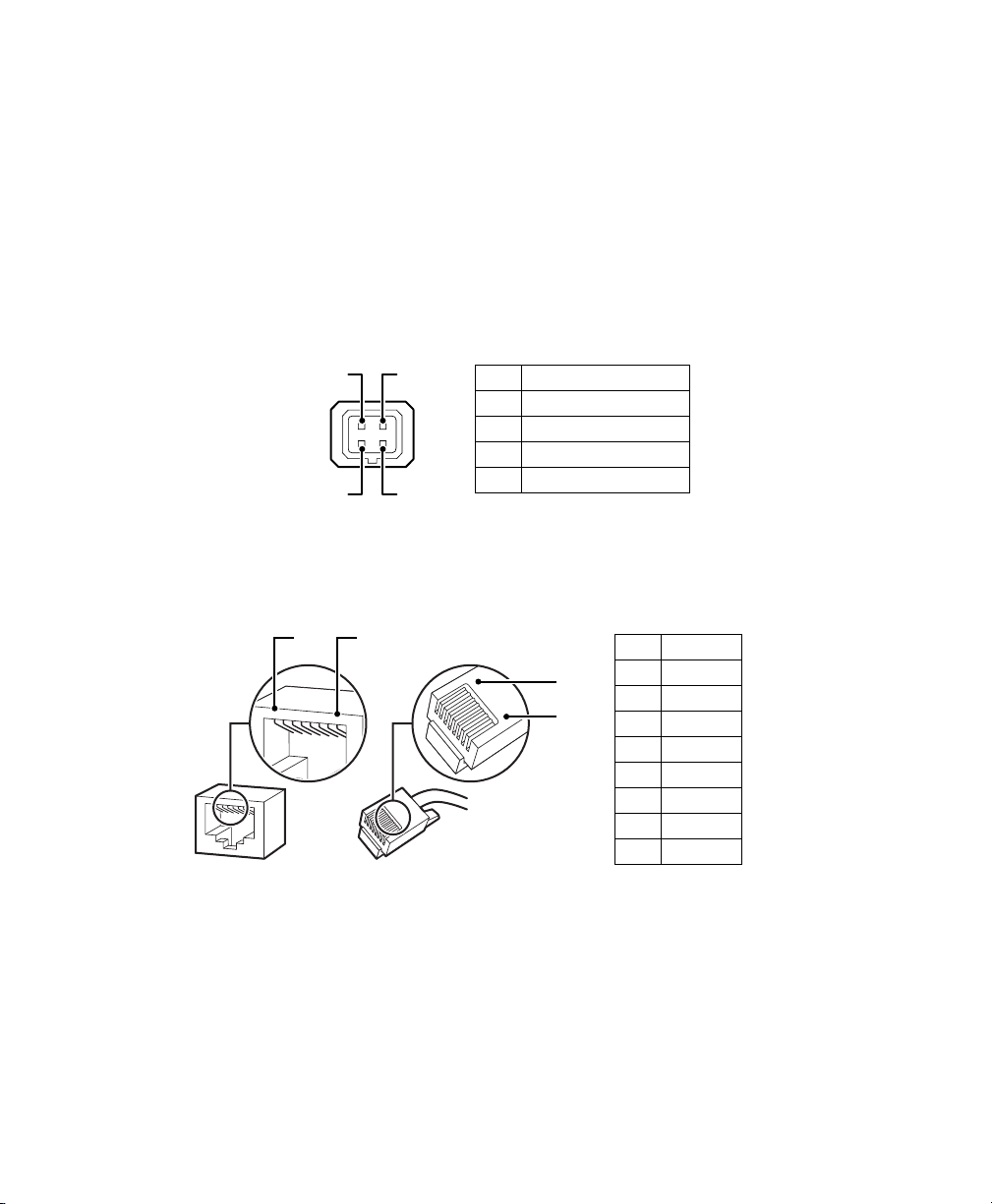

Figure 4. Lens Pin Connections

2. Connect the network cable to the RJ-45 network port. If the network has no Power over Ethernet (PoE), connect a
24 VAC Class 2 power supply to the 24 VAC power connector.

1

1

2

3

4

5

6

7

8

8

8

Pin Function

1TX+

2TX–

1

3 RX+

4 PoE 1-2

5 PoE 1-2

8 7 6 5

4 3

2

1

6RX–

7 PoE 3-4

8 PoE 3-4

Figure 5. RJ-45 Pin Connectors

3. Connect the alarm and relay connector:
a. Connect the alarm and relay wires to the supplied 4-pin connector.

b. Attach the mating connector to the green connector on the side of the camera.

C2246M (5/10) 7

ALARM

A1

R1

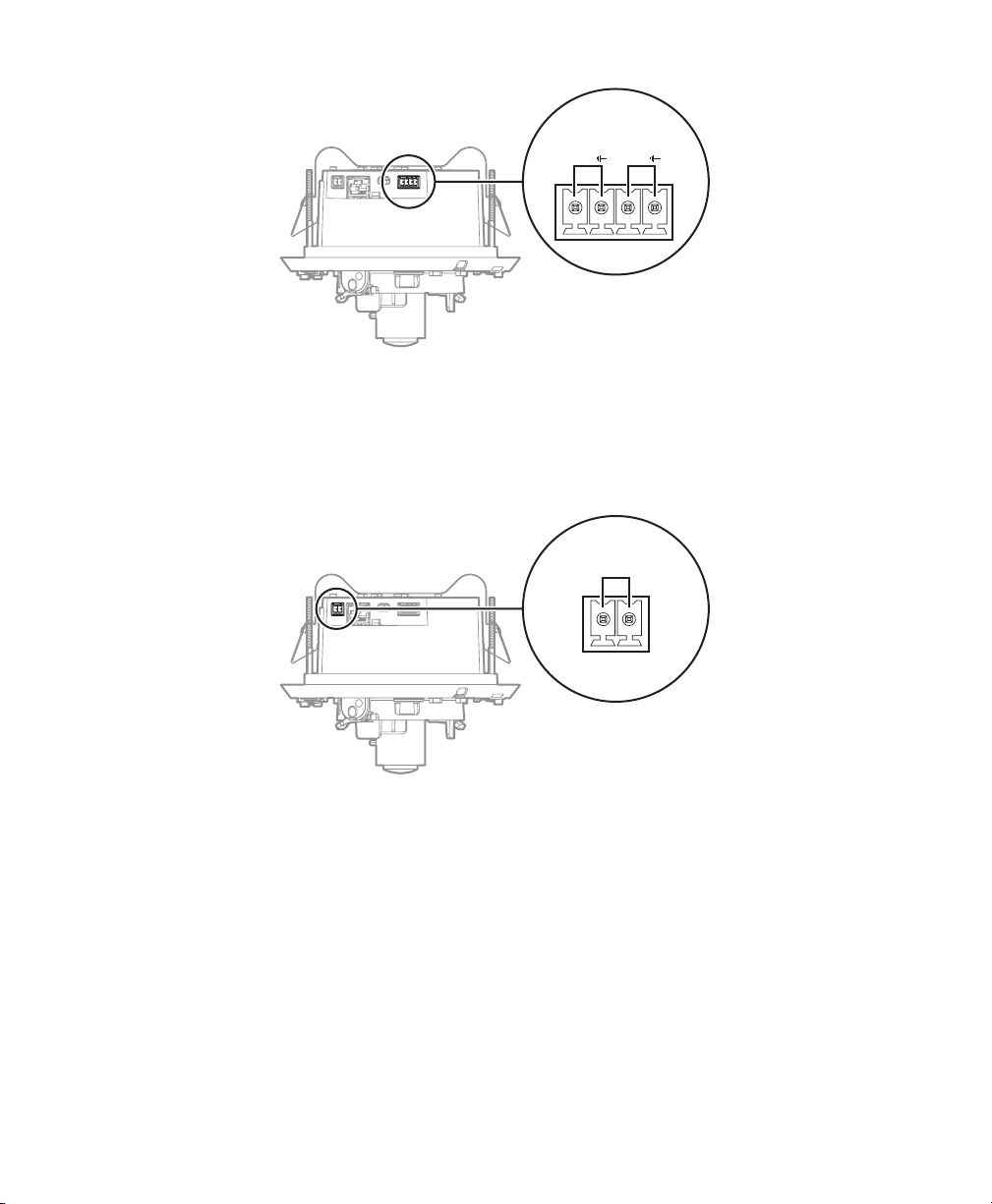

Figure 6. Alarm and Relay Connector

4. If PoE is not available, connect the VAC connector:
a. Connect the 24 VAC wires to the supplied 2-pin VAC connector.

b. Attach the mating connector to the green connector on the side of the camera.

24V~

RELAY

Figure 7. 24 VAC Connector

NOTE: If you are operating the camera using 24 VAC and you are wiring more than one camera to the same

transformer, connect one side of the transformer to the red wire (24 VAC +) and connect the other side of the
transformer to the black wire (24 VAC –). Failure to connect all modules identically might introduce video noise for
some installations.

8 C2246M (5/10)

INSTALLING THE CAMERA MODULE

1. Compress the spring clips and push the camera module into the conduit box until the clips spring back.

2. Tighten the machine screws completely to secure the camera module to the conduit box.

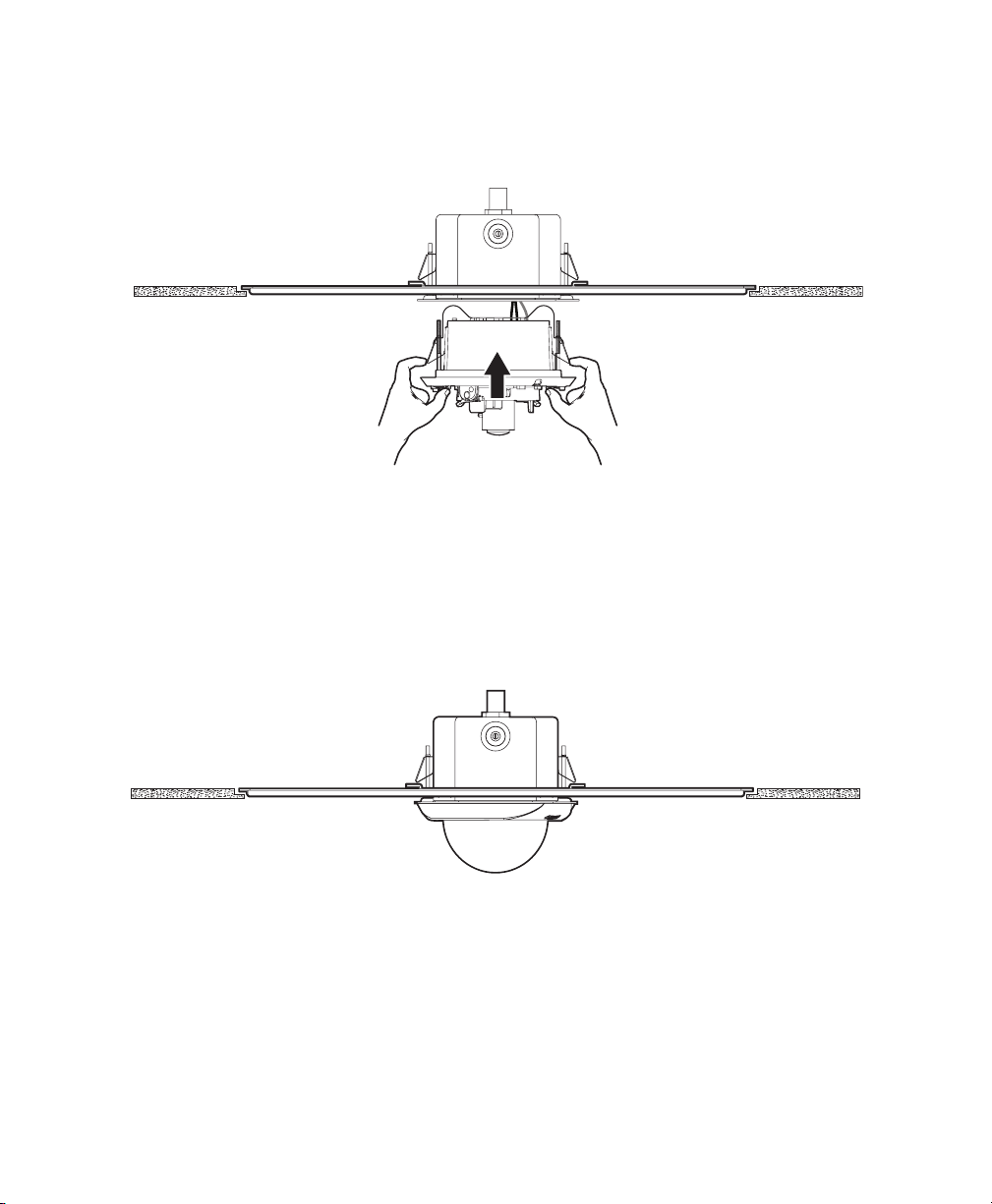

Figure 8. Installing the Camera Module

3. Apply power to the camera. The camera will complete a configuration sequence: the green LED flashes five times per
second for approximately two minutes and then turns solid after the sequence is complete.

NOTE: If a camera is not connected to a Dynamic Host Configuration Protocol (DHCP) server and DHCP is enabled,
the configuration sequence might take up to five minutes to complete.

4. Install the dome on the camera module. Make sure it is securely in place.

Figure 9. Installation Completed

To complete the installation, refer to the ID Series Installation/Operation manual or the IDE Series
Installation/Operation manual.

C2246M (5/10) 9

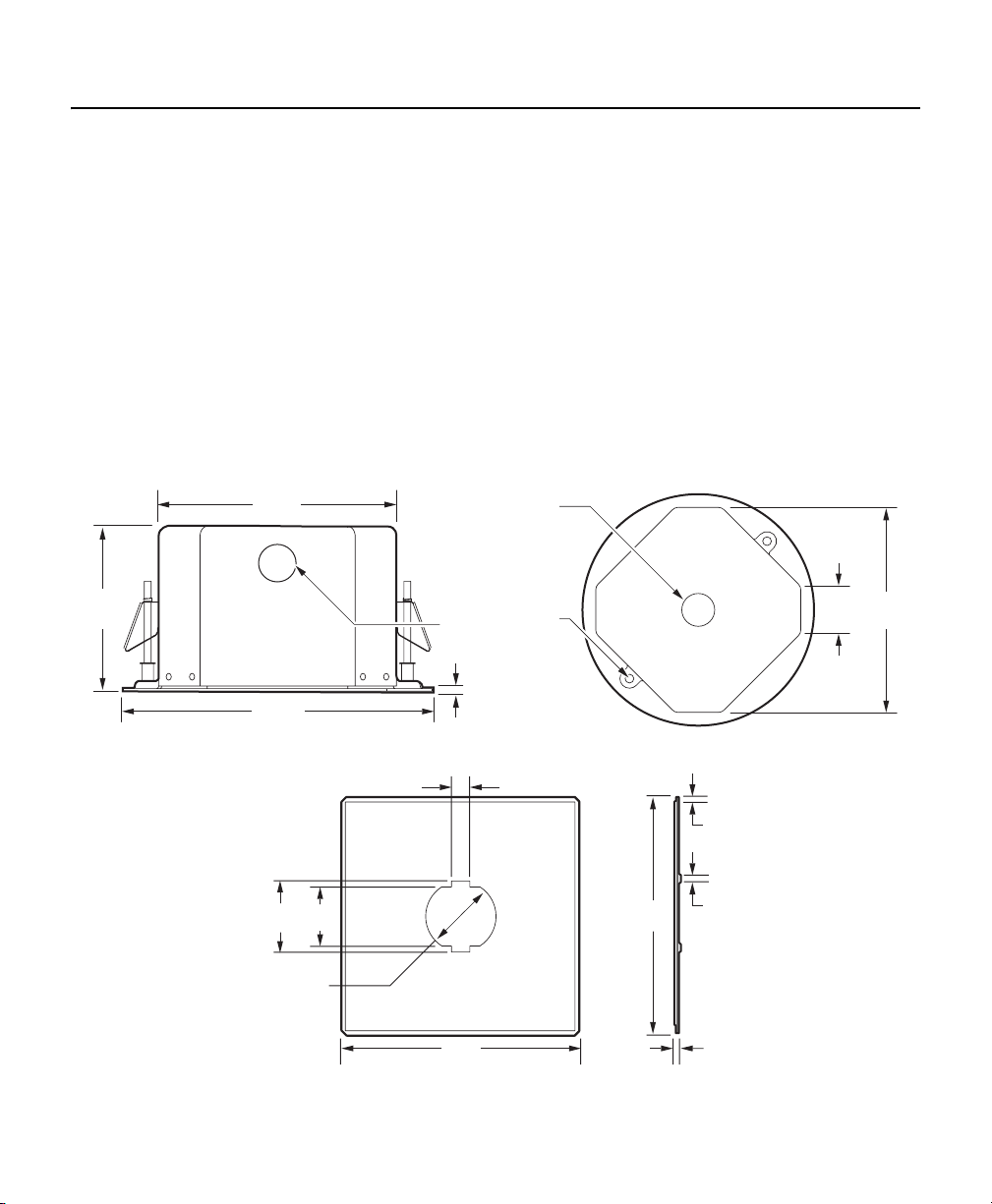

Specifications

MECHANICAL

Mounting Method Attach the ID-CB conduit box to a 2 x 2 foot (61 x 61 cm) ceiling panel (ID-PCB

GENERAL

ID-CB Conduit Box

Construction Aluminum
Finish White powder coat
Unit Weight 0.8 lb (3.6 kg)

Ceiling Panel

Construction Aluminum
Finish Aluminum
Unit Weight 4.0 lb (1.8 kg)

(Design and product specifications subject to change without notice.)

includes conduit box and ceiling panel), to a prepared ceiling tile, or a prepared
solid ceiling.

ID-CB

4.00

(10.20)

6.64

(16.90)

Ø 1.06
Ø 2.70)

(

Ø 7.50

(Ø 19.10)

1.83

Ceiling Panel

6.90

5.90

(17.50)

(15.00)

Ø

7.00

(Ø 17.80)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.

(4.60)

23.75

(60.30)

0.06

(0.20)

Ø 1.07

(Ø 2.70)

Ø 0.28
Ø 0.70)

(

23.75

(60.30)

0.49

(1.20)

0.66

(1.70)

0.33

(0.80)

1.52

(3.90)

6.64

(16.90)

10 C2246M (5/10)
