CA1750 Mount Adapter Installation Instructions C209M (4/98)
1.0 DESCRIPTION The CA1750 Mount Adapter is used when installing a bottom-mount camera on a
2.0 INSTALLATION To install the adapter (refer to Figure 1):
®
CAUTION:
not to damage the cam­era by screwing the adapter too far onto the threaded stud. As soon as the stud threads appear through the adapter cap­tive nut, tighten the knurled nut.
Be careful
1. Place the camera inside the adapter and align the camera mount boss with the elongated hole in the adapter.
2. Attach the camera to the adapter with the provided 1/4-20 bolt and washers.
3. Attach the adapter with camera to the 1/4-20 threaded stud on the installed mount swivel head. Tighten the knurled nut on the mount against the adapter.

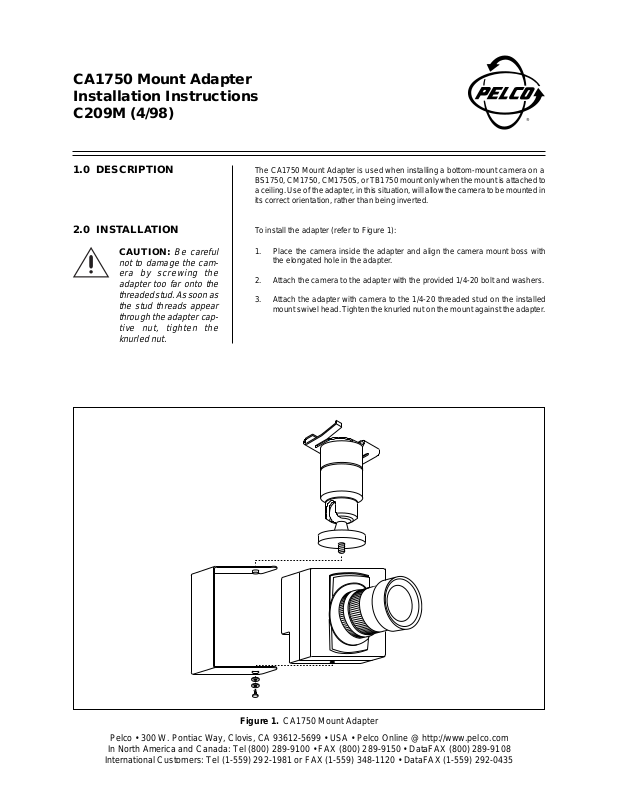

Figure 1. CA1750 Mount Adapter
