Peerless Industries PWV210-BK, PF632 User Manual
Installation and Assembly:
Paramount™ Flat Mount for 22" - 40" (56 - 102 cm)
LCD Screens
Model: PF632, PWV210/BK
Features:
• Screen held only .73" (1.85 cm) from wall for ultra-slim installation
• Screen adapter plate simply slides into the wall plate for quick and
easy installation
• Colors: Gloss Black
• Screen adapter plates included compatible with
VESA 75 mm, 100 mm, 200 mm x 100 mm, and 200 mm mounting
patterns
• Includes hardware for installation to wood studs, concrete, and
cinder block
3215 W. North Ave. • Melrose Park, IL • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
U
©
L
I
USC
D
2
:
6
0
7
0
8
0
1
0
0
Max UL Load Capacity: 115 lb (52.2 kg)
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09
Note: Read entire instruction sheet before you start installation and assembly.
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum UL Load Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION HARDWARE REQUIRED
• Wood Stud Included
• Wood Beam Included
• Solid Concrete Included
• Cinder Block Included
• Metal Stud Do not attach except with Peerless Metal Stud Accessory Kit - ACC215;
(not evaluated by UL)
• Brick Contact Qualified Professional (not evaluated by UL)
• Other or unsure? Contact Qualified Professional
Tools Needed for Assembly
• stud finder ("edge to edge" stud finder is recommended)
• phillips screwdriver
• drill
• 5/16" (8 mm) bit for concrete and cinder block wall
• 5/32" (4 mm) bit for wood stud wall
• level
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Single Wood Stud Wall .....................................................................................................................................4
Installation to Solid Concrete or Cinder Block ........................................................................................................................5
Attaching Mounting Plate to Screen with VESA Mounting Patterns .......................................................................................6
Installing and Removing Flat Panel Screen............................................................................................................................8
2 of 36
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09
Before you begin, make sure all parts shown are included with your product.
A
Parts may appear slightly different than illustrated.
Parts List
Description
wall plate 1 095-P1498
mounting plate 1 095-P1499
B
M5 x 12 mm phillips screw 4 520-1027
C
#14 x 2.5" wood screw 2 5S1-015-C03
D
concrete anchor 2 590-0320
E
M4 x 10 mm phillips screw 4 504-9012
F
M4 x 20 mm phillips screw 4 504-9020
G
retaining spacer 4 590-5005
H
M6 x 12 mm phillips screw 4 520-1128
J
M6 x 20 mm phillips screw 4 520-9402
K
M6 x 30 mm phillips screw 4 510-9109
L
Qty. Part #
A
F
B
GH
3 of 36
CD
J KL
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09
E

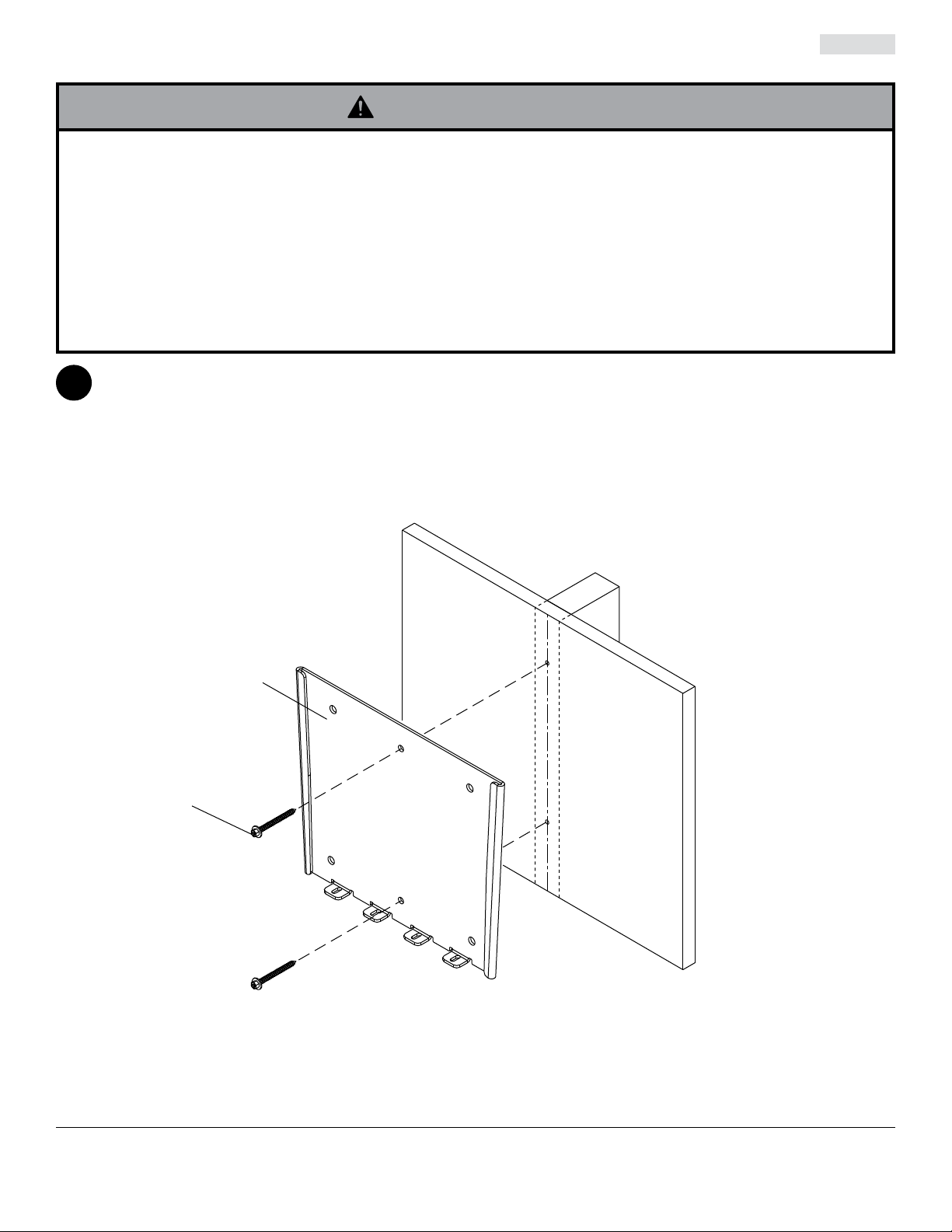

Installation to Single Wood Stud Wall
WARNING
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations (not evaluated by UL).
Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended.
1
Based on its edges, draw a vertical line down the stud’s center. Place wall plate (A) on wall as a template, making
sure that the two mounting holes are on the stud centerline. Level wall plate, and mark the center of the two holes.
Drill two 5/32" (4 mm) dia. holes 2.5" (64 mm) deep. Make sure that the wall plate is level, secure it using two
#14 x 2.5" wood screws (D) as shown.
Skip to step 2.
D
A
4 of 36
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09

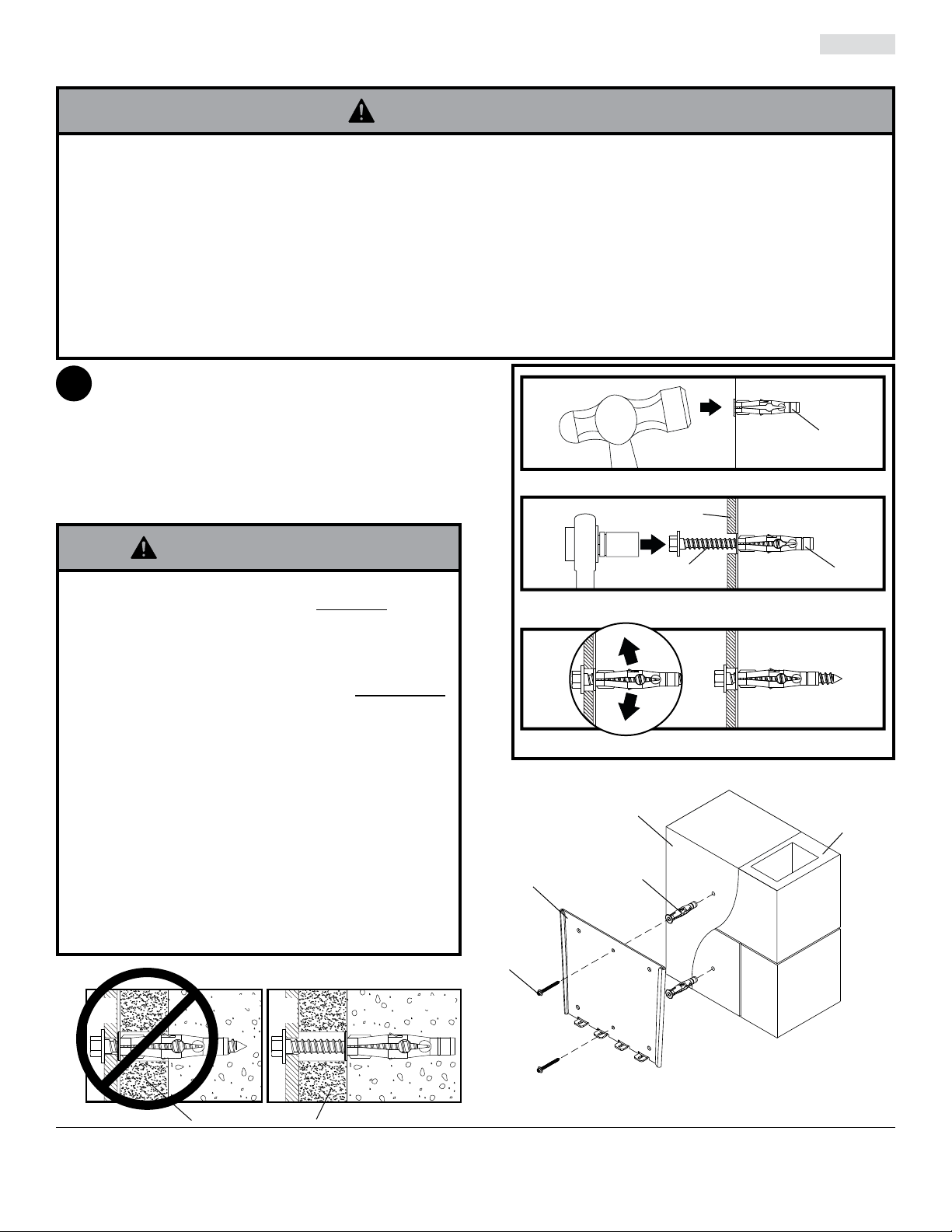

Installation to Solid Concrete or Cinder Block
WARNING
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual
concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount
in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet
ASTM C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole
instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
Make sure that wall plate (A) is level, use it as a
1
template to mark two mounting holes. Drill two 5/16"
(8 mm) dia. holes to a minimum depth of 2.5"
(64 mm). Insert anchors (E) in holes flush with wall
as shown. Place wall plate over anchors and secure
with two #14 x 2.5" screws (D). Level, then tighten
all fasteners.
1
Drill holes and insert anchors (E).
concrete
surface
E
WARNING
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Always attach concrete expansion anchors directly
to load-bearing concrete.
• Never attach concrete expansion anchors to
concrete covered with plaster, drywall, or other
finishing material. If mounting to concrete surfaces
covered with a finishing surface is unavoidable (not
evaluated by UL), the finishing surface must be
counterbored as shown below. Be sure concrete
anchors do not pull away from concrete when
tightening screws. If plaster/drywall is thicker than
5/8" (16 mm), custom fasteners must be supplied by
installer (not evaluated by UL).
INCORRECT CORRECT
wall
plate
concrete
wall
plate
concrete
D
A
E
2
Place plate (A) over anchors (E) and secure with screws (D).
3
Tighten all fasteners.
SOLID
A
CONCRETE
E
CINDER
BLOCK
CUTAWAY VIEW
plaster/
dry wall
plaster/
dry wall
D
5 of 36
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09

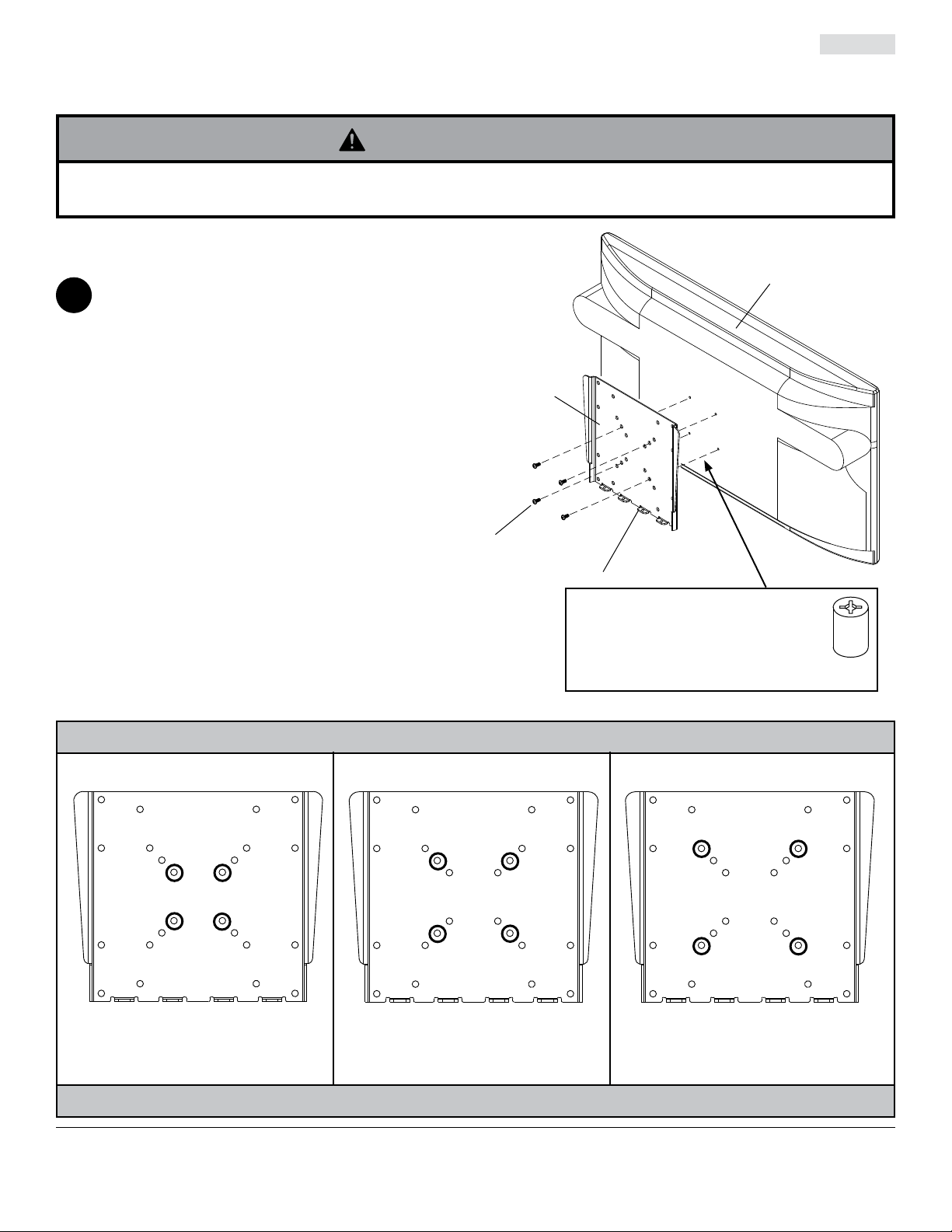

Attaching Mounting Plate to Screen
NOTE: For VESA® 200 x 100, 120 x 180 or 200 x 200 hole patterns, see following page.
WARNING
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
For VESA® 50, 75 or 100 Mounting Pattern:
Choose hole pattern as shown in detail 1 for VESA 50,
2
75 or 100 mounting pattern. Attach mounting plate (B)
to back of screen using four M4 x 10 mm screws (F) as
shown.
NOTE: Be certain bottom flanges of mounting plate (B)
face toward bottom of screen.
*NOTE: If hole pattern is in a pocket, attach mounting
plate (B) to back of screen using four M4 x 20 mm
screws (G) and four retaining spacers (H) as indicated.
Skip to step 3.
F or G
B
BOTTOM
FLANGES
SCREEN
*For screens with a hole
pattern in a pocket, spacers (H)
go between mounting
plate (B) and screen when
using screw (G).
H
Mounting Patterns
®
VESA
75 VESA® 100VESA® 50
6 of 36
DETAIL 1
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09
Attaching Mounting Plate to Screen with VESA® 200 x 100, 120 x 180 or
200 x 200 Mounting Pattern
WARNING
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
FOR VESA® 200 x 100, 120 x 180 or 200 x 200
MOUNTING PATTERN:
Choose hole pattern as shown in detail 2 for VESA
2
200 x 100, 120 x 180 or 200 x 200 mounting pattern
and for fasteners to use. Attach mounting plate (B) to
back of screen using four screws (F, G, J, K, or L) as
shown.
NOTE: Be certain bottom flanges of mounting plate
face toward bottom of screen.
*NOTE: If hole pattern is in a pocket, attach mounting
plate (B) to back of screen using four M4 x 20 mm
screws (G) and four retaining spacers (H) as indicated.
NOTE: If screw (J) gets less than three threads of
engagement, attach mounting plate (B) to back of
screen using four M6 x 20 mm screws (K). If screw (K)
still gets less than three threads of engagement, use
four M6 x 30 mm screws (L).
F, G, J, K or L
B
BOTTOM
FLANGES
*For screens with a
hole pattern in a pocket,
spacers (H) go between
mounting plate (B) and
screen when using
screws (G).
SCREEN
H
Mounting Patterns
VESA
M4 x 10 mm screws (F) or
M4 x 20 screws (G) with spacer (H)
NOTE: Fastener selection may vary for specific screens. If you have any questions for the correct fasteners to use for your
particular screen, call customer care.
M4 x 10 mm screws (F) or
M4 x 20 screws (G) with spacer (H)
®
120 x 180 VESA® 200 x 200VESA® 200 x 100
M6 x 12 mm screws (J),
M6 x 20 mm screws (K) or
M6 x 30 mm screws (L)
DETAIL 2
7 of 36
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09

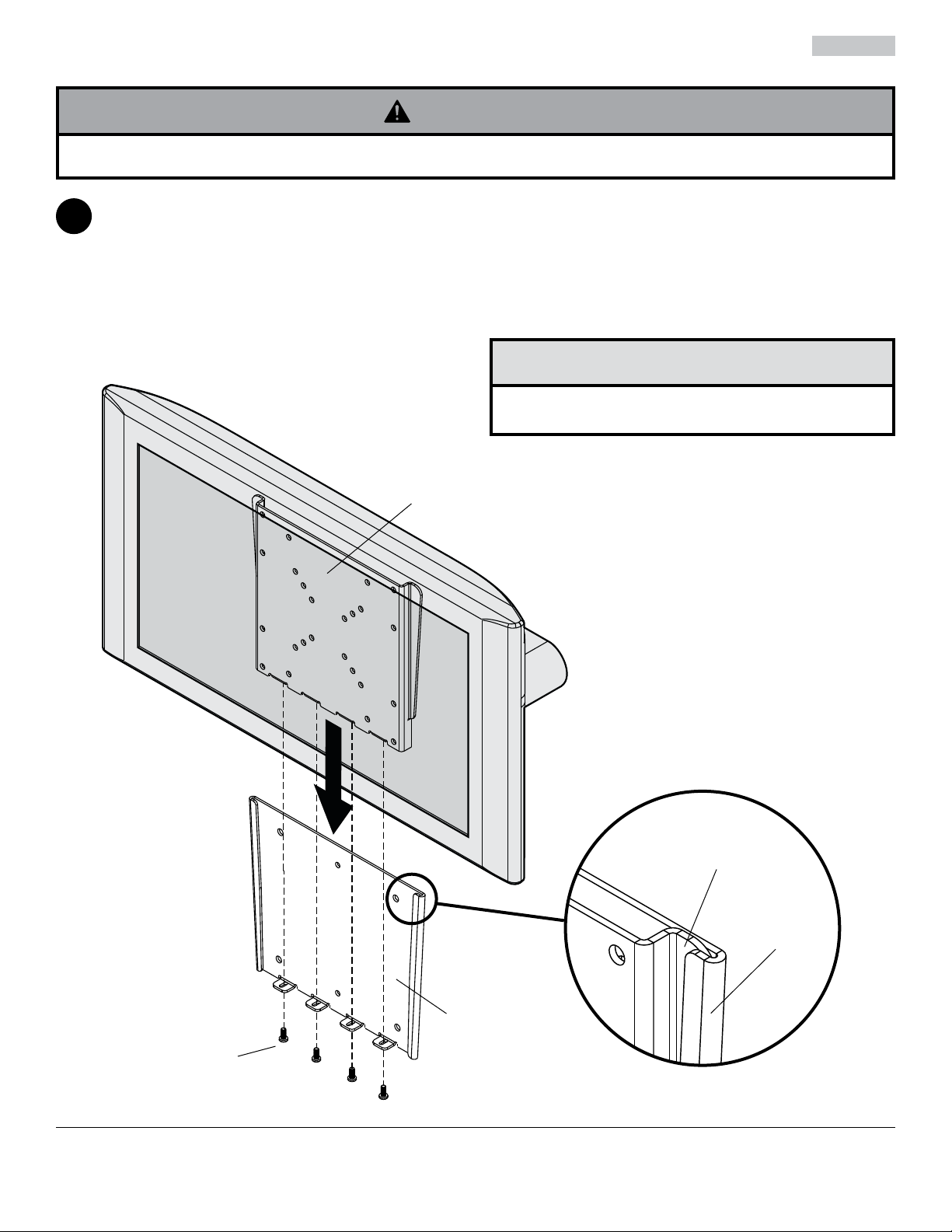

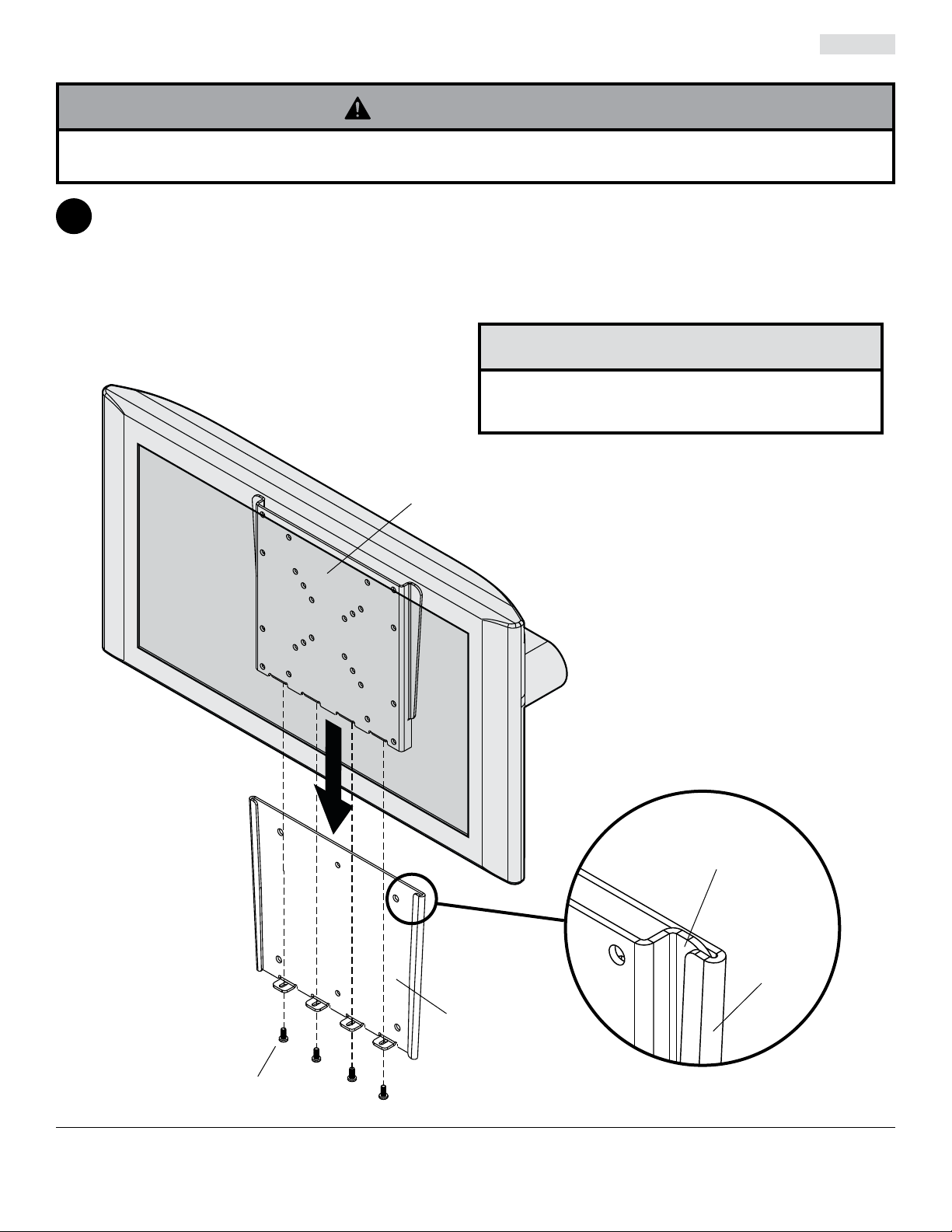

Installing and Removing Flat Panel Screen
WARNING
• Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely
handle placement of the screen.
Attach mounting plate (B) to wall plate (A) by sliding flanges of mounting plate (B) into hook flanges of wall
3
plate (A). Secure mounting plate to wall plate using four M5 x 12 mm phillips screws (C) through bottom
flanges of wall plate (A) and into bottom flanges of mounting plate (B) as shown. Tighten screws securely.
To remove screen from mount, remove screws (C) and lift screen off of mount.
CAUTION
• Do not tighten screws with excessive force.
Overtightening can cause damage to mount.
B
C
B
FLANGES
A
HOOK
FLANGES
A
8 of 36
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 11-19-07 SHEET #: 202-9248-6 11-04-09
© 2009, Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.
3215 W. North Ave.
Melrose Park, IL 60160
www.peerlessmounts.com
Instalación y ensamblaje:
Soporte de pared plano Paramount™ para pantallas LCD de
22" a 40" (56 - 102 cm)
Modelo: PF632, PWV210/BK
Características:
• Sostiene el televisor a sólo .73" (1.85 cm) de la pared para
proporcionar una instalación ultra recogida
• La placa adaptadora de la pantalla sencillamente se desliza
sobre la placa de pared para proporcionar una instalación
rápida y fácil
• Colores: Negro lustroso
• Incluye las placas adaptadoras para la pantalla compatibles
con las configuraciones de montaje de VESA 75 mm, 100
mm, 200 mm x 100 mm y 200 mm
• Incluye los accesorios para instalaciones en montantes de
madera, concreto y bloques de hormigón de escorias
3215 W. North Ave. • Melrose Park, IL • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
U
L
©
I
USC
D
2
:
6
0
7
0
8
0
1
0
0
Capacidad máxima de soportar carga por
UL
: 115 lb (52.2 kg)
PUBLICADO: 11-19-07 HOJA #: 202-9248-6 11-04-09
Español
Nota: Lea la hoja de instrucciones completa antes de comenzar la instalación y el ensamblaje.
ADVERTENCIA
• No comience a instalar su producto de Peerless hasta haber leído y entendido las instrucciones y las advertencias
contenidas en la Hoja de Instalación. Si tiene alguna pregunta acerca de cualquiera de las instrucciones o las advertencias, por favor, llame a Servicio al Cliente de Peerless al 1-800-865-2112 si está en EE. UU. Si es un cliente
internacional, por favor, comuníquese con su distribuidor local.
• Este producto sólo debe ser instalado por una persona que tenga una buena aptitud mecánica, que tenga experi-
encia en construcción básica de edificios y que entienda estas instrucciones en su totalidad.
• Asegúrese de que la superficie de apoyo sostendrá, con seguridad, la carga combinada del equipo y todos los
fijadores y componentes.
• Nunca sobrepase la capacidad máxima de soportar carga aceptada por Underwriters Laboratories.
9.
• Si va a instalar el producto en una pared con montantes de madera, asegúrese de que los tornillos de montaje
estén anclados en el centro de los montantes. Se recomienda utilizar un localizador de montantes de "borde a
borde".
• Siempre cuente con la ayuda de un asistente o utilice un equipo mecánico de izar para levantar y colocar el equipo
con más seguridad.
• Apriete los tornillos con firmeza, pero no en exceso. Apretarlos en exceso puede dañar los artículos y puede dis-
minuir significativamente su fuerza de fijación.
• Este producto está diseñado para uso en interiores solamente. Utilizar este producto en exteriores podría causar
fallas del producto y lesiones a individuos.
Vea la página
• Este producto fue diseñado para ser instalado en paredes con la siguiente construcción solamente:
CONSTRUCCIÓN DE LA PARED ACCESORIOS NECESARIOS
• Montante de madera Incluido
• Viga de madera Incluido
• Concreto macizo Incluido
• Bloque de hormigón de escorias Incluido
• Montante de metal No lo instale excepto con el juego de accesorios de Peerless para
montantes de metal - ACC215; (no evaluados por UL)
• Ladrillo Comuníquese con un profesional calificado (no evaluados por UL)
• ¿Otra superficie o no está seguro? Comuníquese con un profesional calificado
Herramientas necesarias para el ensamblaje
• localizador de montantes (se recomienda uno de “borde a borde”)
• destornillador phillips
• taladro
• broca de 5/16" (8 mm) para paredes de concreto y de bloque de hormigón de escorias
• broca de 5/32" (4 mm) para paredes con montantes de metal o de madera
• nivel
Tabla de contenido
Lista de piezas.....................................................................................................................................................................11
Instalación en una pared con montante de madera único ..................................................................................................12
Instalación en una pared de concreto macizo o de bloques de hormigón de escorias .......................................................13
Fijación de la placa de montaje a pantallas con configuraciones de montaje VESA ..........................................................14
Instalación y desinstalación de la pantalla plana ................................................................................................................16
10 de 36
PUBLICADO: 11-19-07 HOJA #: 202-9248-6 11-04-09
Antes de comenzar, asegúrese de que su producto contiene todas las piezas que se muestran.
Las piezas pueden verse un poco distintas a la ilustración.
Lista de piezas
Descripción Cantidad
A placa de pared 1 095-P1498
placa de montaje
B
C tornillo phillips M5 x 12 mm 4 520-1027
D tornillo para madera de N.° 14 x 2.5" 2 5S1-015-C03
E Anclaje para concreto 2 590-0320
F tornillo phillips M4 x 10 mm 4 504-9012
G tornillo phillips M4 x 20 mm 4 504-9020
H espaciador de retención 4 590-5005
J tornillos phillips M6 x 12 mm 4 520-1128
K tornillos phillips M6 x 20 mm 4 520-9402
L tornillos phillips M6 x 30 mm 4 510-9109
1 095-P1499
o
de pieza
N.
Español
A
F
GH
11 de 36
CDBE
J KL
PUBLICADO: 11-19-07 HOJA #: 202-9248-6 11-04-09
Loading...
