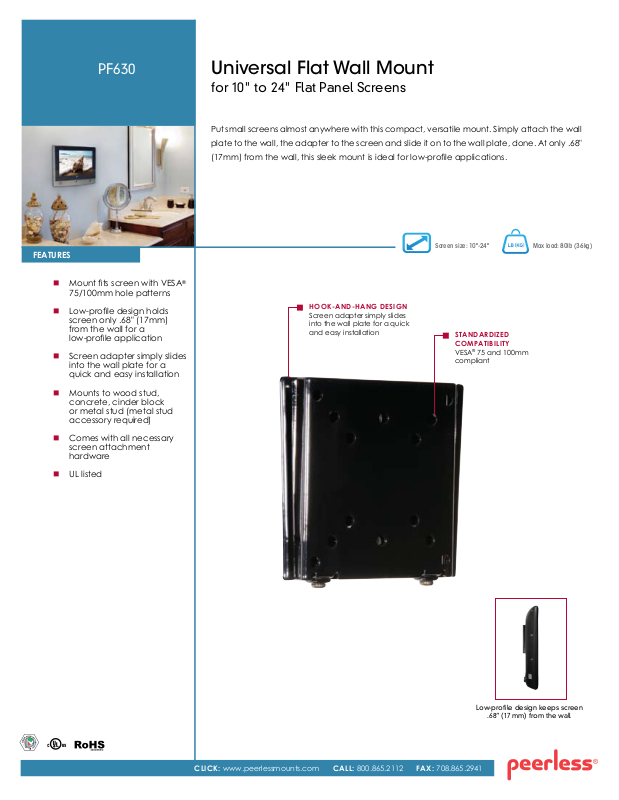

Peerless-AV PE1120-W User Manual
PF630
Universal Flat Wall Mount
for 10" to 24" Flat Panel Screens
Put small screens almost anywhere with this compact, versatile mount. Simply attach the wall
plate to the wall, the adapter to the screen and slide it on to the wall plate, done. At only .68"
(17mm) from the wall, this sleek mount is ideal for low-prole applications.
FEATURES
Mount ts screen with VESA®
75/100mm hole patterns
Low-prole design holds
screen only .68" (17mm)
from the wall for a
low-prole application
Screen adapter simply slides
into the wall plate for a
quick and easy installation
Mounts to wood stud,
concrete, cinder block
or metal stud (metal stud
accessory required)
Comes with all necessary
screen attachment
hardware
UL listed
HOOK-AND-HANG DESIGN
Screen adapter simply slides
into the wall plate for a quick
and easy installation
Screen size: 10"-24" Max load: 80lb (36kg)
STANDARDIZED
COMPATIBILITY
®
VESA
75 and 100mm
compliant
CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: 708.865.2941
Low-profile design keeps screen
.68” (17 mm) from the wall
Model Numbers
PF630 Universal Flat Wall Mount for 10" to 24" Flat Panel Screens
Product Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
WARRANTY: Limited 5-year
PF630
5.63" x 4.84" x .68"
(143 x 123 x 17mm)
Package Specifications
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
PF630
7.5" x 6.5" x 2.25"
(191 x 165 x 571mm)
Accessories
ACC925: Security Fasteners
ACC215: 2-pack Metal Stud Fastener Kit
1.3lb (.58kg) 80lb (36.2kg)
1.7lb (.77kg) 735029252337
5.63"
(143mm)
Scratch
resistant
fused
epoxy
Wall plate, screen
adapter, mounting and
screen attachment
hardware
Gloss black
1
All dimensions = inch (mm)
3.94"
(100mm)
4.84"
(123mm)
2.95"
(75mm)
1.97"
(50mm)
WALL PLATE
3.94"
(100mm)
1.97"
(50mm)
2.95"
(75mm)
FRONT VIEW
2.95"
(75mm)
SIDE VIEW
0.68"
(17mm)
A R C H I T E C T S S P E C I F I C A T I O N S
The Universal Flat Wall Mount shall be a Peerless model PF630 and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and nished with scratch resistant Black Fused Epoxy.
Assembly and installation shall be done according to instructions provided by the manufacturer.
ISOMETRIC VIEW
Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (708) 865-8870 Fax: (708) 865-2941 www.peerlessmounts.com
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
LIT-0575
