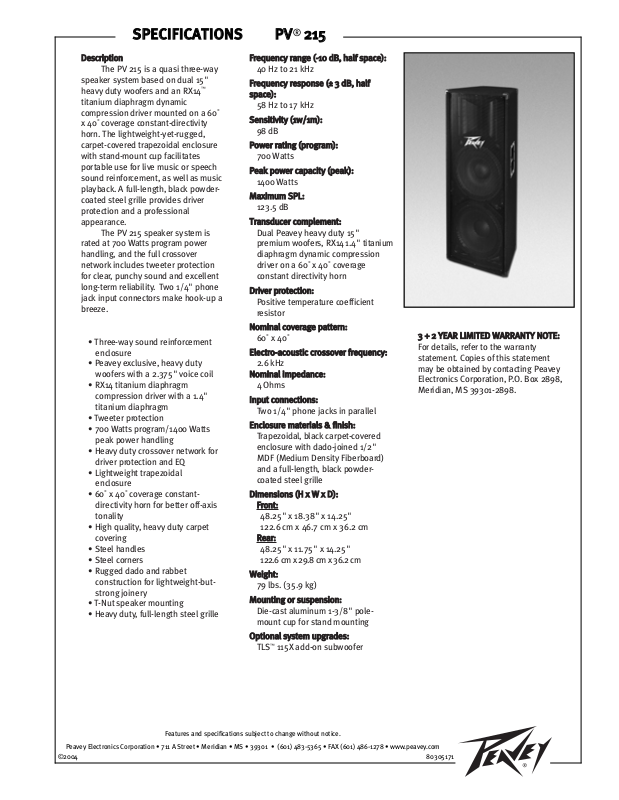

Peavey PV 215 DATASHEET

DDeessccrriippttiioonn

The PV 215 is a quasi three-way
speaker system based on dual 15"
heavy duty woofers and an RX14

™

titanium diaphragm dynamic
compression driver mounted on a 60˚
x 40˚ coverage constant-directivity
horn. The lightweight-yet-rugged,
carpet-covered trapezoidal enclosure
with stand-mount cup facilitates
portable use for live music or speech
sound reinforcement, as well as music
playback. A full-length, black powder­coated steel grille provides driver
protection and a professional
appearance.

The PV 215 speaker system is
rated at 700 Watts program power
handling, and the full crossover
network includes tweeter protection
for clear, punchy sound and excellent
long-term reliability. Two 1/4" phone
jack input connectors make hook-up a
breeze.

• Three-way sound reinforcement
enclosure

• Peavey exclusive, heavy duty
woofers with a 2.375" voice coil

• RX14 titanium diaphragm
compression driver with a 1.4"
titanium diaphragm

• Tweeter protection

• 700 Watts program/1400 Watts
peak power handling

• Heavy duty crossover network for
driver protection and EQ

• Lightweight trapezoidal
enclosure

• 60˚ x 40˚ coverage constant­directivity horn for better off-axis
tonality

• High quality, heavy duty carpet
covering

• Steel handles

• Steel corners

• Rugged dado and rabbet
construction for lightweight-but­strong joinery

• T-Nut speaker mounting

• Heavy duty, full-length steel grille

FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff ssppaaccee))::

40 Hz to 21 kHz

FFrreeqquueennccyy rreessppoonnssee ((±± 33 ddBB,, hhaallff
ssppaaccee))::

58 Hz to 17 kHz

SSeennssiittiivviittyy ((11ww//11mm))::

98 dB

PPoowweerr rraattiinngg ((pprrooggrraamm))::

700 Watts

PPeeaakk ppoowweerr ccaappaacciittyy ((ppeeaakk))::

1400 Watts

MMaaxxiimmuumm SSPPLL::

123.5 dB

TTrraannssdduucceerr ccoommpplleemmeenntt::

Dual Peavey heavy duty 15"
premium woofers, RX14 1.4" titanium
diaphragm dynamic compression
driver on a 60˚ x 40˚ coverage
constant directivity horn

DDrriivveerr pprrootteeccttiioonn::

Positive temperature coefficient
resistor

NNoommiinnaall ccoovveerraaggee ppaatttteerrnn::

60˚ x 40˚

EElleeccttrroo--aaccoouussttiicc ccrroossssoovveerr ffrreeqquueennccyy::

2.6 kHz

NNoommiinnaall iimmppeeddaannccee::

4 Ohms

IInnppuutt ccoonnnneeccttiioonnss::

Two 1/4" phone jacks in parallel

EEnncclloossuurree mmaatteerriiaallss && ffiinniisshh::

Trapezoidal, black carpet-covered
enclosure with dado-joined 1/2"
MDF (Medium Density Fiberboard)
and a full-length, black powder­coated steel grille

DDiimmeennssiioonnss ((HH xx WW xx DD))::

FFrroonntt::

48.25" x 18.38" x 14.25"

122.6 cm x 46.7 cm x 36.2 cm

RReeaarr::

48.25" x 11.75" x 14.25"

122.6 cm x 29.8 cm x 36.2 cm

WWeeiigghhtt::

79 lbs. (35.9 kg)

MMoouunnttiinngg oorr ssuussppeennssiioonn::

Die-cast aluminum 1-3/8" pole­mount cup for stand mounting

OOppttiioonnaall ssyysstteemm uuppggrraaddeess::

TLS

™

115X add-on subwoofer

33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY NNOOTTEE::
For details, refer to the warranty
statement. Copies of this statement
may be obtained by contacting Peavey
Electronics Corporation, P.O. Box 2898,
Meridian, MS 39301-2898.

SSPPEECCIIFFIICCAATTIIOONNSS PPVV® 221155

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 • [phone] • FAX [phone] • www.peavey.com

©2004 80305171
