ENGLISH

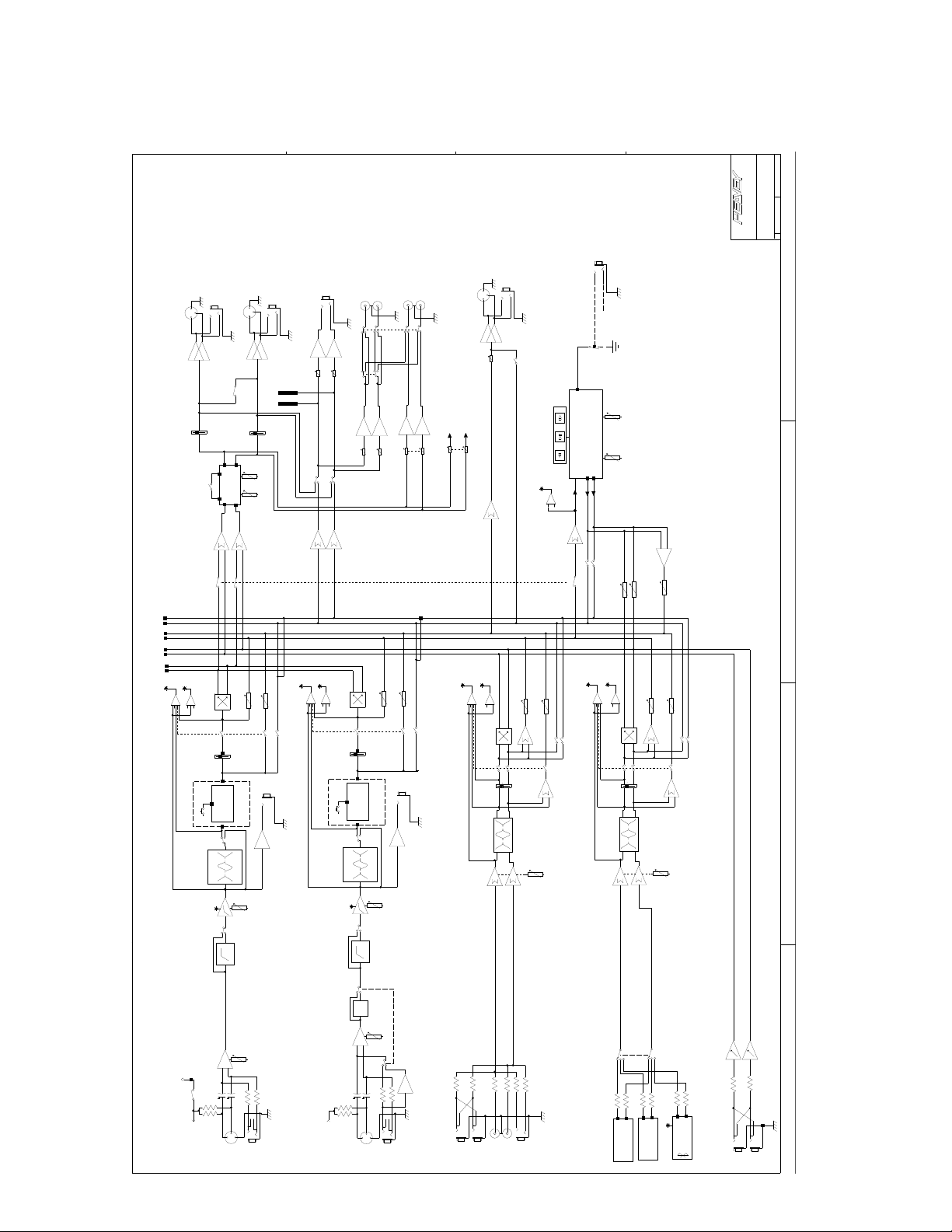

PV®14AT and PV®14BT

Compact Mixers

Congratulations on purchasing the Peavey PV®14AT or PV®14BT Compact Mixer. The PV®14AT and PV®14BT are studio-quality mixing consoles designed to meet diverse needs while occupying a small space. These are the perfect consoles for small venue performances or home recording environments. PV series mixers feature built-in DSP effects that are useful in real-world recording and sound reinforcement, while parameter controls allow you to tailor each effect to meet your needs.

The PV 14BT includes 8 channels of reference-quality mic preamps, 8 direct outputs for recording, a stereo channel, media channel with Bluetooth wireless input, high quality digital effects with LCD display, streaming USB out, MP3 playback via USB A input, Peavey's exclusive Kosmos audio enhancement, 48 volt phantom power, dual selectable control room outputs, 4 channels of compression, one channel of on board selectable guitar preamp, 3-band EQ per channel with bypass, channel mute buttons, aux send, signal clip indicators, and a stereo master LED meter bridge. This amazingly versatile mixer is at home both in the studio as well as live applications. Its modern features such as Bluetooth allow seamless connection to almost any "smart" device. 8 direct outs allow easy connection to most DAW interfaces for recording; in addition, the PV 14 BT can stream audio directly to a PC. MP3 playback is also available, just plug a flash drive with MP3 files on it into the USB A port and use the LCD to select and playback music. The PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs and the EQ bypass allows the user to compare the EQ'd signal to the original signal with the push of a button. 4 Channels of compression keep signals with difficult levels under control, and Peavey's exclusive guitar-shape adjusts the EQ and preamp specifically for guitar. Hi pass filters on every channel remove unwanted rumble and noise, and balanced AUX and Master outputs ensure a clean noise free signal to your powered speakers or power amplifier. The all new PV series non-powered mixers represent the pinnacle of performance and value. Combine Peavey's legendary reliability and our 5 year warranty and you can be assure of years of quality reliable service, we guarantee it.

In addition to all of these features, the PV14AT features 4 channels of Antares® world-famous Autotune®, which can be set to subtly tighten up vocal harmonies, or it can be set for robotic vocal effects heard in today's popular music. Peavey's exclusive custom key feature makes it a snap to auto-tune to any scale you can think of, in a live performance. It is so easy and fast, you can set it up between songs, right in the middle of a set.

Please read this guide carefully to ensure your personal safety as well as the safety of your equipment.

FEATURES:
• 8 Combination 1/4" and XLR low noise mic preamps	• 4 channels of built-in compression
• Stereo 1/4", RCA or 3.5mm input channel	• Stereo pan control per channel
• Bluetooth wireless connectivity	• On-board USB-A MP3 playback
• 3-band EQ on all channels	• 8 Channels of direct out
• 8 Channels of Peavey's Exclusive Mid-Morph	• Kosmos -C bass and treble enhancement
• 150 Hz low-cut switch on all mic inputs	• Channel 9/10 stereo return/input
• LED clip and signal present indication	• Individual Solo function
• Individual channel mutes	• Stereo USB-B streaming audio in and out
• EQ Bypass per mic channel	• High quality master LED meter bridge
• On board studio quality digital effects with individual channel control	• Master mic mute
• Effects and playback LCD display	• Studio quality headphone output
• One pre-fader AUX send	• Peavey's exclusive on-board 1 Meg guitar input
• Precision 60 mm faders on master	• Antares Auto-Tune with Peavey's exclusive Custom Key
• Dual selectable control room outputs / Record out with independent level	feature

• Global 48V phantom power
• Main stereo outputs with balanced 1/4" and XLR connectors
• Rugged console design
Installation Note:

This unit must have the following clearances from any combustible surface: top: 8", sides: 12", back: 12"

PV14AT/PV14BT Front Panel (channels 1 - 8)

1MIC/LINE INPUT (CH.1-8)

This combination input jack accepts a ¼” or XLR balanced plug. The XLR balanced input is optimized for a microphone or other low impedance source. The ¼” input is a TRS balanced type, and also accepts ordinary TS guitar cables.

2DIRECT OUT

This impedance-balanced TRS output signal is taken after the mic preamp, hi pass filter, and compressor, but before the EQ stage.

3AUTO-TUNE ACTIVATION BUTTON AND LED (PV14AT only)

Pressing this button activates the PV14AT's onboard AUTO-TUNE feature. The button illuminates when in AUTO-TUNE mode.

4GAIN

The Input Gain control is used to establish proper gain structure in the channel. For best results, use the

Solo system (19) to monitor the channel while you set the gain. The goal is maximum gain without distor- 7 tion. Both the main LED meters (during Solo) and the channel’s Signal/Clip indicator (16,17) can be used

for adjusting gain. If the clip LED (16) comes on and remains lit, try reducing the gain.

5150 Hz HI PASS FILTER

The hi pass filter has a corner frequency of 150 Hz. When engaged‚ it can improve clarity by removing low frequencies that make a mix sound muddy. This feature is especially useful when playing outside on a windy day or on a hollow-sounding‚ noisy stage. These kinds of ambient noises can rob your sound system of power. Engaging this switch will remove those frequencies from the system and restore power where needed.

6COMPRESSION CONTROL (Channels 1-4)

Adjusting this knob clockwise lowers the threshold of the compressor, thereby increasing the amount of compression. The compressor ratio is in the 4:1 range, varying with signal levels and the amount of compression. This is useful for controlling peak levels from live sources, and has been designed to subtly tame the levels of live vocals without noticeable artifacts. The compressor is after the gain control (5) and the hi pass filter (4), but before the direct out (2), so it can be patched to external equipment. *not featured on channels 5-8.

7Compressor LED

This LED illuminates when the compressor is actively compressing a signal. *not featured on channels 5-8.

8Hi EQ

This active tone control (shelving type: ±15 dB) varies the level of the high frequency range.

9MID-MORPH EQ (CH. 1-7)

Where most mid-range controls work at just one frequency, the Mid-Morph works at two. When turned counterclockwise, it cuts at 250Hz to reduce frequencies that muddy the sound. When turned clockwise,

it boosts at 4kHz to add intelligibility to vocals. Either way, improved vocal or instrument definition can 16

be achieved.

10Low EQ

This active tone control (shelving type: ±15 dB) varies the level of the low frequency range. Caution: Excessive low frequency boost causes greater power consumption and increases the possibility of speaker damage.

11EQ BYPASS

Engaging this button bypasses the equalization of the channel, allowing you to easily hear the effect of the EQ settings.

12AUX SEND

This control adjusts the level of the channel signal sent to the Aux output. The signal is taken before the channel level (18) but after the channel EQ, meaning that changes to the EQ settings will affect the aux mix, but changes to the channel level control won't. Typical use for the Aux bus is to feed stage monitors, when used in a live performance, or to feed headphone amplifiers in a recording situation.

DIRECT OUT

	AT	3
HI PASS		4
HI PASS
		5
min	max
compmin	GAIN max
comp	GAIN
		6
minmin COMPmaxmax
COMP
		8
minmin HIGH maxmax
		9
low	high
MID-MORPH
low	high
		10
min	LOW max
EQ BYPASS
min	LOW
EQ	LOW	11
EQ		11
		12
min AUX max
min	max
		13
min	EFX max
min	max
		14
left	right
	PAN
CLIPleft	MUTE
CLIPleft	PAN	15
	PAN	15

SIGNAL
CLIP	1
	1

SIGNAL

min LEVEL max

SOLO

SOLO	19
SOLO
	1

PV14AT/PV14BT Front Panel (channels 1-7)

13EFX SEND

This control adjusts the level of the channel signal added to the effects mix. The signal is sent to the internal effects processor. Turning the knob to the left (min) will turn off effects on the associated channel, while turning the knob to the right will increase the amount of the selected effect. The effects send signal is taken after the channel level (18) so that adjustments made to the fader will also affect the send level.

14PAN CONTROL

This knob controls the placement of the signal in the stereo field. When rotated completely counterclockwise‚ the signal is present only on the left channel; when rotated completely clockwise‚ only in the right channel. This control functions as a balance control to adjust the relative level of the left and right signals on stereo channels 9/10 and 11/12. (Note 1/4" inputs on ch 9/10 and 13/14 are mono unless both are connected, then they switch to stereo)

15MUTE SWITCH

Pressing this switch will silence the channel signal going to the main mix, aux send, and effects. The mute switch will not affect the signal sent to the solo system.

16CLIP/MUTE LED

This LED normally indicates that the channel signal level is near clipping (distortion), but it also lights when mute is engaged. The clip indicator circuit monitors the signal after the gain control, after the EQ, and after the main level; because clipping can be caused by high settings of any of these controls. It illuminates at +15 dBu with a static signal (test tone), and corresponds to audible clipping with a highly dynamic signal (i.e.

piano). When lit, it warns that the gain or EQ boost should be reduced. When it lights, roughly 5 dB of headroom remains. An optimized setting of input gain + EQ will result in this LED flashing briefly on the loudest peaks.

17SIGNAL LED

The signal LED lights when the channel level reaches approximately -20 dBu. This not only indicates which channels are active, but also serves as a mini level meter. Because its illumination varies with the signal source, it is useful in identifying which channel is carrying a particular source.

18CHANNEL LEVEL FADER

This is the channel's output control, which sets the signal level sent to the left and right mix and the effects send control. The gain is 0 dB (unity gain) when set to the center mark inside the rectangular graphic. 10 dB of boost is available at the max gain setting. Normal operation is to start with this knob at the center mark, and set the input gain and EQ with the source playing such that normal levels are seen at the signal /clip LED's and the main meter array. As additional sources are added, it is normal to move this fader down slightly to prevent overdriving the main mix bus.

19SOLO SWITCH AND LED

When the Solo switch is engaged, the yellow LED lights, as does the yellow Solo LED under the main L/R meter array in the master section, indicating that the Solo system is now active. The Solo system is a separate mix bus that routes the soloed channel(s) at unity gain to the level meters for precise input level setting, and to the control room monitor and headphone outputs for critical listening to the selected

source(s). When the Solo system is active, the complete mix will no longer be heard through the control room or headphones; only the soloed channel(s).

PV14AT/PV14BT Front Panel (channel 8)

1/4”-Hi-Z CH.8 Only

20 MIC/LINE INPUT (CHANNEL 8 ONLY)

This input is the same as channels 1-7 unless Guitar Shape is pressed. When ELECTRIC GUITAR PRE-SHAPE is on, the 1/4" input changes to a high impedance (1 MegΩ), like a 12AX7 vacuum tube guitar amplifier input.

21Electric Guitar Pre-Shape

Engaging this button optimizes the on board equalization for electric guitar.

DIRECT OUT

HI PASS

min GAIN max

PV14AT Front Panel (channels 9, 10, 11 and 12)

223.5mm STEREO INPUT

The 3.5mm input to channel 9/10 accepts a stereo input from the output of an MP3 player, CD player, tape deck or other similar device. This input is optimized for portable handheld devices and therefore has very high sensitivity.

23STEREO INPUTS

Channels 9 and 10 also feature 1/4" inputs. If only one jack is used, it behaves as a mono source with a pan control. When both jacks are connected, these connections serve as a stereo source with a balance control; 9 is Left and 10 is Right.

24USB MEDIA JACK

A-type USB connector that a removable data storage device can be connected to playback music

USB PLAYBACK:

First, slide the input selection switch (27) to the USB A position. The bottom of the LCD display will say “Insert USB drive”. Insert your USB drive into the USB Media Jack (24) at the top of channel 11/12. The Media Player will now enter "Folder Navigation Mode". In this mode, you can scroll through a list of all folders on the USB drive. Once you select

a folder, the Media Player will enter "Song Navigation Mode" which allows you to scroll

through a list of all songs contained in the selected folder. If there are no songs in the selected folder, the LCD will display "No Songs". To return to Folder Navigation Mode, scroll to the very beginning of the list and select the <FOLDERS> option.

Once a song is finished playing, the Media Player will automatically start playing the next song. Once the Media Player reaches the last song, it will automatically loop back to the beginning of the list.

25BLUETOOTH PAIRING BUTTON AND LED

The Bluetooth Pairing Button is used to turn on/off the Bluetooth. Once turned on, the Bluetooth will automatically enter pairing mode. You can pair any Bluetooth-enabled device with the mixer using the PIN 7878. The blue “Bluetooth Active LED” indicates the status of the Bluetooth connection. If the LED is off, the Bluetooth module is powered off. If the LED is slowly flashing, the PV mixer is not paired with any device, but is available for connection. When the LED is lit solid, the source device is properly paired to the mixer and ready to play.

To clear the paired device memory, make sure Bluetooth is on and press and hold the Bluetooth Pairing Button for 5 seconds. The PV mixer will ask if you would like to clear the Bluetooth memory. Select "Y" using the Media Select knob to clear the memory. The PV mixer will go through the process of clearing the memory, which should take approximately 15 seconds.

26RCA MEDIA INPUTS

The RCA inputs to channel 9/10 accept a stereo source such as an MP3 player, CD player, tape deck or other similar device. This input is optimized for portable handheld devices and therefore has very high sensitivity.

27DIGITAL SOURCE SELECTOR

This switch selects between USB A (24), USB B (69), and the internal Bluetooth receiver.

28MID CONTROL

Stereo channels' midrange is +/-20 dB @ 440Hz ; the HIGH (8) and LOW (10) controls are described above.

22			USB A
22
	3.5mm STEREO
	L	9
23
	R	10	PAIRING
	R	10
		9/10		11/12
L		R
26
			USB B
			USB A	Bluetooth
min GAIN max			min GAIN max
min HIGH max			min HIGH max
28
min	MID	max	min	MID max
min	LOW max		min	LOW max
min AUX max			min AUX max
ANALOG			DIGITAL
MEDIA CHANNEL			MEDIA CHANNEL
29
left		right	left	right
	BAL			BAL
CLIP	MUTE		CLIP	MUTE
CLIP			CLIP

SIGNAL 9/10 SIGNAL11/12

SOLO SOLO

9/10 11/12
