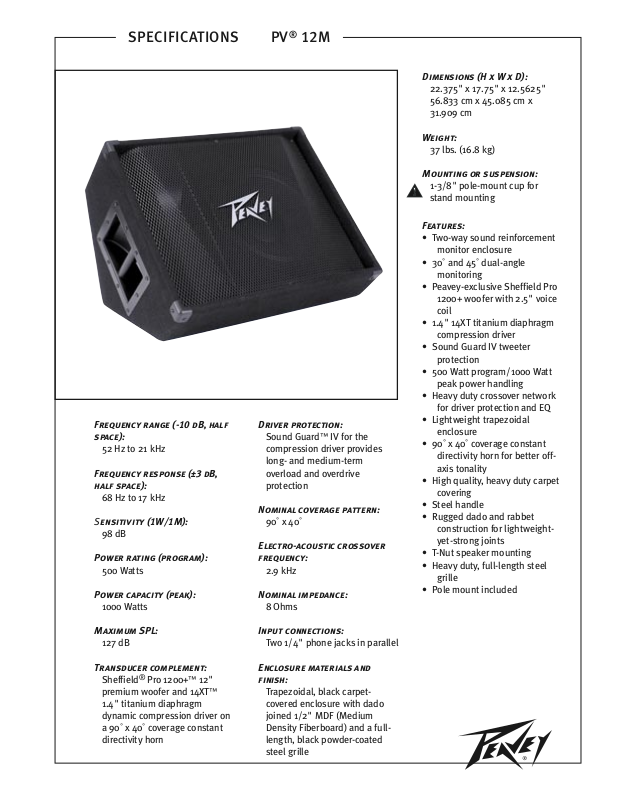

Peavey PV 12M DATASHEET

SPECIFICATIONS PV® 12M

Frequency range (-10 dB, half
space):

52 Hz to 21 kHz

Frequency response (±3 dB,
half space):

68 Hz to 17 kHz

Sensitivity (1W/1M):

98 dB

Power rating (program):

500 Watts

Power capacity (peak):

1000 Watts

Driver protection:

Sound Guard™ IV for the
compression driver provides
long- and medium-term
overload and overdrive
protection

Nominal coverage pattern:

90˚ x 40˚

Electro-acoustic crossover
frequency:

2.9 kHz

Nominal impedance:

8 Ohms

Dimensions (H x W x D):

22.375" x 17.75" x 12.5625"

56.833 cm x 45.085 cm x

31.909 cm

Weight:

37 lbs. (16.8 kg)

Mounting or suspension:

1-3/8" pole-mount cup for
stand mounting

Features:

• Two-way sound reinforcement
monitor enclosure

• 30˚ and 45˚ dual-angle
monitoring

• Peavey-exclusive Sheffield Pro
1200+ woofer with 2.5" voice
coil

• 1.4" 14XT titanium diaphragm
compression driver

• Sound Guard IV tweeter
protection

• 500 Watt program/1000 Watt
peak power handling

• Heavy duty crossover network
for driver protection and EQ

• Lightweight trapezoidal
enclosure

• 90˚ x 40˚ coverage constant
directivity horn for better off­axis tonality

• High quality, heavy duty carpet
covering

• Steel handle

• Rugged dado and rabbet
construction for lightweight­yet-strong joints

• T-Nut speaker mounting

• Heavy duty, full-length steel
grille

• Pole mount included

Maximum SPL:

127 dB

Transducer complement:

Sheffield® Pro 1200+™ 12"
premium woofer and 14XT™

1.4" titanium diaphragm
dynamic compression driver on
a 90˚ x 40˚ coverage constant
directivity horn

Input connections:

Two 1/4" phone jacks in parallel

Enclosure materials and
finish:

Trapezoidal, black carpet­covered enclosure with dado
joined 1/2" MDF (Medium
Density Fiberboard) and a full­length, black powder-coated
steel grille

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

60

70

80

90

100

11

0

dB SPL (re 20

Pa)

Amplitude Response (1W 1m On-Axis)

Figure 1

SPECIFICATIONS PV®12M

Description

The PV 12M is a two-way floor
monitor utilizing a 12" Sheffield®
Pro 1200+™ woofer and a 14XT™
titanium diaphragm dynamic
compression driver mounted on
a 90˚ x 40˚ coverage constant
directivity horn. This lightweight­yet-rugged, carpet-covered
monitor enclosure with stand­mount cup facilitates portable use
a stage monitor or other sound
reinforcement applications.

The dual-angle enclosure provides
a choice of 30˚ and 45˚ monitoring
angles for full monitoring utility.
A full-length, black powder­coated steel grille provides driver
protection and a professional
appearance.

The PV 12M speaker system is
rated at 500 Watts program power
handling, and the full crossover
network includes high voltage film
capacitors and Sound Guard™ IV

tweeter protection for clear, punchy
sound and excellent long-term
reliability. Two 1/4" phone jack
input connectors make hook-up and
daisy-chaining to other monitors a
breeze.

3 + 2 YEAR LIMITED WARRANTY

NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.

Features and specifications subject to change without notice.
