Peavey PV 115 Specifications

DDeessccrriippttiioonn

The PV 115 is a two-way speaker
system based on a 15" heavy duty
woofer and an RX14

™

titanium
diaphragm dynamic compression
driver mounted on a 60˚ x 40˚
coverage constant-directivity horn. The
lightweight-yet-rugged, carpet-covered
trapezoidal enclosure with stand­mount cup facilitates portable use for
live music or speech sound
reinforcement, as well as music
playback. A full-length, black powder­coated steel grille provides driver
protection and a professional
appearance.

The PV 115 speaker system is
rated at 400 Watts program power
handling, and the full crossover
network includes tweeter protection
for clear, punchy sound and excellent
long-term reliability. Two 1/4" phone
jack input connectors make hook-up a
breeze.

• Two-way sound reinforcement
enclosure

• Peavey exclusive, heavy duty
woofers with 2.375" voice coil

• RX14 titanium diaphragm
compression driver with a 1.4"
titanium diaphragm

• Tweeter protection

• 400 Watts program/800 Watts
peak power handling

• Heavy duty crossover network for
driver protection and EQ

• Lightweight trapezoidal
enclosure

• 60˚ x 40˚ coverage constant­directivity horn for better off-axis
tonality

• High quality, heavy duty carpet
covering

• Steel handles

• Steel corners

• Rugged dado and rabbet
construction for lightweight-but­strong joinery

• T-Nut speaker mounting

• Heavy duty, full-length steel grille

• Pole mount

FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff ssppaaccee))::

46 Hz to 21 kHz

FFrreeqquueennccyy rreessppoonnssee ((±± 33 ddBB,, hhaallff
ssppaaccee))::

66 Hz to 17 kHz

SSeennssiittiivviittyy ((11ww//11mm))::

95 dB

PPoowweerr rraattiinngg ((pprrooggrraamm))::

400 Watts

PPeeaakk ppoowweerr ccaappaacciittyy ((ppeeaakk))::

800 Watts

MMaaxxiimmuumm SSPPLL::

118 dB

TTrraannssdduucceerr ccoommpplleemmeenntt::

Peavey heavy duty 15" premium
woofer, RX14 1.4" titanium
diaphragm dynamic compression
driver on a 60˚ x 40˚ coverage
constant directivity horn

DDrriivveerr pprrootteeccttiioonn::

Positive temperature coefficient
resistor

NNoommiinnaall ccoovveerraaggee ppaatttteerrnn::

60˚ x 40˚

EElleeccttrroo--aaccoouussttiicc ccrroossssoovveerr ffrreeqquueennccyy::

2.8 kHz

NNoommiinnaall iimmppeeddaannccee::

8 Ohms

IInnppuutt ccoonnnneeccttiioonnss::

Two 1/4" phone jacks in parallel

EEnncclloossuurree mmaatteerriiaallss && ffiinniisshh::

Trapezoidal, black carpet-covered
enclosure with dado-joined 1/2"
MDF (Medium Density Fiberboard)
and a full-length, black powder­coated steel grille

DDiimmeennssiioonnss ((HH xx WW xx DD))::

FFrroonntt::

31.75" x 18.38" x 14.25"

80.06 cm x 46.7 cm x 36.2 cm

RReeaarr::

31.75" x 11.25" x 14.25"

80.06 cm x 28.6 cm x 36.2 cm

WWeeiigghhtt::

53 lbs. (24.1 kg)

MMoouunnttiinngg oorr ssuussppeennssiioonn::

1-3/8" pole-mount cup for stand
mounting

33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY NNOOTTEE::
For details, refer to the warranty
statement. Copies of this statement
may be obtained by contacting Peavey
Electronics Corporation, P.O. Box 2898,
Meridian, MS 39301-2898.

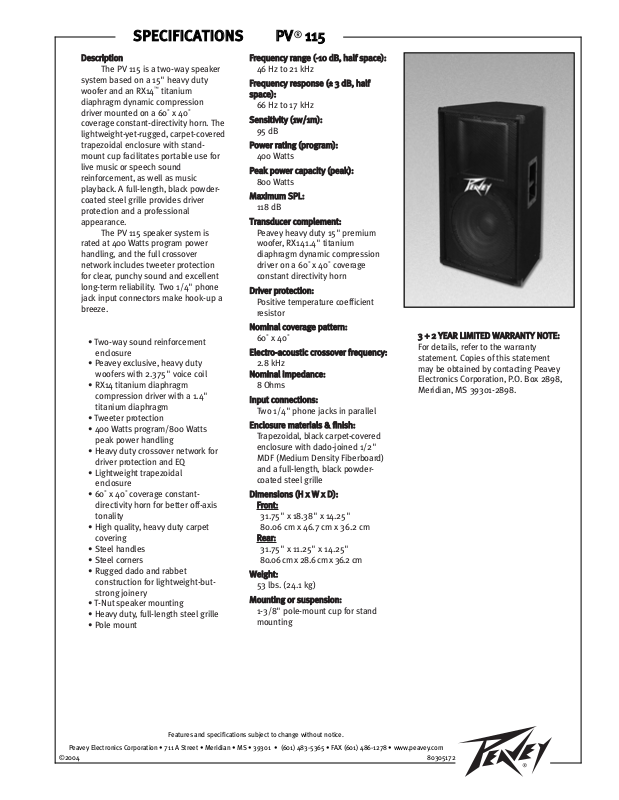

SSPPEECCIIFFIICCAATTIIOONNSS PPVV®111155

Features and specifications subject to change without notice.
