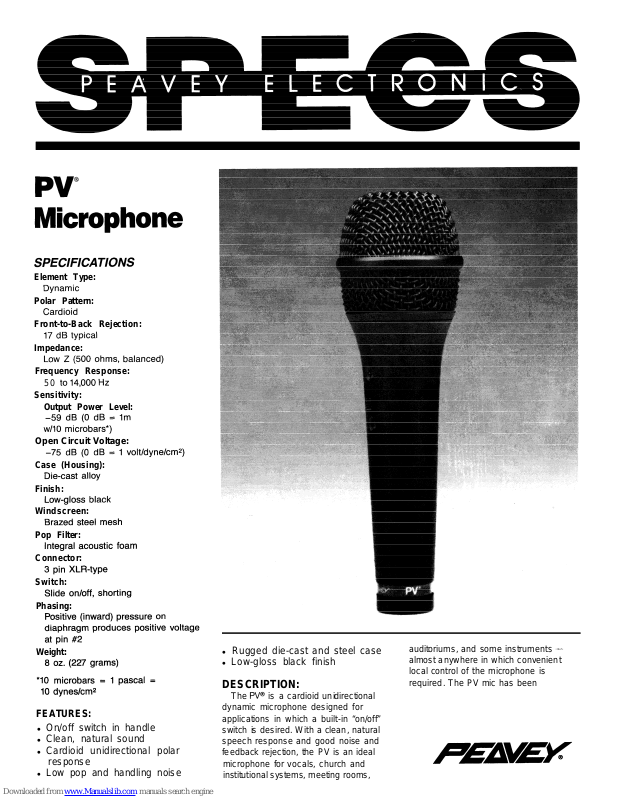

Page 1
PV
@
Microphone
SPEClFlCATIO/VS
Element Type:
Dynamic
Polar Pattern:
Cardioid
Front-to-Back Rejection:
17 dB
typical
Impedance:
Low Z (500 ohms,
balanced)
Frequency Response:
50 to
14,000 Hz
Sensitivity:
Output Power Level:
-59 dB (0 dB = Im
w/IO
microbars*)
Open Circuit Voltage:
-75 dB (0 dB = 1 volt/dyne/cm2)
Case (Housing):
Die-cast alloy
Finish:
Low-gloss
black
Windscreen:
Brazed
steel
mesh
Pop Filter:
Integral acoustic
foam
Connector:
3 pin
XLR-type
Switch:
Slide
on/off,
shorting
Phasing:
Positive
(inward)
pressure
on
diaphragm produces positive voltage
at pin #2
Weight:
8 oz. (227
grams)
*IO
microbars = 1
Pascal =
10 dynes/cm2
FEATURES:
l On/off switch in handle
l Clean, natural sound
l Cardioid unidirectional polar
response
l Low pop and handling noise
l Rugged die-cast and steel case
l Low-gloss black finish
DESCRIPTION:
The
PV@
is a cardioid unidirectional
auditoriums, and some instruments
-
almost anywhere in which convenient
local control of the microphone is
required. The PV mic has been
dynamic microphone designed for
applications in which a built-in “on/off”
switch is desired. With a clean, natural
speech response and good noise and
feedback rejection, the PV is an ideal
microphone for vocals, church and
institutional systems, meeting rooms,
Page 2
re-fashioned to make it attractive in any
setting. An integral acoustic foam pop
and wind filter provides effective control
of plosive sounds and moderate wind.
The internal shock-mounting system
minimizes handling and stand noise.
The PV is a rugged, reliable
microphone well-suited for rental
systems, convention centers and similar
rough usage applications. The PV mic
gives the look, feel, and performance of
expensive professional microphones at
a fraction of the price. Also available
in Hi
Z.
NOTE: The switch mutes the
microphone by directly shorting across
the dynamic element. Microphones with
this type of switching should not be
used if more than one microphone is
connected to the same input, since the
“off” function on one microphone will
also short any other unit connected to
that input. If this type of operation is
required, the use of a transformer-type
microphone combiner is suggested.
(Another possible alternative is to rewire
the PV so that the switch is used to
open one side of the line for
(‘off.“)
For high impedance
mics,
cable lengths
of 25’ or more and input impedance
not less than 20 kilohms are not
recommended due to loss of signal
quality.
ARCHITECTURAL
SPECIFICATIONS
The microphone shall be a moving
coil dynamic type with a frequency
response of 50 Hz to 14
kHz.
The
microphone shall have a cardioid polar
characteristic with a rear response that
is 15 to 20 dB down.
The microphone shall include a
handle-mounted “on/off” switch slide
type with positive action which
short-
circuits the microphone output. The
microphone shall have non-reflecting,
low-gloss paint on a die-cast alloy
housing and a brazed metal screen.
The connector shall be a
3-pin
XLR
equivalent audio type. The microphone
shall have overall dimensions of
6V2”
in
length and
13/4”
in diameter. The
microphone shall be a Peavey
Electronics model PV or equivalent. This
microphone will also have a high
impedance model that shall be the
PV Hi
Z.
50
100
200
500 1 k 2 k
5k
lok
20 k
Figure 1. Frequency Response
50 100
200 500
1
k
I I I I
1
Figure 2. Proximity Effect
Proximity effect is a naturally
occurring phenomenon in
unidirectional microphones. The
effect is to accentuate or boost the
low frequency response. This
effect is a function of distance
from the diaphragm to the source
and increases as the diaphragm is
moved closer to the source.
50
100
200
500 1 k 2 k
5k
10k
20 k
Figure
3.0”
and
180”
Response
Page 3

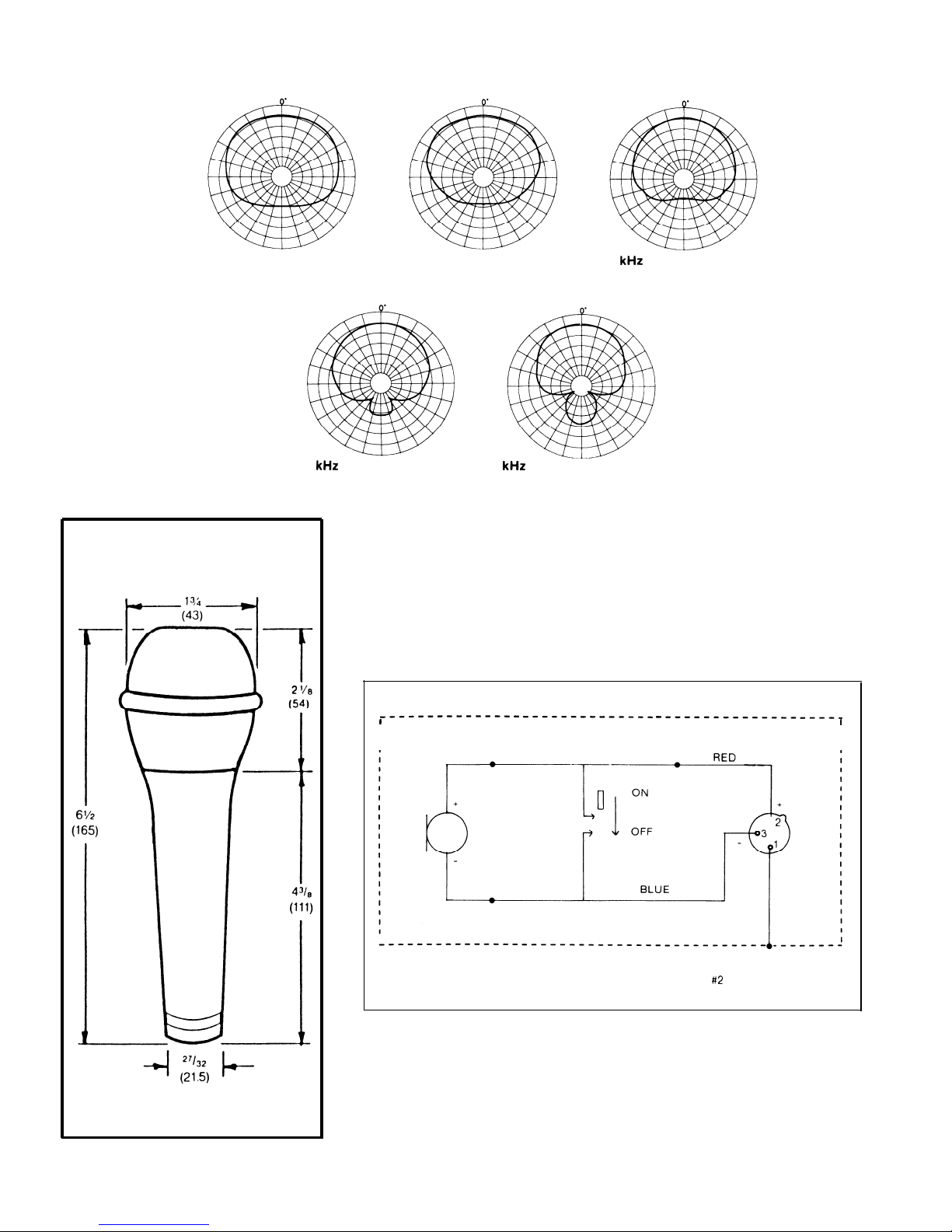

Figure 4. Polar Patterns
200 Hz
500 Hz
1
kHz
5
kHz
10
kHz
DIMENSIONS
INCHES
(MILLIMETERS)
WIRING DIAGRAM
__---------------------------
--------------------
I
I
POSITIVE (INWARD) PRESSURE ON DIAPHRAGM
PRODUCES POSITIVE VOLTAGE AT PIN
#2
Page 4
PEAVEY ELECTRONICS CORPORATION
(“Peavey”) warrants this microphone to the
original retail purchaser to be free from defects
in material and workmanship for a period of
one (1) year from date of purchase; provided,
however, that the existence of this limited
warranty is subject to the conditions,
exclusions and limitations hereinafter set forth.
In case of a covered defect in material or
workmanship, Peavey will repair or replace the
microphone, at Peavey’s option, provided that
consumer:
(a) brings the defective microphone to any
Peavey Authorized Dealer or Service Center
and presents therewith a copy of the sales
receipt or other proof of purchase. If the
DEALER or SERVICE CENTER is unable to
provide the necessary warranty service, the
consumer will be directed to the nearest other
PEAVEY AUTHORIZED DEALER or SERVICE
CENTER which can provide such service; or
(b) returns the defective microphone,
shipping charges prepaid, to Peavey
Electronics Corporation, 711 A Street,
Meridian, Mississippi, and includes therewith a
written description of the problem, a copy of
the sales receipt or other proof of purchase
and consumer’s complete return address.
If the defect is remedial under this limited
warranty and the other terms and conditions
expressed herein have been complied with,
Peavey will provide the necessary warranty
service to repair or replace the microphone
and will return it, freight collect, to the
consumer.
Under no circumstances will Peavey be
liable for any lost profits, lost savings or other
consequential or incidental damages arising
out of the use or inability to use the product,
even if Peavey had been advised of the
possibility of such damages.
THIS LIMITED WARRANTY IS IN LIEU OF
ANY AND ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
PARTICULAR USE; provided, however, that
upon compliance with the other terms and
conditions necessary to the existence of the
express limited warranty, such implied
warranties are not disclaimed during the
applicable one year period from date of
purchase of this product.
SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU. THIS LIMITED
WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH MAY VARY FROM STATE TO
STATE.
In the event any modification or disclaimer
of express or implied warranties or any
limitation of remedies contained herein
conflicts with applicable law, then such
modification, disclaimer or limitation as the l
case may be, shall be deemed to be modified
to the extent necessary to comply with such
law.
Peavey Electronics Corporation gives this
limited warranty only with respect to Peavey
microphones purchased in the United States of
America. This limited warranty shall be void
and of no effect if:
(a) first purchase of the product is for the
purpose of resale; or
(b) the original retail purchase is not made
from an AUTHORIZED PEAVEY DEALER; or
(c) the product has been damaged by
accident or unreasonable use, neglect,
improper service or maintenance, or other
causes not arising out of defects in material or
workmanship.
Features and specifications subject to change without notice.
Peavey Electronics Corporation 711 A Street / Meridian, MS 39301 / U.S.A. / (601)483-5365 / Telex 504115 / Fax 486-l 278
01992
#I80301
917
Printed in U.S.A.
12/92
