Introduction 1-1
INTRODUCTION
This User Manual contains information about using the KU008
Keyboard with your Monarch 9416 printer. For information about
supply loading or care and maintenance, refer to the printer’s Equipment
Manual on our Web site (www.paxar.com).
Note: Information in this document supercedes information in previous
versions. Refer to our Web site for any updates.
This manual includes information about
♦ unpacking the components.
♦ connecting the cables.
♦ using the keyboard.
♦ setting up the printer.
♦ printing labels.
Overview
The keyboard may contain five preset formats.
♦ Format 1 (1.2” width x 1.1” length)
♦ Format 2 (1.2” width x 1.1” length)
♦ Format 3 (1.2” width x 1.1” length)
♦ Format 4 (1.5” width x 2.7” length)
♦ Format 5 (1.5” width x 2.7” length)
1
Page 6
1-2 User Manual
Unpacking the Kit Components
After you unpack the kit, you should have the keyboard (part number
126364), the printer with a power supply, power cord, and external supply
holder (part number 126894). Look through all packaging material for
parts. Keep the box and packaging material in case an item ever needs
repair.
Connecting the Cable
1. Turn off the printer. Press the switch on the back of the printer to the
OFF position (O).
2. Connect the keyboard’s serial cable to the printer.
3. Plug the round end of the power supply cable into the printer.
4. Turn on the printer. The keyboard receives power from the printer.
Page 7
Introduction 1-3
Using the Keyboard
The keyboard has full alphabetic keys with numeric keys, function keys,
four arrow keys, and several special keys.
Page 8
1-4 User Manual
Control Keys Description
Exit
Returns the display to the next higher
menu.
Enter
Selects the displayed menu item or
accepts entered data.
Form
Displays the list of available formats.
or
Right Arrow
Down Arrow
Displays the next menu item.
or
Left Arrow
Up Arrow
Displays the previous menu item.
Backspace
Moves the cursor one space to the
left. Located next to the spacebar.
Clear
Clears all entered data.
Alt F1
Displays the communication setup
menu.
Page 9
Setting up the printer 2-1
SETTING UP THE PRINTER
This chapter describes how to
♦ set the supply type
♦ set the feed mode
♦ set the ribbon
♦ save the configuration.
Main Menu
Option Choices Default
Supply Type Black Mark/Die Cut Black Mark
Feed Mode No Peel/Peel No Peel
Ribbon No Ribbon/Ribbon No Ribbon
When you turn on the printer, the keyboard briefly displays
PAXAR 9416CT KIT
COPYRIGHT 2006 PAXAR
Then, you see
FORMAT 1
1. Press or until you see
PRINTER SETUP
2
Format 1-5
Printer
Setup
Supply
Type
Feed
Mode
Ribbon
Send CFG
to Printer
Return to
Main Menu
A
bout
Page 10
2-2 User Manual
2. Press Enter. You see
PRINTER MENU
SUPPLY TYPE
3. Press or to move through the Printer Setup menu.
Setting the Supply Type
The printer has a black mark/die cut sensor, which it uses to properly
calibrate supplies. Black mark supply has sense marks (black marks) on
the back of them. Die cut supply does not have any black marks.
1. From the Printer Setup menu, press or until you see
SUPPLY TYPE
2. Press Enter. You see
PRINTER SUPPLY MENU
BLACK MARK BM
3. Press or to select the supply type you are using, then press
Enter. The current setting is displayed on the right. The default is
Black Mark.
4. Press or until you see
RETURN TO PRINTER MENU
5. Press Enter.
Page 11
Setting up the printer 2-3
Setting the Feed Mode
There are two feed modes: peel and no peel (continuous). Peel mode
separates the backing paper from the label. No peel (continuous) mode
prints labels in a continuous strip.
1. From the Printer Setup menu, press or until you see
FEED MODE
2. Press Enter. You see
SUPPLY FEED MODE
NO PEEL NPL
3. Press or to select the mode you need, then press Enter. The
current setting is displayed on the right. The default is No Peel.
4. Press or until you see
RETURN TO PRINTER MENU
5. Press Enter.
Page 12
2-4 User Manual
Setting the Ribbon
Thermal direct supplies do not require a ribbon. Thermal Transfer
supplies do require a ribbon.
1. From the Printer Setup menu, press or until you see
RIBBON
2. Press Enter. You see
RIBBON MENU
NO RIBBON NRB
3. Press or to select the option you need, then press Enter. The
current setting is displayed on the right. The default is No Ribbon.
4. Press or until you see
RETURN TO PRINTER MENU
5. Press Enter.
Page 13
Setting up the printer 2-5
Sending the Configuration
When you change the printer’s configuration, you must send the new
settings to the printer or it uses the default settings of Black Mark, No
Peel, and No Ribbon.
1. From the Printer Setup menu, press or until you see
SEND CFG TO PRINTER
2. Press Enter. The new configuration settings appear.
For example:
PRINTER CONFIGURATION
BM NPL NRB SEND Y/N?
Where BM is Black Mark, NPL is No Peel, and NRB is No Ribbon.
3. Select Yes to send the new configuration to the printer.
Select No to return to the default settings.
4. Press Enter.
5. When you are done, select Return to Main Menu and press Enter.
Page 14
2-6 User Manual
Page 15
Printing Labels 3-1
PRINTING LABELS
This chapter describes printer setup and the data entry procedures
for each format.
Note: If you make a mistake entering data, press
to backspace one character, or press Clear to
erase all entered data.
To start printing formats:
When you turn on the printer, the keyboard briefly displays
PAXAR 9416CT KIT
COPYRIGHT 2006 PAXAR
Then, you see
FORMAT 1
1. Press or to select the format you need.
2. Press Enter.
3. See the following Format descriptions to enter the data.
Note: You may need to press Form to see the list of available formats.
3
Page 16
3-2 User Manual
Format 1
1. Load 1.2” width x 1.1” length supply.
2. Enter the data as prompted:
Prompt What You Do
LINE 1
Enter up to ten characters. Press Enter.
LINE 2
Enter up to ten characters. Press Enter.
LINE 3
Enter up to ten characters. Press Enter.
LINE 4
Enter up to ten characters. Press Enter.
PRINT QTY
Enter up to three numeric digits. Press Enter.
Format 2
1. Load 1.2” width x 1.1” length supply.
2. Enter the data as prompted:
Prompt What You Do
UPCA Barcode
Enter up to 12 numeric digits. Press Enter.
PRINT QTY
Enter up to three numeric digits. Press Enter.
UPCA Barcode
Line 1
Line 2
Line 3
Line 4
Page 17
Printing Labels 3-3

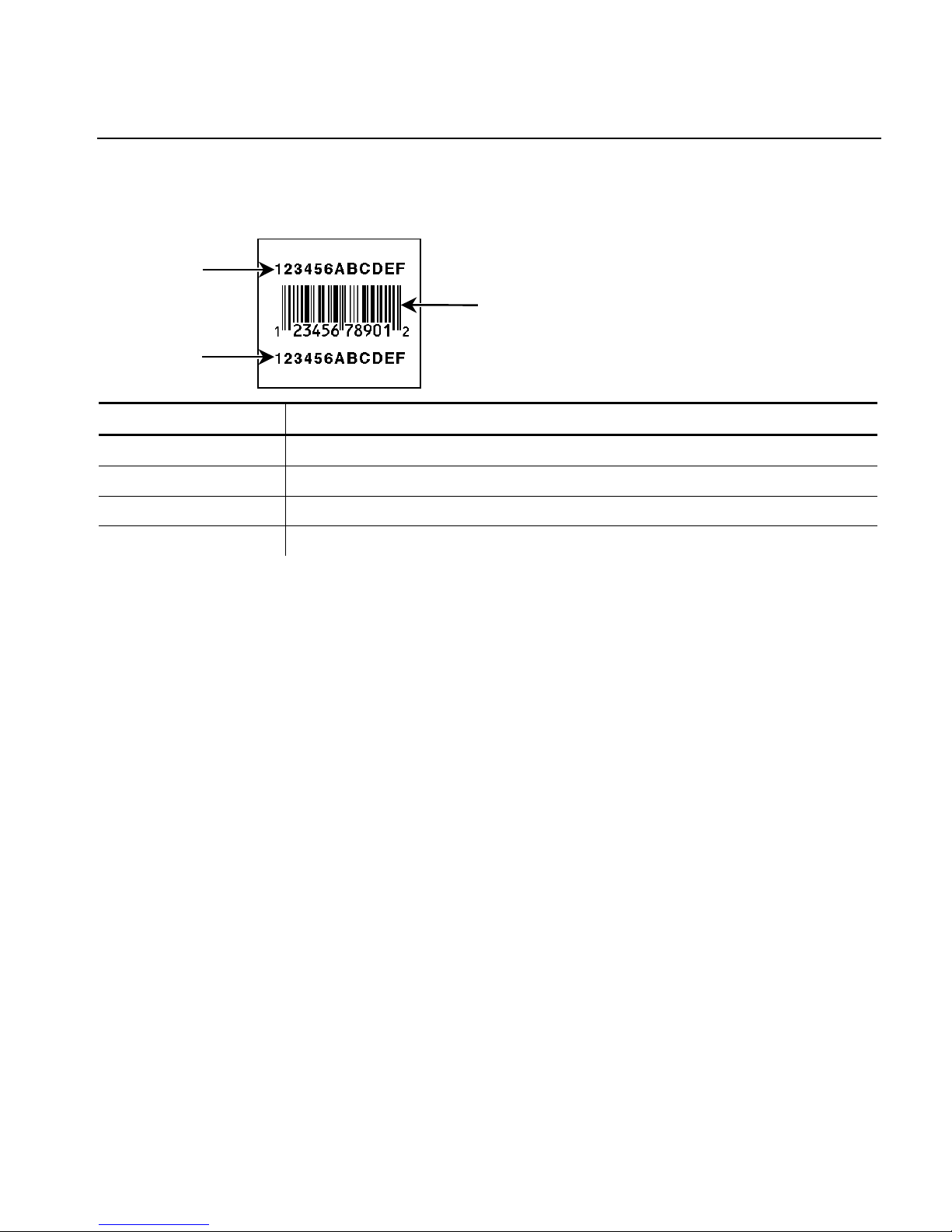

Format 3
1. Load 1.2” width x 1.1” length supply.
2. Enter the data as prompted:
Prompt What You Do
LINE 1
Enter up to 12 characters. Press Enter.
UPCA Barcode
Enter up to 12 numeric digits. Press Enter.
LINE 2
Enter up to 12 characters. Press Enter.
PRINT QTY
Enter up to three numeric digits. Press Enter.
UPCA Barcode
Line 1
Line 2
Page 18
3-4 User Manual

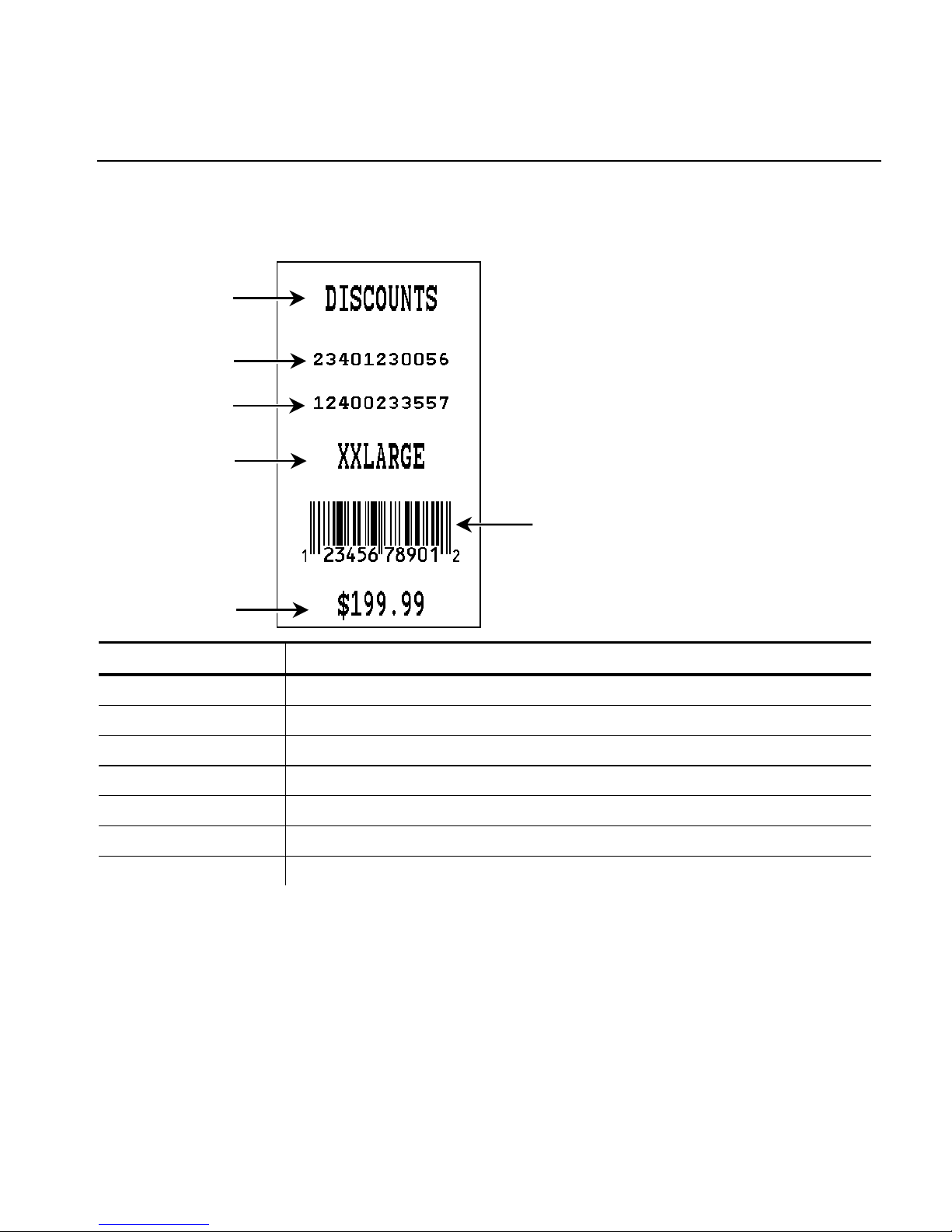

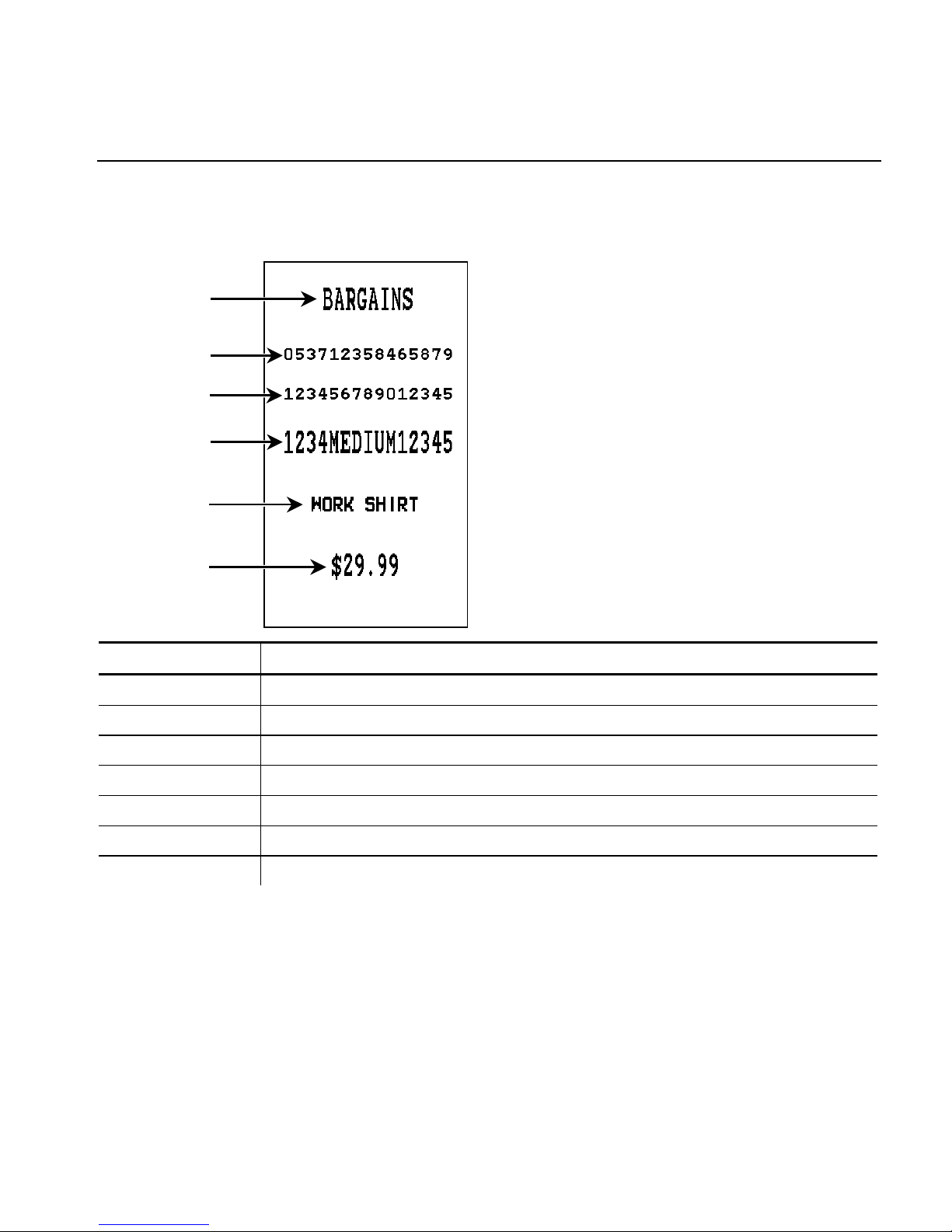

Format 4
1. Load 1.5” width x 2.7” length supply.
2. Enter the data as prompted:
Prompt What You Do
LINE 1
Enter up to 15 characters. Press Enter.
LINE 2
Enter up to 15 characters. Press Enter.
LINE 3
Enter up to 15 characters. Press Enter.
LINE 4
Enter up to 15 characters. Press Enter.
UPC BARCODE
Enter up to 12 numeric digits. Press Enter.
LINE 5
Enter up to 15 characters. Press Enter.
PRINT QTY
Enter up to three numeric digits. Press Enter.
Note: The price field is already formatted with the dollar sign and
decimal point. To enter a price of $19.45, press the 1 9 4 and 5
keys.
UPC Barcode
Line 1
Line 2
Line 4
Line 3
Line 5
Page 19
Printing Labels 3-5
Format 5
1. Load 1.5” width x 2.7” length supply.
2. Enter the data as prompted:
Prompt What You Do
LINE 1
Enter up to 15 characters. Press Enter.
LINE 2
Enter up to 15 characters. Press Enter.
LINE 3
Enter up to 15 characters. Press Enter.
LINE 4
Enter up to 15 characters. Press Enter.
LINE 5
Enter up to 15 characters. Press Enter.
LINE 6
Enter up to 15 characters. Press Enter.
PRINT QTY
Enter up to three numeric digits. Press Enter.
Note: The price field is already formatted with the dollar sign and
decimal point. To enter a price of $19.45, press the 1 9 4 and 5
keys.
Line 1
Line 2
Line 4
Line 3
Line 5
Line 6
Page 20
3-6 User Manual
Using the About Menu
To display version or copyright information, press Form. Press or
until you see “About.” Press Enter.
You can also display version or copyright information by pressing Exit
when you see the first prompt in any format.
Page 21
Troubleshooting 4-1
TROUBLESHOOTING
Problem Action
The keyboard display is
blank.
Make sure the printer is on and the keyboard
cable is securely attached to the printer. If the
keyboard was attached while the printer was
on, turn OFF the printer and then turn it back
ON.
You tried to skip a
required field.
This field requires data before continuing to
the next field. Enter data and press ENTER.
Letters are not in the
expected case.
Make sure the caps lock is not on.
Label data does not
print as expected.
Certain fields require only numeric data. Make
sure you enter the correct data.
4
Page 22
4-2 User Manual
Page 23
Page 24
Loading...
