Partlow 1161+, 1801+, 1401 Data Sheet
Partlow 1161+, 1801+ & 1401 Limit control
High or Low Trip Points
5 Amp Latching Limit Relay
Remote Reset Option
Exceed & Relay Indicators
Jumperless Configuration
Auto Detected Hardware
Modbus & ASCII Comms
Two Annunciators or Alarms
Available in 1/16, 1/8 & 1/4 DIN Formats
The Partlow range of 1161+, 1801+ and 1401+ have a programmable safety cut out with optional outputs for
annunciators and alarms. A latched relay cuts power to your process if safe values are exceeded. These units
must be reset before the process can continue. They have the improved Plus Series hardware and user interface
for optimal ease of use.
FM
Specification
Features
Output Configuration Up to 3 possible, for latching trip relays, alarm/annuncator relays, 24VDC transmitter power supply or
Alarm 1 & 2 Types Process high, process low, Limit SP deviation, band, logical OR alarms or trip annunciator. Alarms
Output Reset Action Limit output can be reset only when exceed condition is absent. Local or remote reset options.
Annunciator Reset Action Annunciator output can be reset at any time. Local or remote reset options.
Human Interface 4 button operation, dual 4 digit 10mm & 8mm (6700+ & 8700+), 13mm & 10mm (4700+) high LED
PC Configuration Off-line configuration from PC serial port to dedicated config socket (comms option not required).
retransmit of process value or limit trip setpoint
have fully adjustable hysteresis.
displays, optional choice of colours (Red/Red, Red/Green, Green/Red or Green/Green), plus 4 LED
indicators
Configuration Software for Windows 98 or higher. West Part Number: PS1-CON
Input
Thermocouple J, K, C, R, S, T, B, L, N & PtRh20%vsPtRh40%.
RTD 3 Wire PT100, 50Ω per lead maximum (balanced)
DC Linear 0 to 20mA, 4 to 20mA, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V, 0 to 10V, 2 to 10V.
Impedance >10MΩ for Thermocouple and mV ranges, 47KΩ for V ranges and 5Ω for mA ranges
Accuracy ±0.1% of input range ±1 LSD (T/C CJC better than 1°C)
Sampling 4 per second, 14 bit resolution approximately
Sensor Break Detection <2 secs (except zero based DC ranges), Limit trip and annunciators activate. High alarms activate
Scaleable -1999 to 9999, with adjustable decimal point
for Temperature and mV ranges, low alarms activate for, mA or V ranges

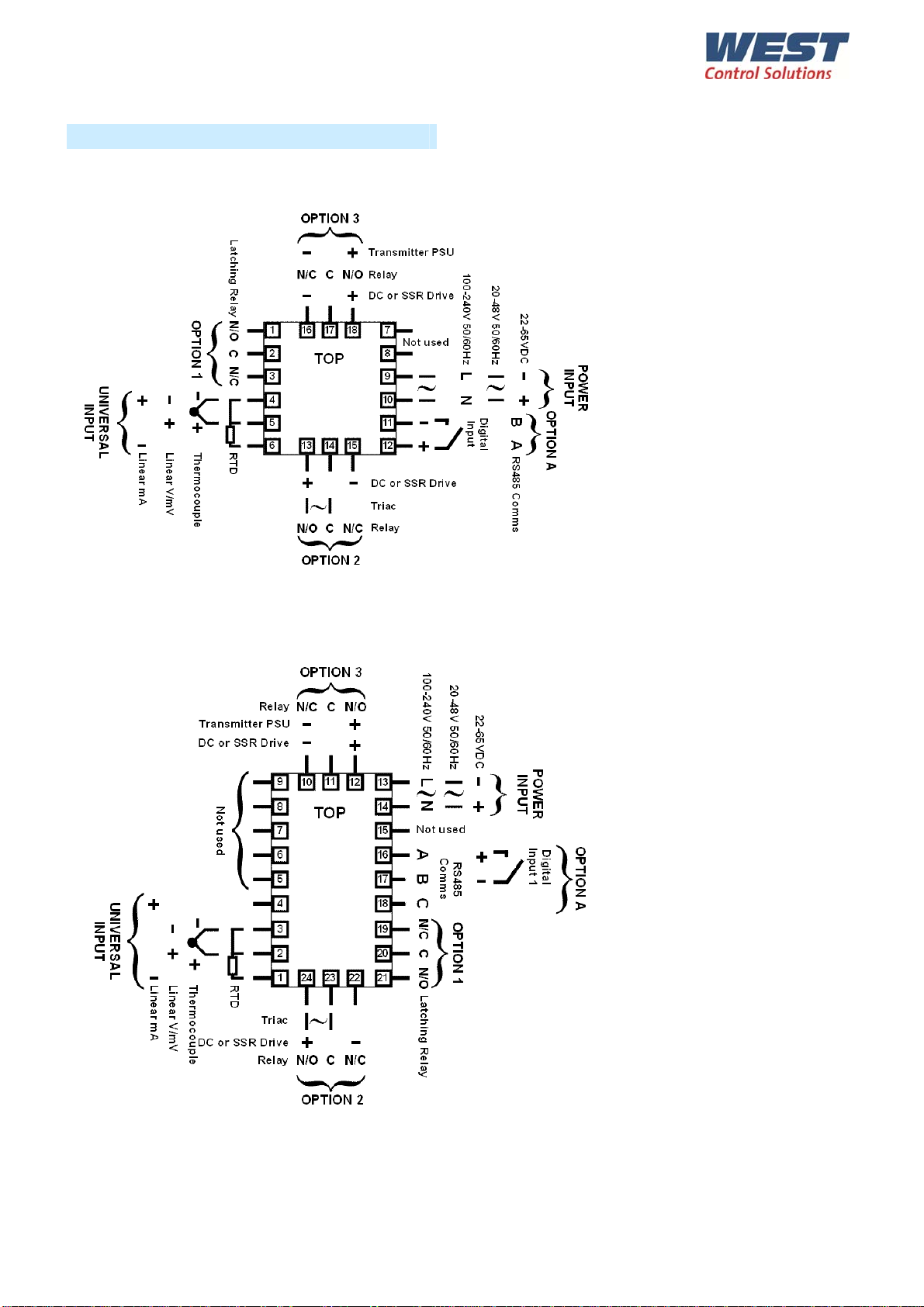

Output & Options
Limit Trip Relay Outputs Latching SPDT, contacts 5Amp resistive at 240V AC, >100,000 operations
Alarm Relay Outputs Non-latching SPDT, contacts 2Amp resistive at 240V AC, >500,000 operations
SSR Driver Alarm Outputs
Triac Alarm Outputs 0.01 to 1 Amp AC, 20 to 280Vrms, 47 to 63Hz
DC Linear Retransmit Outputs 0 to 20mA, 4 to 20mA into 500Ω max, 0 to 10V, 2 to 10V, 0 to 5V into 500Ω min.
Transmitter Power Supply Output 24VDC (nominal) into 910Ω minimum to power external devices
Communications 2 Wire RS485, 1200 to 19200 Baud, Modbus and ASCII protocol (selectable)
Digital Input Volt free or TTL input. -0.6 to 0.8V or contact closure resets latched relays and annunciators
Drive capability >10V DC in 500 minimum
Accuracy ±0.25% at 250Ω (degrades linearly to 0.5% for increasing burden to specified limits)
Ref DS-Px700-1209-1-EN
© West Control Solutions 2009
45
Operating & Environment
Temperature & RH 0 to 55°C (-20 to 80°C storage), 20% to 95% RH non-condensing
Power Supply 100 to 240V ±10% at 50/60Hz 7.5VA, (optional 20 to 48V AC 7.5VA/22 to 65V DC 5 watts)
Front Panel Protection IEC IP66 (Behind panel protection is IP20)
Standards FM, CE, UL & ULC recognised
Dimensions
1161+
10mm (approx)
Cut-out
48mm
110mm 48mm
x 45mm
+0.5 –0.0
45 x 45mm
+0.5 –0.0
1801+
48mm
100mm
Cut-out
45mm +0.5
10mm (approx)
96mm
92mm +0.5
1401+
96mm
100mm
Cut-out
92mm +0.5
96mm
92mm +0.5
Ref DS-Px700-1209-1-EN
© West Control Solutions 2009
