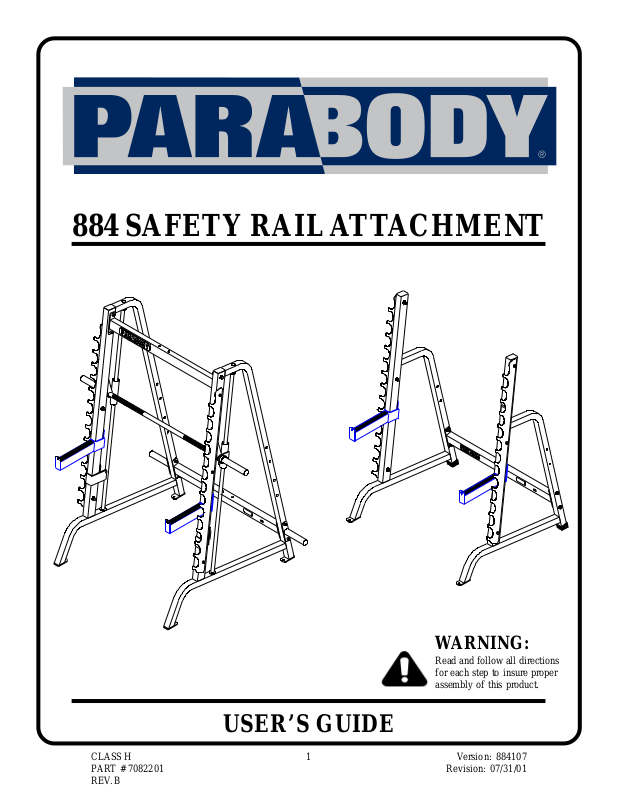

ParaBody 884 User Manual
884 SAFETY RAIL ATTACHMENT
CLASS H
PART # 7082201
REV . B
USER’S GUIDE
1
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 884107
Revision: 07/31/01
j
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................2
Parts list...........................3
Assembly Instructions..... 3-5
General Maintenance.......6
W arranty Statement..........7
Product Services..............8
Insert-Registration Card
IMPORTANT SAFETY INFORMATION
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT NOTES
Please note:
* Thank you for purchasing the ParaBody 884 Safety Rail Attachment. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
©
www.parabody.com
2
PARTS LIST
2
KEY
1
2
3
4
PART #
6807602
6807702
6824601
6811701
DESCRIPTION
LEFT SAFTEY RAIL
RIGHT SAFETY RAIL
3-1/4 X 1-3/4” GLIDE
13-1/2 X 1-5/8” RUBBER STRIP
QTY
1
1
6
2
3
1
FIGURE 1
STEP 1:
• Attach six 3-1/4 X 1-3/4” GLIDES (3) to the LEFT & RIGHT SAFETY RAILS (1 & 2) as shown in FIGURE 1, using the
following steps:
• Thoroughly clean all surfaces where the 3-1/4 X 1-3/4” GLIDES (3) are to be attached.
• Remove the 3-1/4 X 1-3/4” GLIDES (3) from the paper backing and firmly apply them to all shown surfaces.
