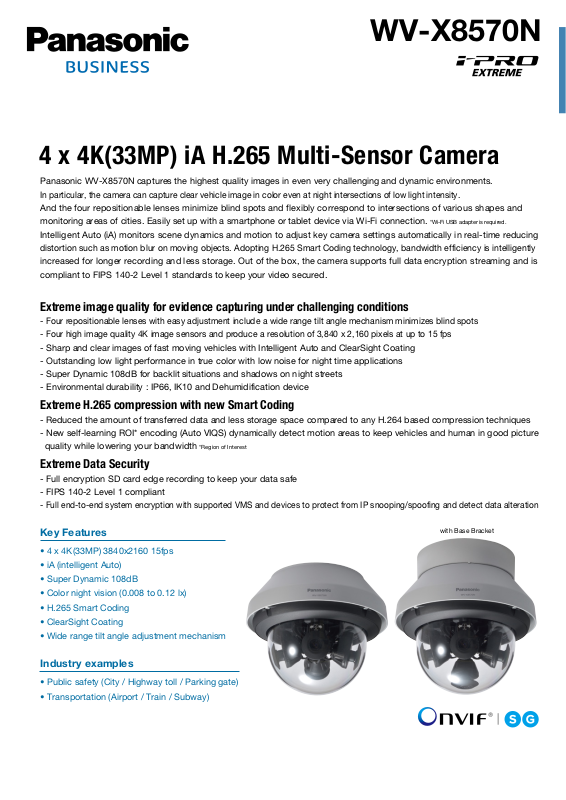

Panasonic WV-X8570N Specsheet

WV-X8570N

4 x 4K(33MP) iA H.265 Multi-Sensor Camera

Panasonic WV-X8570N captures the highest quality images in even very challenging and dynamic environments.

In particular, the camera can capture clear vehicle image in color even at night intersections of low light intensity.

And the four repositionable lenses minimize blind spots and flexibly correspond to intersections of various shapes and

monitoring areas of cities. Easily set up with a smartphone or tablet device via Wi-Fi connection.

Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing

distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently

increased for longer recording and less storage. Out of the box, the camera supports full data encryption streaming and is

compliant to FIPS 140-2 Level 1 standards to keep your video secured.

Extreme image quality for evidence capturing under challenging conditions

- Four repositionable lenses with easy adjustment include a wide range tilt angle mechanism minimizes blind spots

- Four high image quality 4K image sensors and produce a resolution of 3,840 x 2,160 pixels at up to 15 fps

- Sharp and clear images of fast moving vehicles with Intelligent Auto and ClearSight Coating

- Outstanding low light performance in true color with low noise for night time applications

- Super Dynamic 108dB for backlit situations and shadows on night streets

- Environmental durability : IP66, IK10 and Dehumidification device

*Wi-Fi USB adapter is required.

Extreme H.265 compression with new Smart Coding

- Reduced the amount of transferred data and less storage space compared to any H.264 based compression techniques

- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture

quality while lowering your bandwidth

*Region of Interest

Extreme Data Security

- Full encryption SD card edge recording to keep your data safe

- FIPS 140-2 Level 1 compliant

- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration

Key Features

• 4 x 4K(33MP) 3840x2160 15fps

• iA (intelligent Auto)

• Super Dynamic 108dB

• Color night vision (0.008 to 0.12 lx)

• H.265 Smart Coding

• ClearSight Coating

• Wide range tilt angle adjustment mechanism

Industry examples

with Base Bracket

• Public safety (City / Highway toll / Parking gate)

• Transportation (Airport / Train / Subway)

4 x True 4K high resolution

• Can identify vehicles 100 feet diagonal

from intersection corners at

three lane streets

Combining H.265 compression with Smart Coding technology

• In spite of the high resolution of 4 × 4 K, it achieved the bit rate lower than the bit rate of one 4K camera of H.264.

Resolution

Bit rate*

* “H.265 with Smart Coding” provides

max.95% reduction in total le size

when compared to “H.264 without

Smart Coding” but it depends on

a scene.

WV-X8570N WV-SPV781L

WV-X8570N WV-SPV781L

Wide range tilt angle adjustment mechanism

Camera 1, 2, 3

360°

+30° to + 80°

Vertical (TILT) angle

*The above is the adjustable range of a single camera. The adjustable range of each camera varies according to the positional relationship with other cameras.

Horizontal (PAN) angle

±50°

–15 ° to + 80 °

Azimuth (YAW) angle

Camera 4

Vertical (TILT) angle

Four repositionable lenses enables to monitoring at minimize blind spots

270-degree view (Full intersection view)

• One multi sensor camera at intersection corner,

It enables monitoring with minimized blind spots

• Enables to monitoring even if bottom view angle

360-degree view

• One multi-sensor camera enables monitor the park by

minimize blind spots

270-degree + right below

view angle adjustment

360-degree

view angle adjustment

Specifications

Camera

Image Sensor
Minimum Illumination

Intelligent Auto
Maximum shutter
Super Dynamic
Dynamic Range
Image Settings
Image Compensation

Color/BW (ICR)
Video Motion Detection (VMD)
Privacy Zone
Upside-down
Camera Title (OSD)
Adjusting angle

Lens

Zoom Ratio
Digital (electronic) zoom
Focal length
Maximum Aperture Ratio
Focus range
Angular Field of view
Camera Control

Browser
GUI

Audio
GUI /
Setup Menu Language
Network IF

Network

Resolution

Transmission Mode

H.265/

Transmission Type

H.264*2

Image Quality

JPEG
Smart Coding

Audio Compression

Supported Protocol

1/1.8 type CMOS image sensor
Color : 0.12 lx, BW : 0.05 lx
(F1.6, Maximum shutter : Off (1/30s), AGC : 11)
Color : 0.008 lx, BW : 0.003 lx
(F1.6, Maximum shutter : max. 16/30s, AGC : 11)
On / Off
Max.1/10000s to Max.16/30s
On / Off, the level can be set in the range of 0 to 31.
108 dB typ. (Super Dynamic : On, level : 31)
Gain (AGC), White balance
Adaptive black stretch, Back light compensation (BLC),
High light compensation (HLC), Fog compensation,
Digital noise reduction
Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
On / Off, 4 areas available
On / Off (up to 8 zones available)
On / Off
On / Off Up to 20 characters (alphanumeric characters, marks)
Camera 1, 2, 3:
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : +30 ° to + 80 °
Azimuth (YAW) angle : ±50 °
Camera 4:
Horizontal (PAN) angle : 360 °
Vertical (TILT) angle : –15 ° to + 80 °
Azimuth (YAW) angle : ±50 °
*The above is the adjustable range of a single camera.
The adjustable range of each camera varies according to
the positional relationship with other cameras.
1 x Optical
Choose from 3 levels of x1, x2, x4

4.6 mm {3/16 inches}
1 : 1.6

3.0 m {9.84 feet} – ∞
Horizontal : 97° Vertical : 53°
Brightness, AUX On / Off
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
10Base-T / 100Base-TX / 1000Base-T, RJ45 connector
[16:9 mode*] *Cannot be changed.
3840 x 2160 / 2560 x 1440 / 1280 x 720 / 640 x 360 / 320 x 180
Constant bit rate / VBR / Frame rate / Best effort
Unicast / Multicast
10 steps

GOP (Group of pictures) control :

On (Frame rate control)* / On (Advanced)* / On (Low) / On (Mid) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS : On / Off
G.726 (ADPCM) : 16 kbps / 32 kbps
G.711
AAC-LC*3
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP (Server), SMTP, DNS, NTP,
SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,
FTP (Server), SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP,
IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

: 64 kbps
: 64 kbps / 96 kbps / 128 kbps

*1

Network

Maximum concurrent
access number
SDXC/SDHC/SD
Memory Card

Mobile Terminal Compatibility
Alarm Source

Alarm

Alarm Actions

Audio Input

Input/

For microphone input :

Output

For line input :
External I/O Terminals

Safety

General

EMC
Power Source and
Power Consumption
Ambient Operating
Temperature
Ambient Operating Humidity
Water and Dust Resistance
Shock Resistance
Dimensions

Mass (approx.)

Finish

*1 Converted value
*2 H.265/H.264 can be selected for each stream.
*3 When recording audio on an SD memory card, only use AAC-LC (Advanced Audio Coding-Low Complexity).

Up to 24 users
(Depends on network conditions)
H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
Compatible SDXC/SDHC/SD card :
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**,
256 GB**model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
iPad / iPhone, Android
3 terminals input, VMD alarm, Command alarm
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification, Indication on browser,
Panasonic alarm protocol output
ø3.5 mm stereo mini jack (Audio input is monaural)
Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 k (unbalanced)
Supply voltage : 4.0 V ±0.5 V
Input level : Approx. –10 dBV
ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1),
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1),
ALARM IN 3 (Alarm input 3/ ALARM OUT/ AUX OUT) (x1)
UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
PoE (IEEE802.3af compliant) Device :
DC 48 V 265 mA/Approx. 12.95 W (Class 0 device)
–40 °C to +60 °C {–40 °F to +140 °F}
{Power On range : –20 °C to +60 °C (–4 °F to +140 °F)}
10 to 100 % (no condensation)
IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
IK10 (IEC62262)

When using the attachment plate only :

ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)},
Dome radius 80 mm {3-5/32 inches}

When using the base bracket :

ø230 mm x 232 mm (H) {ø9-1/16 inches x 9-1/8 inches (H)},
Dome radius 80 mm {3-5/32 inches}

When using the attachment plate only : Approx. 2.8 kg {6.17 lbs}
When using the base bracket : Approx. 3.3 kg {7.28 lbs}

Main body : Aluminum die cast, Light gray,
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome cover : Polycarbonate resin (with ClearSight coating), Clear

TM

mobile terminals

Appearance

ø164(6-15/32”) ø155(6-3/32”)

232(9-1/8”)

SR80
(3-5/32”)

46 ±0.2(1-13/16”)

DISTRIBUTED BY :

ø230(9-1/16”)

<With Base bracket>

<With Attachment plate>

196(7-23/32”)

<With Attachment plate>

83.5 ±0.2

(3-9/32”)

120(4-23/32”)

<Removing the dome>

430

(16-15/16”)

240(9-7/16”)

265
(10-7/16”)

<With Base bracket>

Unit : mm (inches)

CTG22 or G3/4

18.5

(23/32”)

41.5
(1-5/8”)

Optional Accessories

Wall Mount Bracket

WV-Q185

(Light gray)

WV-Q122A

(Fine silver)

(Use with the WV-Q187.)

Pole Mount Bracket

WV-Q182

(Light gray)

WV-Q188

(Fine silver)

(These brackets are used with
WV-Q185 or WV-Q122A.)

• The brackets are available in two colors, Light gray and Fine silver.
It is possible to use them in the different color combination.

Trademarks and registered trademarks

– iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
– Android is a trademark of Google LLC.
– ONVIF and the ONVIF logo are trademarks or registered trademarks of Onvif Inc.
– All other trademarks identified herein are the property of their respective owners.

Important

– Safety Precaution : Carefully read the Important Information, Installation Guide and
operating instructions before using this product.
– Panasonic cannot be responsible for the performance of the network and/or
other manufacturers' products used on the network.

• Masses and dimensions are approximate. • Specifications are subject to change without notice.

Mount Bracket

WV-Q187

(Light gray)

(These brackets are used with
WV-Q185 or WV-Q122A.)

Corner Mount Bracket

WV-Q183

(Light gray)

WV-Q189

(Fine silver)

(These brackets are used with
WV-Q185 or WV-Q122A.)
