Operating Instructions
Color CCTV Camera
Model No. WV-CP600/G Series
WV-CF614E Series
0 -CP60 WV
WV-CP600/G |
WV-CF614E |
(Lens is optional for WV-CP600/G Series.)
This manual covers the models: WV-CP600/G Series (WV-CP620/G, WV-CP624E, WV-CP600/G, WV-CP604E) and WV-CF614E Series (WV-CF634E, WV-CF614E).
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Preface
About the user manuals
The operating instructions of the camera consist of 2 sets: these operating instructions (PDF) and Installation Guide. This document explains how to configue the settings of the camera.
Refer to the installation guide for further information about how to install the camera.
Adobe® Reader® is required to read PDF. When the Adobe® Reader® is not installed on the PC, download the latest Adobe® Reader® from the Adobe web site and install it.
Trademarks and registered trademarks
Adobe, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
About notations
The following notations are used when describing the functions limited for specific models. The functions without the notations are supported by all models.
CP620 : The functions with this notation are available when using the model WV-CP620/G and WV-CP624E. CP600 : The functions with this notation are available when using the model WV-CP600/G and WV-CP604E. CF634 : The functions with this notation are available when using the model WV-CF634E.
CF614 : The functions with this notation are available when using the model WV-CF614E.
2
Contents
Preface................................................................................... |
|
2 |
|
About the user manuals..................................................... |
|
2 |
|
Trademarks and registered trademarks............................ |
2 |
||
About notations.................................................................. |
|
2 |
|
Contents................................................................................. |
|
3 |
|
About the setup menus ......................................................... |
|
4 |
|
List of setup menu............................................................. |
|
4 |
|
Basic operation ................................................................. |
|
5 |
|
Screen transition diagram |
CP620 ........................................ |
6 |
|
Screen transition diagram |
CP600 ........................................ |
7 |
|
Screen transition diagram |
CF634 ........................................ |
8 |
|
Screen transition diagram |
CF614 ........................................ |
9 |
|

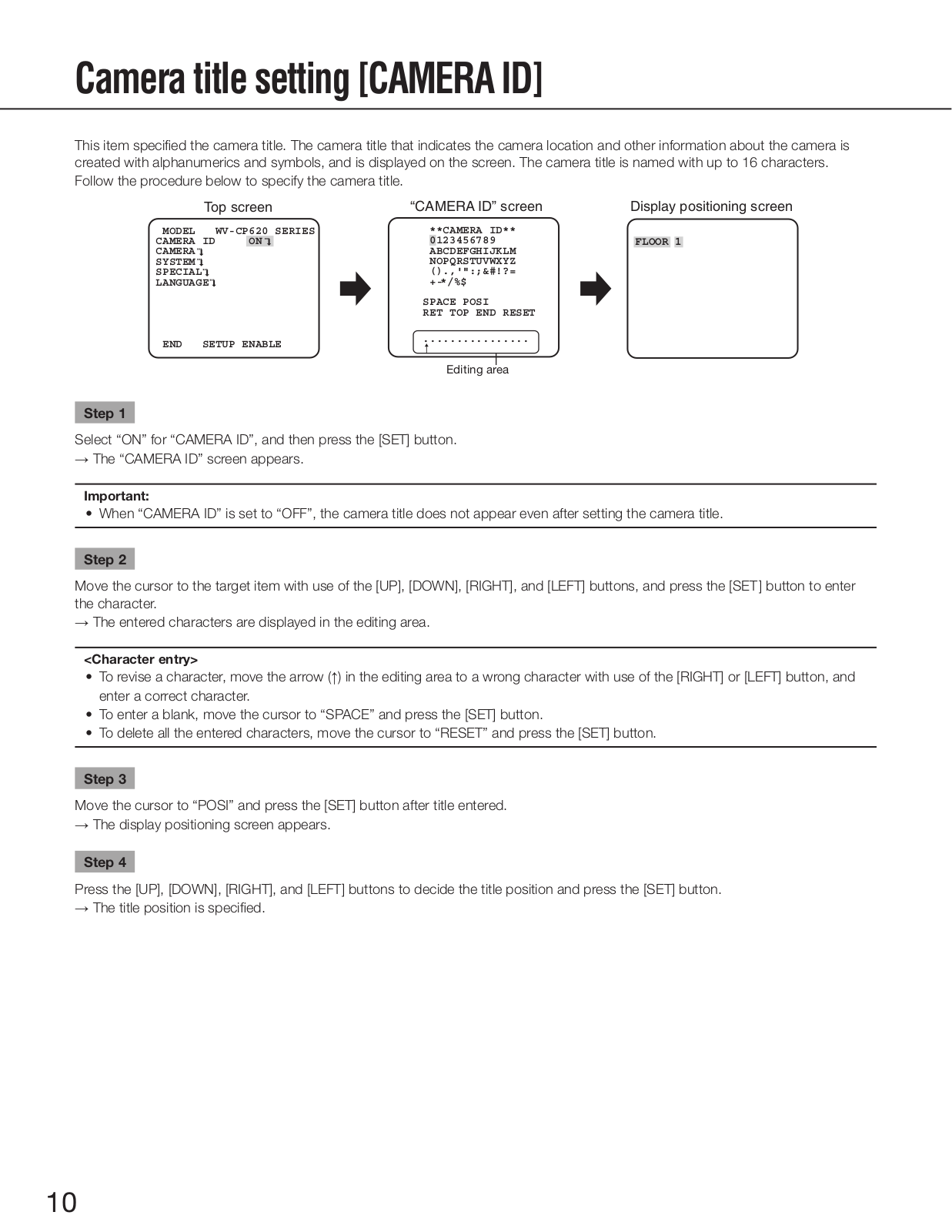

Camera title setting [CAMERA ID]....................................... |
10 |
||

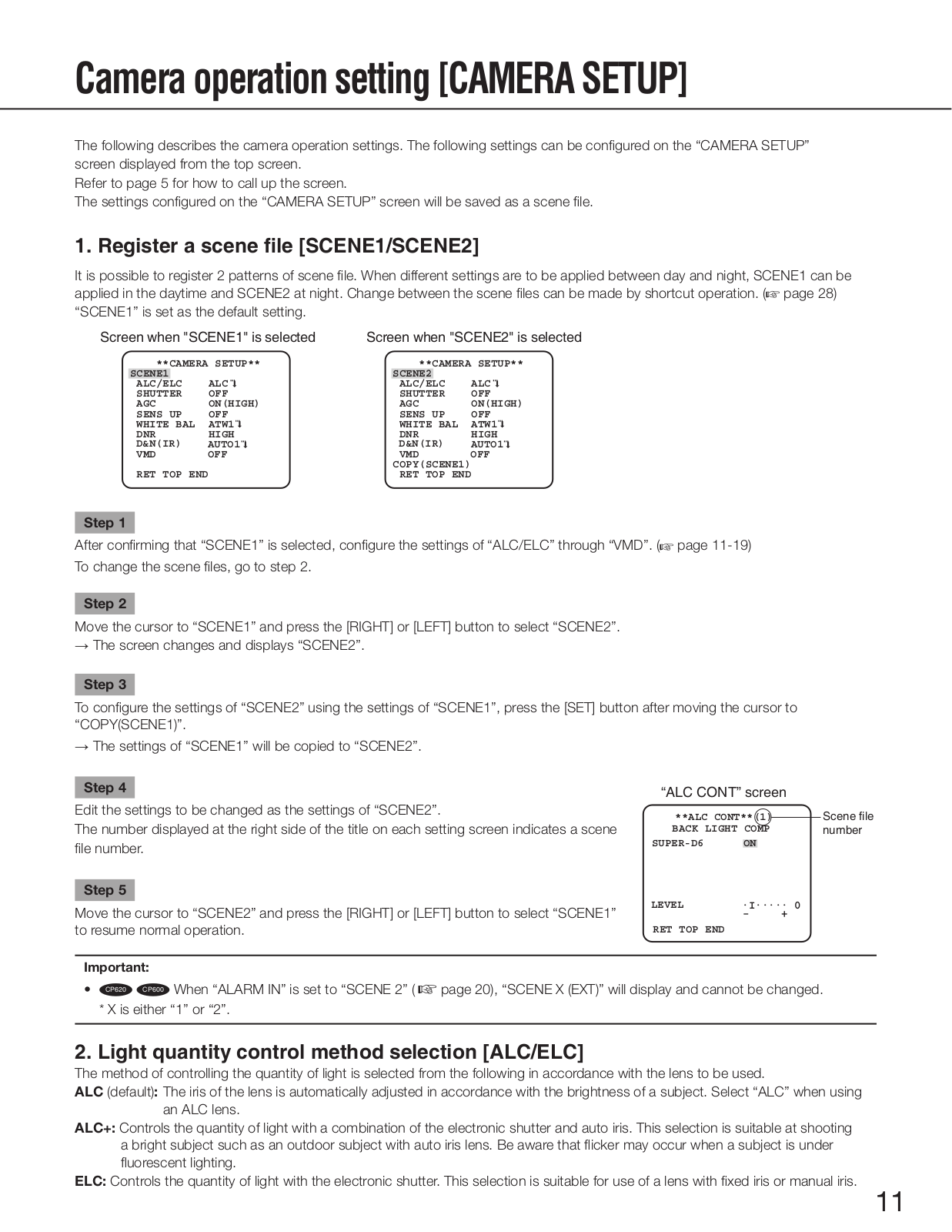

Camera operation setting [CAMERA SETUP]..................... |
11 |
||
1. |
Register a scene file [SCENE1/SCENE2]................... |
11 |
|
2. |
Light quantity control method selection [ALC/ELC] .... |
11 |
|
|

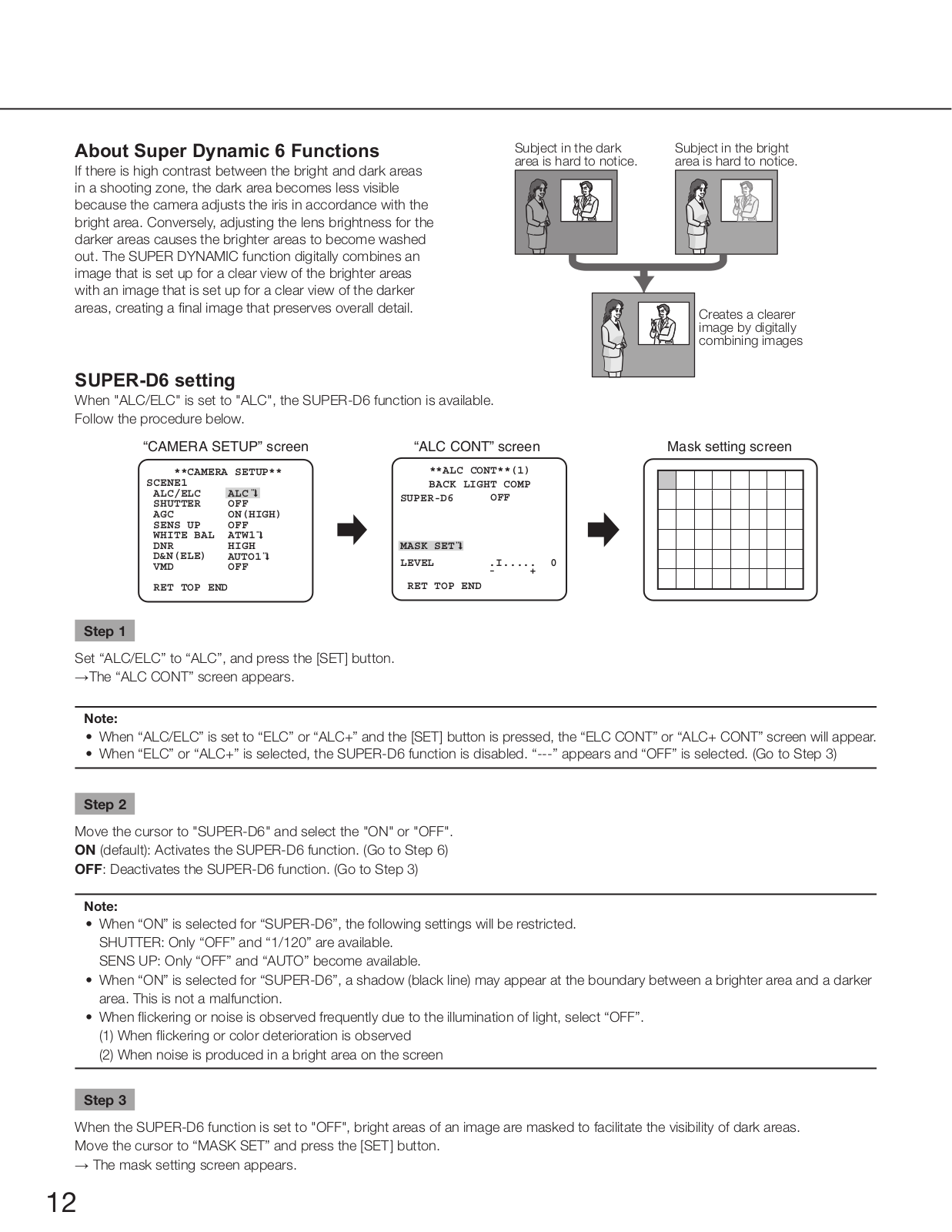

About Super Dynamic 6 Functions.............................. |
12 |
|
|
SUPER-D6 setting....................................................... |
|
12 |
3. |

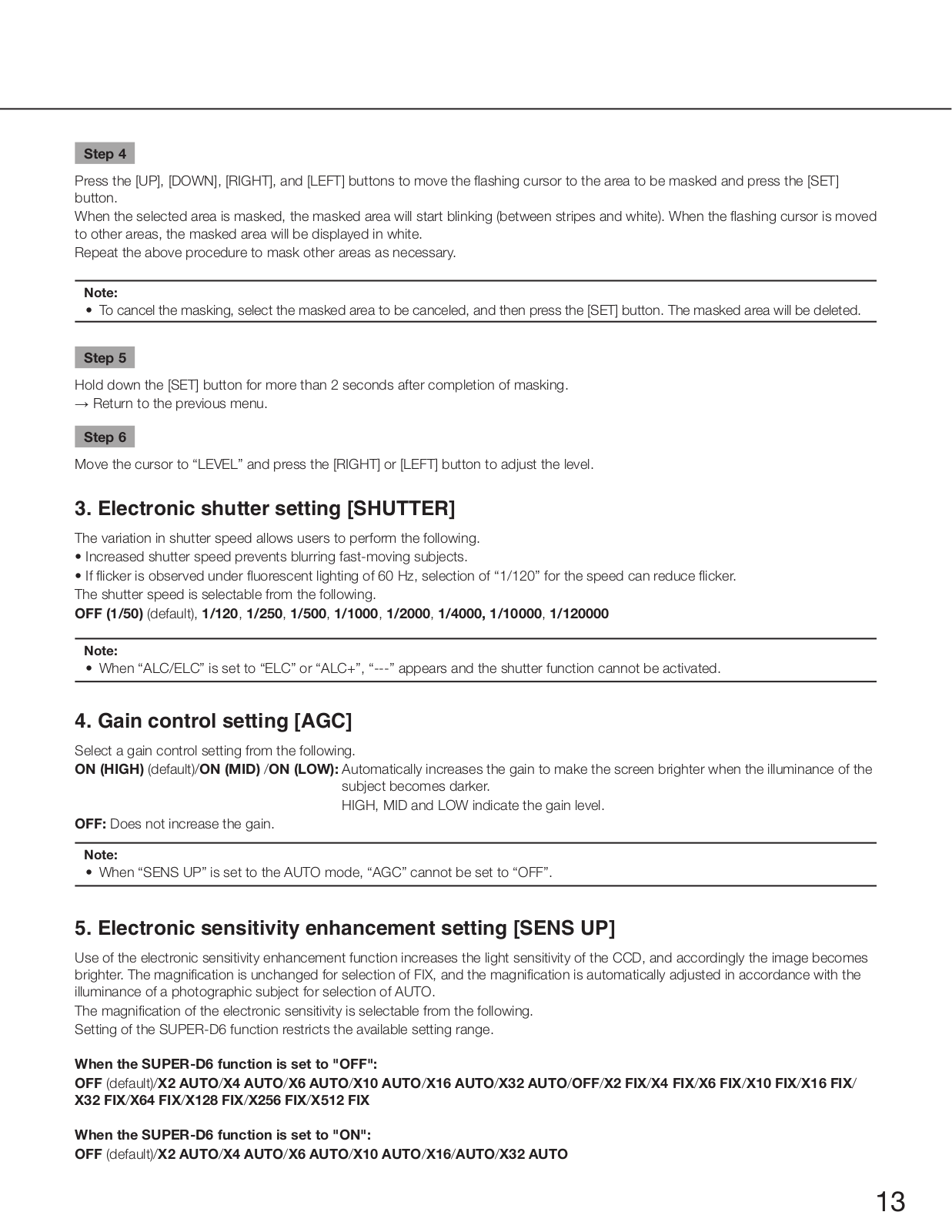

Electronic shutter setting [SHUTTER] ........................ |
13 |
|
4. |
Gain control setting [AGC] .......................................... |
13 |
|
5. |
Electronic sensitivity enhancement setting |
|
|
|
[SENS UP]................................................................... |
|
13 |
6. |

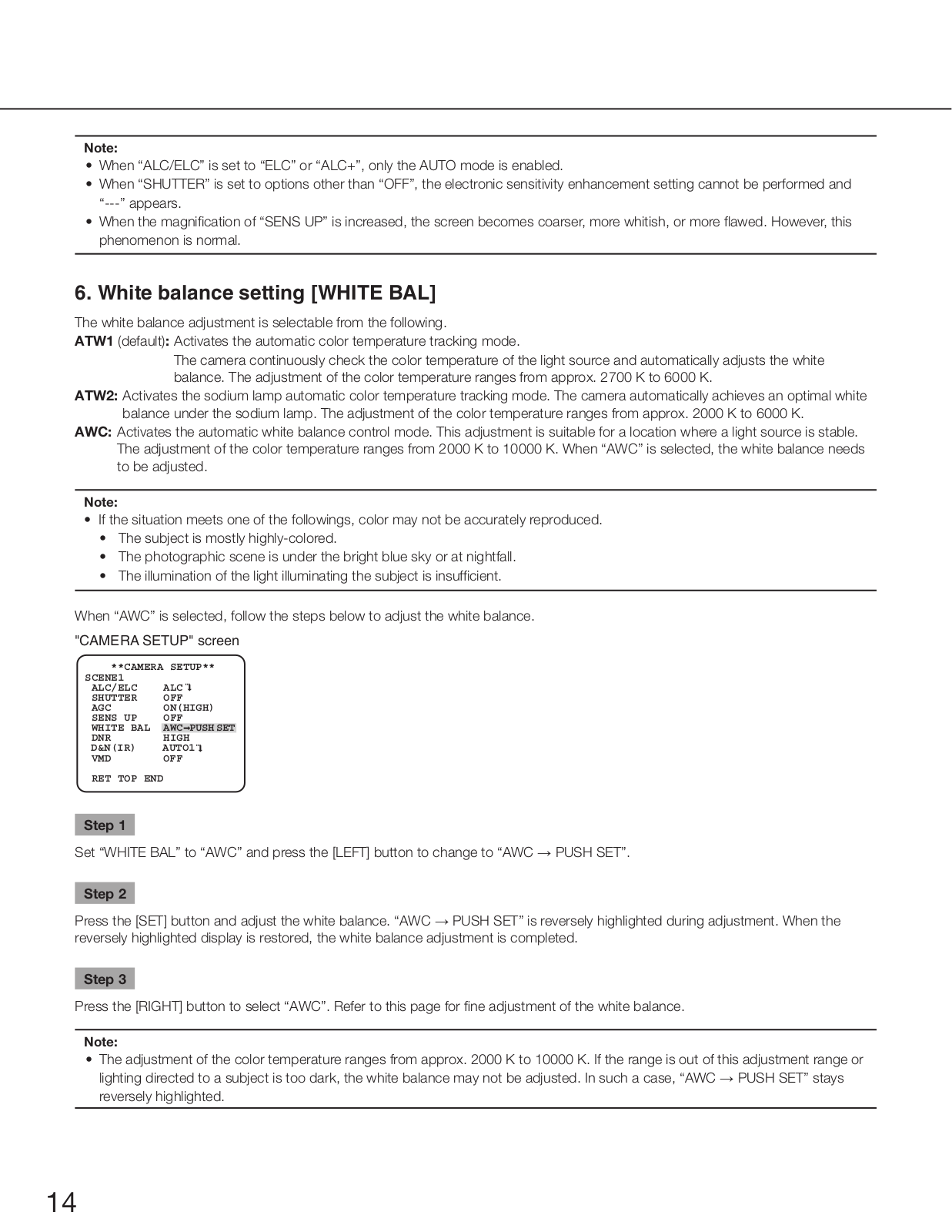

White balance setting [WHITE BAL] ........................... |
14 |
|
|

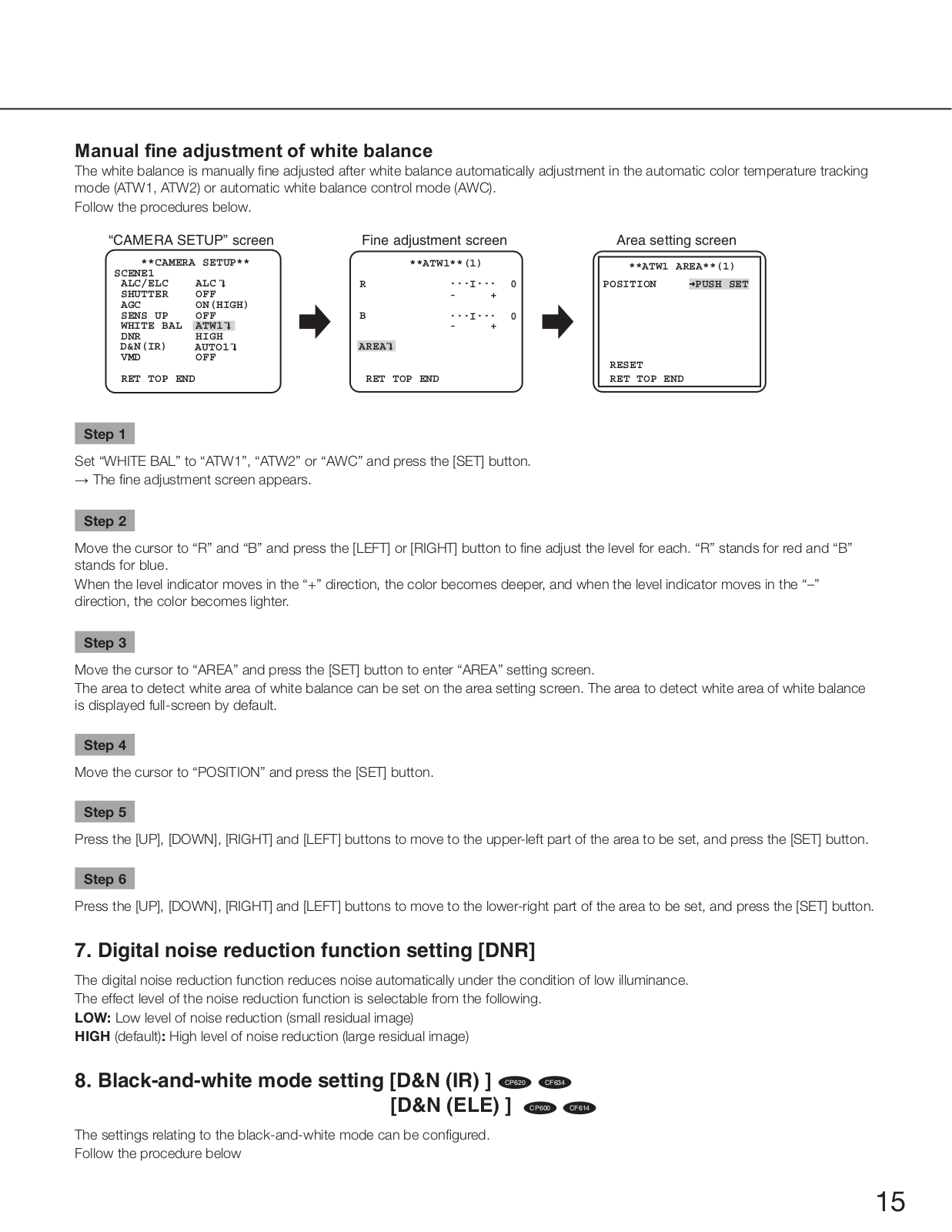

Manual fine adjustment of white balance ................... |
15 |
|
7. |
Digital noise reduction function setting [DNR]............. |
15 |
|
8. |

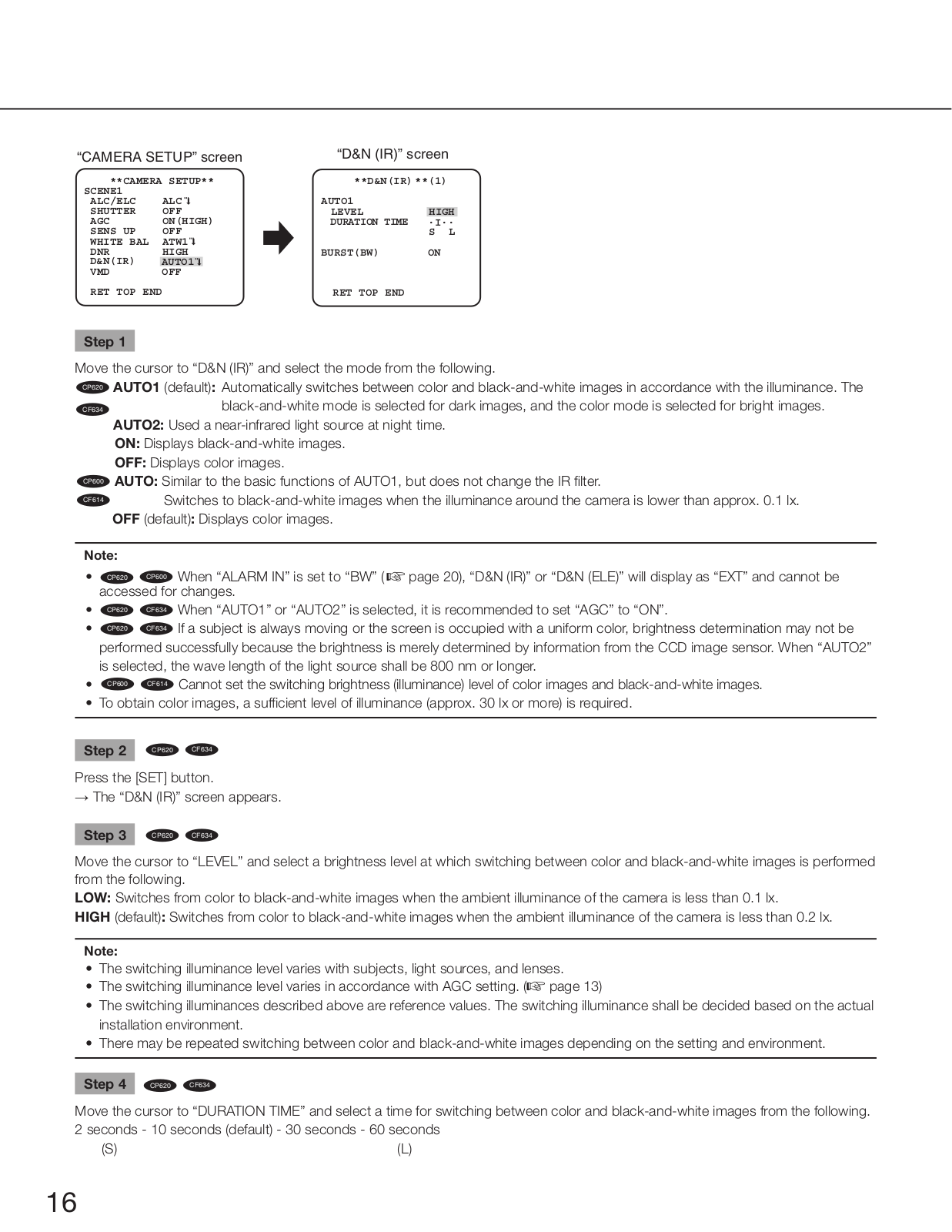

Black-and-white mode setting [D&N (IR) ] CP620 CF634 |
|
|
|
[D&N (ELE) ] CP600 CF614 |
............................................ |
15 |
9. |

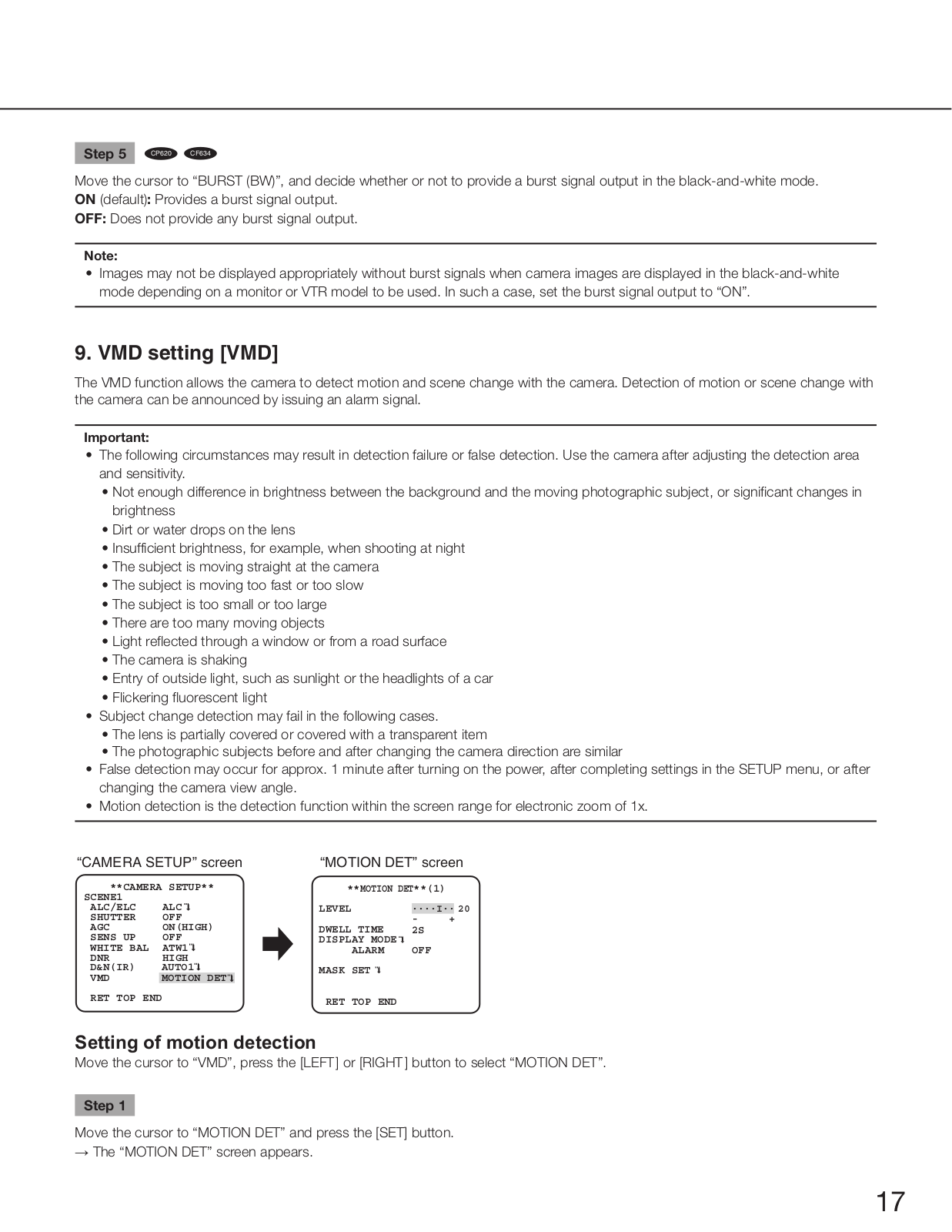

VMD setting [VMD] ..................................................... |
|
17 |
|

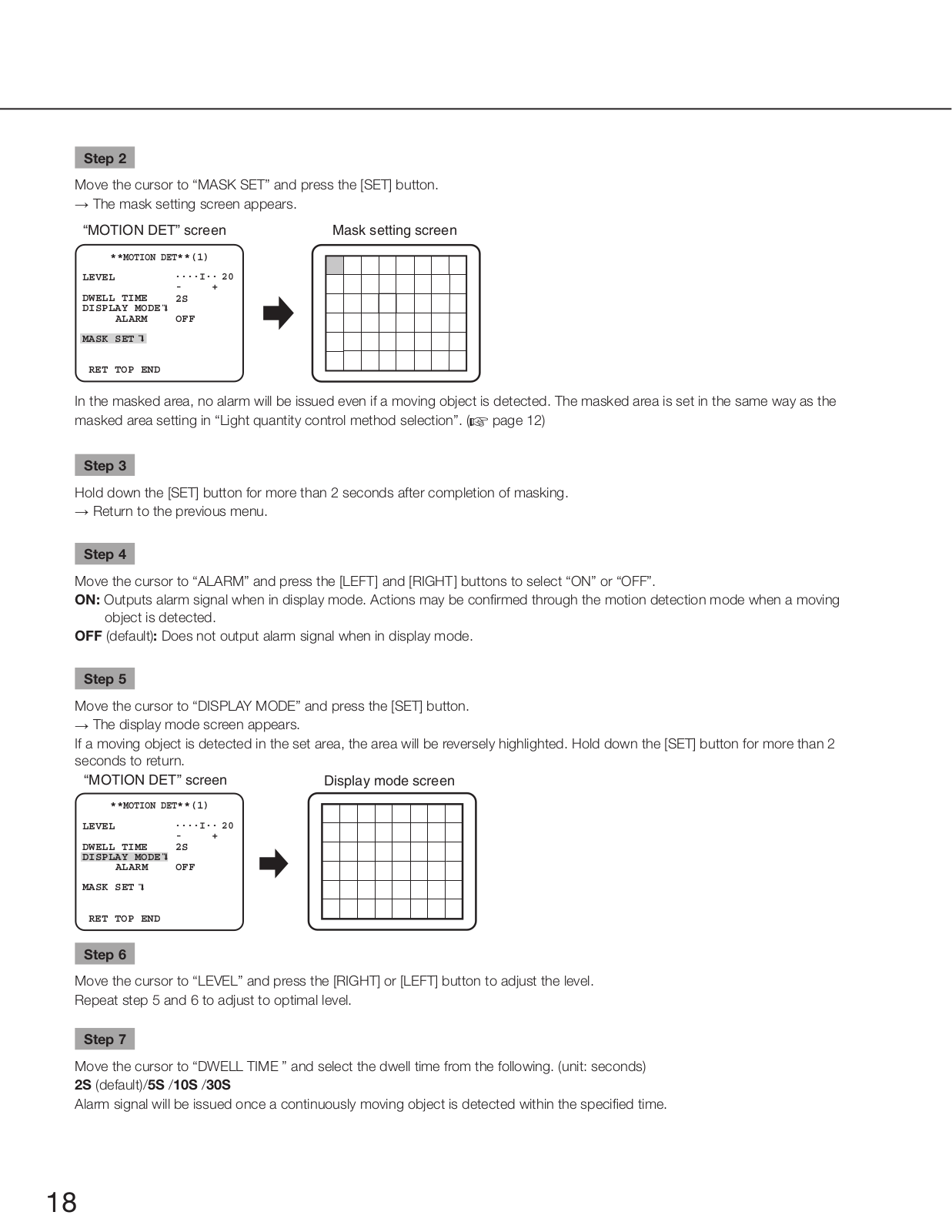

Setting of motion detection.......................................... |
17 |
|
|

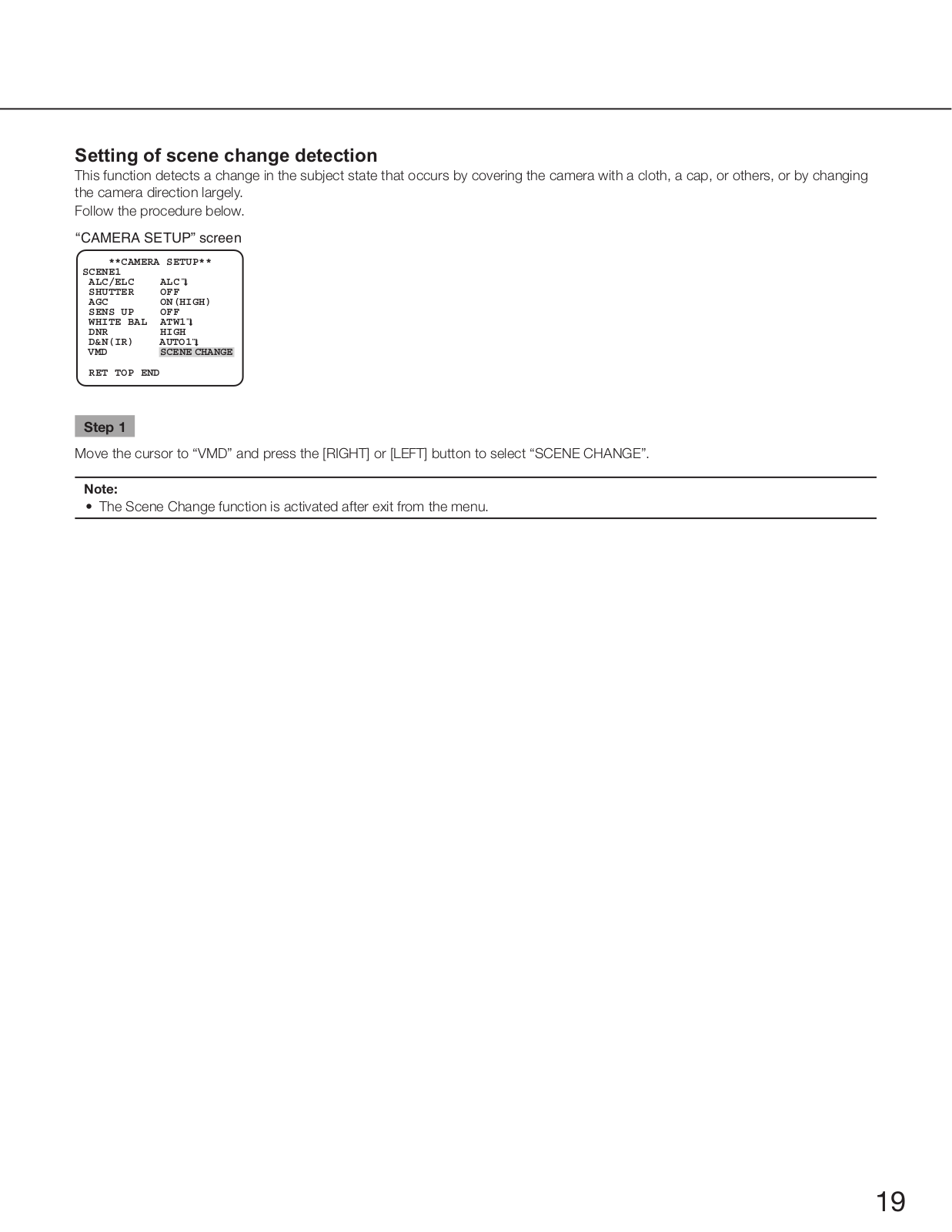

Setting of scene change detection ............................. |
19 |
|

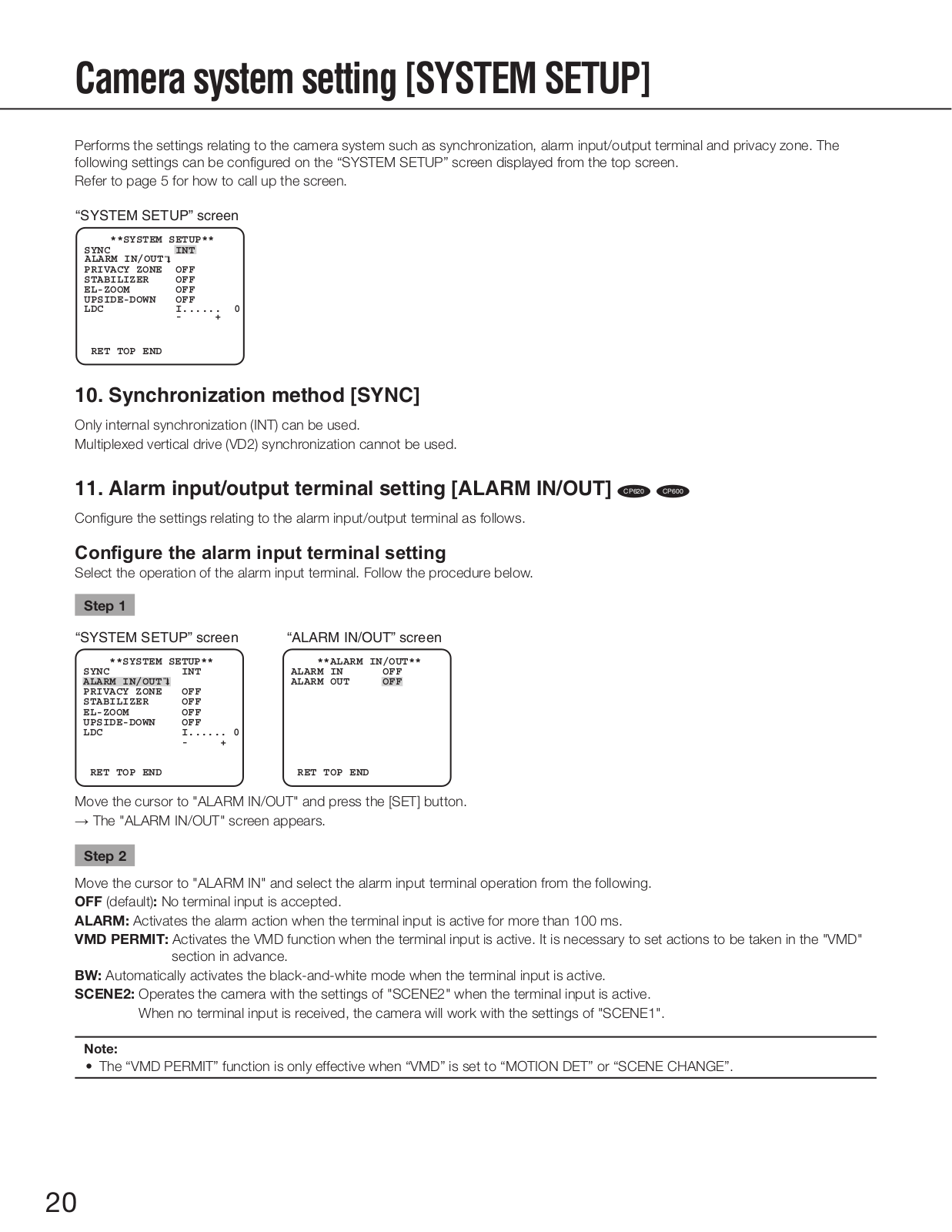

Camera system setting [SYSTEM SETUP] ......................... |
20 |
||
10. Synchronization method [SYNC]............................... |
20 |
||
11. Alarm input/output terminal setting |
|
||
|
[ALARM IN/OUT]....................................................... |
|
20 |
|
Configure the alarm input terminal settings............... |
20 |
|
|

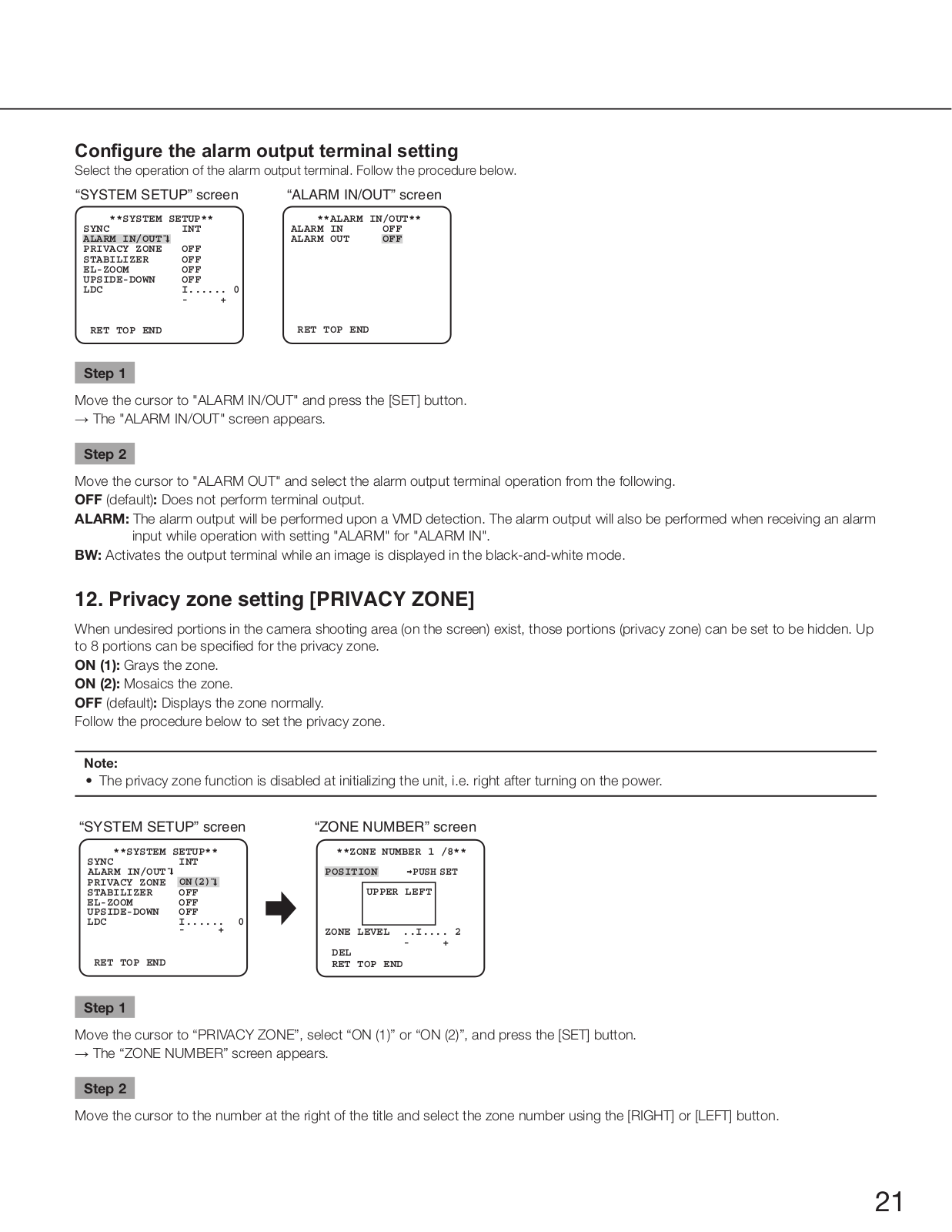

Configure the settings relating to the alarm |
|
|
|
output terminal........................................................... |
|
21 |
12. Privacy zone setting [PRIVACY ZONE]..................... |
21 |
||

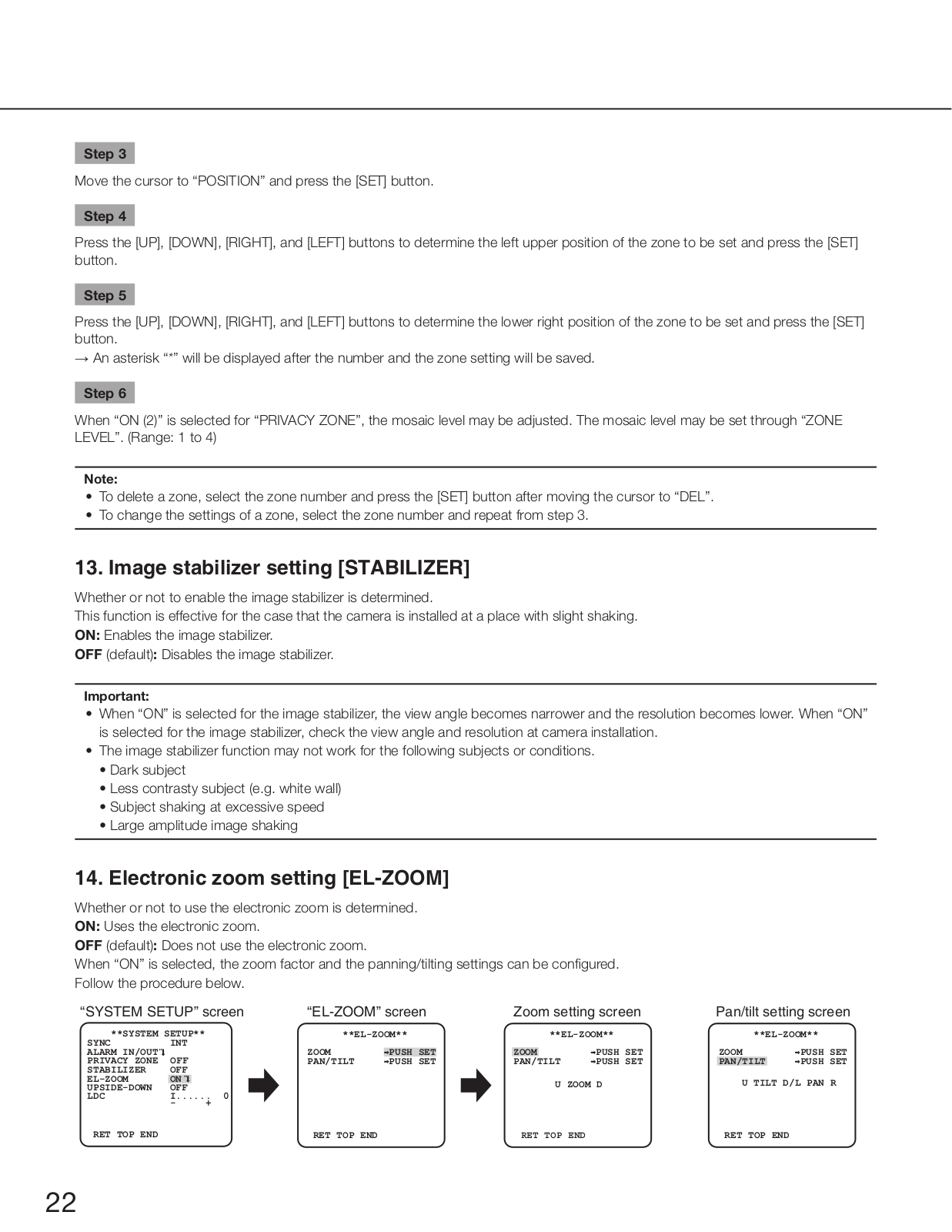

13. Image stabilizer setting [STABILIZER]...................... |
22 |
||
14. |

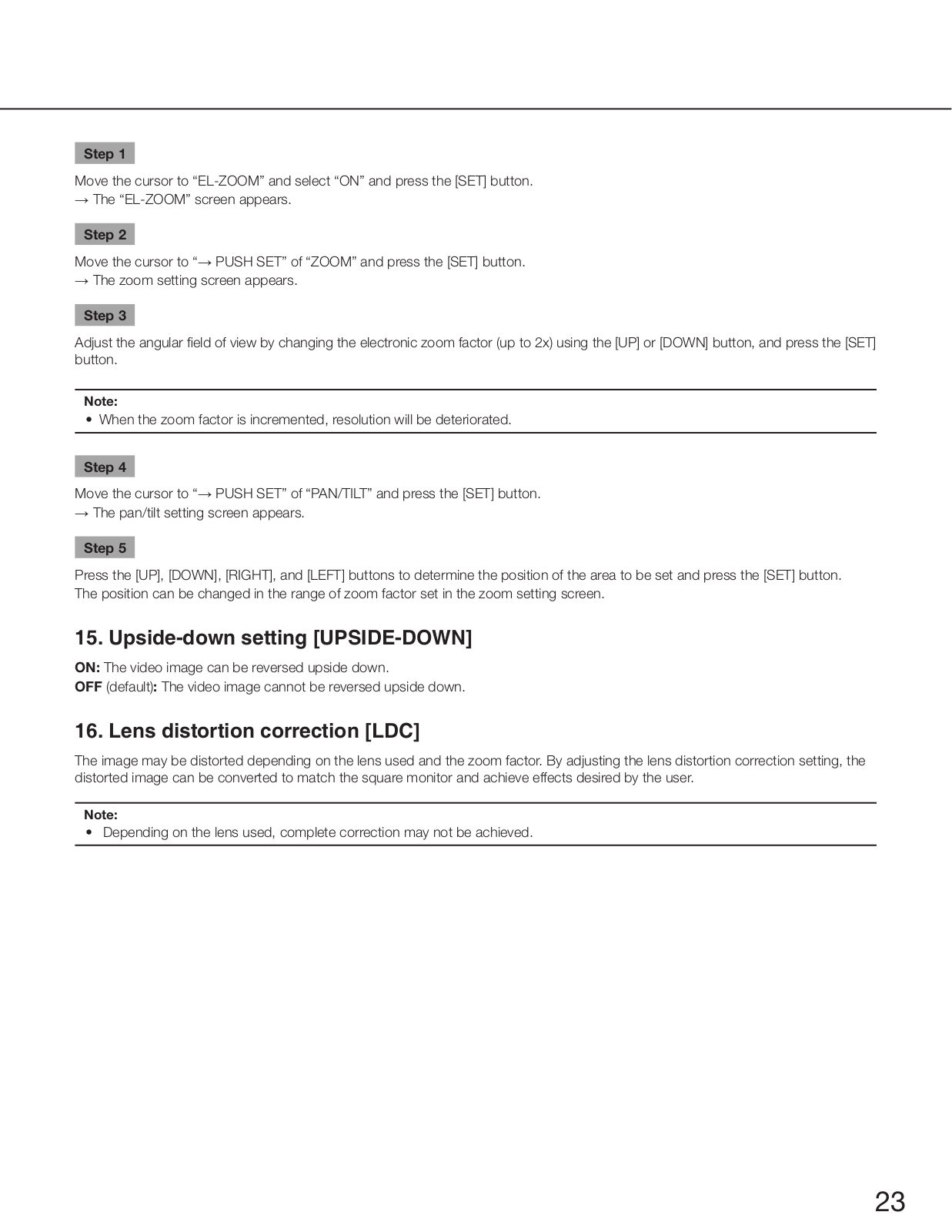

Electronic zoom setting [EL-ZOOM] ......................... |
|
22 |
15. |
Upside-down setting [UPSIDE-DOWN] .................... |
|
23 |
16. |
Lens distortion correction [LDC]................................ |
|
23 |

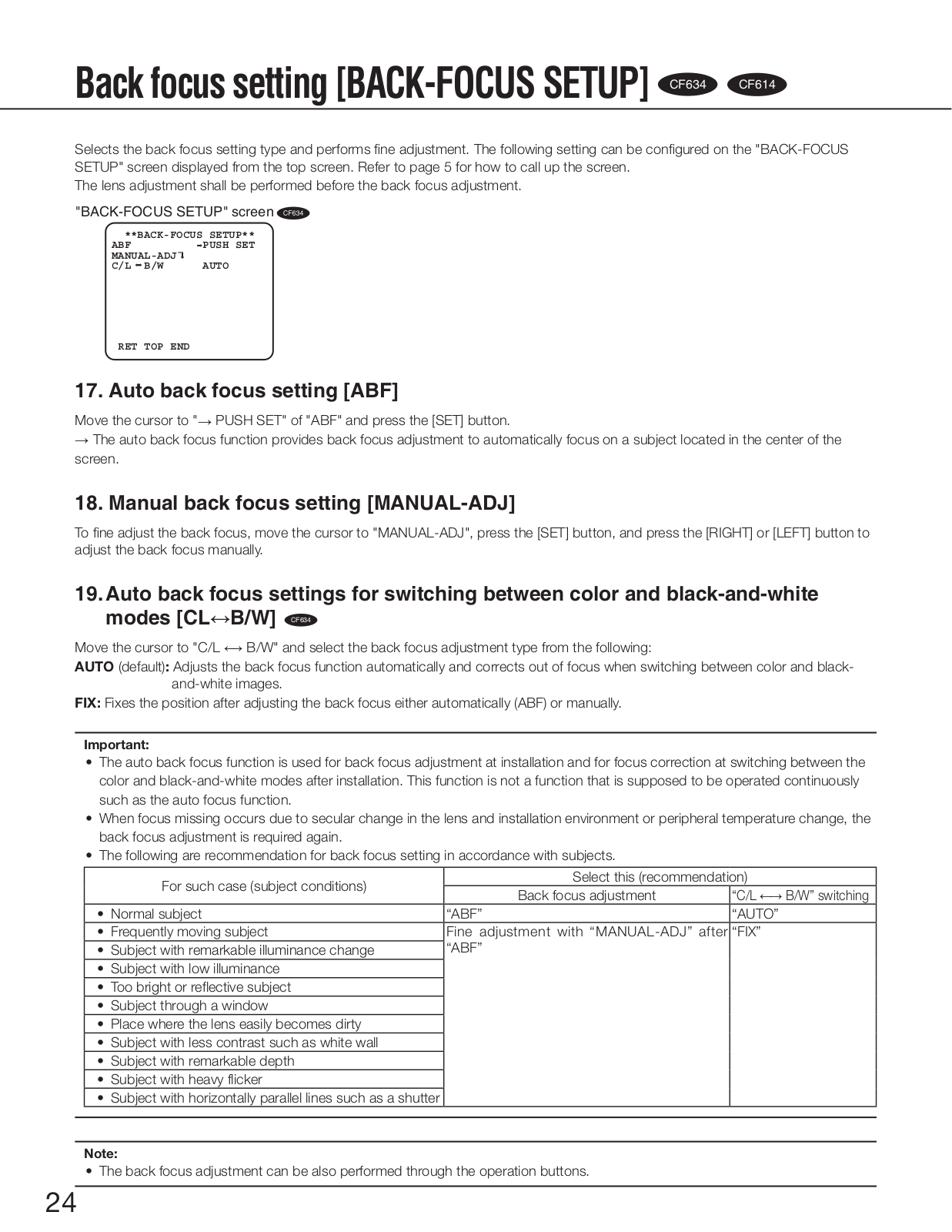

Back focus setting [BACK-FOCUS SETUP] CF634 |
CF614 |
..... 24 |
|
17. |
Auto back focus setting [ABF]................................... |
|
24 |
18. |
Manual back focus setting [MANUAL-ADJ]............... |
|
24 |
19. |
Auto back focus settings for switching between |
|
|
|
color and black-and-white modes [CL↔B/W] |
CF634 |
.... 24 |

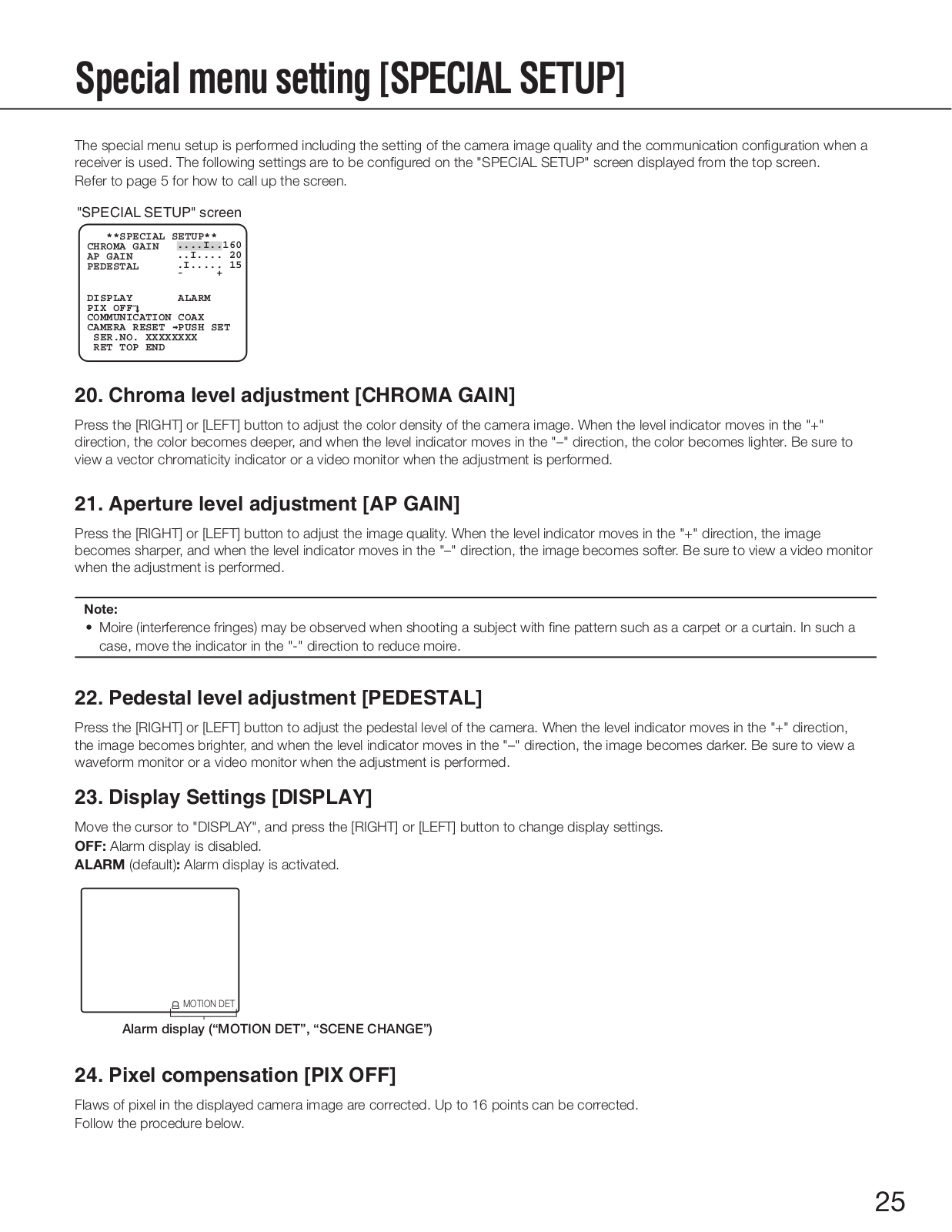

Special menu setting [SPECIAL SETUP] ............................ |
|
25 |
|
20. |
Chroma level adjustment [CHROMA GAIN] ............. |
|
25 |
21. |
Aperture level adjustment [AP GAIN]........................ |
|
25 |
22. |
Pedestal level adjustment [PEDESTAL] ................... |
|
25 |
23. |
Display Settings [DISPLAY] ...................................... |
|
25 |
24. |

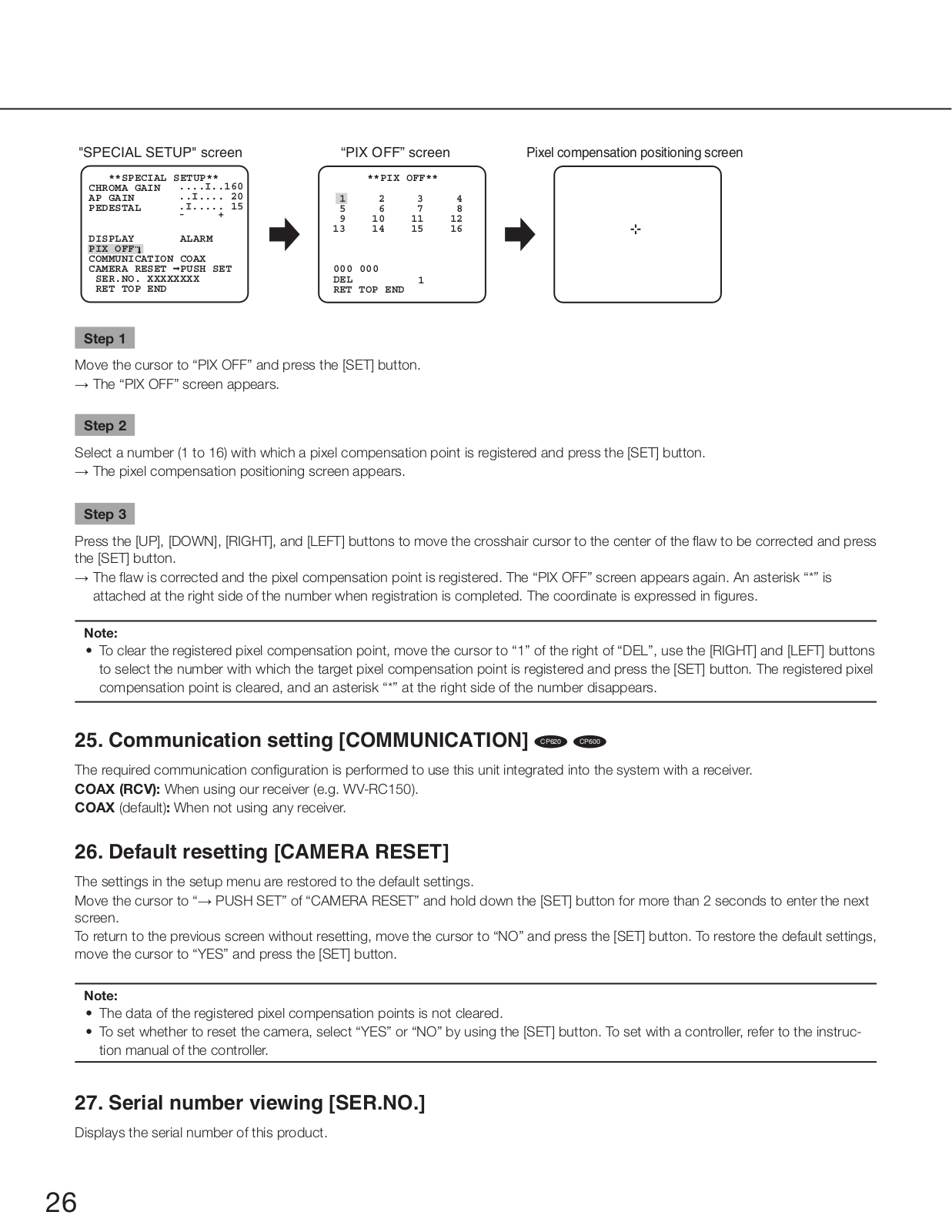

Pixel compensation [PIX OFF] ................................. |
|
25 |
25. |
Communication setting |
|
|
|
[COMMUNICATION] CP620 CP600 ............................. |
|
26 |
26. |
Default resetting [CAMERA RESET] ........................ |
|
26 |
27. |
Serial number viewing [SER.NO.] ............................ |
|
26 |

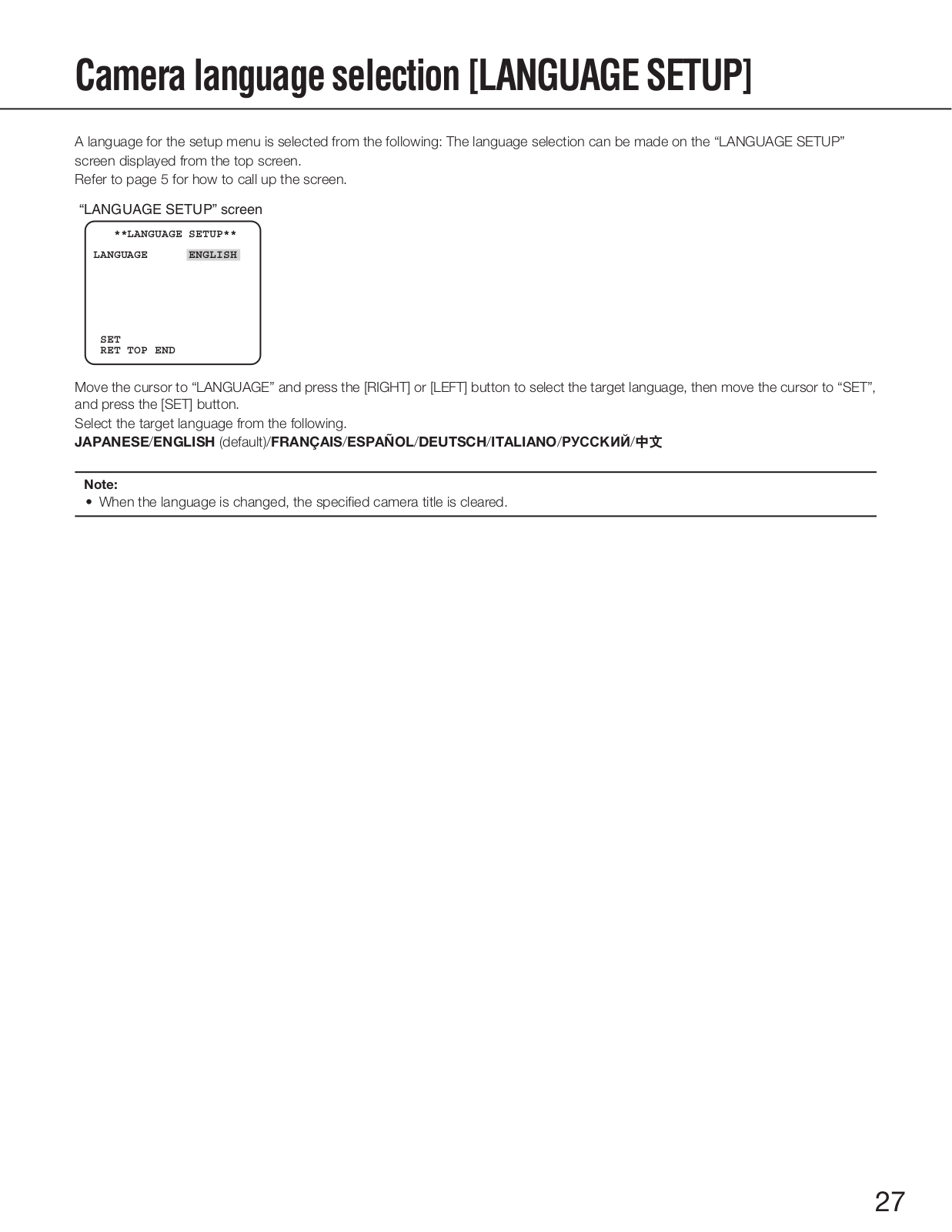

Camera language selection [LANGUAGE SETUP]............. |
|
27 |
|

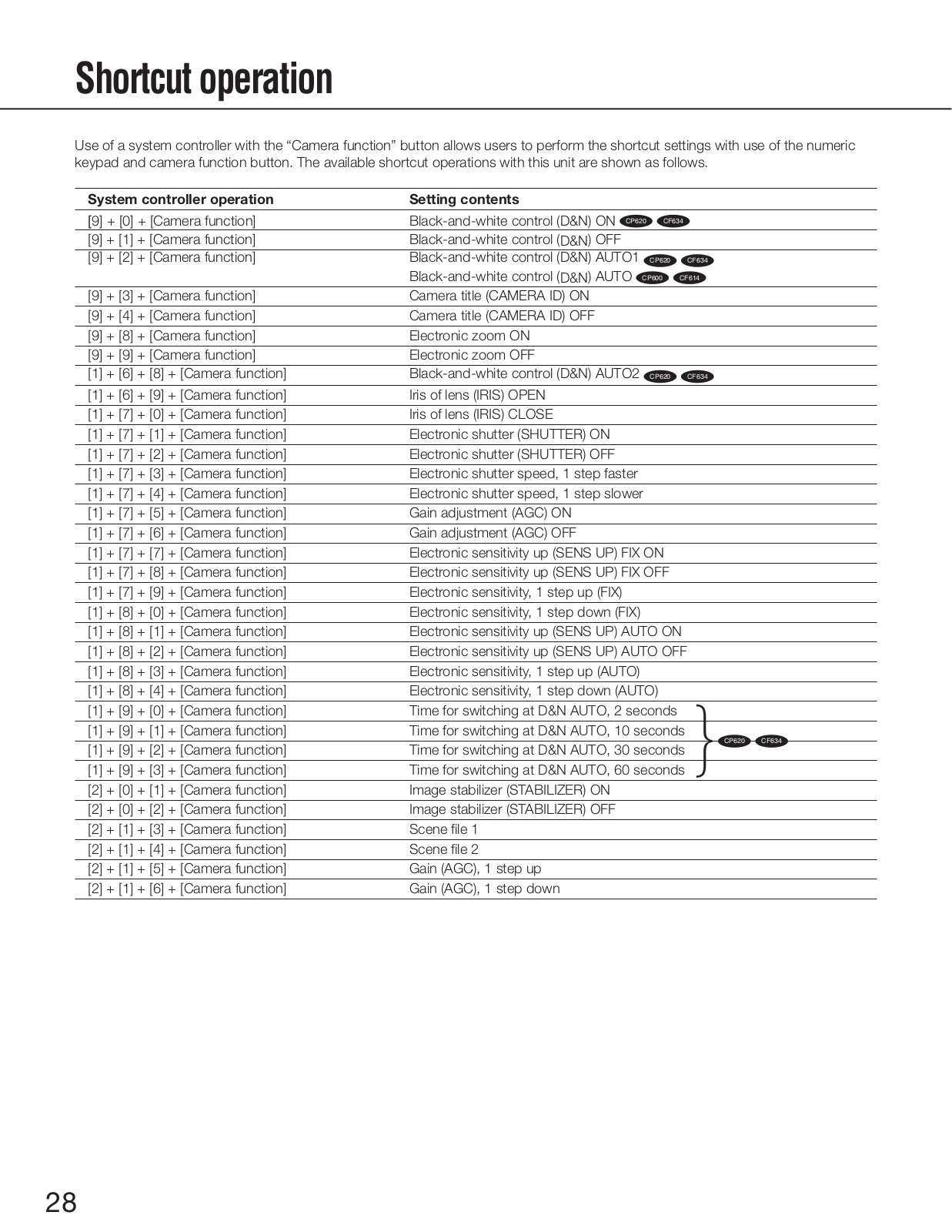

Shortcut operation ............................................................... |
|
28 |
|
3
About the setup menus
Performing each setting item in the setup menu should be completed in advance to use this unit.
Perform the settings for each item in accordance with the conditions of the camera shooting area.
List of setup menu
|
|
|
Setup item |
Description |
|
|
CAMERA ID |
This item specifies the camera title. The camera title that indicates the camera location and other information |
|||
|
|
|
|
|
about the camera is created with alphanumeric characters and symbol, and then displayed on the screen. |
|
|
|
|
||
|
CAMERA |
|
Performs the camera operation settings. |
||
|
|
SCENE 1/ |
Selects a scene file. It is possible to register and save the settings as a scene file in case that it is necessary |
||
|
|
||||
|
|
SCENE 2 |
to change the settings such when shooting at night. |
||
|
|
ALC/ELC |
Selects the method of controlling the quantity of light in accordance with the lens to be used. |
||
|
|
SHUTTER |
Specifies the electronic shutter speed. |
||
|
|
AGC |
|
Specifies gain adjustment. |
|
|
|
SENS UP |
Specifies electronic sensitivity enhancement. |
||
|
|
WHITE BAL |
Specifies white balance adjustment. |
||
|
|
DNR |
|
Selects the level of the digital noise reduction function. |
|
|
|
D&N (IR/ELE) |
Performs each setting regarding the black-and-white mode such as switching between color and black-and- |
||
|
|
|
|
|
white images. |
|
|
|
|
|
|
|
|
VMD |
|
Performs settings regarding VMD (Video Motion Detection) |
|
|
|
|
|||
|
SYSTEM |
|
Performs the settings regarding the camera system such as synchronization, alarm input/output terminal and |
||
|
|
|
|
|
privacy zone. |
|
|
|
|
|
|
|
|
SYNC |
|
Only INT method can be used. |
|
|
|
|
|||
|
|
ALARM IN/OUT |
Performs the settings of the alarm input/output terminal. |
||
|
|
CP620 |
CP600 |
|
|
|
|
|
|
||
|
|
PRIVACY ZONE |
Hides undesired portions in the camera shooting area. |
||
|
|
STABILIZER |
Decides whether or not to enable the image stabilizer. |
||
|
|
EL-ZOOM |
Switches the electronic zoom on and off. |
||
|
|
UPSIDE-DOWN |
Flips the camera images vertically or horizontally. |
||
|
|
LDC |
|
Adjusts the lens distortion correction to convert the image so that it matches the square monitor. |
|
|
|
|
|||
|
BACK FOCUS |
Selects the adjustment method and fine adjustment method for back focus. |
|||
|
CF634 |
CF614 |
|
||
|
|
|
|
||
|
SPECIAL |
|
|
||
|
|
CHROMA GAIN |
Adjusts the chroma level (color density). |
||
|
|
||||
|
|
AP GAIN |
Adjusts the aperture level. |
||
|
|
PEDESTAL |
Adjusts the pedestal (brightness) level. |
||
|
|
DISPLAY |
Performs the image display setting. |
||
|
|
PIX OFF |
Corrects image defects such as flaws. |
||
|
|
COMMUNICATION |
Performs the communication setting of the system with a receiver into which this unit is integrated. |
||
|
|
CP620 |
CP600 |
|
|
|
|
|
|
||
|
|
CAMERA RESET |
Restores the settings in the setup menu to the default settings. |
||
|
|
SER.NO. |
Displays the serial number of this unit. |
||
|
|
||||
|
LANGUAGE |
Selects a language to be used in the setup menu. |
|||
4
Basic operation
The operations in the setup menu are performed with the operation buttons after calling up the setup menu on the connected video monitor.
The description below explains how to operate the setup menu basically.
Screenshots of WV-CP620/G are shown as an example.
Screenshot 1
Hold down the [SET] button for about 2 seconds to call up the top screen of the setup menu.
MODEL WV-CP620 SERIES
CAMERA ID OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
Step 1
Press the [up] or [down] button to move the cursor to “END”.
Step 2
Press the [right] button to move the cursor to “SETUP”, and press the [SET] button to change the setup mode from “DISABLE” to “ENABLE”.
END SETUP DISABIE
Screenshot 2
The setup mode changes to “ENABLE”, and the setup menu becomes ready to be set.
MODEL WV-CP620 SERIES
CAMERA ID OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
Step 3
Move the cursor to the item to be set, and press the [SET] button.
END SETUP ENABLE
Screenshot 3
The selected setup screen in the setup menu appears on the screen.
**CAMERA SETUP**
SCENE1 |
|
ALC |
|
|
|
|
|
|
ALC/ELC |
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|||||||
SHUTTER |
OFF |
|||||||
AGC |
ON(HIGH) |
|||||||
SENS UP |
OFF |
|||||||
WHITE BAL |
ATW1 |
|
|
|
|
|||
|
||||||||
|
||||||||
DNR |
HIGH |
|||||||
D&N(IR) |
AUTO1 |
|
|
|||||
|
||||||||
VMD |
OFF |
|||||||
RET TOP END
Note:
•If the top screen of the setup menu is called up with the operation buttons while the camera is operated, the setup mode is always “DISABLE” to prevent operation errors. To perform settings in the setup menu, change the setup mode to “ENABLE”.
•The cursor is a reversely highlighted part.
Step 4
Perform the settings for each item.
•Selection of setting item:
Press the [up] or [down] button to move the cursor.
•Change of settings:
Press the [right] or [left] button.
•Display of advanced setup screen:
Press the [SET] button when “
” is attached to the target setting item.
•Return to previous setup screen:
Move the cursor to “RET” and press the [SET] button.
•Return to the top screen:
Move the cursor to “TOP” and press the [SET] button, to display the top screen of the setup menu.
Step 5
Move the cursor to “END” and press the [SET] button to return to the camera image screen, or wait about 5 minutes and the setup menu will automatically close.
5
Screen transition diagram CP620
Top screen
MODEL WV-CP620 SERIES
CAMERA ID OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
END SETUP DISABLE
“CAMERA ID” screen
**CAMERA ID** 0123456789 ABCDEFGHIJKLM NOPQRSTUVWXYZ ().,'":;!?= +-*/%$
SPACE POSI
RET TOP END RESET
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1 |
|
ALC/ELC |
ALC |
SHUTTER |
OFF |
AGC |
ON(HIGH) |
SENS UP |
OFF |
WHITE BAL |
ATW1 |
DNR |
HIGH |
D&N(IR) |
AUTO1 |
VMD |
OFF |
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC |
INT |
|
ALARM IN/OUT |
|
|
PRIVACY ZONE |
OFF |
|
STABILIZER |
OFF |
|
EL-ZOOM |
OFF |
|
UPSIDE-DOWN |
OFF |
|
LDC |
I...... 0 |
|
|
- |
+ |
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP** |
||
CHROMA GAIN |
....I..160 |
|
AP GAIN |
..I.... 20 |
|
PEDESTAL |
.I..... 15 |
|
|
- |
+ |
DISPLAY |
ALARM |
|
PIX OFF
COMMUNICATION COAX
CAMERA RESET
PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE ENGLISH
SET
RET TOP END
6
Screen transition diagram CP600
Top screen
MODEL WV-CP600 SERIES
CAMERA ID OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
END SETUP DISABLE
“CAMERA ID” screen
**CAMERA ID** 0123456789 ABCDEFGHIJKLM NOPQRSTUVWXYZ ().,'":;!?= +-*/%$
SPACE POSI
RET TOP END RESET
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1 |
|
ALC/ELC |
ALC |
SHUTTER |
OFF |
AGC |
ON(HIGH) |
SENS UP |
OFF |
WHITE BAL |
ATW1 |
DNR |
HIGH |
D&N(ELE) |
OFF |
VMD |
OFF |
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC |
INT |
|
ALARM IN/OUT |
|
|
PRIVACY ZONE |
OFF |
|
STABILIZER |
OFF |
|
EL-ZOOM |
OFF |
|
UPSIDE-DOWN |
OFF |
|
LDC |
I...... 0 |
|
|
- |
+ |
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP** |
||
CHROMA GAIN |
....I..160 |
|
AP GAIN |
..I.... 20 |
|
PEDESTAL |
.I..... 15 |
|
|
- |
+ |
DISPLAY |
ALARM |
|
PIX OFF
COMMUNICATION COAX
CAMERA RESET
PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE ENGLISH
SET
RET TOP END
7
Screen transition diagram CF634
Top screen
MODEL WV-CF634
CAMERA ID OFF
CAMERA
SYSTEM
BACK-FOCUS
SPECIAL
LANGUAGE
END SETUP DISABLE
“CAMERA ID” screen
**CAMERA ID** 0123456789 ABCDEFGHIJKLM NOPQRSTUVWXYZ ().,'":;!?= +-*/%$
SPACE POSI
RET TOP END RESET
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1 |
|
ALC/ELC |
ALC |
SHUTTER |
OFF |
AGC |
ON(HIGH) |
SENS UP |
OFF |
WHITE BAL |
ATW1 |
DNR |
HIGH |
D&N(IR) |
AUTO1 |
VMD |
OFF |
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC |
INT |
|
PRIVACY ZONE |
OFF |
|
STABILIZER |
OFF |
|
EL-ZOOM |
OFF |
|
UPSIDE-DOWN |
OFF |
|
LDC |
I...... 0 |
|
|
- |
+ |
RET TOP END
"BACK-FOCUS SETUP" screen
**BACK-FOCUS SETUP** |
|||
ABF |
|
PUSH |
SET |
MANUAL-ADJ |
AUTO |
|
|
C/L |
B/W |
|
|
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP** |
||
CHROMA GAIN |
....I..160 |
|
AP GAIN |
..I.... 20 |
|
PEDESTAL |
.I..... 15 |
|
|
- |
+ |
DISPLAY |
ALARM |
|
PIX OFF |
|
|
CAMERA RESET
PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE ENGLISH
SET
RET TOP END
8
Screen transition diagram CF614
Top screen
MODEL WV-CF614
CAMERA ID |
OFF |
CAMERA
SYSTEM
BACK-FOCUS
SPECIAL
LANGUAGE
END SETUP DISABLE
“CAMERA ID” screen
**CAMERA ID** 0123456789 ABCDEFGHIJKLM NOPQRSTUVWXYZ ().,'":;!?= +-*/%$
SPACE POSI
RET TOP END RESET
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1 |
|
ALC/ELC |
ALC |
SHUTTER |
OFF |
AGC |
ON(HIGH) |
SENS UP |
OFF |
WHITE BAL |
ATW1 |
DNR |
HIGH |
D&N(ELE) |
OFF |
VMD |
OFF |
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC |
INT |
|
PRIVACY ZONE |
OFF |
|
STABILIZER |
OFF |
|
EL-ZOOM |
OFF |
|
UPSIDE-DOWN |
OFF |
|
LDC |
I...... 0 |
|
|
- |
+ |
RET TOP END
“BACK-FOCUS SETUP” screen
**BACK-FOCUS SETUP**
ABF PUSH SET MANUAL-ADJ
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP** |
||
CHROMA GAIN |
....I..160 |
|
AP GAIN |
..I.... 20 |
|
PEDESTAL |
.I..... 15 |
|
|
- |
+ |
DISPLAY |
ALARM |
|
PIX OFF |
|
|
CAMERA RESET
PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE ENGLISH
SET
RET TOP END
9
Loading...
