Panasonic WV-CS554, WV-CS854A User Manual
Specifications and Main Features
- Model: WV-CS554, WV-CS854A
- Sensor: 1/4-inch CCD
- Pixels: 755 x 485
- dB: 46
- Illumination: 1 lx for colour and 0.06 lx for black and white.
- Zoom: Zoom 22 times optically.
- TFL Range: TFL enables 180 degrees tilt.
- Pre-Set Positions: For GV, 64 and WV-CS554 it is 8.
- Simple Black or White mode: Auto-switch between black and white and colour depending on the level of illumination.

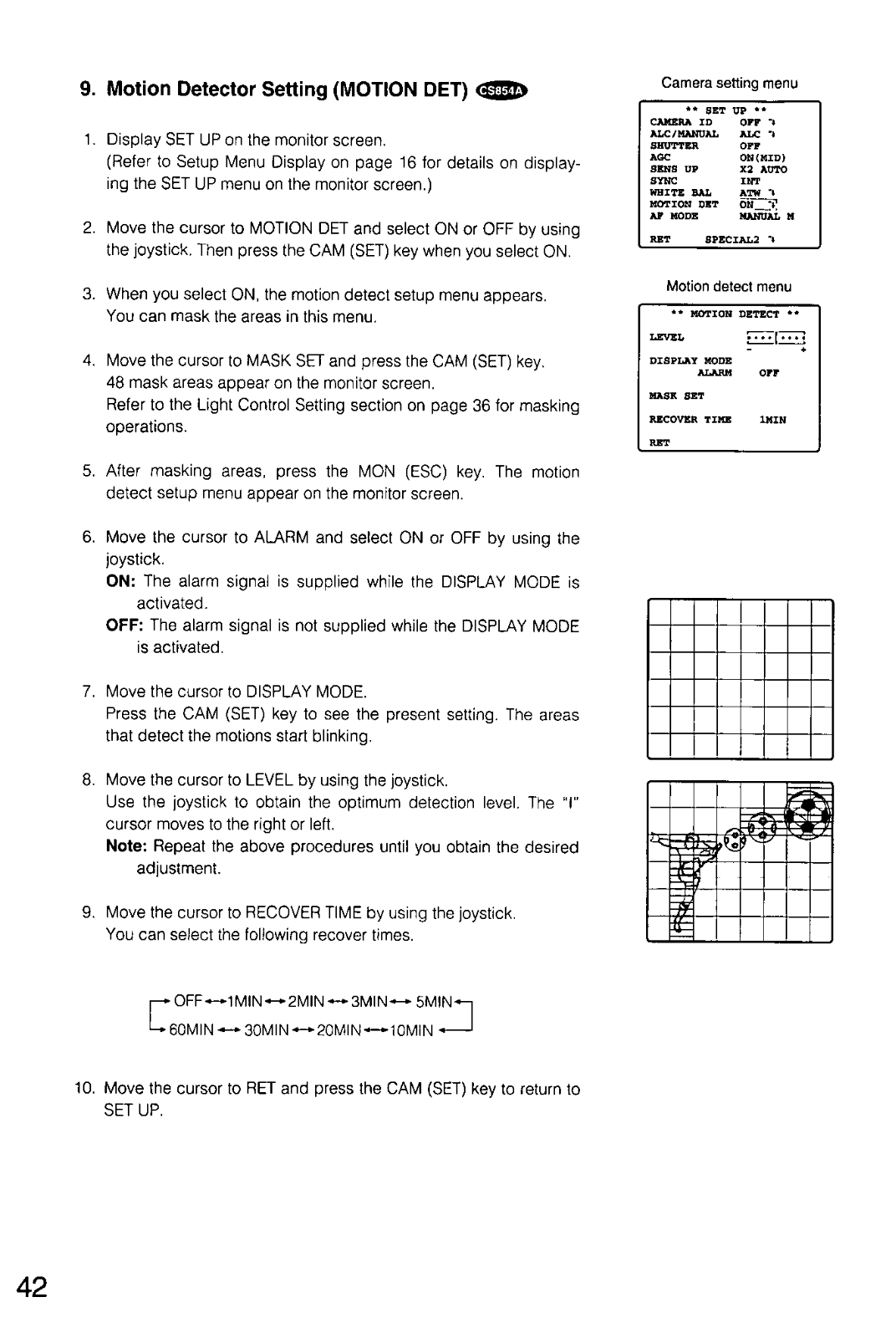

- Motion Detector: Integrated with alarm output.
- Panic Management: Adapters for action triggering.
- Protocol and Adaptability: Adaptable to the panasonic protocol.
- Facilitation of Gain Control: Available.
- Other Features: The feature of holding the image, the effect of reducing digital noise, masking the privacy zones.
Frequently Asked Questions
Q: What is the minimum illumination requirement for the WV-CS554 camera?
A: The minimum illumination in colour is one lx and in black and white it is 0,06lx.
Q: What are the supporting preset positions of the WV-CS554A?
A: It qualifies for 64 preset positions.
Q: Is it applicable for the said camera to automatically change from colour into black or white or vice versa?
A: This camera has an Auto Black/White which has the ability to automatically change depending on the illumination.
Q: What functionality does the zoom capability of this camera provide?
A: This camera has an in-built 22 times optical zoom lens.
Q: Is it possible to work with the camera from a distance? If so, how?
A: Yes, this camera functions seamlessly with a controller for functions such as focus, pan, tilt and zoom.
Q: Where can I get further details on the integrated motion detector?
A: This camera is equipped with an integrated digital motion detector and it allows alarm output.
Q: Are there myriads of precautions I am supposed to exercise during the process of cleaning the camera?
A: When cleaning the camera always ensure to use dry cloth and in case you have to wet it use very light detergent that does not scratch the dome. Strong and abrasive detergents should never be used.
Q: When and where can the camera be effectively in use?
A: This camera works well in temperatures ranging from -10C - +50C 14F - 122F with a humidity of less than 90.
