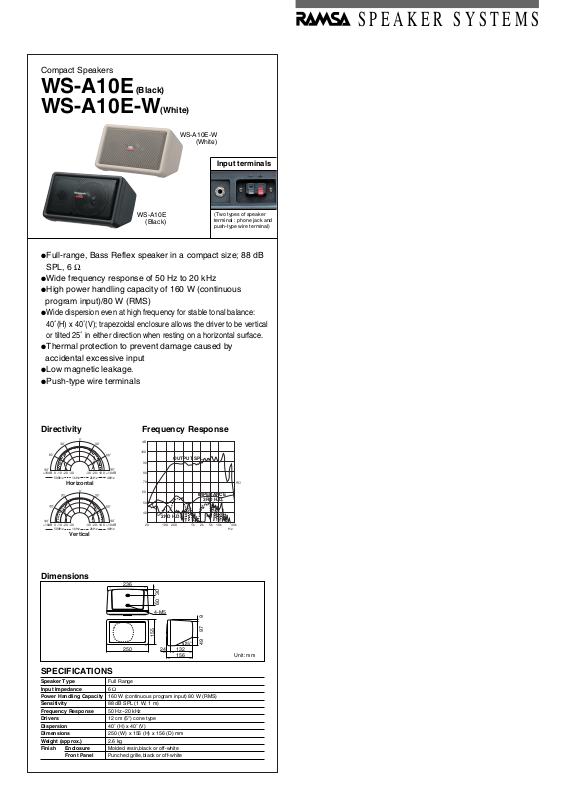

WS-A10E-W
SPEAKER SYSTEMS
Dimensions
Compact Speakers
WS-A10E(Black)
WS-A10E-W(White)
Input terminals
SPECIFICATIONS
250
236
132
156
24
155
97
49 9
60
30
4-M5
(Two types of speaker
terminal : phone jack and
push-type wire terminal)
Unit: mm
Speaker Type Full Range
Input Impedance 6 Ω
Power Handling Capacity 160 W (continuous program input) 80 W (RMS)
Sensitivity 88 dB SPL (1 W, 1 m)
Frequency Response 50 Hz~20 kHz
Drivers 12 cm (5") cone type
Dispersion 40˚ (H) x 40˚ (V)
Dimensions 250 (W) x 155 (H) x 156 (D) mm
Weight (approx.) 2.6 kg
Finish Enclosure Molded resin,black or off-white
Front Panel Punched grille,black or off-white
•
Full-range, Bass Reflex speaker in a compact size; 88 dB
SPL, 6 Ω
•
Wide frequency response of 50 Hz to 20 kHz
•
High power handling capacity of 160 W (continuous
program input)/80 W (RMS)
•
Wide dispersion even at high frequency for stable tonal balance:
40˚(H) x 40˚(V); trapezoidal enclosure allows the driver to be vertical
or tilted 25˚ in either direction when resting on a horizontal surface.
•
Thermal protection to prevent damage caused by
accidental excessive input
•
Low magnetic leakage.
•
Push-type wire terminals
Directivity Frequency Response
WS-A10E
(Black)
WS-A10E-W
(White)
dB
+10dB 0
-20
-30 -30 -20
-10
500Hz 1kHz 2kHz 4kHz
Horizontal
+10dB 0
-20 -30 -30 -20
-10
500Hz 1kHz 2kHz 4kHz
Vertical
100
90
0 +10dB
-10
0
+10dB
-10
80
70
60
50
40
OUTPUT SPL
IMPEDANCE
3RD H.D.
2ND H.D.
20
100 200
1k2k5k
40k
10k
Hz
