Panasonic TZ-DRD100 User Manual
®
DIRECTV Digital Satellite Receiver
Operating Instructions
TZ-DRD100
For product assistance, please call: 1-888-726-2377 or
send e-mail to: consumerproducts@panasonic.com
TQB2AA0378 10315
PRINTED IN MEXICO
Table of Contents
Important Safety Instructions........................... 2
Important Information....................................... 4
Information on the DIRECTV Digital
Satellite Receiver............................................ 6
Reception Capability of DIRECTV Digital
Satellite Receiver................................................................. 6
Panasonic DIRECTV Digital Satellite
Receiver Model TZ-DRD100................................................6
Congratulations.................................................. 7
Customer Record........... ...................................... .................7
Care and Cleaning ................................................................7
Specifications........................................................................7
Important Notes.................................................. 8
Digital Satellite Receiver Location........................................8
Connecting Cables...............................................................8
AC Power Supply Cord.........................................................8
Satellite Dish Antenna Connection.......................................8
Antenna/Cable Connection...................................................9
TZ-DRD100 Front Panel ................................... 10
TZ-DRD100 Rear Panel..................................... 11
Features of the Digital Satellite
Receiver......................................................... 12
DIRECTV Channel Banner ................................................12
Viewing modes ...................................................................14
Tuning modes...................... ........................... ....................15
Getting Started.................................................. 17
Step 1. Connect AC Power Cord..................... .................17
Step 1a. DIRECTV Satellite Dish Connection......... ...........17
Step 1b. Antenna / Cable Connection................................17
Step 1c. Digital Satellite Connection to TV or Monitor........18
Step 1d. Connection to Satellite Dish, Cable box and
Terrestrial Antenna............................................................. 19
Step 1e. Digital Satellite Receiver Connection to VCR ......20
Step 2. Turning Digital Satellite Receiver ON...................21
Step 3. Roller Guide Menu™............................................21
Step 3a. ACTION/Navigation Button..................................21

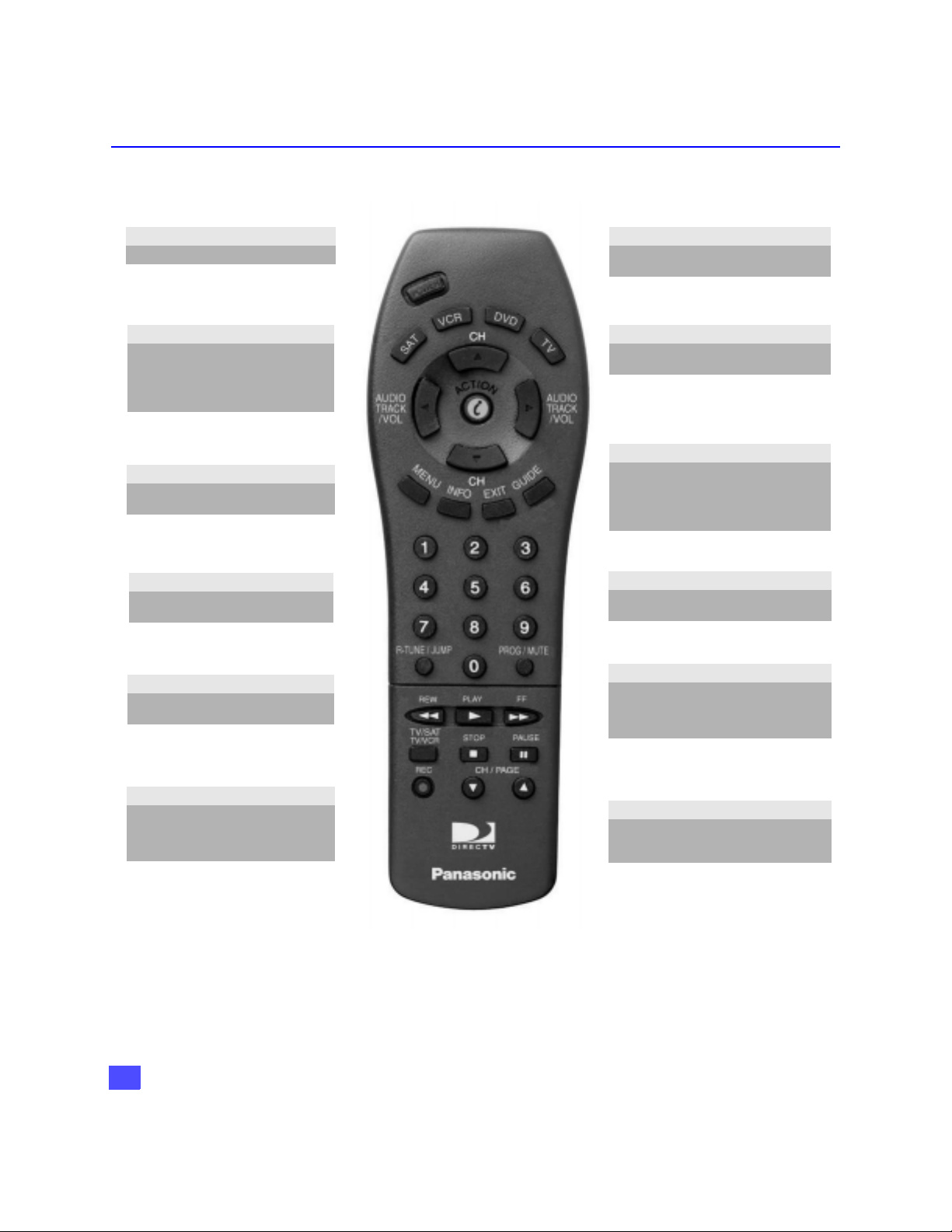

Remote Control Guide ..................................... 22

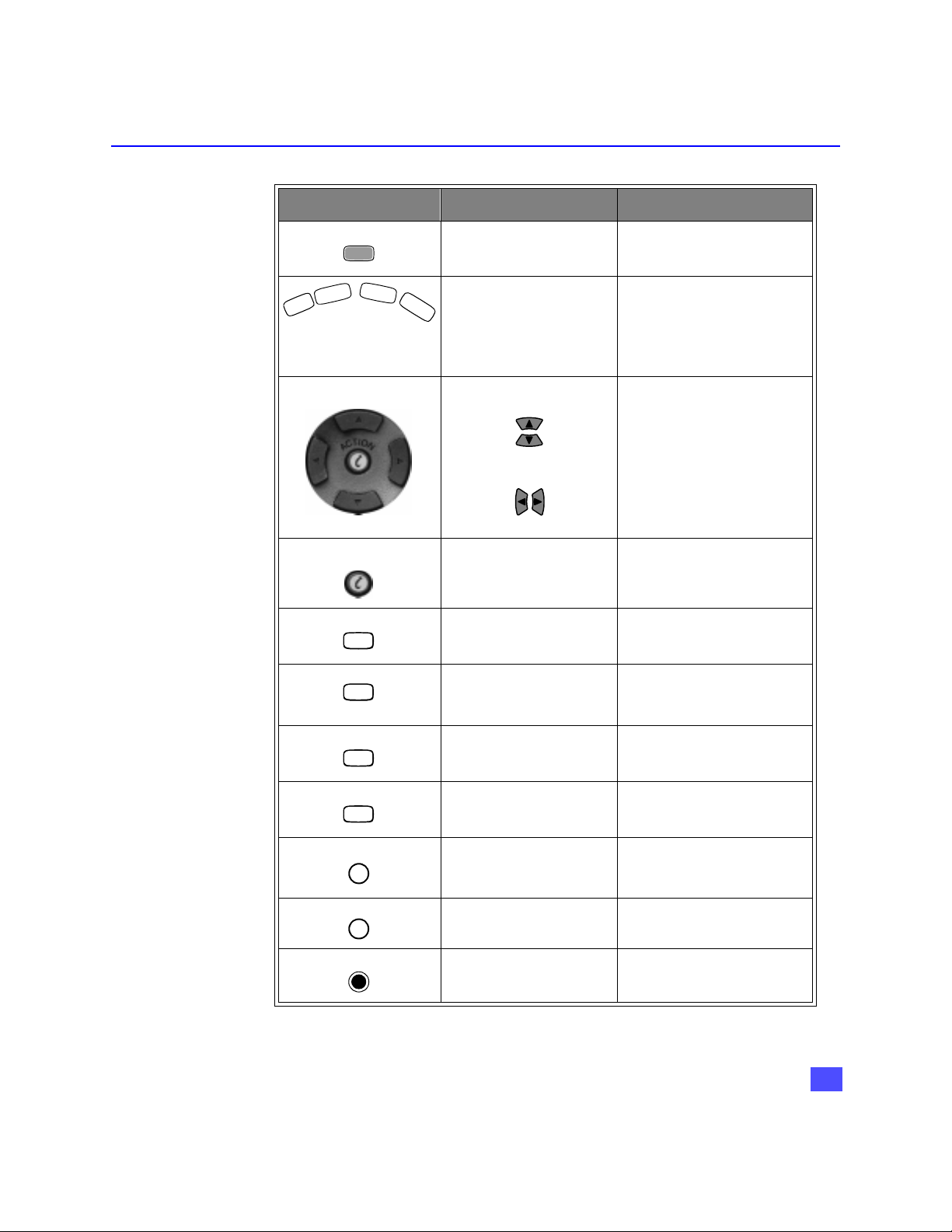

Remote Control Functional Key Chart................................23
Battery Installations and Precautions.................................24
Special Remote Buttons............................... ......................25
Programming the Remote Control......................................26
Remote Control Component Codes ...................... .............27
Special Features of the Digital
Satellite Receiver.................. ....... ...... ....... ...... 29
Impulse pay per view................................ ..........................29
Software Upgrade Messages.............................................32
T
ABLE OF CONTENTS

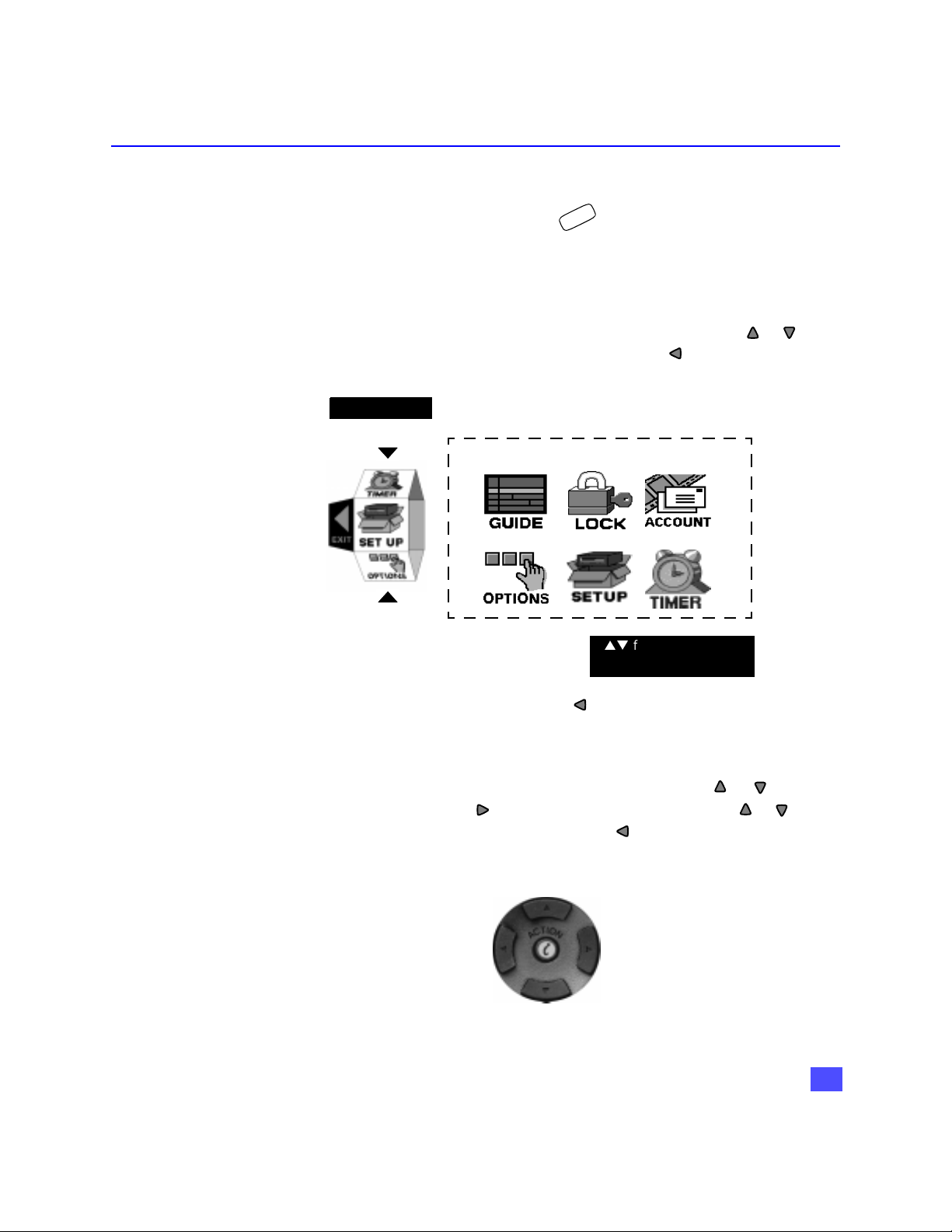

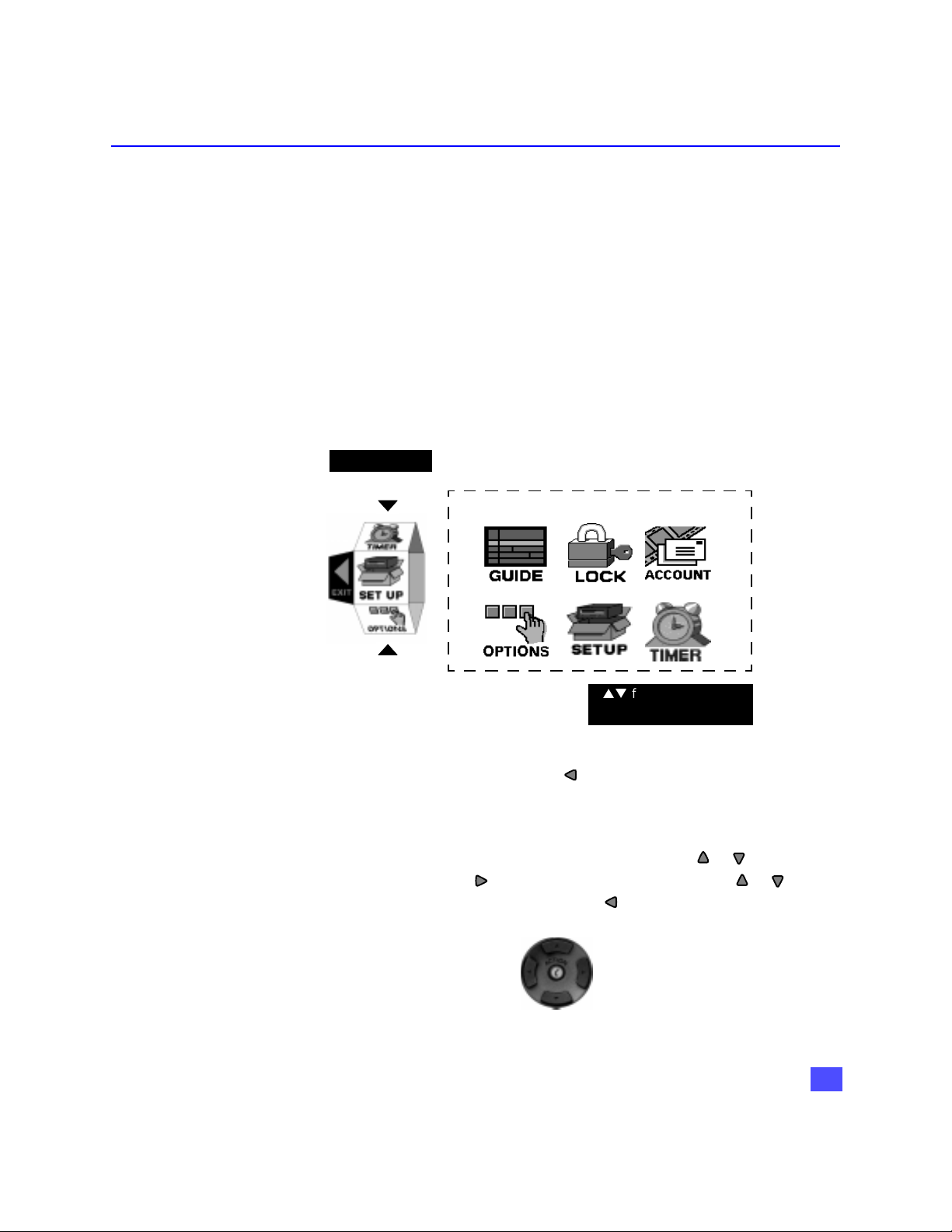

Roller Guide Menu™.........................................33
Navigation/ACTION button.................................................33
Roller Guide Menu Feature Chart....................34

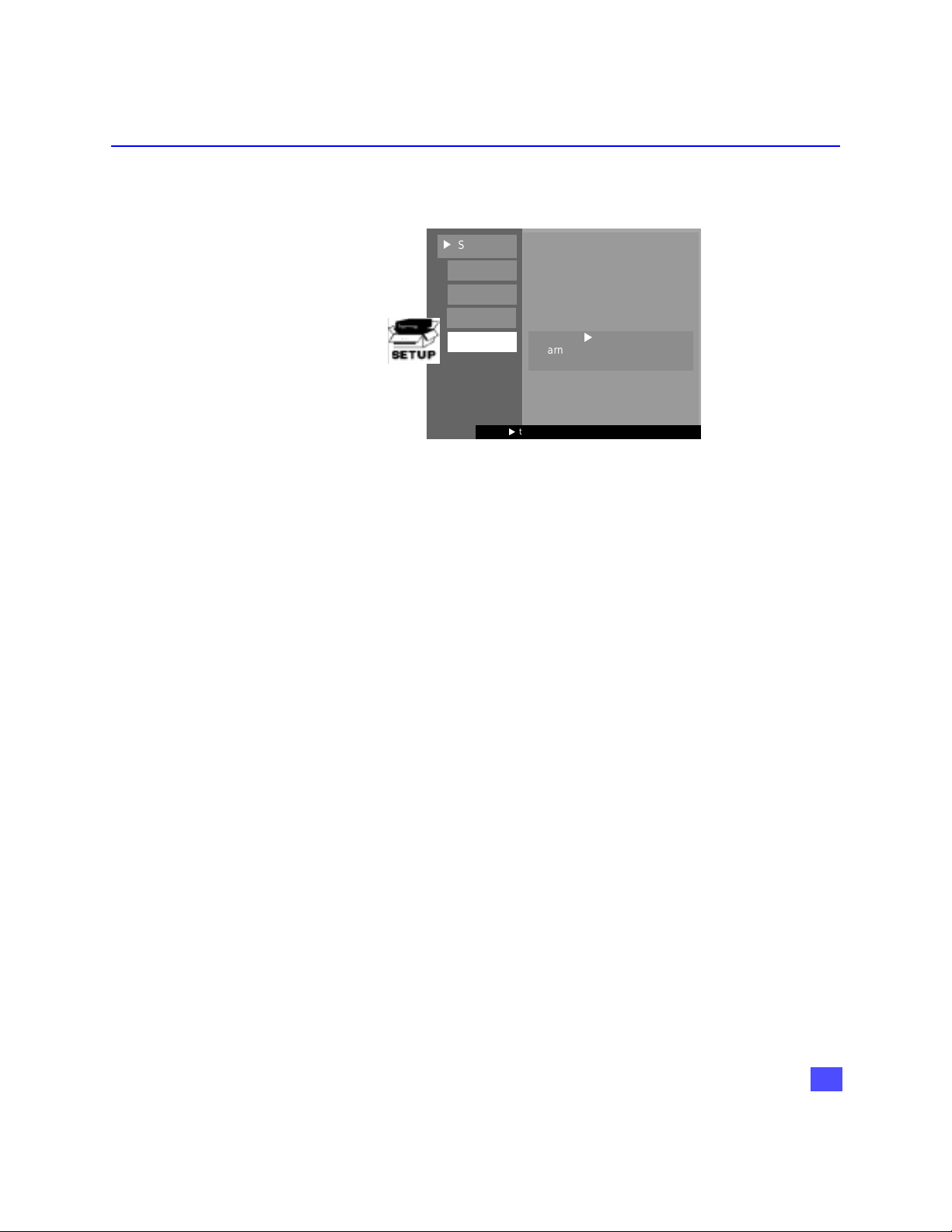

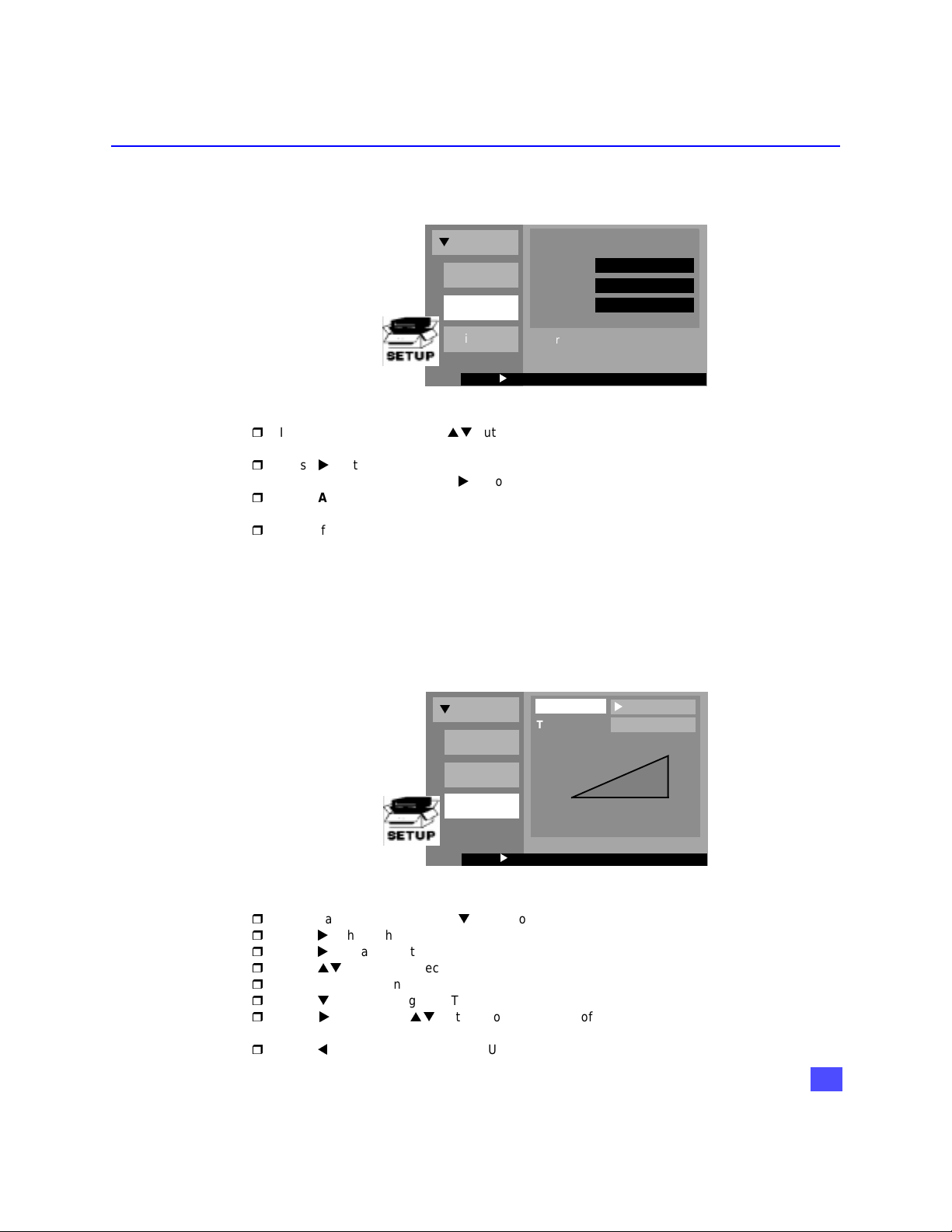

SETUP.....................................................................37

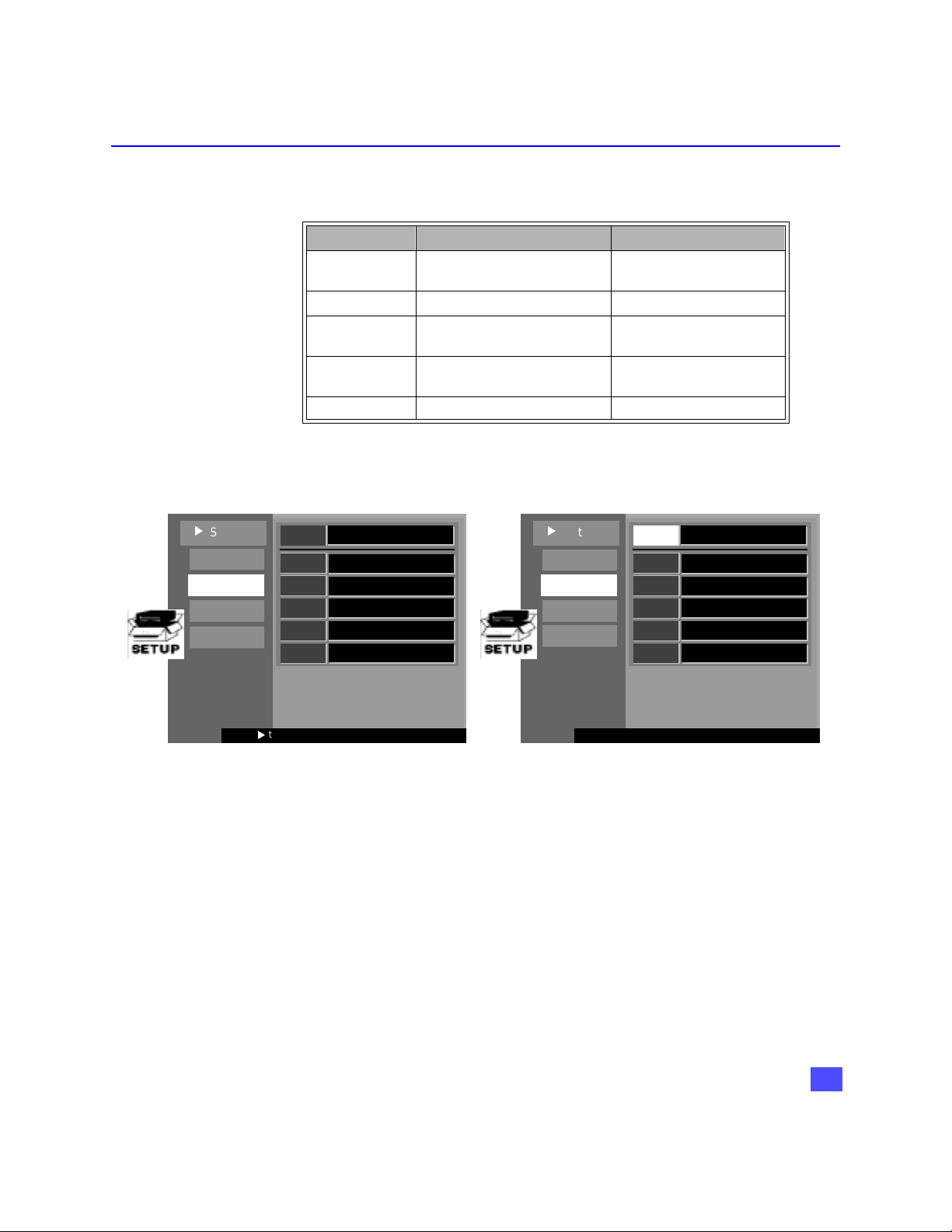

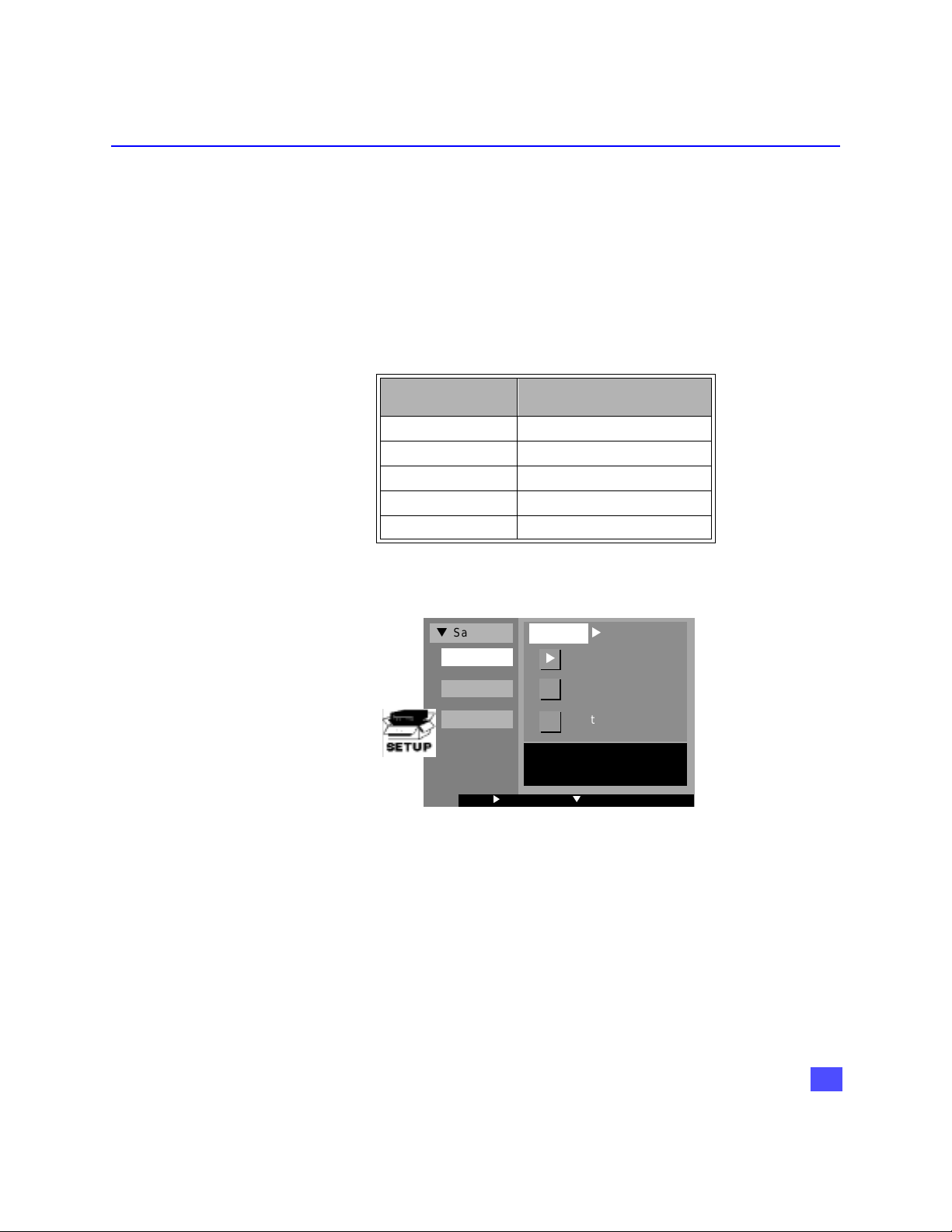

Satellite Setup....................................................................37
Monitor...............................................................................40
System Test...................... ............. ....................................41
Access Card.......................................................................42
TV Output...................... ............. ......................... ...............43

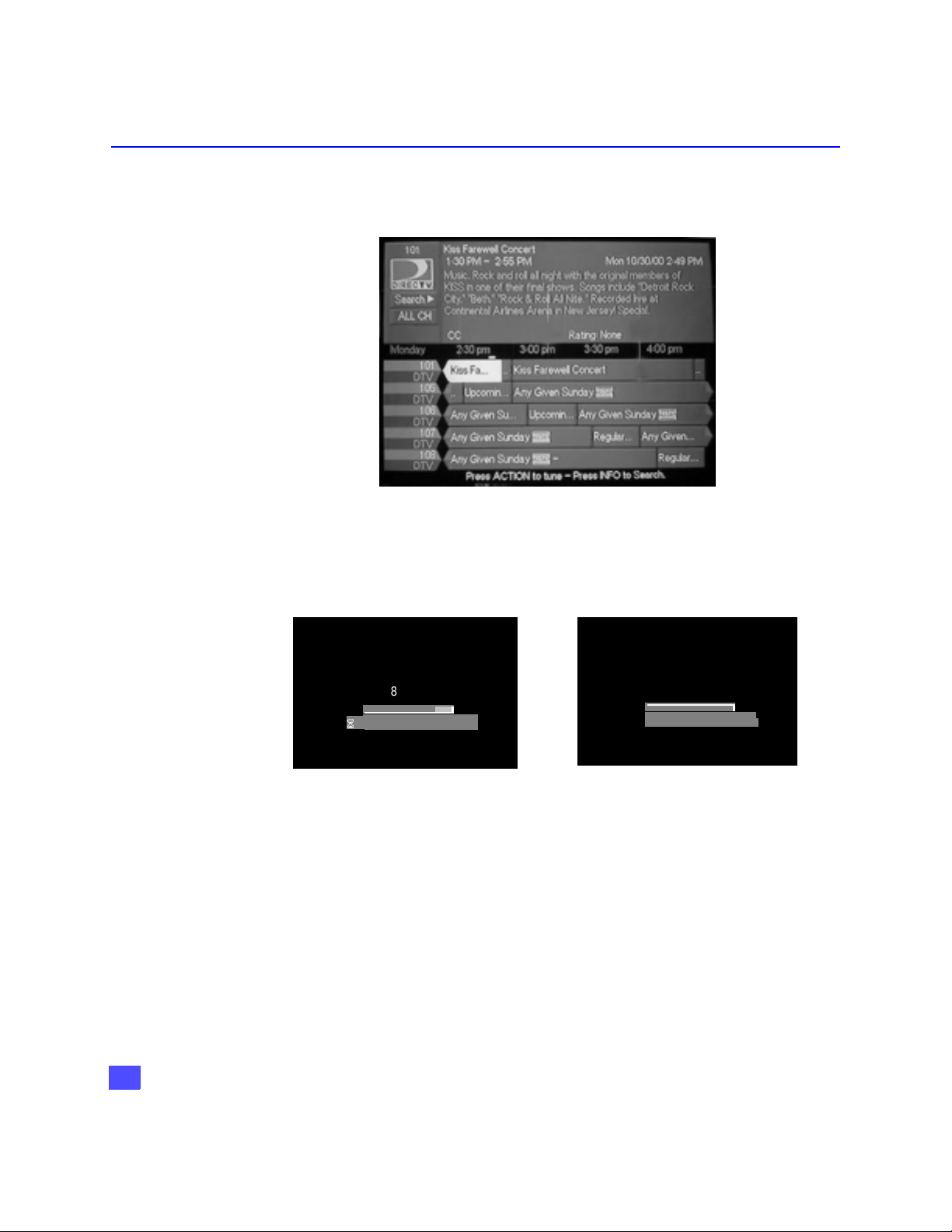

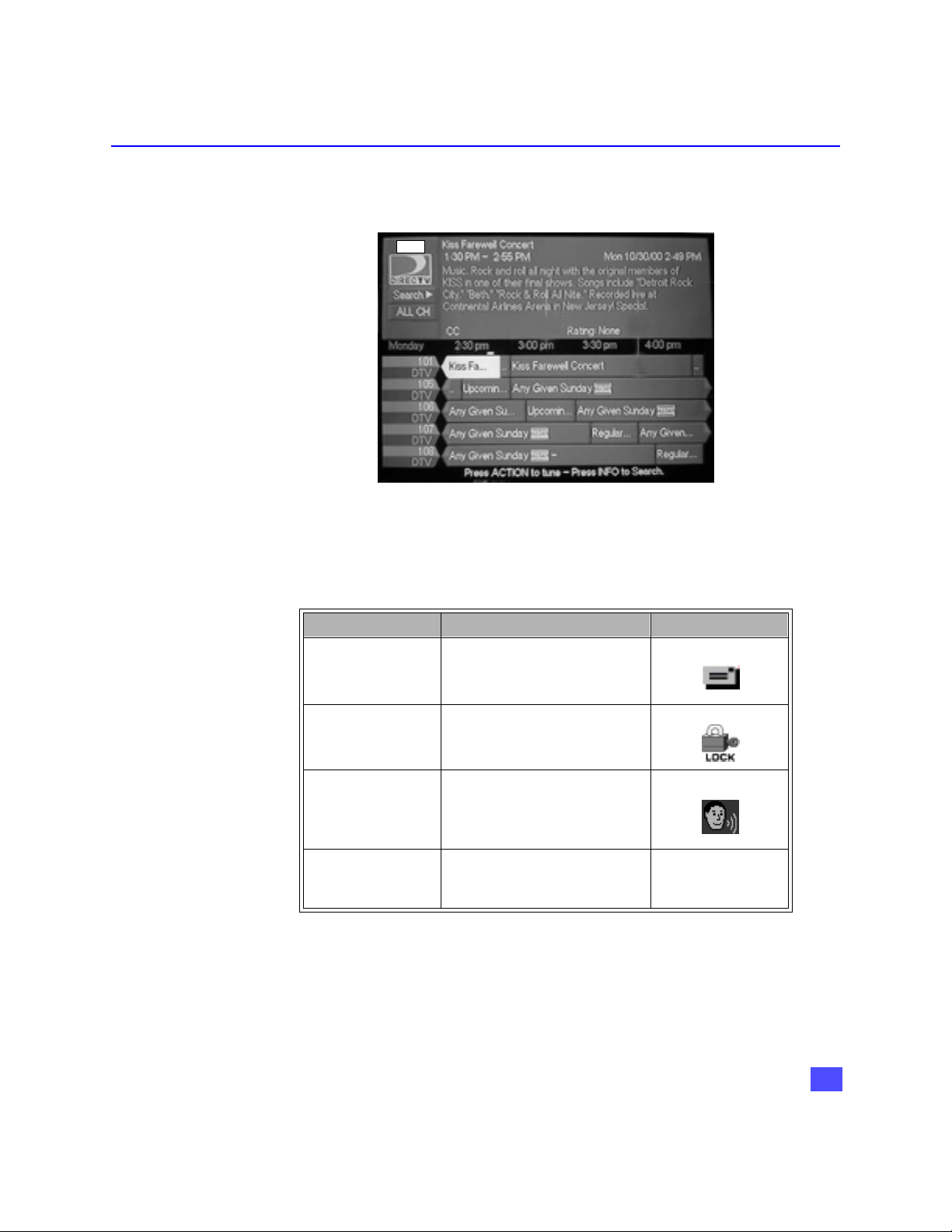

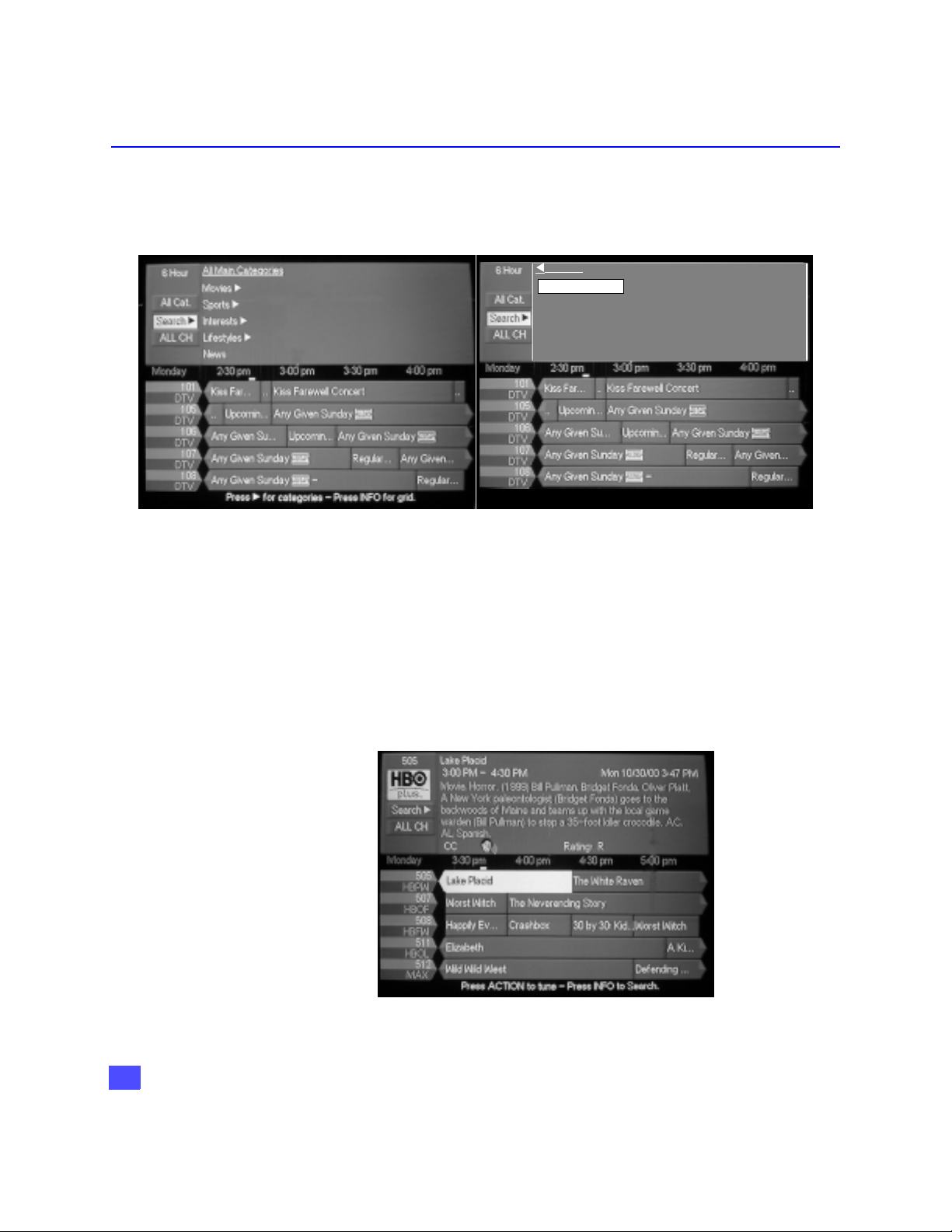

ADVANCED PROGRAM GUIDE™ ........................ 44
Picture In Guide ........................... ........................... ...........45
Searching the Guide by Categories ...................................46
Direct Channel Entry..........................................................47
Banner Description Icons...................................................47
Grid ....................................................................................48

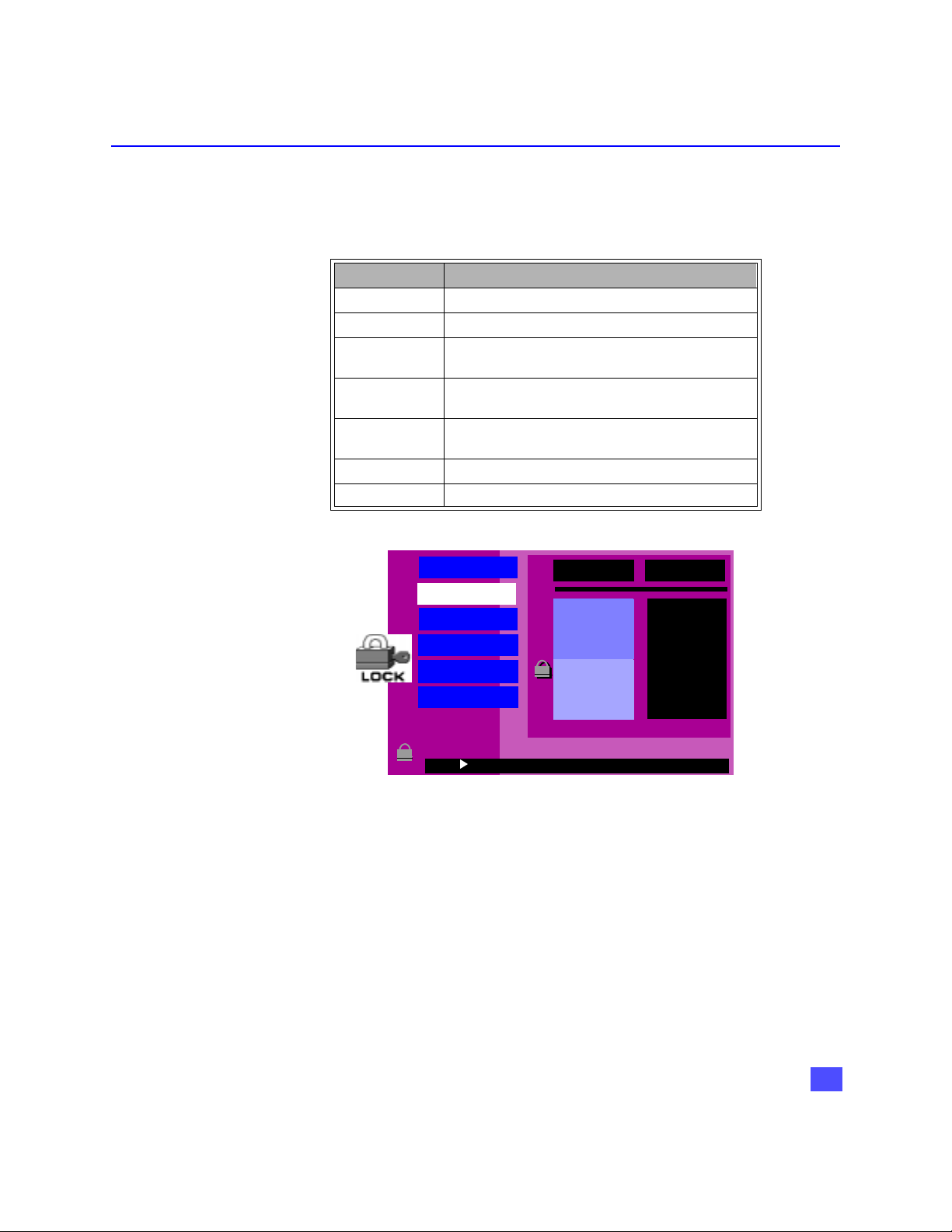

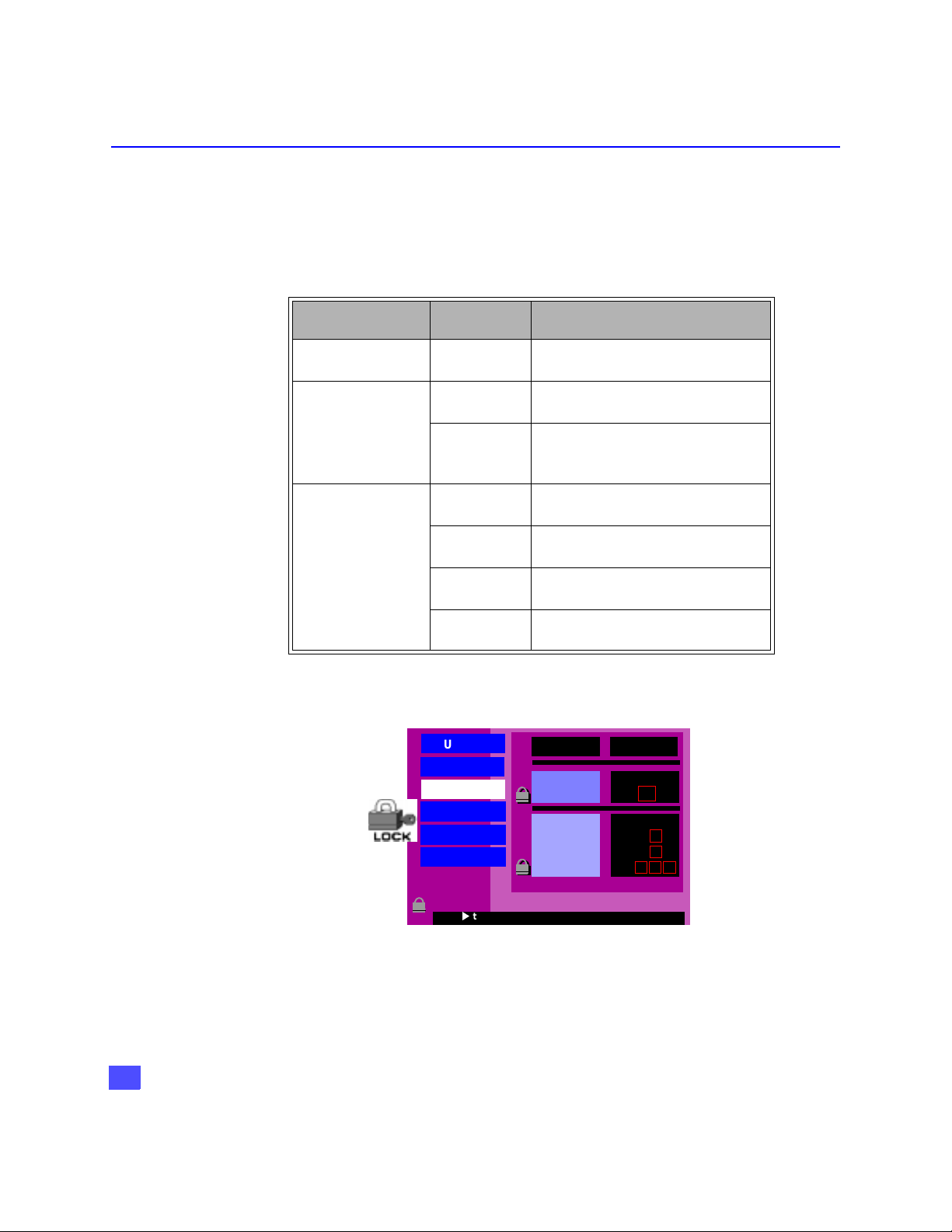

LOCK ......................................................................49
Password ...........................................................................49
Unlock................................................................................50
Movies Limits .....................................................................51
TV Limits.. ...................................... ......................... ...........52
Channel Locks ............................. ......................................53
Spending..................... ........................... ............................54

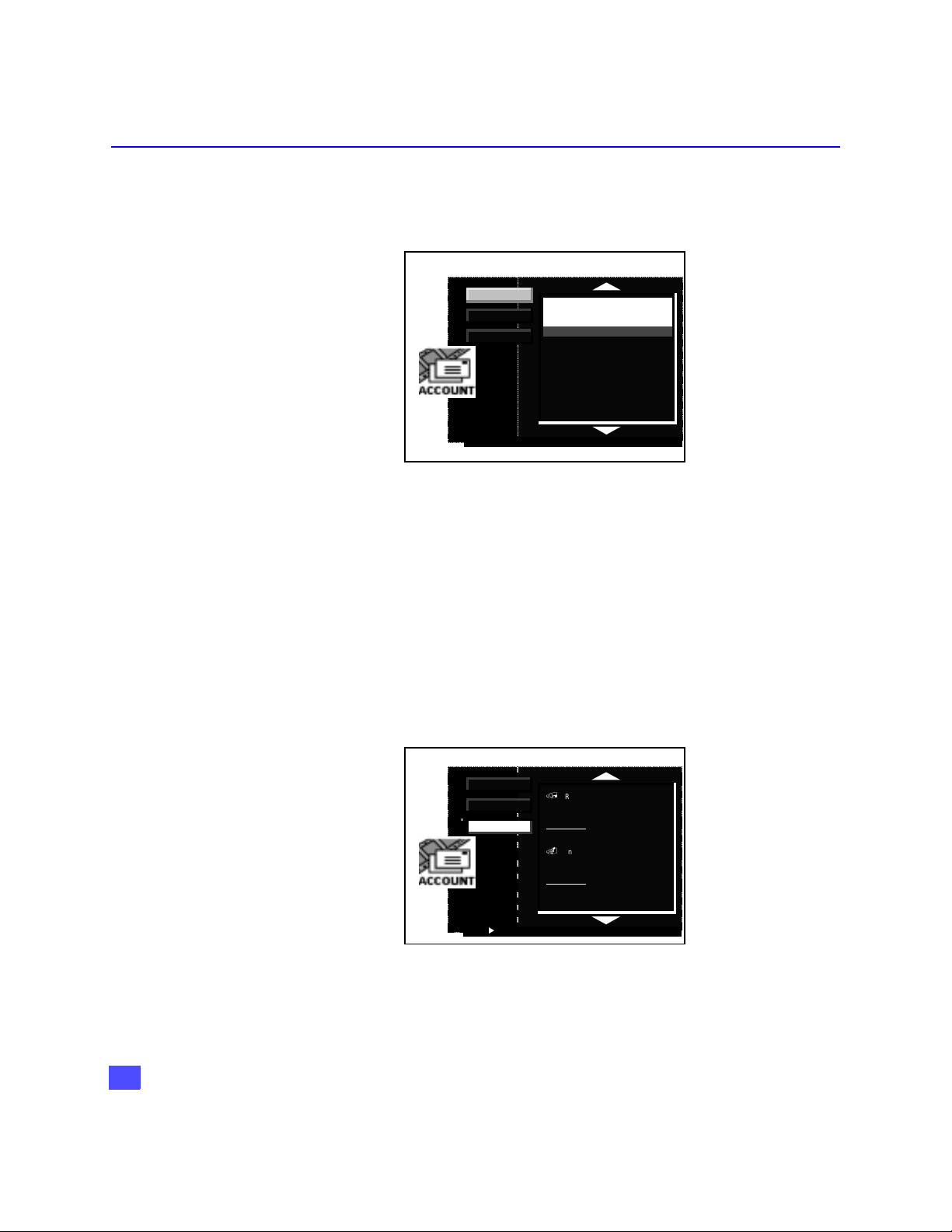

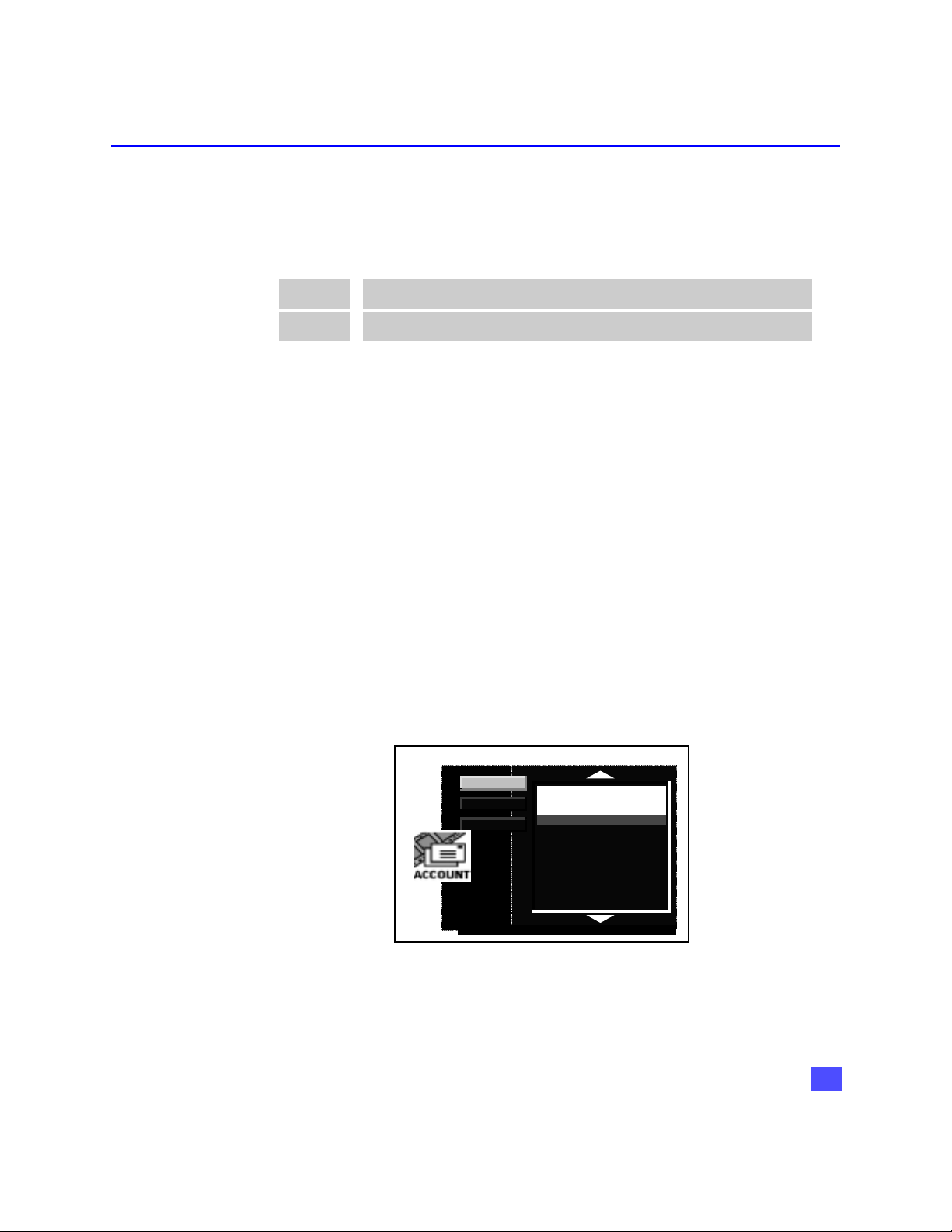

ACCOUNT.......................................... ..... ...... ...... ....55
Future Purchases...............................................................55
Past Purchases..................................................................56
Messages.............. ........................... ........................... .......56

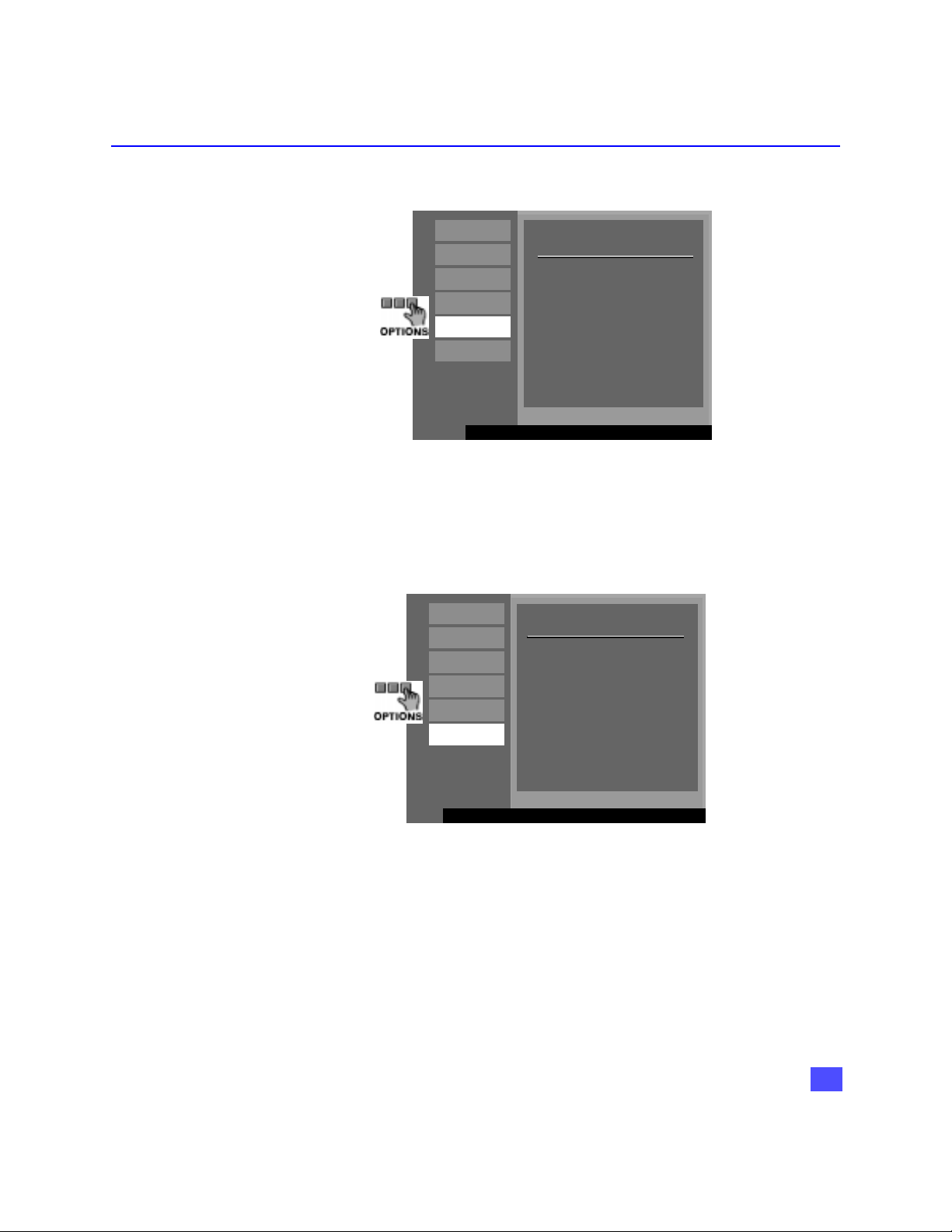

OPTIONS ..................................... ...... ..... ...... ...... ....57
Audio............................... ...................................... .............57
Clock.. ...................................... ......................... .................58
Favorites ............................................ ................................59
About................................... .......................... .....................60
Upgrades............................... ............................ .................61
Features.................... ............... ........................... ...............61

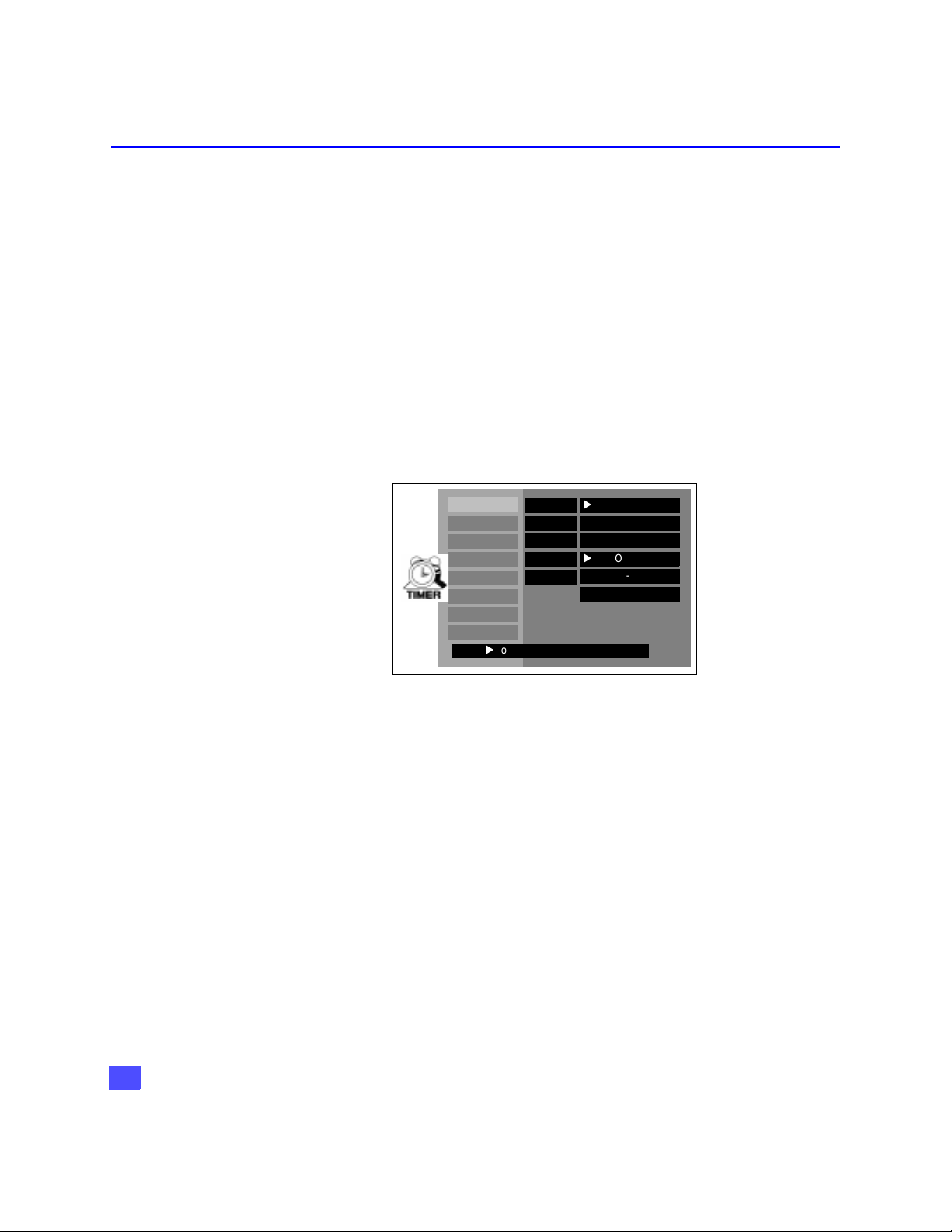

TIMER .......................................... ...... ..... ...... ...... ....62
Timer error Messages. .......................................................63
Glossary and Acronyms...................................64
Troubleshooting Table .....................................66
Service Information...........................................67
Read these instructions completely before
operating.
Specifications are subject to change without notice
or obligation.
Copyright 2001 by Matsushita Electric Corporation of America.
All rights reserved. Unauthorized copying and distribution is a
violation of law.
1
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock do not remove cover or back. No
user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrow
head within a triangle is intended
to tell the user that parts inside
the product are a risk of electric
shock to persons.
Note To CATV System Installer: This reminder is provided to call the CATV system installer’s attention to article 820-40 of
the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
Note To Satellite Dish Installer:
This reminder is provided to call your attention to Article 810 and in particular article 810-15 of the National Electrical Code which
covers proper installation and grounding of television receiving equipment as well as to article 820-40 of the National Electrical Code
which specifies that the satellite dish cable ground shall connected to the grounding system of the building as close to the point of
cable entry as practical.
Important Safety Instructions For The Digital Satellite Receiver:
1. Read and apply the operating instructions provided with Digital Satellite Receiver.
2. Read all of the instructions given here and retain them for later use.
3. Unplug this Digital Satellite Receiver from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
4. Do not use attachments not recommended by the Digital Satellite Receiver manufacturer as they may cause hazards.
5. Do not use this Digital Satellite Receiver near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
6. Do not place this Digital Satellite Receiver on an unstable cart, stand, or table. The Digital Satellite Receiver may fall, causing
serious injury to a child or adult and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the Digital Satellite Receiver. Wall or shelf mounting should follow the manufacturer’s instructions,
and should use a mounting kit approved by the manufacturer.
6a. An appliance and cart combination should be moved with car e. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination to overturn.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable
operation of the Digital Satellite Receiver and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the Digital Satellite Receiver on a bed,
sofa, rug or other similar surface. This Digital Satellite Receiver should never be placed near or over a radiator or heat register.
This Digital Satellite Receiver should not be placed in a built-in installation such as a bookcase unless proper ventilation is
provided.
8. Operate only from the type of power source indicated on the marking label. If you are not sure of the type of pow er supplied to
your home consult your Video dealer or local power company. For Digital Receivers designed to operate from battery power,
refer to the operating instructions.
9. This Digital Satellite Receiver is equipped with a polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safe purpose of the polarized plug,
10. Do not allow anything to rest on the power cord. Do not locate this Digital Satellite Receiver where the cord will be abused by
persons walking on it.
11. Follow all warnings and instructions marked on the Digital Satellite Receiver.
2
The exclamation point within a triangle is
intended to tell the user that important
operating and servicing instructions are
in the papers with the appliance.
IMPORTANT SAFETY INSTRUCTIONS
12. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
13. Never push objects of any kind in to this Digital Satellite Receiver through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the Digital Satellite Receiver .
14. If an outside antenna is connected to the decoder equipment, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges. In the U.S. Section 810 of the National Electrical Code, ANSI/
NFPA 70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode. See Figure.
15. For added protection for this Digital Satellite Receiver during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the decoder due to
lightning and power-line surges.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should betaken to
keep from touching such power lines or circuits as contact with them might be fatal.
17. Unplug this Digital Satellite Receiver from the wall outlet, and refer servicing to qualified service personnel under the following
conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the Digital Satellite Receiver.
c. If the Digital Television Decoder has been exposed to rain or water.
d. If the Digital Satellite Receiver does not operate normally by following the operating instructions. A djust only those
controls that are covered by the operating instructions as improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the Digital Satellite Receiver to normal operation.
e. If the Digital Satellite Receiver has been dropped or the cabinet has been damaged.
f. When the Digital Satellite Receiver exhibits a distinct change in performance - this indicates a need for service.
18. Do not attempt to service this Digital Television Decoder yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
19. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer
that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock , or other
hazards.
20. Upon completion of any service or repairs to this Digital Satellite Receiver, ask the service technician to perform routine safety
checks to determine that the decoder is in safe operating condition.
21. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
22. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THI S (PO LARIZED) P LUG W ITH A RE CEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
Note: DIRECTV® service can only be received within the USA and is not available in Canada
3
I
MPORTANT INFORMATION
Important Info rm ati o n
FCC INFORMATION
Your Digital Satellite Receiver is registered with the Federal Communications Commission and is in compliance with CFR47, Parts 15 and 68, FCC Rules and Regulations.
Radio Interference
This equipment has been tested and found to comply with the limit for a Class B Digital Device in accordance
with the specifications in Part 15 of FCC Rules. The rules are designed to provide reasonable protection against
radio and television interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or televisions reception (which you can determine by turning
the equipment off and on), try to correct the interference by one or more of the following measures.
• Reposition or relocate the receiving antenna for the radio or television that is “receiving” the interference.
• Change the position of the Digital Satellite Receiver with respect to the radio or television equipment that is
receiving interference.
• Move the Digital Satellite Receiver away from equipment receiving interference.
• Plug the Digital Satellite Receiver into a different wall outlet so the Digital Satellite Receiver and equipment
receiving the interference are on different branch circuits.
If these measures do not eliminate interference, please consult your dealer or an experienced radio/television technician for assistance..
FCC CAUTION:
Pursuant to 47CFR, Part 15 .21 of the FCC rules, any change s or mo difica tions to this Digi tal Satellite Rec eiver
not expressly approved by Matsushita Electric Corporation of Am erica could cause har mful interference and
would void the user’s authority to operate this device.
A FCC compliant modem cable with modular plug is pro vided with this equipm e nt. Th is equ ipm ent is de signe d
to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68
compliant. See Installation Inst ructions for details.
FCC Declaration of Conformity
PANASONIC CONSUMER ELECTRONICS COMPANY
Responsible party:
Matsushita Electric Corporation of America
One Panasonic Way
Secaucus, NJ 07094
U.S.A.
Telephone Num ber: 1-88 8-7 26-2 377
(8 a.m.-10 p.m., Mon-Fri, EST)
(10 a.m.-10 p.m., Sat-Sun, EST) OR
E-MAIL: CONSUMER PRODUCTS@PANASONIC.COM
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
4
I
MPORTANT INFORMATION
Notification to the Local Telephone Company
On the back of this equipment is a label indicating among other information, the FCC Registration number
and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful to determine the number of devices you may connect
to your telephone line and still have all these devices ring when your telephone number is called. In most
(but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be
certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company.
Notes: This equipment may not be used on coin service provided by the telephone company.
Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company.
Notice must be given to the telephone company upon permanent disconnection of your Digital Satellite
Receiver from your line.
Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the telephone network, the telephone
company shall, where practicable, notify you that temporary discontinuance of service may be required.
Where prior notice is not practicable and the circumstances warrant such action, the telephone company
may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone
company must: (1) promptly notify you of such temporary discontinuance (2) afford you the opportunity to
correct the situation and (3) inform you of your right to bring a complaint to the Commission pursuant to
procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may
make changes in its communication facilities, equipment, operations of procedures where such action is
required in the operation of its business and not inconsistent with FCC Rules and Regulations. Of these
changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.
5
I
NFORMATION ON THE
DIRECTV D
IGITAL SATELLITE RECEIVER
Information on the DIRECTV Digital Satellite Receiver
Reception capability of DIRECTV Digital Satellite Receiver
The Panasonic Digi tal Satellite Recei ver is capable of rec eiving DIRECTV
satellite signals and co nver ting the m to standard def initi on signal . You may connect a
terrestrial or cable antenna to the VHF/UHF ANT input of the Digital Satellite Receiver.
DIRECTV
SATELLITE
DIRECTV
SATELLITE
ANALOG
TERRESTRIAL
ANTENNA
®*
digital
TERRESTRIAL
ANTENNA
TV OR MONITOR
Oval dish
SATELLITE
DISH ANTENNA
CABLE SIGNAL
DIGITAL SATELLITE
RECEIVER
Terrestrial off-air signals or unscrambled cable-service signals can be passed through
the Digital Satellite Receiver when the antenna is connected to the VHF/UHF IN input
and the Digital Satelli te Receiver is Off or whe n the user pr esses the TV/S AT button
on the remote. The desired channels are tuned by the television.
Panasonic DIRECTV Digital Satellite Receive r Model TZ-DRD100
Panasonic Digital Satellite Receiver with a built-in DIRECTV Receiver, can receive
and process DIRECTV standard definition video from satellite broadcasts if you
®
subscribe to DIRECTV
chips which allow cur rent televisions (with A/V inpu ts) to display dig itally broadcast
programs. This Digital Sate llite Receiver also has a RF OUT j ack, which enab les the
unit to be hooked up to a televis ion without A/V inpu ts. The Digital Satell ite Receive r,
which receives digital signals, has the ability to convert the digital broadcast into
National Television System Committee (NTSC)** signals that a conventional television
can display.
*
DIRECTV and the Cyclone Design logo and Advanced Program Guide are trademarks of DIRECTV, Inc.,
a unit of Hughes Electronics Corp., and are used with permission.
**NTSC is the current television system used in the U.S. It uses analog (non-digital) signals.
programming. Model TZ-DRD10 0 uses specially developed
6
Congratulations
Y our Panason ic Digital Satellite Receiver fea tures state-of-the-art technology for high -quality
picture and sound with complete audio/video output jacks for your home theater system.
This Digital Satellite Receiver is capable of receiving D IRECTV
signals. DTV signals are displa yed in interlaced format, providing a clear, crisp picture. Your
new Digital Satellite Receiver is designed to give you many years of enjoyment.
Customer Record
The model and serial num ber of this product are located on the bac k of the Digital
Satellite Receiver. You should note the model and serial number in the space
provided and retain as a permanent record of your purchase. This will aid in
identification in the even t of theft or loss.
www.prodreg.com\panasonic.
Care and Cleaning
Turn Digital Satellite Receiver Off
r For Digital Satellite Receiver, avoid excessive moisture and wipe dry.
r Avoid bumping or scraping the Digital Satellite Receiver.
Remote Control
r For Remote Control, use a soft cloth dampened with water or a m ild detergent
r Do not use benzene, thinner or other petroleum based products.
Specifications
Product reg istration is avail able on-line at:
Model
Number
TZ - DRD100
Serial
Number
solution. Avoid excessive moisture and wipe dry.
C
ONGRATULATIONS
®
standard definition sate llite
Power Source 120V AC, 60Hz
Channel Capability – NTSC and CABLE
Satellite Signal Range
NTSC Video Output jack
NTSC Audio Output jacks 0-2.0V rms 4.7k Ohm
VHF / UHF ANT IN jack 75 Ohm, F Connector
VHF / UHF (Passthrough) , SAT OUT jack 75 Ohm, F Connector
Modem Jack RJ11C, 4 Conductor
Specifications are subject to change without notice or obligation.
*The digital tuning system allows channel numbers up to 9999 to be displayed. The total chan-
nel capability, however, remains as stated.
Note: The Digital Satellite Receiver will only passthrough your off-air antenna or cable
signals. You must tune off-air or cable channels with your television or cable box.
VHF/UHF - 2-69*(Passthrough)
CATV - 1-125* (Passthrough)
950 - 1450 Mhz (L-Band)
1V
, 75 Ohm, Phono Jack Type
p-p
7
I
MPORTANT NOTES
Important Notes
Digital Satellite Receiver Location
This unit can be used as part of an entertainment center. Consult your dealer for
available options.
r Avoid exce ssive sunlight or bright lights.
r Keep away from excessive heat or moisture. Inadequate ventilation may cause internal
component failure.
r Fluorescent lighting may reduce Remote Control transmitting range.
Connecting Cables
Shielded audio/video c ables (provided) should be used for all connectio ns between
components. For best results:
r Use 75 Ohm coaxial shielded cables.
r Check type of output and input connectors on your components.
r Determine required cable lengths.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK, MA TCH WIDE BLADE
OF PLUG TO WIDE SLOT OF AC OUTLET AND FULL Y INSER T. DO
NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADE CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
Polarized Plug
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT
OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE
POINT WHERE THEY EXIT FROM THE APPARATUS.
Satellite Dish Antenna Connection
Connect the cable co ming from th e DIRECTV satell ite dish to the Satellit e In jack o n
the Digital Satellite Receiver.
Note: With this receiver and the proper satellite dish antenna, you may be able to subscribe
to local channels from DIRECTV in certain markets. Additional equipment may be
required in s ome a r eas. Ch e ck wi t h yo ur re ta il er or visi t DI RE CT V.com for inf or m ati on
on availability of local channels from DIRECTV in your area.
8
Antenna/Cable Connection
A terrestrial antenna o r cable antenna may be connected to the VHF/UHF IN j ack of
the Digital Satellite Receiver. This input works as a passthrough. The VHF/UHF
channels can be passed throug h either by toggling TV/ SAT button on remote control
or by turning the Digital Sa tellite Receiv er off. The RF output (VHF (S AT) UHF OUT)
of the Digital Satellite Receiver must be connected to the television.
Antenna Connection
For proper reception of VHF/UHF channels, a directional antenna is required. For best
reception, an outdoor antenna is recommended.
Procedure
r Connect the antenna cable from your antenna to the VHF/UHF IN jack of the Digital
Satellite Receiver.
Cable Connection
Before connecting your cable to the Digital Satellite Receiver, contact your local cable
provider and ask the following question:
• Do you need a separate cable box to receive cable channels in your area?
Incoming Cable from
Home Antenna
75 Ohm ANT IN input on back
of Digital Satellite Receiver
I
MPORTANT NOTES
Procedure
r Connect the cable wire provided by your local cable provider.
Incoming Cable from
Cable Provider
75 Ohm ANT IN input
on back of Digital Satellite
Receiver
9
F
RONT AND REAR VIEW OF THE DIGITAL SATELLITE RECEIVER
Front and Rear View of the Digital Satellite Receiver
Front Panel
Menu button
Power indicator LED
Navigation buttons
Info bu ttto n
Smart Card
(behind door)
POWER
Po w e r b u tto n
MENU
GUIDE
INFO
ACTION
Navigation buttons
Panasonic
DIGITAL SATELLITE RECEIVER
Remote Control sensor
Actio n b u tto nGuide button
POWER Turns the Digital Satellite Receiver On.
MENU Press to enter and exit Roller Guide Menu system.

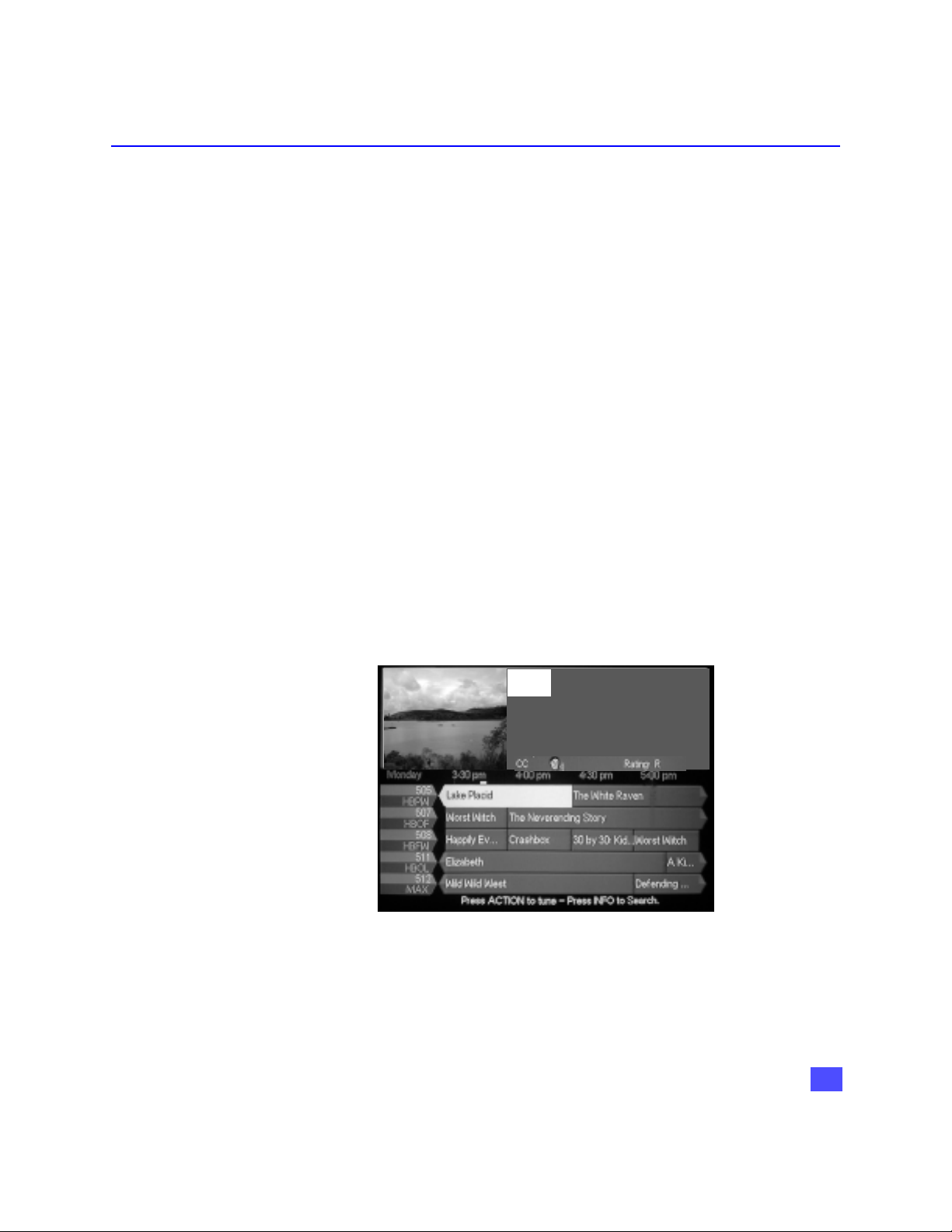

GUIDE Press to access the Advanced Program Guide™.

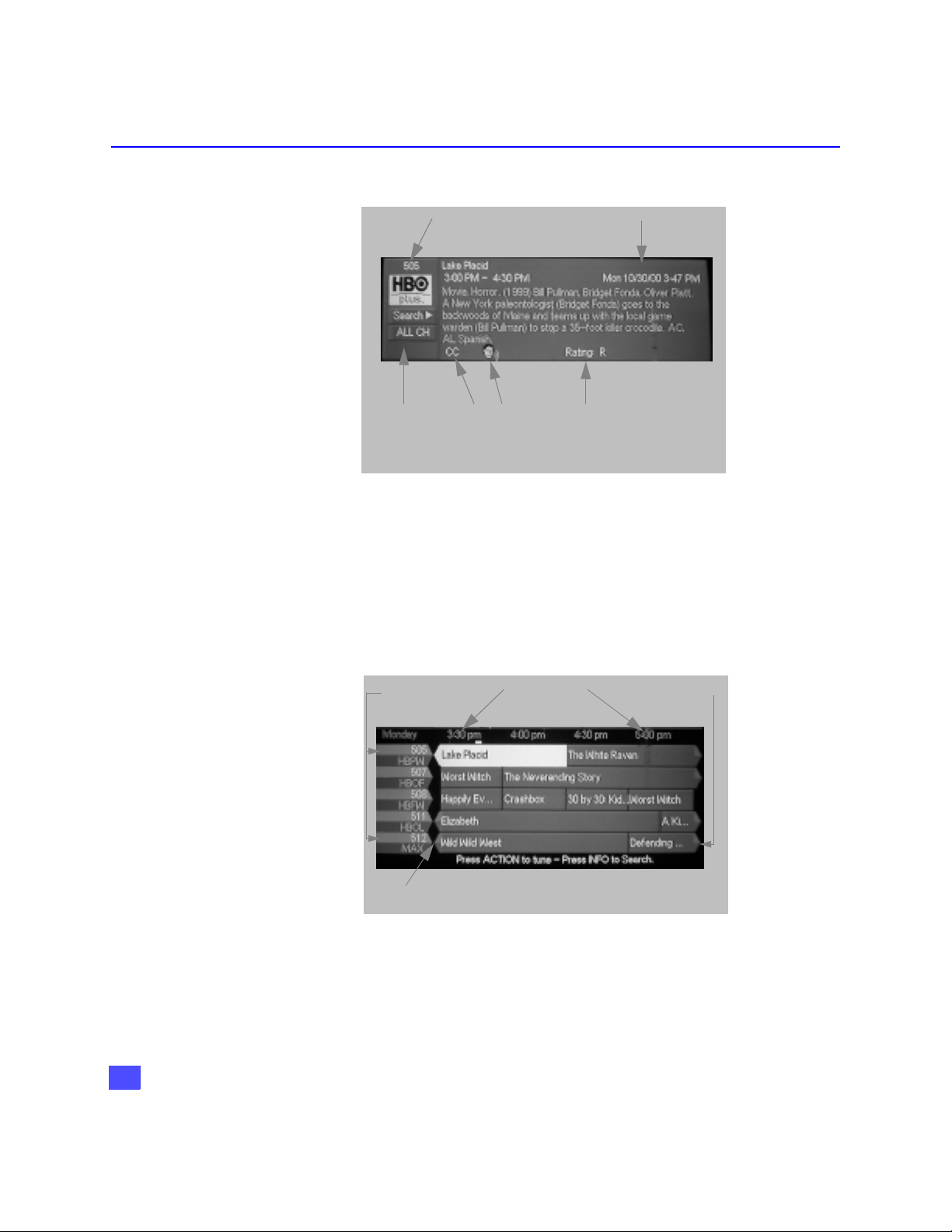

INFO Press to display the Channel banner or to search within the
Guide.
ACTION Press to enter selection from the Guide or from the Menu.
NAVIGATION
BUTTONS Press the navigatio n arrows to move t he highlight up, d own, left
or right.
SMART CARD Also known as Access Card, identifies you to your program
providers. The DIRECTV Sy ste m r equ ires a v ali d car d. (S li de th e
door to the right to access the smart card.)
10
Notes:
r DIRECTV programming sold separately.
r Programming subject to change. You must be physically located in the U.S. to receive
DIRECTV service. DIRECTV services not available outside the U.S. DIRECTV
programming is sold separately and independently of DIRECTV System hardware. A valid
programming subscripti on is re quired t o operat e DIRECT V System h ardware. Ac tivate your
DIRECTV programming today at 1-800 DIRECTV (1-800-347-3288).
Rear Panel
F
RONT AND REAR VIEW OF THE DIGITAL SATELLITE RECEIVER
SATELLITE IN jack
SATELLITE
IN
NTSC OUTPUT
R-AUDIO-L VIDEO
NTSC OUTPUT
VHF/UHF
IN
VHF (SAT) /UHF
OUT
VHF (SAT) /UHF
OUT Jack
TEL LINE
Tel Line
UHF/VHF IN Jack
AC IN
AC POWER INPUT
SATELLITE IN Use to connect DIRECTV satellite d ish antenn a to the Dig ital
Satellite Receiver.
VHF/UHF IN Use to connect an off-air antenna or cable TV signal to the
Digital Satellite Receiver. This input serves as a passthrough
for off-air antenna or cable signal when the user presses the
TV/SAT button or when the Digital Satellite Receiver is
powered off.
VHF (SAT) / UHF Use to connect the Digital Satellite Receiver to your TV.
OUT
NTSC OUTPUT Use to connect the Digital Satellite Receiver to a TV or
Monitor. By using the audio/video jacks, you will get better
picture and sound quality.
TEL LINE Use to connect a pho ne line to the Digital Sa tellite Receiver
to enable receipt of certain DIRECTV
®
services.
11
F
EATURES OF THE DIGITAL SATELLITE RECEIVER
Features of the Digital Satellite Receiver
DIRECTV Channel Banner
The Channel Banner is ava ilable with DIRECTV® programming to show you which
channel and pro gr am you ar e cu rren tly v i ewing or h ave s el ec ted. The fo ll owin g fig ur e
shows the DIRECTV channel banner. The DIRECTV channel banner description area
can be expanded, if the user presses the INFO key.
Any Given Sunday
Any Given Sunday
105
3:00 PM - 5:37 PM Mon 10/30/00 3:23 PM
3:00 PM - 5:37 PM Mon 10/30/00 3:23 PM
Movie. Drama. (1999) Al Pacino, Cameron Diaz, Dennis
Movie. Drama. (1999) Al Pacino, Cameron Diaz, Dennis
Quaid. Oliver Stone scores with this tale of egos colliding on
Quaid. Oliver Stone scores with this tale of egos colliding on
& off the pro football field. All Day Ticket. AC, AL.
& off the pro football field. All Day Ticket. AC, AL.
DTV
DTV
ALL CH
ALL CH
CC
CC
The DIRECTV Channel Banner
In addition to viewing the program description, the user can add or remove the
channel from the favorite chan nel list. This is accom plished by navig ating left or right
and pressing the ACTION key.
Channel Banner: Favorite Channel List
The favorite channel list is a customized list that allows you to create your own unique
channel list. The favorit e chan nel lis t is act ive when yo u selec t the “FAV CH” mode in
the guide screen. By default, the “ALL CH” mode is selected. Also, by default, both the
“ALL” mode and “FAV” modes default to all the channels selected in their lists.
When the description of the channel banner is expanded, the user now has the
opportunity to add or remove a channel from the favorite list. By default,
Delete from FAV button is highlighted when the Channel Banner is expanded. Once a
channel is removed from the favorite li st, the user is require d to numerically e nter in
the channel number to vi ew that cha nnel, a t which ti me the user can ad d the chan nel
back into the favorite channel list.
The following figure depicts the Channel Banner, when the Description area is
highlighted.
Rating R
Rating R
12
ALL CH
Delete from FAV
Channel Banner
F
EATURES OF THE DIGITAL SATELLITE RECEIVER
Channel Banner: Components
The Channel Banner is used to show you which channel and program you are
currently viewing or sele cting. The figure below indicate s the various components of
the Channel Banner.
Channel
Number
Channel
Name
Title and duration
Description
System Clock
Channel Surf
Mode
(FAV or ALL CH)
Closed
Caption
Icon
Delete From FAV
Alternate
Audio Icon
Rating Level
Channel Banner Components
The following figure display s some of the information tha t can possibly be displayed ,
simultaneously.
Delete from FAV
Audio Track (1of 2) English
i
Press INFO if you want to purchase this event.
Channel Banner with OSD Messages
13
F
EATURES OF THE DIGITAL SATELLITE RECEIVER
Icons: Channel Banner
The Channel Banner contains sev eral icons tha t are displaye d only when the featur e
is available and is supported by the Digital Satellite Receiver. The following figure and
table depicts the location and appearance of these icons.
Icon Name Icons Description Icon Appearance
Viewing Modes
Messages
Lock
Alternate Audio
Closed Captioning
Indicates that there is an unread
message.
Indicates that the channel is locked
due to either limits on spending or
by content advisory.
Indicates that the current program
has multiple audio tracks.
Indicates that the program has
Closed Captioning.
CC
This section descr ibes the user inter face that is direc tly controlled by remote or front
panel. The following operational modes are supported by this interface:
• Tuning Mode
• Recall Display Mode
• Exiting T uni ng Mo de
Normal Viewing Mode
Normal Viewing Mode is defined as only the video being displayed and possibly
closed captioning data. When Digital Satellite Receiver is first powered on, it will be in
the Normal Viewing mode.
Note: The first time the
exceeding the MPAA or TV rating limits and channels not authorized by DIRECTV are
shown.
Digital Satellite Receiver
is powered On, all channels except those
Once the user has created a favorite channel list , the Digital Satellite Receiv er will
channel surf on ly to channels t hat are part of the fav orite channel lis t. The user may
tune to a channel that is not a member of the favorite channel li st by entering in a
channel number, explained in the Dir ect Tuning Method section. The user m ust add
this channel using the menu system .
14
Tuning Mode
F
EATURES OF THE DIGITAL SATELLITE RECEIVER
Power On Requirements
When the Digital Satellite Receiver is powered on, the receiver wil l tune to the last
tuned channel. If this chann el no long er exists, the receiver wi ll tune to c hannel 100 .
Prior to initial setup of the rece iver, the receiver may automatically go to Setup menu
or tune to channel 100.
The Tuning Mode happens when the user attempts to change the channel. The Digital
Satellite Receiver will support 3 ways to change the channel, as outlined below:
Method Result
• Direct Tuning (0-9 and PROG keys) Tunes directly to a channel using
either single or compound numbers.
• Channel UP/Down Tuning (pqkeys) Tunes to the next/previous available
channel.
• Rapid Tune (R-TUNE) Switches between the last two
channels, accessed. This is
accomplished using the R-TUNE key
on the remote.
Direct Tuning Method
The Digital Satellite Receiver supports the tuning of either single or compound
channel numbers. The single channel numbers range from (0 to 9999) and compound
channel numbers (major-minor) can range from (0-0 to 999-99)*. The compound
channel number uses the “PROG” button to enter the minor number field. Following is
an example of Direct tuning screen.
345-78
MSNBC
FAV CH
Star Battle
9:00 PM - 10:00 PM
“The battle of the universe begin when the evil…”
CC
Direct Tuning example
9:15 PM
Sun 3/21/01
RATING: T V- PG
*For example, 120-1 is an example o f a compoun d number. 120 is the major number
and 1 is the minor number.
15
F
EATURES OF THE DIGITAL SATELLITE RECEIVER
Tuning Mode (Cont.)
Example of Non-compound (Single) Channel Number Input
For example, to tune channel 345, you enter the channel number by using the number
keys (0-9) on th e remote control. Then pr ess the ACTION button which causes the
tuning event to occur.
Example of Compound Channel Number Input
A compound num bers (ma jor-mi nor) can range from ( 0-0 to 999- 99). For ex ample , to
enter channel number 345-78, you do the following.
• Press the numeric buttons 3, 4 and 5 on the remote control.
• Press PROG button to enter the minor number field.
• Press number 7 and 8 buttons on the remote control.
• Pres s A CTION button to complete the tuning event.
Note: If you do not enter a number after 3 seconds, the number 0 is assumed for the minor
number.
Unavailable Channel Selection
The “Channel Not Available” screen is displayed when you select an unavailable
channel. The following is a list of some possible situations where an unavailable
channel selection may occu r.
r Tuning to a channel that is not transmitting any programs.
r Tuning to a channel that is blocked either by spending or content advisory limits.
r The signal strength of the RF signal is insufficient to obtain consistent error free data.
Following is a example of Channel Not Available screen.
Random Hearts
119
DTV
ALL CH
4:30 PM - 5:4 5 PM
Movie, Drama, Harrison Ford, Kristin Scott Thom
Rating Limit Exceeded.
Press ACTION to Override.
Wed 05/03/00 6:00 PM
Rating: R
Channel Not Available Screen
The following is an example of insufficient credit.
For ordering information, please call
i
customer service, ext. 732.
16
Getting Started
Step 1. Connect AC Power Cord
Plug the AC power cord into a gro unded outle t. Do not turn on a ny devices until yo u
have finished making all necessary connections.
Step 1a. DIRECTV Satellite dish Connection
Connect the DIRECTV Satellite dish downlead to the Satellite In jack on the rear panel
of the Digital Satellite Receiver.
SATELLITE
DISH
G
ETTING STARTED
Note: With this receiver and the proper satellite dish antenna, you may be able to subscribe
to local channels from DIRECTV in certain markets. Additional equipment may be
required in s ome a r eas. Ch e ck wi t h yo ur re ta il er or visi t DI RE CT V.com for inf or m ati on
on availability of local channels from DIRECTV in your area.
Step 1b. Antenna/Cable Connection
Connect the antenna or cable wire to the VHF/UHF IN jack on the rear panel of th e
Digital Satellite Receiver. The signal from the terrestrial antenna or cable will be
passed through when the user presses the TV/SAT button on the remote co ntrol or
when the digital satellite receiver is off. The RF output of the Digital Satellite Receiver
must be connected to the television.
SATELLITE
SATELLITE
IN
NTSC OUTPU T
R-AUDIO-L VIDEO
IN
NTSC OUTPU T
R-AUDIO-L VIDEO
VHF/UHF
IN
TEL LINE
VHF (S AT) /UHF
OUT
CABLE OR OFF-AIR ANTENNA
VHF/UHF
IN
TEL LINE
VHF (S AT) /UHF
OUT
AC IN
AC IN
17
G
ETTING STARTED
Step 1c. Digital Satellite Receiver connection to TV or Monitor
Follow this diagram when connecting the Digital Satellite Receiver to a Television or
Monitor.
SATELLITE
IN
INPUT
AUDIO
RL
VIDEO
NTSC OUTPUT
R-AUDIO-L VIDEO
ANT IN
TV
Incoming signal from
cable or antenna
VHF/UHF
IN
VHF (SAT) /UHF
OUT
NOTE: A/V CABLES AND MODEM
CABLE INCLUDED.
Digita l S a t e llite R eceiver
TEL LINE
AC IN
DIGITAL SATELLITE RECEIVER CONNECTION TO TV OR MONITOR
Procedure
• Connect the VHF (SAT) /UHF OUT to the ANT IN of the television or connect video cable
from the video output jack on the Dig ital Satellite Receiver to the vide o input jack on the TV.
• Connect audio cables from the left and right NTSC audio output jacks on the Digital
Satellite Receiver to the left and right audio input jacks on the TV.
18
To receive off-air programming (no cable box)
• Turn off the Digital Satellite Receiver or press TV/SAT button to toggle.
• Tune TV to desired channel.
To receive off-air programming (with cable box)
• Turn off the Digital Satellite Receiver or press TV/SAT button to toggle.
• Tune TV to cable box output channel (either CH3 or Ch4).
• Tune the cable channels using the cable box.
Note: Modem should also be connected to a telephone jack using the cable supplied RJ11C
cable if impulse pay per view services are desired.
G
ETTING STARTED
Step 1d. Digital Satellite Receiver, Satellite dish, Cable box and terrestrial antenna
Follow this diagram if you have Satellite service, cable box and terrestrial antenna.
Cable or terrestrial ante nna signal i s passed through wh en you press TV/SAT button
to toggle or when the Digital Satellite Receiver is turned off.
CABLE BOX
NOTE: A/V CABLES AND MODEM
CABLE INCLUDED.
A/B SWITCH
AC IN
ANT IN
TV
VIDEOR-AUDIO-L
Dig ita l Satellite R eceiver
SATELLITE
IN
NTSC OUTPUT
R-AUDIO-L VIDEO
ANT IN ANT OUT
UHF/VHF
IN
VHF (SAT) /UHF
OUT
TEL LINE
DIGITAL SATELLITE RECEIVER, SATELLITE DISH,
CABLE BOX AND TERRESTRIAL ANTENNA
Procedure
• Connect the antenna cable to one of the inputs (A or B) of the A/B switch.
• If using a cable box, connect the cable wire from the wall jack to the cable box ANT
(antenna) IN jack using a standard RF cable with coaxial connector and connect the cable
box ANT (antenna) OUT jack to the other input (A or B) of the A/B switch.
• If not using a c ab le b ox , c onnect the cable wire from th e wall jack to the sec ond inp ut of the
A/B switch using an RF cable (not shown).
• Connect the OUT signal of the A/B switch to the ANT IN jack of the Digital Satellite
Receiver.
• Connect the VHF (SAT) /UHF OUT jack to the Conventional TV or Monitor by using a RF
cable.
• Connect the NTSC OUTPUTS of the Digital Satellite Receiver to the A/V inputs of the
television or monitor.
Note: If viewing video using RF Input, select either CH 3 or CH 4 in TV Output section in the
Setup menu. Tune your television to the same channel (either CH 3 or CH 4).
19
G
ETTING STARTED
Step 1e. Digital Satellite Receiver Connection to VCR
Follow this diagram when connecting the Digital Satellite Receiver to a standard VCR.
R-AUDIO-L VIDEO
SATELLITE
IN
TV
R-AUDIO-L VIDEO
NTSC OUTPUT
R-AUDIO-L VIDEO
ANT IN
VCR
ANT OUT
VIDEO OUT
VIDEO IN
VHF (SAT) /UHF
ANT IN
Incoming Signal from antenna or cable
DIGITAL SATELLITE RECEIVER
VHF/UHF
IN
TEL LINE
OUT
NOTE: A/V CABLES AND MODEM
CABLE INCLUDED.
AC IN
20
VCR SETUP
Procedure
• Connect video c able from the vi deo outp ut jack on the Di git al Sat ellite Receiv er to the v ideo
input jack on the VCR.
• Connect audio cables from the left and right audio output jacks on the Digital Satellite
Receiver to the left and right audio input jacks on the VCR.
• Connect video cable from video output jack on the VCR to video input jack on TV.
• Connect the audio out cables from the audio output jacks on the VCR to the audio input
jacks on the TV.
To record off-air programming
• Turn off satellite receiver or press TV/SAT button to toggle. Tune the VCR to desired
channel and push record button on the VCR to start recording
Note: This Digital Satellite Receiver incorporates an anticopy process technology that
is protected by U.S. patents and other inte llec tual property rights me asure s. Th e
anticopy process is licensed for non-commercial, home use only. Reverse
engineering or disassembly is prohibited.
